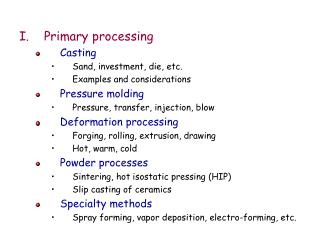

  1. Primary processing • Casting • Sand, investment, die, etc. • Examples and considerations • Pressure molding • Pressure, transfer, injection, blow • Deformation processing • Forging, rolling, extrusion, drawing • Hot, warm, cold • Powder processes • Sintering, hot isostatic pressing (HIP) • Slip casting of ceramics • Specialty methods • Spray forming, vapor deposition, electro-forming, etc.

  2. Types of Casting • See: • http://www.efunda.com/processes/processes_home/process.cfm • for descriptions of: • Die casting • Sand casting • Investment casting • etc.

  3. Examples of cast parts : Metal: Aluminum Process: Die Cast Weight: 14.6 lbs Size: Large(over 12X12) Market: Automotive Description: Transmission Gear Case

  4. Examples of cast parts : Metal: Magnesium Process: Die Cast Weight: 90 grams Size: Medium(3X3 to 12X12) Market: Computer/Electronics Description: Military Hand Held Radio Housing

  5. Examples of cast parts : Metal: Zinc Process: Die Cast Weight: 0.39 lbs Size: Medium(3X3 to 12X12) Market: Automotive Description: Police/Commercial Spot Light Hsng.

  6. Examples of cast parts : Metal: Aluminum Process: Die Cast Weight: 19 lbs Size: Large(over 12X12) Market: Automotive Description: Lower crankcase

  7. Examples of cast parts: Metal: Zinc Process: Die Cast Weight: 0.244 oz Size: Very Small(1X1) Market: Computer/Electronics Description: A shielded cable header for housing electrical connector pins

  8. Examples of cast parts: Metal: Aluminum Process: Die Cast Weight: xx Size: Medium(3X3 to 12X12) Market: Sports/Recreation Description: wankel snowmobile engine rotor housing

  9. Pressuremolding

  10. Pressuremolding

  11. Examples of molded parts: Blow molded parts for automobile exhaust

  12. Examples of molded parts:

  13. Examples of blow molding: The GET PET A2000 is an automatic stretch blow molding machine for water bottles.  It can blow up to 2000 bottles per hour into a variety of sizes to fit your product line.  It takes plastic pre-forms and molds them into the designated bottle shape and can help increase production output with its tremendous speed.

  14. Forging

  15. Forging

  16. Rolling

  17. Wire drawing

  18. Extrusion

  19. Deep drawing:

  20. Involves : punching , bending, stretching Must avoid necking, tearing, etc. Formability Minimum ratios to which a sheet can be bent1 x thickness (good) 4 x t (average) Sheet metal forming :
