Pacemaker Patient Follow-up Module 8

1. Pacemaker Patient Follow-upModule 8

2. Objectives • List the steps for performing a pacemaker follow-up • Locate threshold, sensing and impedance data on a Quick Look™ screen • Identify broad trends in Cardiac Compass® and HF Management Reports • Identify additional resources or information useful for performing patient follow-up

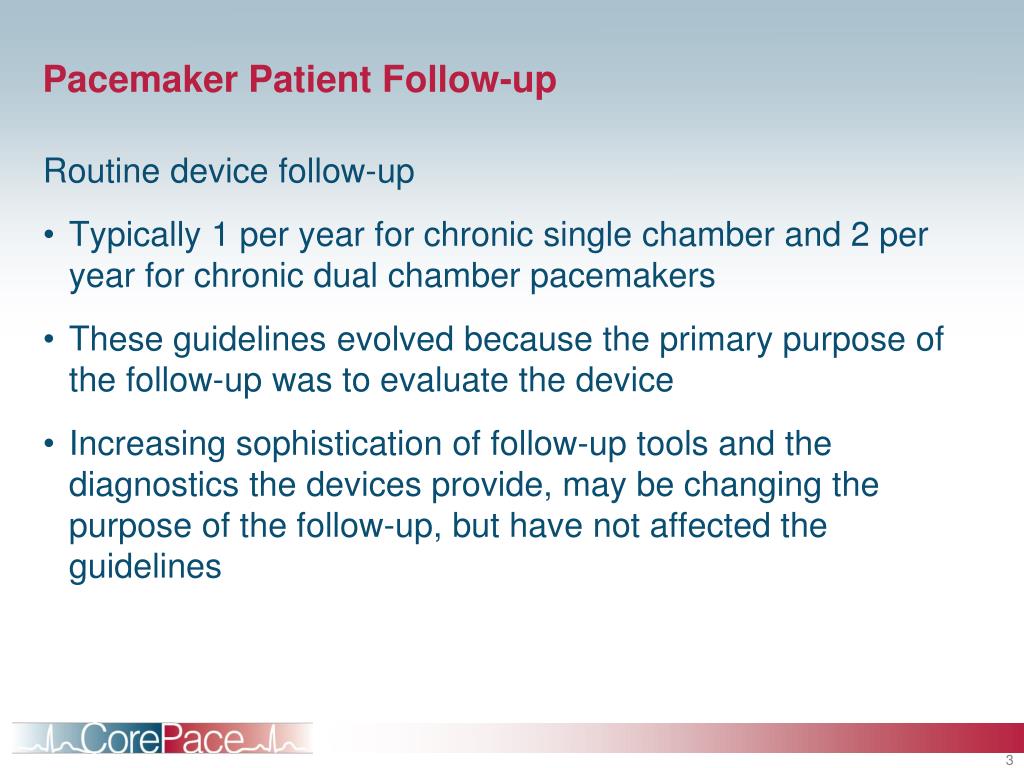

3. Pacemaker Patient Follow-up Routine device follow-up • Typically 1 per year for chronic single chamber and 2 per year for chronic dual chamber pacemakers • These guidelines evolved because the primary purpose of the follow-up was to evaluate the device • Increasing sophistication of follow-up tools and the diagnostics the devices provide, may be changing the purpose of the follow-up, but have not affected the guidelines

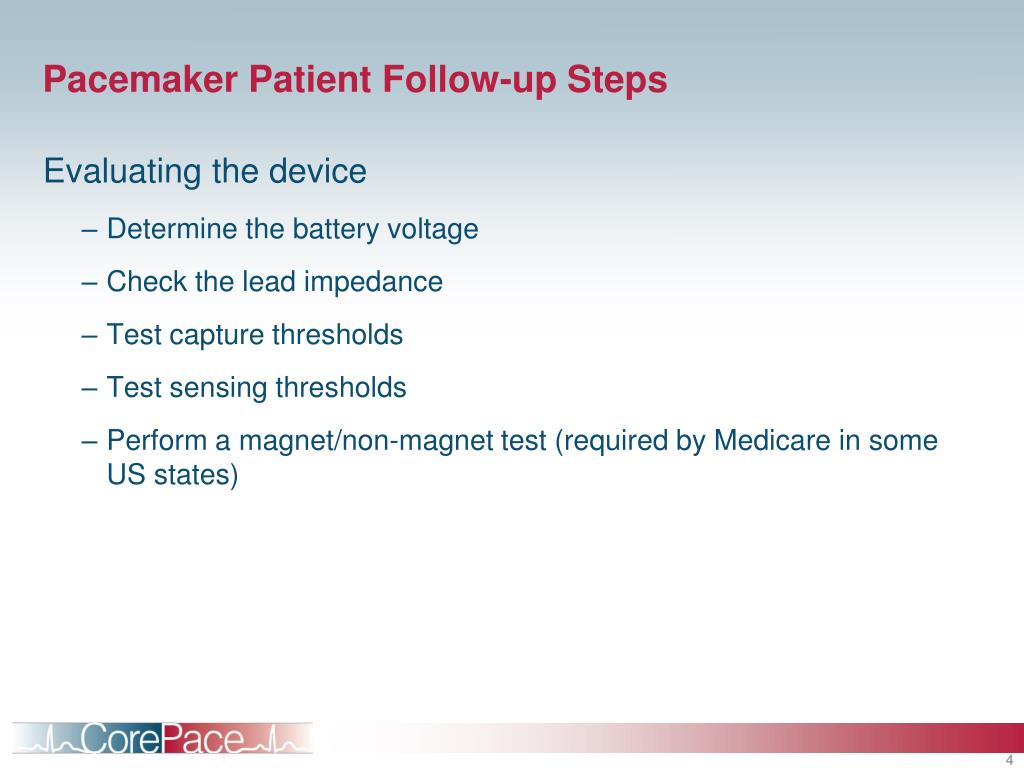

4. Pacemaker Patient Follow-up Steps Evaluating the device • Determine the battery voltage • Check the lead impedance • Test capture thresholds • Test sensing thresholds • Perform a magnet/non-magnet test (required by Medicare in some US states)

5. Pacemaker Patient Follow-upEvaluating the Device • Battery voltage • To verify the pacemaker’s ability to operate and estimate the remaining longevity • Lead impedance • To verify that the leads are electrically intact • Capture thresholds • To verify an appropriate pacing safety margin • Sensing thresholds • To verify an appropriate sensing safety margin • To observe the underlying rhythm • Magnet/non-magnet test • To verify Recommended Replacement Time (RRT) has not been reached

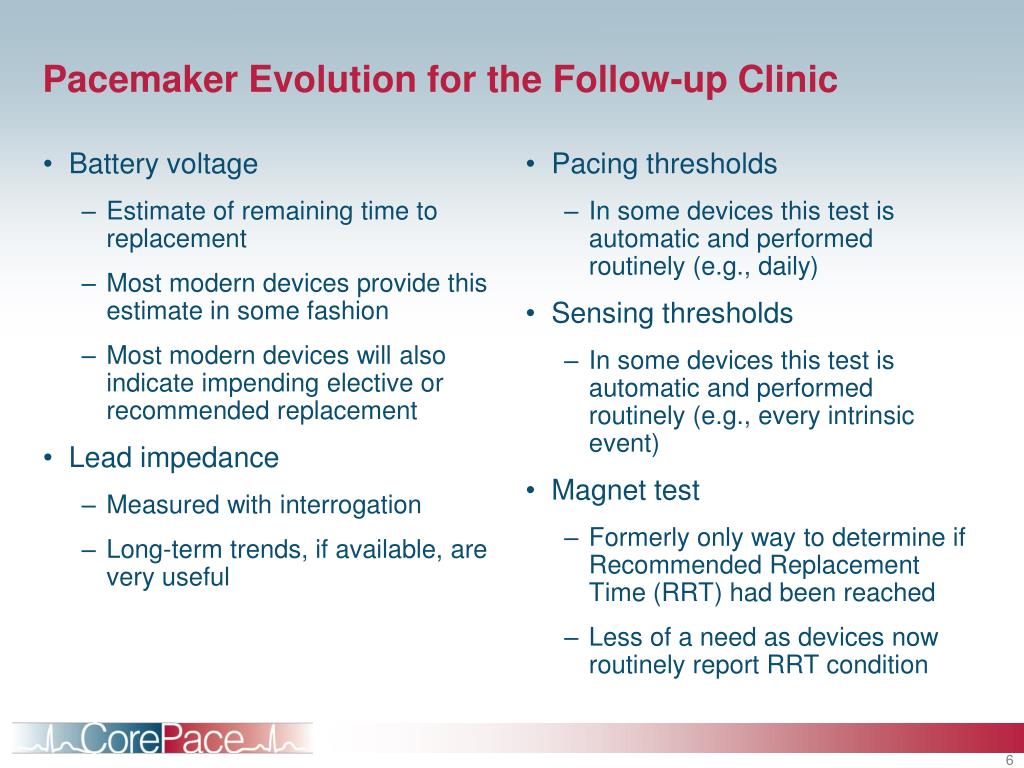

6. Battery voltage Estimate of remaining time to replacement Most modern devices provide this estimate in some fashion Most modern devices will also indicate impending elective or recommended replacement Lead impedance Measured with interrogation Long-term trends, if available, are very useful Pacing thresholds In some devices this test is automatic and performed routinely (e.g., daily) Sensing thresholds In some devices this test is automatic and performed routinely (e.g., every intrinsic event) Magnet test Formerly only way to determine if Recommended Replacement Time (RRT) had been reached Less of a need as devices now routinely report RRT condition Pacemaker Evolution for the Follow-up Clinic

7. Battery VoltageEstimating Remaining Longevity • Max voltage in a pacemaker battery is typically 2.8 V • RRT at 2.5 Volts • Voltage information is provided on the programmer • Many devices estimate remaining longevity based on % pacing, lead impedances, and pacing outputs • Magnet Test evolved as a way to evaluate if RRT criteria is met via a simple telephone or in-clinic check • When a magnet is applied, verify if the pacemaker shows normal magnet behavior or RRT magnet behavior • For some pacemakers, a magnet initiates a Threshold Margin Test (TMT)

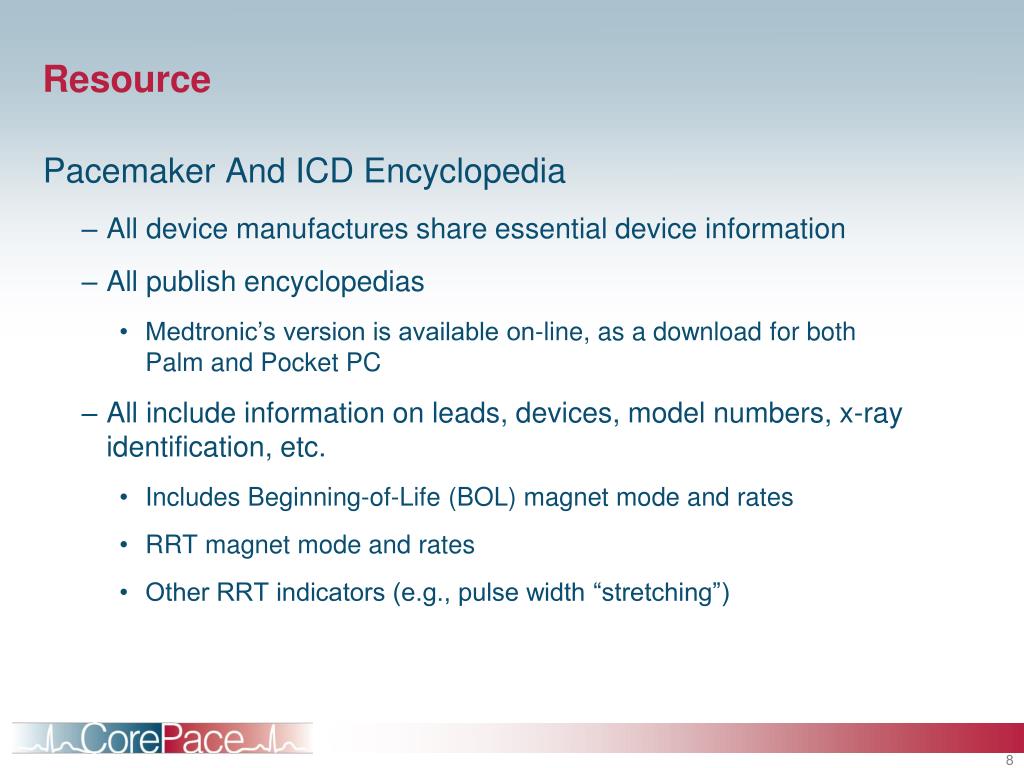

8. Resource Pacemaker And ICD Encyclopedia • All device manufactures share essential device information • All publish encyclopedias • Medtronic’s version is available on-line, as a download for both Palm and Pocket PC • All include information on leads, devices, model numbers, x-ray identification, etc. • Includes Beginning-of-Life (BOL) magnet mode and rates • RRT magnet mode and rates • Other RRT indicators (e.g., pulse width “stretching”)

9. Status Check • Determine the magnet and non-magnet modes, and rates for a Kappa® 700, Model KDR731. Click for answer

10. Status Check • Find the Estimated Longevity Click for answer Battery Voltage can be found by selecting “Battery and Lead Measurements” under the Data icon.

11. Magnet Testing • If required: • Use a donut magnet (or the programming head) • Record the ECG with and without the magnet • Medicare guidelines call for a 30-second recording of each • Observe the ECG for asynchronous pacing with the magnet • Measure the pacing rate • Some modern devices provide a specific magnet test as an option on their programmer

12. Lead Impedance • Can you recall why knowing the lead impedance is important? • Because the lead impedance can warn you of a lead insulation failure or a lead conductor fracture • At implant, it could indicate a loose set screw • Can you recall the expected range of lead impedances? • Normally, 300-1000 Ω, although some specially designed leads may be higher Click for answer Click for answer

13. These trends show stable impedances. For more information, touch the chevron. Status Check • Find the lead impedances Click for answer

14. Pacing Thresholds • Can you recall the pacing output safety margin on a chronic system? • Multiply the amplitude threshold by two • Can you recall the maximum you would want to program the amplitude, assuming a threshold of < 1.0 V? • Normally, try to keep the output amplitude at < 2.5 V • Patient safety is paramount Click for answer Click for answer

15. These trends show stable thresholds. Note how the atrial threshold has decreased since implant. For more information, touch the chevron. Status Check • Find the pacing thresholds Click for answer

16. Threshold TestingManual Methods • The device automatically performs threshold tests But where would you find a manual threshold (or other) test? Click for answer

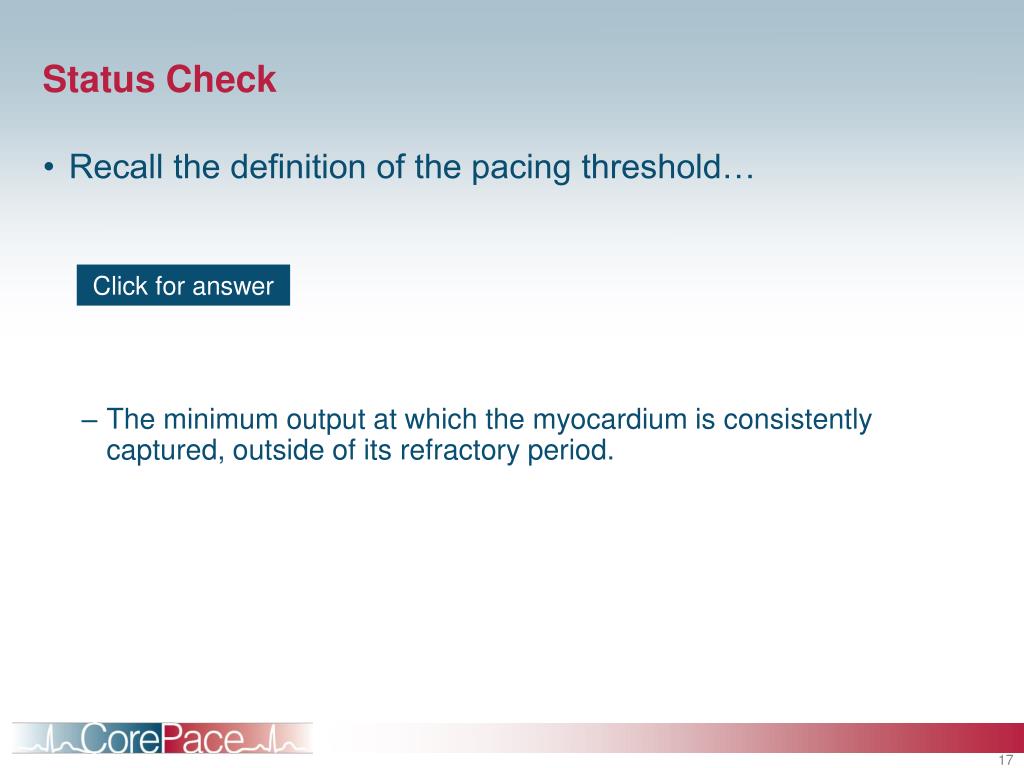

17. Status Check • Recall the definition of the pacing threshold… • The minimum output at which the myocardium is consistently captured, outside of its refractory period. Click for answer

18. Performing a Manual Pacing Threshold Test • Process • Tell the patient what you are going to do • Force pacing • Periodically lower the test value (amplitude or pulse width) • Stop the test once Loss-of-Capture (LOC) is seen on the ECG • The value just above LOC is the threshold 0.75 V 1.25 V 1.00 V

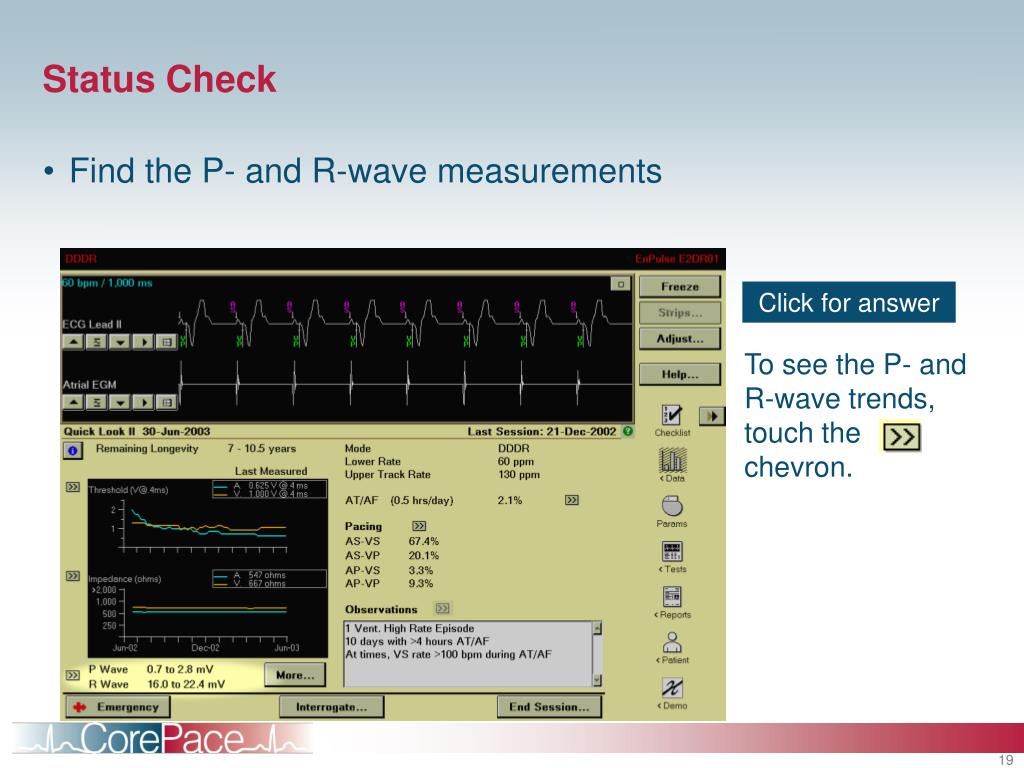

19. To see the P- and R-wave trends, touch the chevron. Status Check • Find the P- and R-wave measurements Click for answer

20. Sensing TestsManual Methods • This device automatically measures P- and R-waves But where would you find a manual sensing (or other) test? Click for answer

21. Status Check • What is the definition of the sensing threshold? • The minimum signal size required to inhibit (or trigger) the pacemaker Click for answer

22. Performing a Manual Sensing Test • Process • Tell the patient what you are going to do • Reduce (if necessary) the pacing rate to allow the intrinsic events to occur • Periodically increase the test value (e.g., for 0.5 mV to 1.0 mV) • Observe the ECG for loss of inhibition (pacing despite the presence of P- or R-waves) • The value, just lower than when pacing occurs, is the size of the P- or R-wave

23. Routine Testing • With almost all manufacturers, routine threshold and sensing tests can be performed on a programmer interface that guides you through the steps • Observe the patient carefully for symptoms or complaints • Follow the on-screen directions and closely observe the ECG for changes

24. Other Routine Tests • Underlying rhythm • Can frequently ascertain the underlying rhythm during the sensing test • Optionally, you can perform this test with the programmer • Retrograde conduction • Etc. • Done per clinic protocol, or only if needed

25. So We’ve Checked the Pacemaker • Is that all there is to it? • Well… • Is Rate Response programmed appropriately? • Can the patient achieve rates to support activities of daily living? • Is the patient having any arrhythmias? • What kind of arrhythmias, what rates, what triggers? • Can we program the device to extend its longevity? • Can we encourage intrinsic events? …are just some of the questions we can answer by looking at the device diagnostics.

26. Always evaluate the rate histograms Look for a “stair-case” distribution of rates Ask about the patient’s ability to achieve their desired levels of activity Optimizing Pacemakers for Patients Rates below the LRL may occur because of a timing anomaly. Rates above the UTR/USR may indicate an arrhythmia.

27. Optimizing Pacemakers for Patients • Always evaluate for the presence of arrhythmia • What type? • Is the patient symptomatic? Cardiac Compass is a simple way to stay informed of trends in the patient’s atrial arrhythmia burden. Cardiac Compass also provides trends on the ventricular response to these arrhythmia.

28. Episode Specific Diagnostics In pacemakers, stored EGMs can be useful: • Confirming accuracy of other arrhythmia diagnostics • For example – is oversensing triggering arrhythmia collection? • Collecting arrhythmia triggers • An EGM is an ECG recorded via the pacemaker’s leads and stored in the device Stored EGM of an episode of AF

29. Optimizing Pacemakers for Patients • Always evaluate the percent pacing • Many devices have a percent pacing counter, or look to the histograms for this information • Device longevity is affected by pacing outputs • High outputs decrease longevity • Low outputs (below about 2.0 V) don’t have as dramatic of an affect • So reducing the percentage of unnecessary pacing will improve device longevity and there may be other benefits to patients (more later)

30. Reducing the Pacing Percentage Managing AV delays • Use auto AV extension algorithms (e.g., Medtronic’s Search AV+) with Auto-PVARP options to: • Reduce unnecessary right ventricular pacing • Allow higher UTR • Guard against retrograde conduction

31. Reducing the Pacing Percentage Search AV+ example: • AV intervals are scanned • If the majority end in pacing (8/16) the AV delay is automatically increased • Note: AV scanning algorithms will typically still result in ventricular pacing about 40-50% of the time.

32. Using Other Diagnostics • Some devices include indicators of HF status and can be very useful • For example: HR variability, Average day/night rates, Activity trends • Otherwise be guided by: • The patient’s diagnosis, complaints, symptoms

33. Clinic EvolutionTaking Advantage of Pacemaker Automaticity • Devices do not routinely require extensive testing to confirm they are operating correctly • But when troubleshooting a particular problem is required, most devices today offer detailed data that may help assist with analysis of device, lead and disease progression concerns • If all tests can be performed automatically, and if we could view all device diagnostics remotely, why not: • Use the pacemaker clinic only when a device has a problem or requires reprogramming • Allow the physician to determine if routine clinic visits are warranted?

34. Medtronic CareLink® Network Example Clinic A ****** Click to Login

35. CareLink™ Network Example Pick the patient transmission Note: the patient information is fictitious

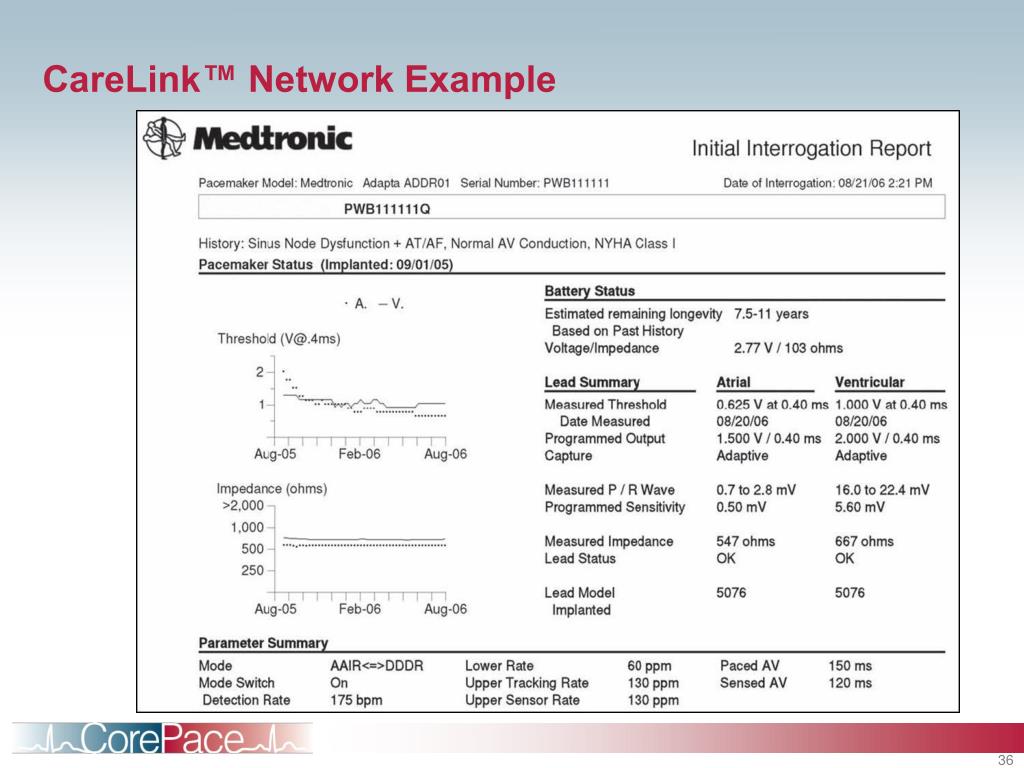

36. CareLink™ Network Example

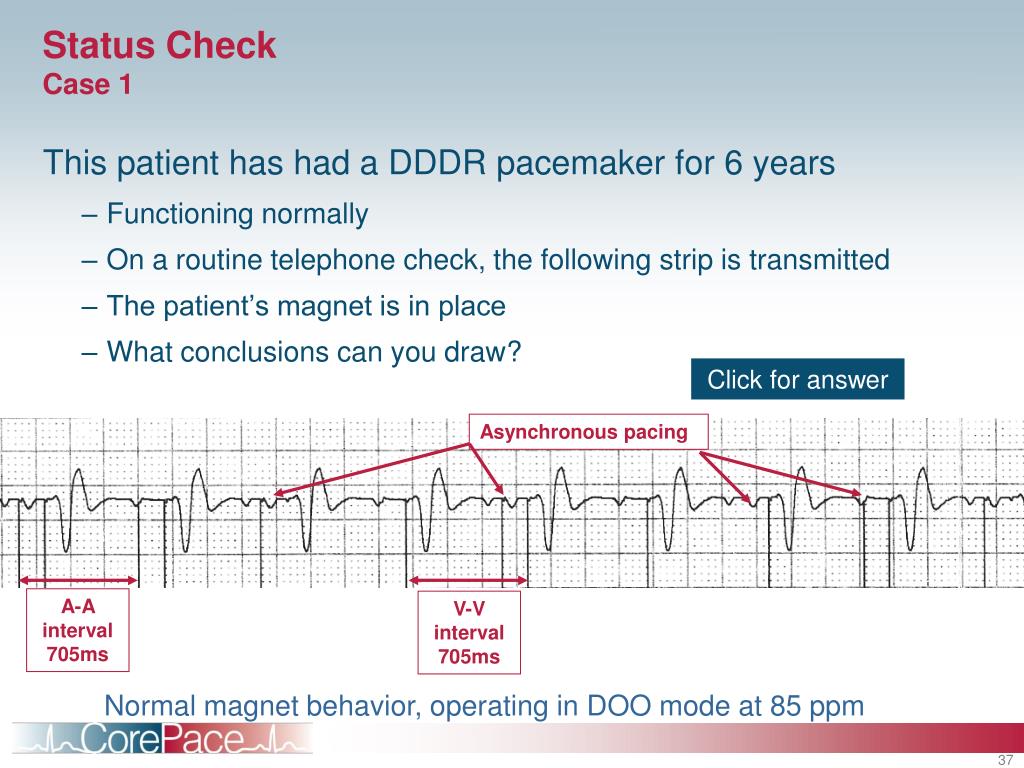

37. A-A interval 705ms V-V interval 705ms Status CheckCase 1 This patient has had a DDDR pacemaker for 6 years • Functioning normally • On a routine telephone check, the following strip is transmitted • The patient’s magnet is in place • What conclusions can you draw? Click for answer Asynchronous pacing Normal magnet behavior, operating in DOO mode at 85 ppm

38. Status CheckCase 2 This patient was implanted about 6 months ago for SND • He came to the clinic for a wound check 2 weeks post op. This is first IPG clinic visit. • This (hypothetical) pacemaker requires that you do all the testing. • How is the device currently programmed? Click for answer

39. Status CheckCase 2 Results of pacemaker testing: • Battery voltage: 2.78 V • Sensing: • P-waves 2.0-2.5 mV • R-waves >22.8 mV • Underlying rhythm Sinus Brady at 50 bpm • Thresholds • Atrial 1.0 V tested at 0.4 ms • Ventricular 0.8 V tested at 0.4 ms

40. Status CheckCase 2 • What programming changes (if any) would you recommend? • Re-program the A and V outputs to 2.0 V at 0.4 ms is reasonable. The leads should be stable at 6 months post implant. • Would you run any other tests or investigate any further? • The underlying rhythm indicates intact conduction. Consider programming a Search AV algorithm to reduce unncessary ventricular pacing. • Check the rate histograms and question the patient for the adequacy of his rate response. • Check other diagnostics for the presence of arrhythmia. Click for answer Click for answer

41. Status CheckCase 3 • This elderly patient had a DDDR implanted for sinus node dysfunction 8 weeks ago • Discovered sinus node disease with pauses on routine physical • Past medical history includes hypertension • She denies palpitations • Treatment: Hydrochlorothiazide (blood pressure medication) • Patient comes to the clinic for her first routine check • All values within normal and expected limits • Atrial and Ventricular outputs reduced to a 2.5x safety margin • No other changes made

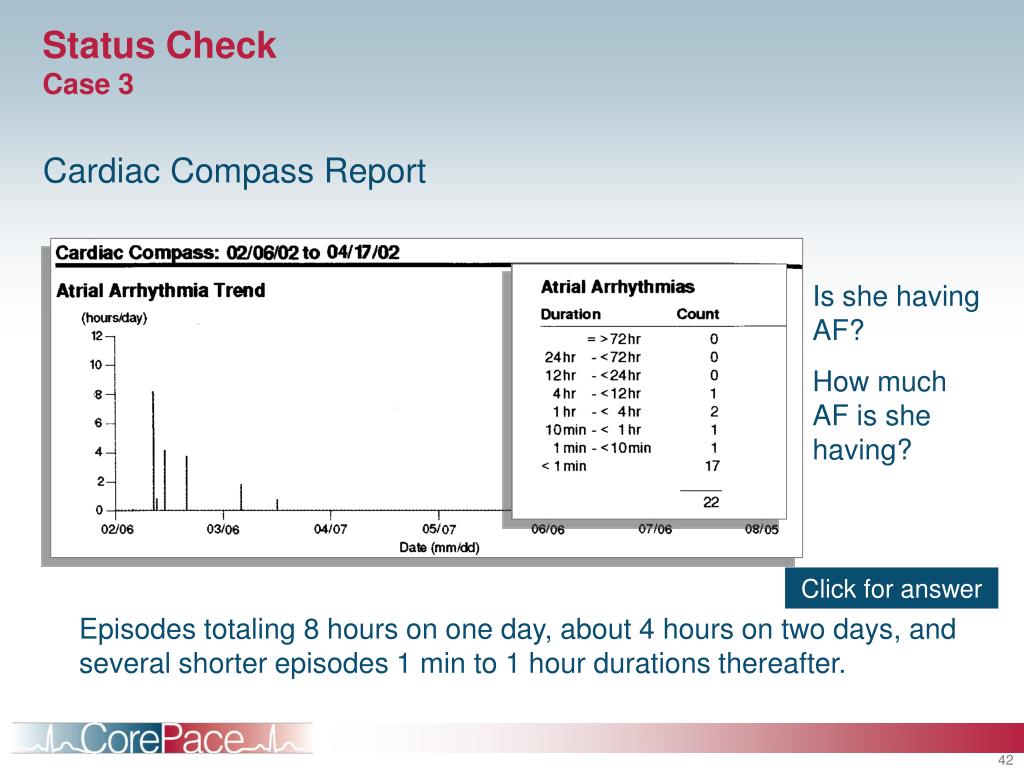

42. Status CheckCase 3 Cardiac Compass Report Is she having AF? How much AF is she having? Click for answer Episodes totaling 8 hours on one day, about 4 hours on two days, and several shorter episodes 1 min to 1 hour durations thereafter.

43. Status CheckCase 3 Cardiac Compass Report Is the ventricular response to AF well controlled? Click for answer Yes, as a very low percent of the ventricular response to AF is > 100 bpm.

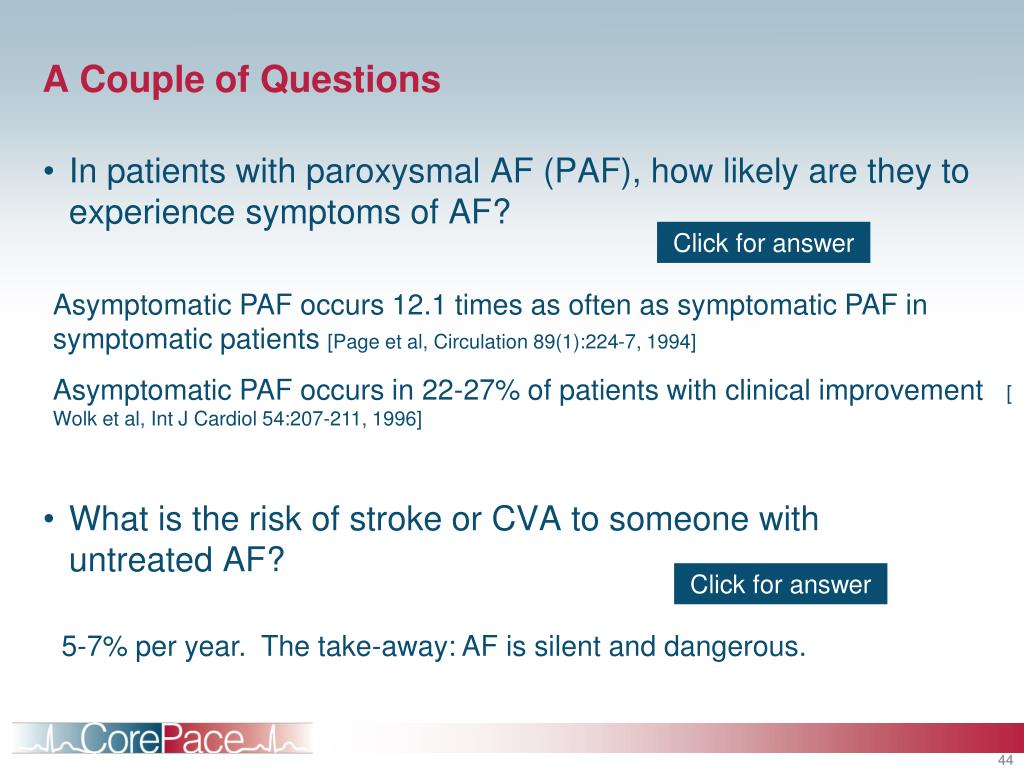

44. A Couple of Questions • In patients with paroxysmal AF (PAF), how likely are they to experience symptoms of AF? • What is the risk of stroke or CVA to someone with untreated AF? Click for answer Asymptomatic PAF occurs 12.1 times as often as symptomatic PAF in symptomatic patients [Page et al, Circulation 89(1):224-7, 1994] Asymptomatic PAF occurs in 22-27% of patients with clinical improvement [Wolk et al, Int J Cardiol 54:207-211, 1996] Click for answer 5-7% per year. The take-away: AF is silent and dangerous.

45. Status CheckCase 3 • Based on the Cardiac Compass® data, the MD decides to add Sotalol 160 bid and Coumadin • The patient returns 6 months later • Is her arrhythmia status improved? Click for answer Yes, it has improved. Her last episode was at the end of May.

46. A Couple More Questions • For this patient, how would you make the diagnosis of PAF without these kinds of diagnostics? • She had no symptoms • She was not in AF on clinic visits • For this patient, how would you evaluate the effectiveness of your treatment without these kind of diagnostics? • Her Medication regimen was not that effective in suppressing her AF • She had no symptoms • She was not in AF on clinic visits
