  1. Colour Image Processing Web reference www.cse.msu.edu/~stockman/Book/book.html

  2. Colour Perception • Physics of light • Human Perception • Land Colour Mondrains

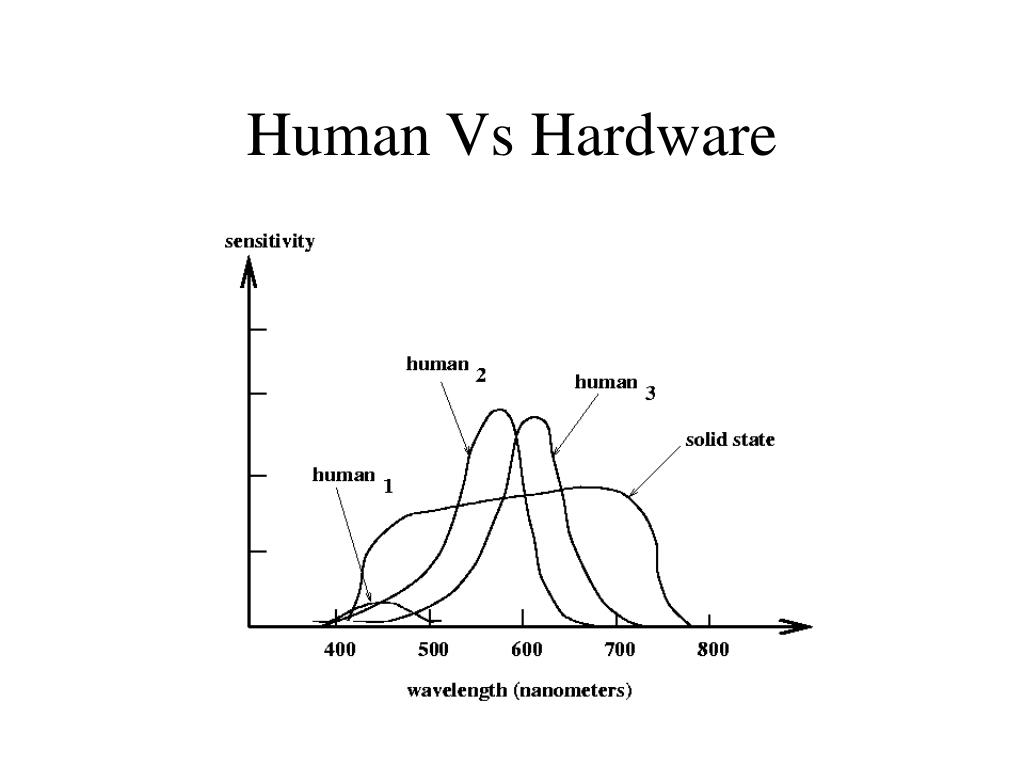

  3. Human Vs Hardware

  4. Hardware • Colour Cameras • Mosaic • 3 chip • Frame grabbers • 3 frame buffers • Red, Green and Blue

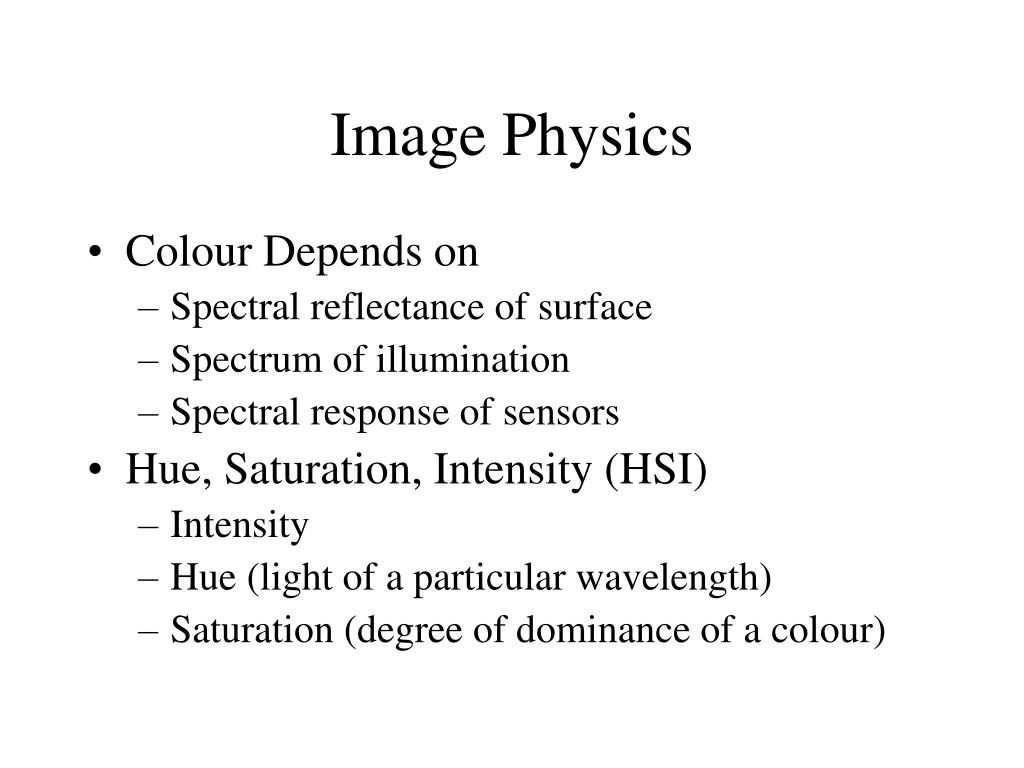

  5. Image Physics • Colour Depends on • Spectral reflectance of surface • Spectrum of illumination • Spectral response of sensors • Hue, Saturation, Intensity (HSI) • Intensity • Hue (light of a particular wavelength) • Saturation (degree of dominance of a colour)

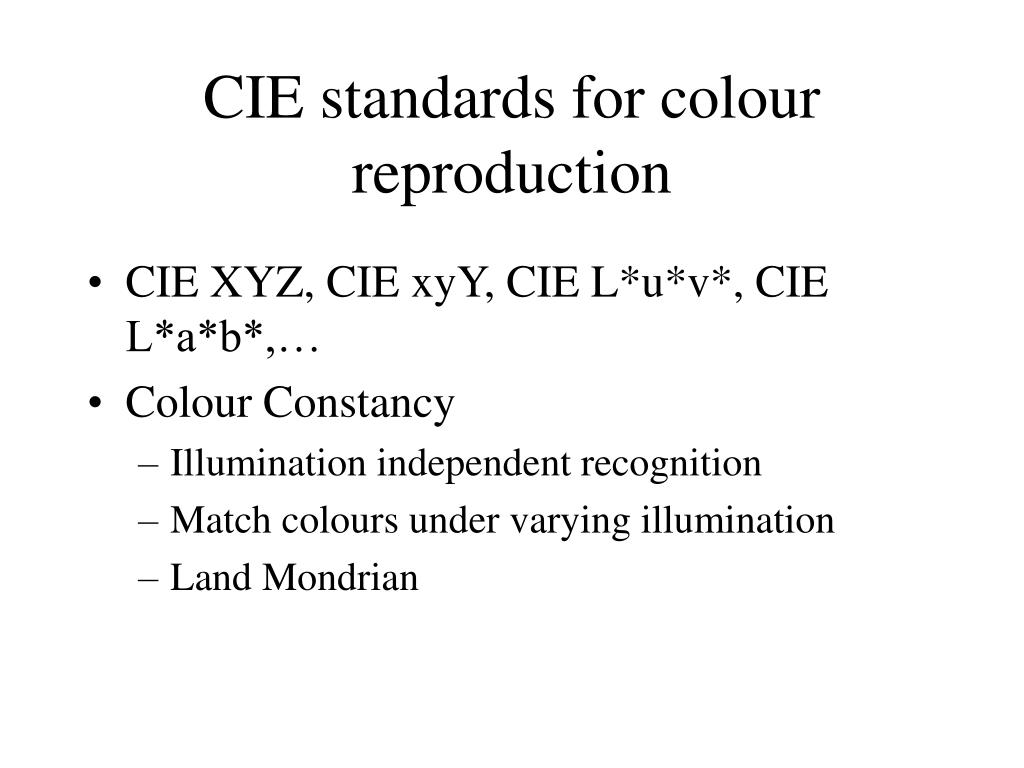

  6. CIE standards for colour reproduction • CIE XYZ, CIE xyY, CIE L*u*v*, CIE L*a*b*,… • Colour Constancy • Illumination independent recognition • Match colours under varying illumination • Land Mondrian

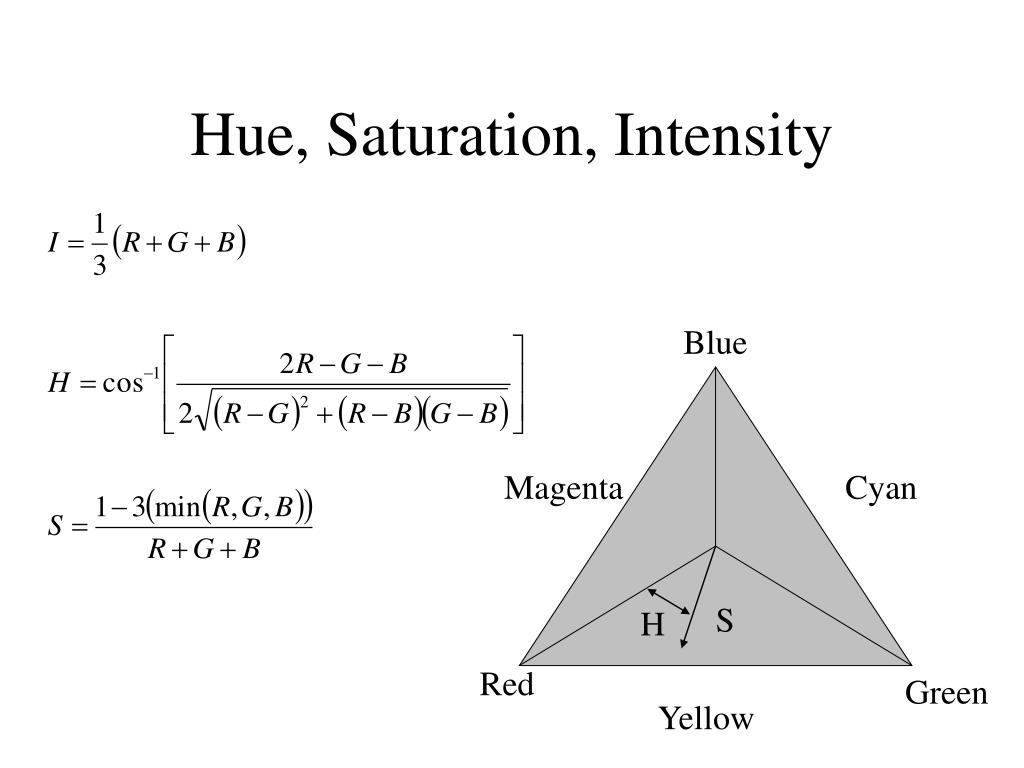

  7. Blue Magenta Cyan S H Red Green Yellow Hue, Saturation, Intensity

  8. Other colour spaces • Opponent • YIQ (NTSC)

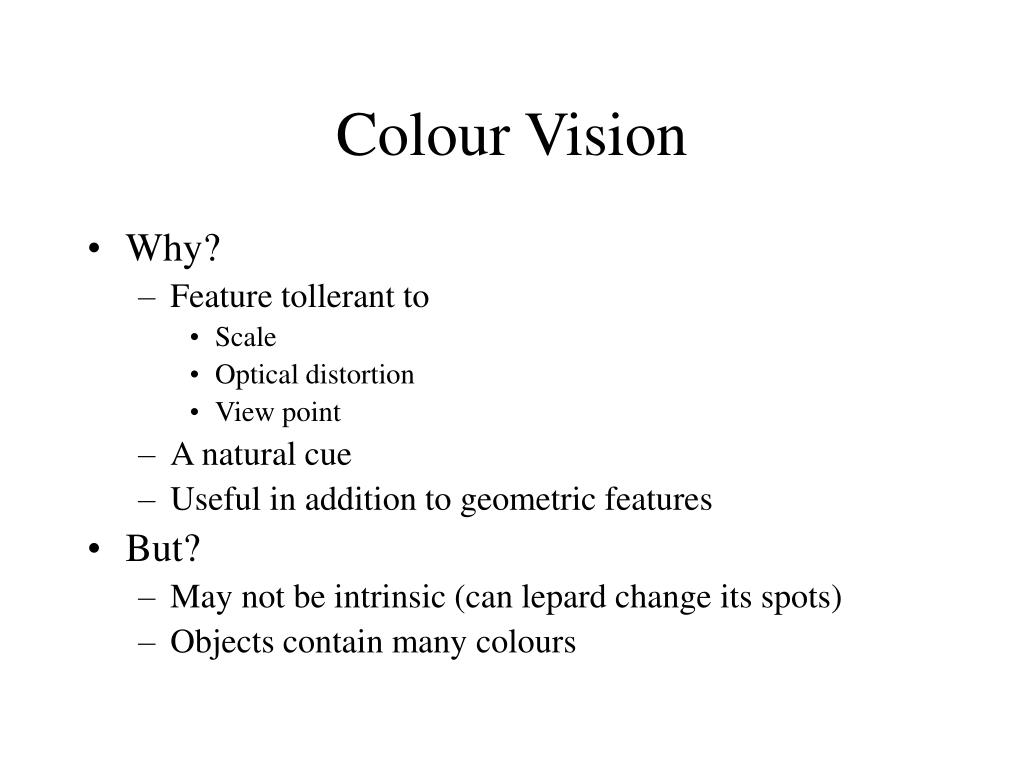

  9. Colour Vision • Why? • Feature tollerant to • Scale • Optical distortion • View point • A natural cue • Useful in addition to geometric features • But? • May not be intrinsic (can lepard change its spots) • Objects contain many colours

  10. Colour Image Processing • Pixel by pixel classification is error prone • Noise • Specular reflections • Hue unreliable when saturation is low • Saturation unreliable when intensity is low

  11. Colour Edges • Better quality edges than intensity alone • Extra computation • Fusion ? • Not many new edges

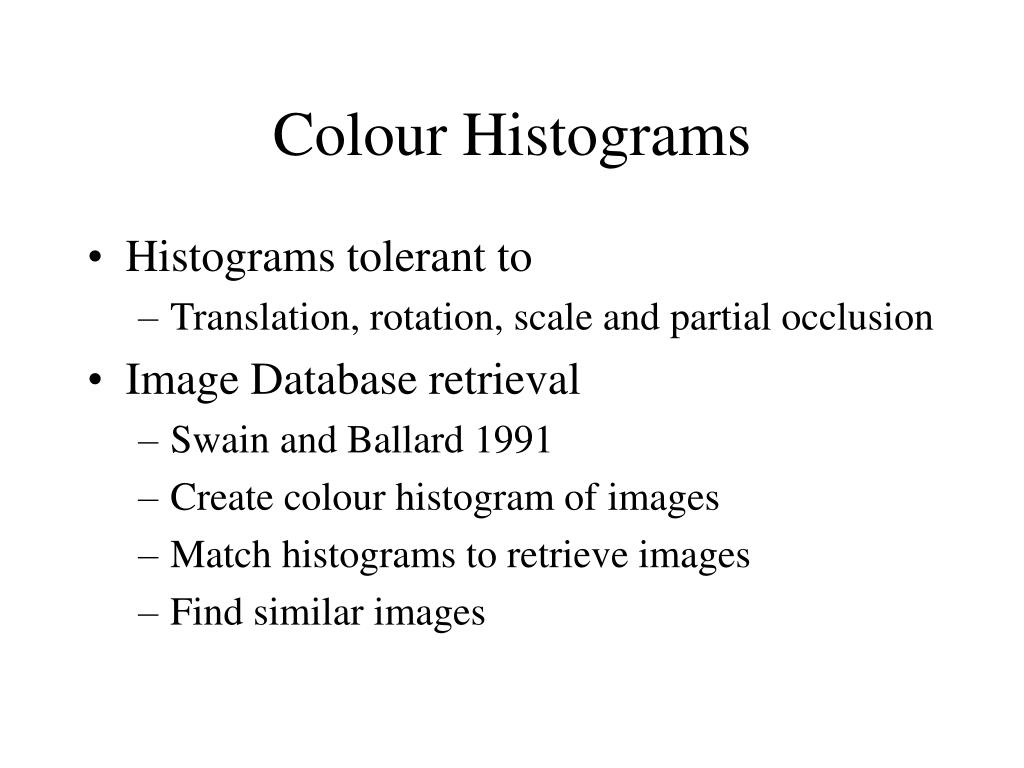

  12. Colour Histograms • Histograms tolerant to • Translation, rotation, scale and partial occlusion • Image Database retrieval • Swain and Ballard 1991 • Create colour histogram of images • Match histograms to retrieve images • Find similar images

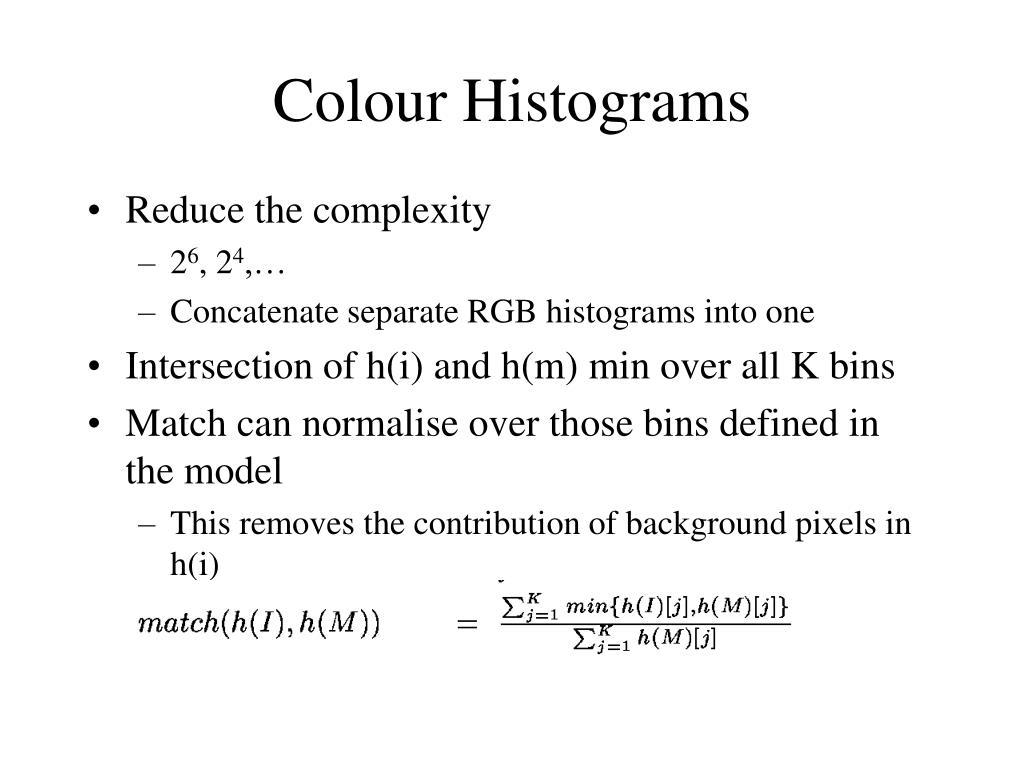

  13. Colour Histograms • Reduce the complexity • 26, 24,… • Concatenate separate RGB histograms into one • Intersection of h(i) and h(m) min over all K bins • Match can normalise over those bins defined in the model • This removes the contribution of background pixels in h(i)

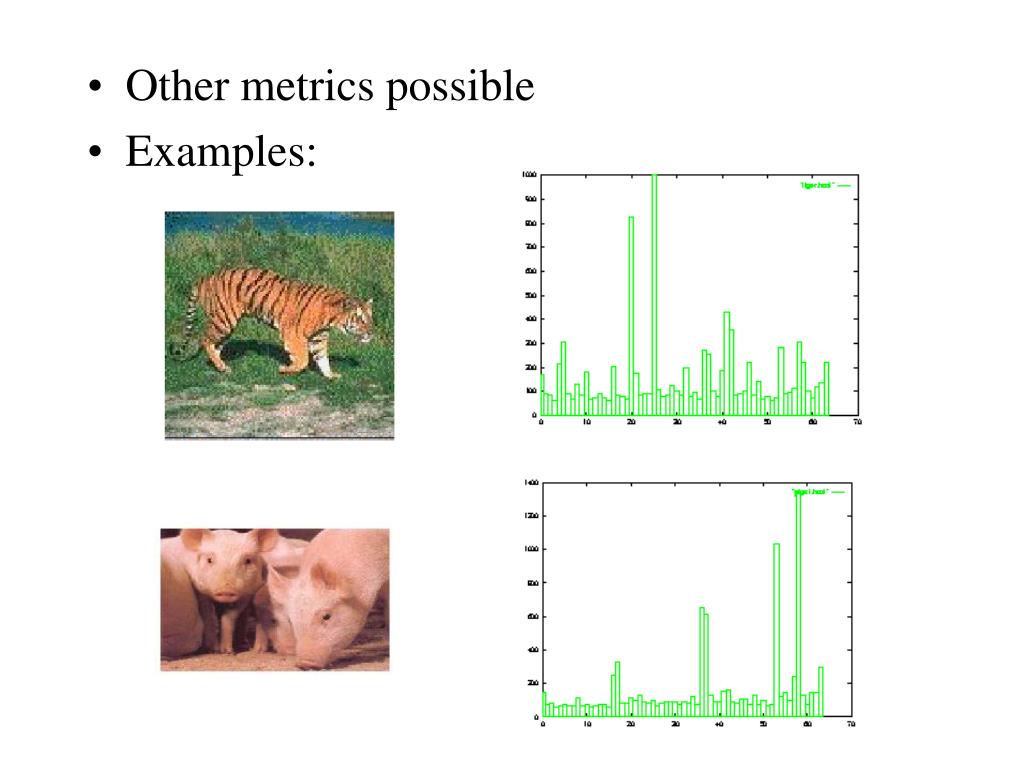

  14. Other metrics possible • Examples:

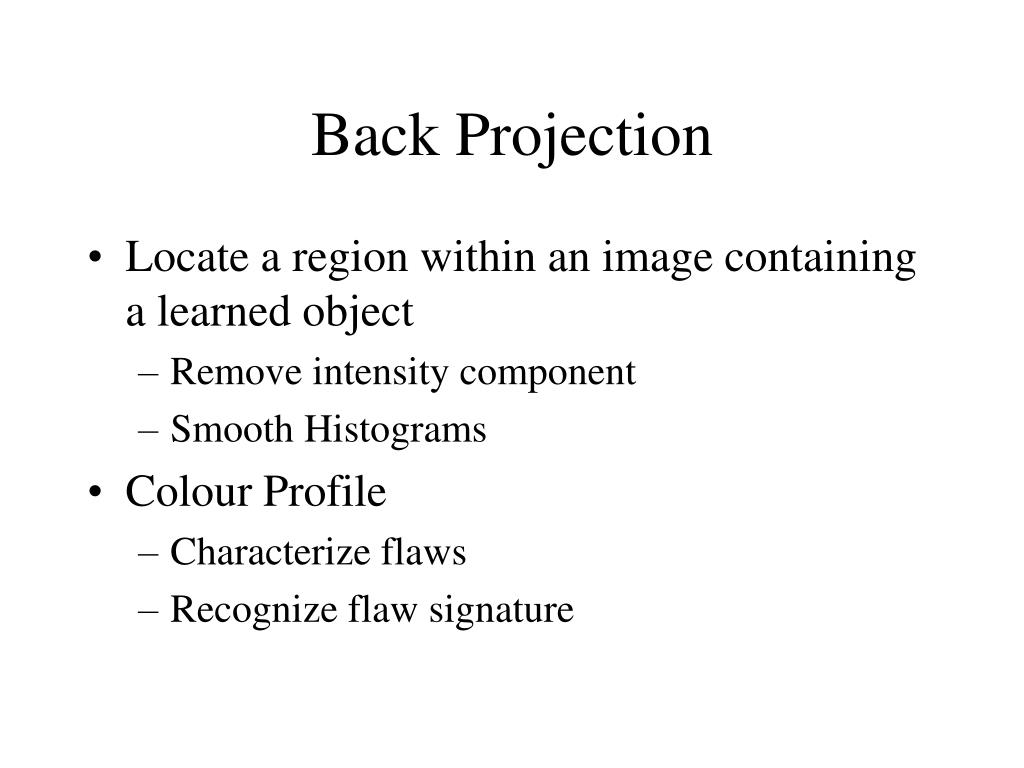

  15. Back Projection • Locate a region within an image containing a learned object • Remove intensity component • Smooth Histograms • Colour Profile • Characterize flaws • Recognize flaw signature

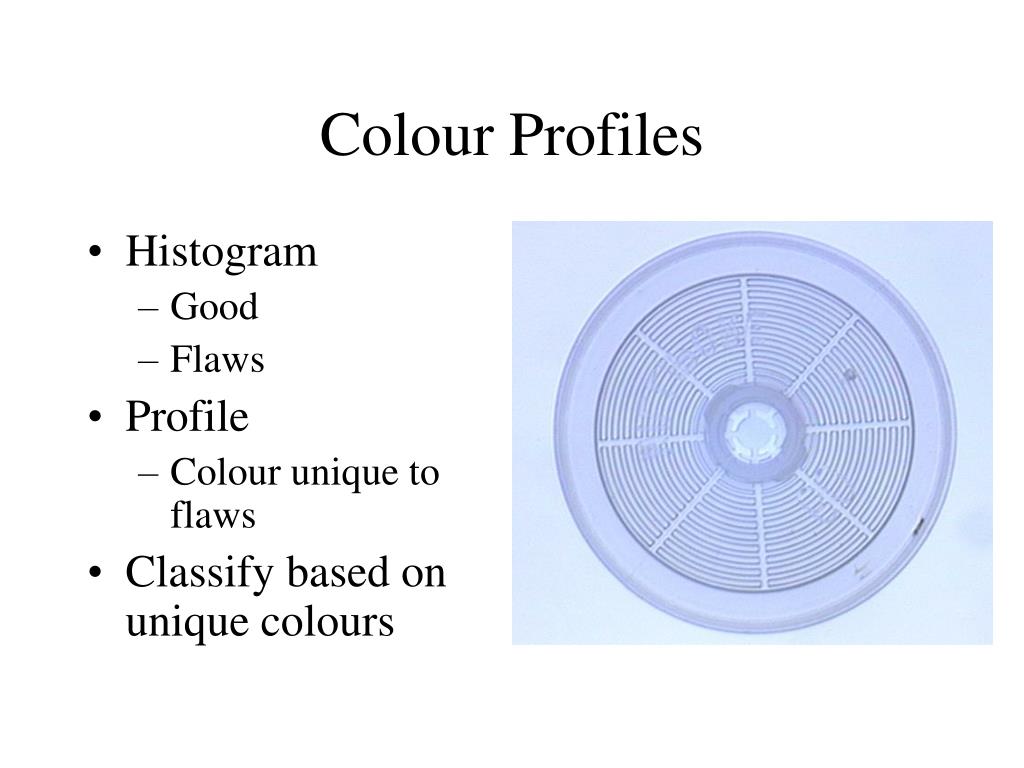

  16. Colour Profiles • Histogram • Good • Flaws • Profile • Colour unique to flaws • Classify based on unique colours

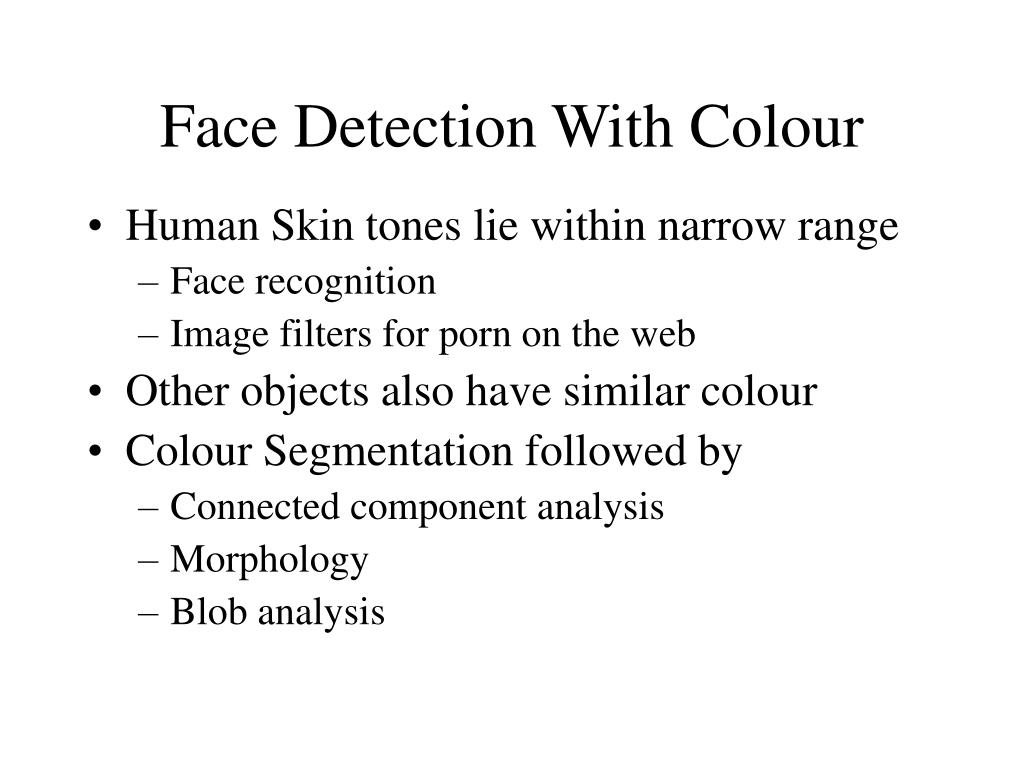

  17. Face Detection With Colour • Human Skin tones lie within narrow range • Face recognition • Image filters for porn on the web • Other objects also have similar colour • Colour Segmentation followed by • Connected component analysis • Morphology • Blob analysis

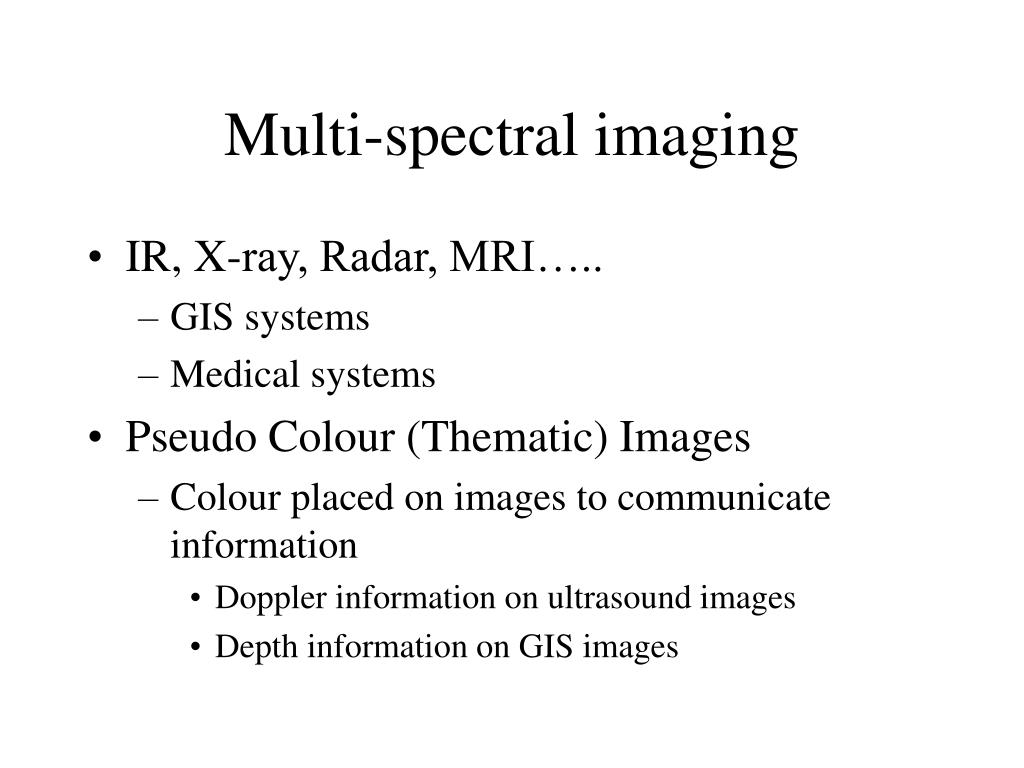

  18. Multi-spectral imaging • IR, X-ray, Radar, MRI….. • GIS systems • Medical systems • Pseudo Colour (Thematic) Images • Colour placed on images to communicate information • Doppler information on ultrasound images • Depth information on GIS images
