  1. Human Factors and Displays for VR Graphics David Johnson

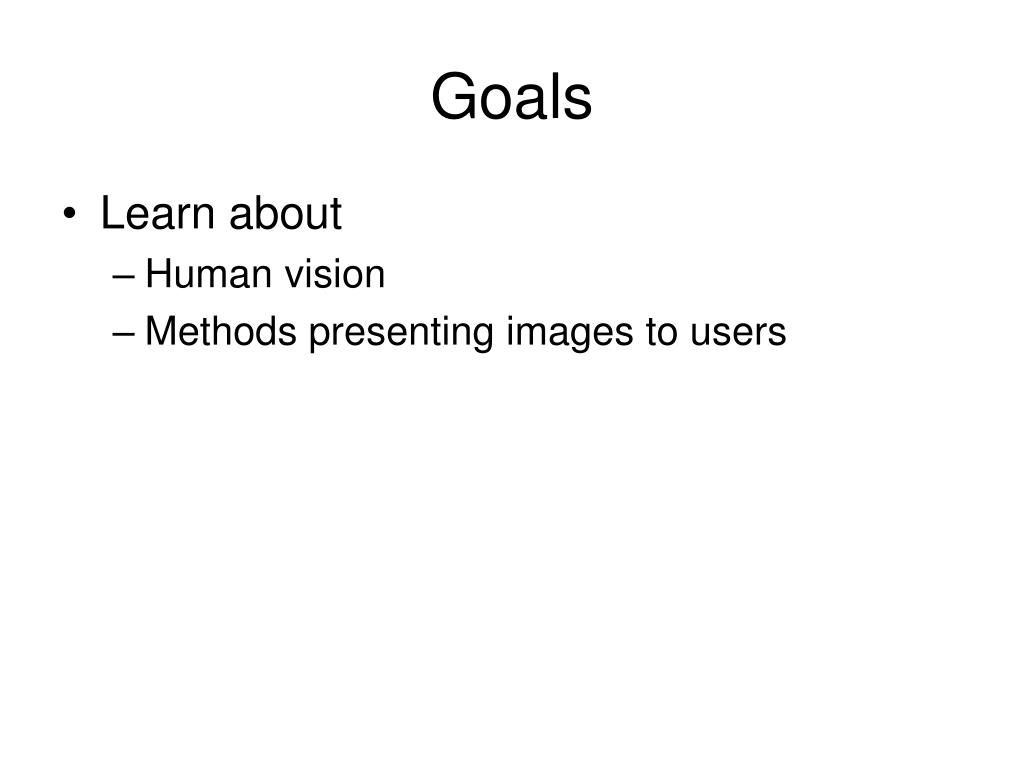

  2. Goals • Learn about • Human vision • Methods presenting images to users

  3. Visual Bandwidth • Bandwidth of vision is probably greater than other sensory modalities • Retina bandwidth ~10 Mbits/sec • article • Most important sense for VR? • IMAX movie of rollercoaster can induce sensation of motion • Images can induce sensations of taste/smell

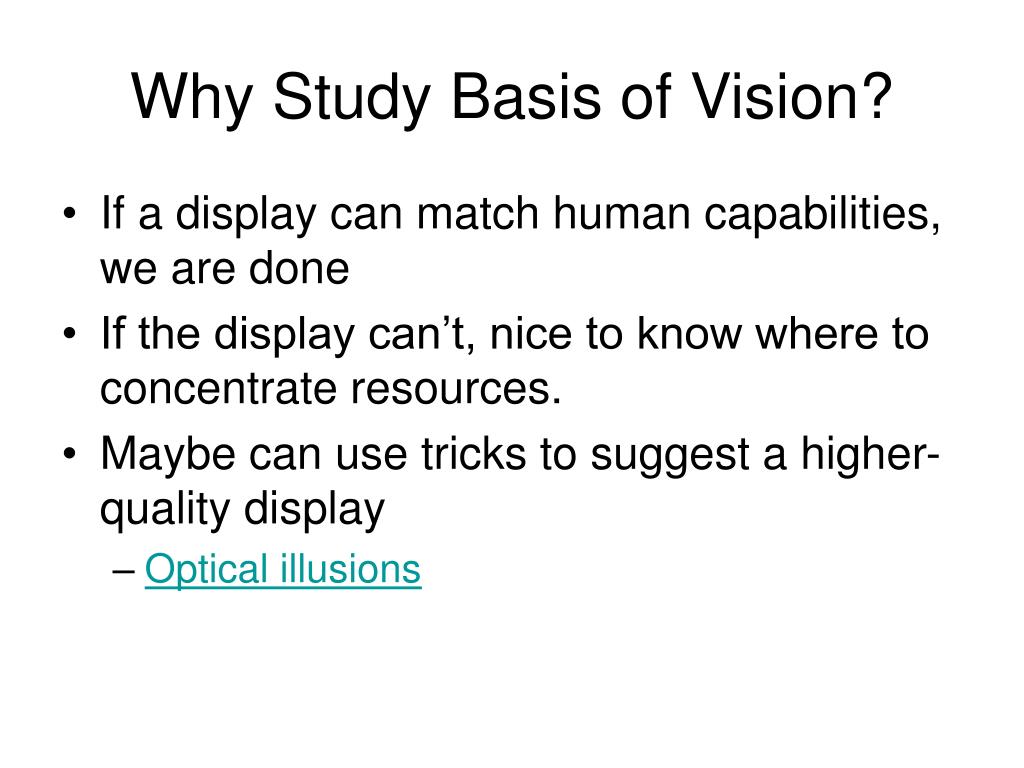

  4. Why Study Basis of Vision? • If a display can match human capabilities, we are done • If the display can’t, nice to know where to concentrate resources. • Maybe can use tricks to suggest a higher-quality display • Optical illusions

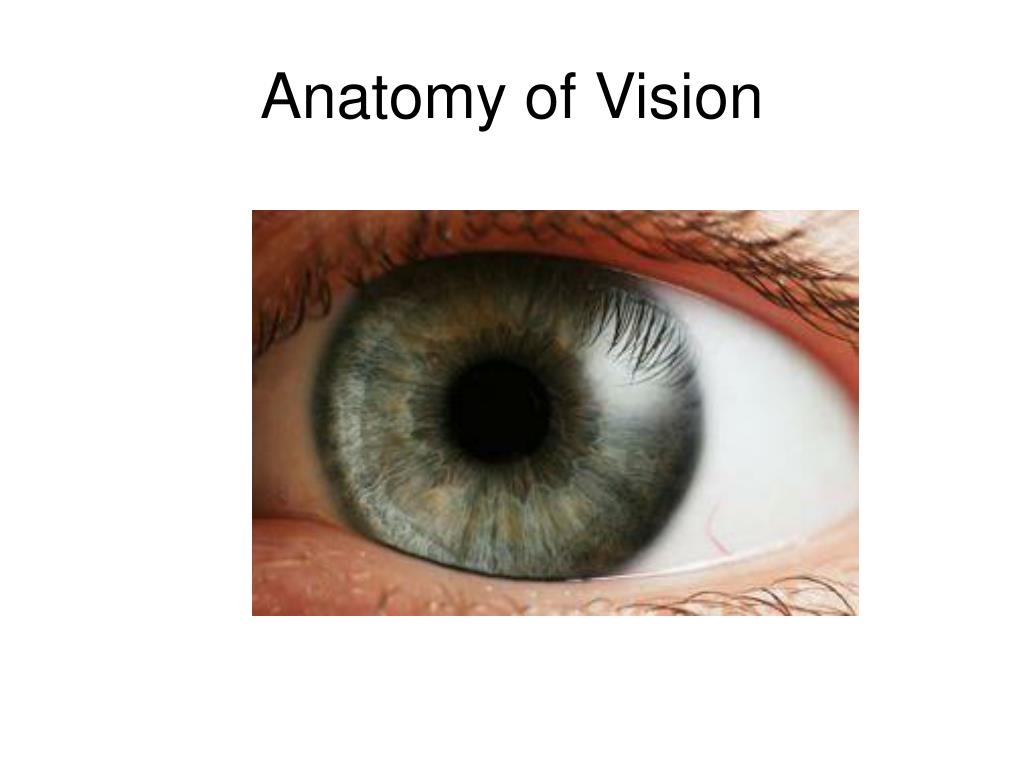

  5. Anatomy of Vision

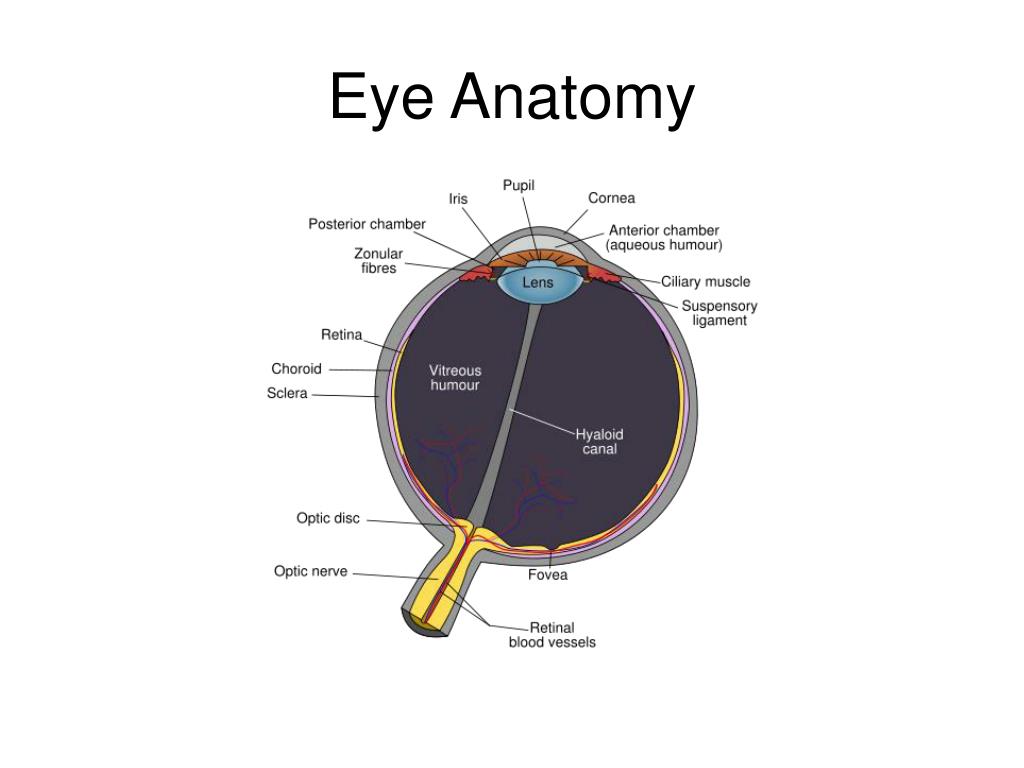

  6. Eye Anatomy

  7. Blind Spot test • test • Test • Brain fills in

  8. Eye Optics

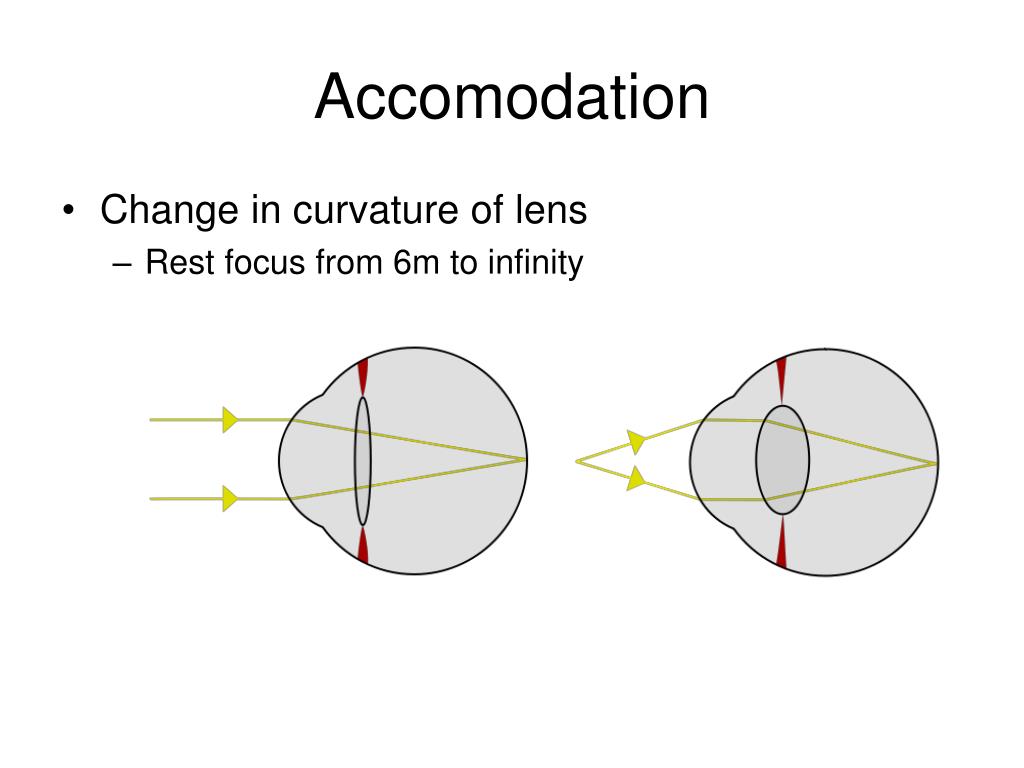

  9. Accomodation • Change in curvature of lens • Rest focus from 6m to infinity

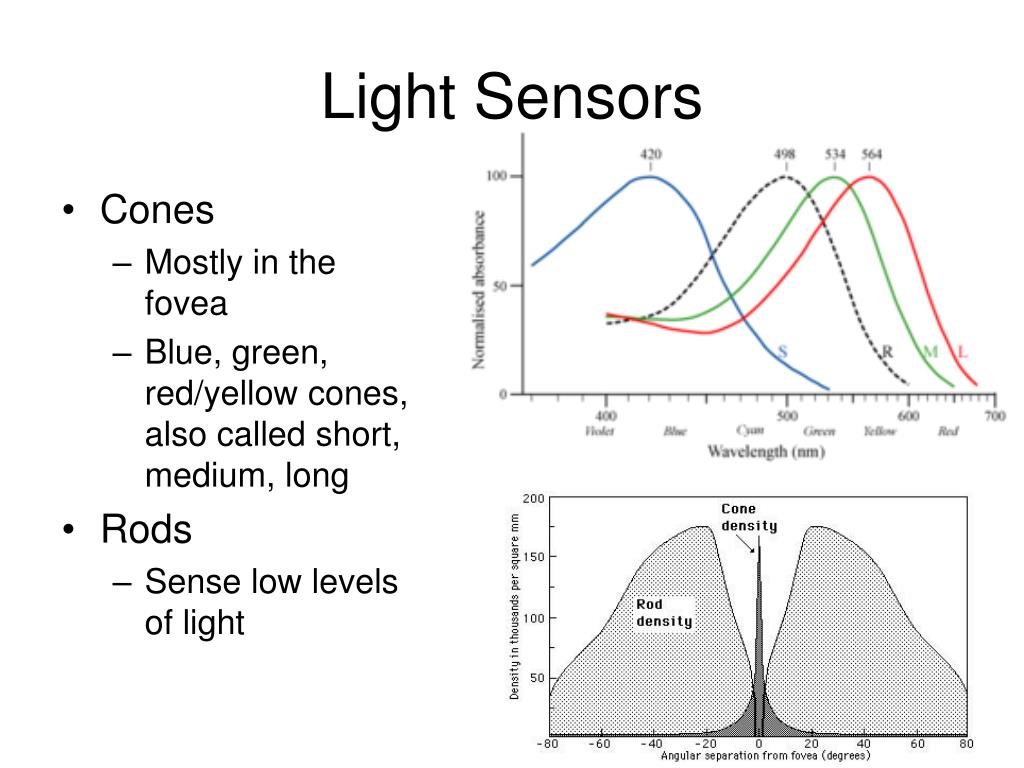

  10. Light Sensors • Cones • Mostly in the fovea • Blue, green, red/yellow cones, also called short, medium, long • Rods • Sense low levels of light

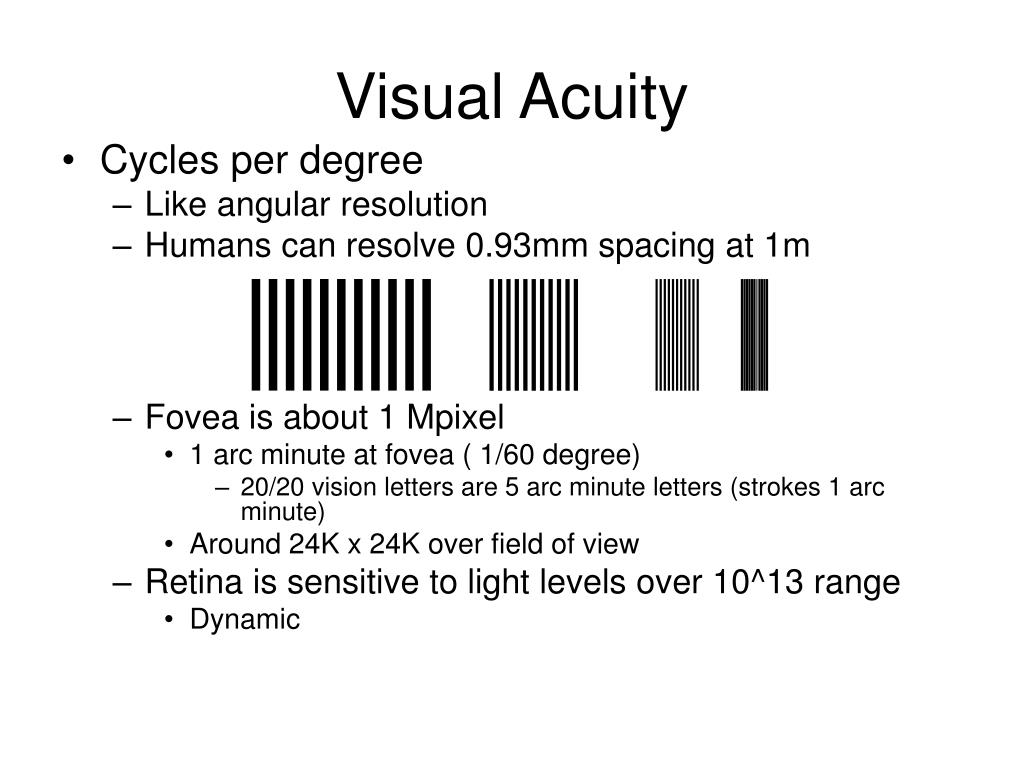

  11. Visual Acuity • Cycles per degree • Like angular resolution • Humans can resolve 0.93mm spacing at 1m • Fovea is about 1 Mpixel • 1 arc minute at fovea ( 1/60 degree) • 20/20 vision letters are 5 arc minute letters (strokes 1 arc minute) • Around 24K x 24K over field of view • Retina is sensitive to light levels over 10^13 range • Dynamic

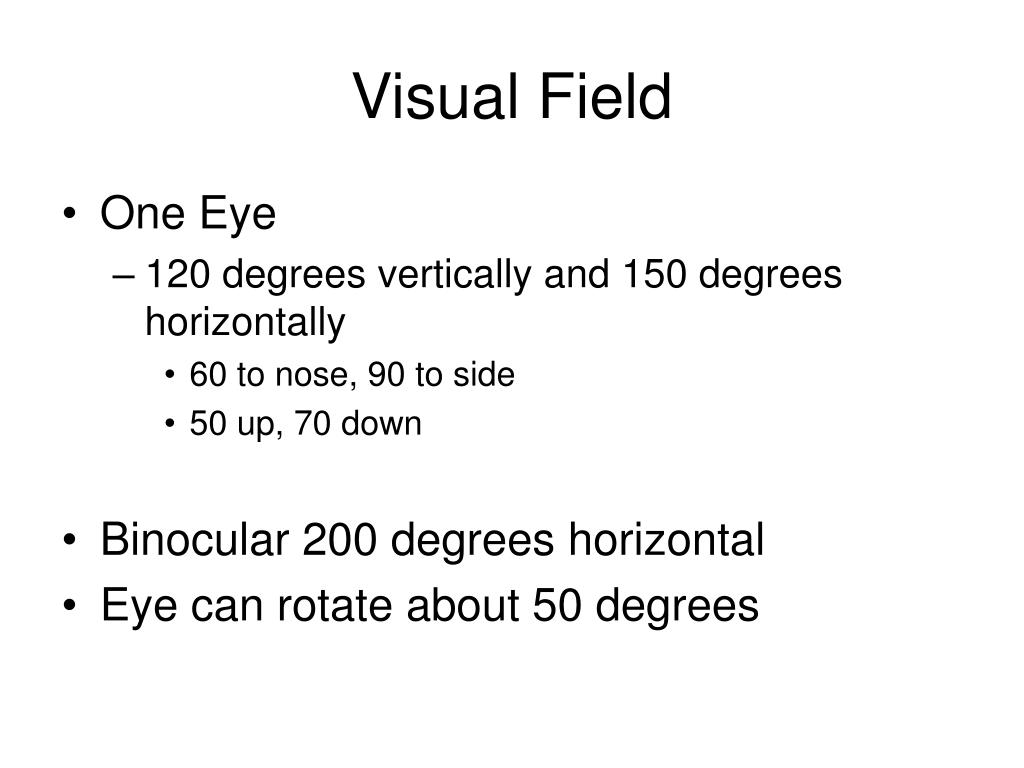

  12. Visual Field • One Eye • 120 degrees vertically and 150 degrees horizontally • 60 to nose, 90 to side • 50 up, 70 down • Binocular 200 degrees horizontal • Eye can rotate about 50 degrees

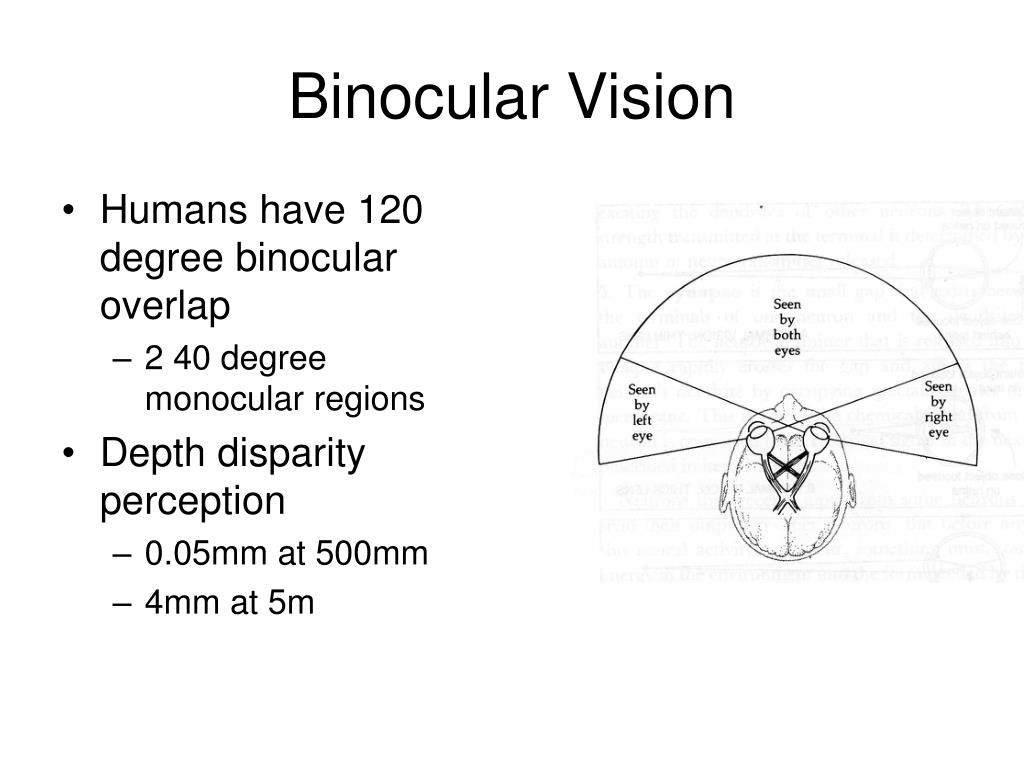

  13. Binocular Vision • Humans have 120 degree binocular overlap • 2 40 degree monocular regions • Depth disparity perception • 0.05mm at 500mm • 4mm at 5m

  14. Eye Motion • Vergence - the motion of the eye to maintain binocular vision • ‘Cross-eyed’ when focus in close • Version – eye movement in the same direction • Duction – motion of one eye • Eye makes compensatory motions when head moving • Shake hand vs. shake head • Saccades – eye movement to use fovea more • Microsaccades – imperceptible motions to maintain excitation of rods and cones

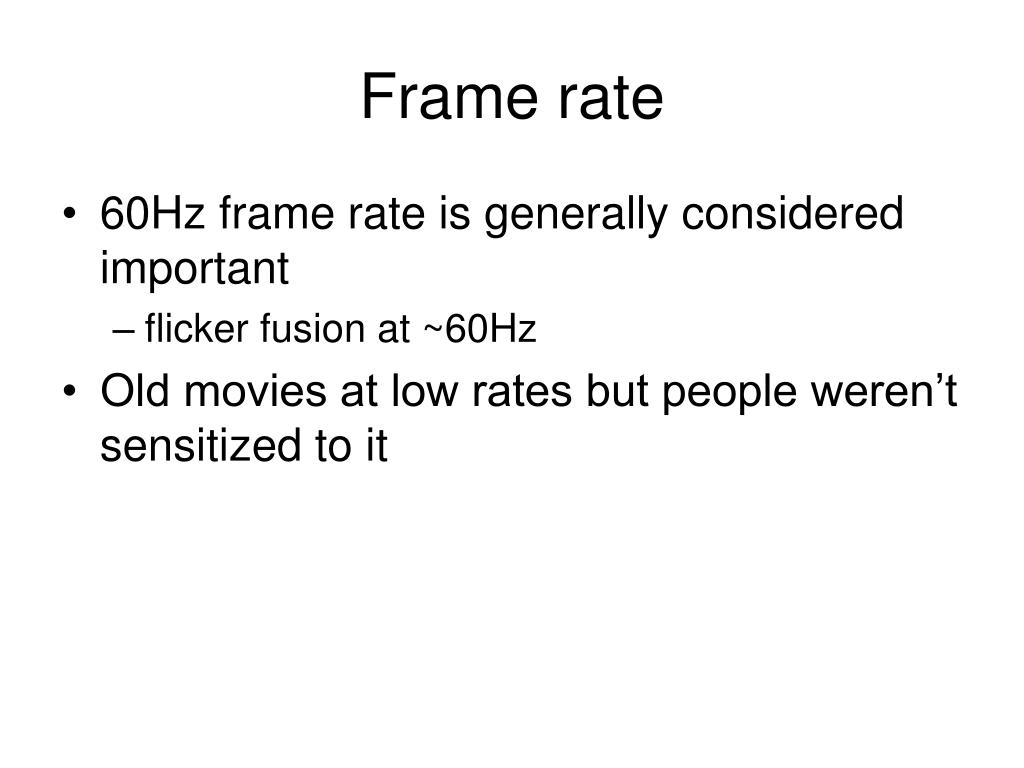

  15. Frame rate • 60Hz frame rate is generally considered important • flicker fusion at ~60Hz • Old movies at low rates but people weren’t sensitized to it

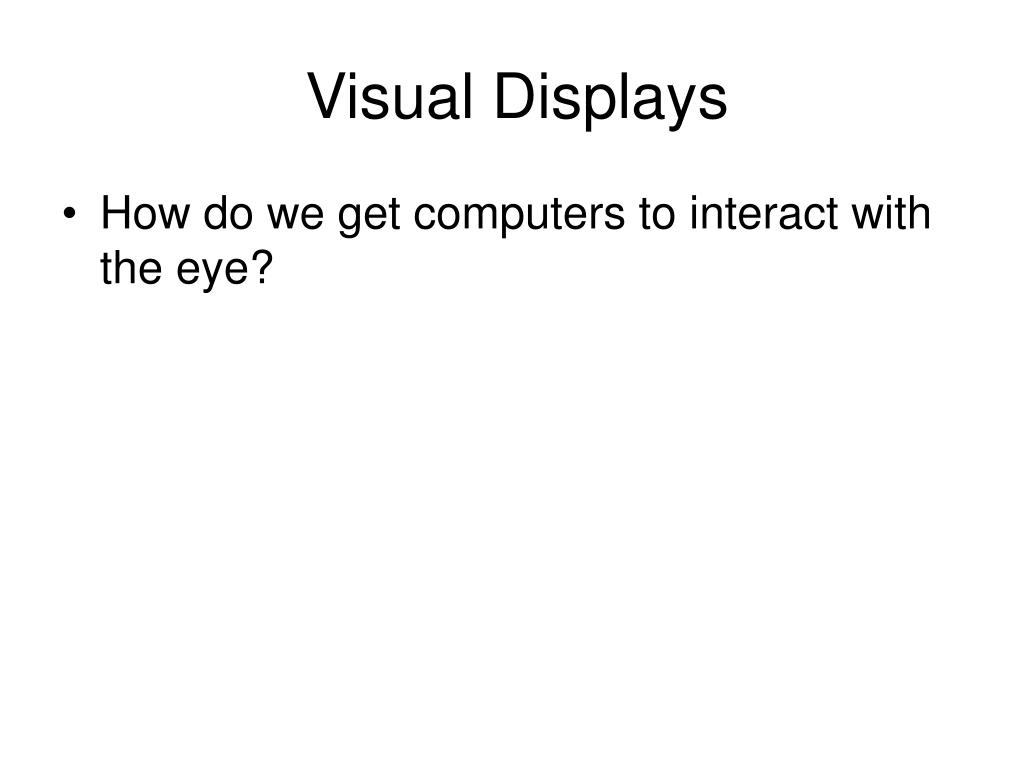

  16. Visual Displays • How do we get computers to interact with the eye?

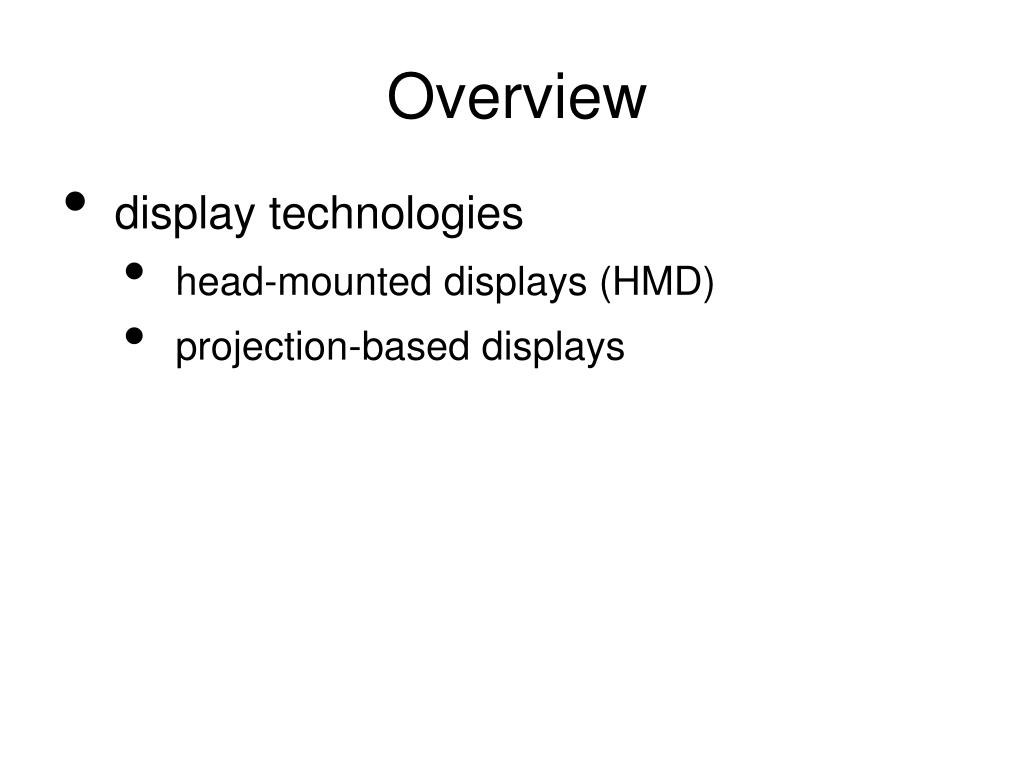

  17. Overview • display technologies • head-mounted displays (HMD) • projection-based displays

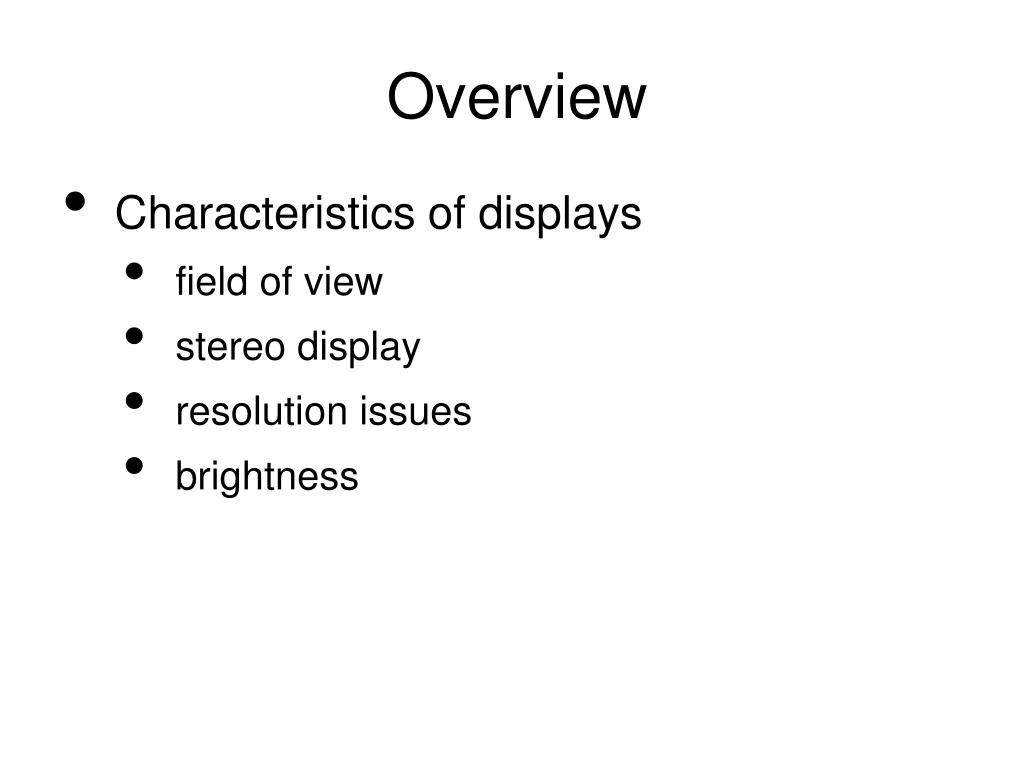

  18. Overview • Characteristics of displays • field of view • stereo display • resolution issues • brightness

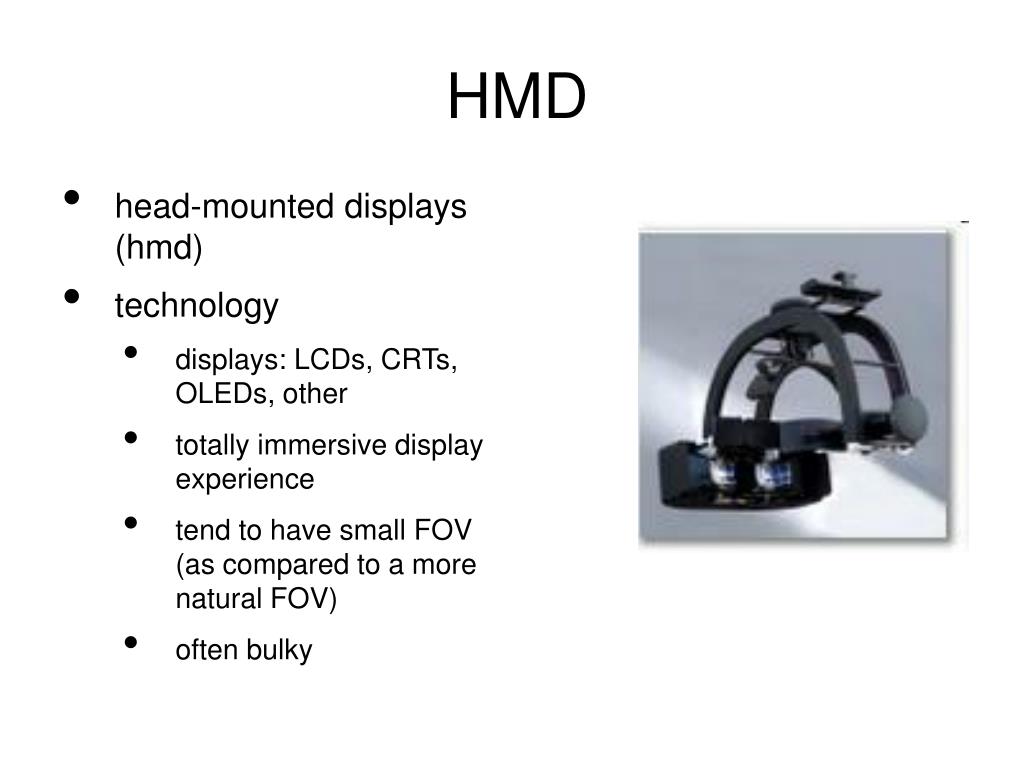

  19. HMD • head-mounted displays (hmd) • technology • displays: LCDs, CRTs, OLEDs, other • totally immersive display experience • tend to have small FOV (as compared to a more natural FOV) • often bulky

  20. HMD • two displays provide image for left and right eye • see-through displays used for augmented reality • semi-transparent overlays or video see-through • What did Brooks say was an advantage of video merge vs optical merge?

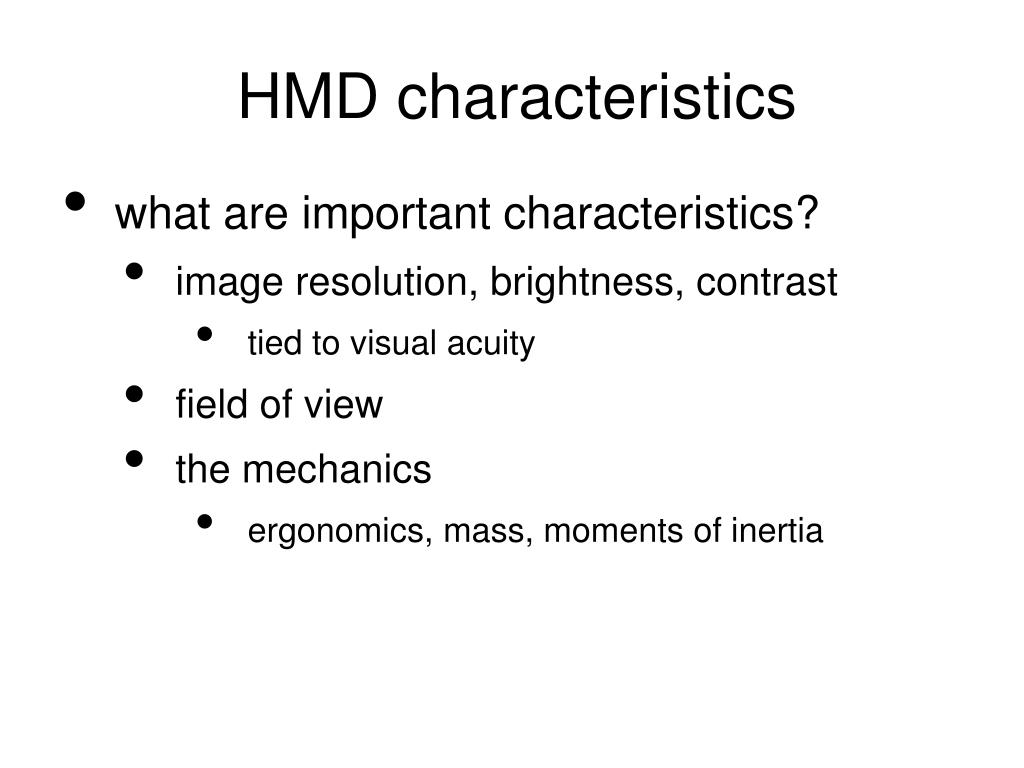

  21. HMD characteristics • what are important characteristics? • image resolution, brightness, contrast • tied to visual acuity • field of view • the mechanics • ergonomics, mass, moments of inertia

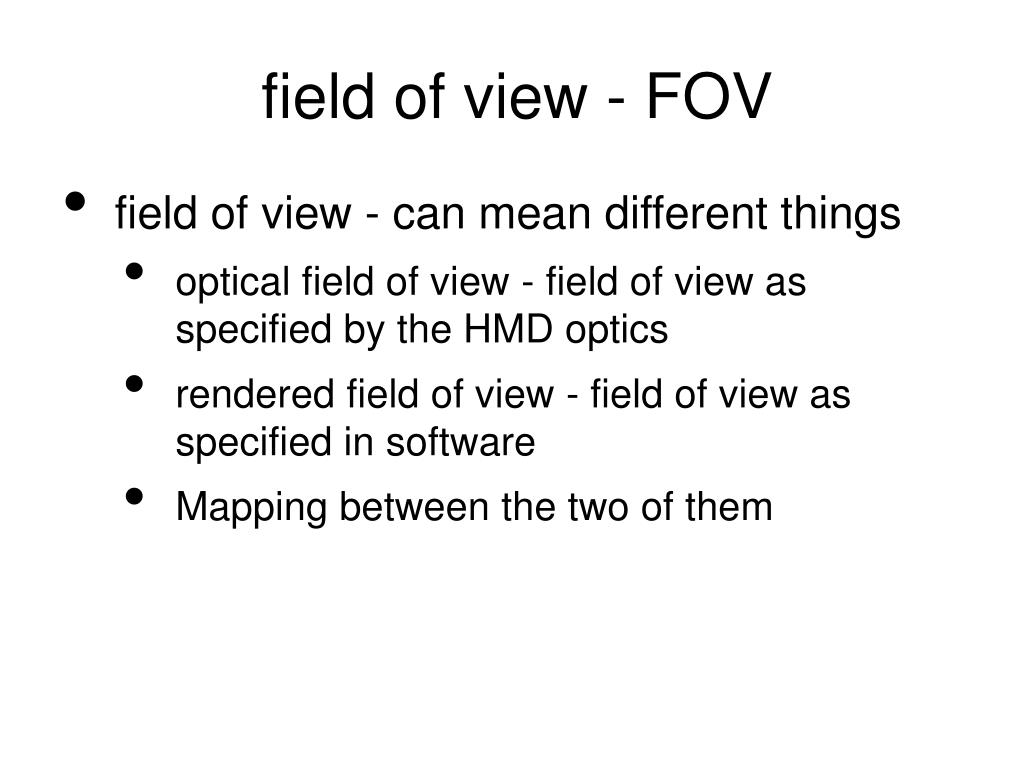

  22. field of view - FOV • field of view - can mean different things • optical field of view - field of view as specified by the HMD optics • rendered field of view - field of view as specified in software • Mapping between the two of them

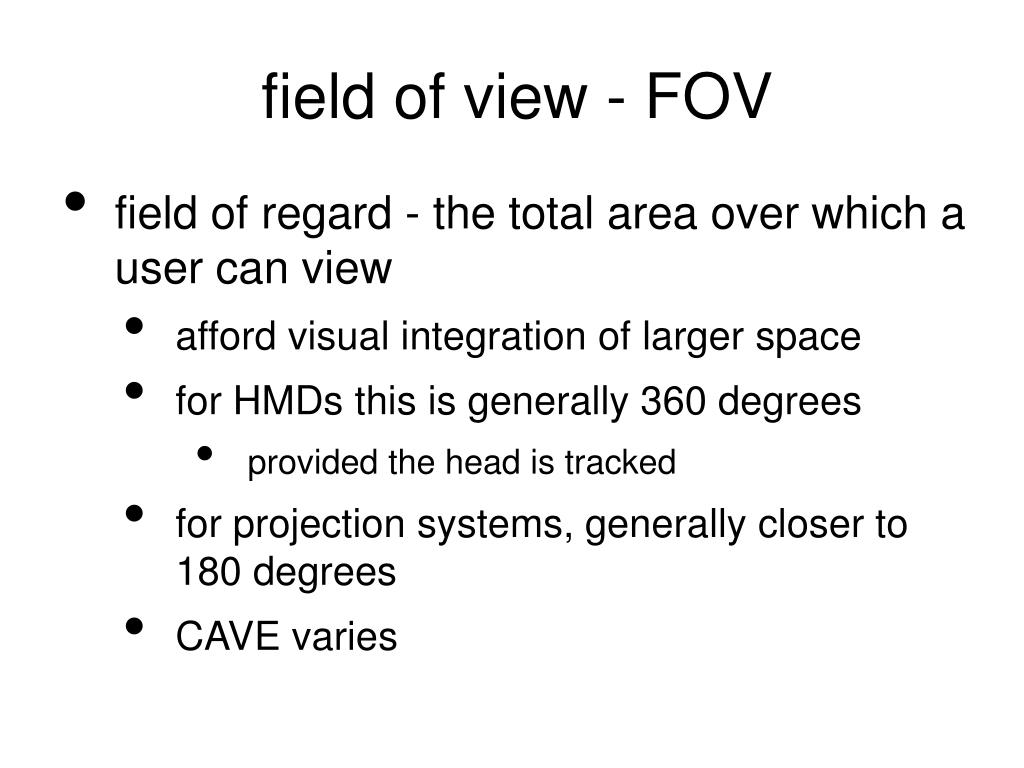

  23. field of view - FOV • field of regard - the total area over which a user can view • afford visual integration of larger space • for HMDs this is generally 360 degrees • provided the head is tracked • for projection systems, generally closer to 180 degrees • CAVE varies

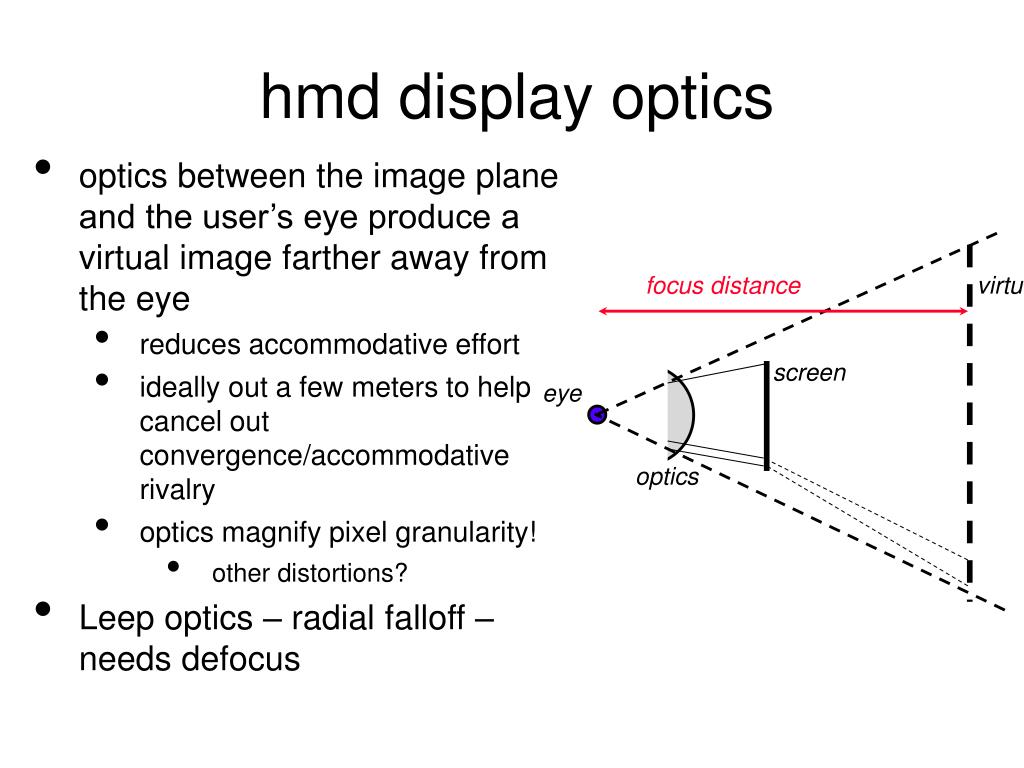

  24. focus distance virtual image screen eye optics hmd display optics • optics between the image plane and the user’s eye produce a virtual image farther away from the eye • reduces accommodative effort • ideally out a few meters to help cancel out convergence/accommodative rivalry • optics magnify pixel granularity! • other distortions? • Leep optics – radial falloff – needs defocus

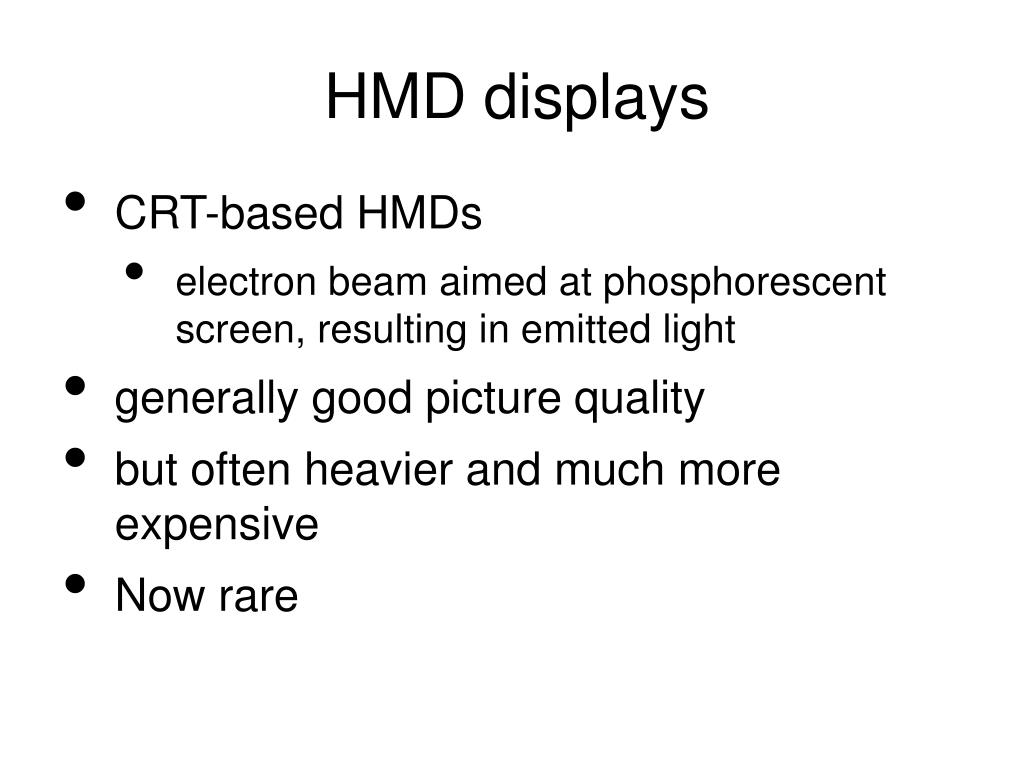

  25. HMD displays • CRT-based HMDs • electron beam aimed at phosphorescent screen, resulting in emitted light • generally good picture quality • but often heavier and much more expensive • Now rare

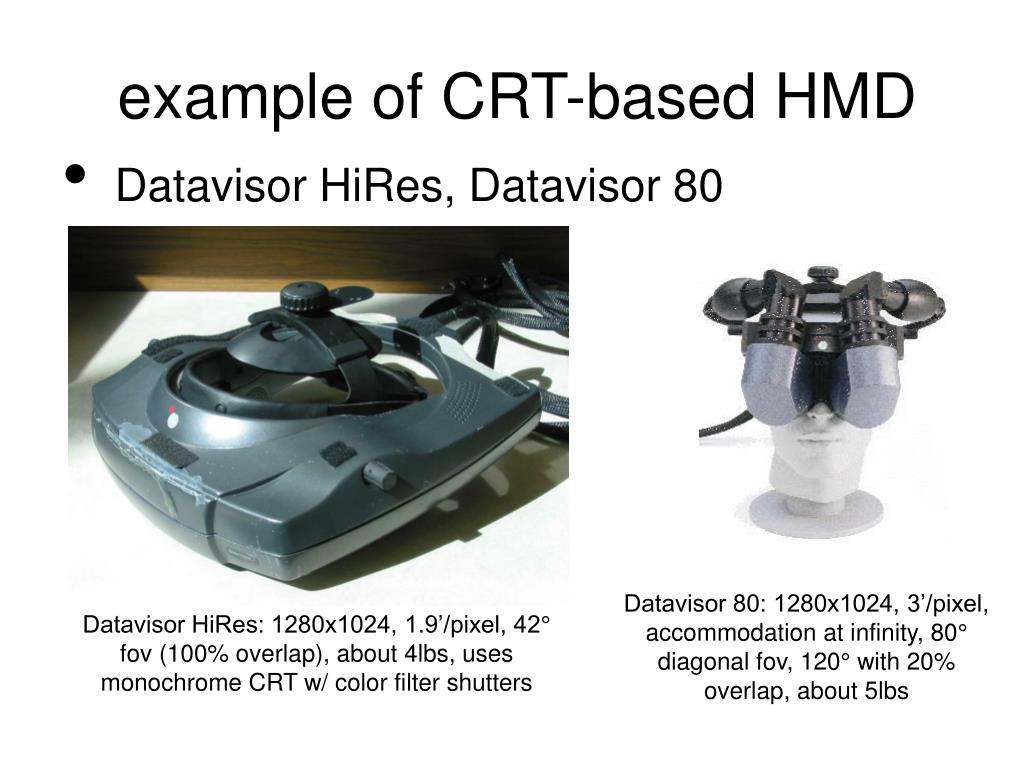

  26. example of CRT-based HMD • Datavisor HiRes, Datavisor 80 Datavisor 80: 1280x1024, 3’/pixel, accommodation at infinity, 80° diagonal fov, 120° with 20% overlap, about 5lbs Datavisor HiRes: 1280x1024, 1.9’/pixel, 42° fov (100% overlap), about 4lbs, uses monochrome CRT w/ color filter shutters

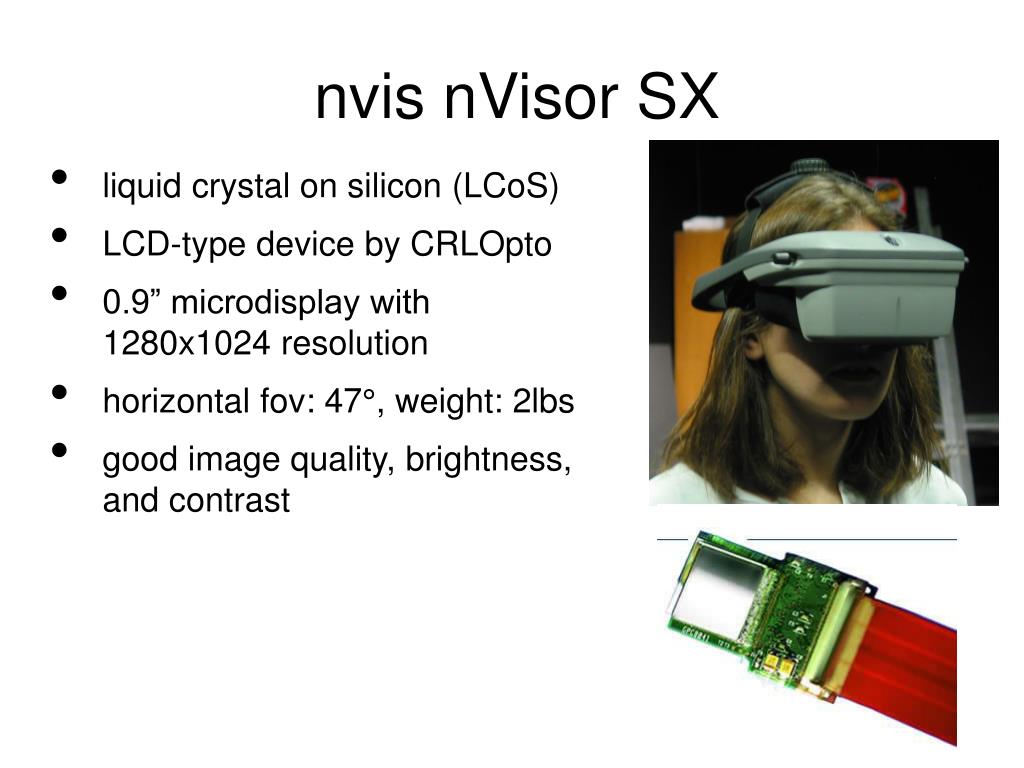

  27. nvis nVisor SX • liquid crystal on silicon (LCoS) • LCD-type device by CRLOpto • 0.9” microdisplay with 1280x1024 resolution • horizontal fov: 47°, weight: 2lbs • good image quality, brightness, and contrast

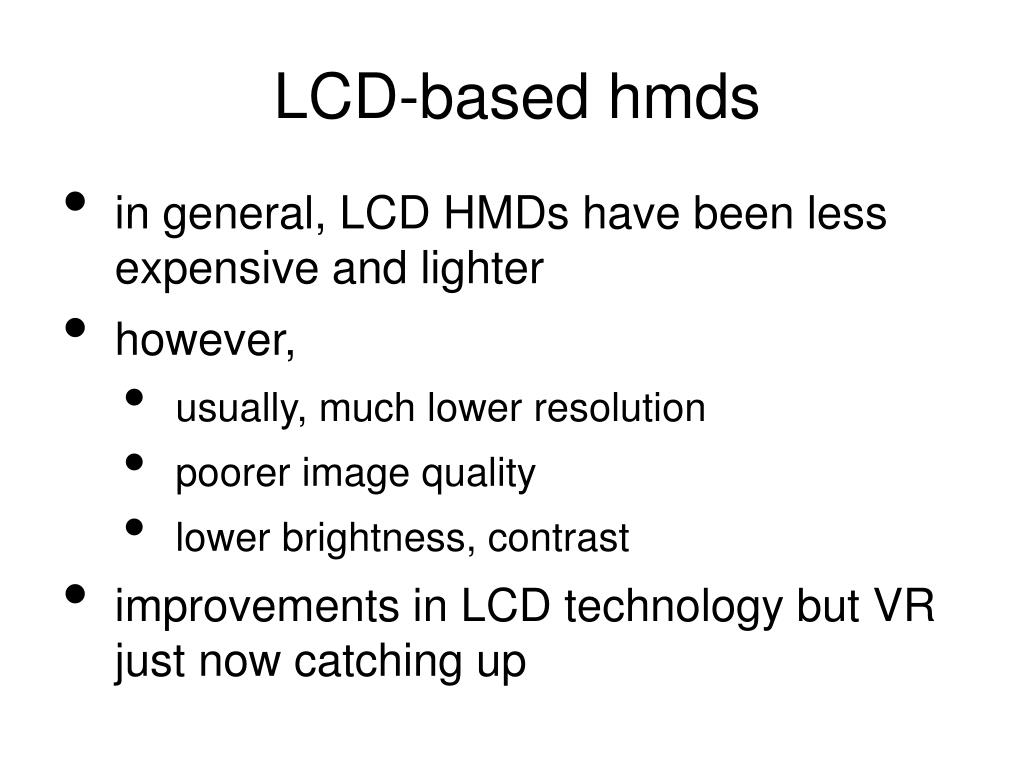

  28. LCD-based hmds • in general, LCD HMDs have been less expensive and lighter • however, • usually, much lower resolution • poorer image quality • lower brightness, contrast • improvements in LCD technology but VR just now catching up

  29. LCD-based HMDs • Virtual Research V8 • 640x480 resolution • approx 45° fov (100% overlap) • lightweight: ~2lbs • inexpensive: ~$12k

  30. other HMDs • Kaiser • resolution 1024x768 • about $15k • uses active matrix LCD screens • 2.3’/pixel • 40° fov • just over 2lbs • OLED-based HMDs - better brightness than LCDs, 800x600 • good image quality, lighter • $5k, but with low fov (28°) • may have short life span Kaiser ProView XL50 5DT HMD 800

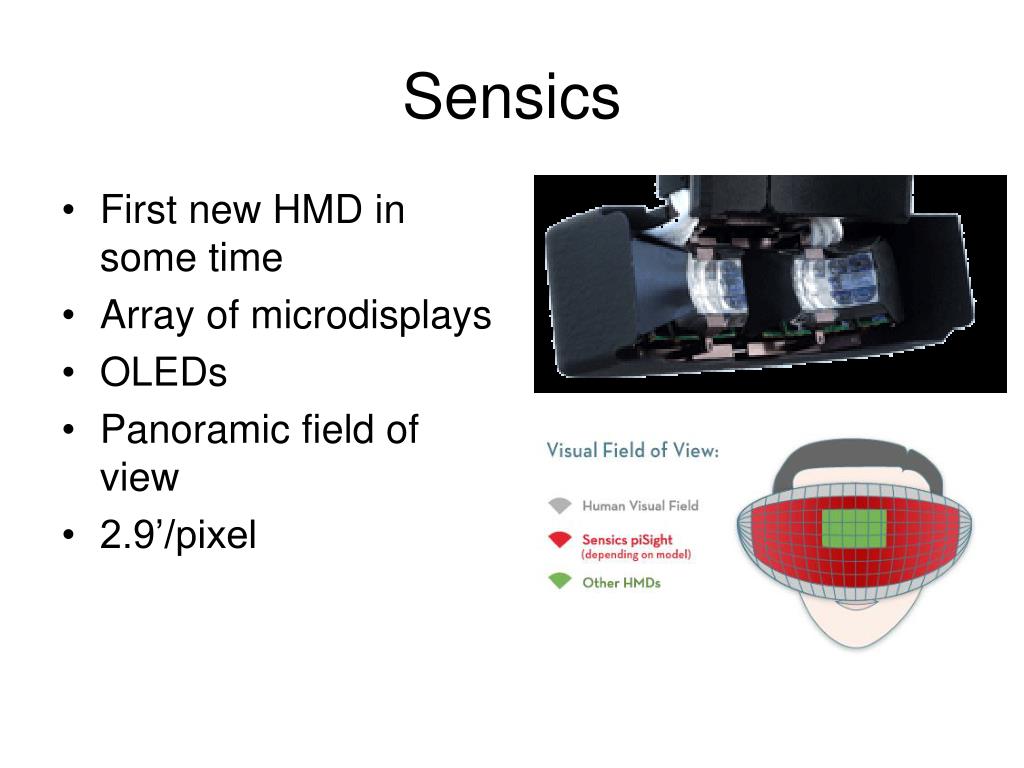

  31. Sensics • First new HMD in some time • Array of microdisplays • OLEDs • Panoramic field of view • 2.9’/pixel

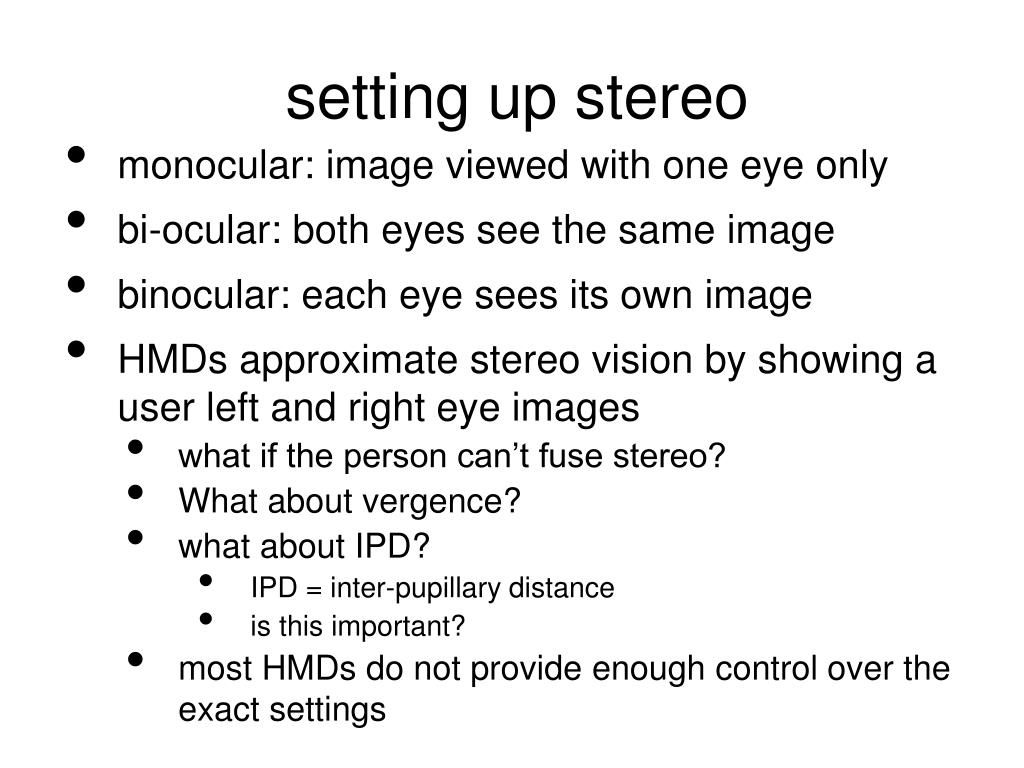

  32. setting up stereo • monocular: image viewed with one eye only • bi-ocular: both eyes see the same image • binocular: each eye sees its own image • HMDs approximate stereo vision by showing a user left and right eye images • what if the person can’t fuse stereo? • What about vergence? • what about IPD? • IPD = inter-pupillary distance • is this important? • most HMDs do not provide enough control over the exact settings

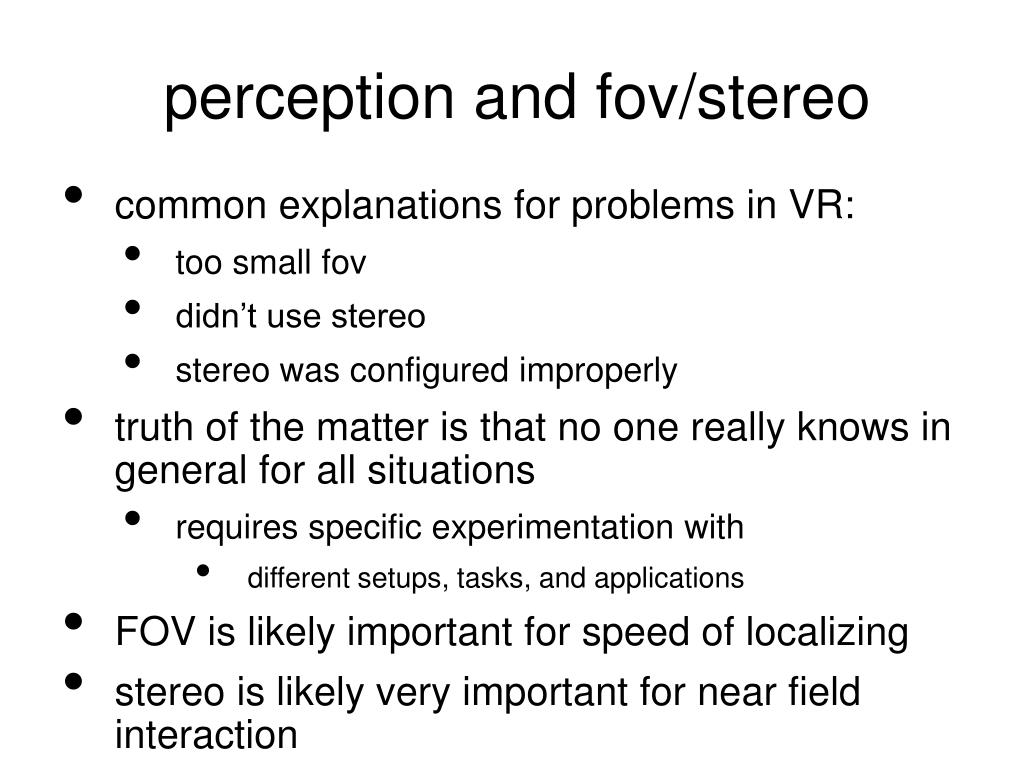

  33. perception and fov/stereo • common explanations for problems in VR: • too small fov • didn’t use stereo • stereo was configured improperly • truth of the matter is that no one really knows in general for all situations • requires specific experimentation with • different setups, tasks, and applications • FOV is likely important for speed of localizing • stereo is likely very important for near field interaction

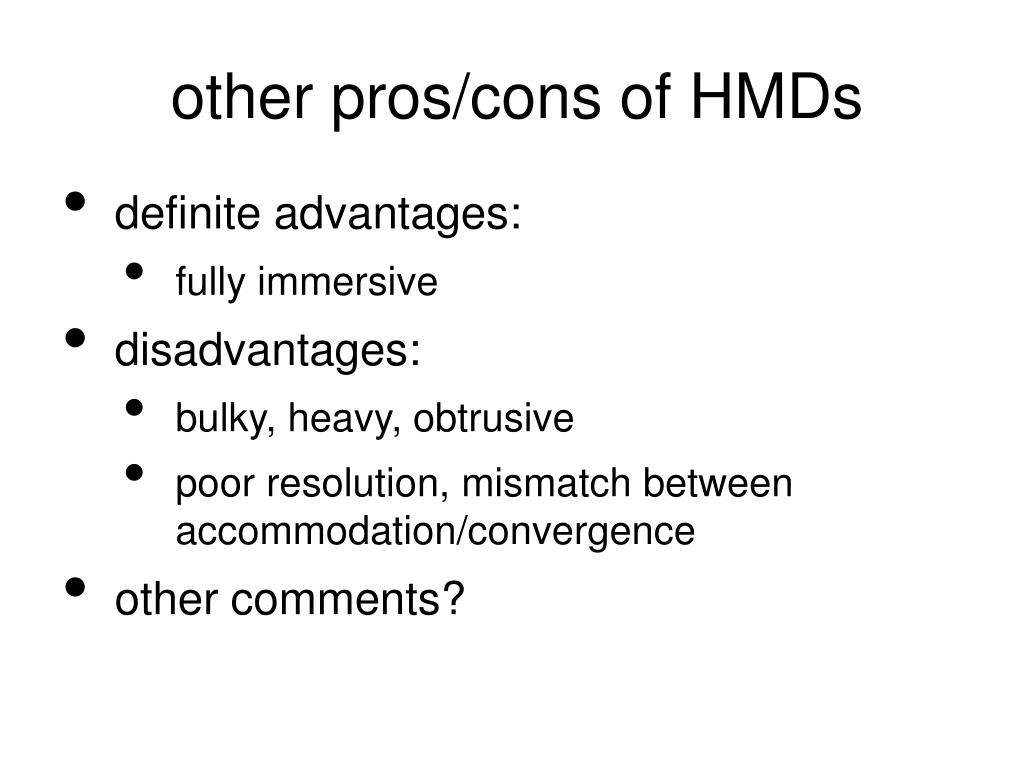

  34. other pros/cons of HMDs • definite advantages: • fully immersive • disadvantages: • bulky, heavy, obtrusive • poor resolution, mismatch between accommodation/convergence • other comments?

  35. projection displays • setup a projector, aim it at a screen • you’re doing VR research! • actually a little more complex than that • goal is to surround user with the virtual environment • good concept • potentially reduces locomotion abilities • capability to increase resolution dramatically • tiling the display projectors

  36. cave • cave • CAVE Automatic Virtual Environment • developed at U Illinois-Chicago - 1992 • did you know CAVE is trademarked?

  37. stereo with projection vr • with HMDs, stereo vision is potentially easier (minus bad artifacts) • two images, one for each eye • for projection vr, you have two choices • active stereo • passive stereo

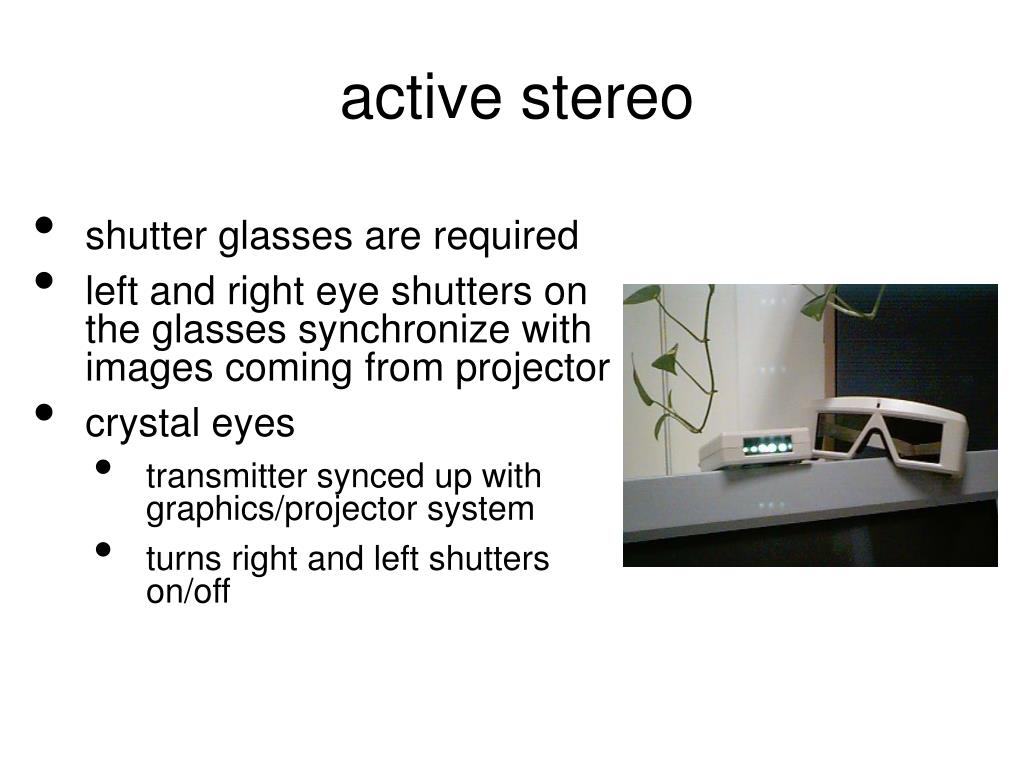

  38. active stereo • shutter glasses are required • left and right eye shutters on the glasses synchronize with images coming from projector • crystal eyes • transmitter synced up with graphics/projector system • turns right and left shutters on/off

  39. ia state cave

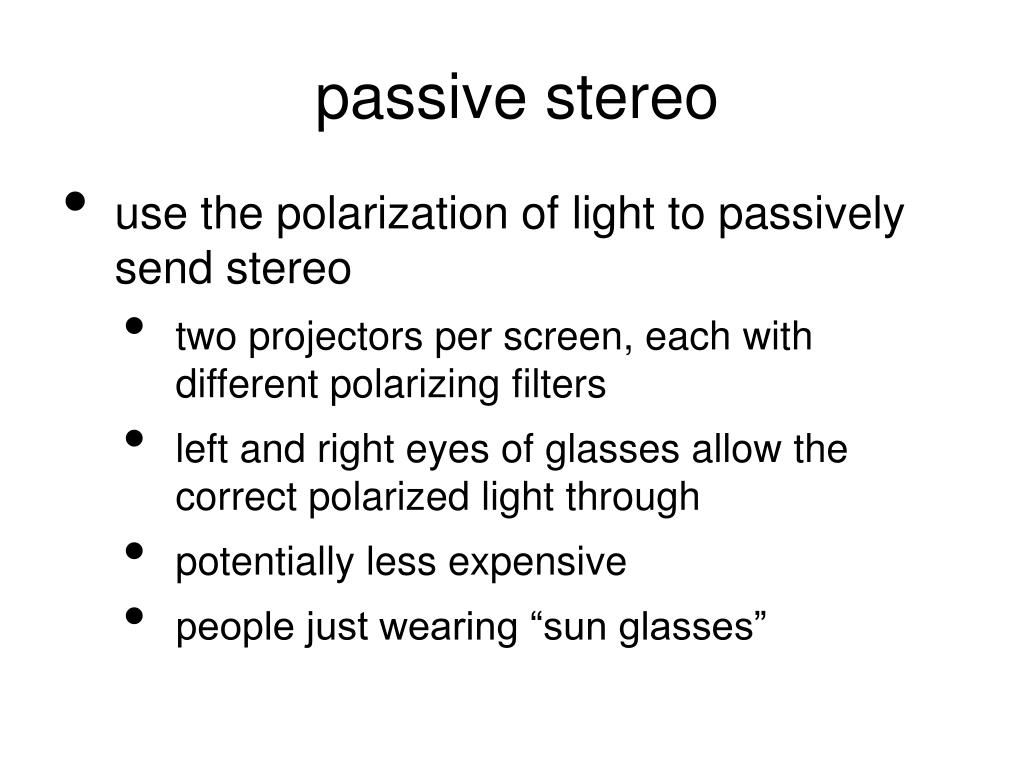

  40. passive stereo • use the polarization of light to passively send stereo • two projectors per screen, each with different polarizing filters • left and right eyes of glasses allow the correct polarized light through • potentially less expensive • people just wearing “sun glasses”

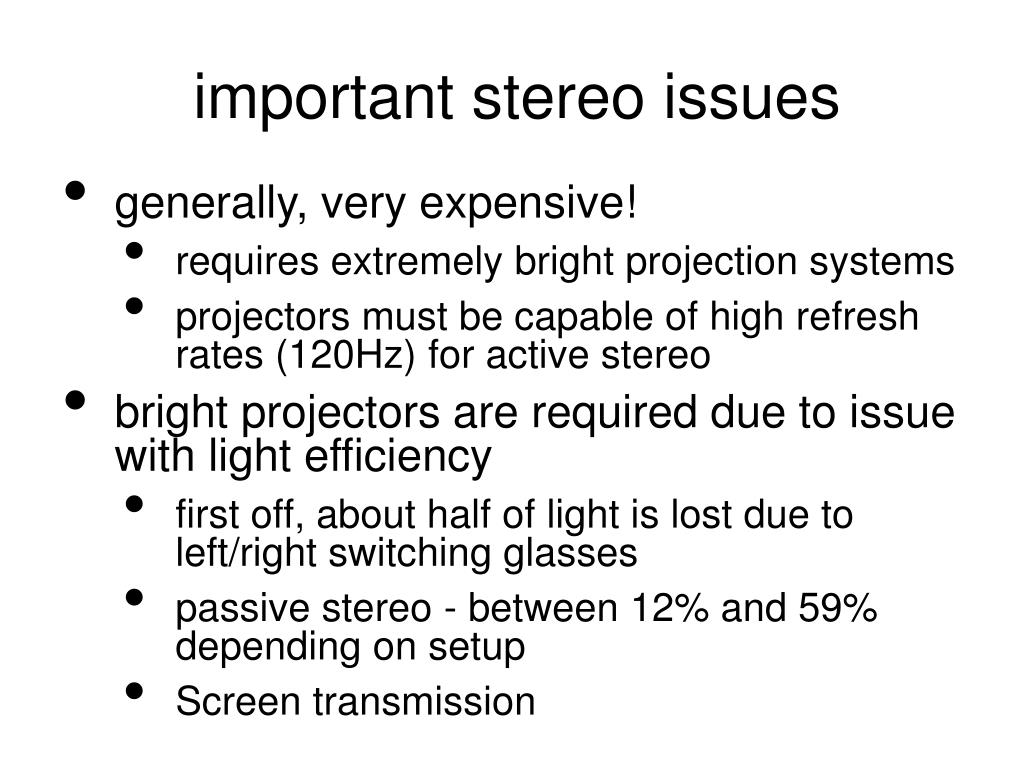

  41. important stereo issues • generally, very expensive! • requires extremely bright projection systems • projectors must be capable of high refresh rates (120Hz) for active stereo • bright projectors are required due to issue with light efficiency • first off, about half of light is lost due to left/right switching glasses • passive stereo - between 12% and 59% depending on setup • Screen transmission

  42. other painful issues with projection vr • alignment matters • for stereo setups, especially passive stereo, alignment is crucial • for tile-able displays with high resolution • images must overlap and blend

  43. other painful issues with projection vr • actually, should be able to project on any surface • large set of research devoted to • automatic alignment • image blending, color matching • projection onto arbitrary surfaces • not just flat walls

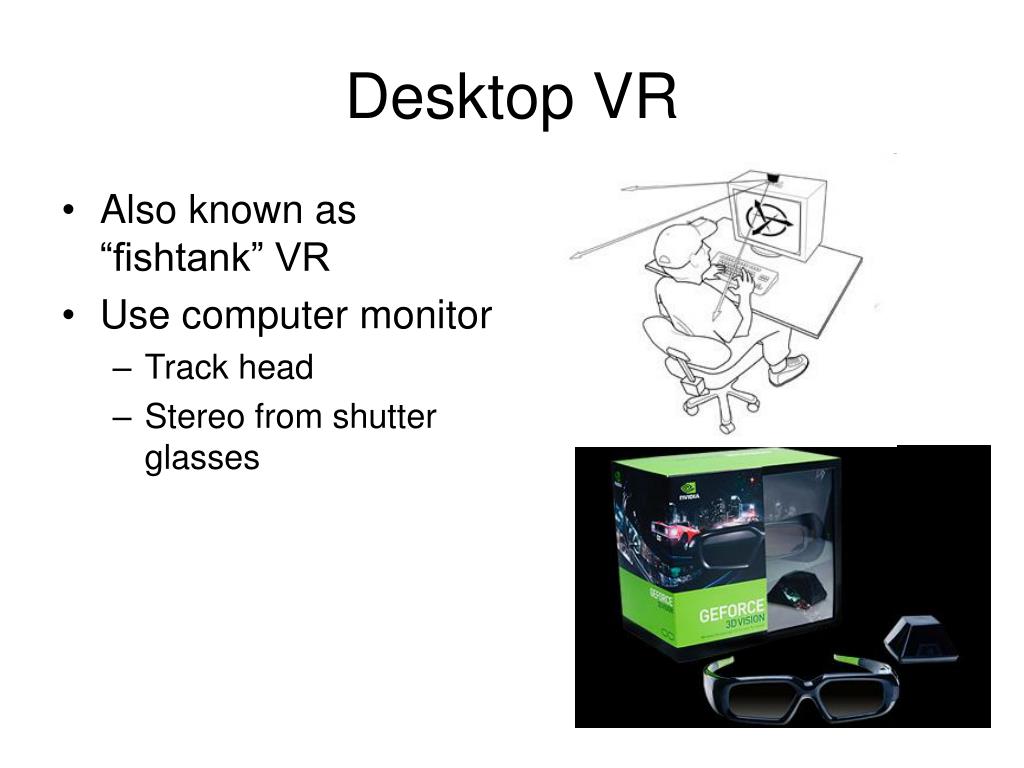

  44. Desktop VR • Also known as “fishtank” VR • Use computer monitor • Track head • Stereo from shutter glasses

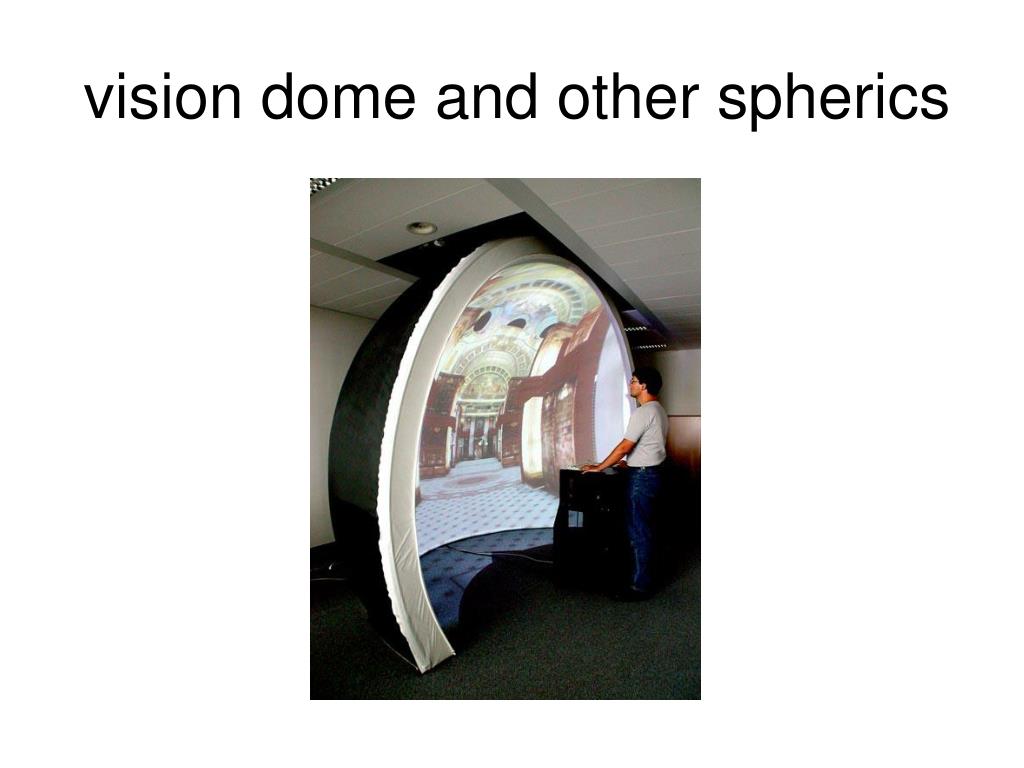

  45. vision dome and other spherics

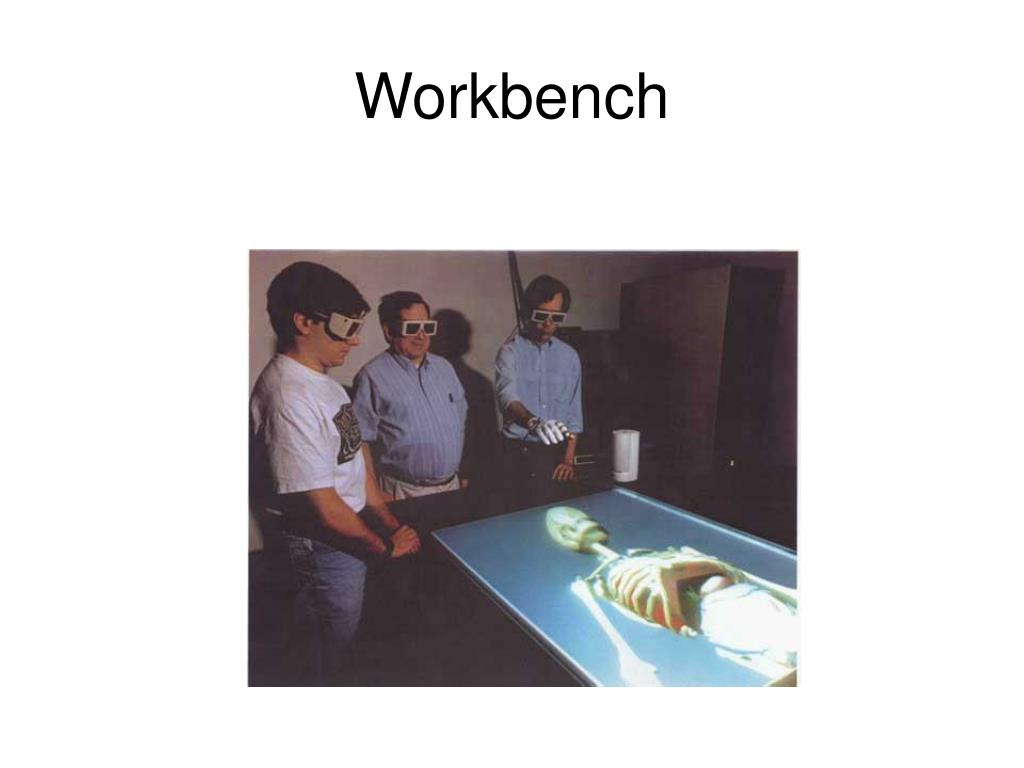

  46. Workbench

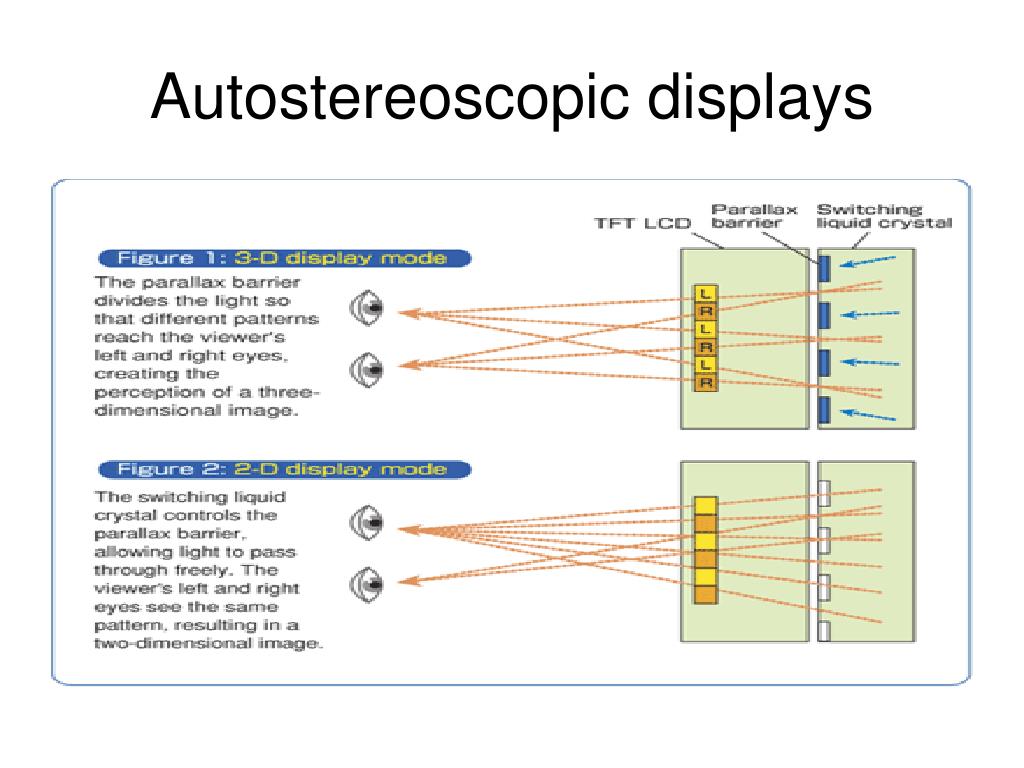

  47. Autostereoscopic displays

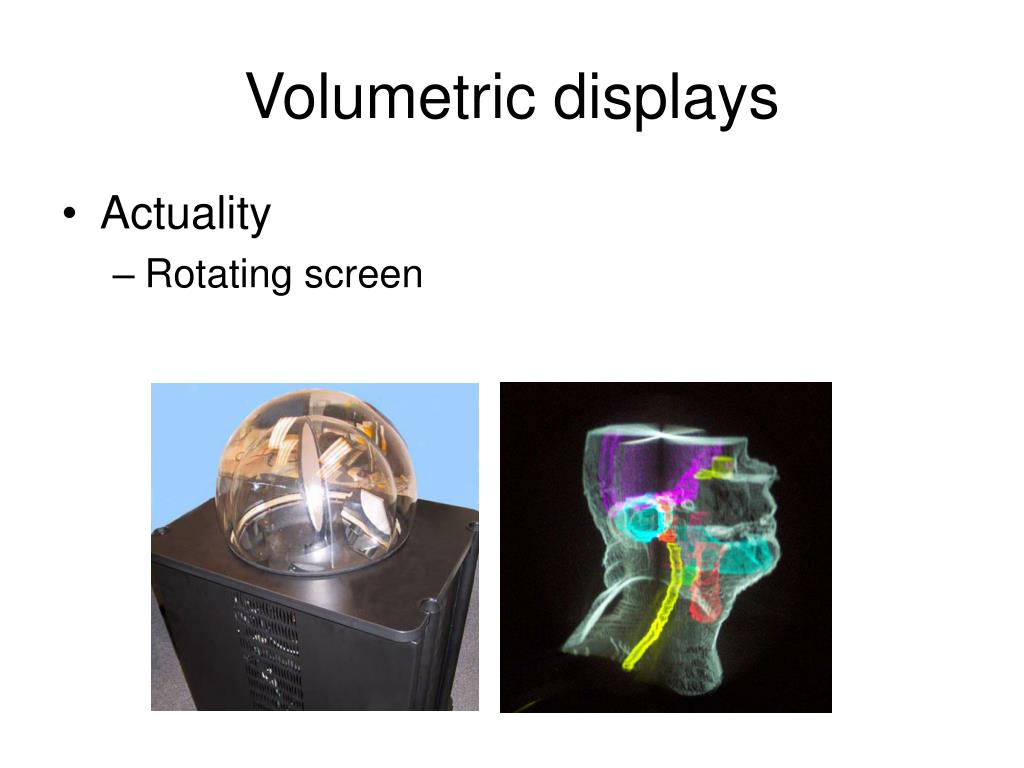

  48. Volumetric displays • Actuality • Rotating screen
