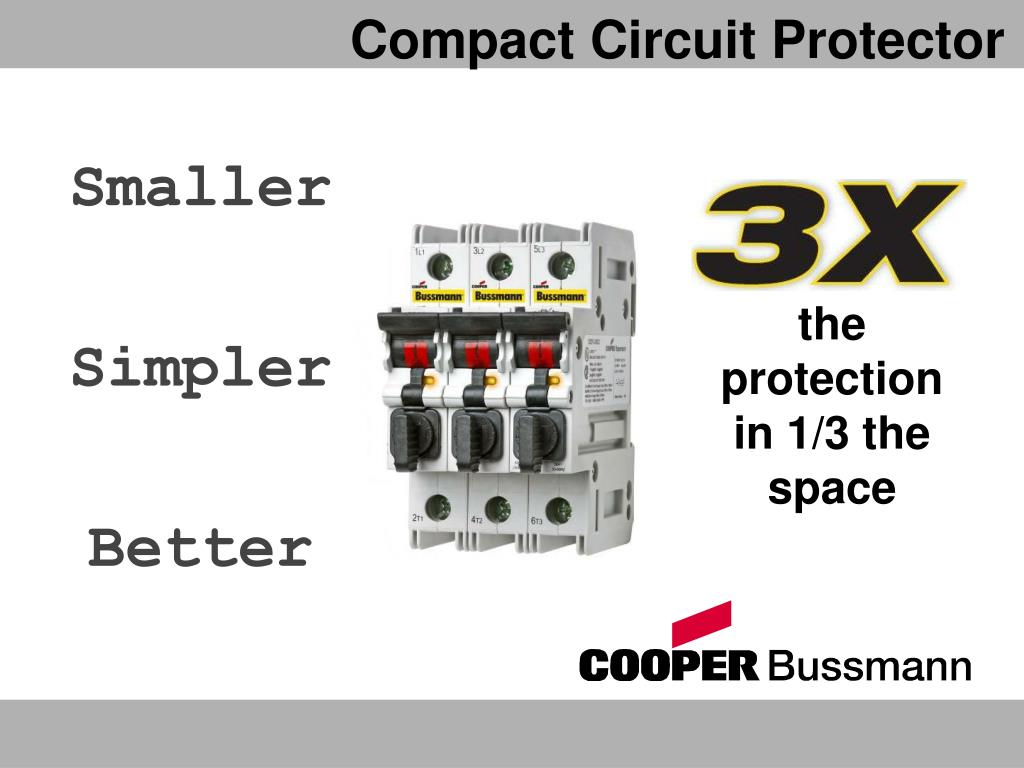

  1. Compact Circuit Protector the protection in 1/3 the space Smaller Simpler Better

  2. Product Description Compact Circuit Protector Backed out Line and Load Terminals Saves installation time. Disconnect Switch For load isolation Indication Light Easy troubleshooting tool to help find the opened fuse quickly Lock-out/Tag-out Meets requirements for maintenance safety procedures Easy to Turn-lid No fuse-puller required to install or extract a fuse 35mm DIN Rail Mount For quick, snap-on installation IEC Marked Line and Load Terminal For global acceptance Feature-rich solution!

  3. Value - Smaller Source Eaton FDXXX Source ABB CFDXXX • CCP is 1/3 the space of equivalent UL489 circuit breakers • CCP is 2/3 the space of traditional fusible disconnects Footprint comparison MCCB Size reduction: 69.7% MCCB Fusible Disconnect Fusible Sw Size reduction: 42.3% CCP Small = Value for the OEM customer

  4. Value - Smaller Relative size comparison with Circuit Breakers UL 489 Circuit Breaker UL 489 Circuit Breaker UL 489 Circuit Breaker Cooper Bussmann CCP UL1077 Supplementary Protector Small = Value for the OEM customer

  5. Value - Smaller UL512 Listed Class CC Fuse Holder with Class CC Fuses and UL508 Listed Disconnect UL508 Listed Disconnect (Manual Motor) with Class CC fuses Cooper Bussmann UL98 Listed Class CC Compact Circuit Protector with Class CC fuses UL98 Listed Class CC fusible disconnect with Class CC fuses Small = Value for the OEM customer

  6. Value - Simpler Line and Load Terminals Fuse Switch DIN rail mount Local Indication NO+NC Aux Contacts

  7. Value - Better Standard A/C Voltage Ratings Standard Interrupting Ratings CCP is rated 200kAIC CCP is full 600v rated Unmatched performance in electrical protection

  8. Product Profile Compact Circuit Protector Catalog number: CCP-1-30CC (1-Pole), CCP-2-30CC (2-Pole), CCP-3-30CC (3-Pole) Catalog number: CCP-1-30M (1-Pole), CCP-2-30M (2-Pole), CCP-3-30M (3-Pole) Catalog number: CCP-1-DCC (Class CC fuse, 1-pole) CCP-1-DCM (Midget fuse, 1-pole) Three basic models

  9. Product Profile Agency Listings *CCC (China) Listing Under Investigation Listed to UL, CSA and IEC standards

  10. Product Profile Accessory: Remote Fuse Indication Catalog number: CCP-PLC-IND Switch Connects to CCP Disconnect Switch Pre-Wired Phase Monitoring Conductors Includes spade terminals to connect to CCP Two Indication LEDs Green LED indicates unit power Red LED indicates Open Fuse Signal Connections to Monitor/ Control Includes 0 .110” quick connects for power, signal and ground connections. 24vDC remote indication

  11. Product Profile Accessory: Remote Fuse Indication Remote Fuse Indication Accessory Installation to CCP Wiring to CCP Phase monitoring conductor dedicated wiring terminal • Dedicated terminal on the CCP to accept the conductor. • For 1-pole or 2-pole CCP connection, trim unused conductors from the device. • Mounts on left side of CCP • Necessary hardware is provided. • Dimensionally Compliant to DIN-43880 24vDC remote indication

  12. Product Profile Accessory: Auxiliary Contact for Switch Status Catalog number: CCP-AUX Contact Rating 5A/240vAC Auxiliary Contacts One NO+NC Contact for Switch Status Switch Connects to CCP Disconnect Switch Indication of CCP switch position for interlocking

  13. Product Profile Accessory: Auxiliary Contact for Switch Status Auxiliary Contact for Switch Status Accessory Installation to CCP • Mounts on right side of CCP • Mechanically interlocks with the CCP switch handle with hardware provided.. • Dimensionally Compliant to DIN-43880 Easy to install accessory

  14. Challenge! Tools for Selling Application Note Comprehensive volume of application knowledge

  15. Challenge! Tools for Selling: Application Note Best fused solution!

  16. Challenge! Tools for Selling: Application Note Better ratings than circuit breakers

  17. Challenge! Tools for Selling: Application Note Control Circuit Applications Higher ratings achieved in control circuits

  18. Challenge! Tools for Selling: Application Note Resistive and Lighting Circuit Applications Higher ratings achieved at competitive cost

  19. Challenge! Tools for Selling: Application Note Motor Circuit Applications Better ratings for motor circuit applications

  20. Summary New category designed to help you • Save space • Increase SCCR ratings • Improve safety • Reduce downtime Thank You
