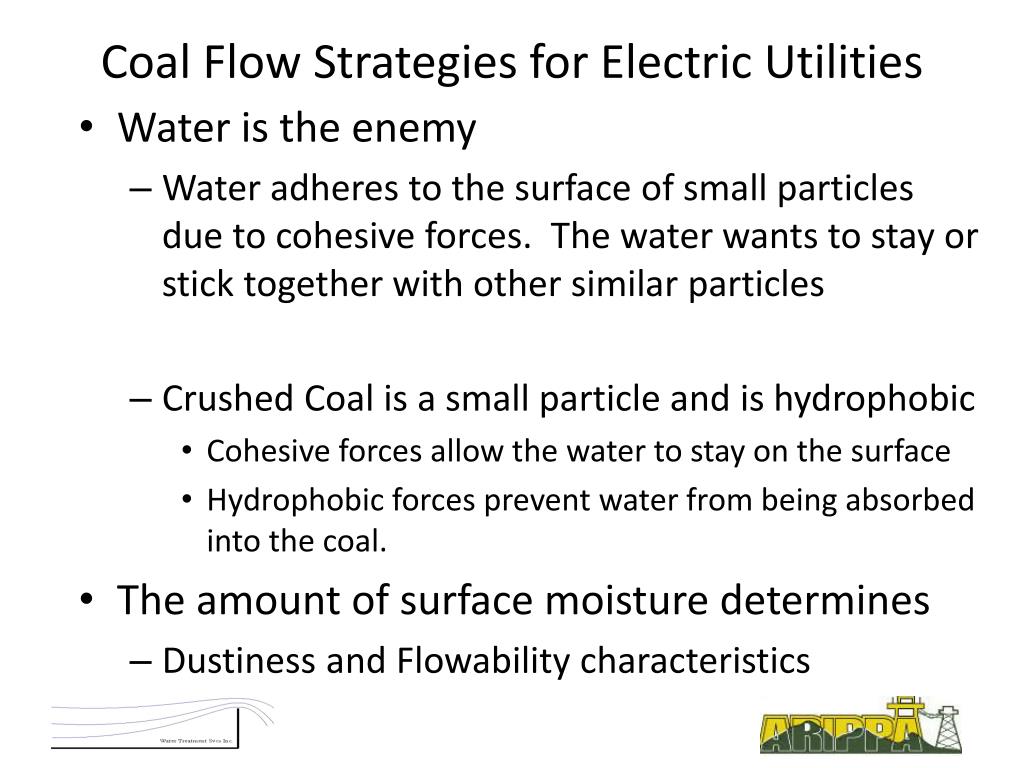

  1. Coal Flow Strategies for Electric Utilities • Water is the enemy • Water adheres to the surface of small particles due to cohesive forces. The water wants to stay or stick together with other similar particles • Crushed Coal is a small particle and is hydrophobic • Cohesive forces allow the water to stay on the surface • Hydrophobic forces prevent water from being absorbed into the coal. • The amount of surface moisture determines • Dustiness and Flowability characteristics

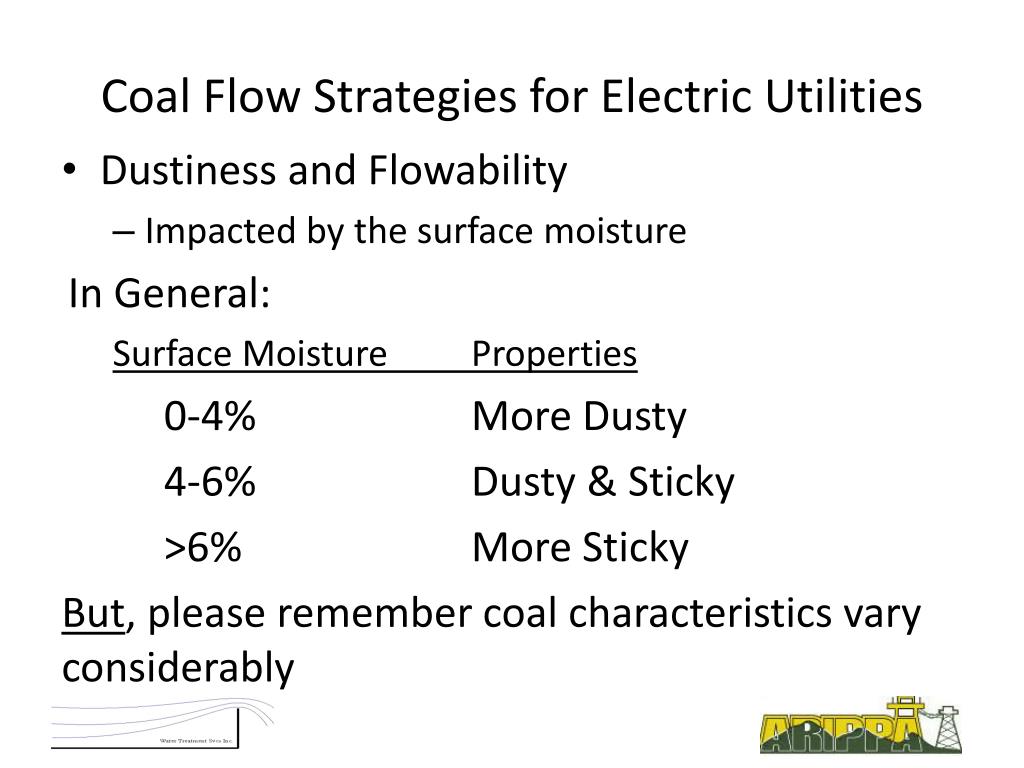

  2. Coal Flow Strategies for Electric Utilities • Dustiness and Flowability • Impacted by the surface moisture In General: Surface Moisture Properties 0-4% More Dusty 4-6% Dusty & Sticky >6% More Sticky But, please remember coal characteristics vary considerably

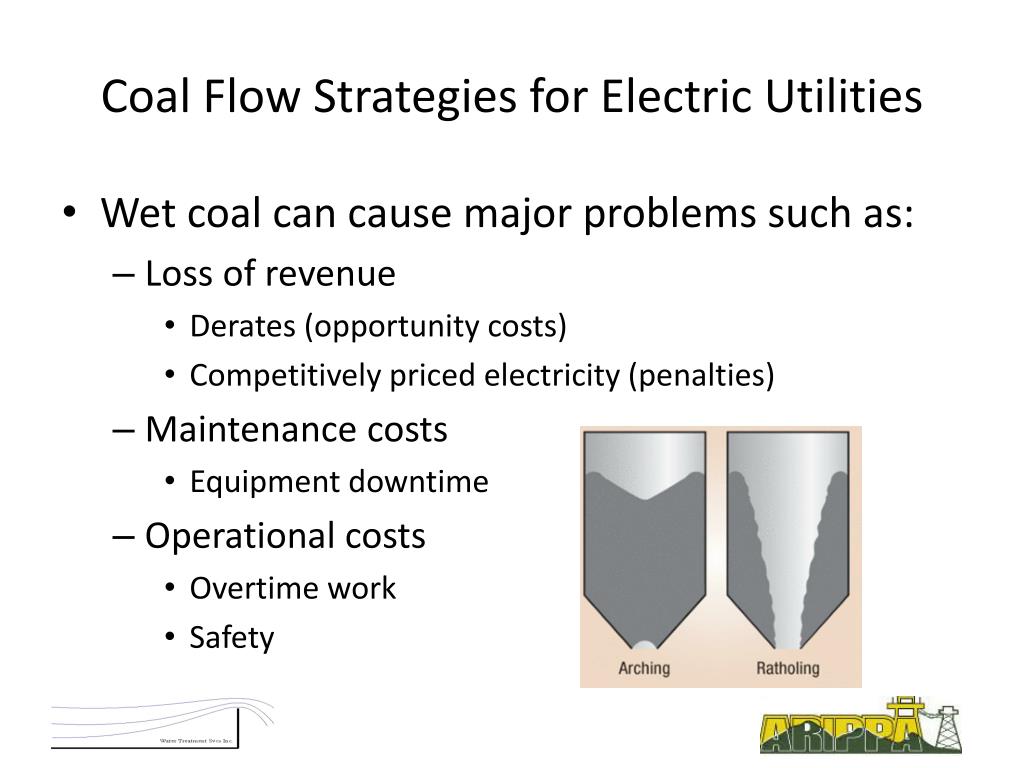

  3. Coal Flow Strategies for Electric Utilities • Wet coal can cause major problems such as: • Loss of revenue • Derates (opportunity costs) • Competitively priced electricity (penalties) • Maintenance costs • Equipment downtime • Operational costs • Overtime work • Safety

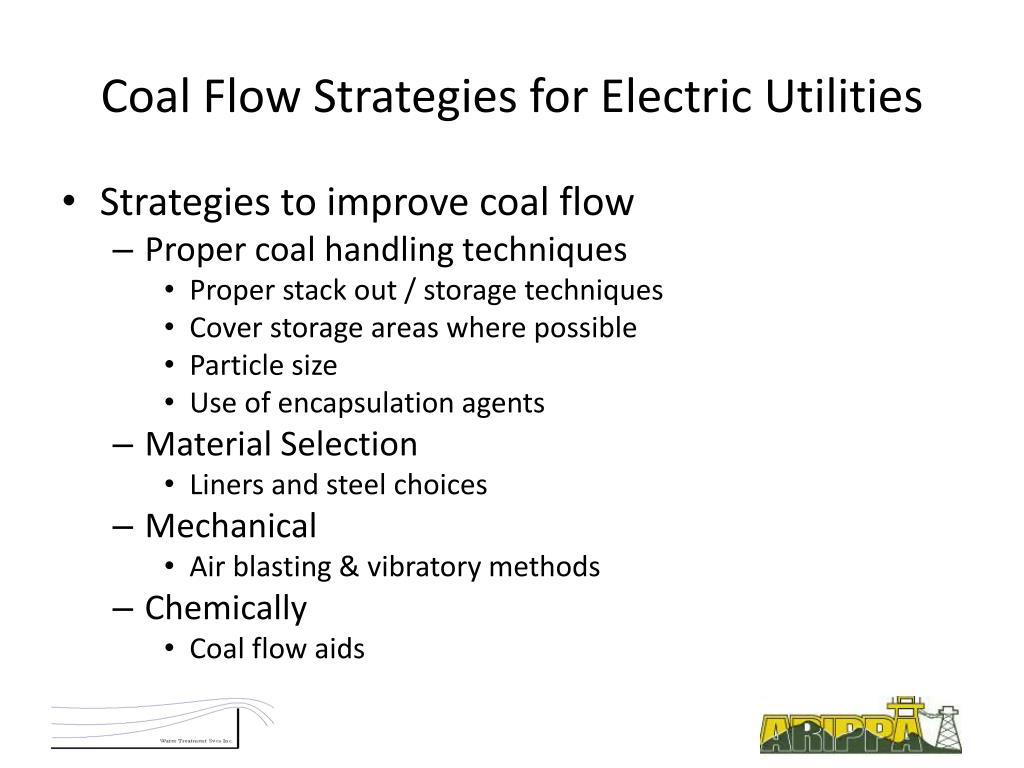

  4. Coal Flow Strategies for Electric Utilities • Strategies to improve coal flow • Proper coal handling techniques • Proper stack out / storage techniques • Cover storage areas where possible • Particle size • Use of encapsulation agents • Material Selection • Liners and steel choices • Mechanical • Air blasting & vibratory methods • Chemically • Coal flow aids

  5. Coal Flow Strategies for Electric Utilities • Proper Coal Handling Techniques: • Stack out & storage

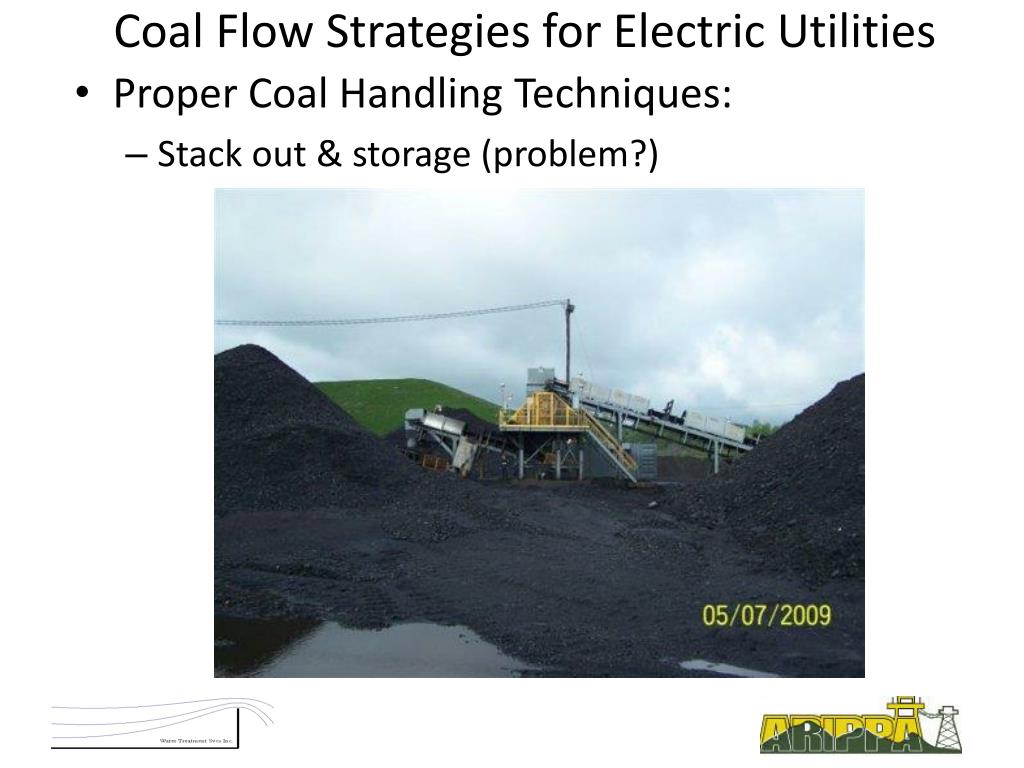

  6. Coal Flow Strategies for Electric Utilities • Proper Coal Handling Techniques: • Stack out & storage (problem?)

  7. Coal Flow Strategies for Electric Utilities • Proper Coal Handling Techniques: • Cover storage areas if possible

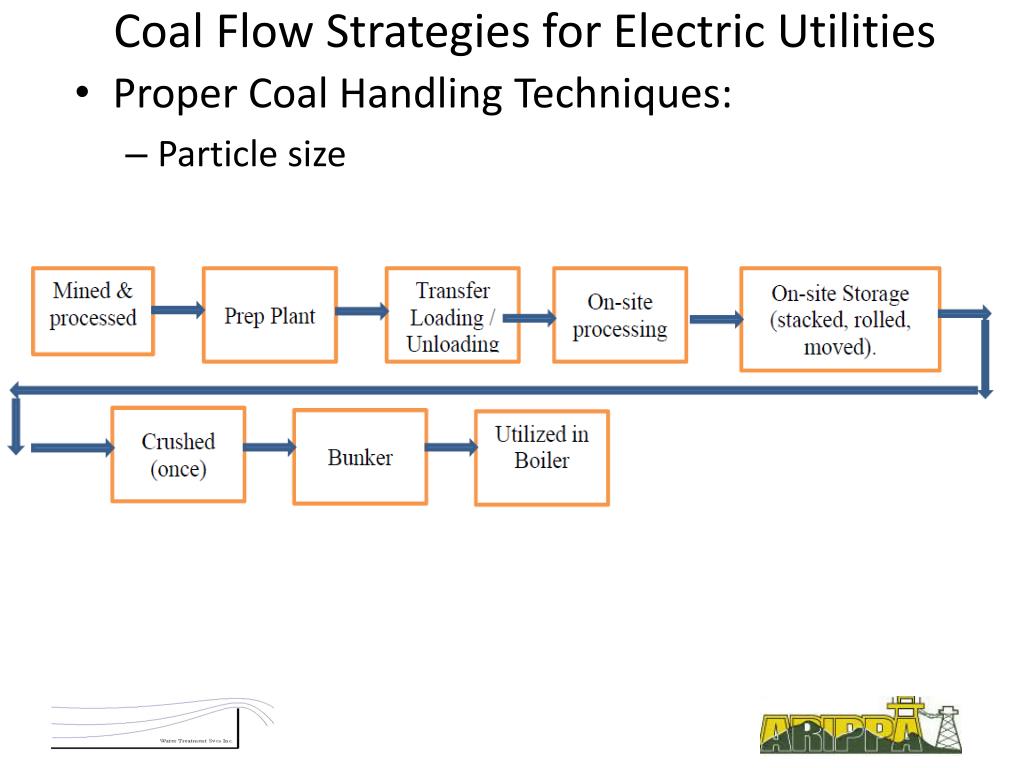

  8. Coal Flow Strategies for Electric Utilities • Proper Coal Handling Techniques: • Particle size

  9. Coal Flow Strategies for Electric Utilities • Proper Coal Handling Techniques: • Encapsulation agents

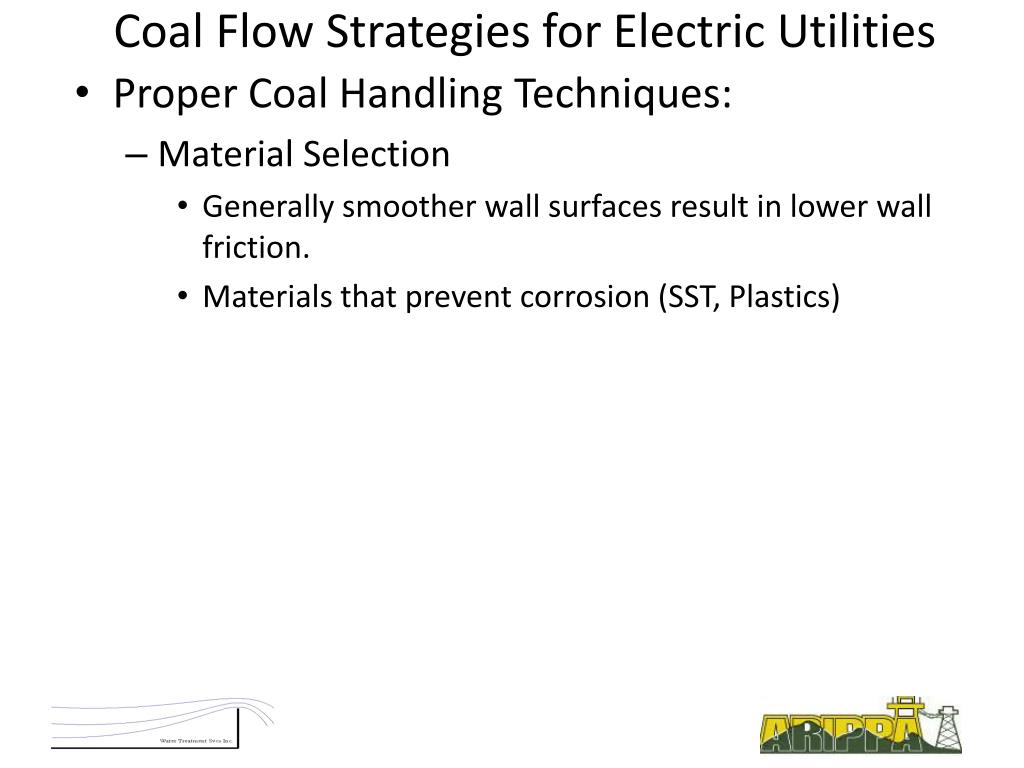

  10. Coal Flow Strategies for Electric Utilities • Proper Coal Handling Techniques: • Material Selection • Generally smoother wall surfaces result in lower wall friction. • Materials that prevent corrosion (SST, Plastics)

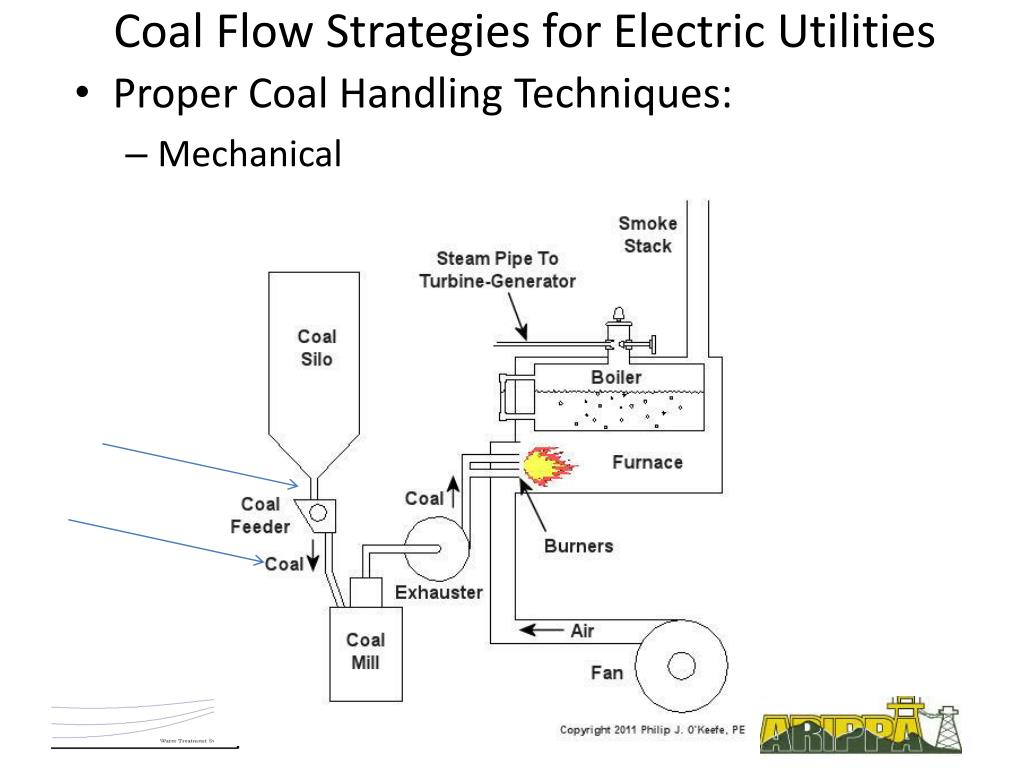

  11. Coal Flow Strategies for Electric Utilities • Proper Coal Handling Techniques: • Mechanical

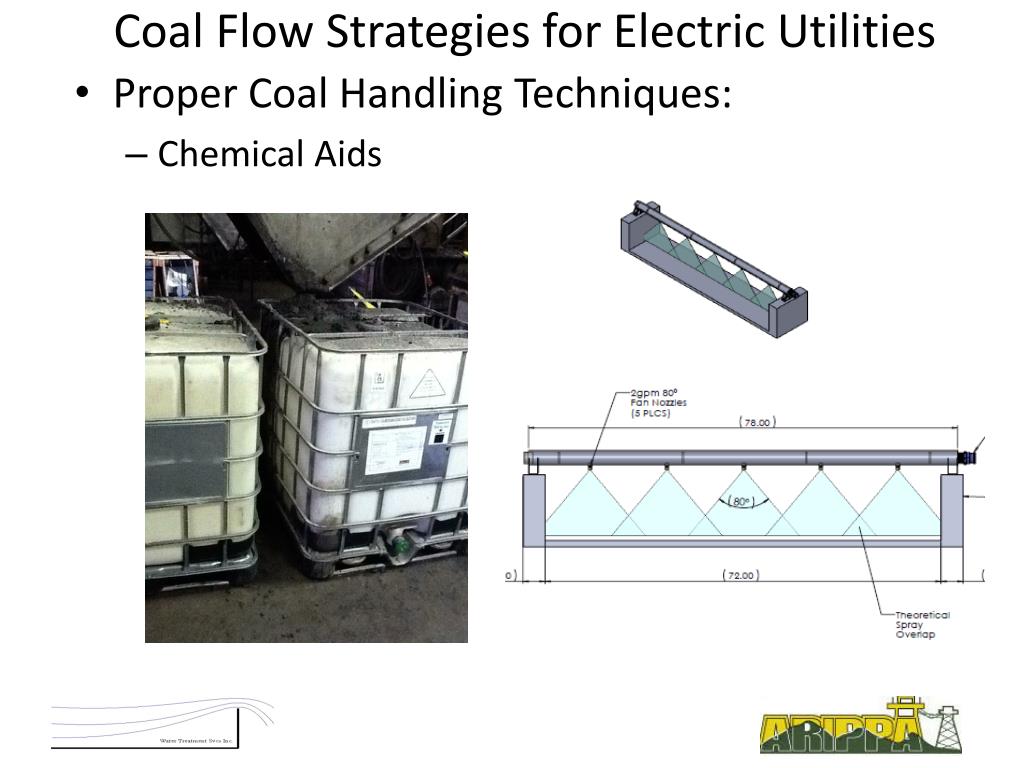

  12. Coal Flow Strategies for Electric Utilities • Proper Coal Handling Techniques: • Chemical Aids

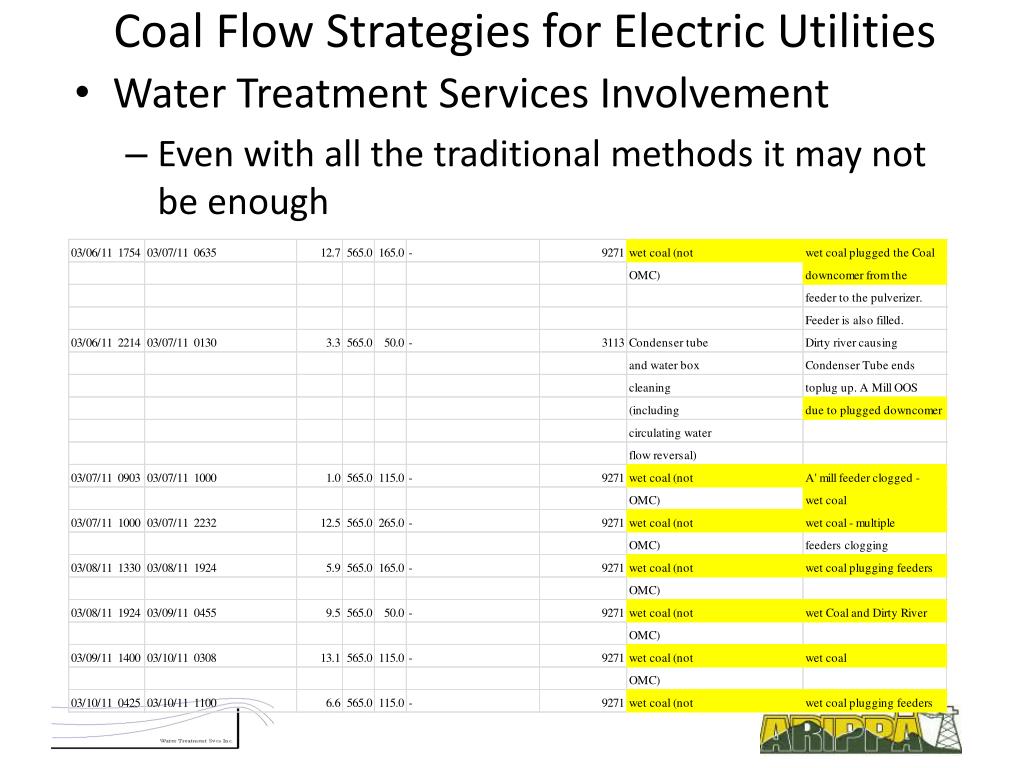

  13. Coal Flow Strategies for Electric Utilities • Water Treatment Services Involvement • Even with all the traditional methods it may not be enough

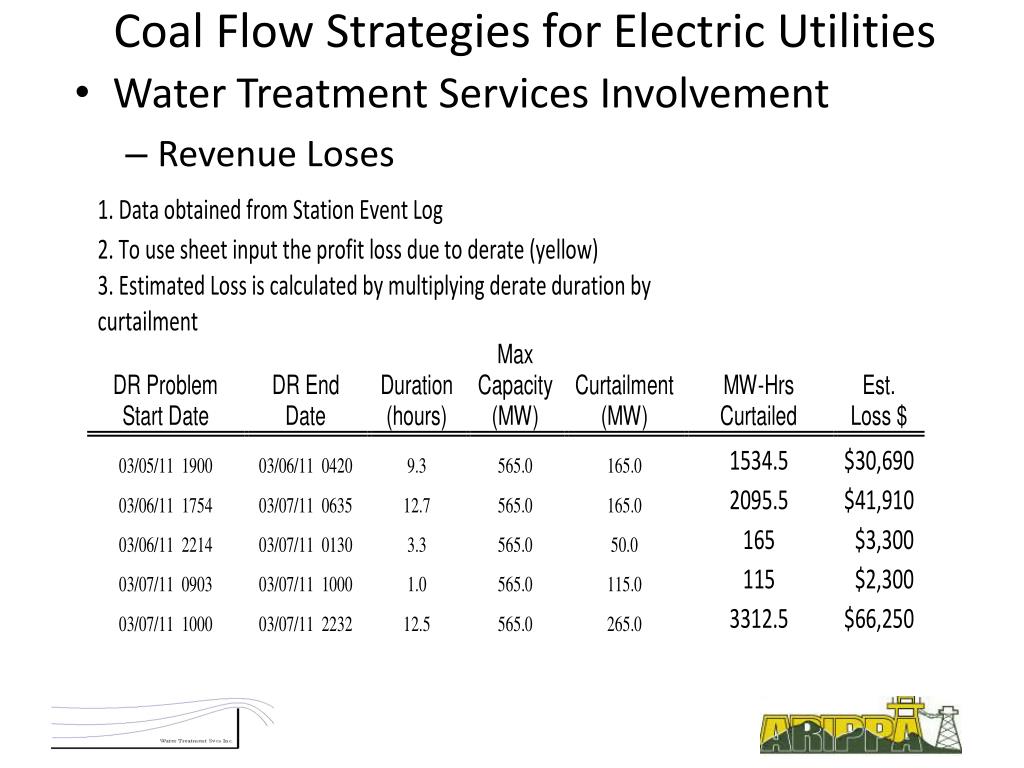

  14. Coal Flow Strategies for Electric Utilities • Water Treatment Services Involvement • Revenue Loses

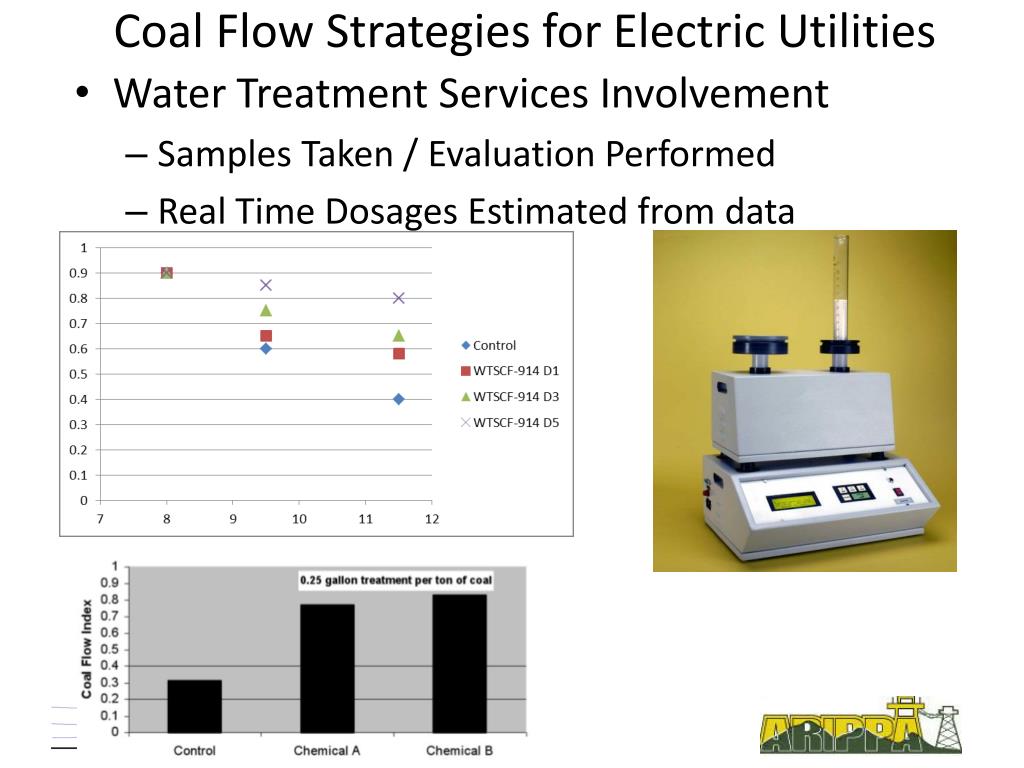

  15. Coal Flow Strategies for Electric Utilities • Water Treatment Services Involvement • Samples Taken / Evaluation Performed • Real Time Dosages Estimated from data

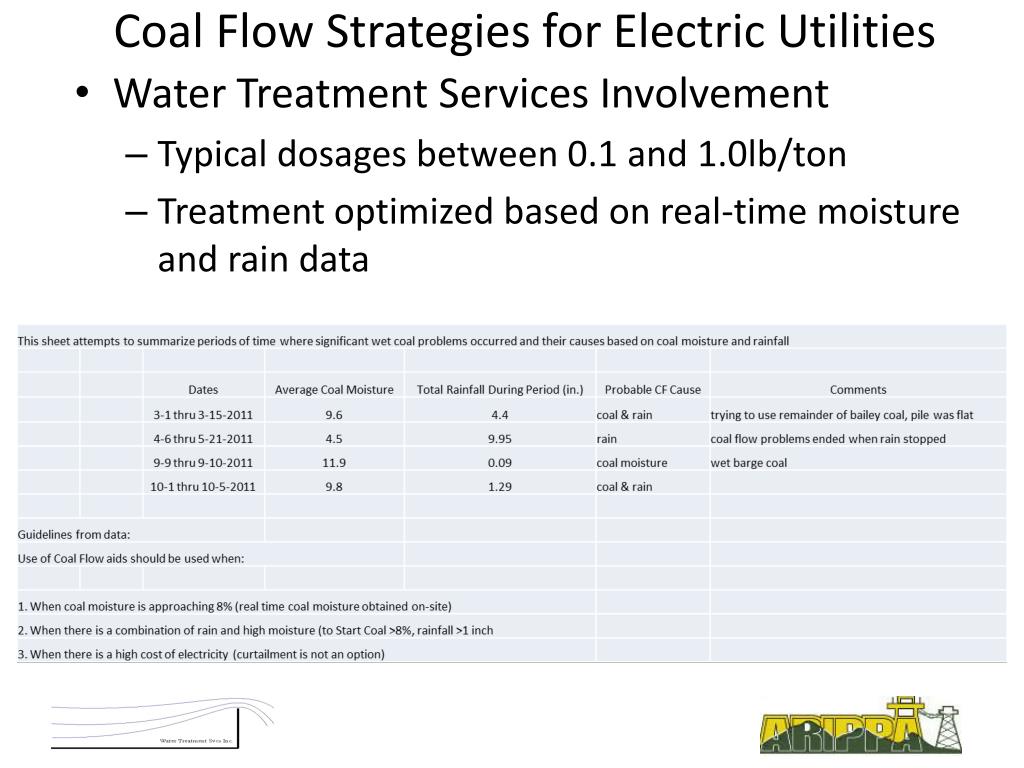

  16. Coal Flow Strategies for Electric Utilities • Water Treatment Services Involvement • Typical dosages between 0.1 and 1.0lb/ton • Treatment optimized based on real-time moisture and rain data

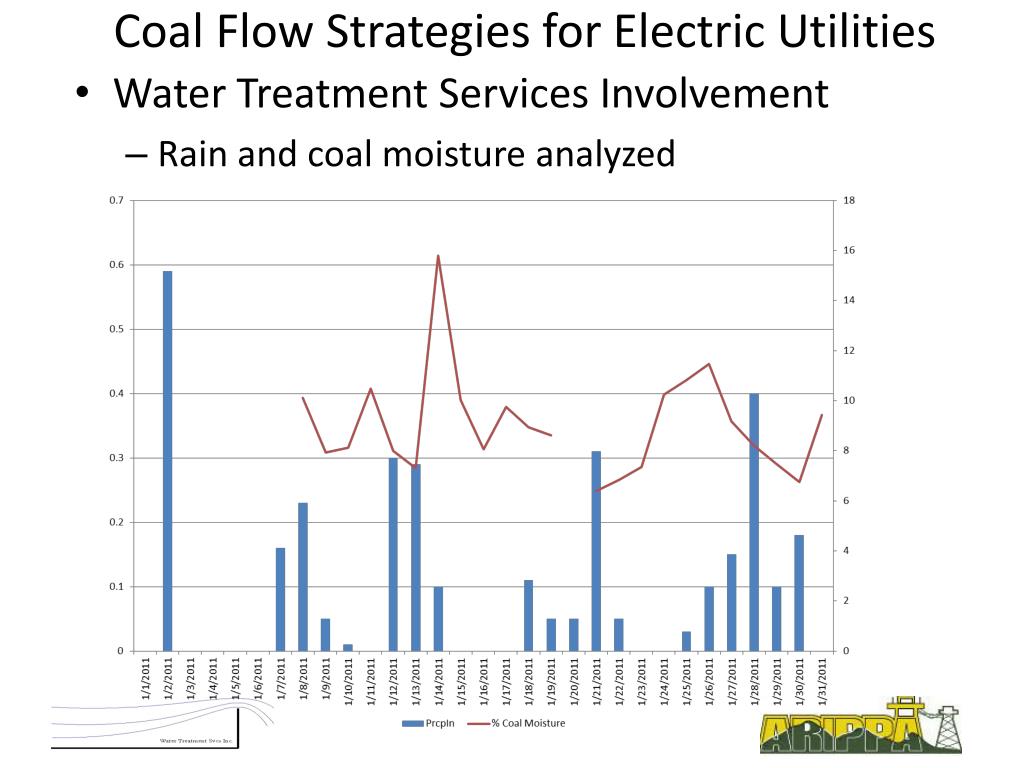

  17. Coal Flow Strategies for Electric Utilities • Water Treatment Services Involvement • Rain and coal moisture analyzed

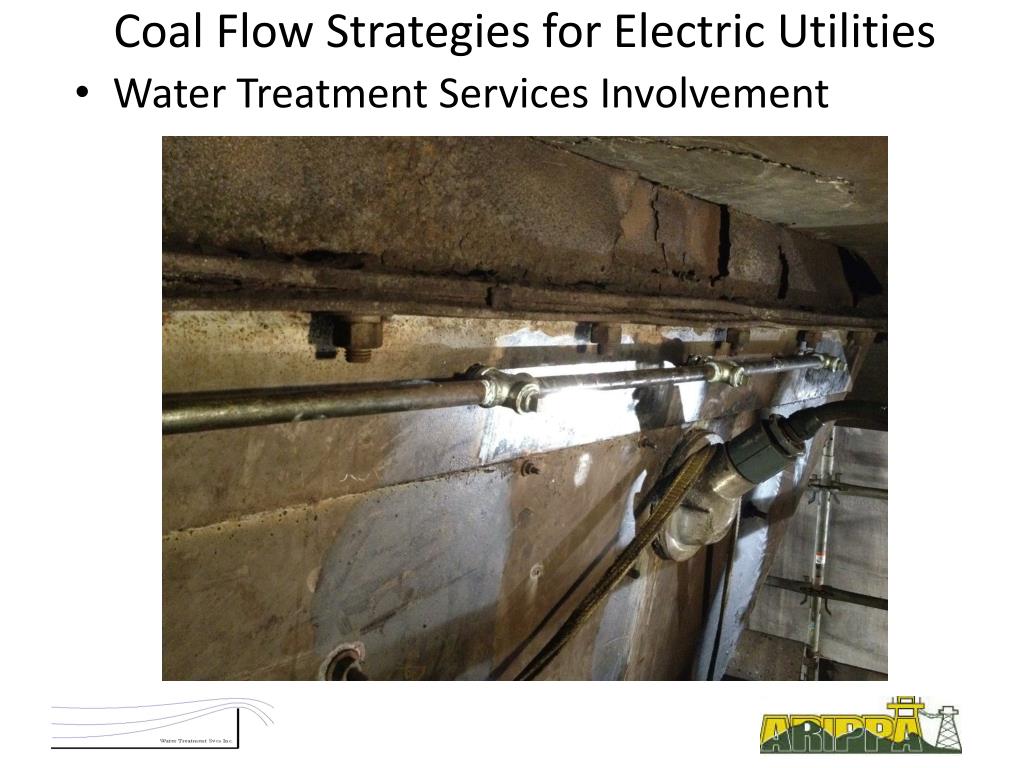

  18. Coal Flow Strategies for Electric Utilities • Water Treatment Services Involvement

  19. Coal Flow Strategies for Electric Utilities • Water Treatment Services Involvement

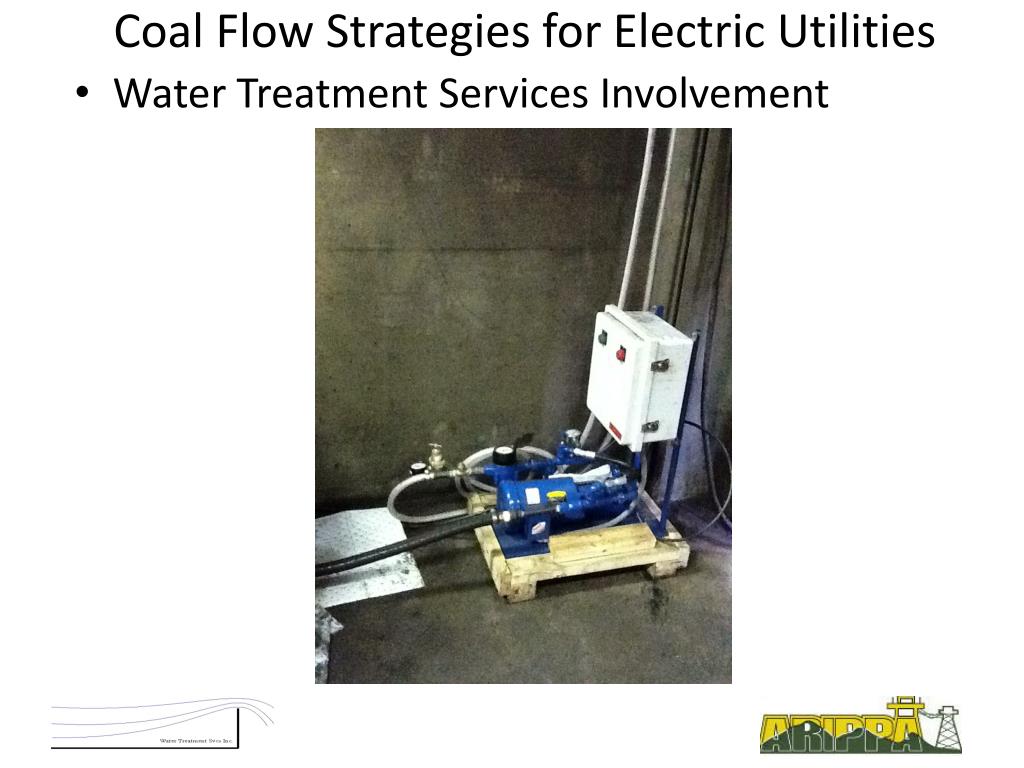

  20. Coal Flow Strategies for Electric Utilities • Water Treatment Services Involvement

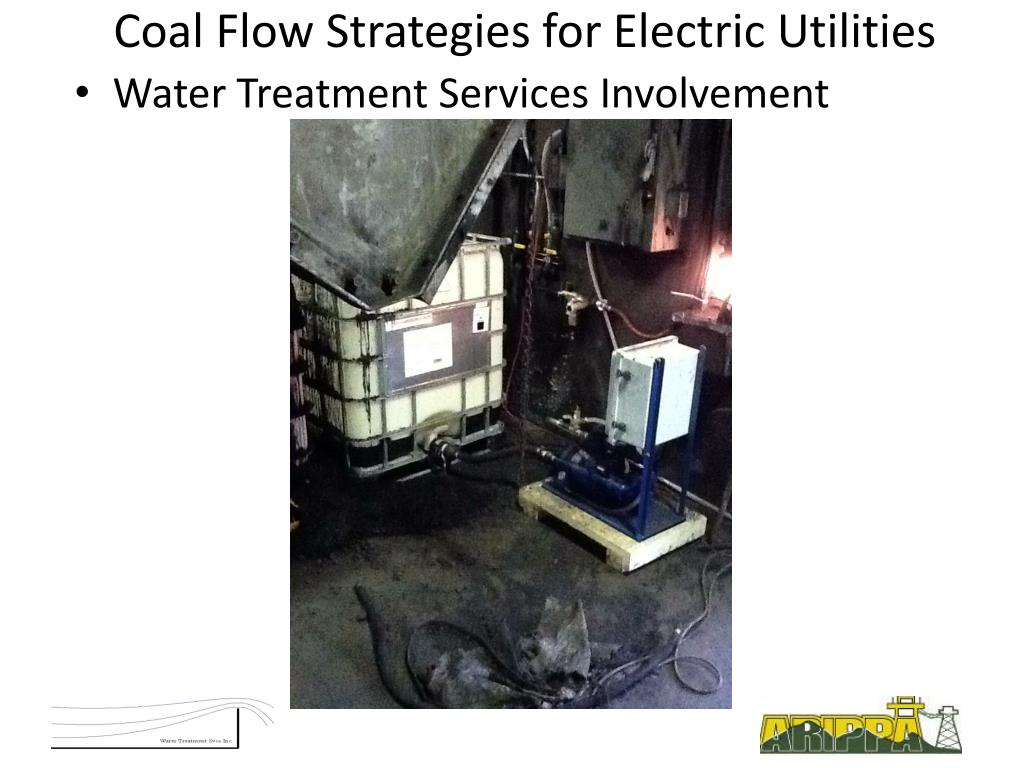

  21. Coal Flow Strategies for Electric Utilities • Water Treatment Services Involvement

  22. Coal Flow Strategies for Electric Utilities • Water Treatment Services Involvement

  23. Thanks
