SPICE Diego A Transistor Level Full System Simulator

1. SPICEDiegoA Transistor Level Full System Simulator Chung-Kuan Cheng May 27,2004 Computer Science & Engineering Department University of California, San Diego

2. Outline • Motivation • Status of Commercial Simulators • Solver Engine: Multigrid Review • Activity Driven Analysis • Nonlinear Transistor Devices • Experimental Results • Conclusion

3. Motivation • Moore’s Law • # transistors and clock frequency double /2 years 1984: 100K transistors, 10M Hz 2003: 100M transistors, 5G Hz • More Challenges for Circuit Simulator • Electrical Coupling (C&L): interconnect delay, crosstalk, voltage drop, ground bounce • Short Channel Devices • SPICE • Cannot perform large chip analysis, capacity limit to 50,000 transistors ( O(n2) complexity )

4. Status of Commercial Simulators Partition Based Simulation • Most commercial fast spices (HSIM, Power Mill / Time Mill / Rail Mill, NaroSim, RedHawk, Ultrasim) • Advantage • Smaller Matrix Size • Easy to apply varies time step to different subcircuits • Disadvantage • Hard to catch coupling effect between subcircuits • Device Model ignoring Miller’s effect • Potential convergence problem • Accuracy not guaranteed.

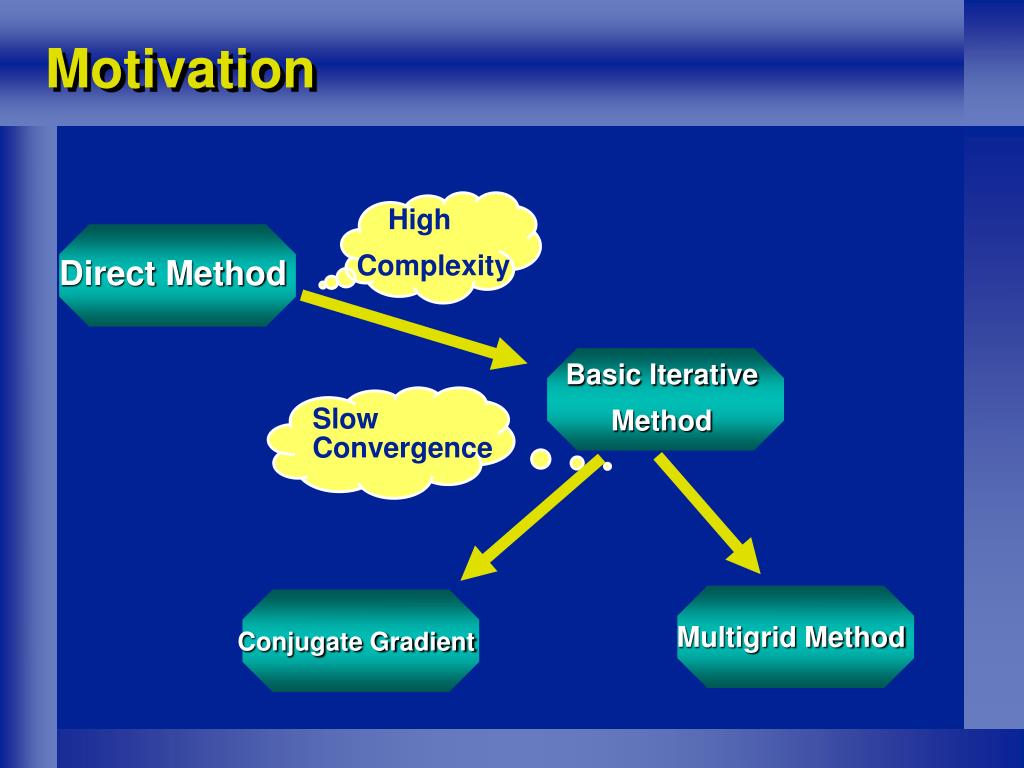

5. High Complexity Basic Iterative Method Slow Convergence Multigrid Method Conjugate Gradient Motivation Direct Method

6. Multigrid Review • Error Components • High frequency error (More oscillatory between neighboring nodes) • Low frequency error (Smooth between neighboring nodes) • Basic iterative methods only efficiently reduce high frequency error • Basic Idea of Multigrid • Convert hard-to-damp low frequency error to easy-to-damp high frequency error

7. Gauss Elimination A2•X2=b2 Interpolation Restriction A1 •X1=b1 Smoothing Smoothing Interpolation A0 •X0=b0 Restriction Smoothing Smoothing 3 2 6 2 1 4 4 2 1 3 1 5 Multigrid : A Hierarchy of Problems Hierarchically, all error components smoothed efficiently

8. Geometric vs Algebraic • Geometric multigrid method • Require Regular Grid Structure • Algebraic Multigrid • Coarsening Relied on Matrix, • No requirement of regular grid structure • Coloring scheme • Error Smoothing Operator: Gauss-Seidel • Interpolation • Small residue but the error decreases very slowly. • In practice, we use only coarse node at the RHS of above formula to approximate error correction of fine node.

9. System Equation: Apply Trapezoidal Rule: Convergence of Multigrid Method • The matrix needs to be symmetric positive definite • Key to the convergence of iterative method SOR, PCG, Multigrid • RC network • The system matrix is S.P.D(symmetric positive definite) LHS matrix is S.P.D, it is also valid for B.E. and F.E formulae

10. System Equation: Apply Trapezoidal Rule: Convergence of Multigrid Method • RLKC network The LHS matrix is not S.P.D, but can be converted to S.P.D matrix The LHS matrix of first equation is now S.P.D. Similar for B.E and F.E L-1 is called K / Susceptance / Reluctance Matrix

11. Why Algebraic Method • No Requirement of Regular Grid • Works for general circuits. • Circuit with Mutual Inductance • Adjacency graph of the converted system matrix is different from circuit topology. Converted System Matrix:

12. Activity Driven Analysis • Circuit Latency & Multi-rate Behavior • Spatial Latency • Only portions of the circuit is active at any given time 80%-90% of total gates are non-switching • Temporal Latency A given portion of circuit is not always active. • Multi-rate Behavior • Varies time constant  multi-rate behavior • How to utilize ? • Circuit Partitioning: common technique used in timing simulators.

13. Adaptive Smoothing • HOW? • Only active regions get error smoothed • Varies “time step size” • inactive subcircuits may only get chance to have error smoothed at finest level once every several time points • WHY? • Error smoothing operation at finer levels takes most of the iteration time • Smoothing at coarser level is sufficient for inactive portions of circuit Adaptive smoothing at finest grid level

14. Incorporating Transistor Devices (1) • Direct Simulation of Transistor Devices Makes Linear Solver Diverge • Conventional Method: Abstract Device as Current Waveform, Ignore the Interaction with VDD/VSS. • How to include Transistor Devices? Inside the inner most Newton-Raphson linearization iteration, decouple the linear and nonlinear interface, replaced by Norton Equivalent Circuit.

15. Incorporating Transistor Devices (2) • Advantage • Possible to use fast linear matrix solver (require symmetric positive definite matrix properties , which is not hold for nonlinear transistors) • Less Memory Requirement: Matrix for nonlinear components can be generated on the fly. Possible to run large case with millions of transistors. • Decouple linear-nonlinear only at the inner most Newton-Raphson iteration of transient analysis. Accuracy guaranteed via linear-nonlinear iteration (typically 4 ~ 10 iterations)

16. Experimental Results (1) • Test Case #1 • Board / Packaging / Chip Power Network • Fully coupled packaging inductance • 60k elements, 5000 nodes. • Spice failed • Our tool • Less than 2 minutes chip board Power Supply

17. Experimental Results (2) • Power/Clock network case. • 30k nodes, 1000 transistor devices • Spice run time 41323s • Our Run time: 1859s 22x speedup

18. Experimental Results (3) • 1K cell design • 10,286 nodes • 751 Gates • Spice run time: 2121s • Our run time: 26.1s 8x Speedup • 10K cell design • 123,590 nodes • 7,481 Gates • Spice Run time: 44293s • Our run time: 3572s, 12.4x Speedup

19. Why SPICEDiego is better? • SPICEDiego: fast accurate transistor level circuit simulator • Powerful Matrix Solver Engine • Transistor devices. • Capable of capturing coupling effects. • Device Model including Miller’s effect • Less Memory Requirement (no LU factorization, dose not save matrix for transistors) • Application • interconnect delay • Crosstalk • voltage drop, ground bounce • simultaneous switching noise

20. Conclusion • Moore’s Law demands an extraordinary fast circuit simulator with guaranteed accuracy. • Current tools cannot cover Miller’s effect, mutual inductance. There is no bound on the error either. • SPICEDiego offers a solution for circuit designers
