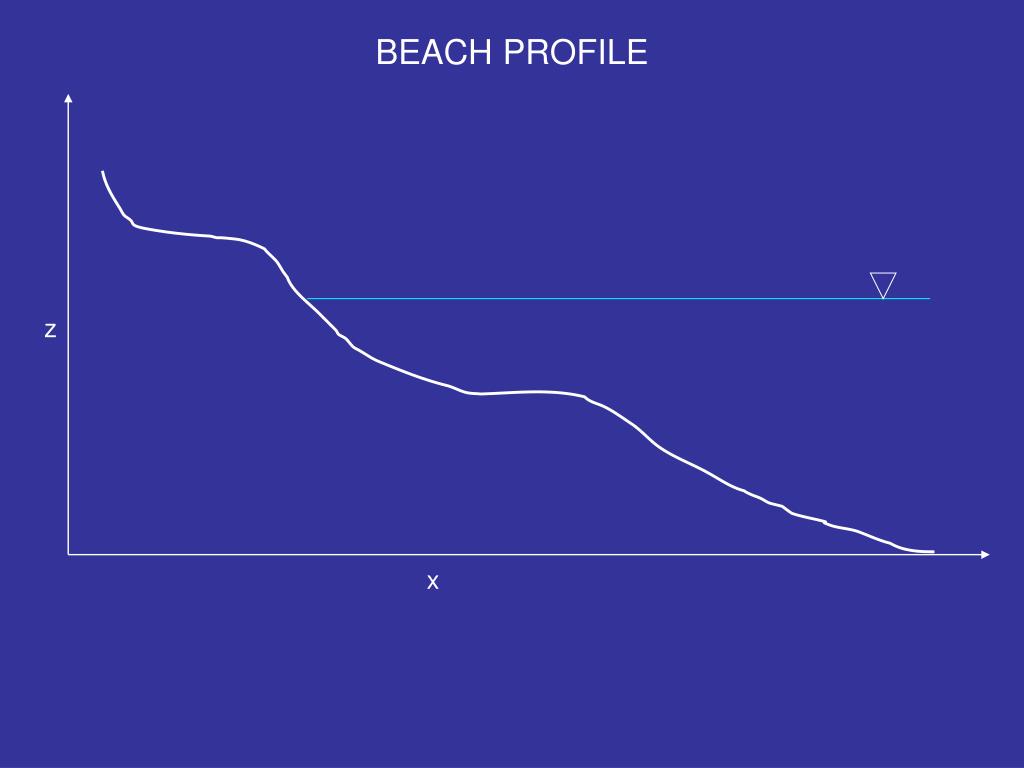

  1. BEACH PROFILE z x

  2. BEACH PROFILE – MEASUREMENT TECHNIQUES Rod and Level – Emery Method English Method Spanish Method http://www.ambios.co.uk mciunix.mciu.k12.pa.us

  3. BEACH PROFILE – MEASUREMENT TECHNIQUES GPS METHOD – PUSH CART Guza www.nrl.navy.mil http://cdip.ucsd.edu/SCBPS

  4. BEACH PROFILE – MEASUREMENT TECHNIQUES GPS METHOD – ALL TERRAIN VEHICLE frf.usace.army.mil http://cil-www.coas.oregonstate.edu:8080/

  5. BEACH PROFILE – MEASUREMENT TECHNIQUES GPS METHOD – CRAB GPS RECEIVER Water-filled tires

  6. BEACH PROFILE – MEASUREMENT TECHNIQUES GPS METHOD – JET SKI bprc.mps.ohio-state.edu/ocean/jshore

  7. BEACH PROFILE – MEASUREMENT TECHNIQUES RADAR AND VIDEO Trizna, ISR TRACK WAVE PHASE SPEED, THEN APPLY DEPTH INVERSION

  8. BEACH PROFILE – MEASUREMENT TECHNIQUES AIRBORNE LIDAR Red bounces off surface, green bounces off bottom. http://www.optech.ca/aboutlaser.htm

  9. ~100 m ~60 m toe of dunes berm swash zone cusps 3x vertical exaggeration BEACH PROFILE – MEASUREMENT TECHNIQUES GROUND-BASED LIDAR LIDAR Art Elevation Contours Beach Map
