  1. PSCE09 - CIM Status Update Panel SessionIntroduction Ed Dobrowolski, NERC

  2. Panel Session Agenda • Introduction & Update on CIM Documentation Status – Ed Dobrowolski, NERC • Justifying the CIM – Terry Saxton, Xtensible Solutions • Specifying the CIM – Jay Britton, Areva • CMM Report for ’08 – Kendall Demaree, Areva • CIM Model Manager Update – Kurt Hunter, Siemens • CIMug Interaction with IEC – Randy Rhodes, Pacificorp • Experiences at ERCOT – John Moseley, ERCOT • Panel Q&A

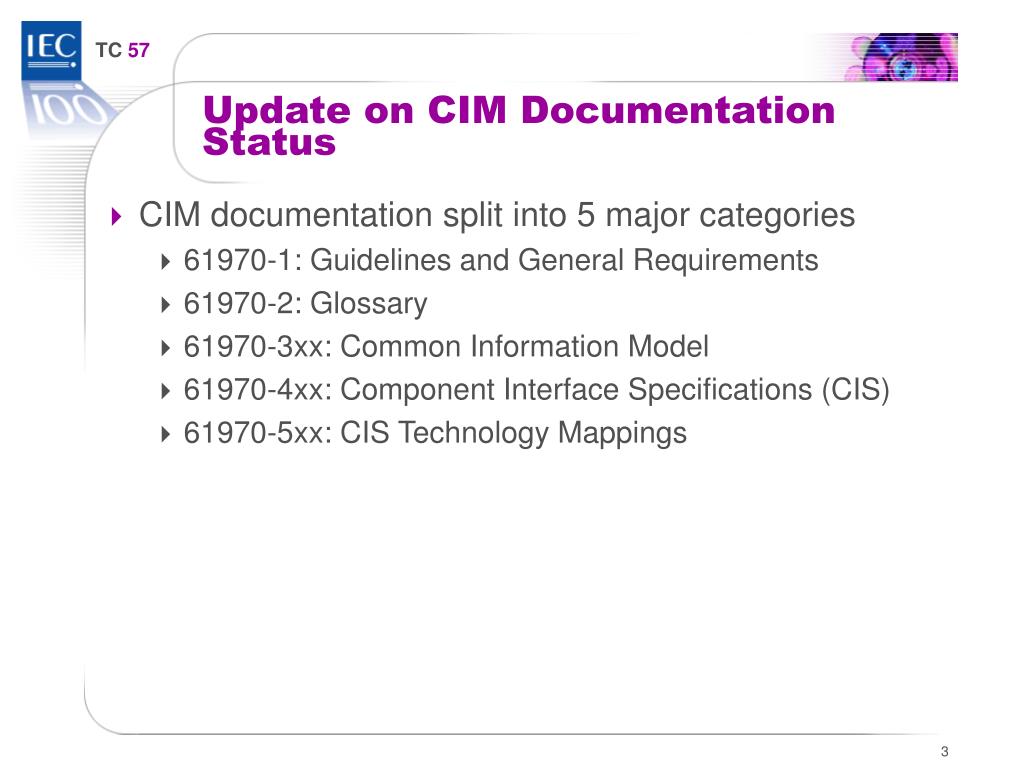

  3. Update on CIM Documentation Status • CIM documentation split into 5 major categories • 61970-1: Guidelines and General Requirements • 61970-2: Glossary • 61970-3xx: Common Information Model • 61970-4xx: Component Interface Specifications (CIS) • 61970-5xx: CIS Technology Mappings

  4. Documentation Status Codes • NWIP = New Work in Progress • WD = Working Draft • CD = Committee Draft • CDV = Committee Draft for Vote • FDIS = Functional Draft International Standard • IS = International Standard • MRC = Maintenance Review Cycle

  5. -1, -2, & -3xx • -1: Guidelines and General Requirements • Describes the component based reference model • Includes general capabilities for integration infrastructure • Status = IS • -2: Glossary • Status = IS • -3xx: CIM • 301: Paper copy of the model • Published yearly by IEC as IS/MRC • Latest version: CIM13, v19 • Electronic copy on CIMug web site

  6. -4xx • Component Interface Specifications (CIS) • Interfaces that a component should implement to be able to exchange information with other components • Information content (messages) that a component exchanges • 2 major divisions • 401 – 449: Generic service specifications • 450 – 499: Specific information exchange requirements

  7. -401 to -404 • -401: Integration Interface Specification Framework • Overview of interfaces and methodology • Status = IS • -402: Common Services • Foundational API • Status = IS • -403: Generic Data Access • Services needed to access public objects • Status = IS • -404: High Speed Data Access • Interface for efficient transfer of data in a distributed environment • Status = IS

  8. -405 to -407 • -405: Generic Eventing and Subscription • Interface for efficient transfer of event and alarm messages in a distributed environment • Status: IS • -406: Program Invocation • Interface for clients to request a server to run and monitor a process in a distributed environment • Status: On Hold • -407: Time Series Data Access • Interface for efficient exchange of time series data in a distributed environment • Status: IS

  9. -450 to -452 • -450: Information Exchange Model Specification Guide • Overview of the process used to define and document information content and exchange mechanisms • Status = On Hold • -451: Information Exchange Model For SCADA • Define message exchange formats • Status = On Hold • -452: Transmission Network Model Exchange Profile • Specific profile of the CIM for exchange of static power system data between utilities, security coordinators, and other entities • Status = CDV

  10. -453 to -456 • -453: CIM based Graphics Exchange • Guidelines for exchange of graphic schematic definitions • Status = IS?MRC • -454: Naming Service Specification • Use of multiple names (URI’s) for the same resource and the need for a cross-reference between the multiple names • Status = CD • -455: Model Population Interface • Status = NWIP w/ CD • -456: Network Solution Interface • Transfer data created during typical network analysis processes • Status = NWIP

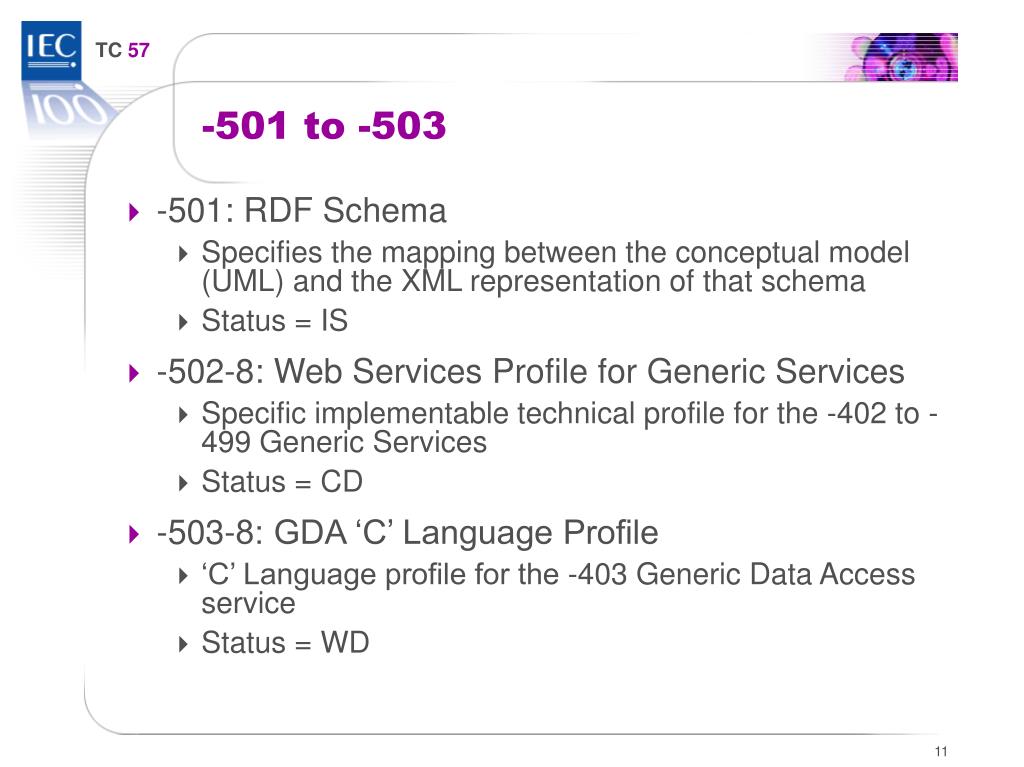

  11. -501 to -503 • -501: RDF Schema • Specifies the mapping between the conceptual model (UML) and the XML representation of that schema • Status = IS • -502-8: Web Services Profile for Generic Services • Specific implementable technical profile for the -402 to -499 Generic Services • Status = CD • -503-8: GDA ‘C’ Language Profile • ‘C’ Language profile for the -403 Generic Data Access service • Status = WD

  12. -505, -552, & -553 • -505: OWL Schema • Formulation of CIM profiles in OWL • Status = NWIP • -552-4: XML Model Exchange Format • Describes the CIM XML format at a level to support implementing the model exchange requirements in IEC -452 • Status = FDIS • -553-4: CIM Based Graphics Exchange Format • Describes the CIM SVG graphics exchange format at a level to support implementing the graphic schematics exchange requirements in -453 • Status = CD

  13. Accessing Documents • FDIS & IS documents are only available from IEC for a fee • WD, CD, and CDV documents are available on the CIMug web site • See Randy Rhodes (Utility Co-Chair) or Terry Saxton (Vendor Co-Chair) for information on joining the CIMug • Or visit the site at: http://cimug.ucaiug.org
