Understanding the Essence of Computation: From Binary to Hexadecimal

This content delves into the fundamental principles of computation, illustrating how information is represented through on/off impulses akin to a light switch. We explore the concept of binary systems, demonstrating how multiple switches can yield various messages. A step-by-step conversion from decimal (Base 10) to binary (Base 2) is presented, including an example with the number 352. Additionally, we discuss the hexadecimal system (Base 16) and the process for transforming decimal numbers into hexadecimal format, enhancing comprehension of numerical representation in computing.

elaina
Télécharger la présentation

Understanding the Essence of Computation: From Binary to Hexadecimal

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

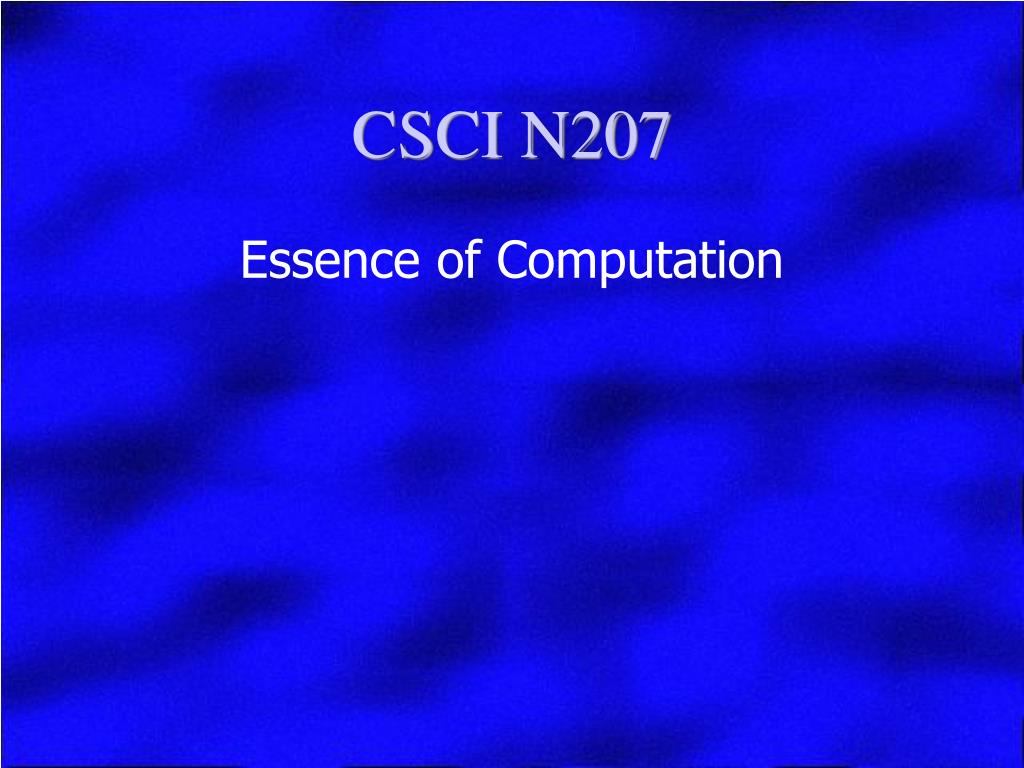

  1. CSCI N207 Essence of Computation

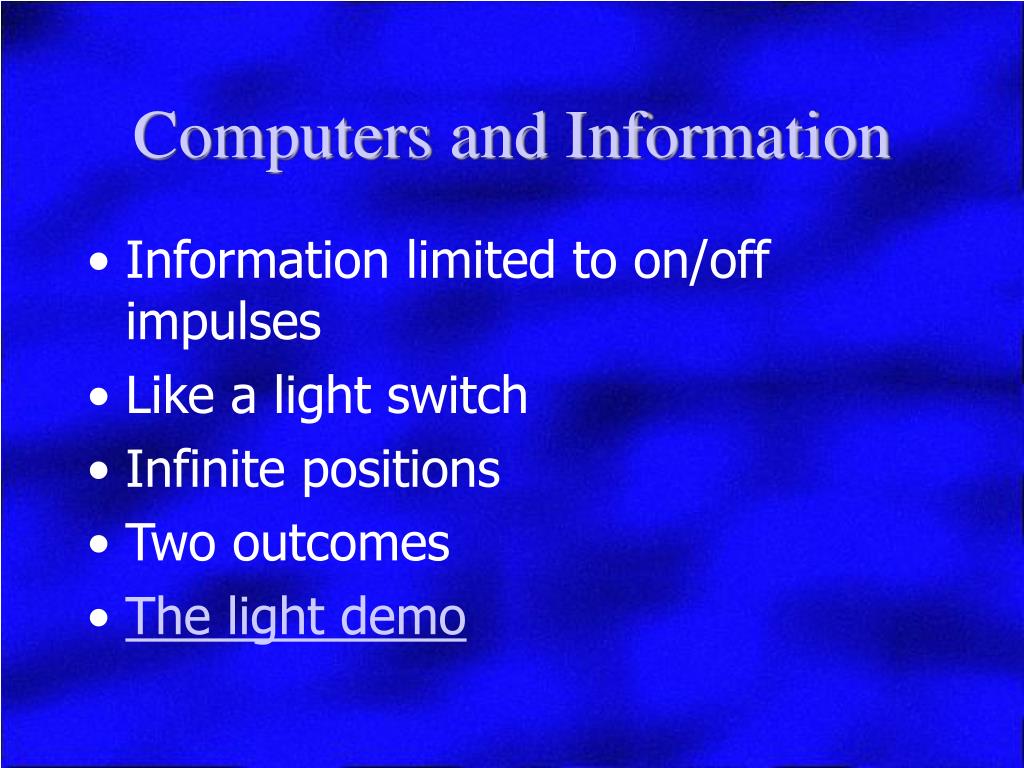

  2. Computers and Information • Information limited to on/off impulses • Like a light switch • Infinite positions • Two outcomes • The light demo

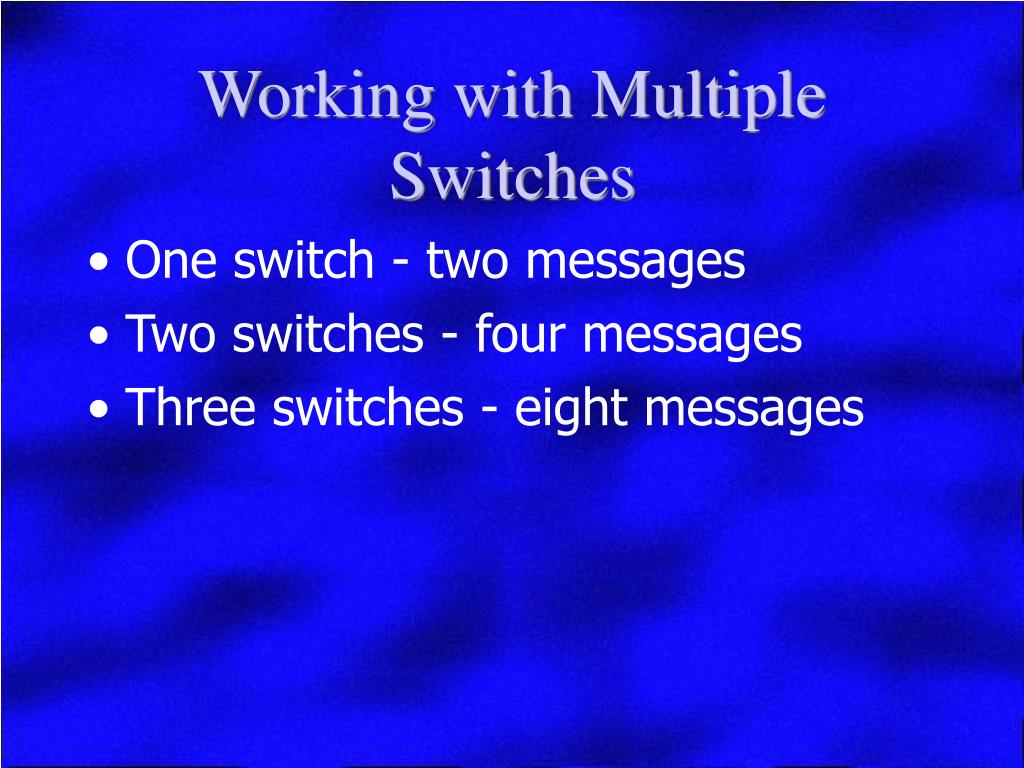

  3. Working with Multiple Switches • One switch - two messages • Two switches - four messages • Three switches - eight messages

  4. Assigning Values to messages • Looking at the pattern • 1, 2, 4, 8, 16, 32, 64, 128... • Seeing how it works. • The brick counter demo

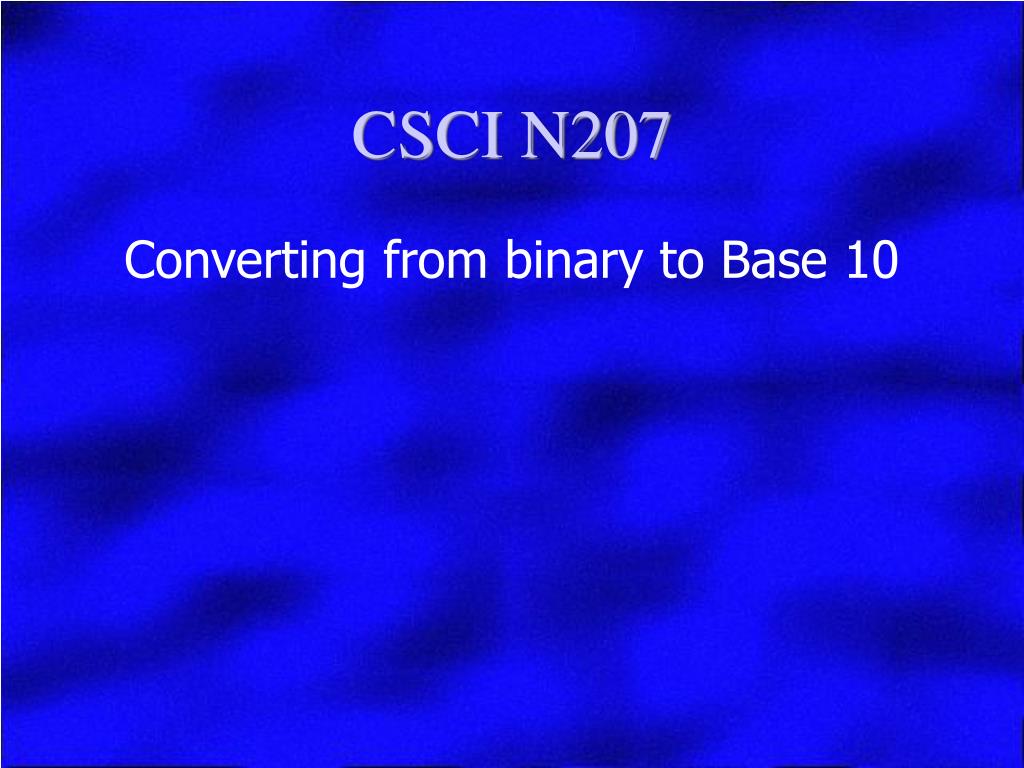

  5. CSCI N207 Converting from binary to Base 10

  6. Decimal System (Base 10) • What does 352 actually mean?

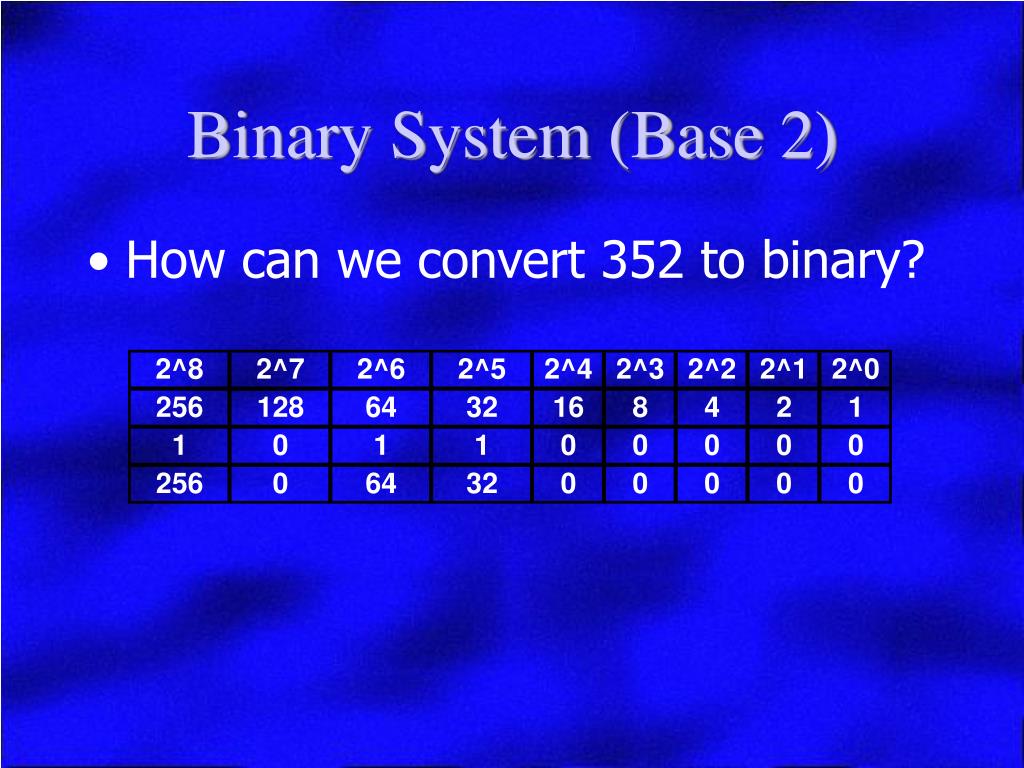

  7. Binary System (Base 2) • How can we convert 352 to binary?

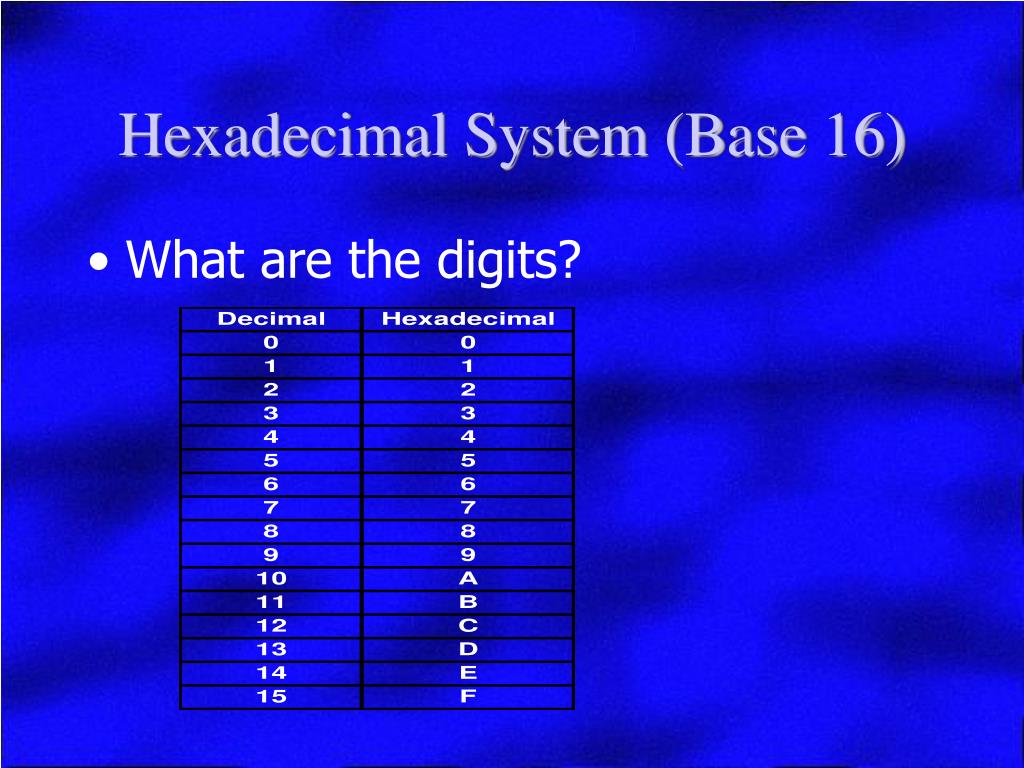

  8. Hexadecimal System (Base 16) • What are the digits?

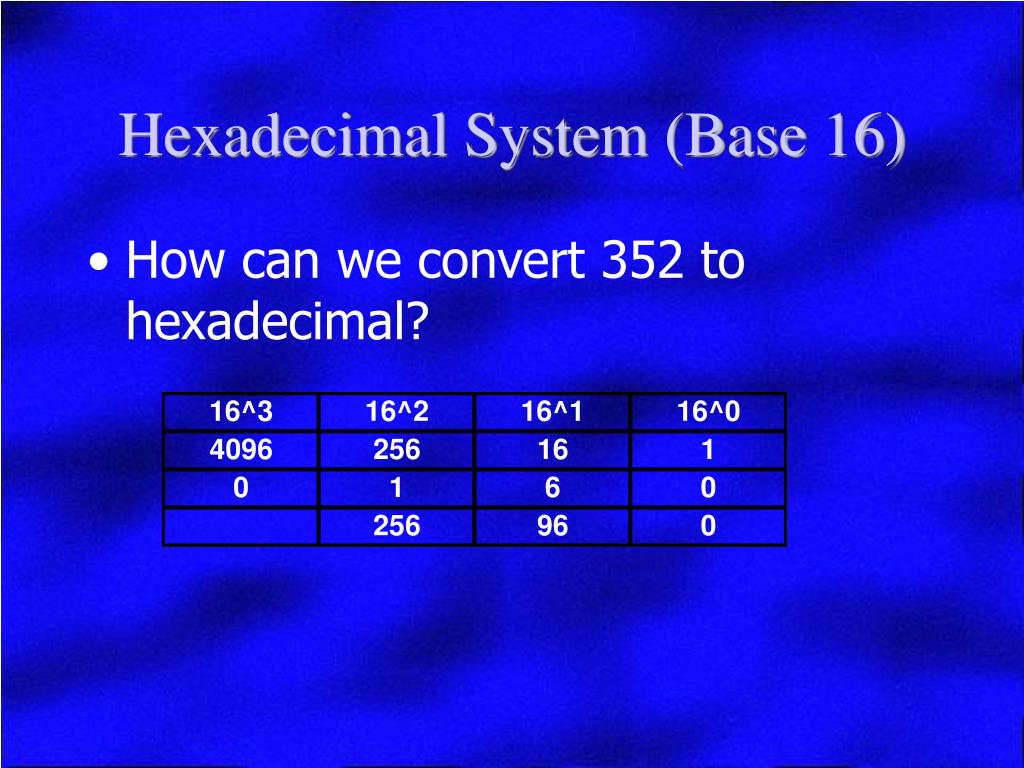

  9. Hexadecimal System (Base 16) • How can we convert 352 to hexadecimal?
