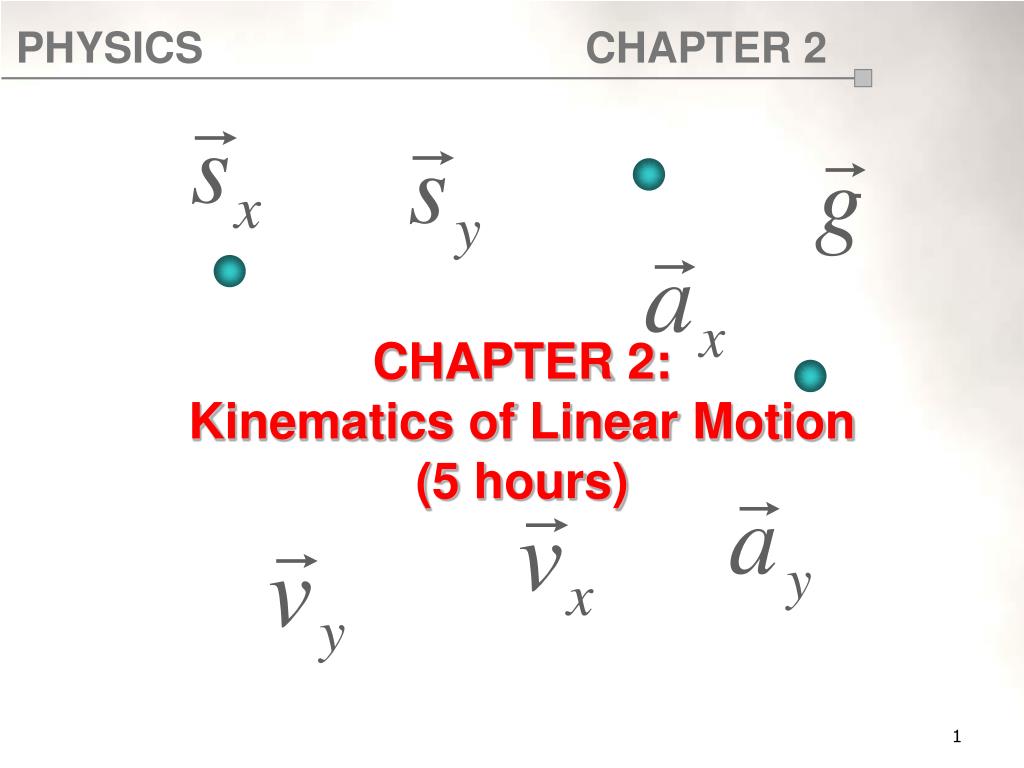

CHAPTER 2: Kinematics of Linear Motion (5 hours). 2.0 Kinematics of Linear motion. is defined as the studies of motion of an objects without considering the effects that produce the motion . There are two types of motion: Linear or straight line motion (1-D) with constant (uniform) velocity

Télécharger la présentation
## CHAPTER 2: Kinematics of Linear Motion (5 hours)

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

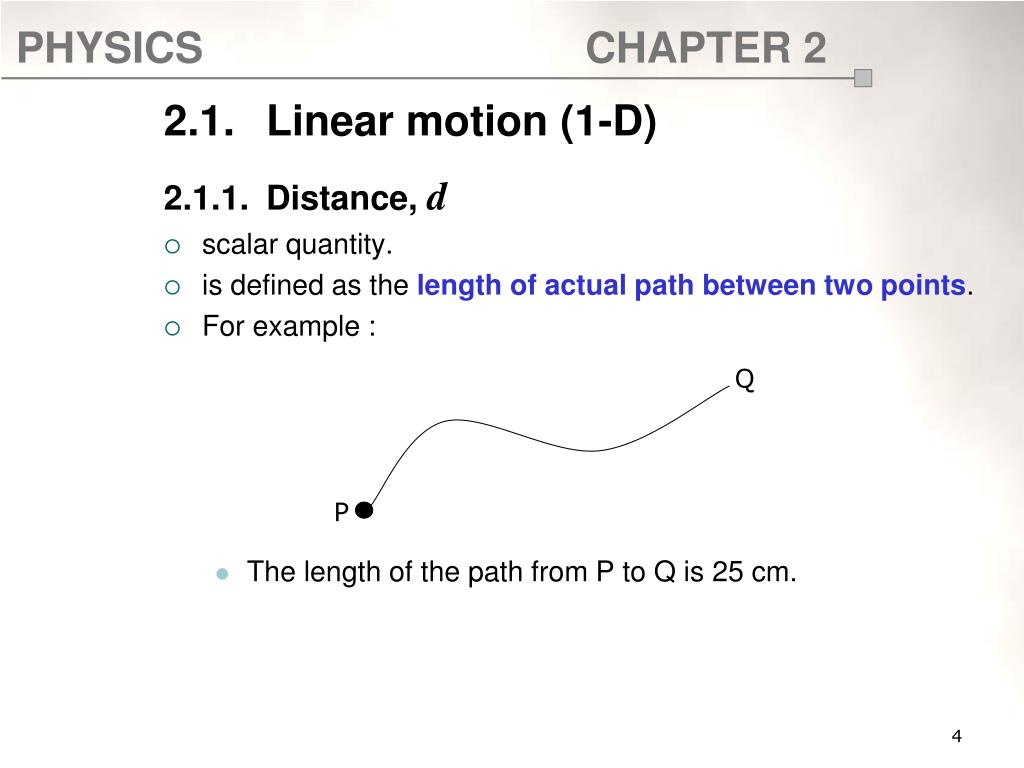

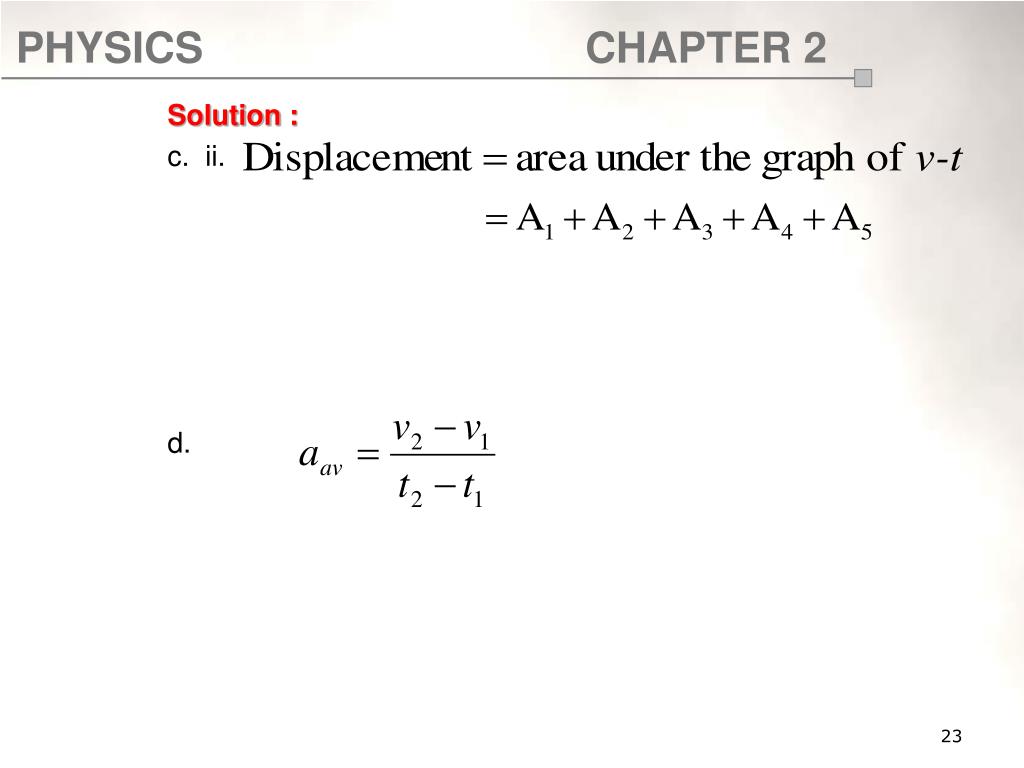

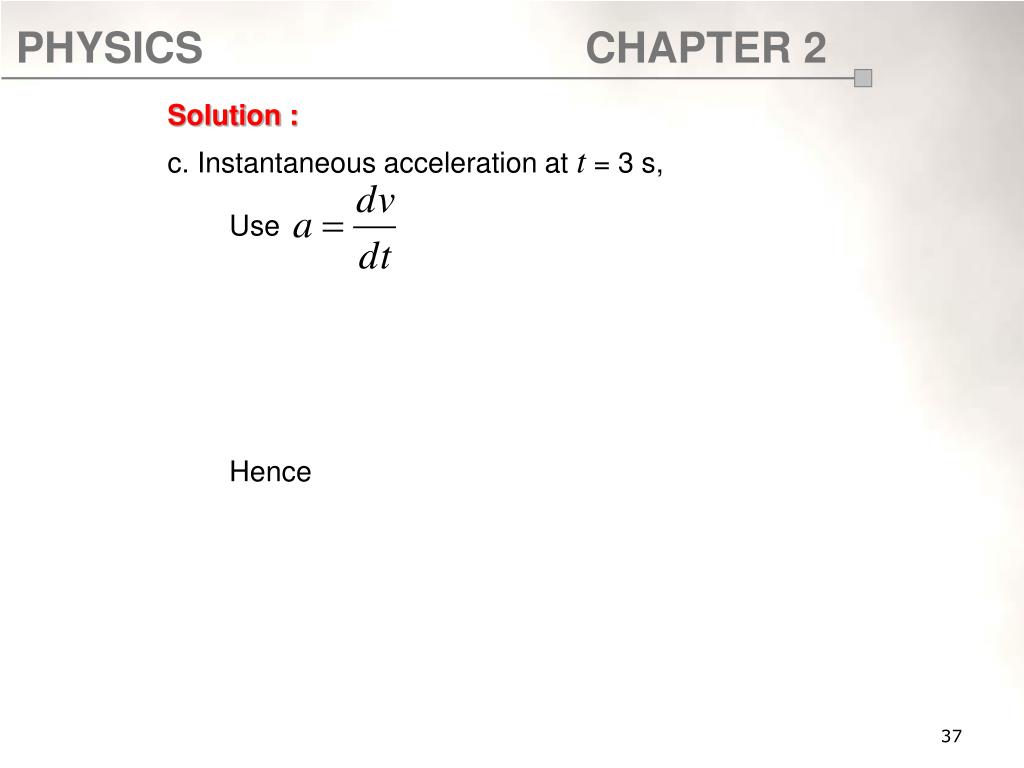

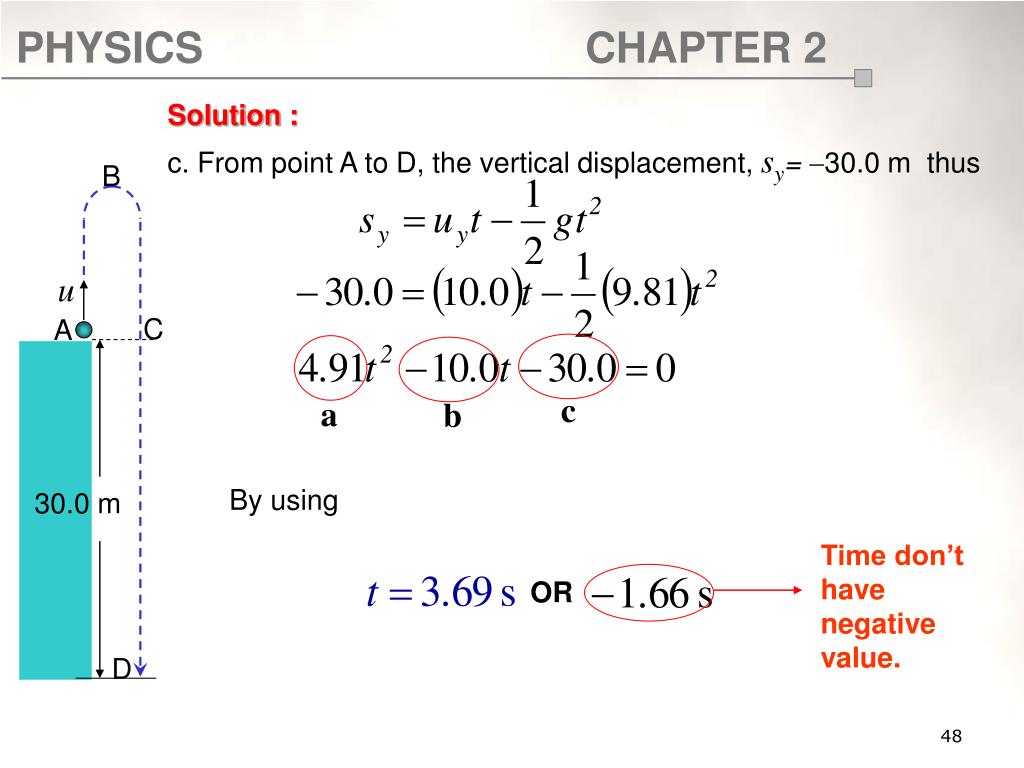

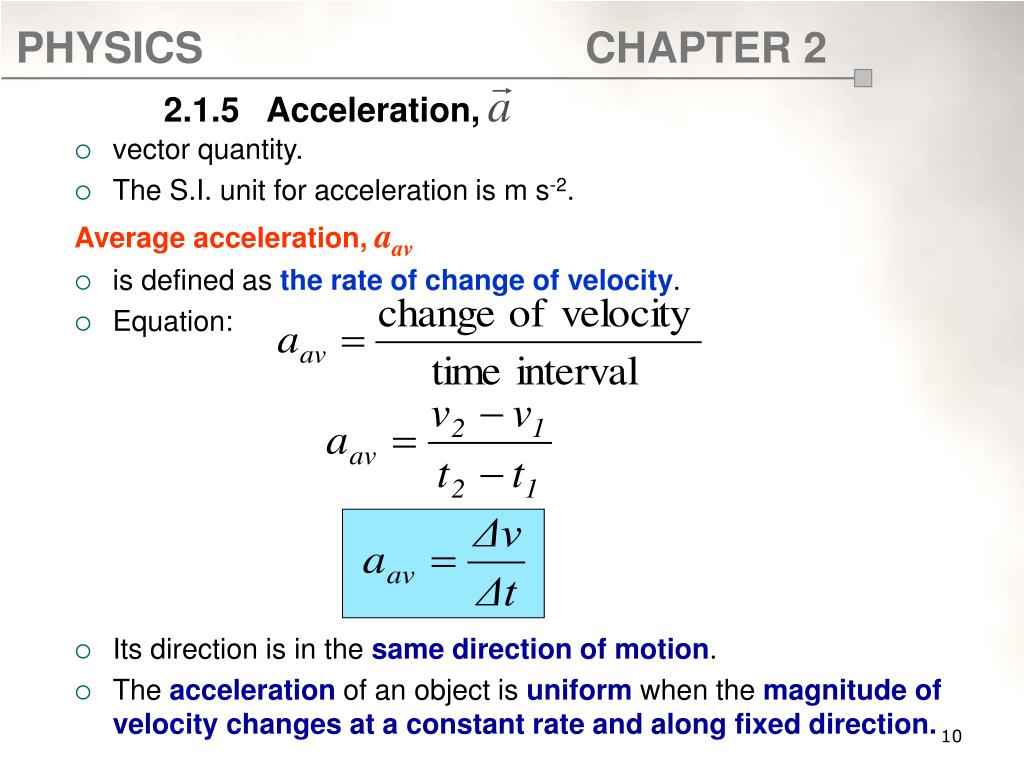

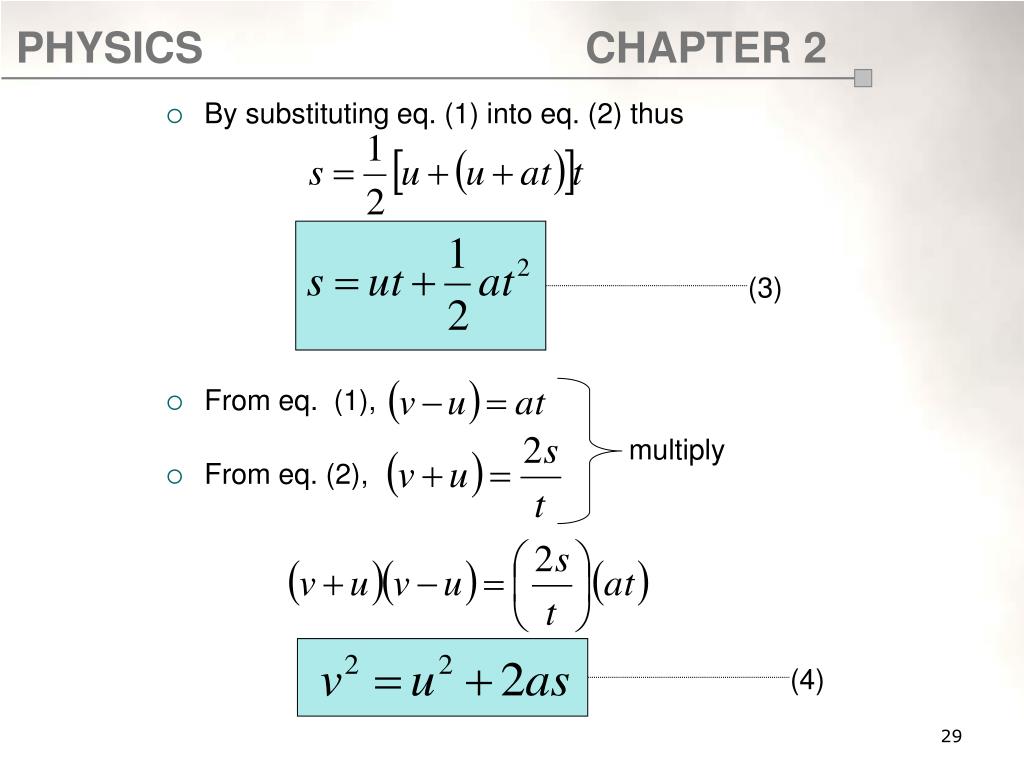

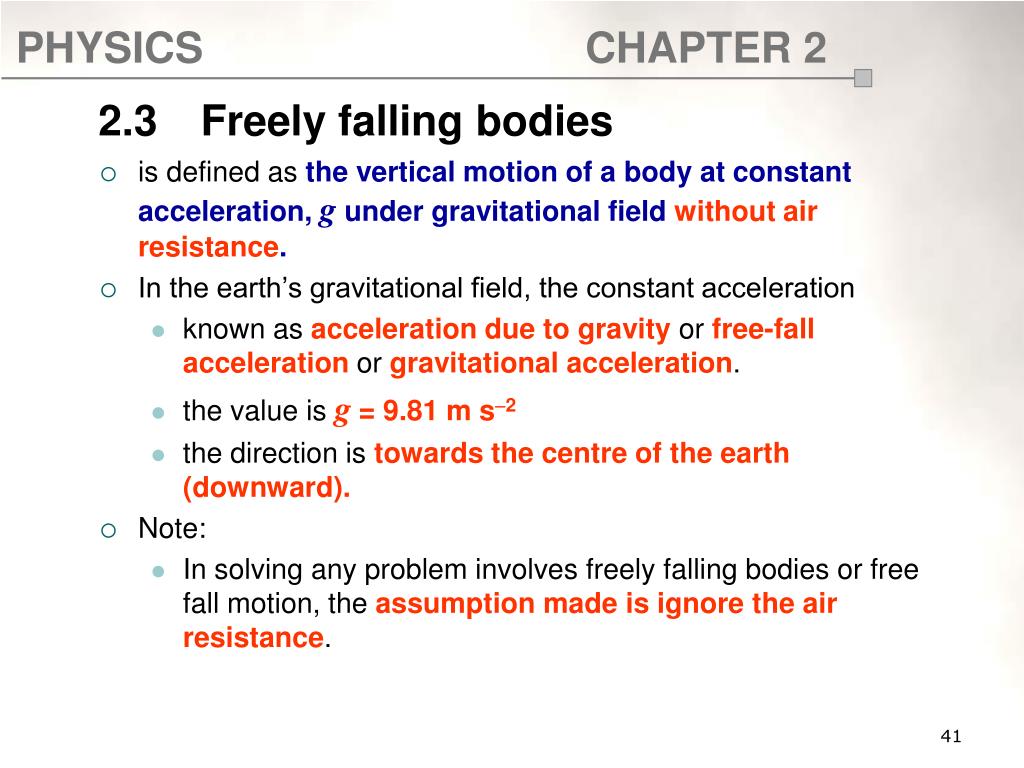

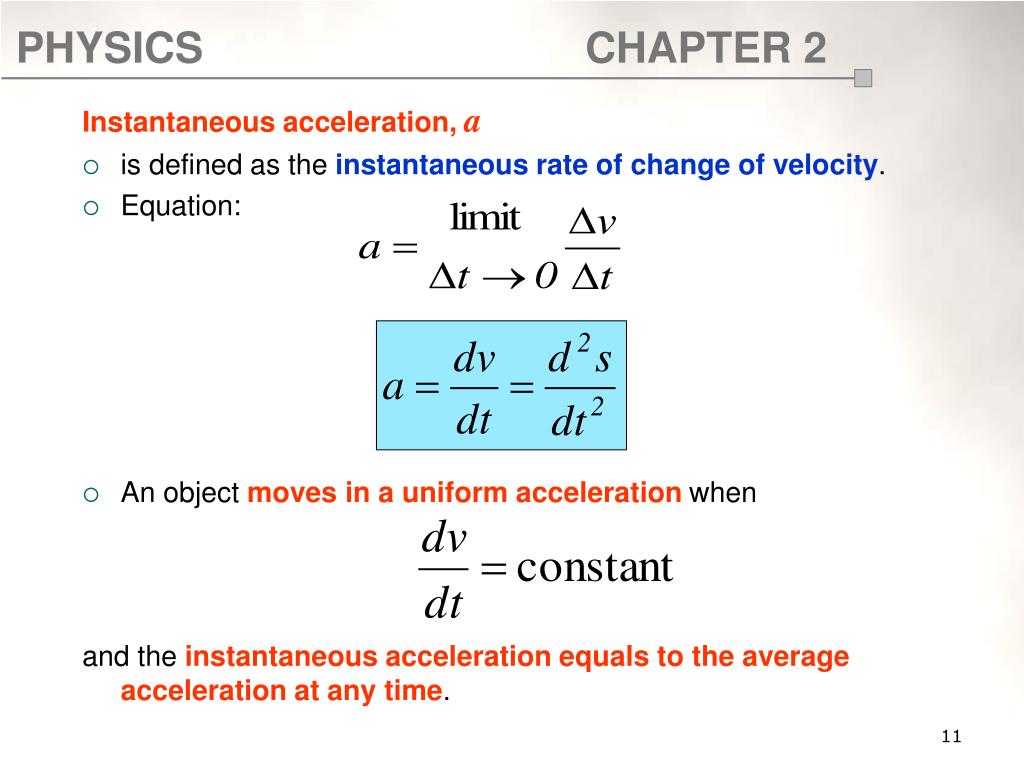

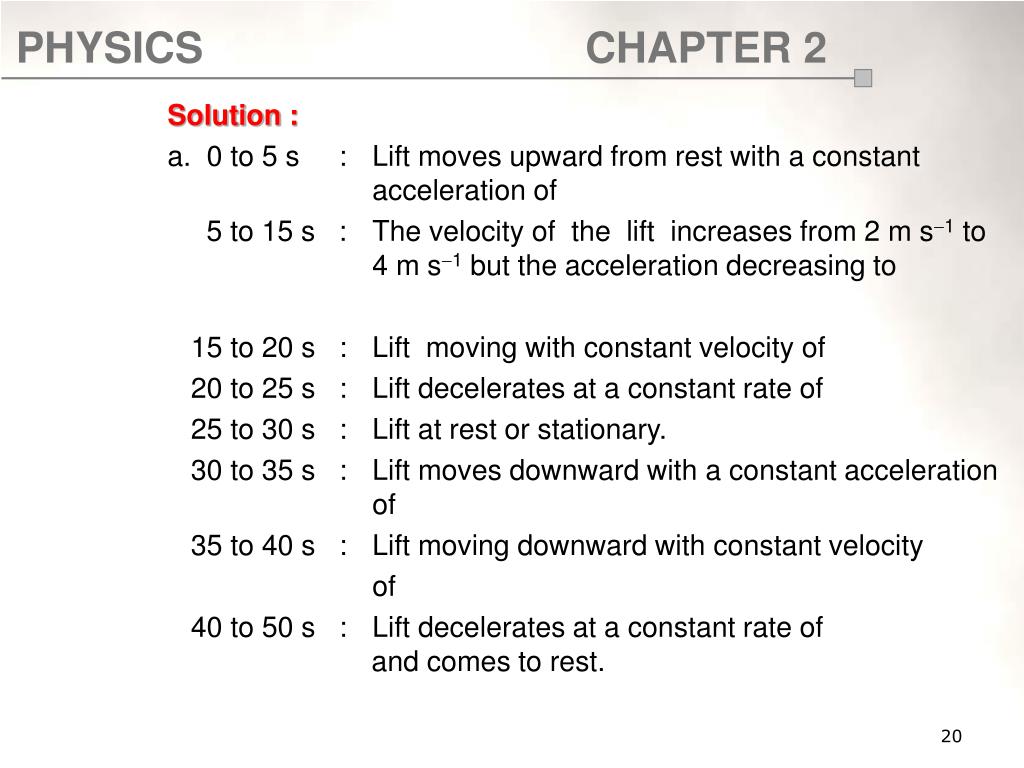

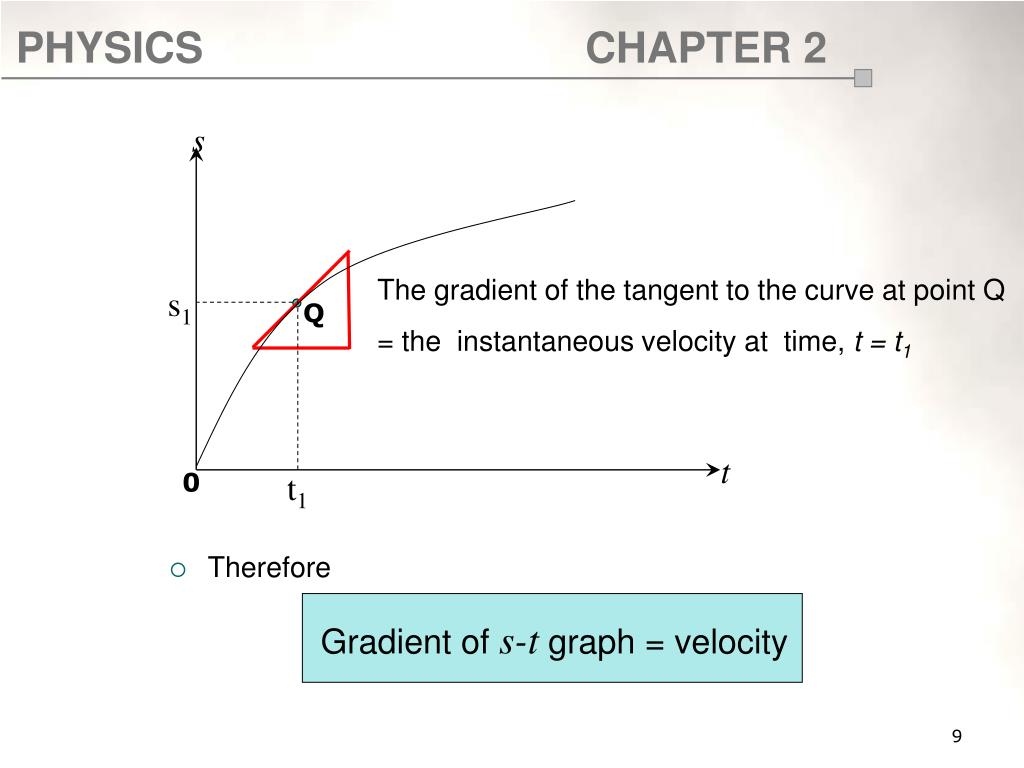

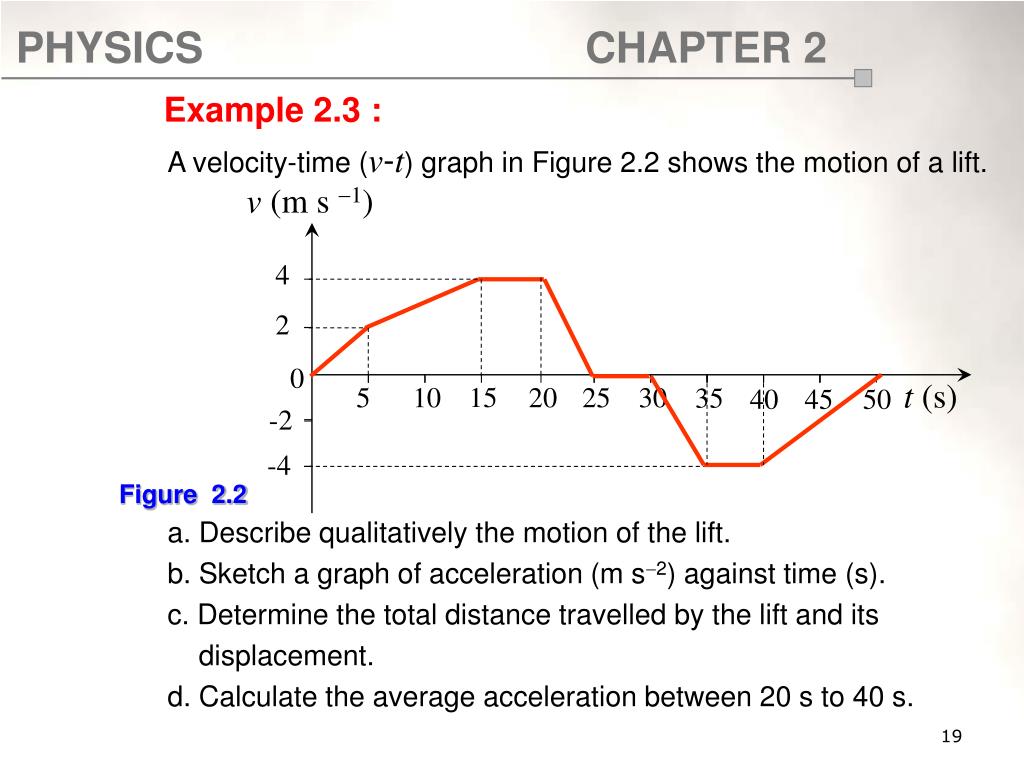

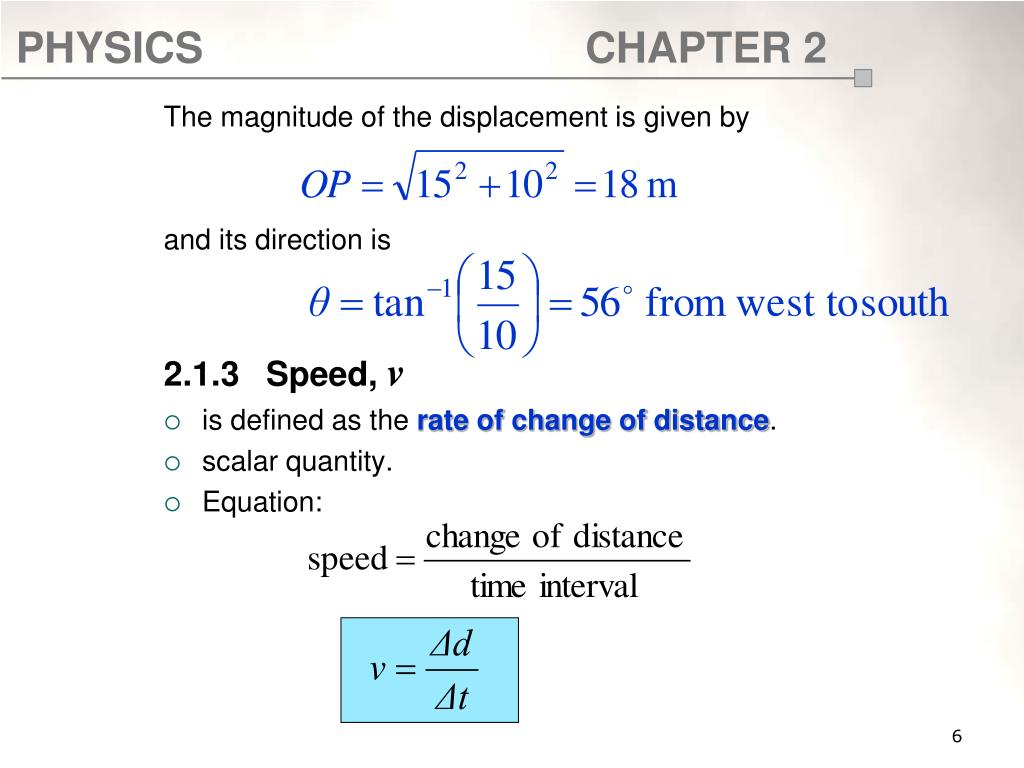

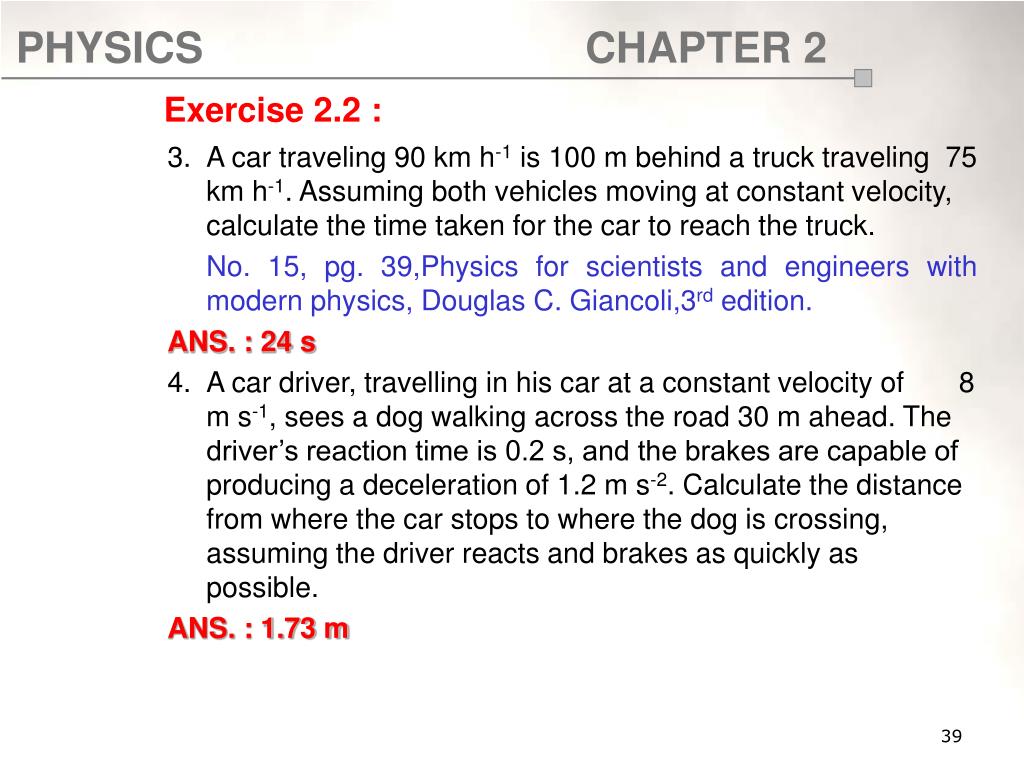

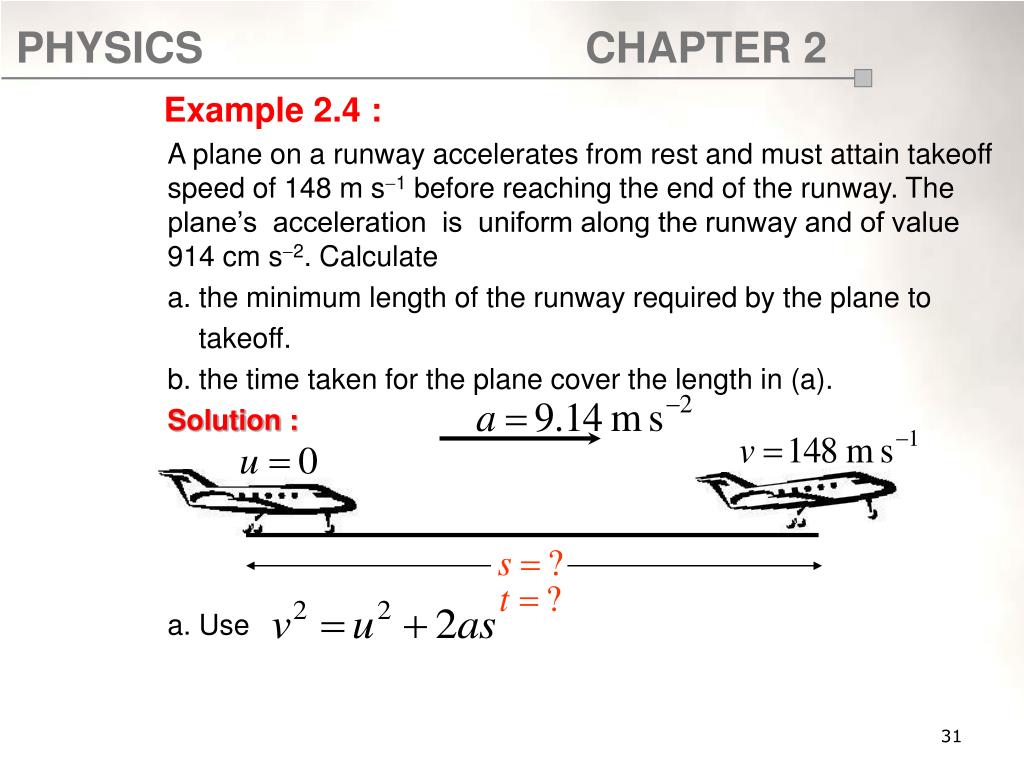

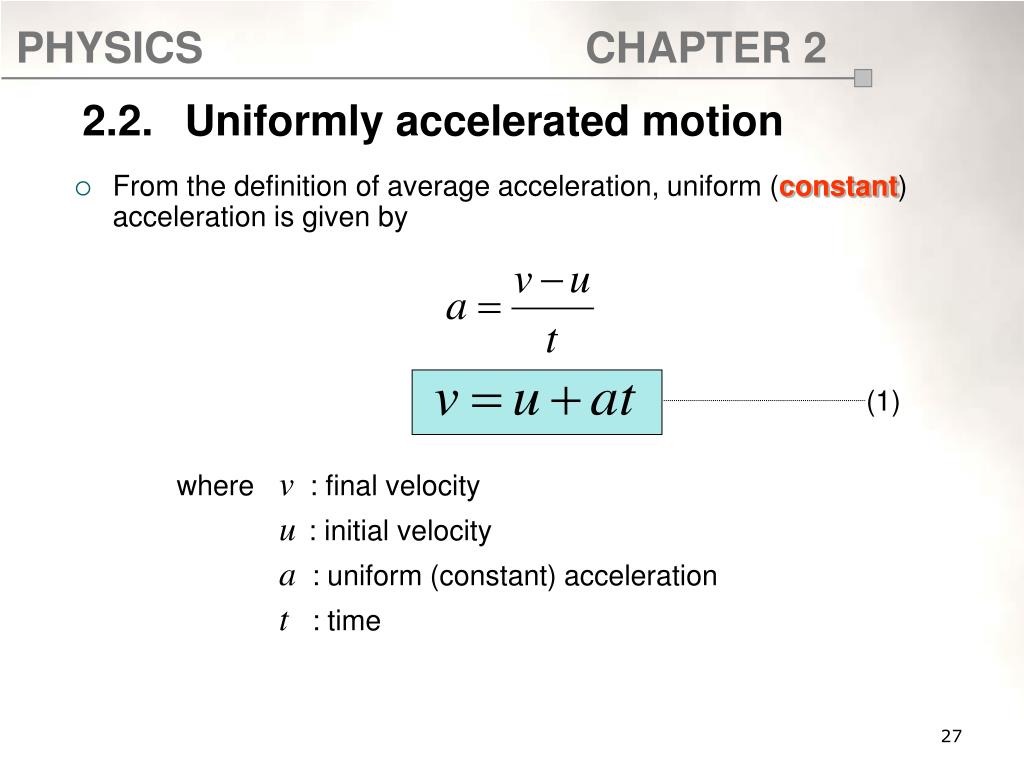

**2.0 Kinematics of Linear motion**• is defined as the studies of motion of an objects without considering the effects that produce the motion. • There are two types of motion: • Linear or straight line motion (1-D) • with constant (uniform) velocity • with constant (uniform) acceleration, e.g. free fall motion • Projectile motion (2-D) • x-component (horizontal) • y-component (vertical)**Learning Outcomes :**2.1 Linear Motion (1 hour) At the end of this chapter, students should be able to: • Define and distinguishbetween • Distance and displacement • Speed and velocity • Instantaneous velocity, average velocity and uniform velocity • Instantaneous acceleration, average acceleration and uniform acceleration, • Sketchgraphs of displacement-time, velocity-time and acceleration-time. • Determinethe distance travelled, displacement, velocity and acceleration from appropriate graphs.**Q**P 2.1. Linear motion (1-D) 2.1.1. Distance, d • scalar quantity. • is defined as the length of actual path between two points. • For example : • The length of the path from P to Q is 25 cm.**N**O 30 m W E 15 m P 30 m 10 m S 2.1.2 Displacement, • vector quantity. • is defined as the distance between initial point and final point in a straight line. • The S.I. unit of displacement is metre (m). Example 2.1 : An object P moves 30 m to the east after that 15 m to the south and finally moves 40 m to west. Determine the displacement of P relative to the original position. Solution :**The magnitude of the displacement is given by**and its direction is 2.1.3 Speed, v • is defined as the rate of change of distance. • scalar quantity. • Equation:**2.1.4 Velocity,**• is a vector quantity. • The S.I. unit for velocity is m s-1. Average velocity, vav • is defined as the rate of change of displacement. • Equation: • Its direction is in the same direction of the change in displacement.**Instantaneous velocity, v**• is defined as the instantaneous rate of change of displacement. • Equation: • An object moves in a uniform velocity when and the instantaneous velocity equals to the average velocity at any time.**s**s1 t 0 t1 Gradient of s-t graph = velocity • Therefore The gradient of the tangent to the curve at point Q = the instantaneous velocity at time, t = t1 Q**2.1.5 Acceleration,**• vector quantity. • The S.I. unit for acceleration is m s-2. Average acceleration, aav • is defined as the rate of change of velocity. • Equation: • Its direction is in the same direction of motion. • The acceleration of an object is uniform when the magnitude of velocity changes at a constant rate and along fixed direction.**Instantaneous acceleration, a**• is defined as the instantaneous rate of change of velocity. • Equation: • An object moves in a uniform acceleration when and the instantaneous acceleration equals to the average acceleration at any time.**v**Q v1 t t1 0 Gradient of v-t graph = acceleration Deceleration,a • is a negative acceleration. • The object is slowing down meaning the speed of the object decreases with time. • Therefore The gradient of the tangent to the curve at point Q = the instantaneous acceleration at time, t = t1**s**s s t t t 0 0 Q R P 0 2.1.6 Graphical methods Displacement against time graph (s-t) Gradient increases with time Gradient = constant (a) Uniform velocity (b) The velocity increases with time (c) Gradient at point R is negative. The direction of velocity is changing. Gradient at point Q is zero. The velocity is zero.**v**v v B C A t t t 0 0 0 (a) (b) (c) t1 t2 t1 t1 t2 t2 Area under the v-t graph = displacement Velocity versus time graph (v-t) • The gradient at point A is positive – a > 0(speeding up) • The gradient at point B is zero – a= 0 • The gradient at point C is negative – a < 0(slowing down) Uniform acceleration Uniform velocity**From the equation of instantaneous velocity,**Therefore Simulation 2.1 Simulation 2.2 Simulation 2.3**s (cm)**10 8 6 4 2 0 t (s) 2 4 6 8 10 12 14 Example 2.2 : A toy train moves slowly along a straight track according to the displacement, s against time, t graph in Figure 2.1. a. Explain qualitatively the motion of the toy train. b. Sketch a velocity (cm s-1) against time (s) graph. c. Determine the average velocity for the whole journey. d. Calculate the instantaneous velocity at t = 12 s. e. Determine the distance travelled by the toy train. Figure 2.1**v (cm s1)**1.50 0.68 0 t (s) 2 4 6 8 10 12 14 Solution : a. 0 to 6 s : The train moves at a constant velocity of 6 to 10 s : The train stops. 10 to 14 s : The train moves in the same direction at a constant velocity of b.**Solution :**c. d. e. The distance travelled by the toy train is 10 cm.**v (m s1)**4 2 0 t (s) 15 5 10 20 25 30 35 40 45 50 -2 -4 Figure 2.2 Example 2.3 : A velocity-time (v-t) graph in Figure 2.2 shows the motion of a lift. a. Describe qualitatively the motion of the lift. b. Sketch a graph of acceleration (m s2) against time (s). c. Determine the total distance travelled by the lift and its displacement. d. Calculate the average acceleration between 20 s to 40 s.**Solution :**a. 0 to 5 s : Lift moves upward from rest with a constant acceleration of 5 to 15 s : The velocity of the lift increases from 2 m s1 to 4 m s1 but the acceleration decreasing to 15 to 20 s : Lift moving with constant velocity of 20 to 25 s : Lift decelerates at a constant rate of 25 to 30 s : Lift at rest or stationary. 30 to 35 s : Lift moves downward with a constant acceleration of 35 to 40 s : Lift moving downward with constant velocity of 40 to 50 s : Lift decelerates at a constant rate of and comes to rest.**a (m s2)**0.8 0.6 0.4 0.2 0 t (s) 15 5 10 20 25 30 35 40 45 50 -0.2 -0.4 -0.6 -0.8 Solution : b.**v (m s1)**4 2 0 t (s) 15 5 10 20 25 30 35 40 45 50 -2 -4 Solution : c. i. A3 A2 A1 A4 A5**Solution :**c. ii. d.**Figure 2.3**Exercise 2.1 : Figure 2.3 shows a velocity versus time graph for an object constrained to move along a line. The positive direction is to the right. a. Describe the motion of the object in 10 s. b. Sketch a graph of acceleration (m s-2) against time (s) for the whole journey. c. Calculate the displacement of the object in 10 s. ANS. : 6 m**Exercise 2.1 :**A train pulls out of a station and accelerates steadily for 20 s until its velocity reaches 8 m s1. It then travels at a constant velocity for 100 s, then it decelerates steadily to rest in a further time of 30 s. a. Sketch a velocity-time graph for the journey. b. Calculate the acceleration and the distance travelled in each part of the journey. c. Calculate the average velocity for the journey. Physics For Advanced Level, 4th edition, Jim Breithaupt, Nelson Thornes, pg.15, no. 1.11 ANS. : 0.4 m s2,0 m s2,-0.267 m s2, 80 m, 800 m, 120 m; 6.67 m s1.**Learning Outcome :**2.2 Uniformly accelerated motion (1 hour) At the end of this chapter, students should be able to: • Derive and applyequations of motion with uniform acceleration:**(1)**2.2. Uniformly accelerated motion • From the definition of average acceleration, uniform (constant) acceleration is given by where v : final velocity u: initial velocity a : uniform (constant) acceleration t : time**velocity**v u Figure 2.4 time t 0 (2) • From equation (1), the velocity-time graph is shown in Figure 2.4 : • From the graph, The displacement after time, s = shaded area under the graph = the area of trapezium • Hence,**(3)**(4) • By substituting eq. (1) into eq. (2) thus • From eq. (1), • From eq. (2), multiply**Notes:**• equations (1) – (4) can be used if the motion in a straight line with constant acceleration. • For a body moving at constant velocity, ( a = 0) the equations (1) and (4) become Therefore the equations (2) and (3) can be written as constant velocity**Example 2.4 :**A plane on a runway accelerates from rest and must attain takeoff speed of 148 m s1 before reaching the end of the runway. The plane’s acceleration is uniform along the runway and of value 914 cm s2. Calculate a. the minimum length of the runway required by the plane to takeoff. b. the time taken for the plane cover the length in (a). Solution : a. Use**Solution :**b. By using the equation of linear motion, OR**Example 2.5 :**A bus travelling steadily at 30 m s1 along a straight road passes a stationary car which, 5 s later, begins to move with a uniform acceleration of 2 m s2 in the same direction as the bus. Determine a. the time taken for the car to acquire the same velocity as the bus, b. the distance travelled by the car when it is level with the bus. Solution : a. Given Use**c**c b b b b. From the diagram, Therefore**Example 2.6 :**A particle moves along horizontal line according to the equation Where s is displacement in meters and t is time in seconds. At time, t = 3 s, determine a. the displacement of the particle, b. Its velocity, and c. Its acceleration. Solution : a. t =3 s ;**Solution :**b. Instantaneous velocity at t = 3 s, Use Thus**Solution :**c. Instantaneous acceleration at t = 3 s, Use Hence**Exercise 2.2 :**A speedboat moving at 30.0 m s-1 approaches stationary buoy marker 100 m ahead. The pilot slows the boat with a constant acceleration of -3.50 m s-2 by reducing the throttle. a. How long does it take the boat to reach the buoy? b. What is the velocity of the boat when it reaches the buoy? No. 23,pg. 51,Physics for scientists and engineers with modern physics, Serway & Jewett,6th edition. ANS. : 4.53 s; 14.1 m s1 An unmarked police car travelling a constant 95 km h-1 is passed by a speeder traveling 140 km h-1. Precisely 1.00 s after the speeder passes, the policemen steps on the accelerator; if the police car’s acceleration is 2.00 m s-2, how much time passes before the police car overtakes the speeder (assumed moving at constant speed)? No. 44, pg. 41,Physics for scientists and engineers with modern physics, Douglas C. Giancoli,3rd edition. ANS. : 14.4 s**Exercise 2.2 :**A car traveling 90 km h-1 is 100 m behind a truck traveling 75 km h-1. Assuming both vehicles moving at constant velocity, calculate the time taken for the car to reach the truck. No. 15, pg. 39,Physics for scientists and engineers with modern physics, Douglas C. Giancoli,3rd edition. ANS. : 24 s A car driver, travelling in his car at a constant velocity of 8 m s-1, sees a dog walking across the road 30 m ahead. The driver’s reaction time is 0.2 s, and the brakes are capable of producing a deceleration of 1.2 m s-2. Calculate the distance from where the car stops to where the dog is crossing, assuming the driver reacts and brakes as quickly as possible. ANS. : 1.73 m**Learning Outcome :**2.3 Freely falling bodies (1 hour) At the end of this chapter, students should be able to: • Describe and use equations for freely falling bodies. • For upward and downward motion, use a= g = 9.81 m s2**2.3 Freely falling bodies**• is defined as the vertical motion of a body at constant acceleration, g under gravitational field without air resistance. • In the earth’s gravitational field, the constant acceleration • known as acceleration due to gravity or free-fall acceleration or gravitational acceleration. • the value is g= 9.81 m s2 • the direction is towards the centre of the earth (downward). • Note: • In solving any problem involves freely falling bodies or free fall motion, the assumption made is ignore the air resistance.**+**+ - - • Sign convention: • Table 2.1 shows the equations of linear motion and freely falling bodies. From the sign convention thus, Table 2.1**H**• An example of freely falling body is the motion of a ball thrown vertically upwards with initial velocity, u as shown in Figure 2.5. • Assuming air resistance is negligible, the acceleration of the ball, a = g when the ball moves upward and its velocity decreases to zero when the ball reaches the maximum height, H. velocity = 0 u Figure 2.5 v**s**v =0 H t 0 t1 2t1 v u t 0 t1 2t1 u a t 0 t1 2t1 g • The graphs in Figure 2.6 show the motion of the ball moves up and down. Derivation of equations • At the maximum height or displacement, H where t = t1, its velocity, hence therefore the time taken for the ball reaches H, Simulation 2.4 Figure 2.6**To calculate the maximum height or displacement, H:**use either maximum height, • Another form of freely falling bodies expressions are Wheres = H OR**B**u =10.0 m s1 C A 30.0 m Figure 2.7 D Example 2.7 : A ball is thrown from the top of a building is given an initial velocity of 10.0 m s1 straight upward. The building is 30.0 m high and the ball just misses the edge of the roof on its way down, as shown in figure 2.7. Calculate a. the maximum height of the stone from point A. b. the time taken from point A to C. c. the time taken from point A to D. d. the velocity of the ball when it reaches point D. (Given g = 9.81 m s2)**B**u C A 30.0 m D Solution : a. At the maximum height, H, vy= 0 and u =uy= 10.0 m s1 thus b. From point A to C, the vertical displacement, sy= 0 m thus**B**u C A 30.0 m D Solution : c. From point A to D, the vertical displacement, sy= 30.0 m thus By using c a b Time don’t have negative value. OR**B**u C A 30.0 m D Solution : d. Time taken from A to D is t = 3.69 s thus From A to D, sy = 30.0 m Therefore the ball’s velocity at D is OR**uy= 0 m s1**150 m Example 2.8 : A book is dropped 150 m from the ground. Determine a. the time taken for the book reaches the ground. b. the velocity of the book when it reaches the ground. (Given g = 9.81 m s-2) Solution : a. The vertical displacement is sy = 150 m Hence
