  1. Lighting Photographic Survey Jennifer Diaz

  2. Focal Glow Pic. 2: Nordstrom T he glow is focusing on the merchandise in order to attract attention to it. Pic. 1: Courtyard at Village of Merrick Park The lights placed on the palm trees create focal glow. The different textures are enhanced creating interest. The glow is reflected on the floor next to the seating and walking creating a sense of space and direction as well as preventing glare and veiling effects.

  3. Sparkle (glitter) Pic. 3: Nordstrom There is sparkle reflected on the glossy material of this chandelier’s drum. Also, the chandelier transmits sparkle through its crystals. Pic. 4: Closed up of the Nordstrom Chandelier

  4. Contrast Pic. 6: Nordstrom Small Shopping Room High-contrast is created with the use of focusedlighting and some diffused lighting. Pic. 7: Sawa Restaurant at Village of Merrick Park

  5. Contrast Pic. 8: Borders The use of fluorescent lighting to illuminate this stores and the lack of focal lighting, produces a low-contrast environment.

  6. Reflection Pictures 9 &10: Nordstrom Specular reflections produced by the mirror and the marble floors.

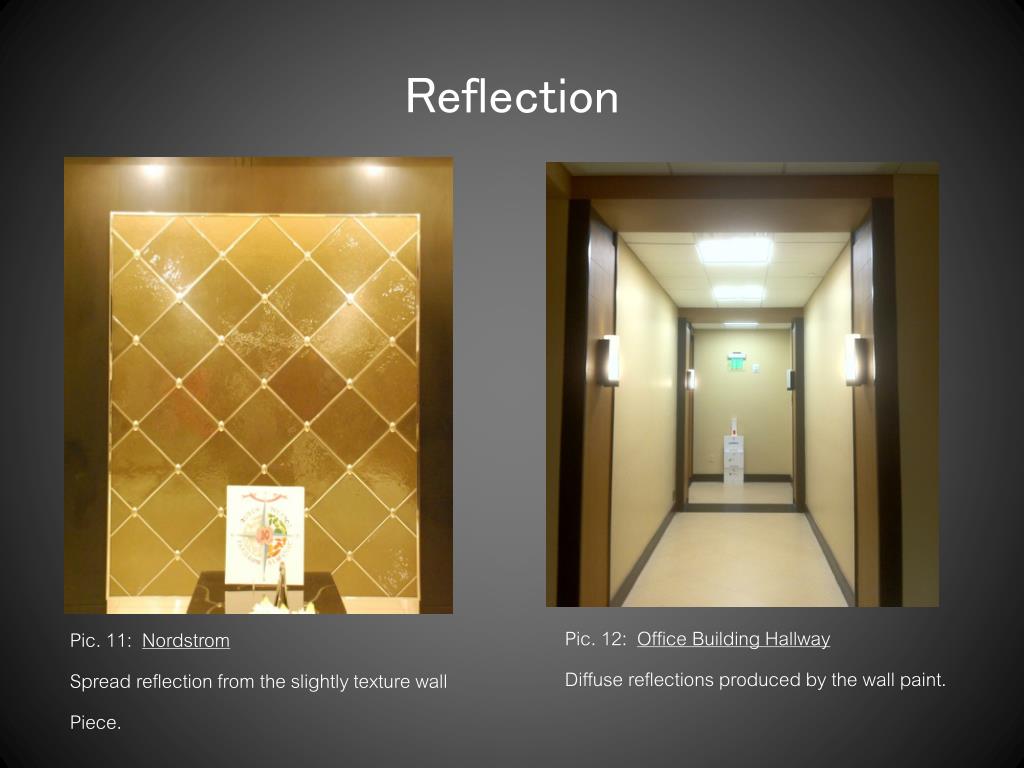

  7. Reflection Pic. 11: Nordstrom Spread reflection from the slightly texture wall Piece. Pic. 12: Office Building Hallway Diffuse reflections produced by the wall paint.

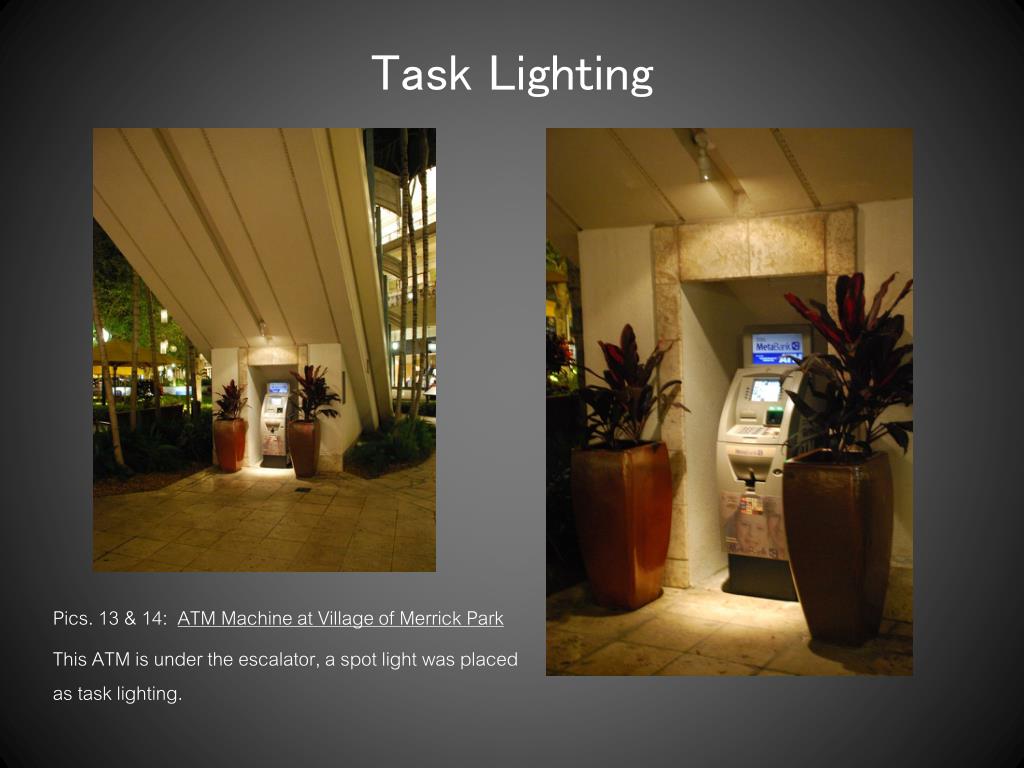

  8. Task Lighting Pics. 13 & 14: ATM Machine at Village of Merrick Park This ATM is under the escalator, a spot light was placed as task lighting.

  9. Glare Pics. 115 &16: The lighting in this parking garage are too strong in relation to the height of the ceilings. As people walk towards their cars Note that this light is off

  10. Shadow Masking Important Detail

  11. Concentrated Downward

  12. Concentrated Upward

  13. Diffuse Downward

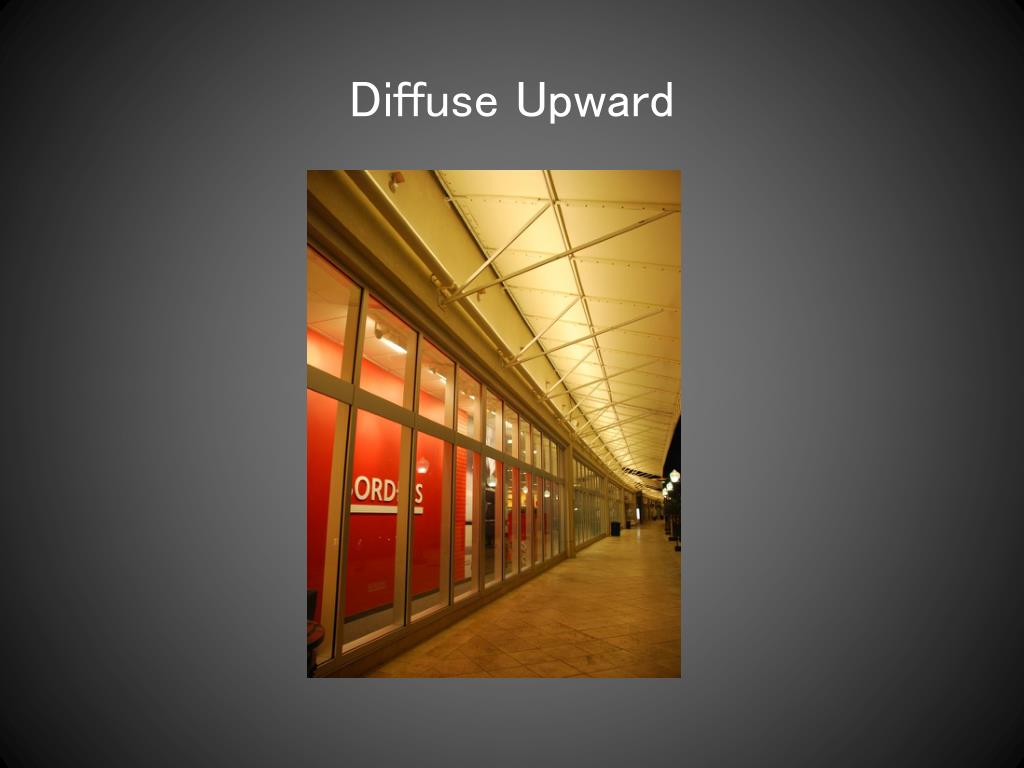

  14. Diffuse Upward

  15. Grazing Light

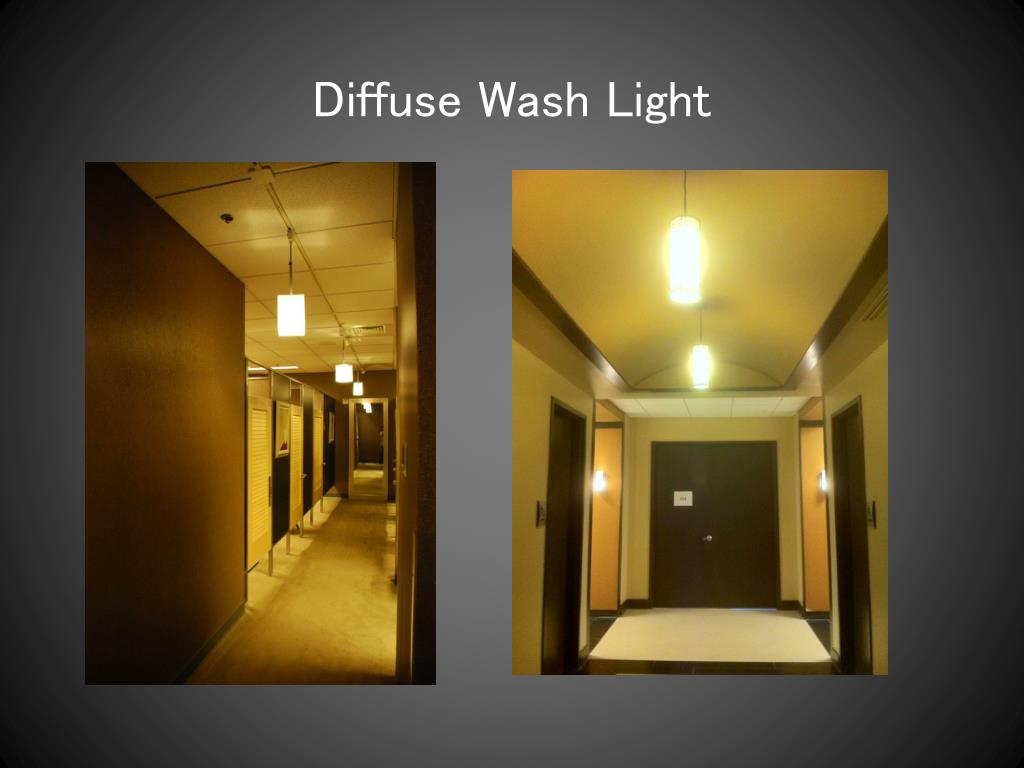

  16. Diffuse Wash Light

  17. Object Concentrated Lighting

  18. Environmental Quality Visual Clarity & Spaciousness There is visual clarity and spaciousness in this environment produced by the use of bright uniform lighting and the cove lighting in the perimeter.

  19. Environmental Quality Relaxation. The diffused peripheral lighting in these interiors create a sense of relaxation. The overhead lighting is minimal and non-uniform lighting

  20. Environmental Quality Privacy The light intensity is low and non-uniform creating a sense of privacy

  21. Environmental Quality Pleasantness. The combination of downlighting, peripheral lighting and uniform diffused lighting makes these environment pleasant and friendly.

  22. Environmental Quality In the picture on the left, gloom is produced by lighting of the translucent surface of the table from within. The overhead lighting is minimal in comparison to the table lighting which minimizes the details on the peripheral areas • In this picture the overhead lights that illuminate the display tables were left on without any illuminance in the room.

  23. Direct/Indirect

  24. Phil, is this considered Gloom?
