1 / 4

direct mercury analyzerDirect Mercury Analyzer LMDAM-A100 - Solid Liquid Mercury

Labmate Direct Mercury Analyzer detects 0.005 to 1500 ng with a 0.0003 ng limit for ultra trace analysis. Direct testing of solid, liquid, and gas samples eliminates digestion steps and saves time. Rapid under 5-minute runs with 40 sample capacity support environmental, food, and industrial testing.

eleza_labmate
Télécharger la présentation

direct mercury analyzerDirect Mercury Analyzer LMDAM-A100 - Solid Liquid Mercury

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

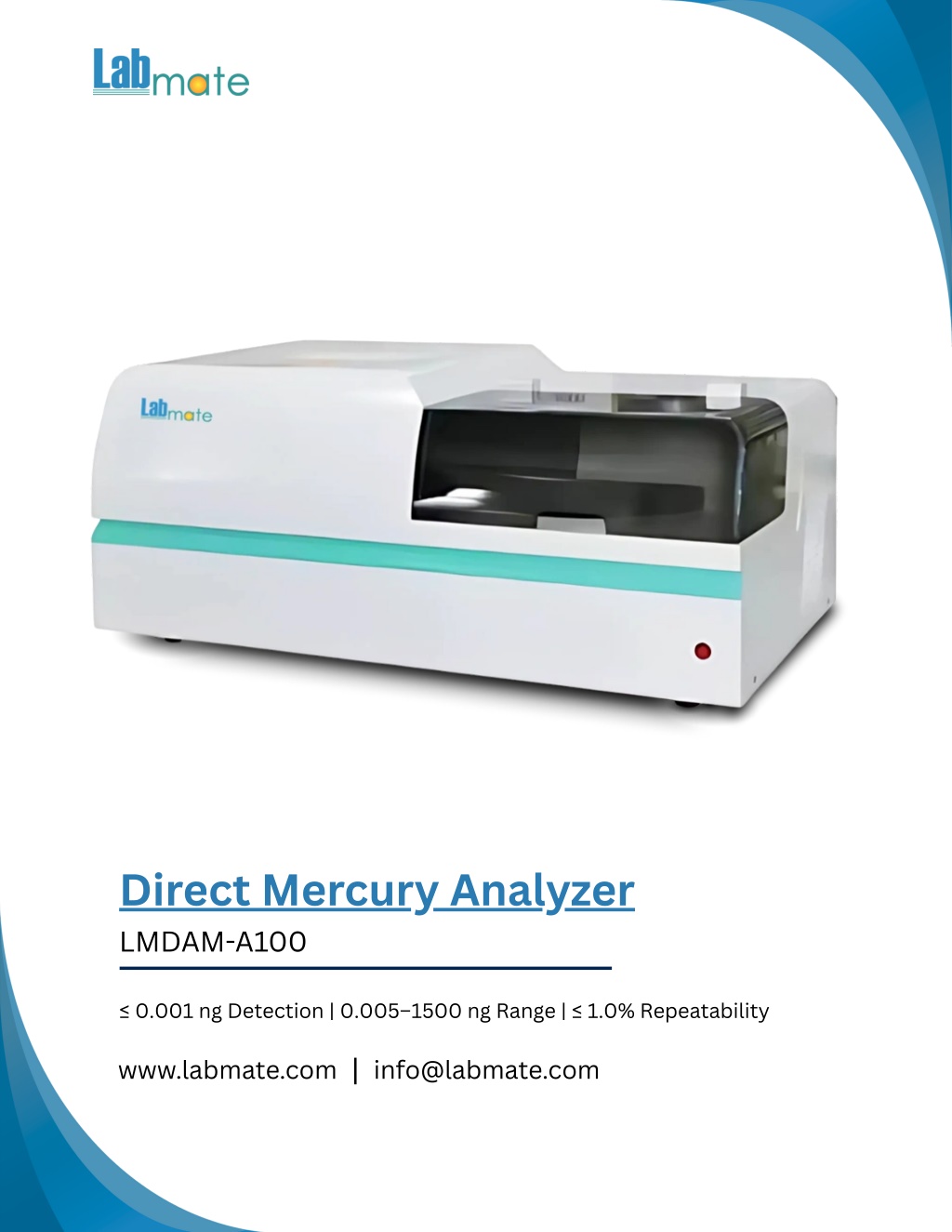

  1. Direct Mercury Analyzer LMDAM-A100 ≤ 0.001 ng Detection | 0.005–1500 ng Range | ≤ 1.0% Repeatability www.labmate.com | info@labmate.com

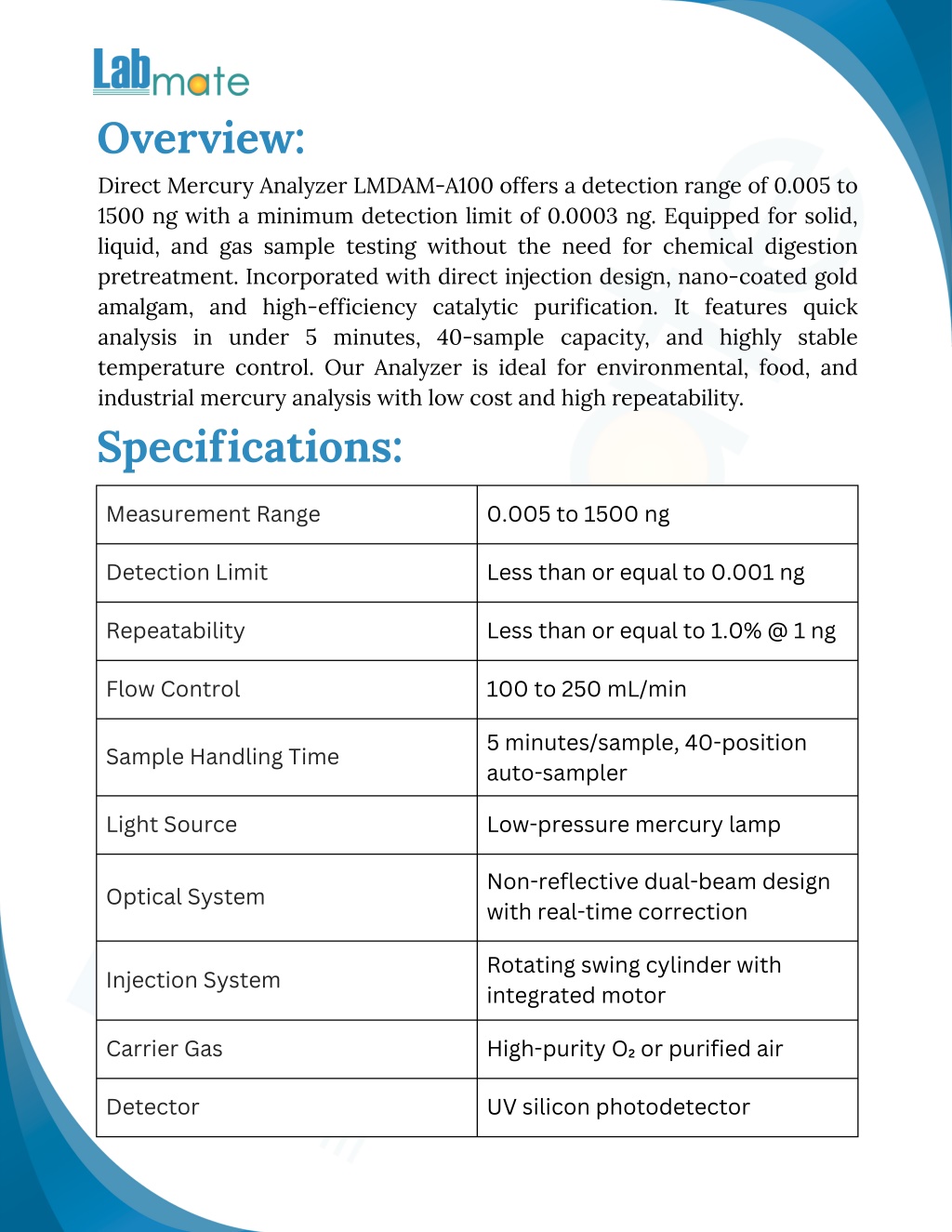

  2. Overview: Direct Mercury Analyzer LMDAM-A100 offers a detection range of 0.005 to 1500 ng with a minimum detection limit of 0.0003 ng. Equipped for solid, liquid, and gas sample testing without the need for chemical digestion pretreatment. Incorporated with direct injection design, nano-coated gold amalgam, and high-efficiency catalytic purification. It features quick analysis in under 5 minutes, 40-sample capacity, and highly stable temperature control. Our Analyzer is ideal for environmental, food, and industrial mercury analysis with low cost and high repeatability. Specifications: Measurement Range 0.005 to 1500 ng Detection Limit Less than or equal to 0.001 ng Repeatability Less than or equal to 1.0% @ 1 ng Flow Control 100 to 250 mL/min 5 minutes/sample, 40-position auto-sampler Sample Handling Time Light Source Low-pressure mercury lamp Non-reflective dual-beam design with real-time correction Optical System Rotating swing cylinder with integrated motor Injection System Carrier Gas High-purity O₂ or purified air Detector UV silicon photodetector

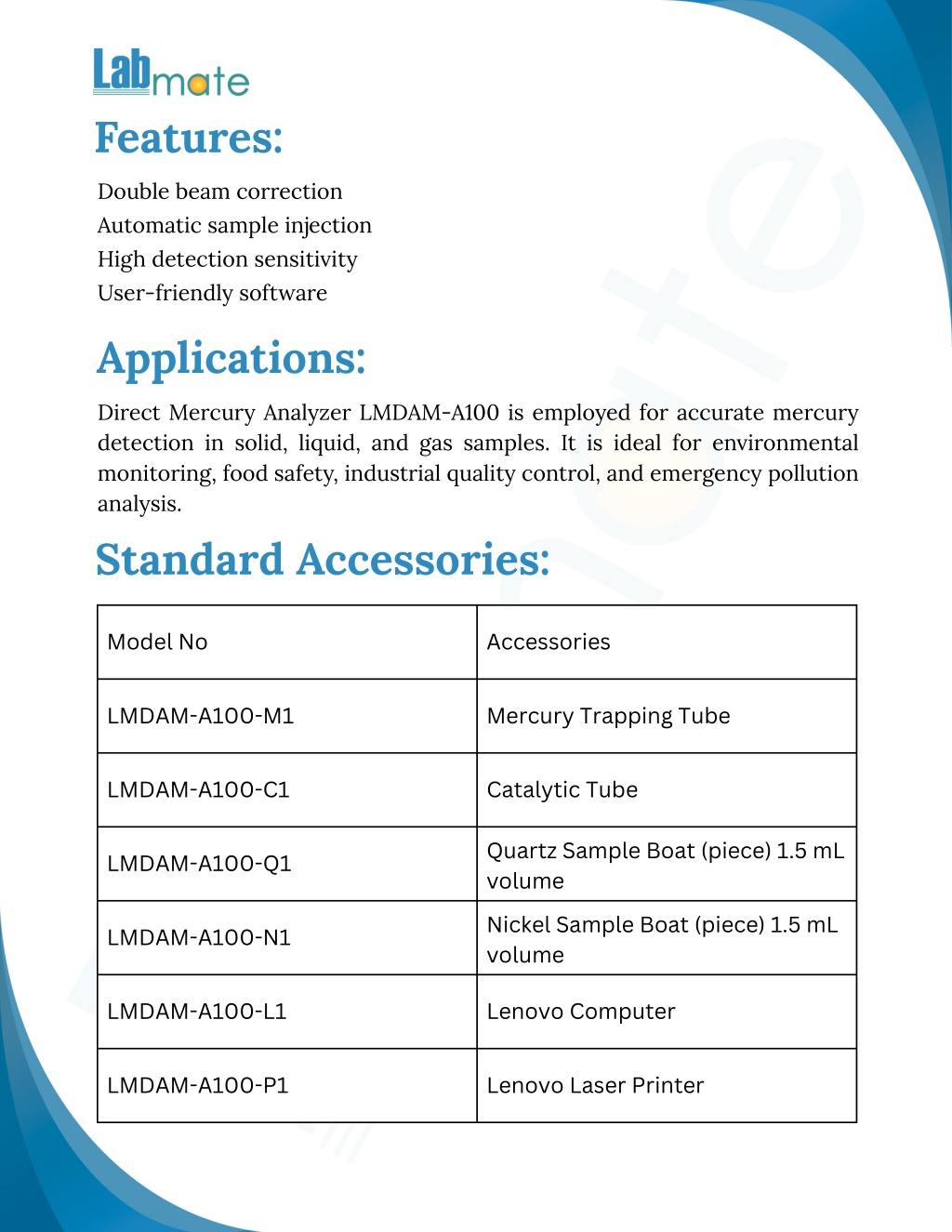

  3. Features: Double beam correction Automatic sample injection High detection sensitivity User-friendly software Applications: Direct Mercury Analyzer LMDAM-A100 is employed for accurate mercury detection in solid, liquid, and gas samples. It is ideal for environmental monitoring, food safety, industrial quality control, and emergency pollution analysis. Standard Accessories: Model No Accessories LMDAM-A100-M1 Mercury Trapping Tube LMDAM-A100-C1 Catalytic Tube Quartz Sample Boat (piece) 1.5 mL volume LMDAM-A100-Q1 Nickel Sample Boat (piece) 1.5 mL volume LMDAM-A100-N1 LMDAM-A100-L1 Lenovo Computer LMDAM-A100-P1 Lenovo Laser Printer

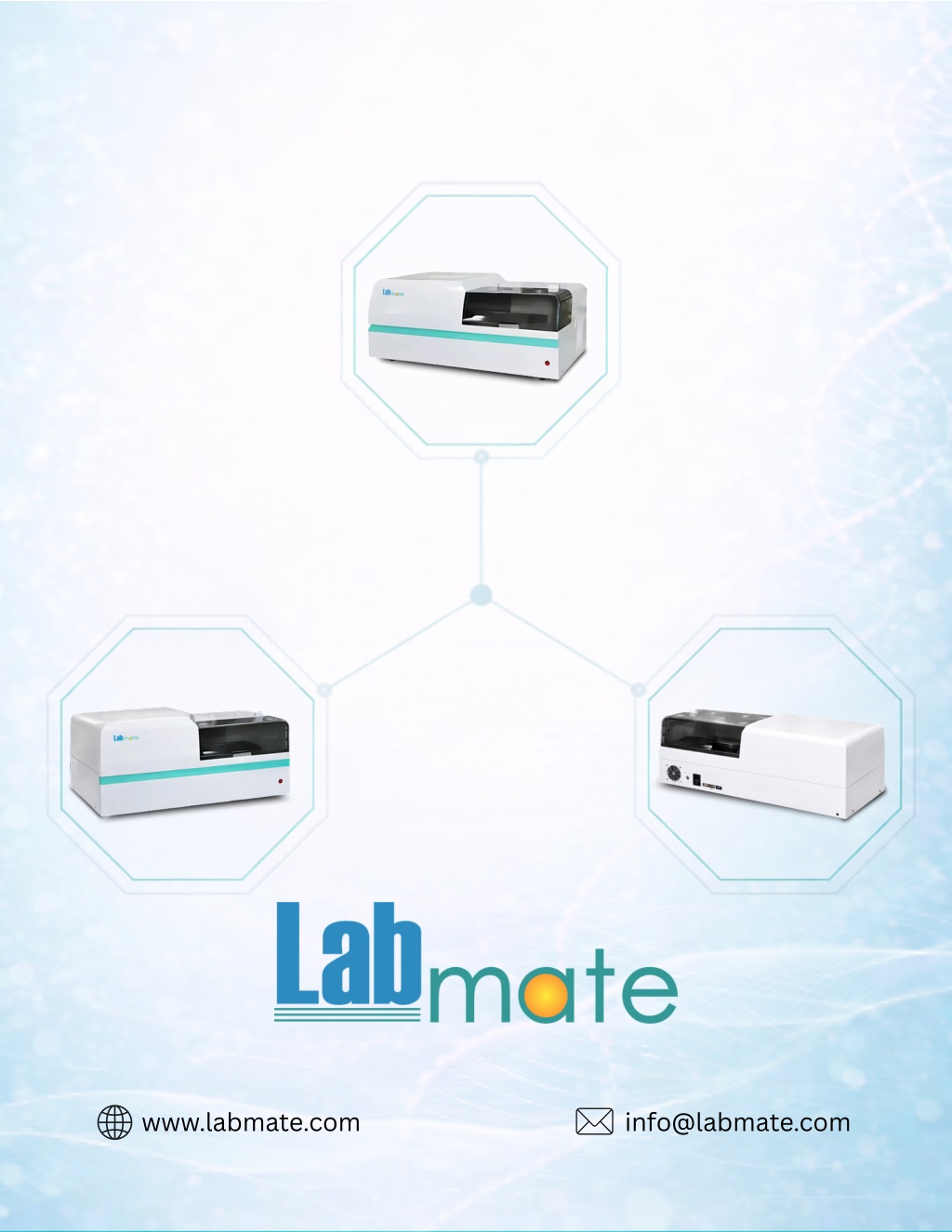

  4. www.labmate.com info@labmate.com
