  1. Microfluidics and “Lab-on-a-Chip” Modules •Societal and economic trends likely to affect your career. •What is a “Lab-on-a-Chip”? -Examples of the technology -Rationale for using it -What is the role for Chem E’s

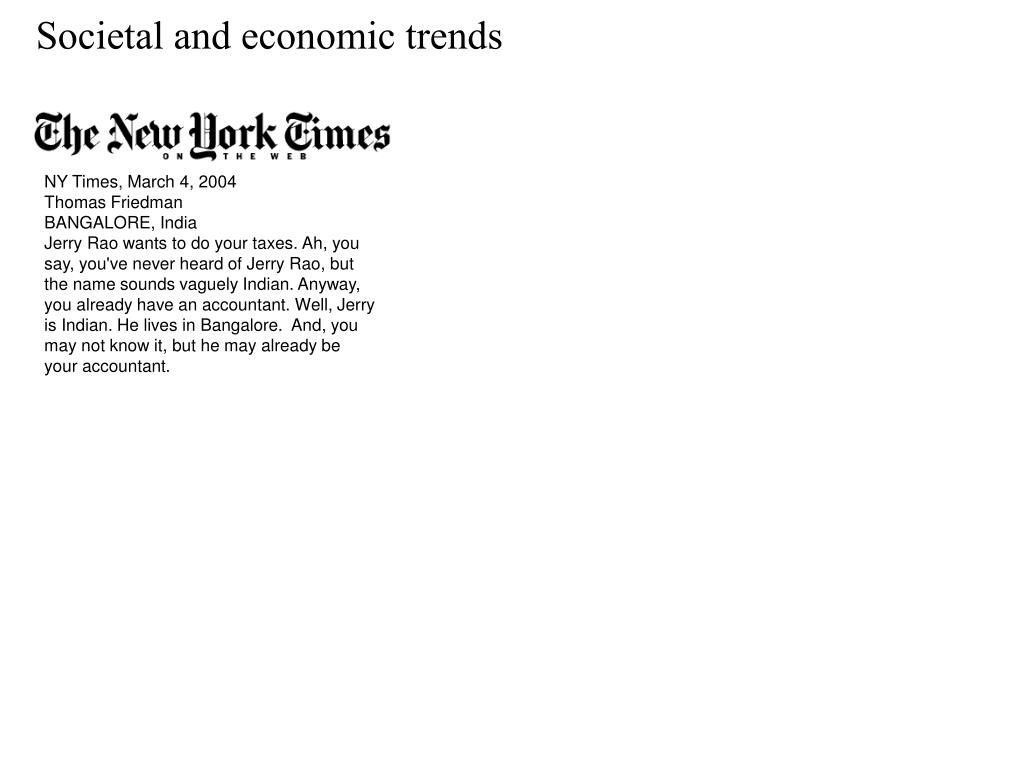

  2. NY Times, March 4, 2004 Thomas Friedman BANGALORE, India Jerry Rao wants to do your taxes. Ah, you say, you've never heard of Jerry Rao, but the name sounds vaguely Indian. Anyway, you already have an accountant. Well, Jerry is Indian. He lives in Bangalore. And, you may not know it, but he may already be your accountant. Societal and economic trends

  3. Societal and economic trends

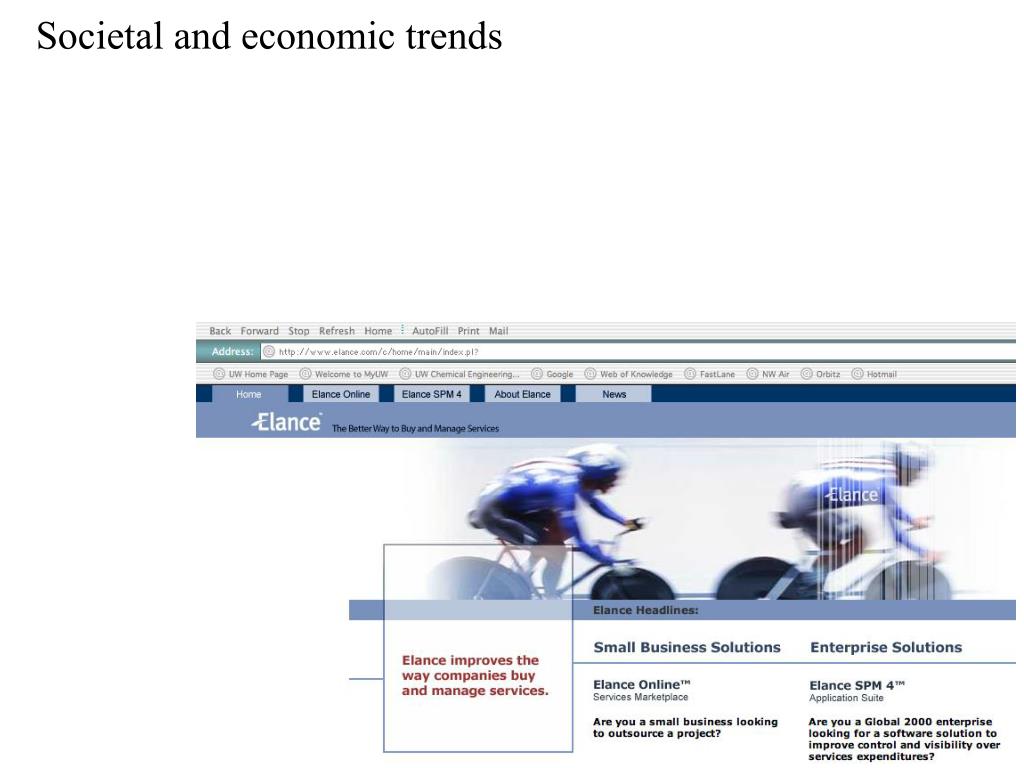

  4. Societal and economic trends

  5. Societal and economic trends - Questions to think about•What advantages/disadvantages do U.S. educated have vis-a-vis various internationally-educated Chem Es?•What aspects of Chem E are easiest to “outsource”?Which are the hardest?•What Chem E employment sectors are likely to stay in USA? What are their distinguishing traits?

  6. What is a “Lab-on-a-Chip”? Images from http://www.istat.com/products/

  7. Why “Lab-on-a-Chip” instead of regular analysis? Data from http://www.istat.com/products/docs/151420.pdf

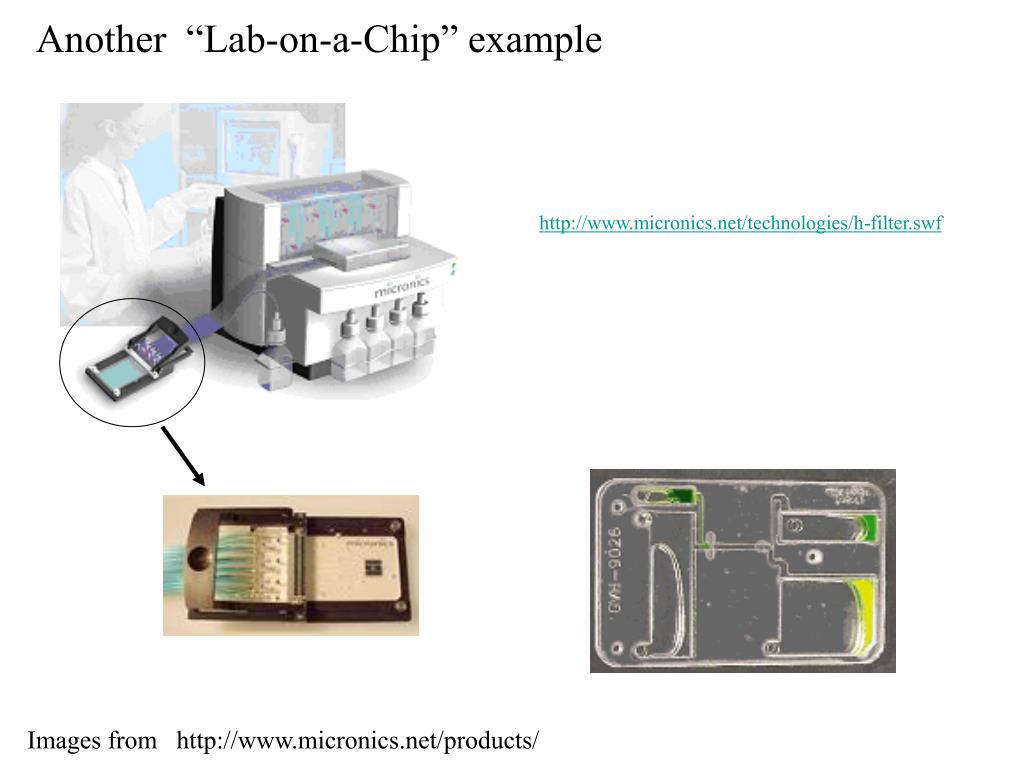

  8. Another “Lab-on-a-Chip” example http://www.micronics.net/technologies/h-filter.swf Images from http://www.micronics.net/products/

  9. Sip reagents into storage wells Another “Lab-on-a-Chip” Images from http://www.calipertech.com/pdf/DNA_Assay.pdf/

  10. Another “Lab-on-a-Chip” ATP-dependent kinetics at 37 ˚C Mix and react sample with reagent Images from http://www.calipertech.com/pdf/DNA_Assay.pdf/

  11. Another “Lab-on-a-Chip” Electrophoretic separation Flow products to separation column Time (s) Run electrophoretic separation Images from http://www.calipertech.com/pdf/DNA_Assay.pdf/

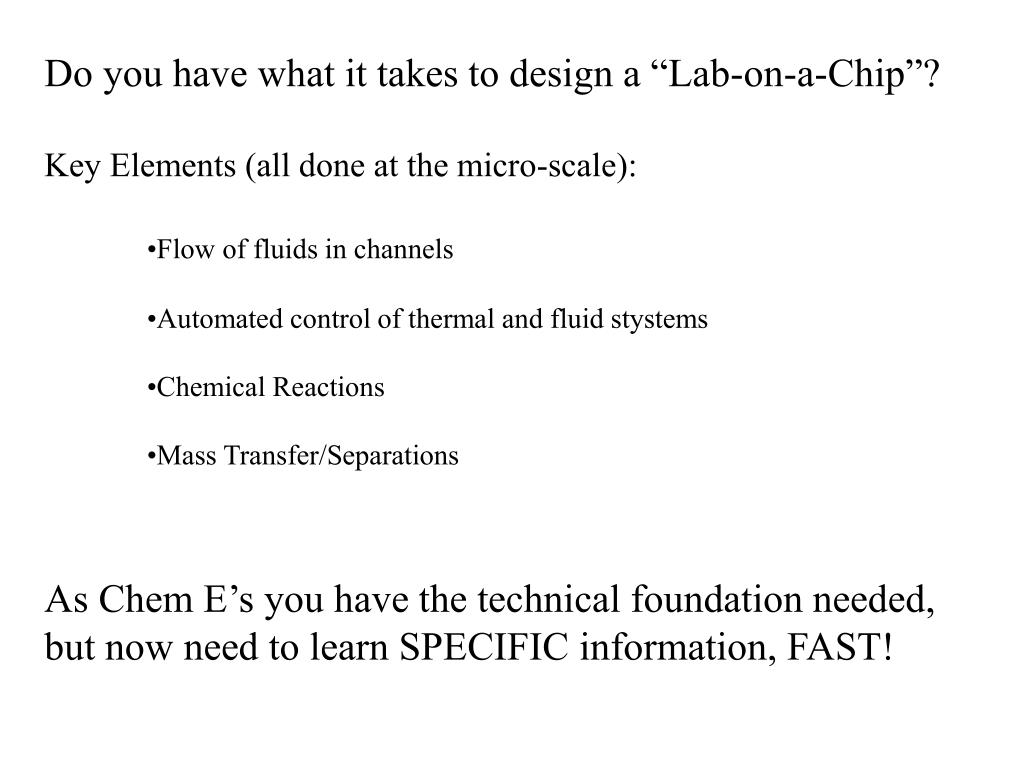

  12. Do you have what it takes to design a “Lab-on-a-Chip”?Key Elements (all done at the micro-scale):•Flow of fluids in channels •Automated control of thermal and fluid stystems •Chemical Reactions •Mass Transfer/SeparationsAs Chem E’s you have the technical foundation needed, but now need to learn SPECIFIC information, FAST!

  13. Specific information will come from•Taking a “short-course” •Talking to experts •Working on prototype problems (Tuesday, Wednesday) •Doing simulation-based research (Tuesday, WednesdayLife-long learning---do it or stagnate as a professional.

  14. Physics of Microfluidics(a.k.a. Flows for L < 1 mm) Some important length-scales for the physics of fluids L Characteristic geometry for the flow domain L < 10–3 m in microfluidics d Mean free distance molecules travel prior to molecule-molecule collisions d = kT/(√2πPs2) for ideal gases; d= 6.5 x 10–8 m for air at STP d ~ O(s) for liquids where k is Boltzmann’s constant, T is absolute temp, P is pressure, and the symbol ~O(x) can be though to mean “has an order of magnitude of x” s Molecular diameter s ~ O(5x10–10 m) L

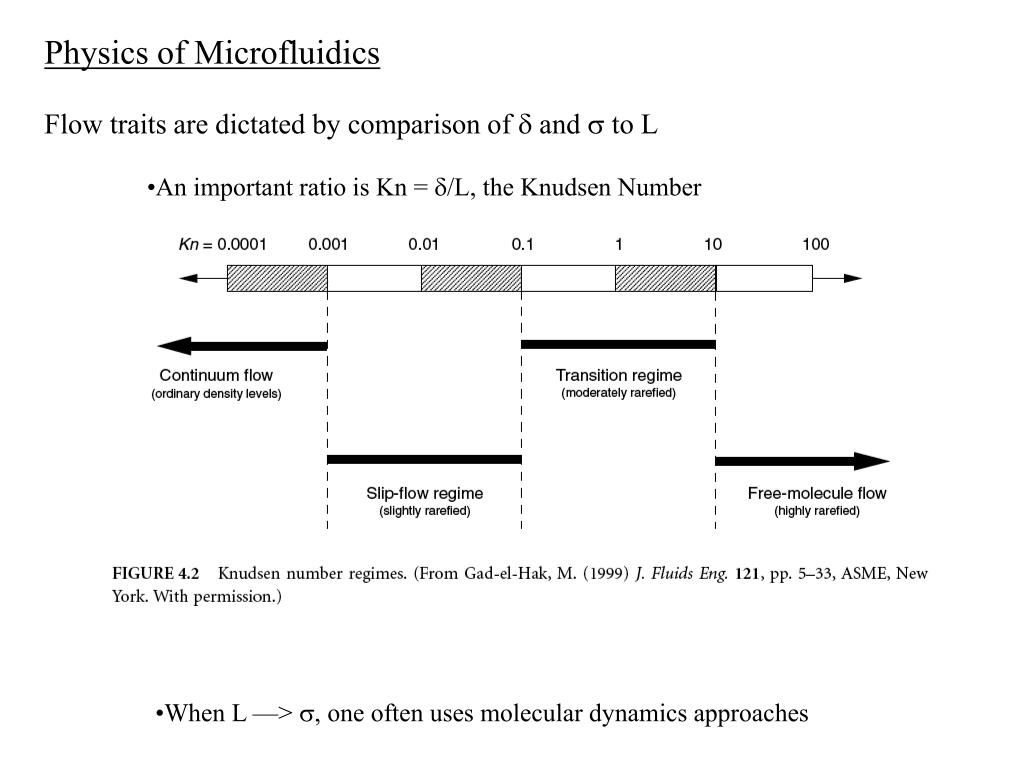

  15. Physics of Microfluidics Flow traits are dictated by comparison of d and s to L •An important ratio is Kn = d/L, the Knudsen Number •When L —> s, one often uses molecular dynamics approaches

  16. Physics of Microfluidics Length-scale ratios dictate approach for understanding flow •An important ratio is Kn = d/L, the Knudsen Number Relevant Region Continuum flow region is traditional Chem E fluid mechanics

  17. Physics of Microfluidics How does a small L influence things in the continuum flow region?

  18. Physics of Microfluidics How does a small L influence things in the continuum flow region? •Viscous Forces tend to dominate Inertial Forces Re = VL/n << 1 Reynolds Number where V is characteristic fluid velocity, and n is kinematic viscosity Examples • Ant Brain vs. Human Brain • Streamlines at a T-junction (w/ and w/o inertia)

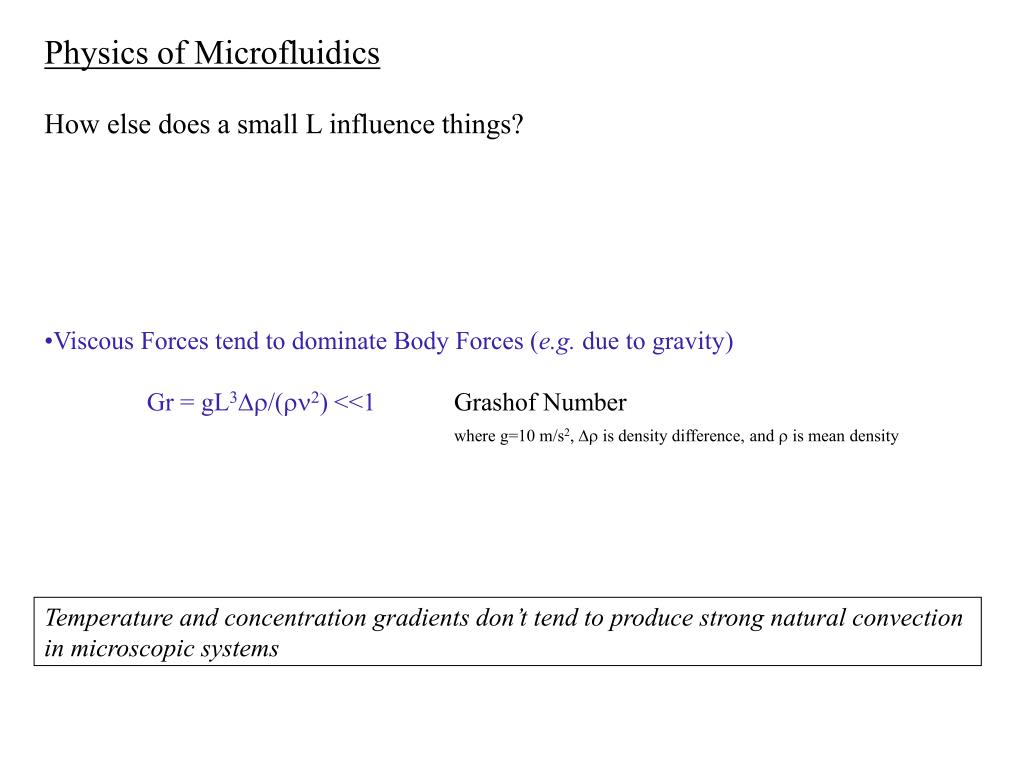

  19. Physics of Microfluidics How else does a small L influence things? •Viscous Forces tend to dominate Body Forces (e.g. due to gravity) Gr = gL3∆r/(rn2) <<1 Grashof Number where g=10 m/s2, ∆r is density difference, and r is mean density Temperature and concentration gradients don’t tend to produce strong natural convection in microscopic systems

  20. Physics of Microfluidics In short, the flows you will be working with here obey the same basic physics taught in Chem E fluids, so •Look at dimensionless groups from your Fluids course to see how L changes their magnitude •Usually means viscous drag is a major factor in microfluidics But, some additional continuum forces that were ignored by the macro-focus of Traditional Fluids also need to be considered.

  21. PL L PG Physics of Microfluidics Surface Forces are important in microsystems (Surface-to-Volume ratio is proportional to L–1) •Surface Forces can rival Viscous Forces Viscous Capillary •Another way to think about the Capillary number Ca = (Characteristic Viscous ∆P)/(Capillary pressure difference) = µV/gCapillary Number (Ca) where g is surface tension (dyne/cm), µ is viscosity (g/cm-s) q PG – PL = 2 g cosq/L

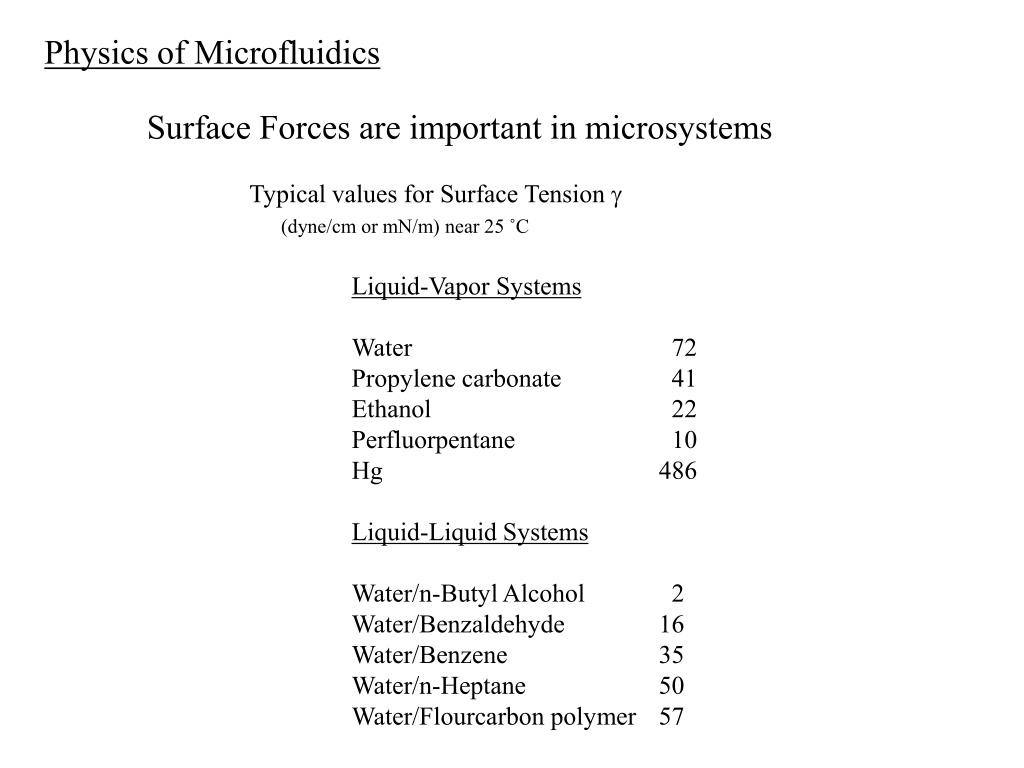

  22. Physics of Microfluidics Surface Forces are important in microsystems Typical values for Surface Tension g (dyne/cm or mN/m) near 25 ˚C Liquid-Vapor Systems Water 72 Propylene carbonate 41 Ethanol 22 Perfluorpentane 10 Hg 486 Liquid-Liquid Systems Water/n-Butyl Alcohol 2 Water/Benzaldehyde 16 Water/Benzene 35 Water/n-Heptane 50 Water/Flourcarbon polymer 57

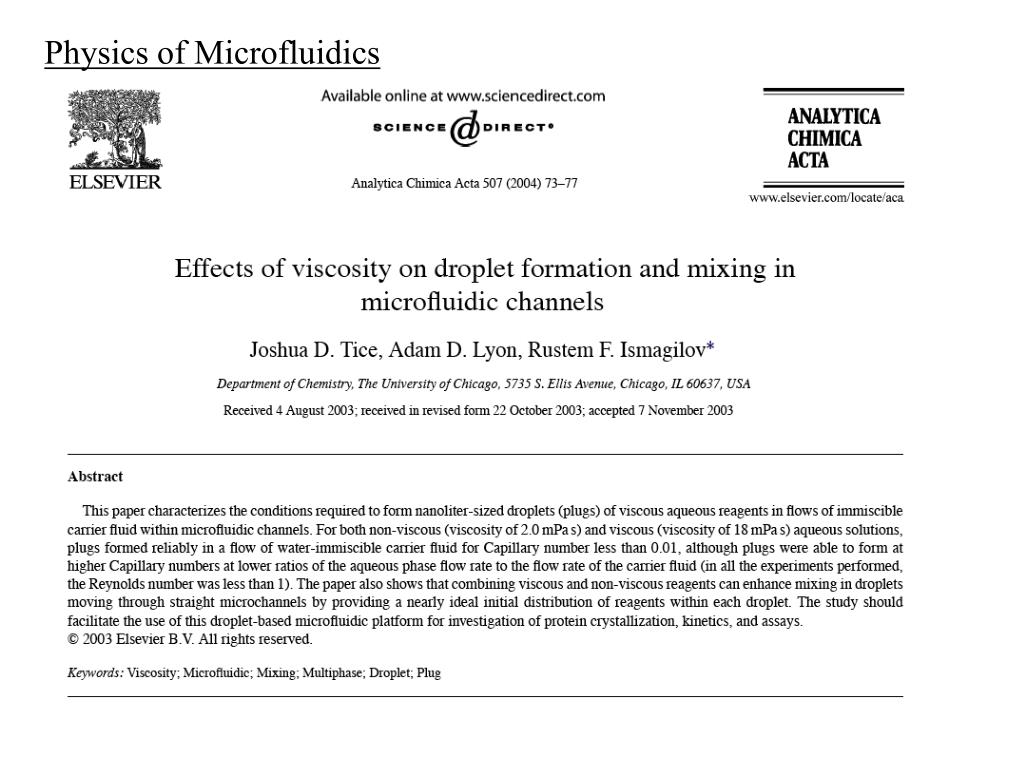

  23. Physics of Microfluidics

  24. Physics of Microfluidics

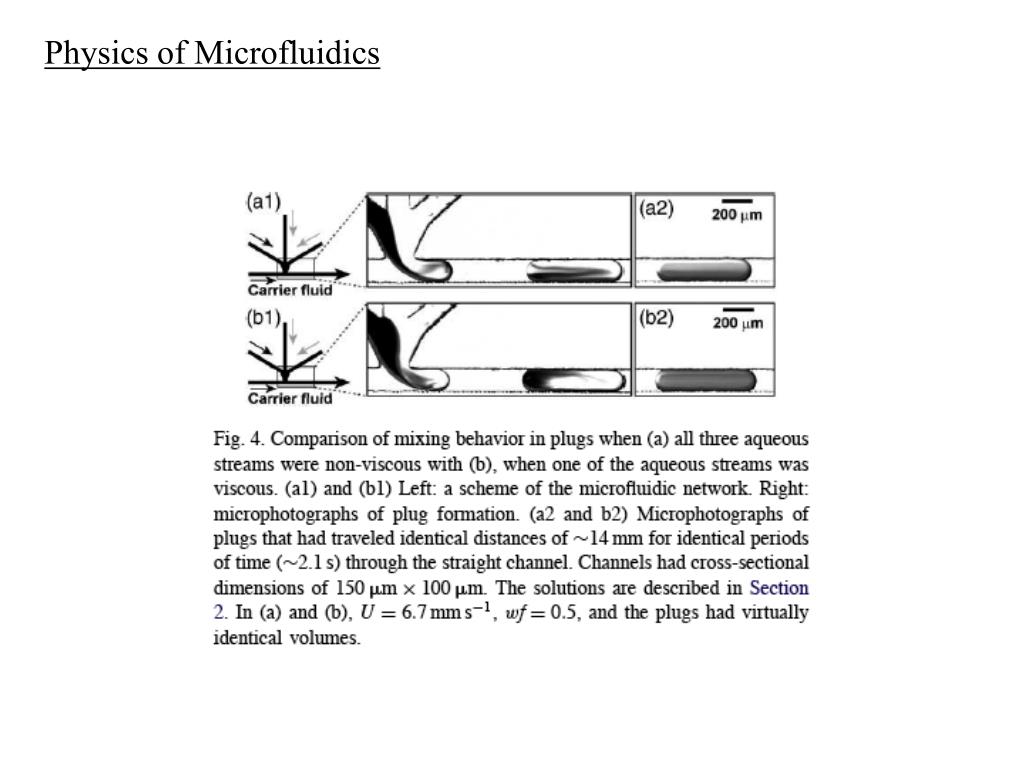

  25. Physics of Microfluidics

  26. Physics of Microfluidics Other Surface-related dimensionless groups •Bond Number (Bo) Gravitational Forces/Surface Forces Bo = ∆rgL2/g Rise of a liquid in a capillary is evidence that surface forces are big compared to gravity as dimensions shrink.

  27. Physics of Microfluidics Other Surface-related dimensionless groups •Bond Number (Bo) Gravitational Forces/Surface Forces Bo = ∆rgL2/g Rise of a liquid in a capillary is evidence that surface forces are big compared to gravity as dimensions shrink.

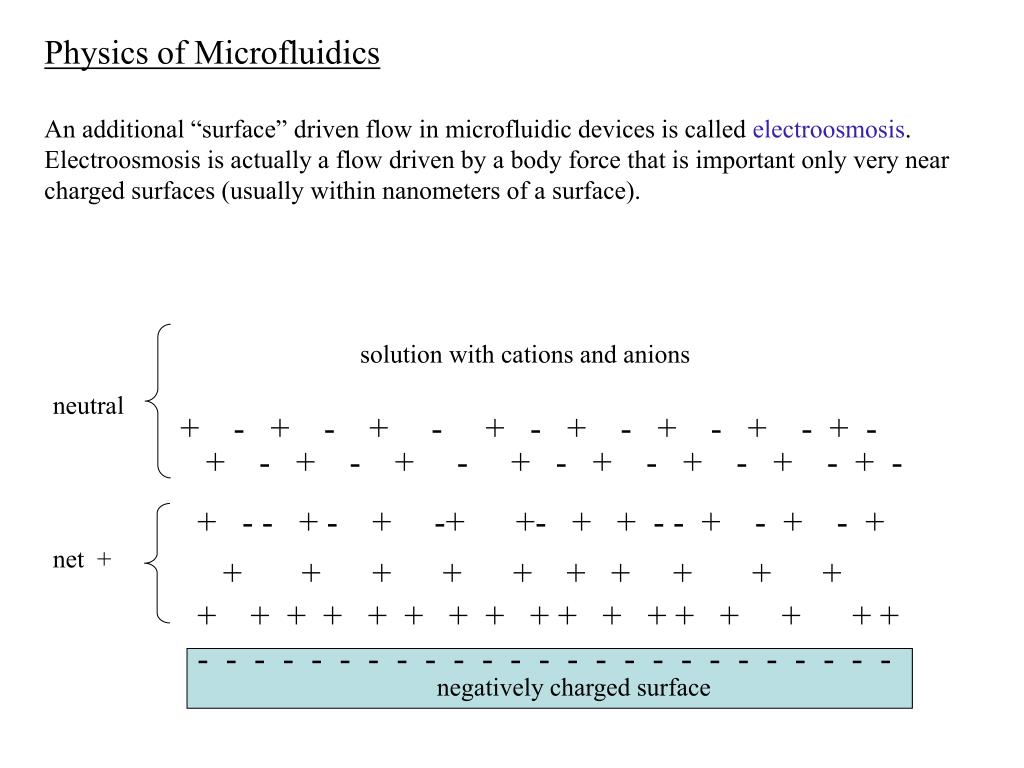

  28. Physics of Microfluidics An additional “surface” driven flow in microfluidic devices is called electroosmosis. Electroosmosis is actually a flow driven by a body force that is important only very near charged surfaces (usually within nanometers of a surface). solution with cations and anions neutral + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - - + - + -+ +- + + - - + - + - + net + + + + + + + + + + + + + + + + + + + + + + + + + + + + - - - - - - - - - - - - - - - - - - - - - - - - - negatively charged surface

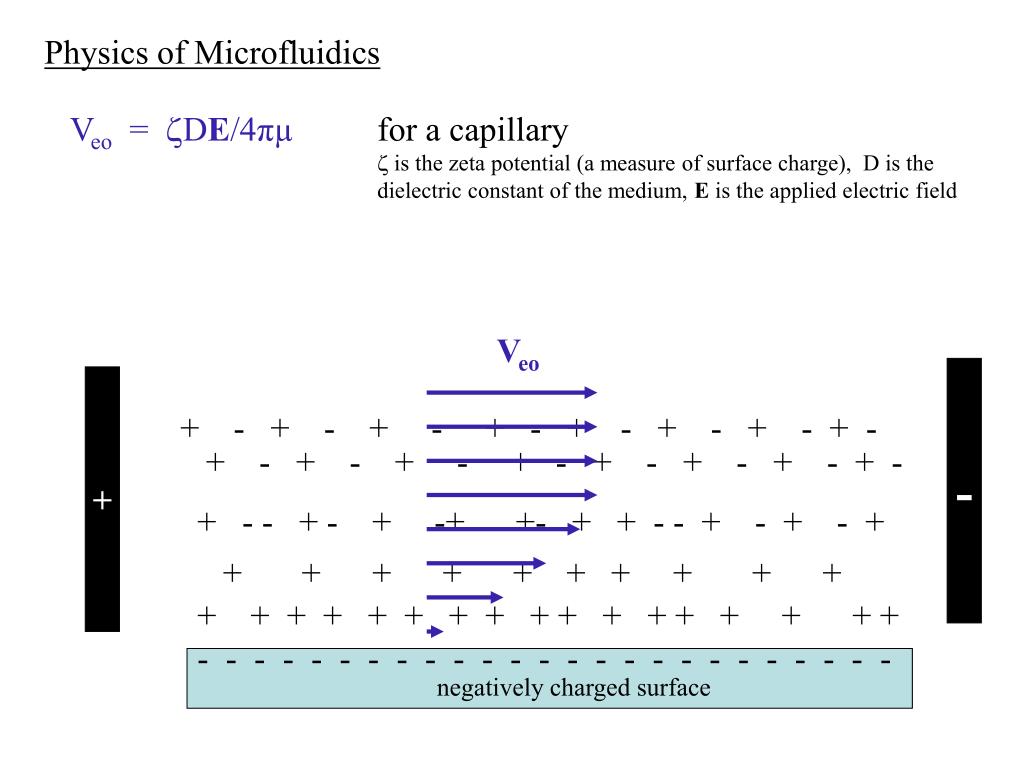

  29. Physics of Microfluidics Veo= zDE/4πµ for a capillary z is the zeta potential (a measure of surface charge), D is the dielectric constant of the medium, E is the applied electric field Veo - + + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - - + - + -+ +- + + - - + - + - + + + + + + + + + + + + + + + + + + + + + + + + + + + + - - - - - - - - - - - - - - - - - - - - - - - - - negatively charged surface

  30. Physics of Microfluidics So, how do we incorporate these various physics into models? We need governing equations and boundary conditions. For a Newtonian, incompressible fluid start with Navier-Stokes Equations: What forces are represented by these vector equations?
