  1. The TWAREN InitiativeAn Update Fay Sheu(faysheu@nchc.org.tw) The National Center for High-performance Computing Science-based Industrial Park, Hsinchu, Taiwan

  2. OUTLINE • About TWAREN • Design and Planning • The TWAREN Architecture • Dual-Circuit Provisioning by Two Local Vendors • TANet2 and International Connectivity • Collaborations

  3. TWAREN TaiWan Advanced Researchand Education Network

  4. The TWAREN Initiative • TWAREN is part of a comprehensive, six-year national plan formulated by the government to stimulate creativity and foster talents. • Pairing with a twin project, KING (Knowledge Innovation National Grid), the two serve as the enablers in facilitating scientific discoveries and knowledge creations, in global collaborations and resource sharing. • Both projects at our Center began January, 2003

  5. Ground Breaking • TWAREN signifies a very big advance for Taiwan’s research network since TANet2. • It breaks many new grounds for R&E networks in Taiwan: • The telecom deregulation, three years hence, has effectively lowered cost • Competition makes fiber provisioning possible, albeit partial ownership • Our twin project, KING, also generously funded, will be the primary driver for scientific applications

  6. Core Nodes in Science Parks • Three of the four core nodes are strategically placed in Taiwan’s science parks to serve industrial R&D besides academic research • Each node is assigned a primary function • The NCHC HQ in the Hsinchu Science-based Industrial Park, will be a resource center for computing • Our southern branch, to be completed in 2004, will house the Network Operation Center • An additional office, to be built in central Taiwan, serves as the Knowledge Center

  7. Computing Center Knowledge Center Taipei Tainan Hsinchu Taichung Network Operation Center Core node equipment Functions Assigned

  8. A Hybrid Network • TWAREN is a new hybrid network with 10G POS and DWDM technologies at its core • Dual circuits form the backbone. Two local carriers, Chunghwa Telecom and Eastern Broadband Telecom, each provides a 10 G POS network linking the four core nodes. • There are eleven GigaPoPs, each links to the core node at 10 GbE • Total bandwidth for the backbone is 80 G. Combined with fibers, the total bandwidth for the GigaPoPs is 205 G

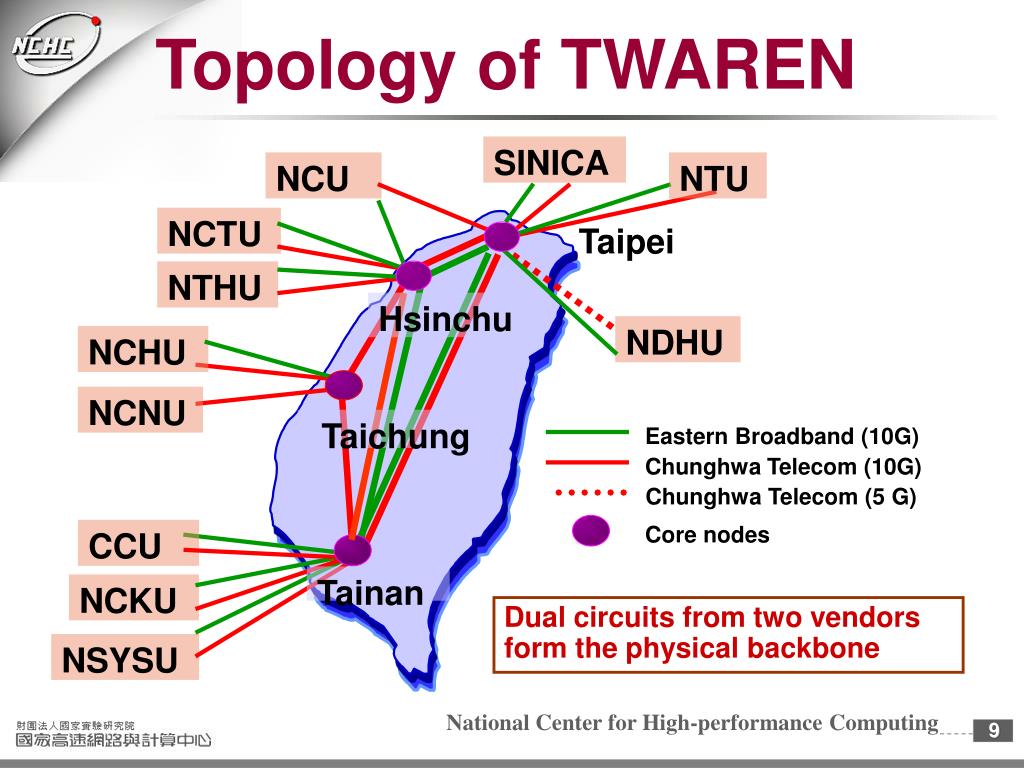

  9. SINICA NCU NTU NCTU Taipei NTHU Hsinchu NDHU NCHU NCNU Taichung Eastern Broadband (10G) CCU ChunghwaTelecom (10G) Tainan Chunghwa Telecom (5 G) NCKU Dual circuits from two vendors form the physical backbone Core nodes NSYSU Topology of TWAREN

  10. Network Architecture Design Goals • Carrier-class architecture and equipment • High-speed backbone, multi-serveice PoPs • Dual circuits to guard against failure • Scalable and flexible • Fiber ownership or control

  11. Circuits by Chunghwa Telecom • The CHT 10 G DWDM Network offers 10 G optical channels. • The company's two main networks on the western shore are built with single mode, 96-fiber capacity. • Nortel OPTera Long Haul 1600 were installed on both main networks. • It is capable of delivering 40λ of 10 Gbps optical channels.

  12. TWAREN Backbone Network(Circuit provided by CHT) DWDM Chuchang Sanmin Chupei Dongliao Dongyi MOE Hsinchu Kuandon Liochia Sanchung Nansie Chinsiao DWDM Genshin Hsinchu DWDM Taipei Nan-er Hsinchu NCHC DWDM Chungsin DWDM DMDM Hualian DWDM DWDM DWDM Cheng-er DWDM Cheng-yi Chiayi Yonkang Hoshan Tainan Liochia Hsinhua Taitung Taichung Kaohsiung Hsinnon Tainan NCHC Minshan Andin Hsinshi Daoyeh

  13. Taichung-1 (CHT) Tainan-1 (CHT) Taipei-1 (CHT) Hsinchu-1 (CHT) Tainan (NCHC) Taipei (MOE) Hsinchu (NCHC) Taichung (NCHC) Tainan-2 (CHT) Taipei-2 (CHT) Hsinchu-2 (CHT) Taichung-2 (CHT) DWDM Working System Protection System ODPR Dual Routing & Node Protection(Backbone circuit provided by CHT)

  14. ODPR Working System Core Router DWDM DWDM ODPR Protection System Working System Protection System DWDM DWDM Backbone Auto-protection(provided by CHT) • Reliability and stability assured by Optical Dedicated Protection Ring at the core nodes ODPR

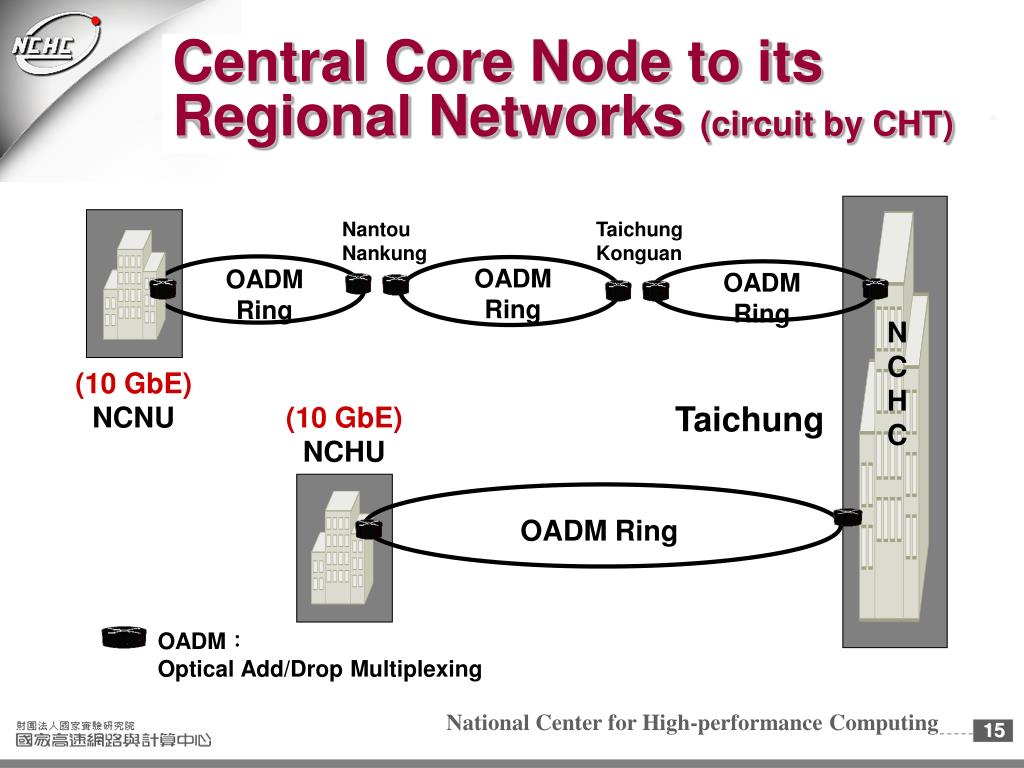

  15. Nantou Nankung Taichung Konguan OADM Ring OADM Ring OADM Ring NCHC (10 GbE) NCNU Taichung (10 GbE) NCHU OADM Ring OADM： Optical Add/Drop Multiplexing Central Core Node to its Regional Networks(circuit by CHT)

  16. Tainan Industrial Park OADM Ring CCU (10 GbE) NCKU (10 GbE) OADM： Optical Add/Drop Multiplexing NSYSU (10 GbE) South Core Node to its Regional Networks(circuit by CHT) Connection of a TWAREN core to its 10-GbE MAN at the Tainan PoPs (NCHC South)

  17. Circuits by EBT (Eastern Broadband Telecom) • A new telecom company formed after deregualation • Fibers deployed along the railroads. • In cooperation with Taiwan Railway Company which has extensive rails system. • Dual routing and protection also provided by the company’s 10G DWDM network

  18. Backbone Network (by EBT) Taipei Ring2 Taipei Ring1 Taouyan Ring Int’l circuit landing point Taichung Ring Eatern Ring ChiaYi Ring Kaohsiung Ring1 Int’l circuit landing point Kaohsiung Ring2

  19. TWAREN core node Taipei Hsinchu Taichung Tainan B route A route B route A route B route A route B route EBT Taipei core EBT Hsinchu core EBT Taichung core EBT Chiayi core EBT Tainan core EBT Backbone(10G DWDM) TWAREN Backbone CPE EBT DWDM Backbone Actvie route Protected route Backbone Network (by EBT) A route EBT Kaoshung core

  20. NCHC CPE POP CPE OAS EDFA Transponder Core Route A POP Route B Regenerator Core POP Route A Route B Regional Networks (by EBT)

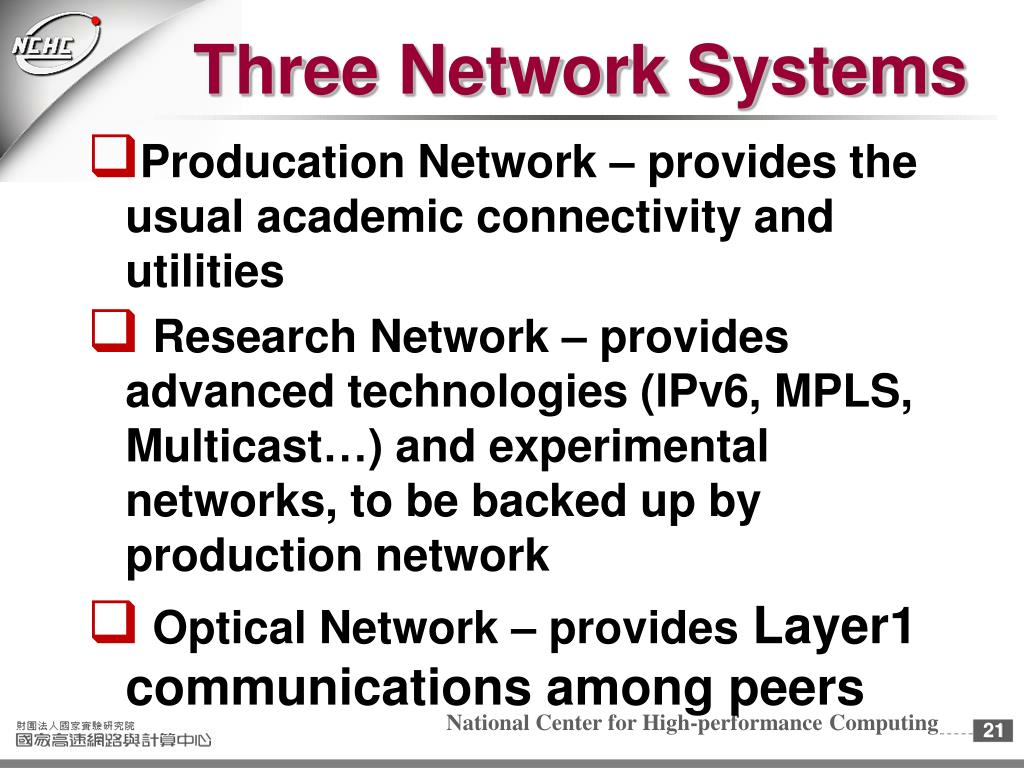

  21. Three Network Systems • Producation Network – provides the usual academic connectivity and utilities • Research Network – provides advanced technologies (IPv6, MPLS, Multicast…) and experimental networks, to be backed up by production network • Optical Network – provides Layer1 communications among peers

  22. 10GE STM-64/OC-192 STM-16/OC-48 NTU Production Sinica Taipei NDHU CCU CCU TWAREN NCTU Hsinchu NCKU Tainan NTHU Taichung NCNU NSYSU NCHU TWAREN Production Network

  23. 10GE STM-64/OC-192 NTU SINICA STM-16/OC-48 NDHU Taipei GE Undeployed circuit Optical Production Research NCU CCU TWAREN NCKU NCTU Hsinchu Tainan NTHU Taichung NSYSU NCNU NCHU Combination of IP and Optical Routing

  24. 10GE STM-64/OC-192 STM-16/OC-48 GE Taipei Suggested NTU Optical NDHU Production Sinica Research CCU NCTU TWAREN NCKU Hsinchu 新竹 台南 Tainan NTHU NCHU 台中 NSYSU Taichung NCNU TWAREN Research Network 10GE 10GE NCU

  25. # of Circuit (#) 10GE STM-64/OC-192 STM-16/OC-48 Sinica GE NDHU undeploy C7609 NTU (2) C7609 Optical C7609 ONS15454 (2) Production (2) ONS15454 Research ONS15454 CCU NCU C7609 C7609 (2) (2) ONS15454 ONS15454 NCTU NCKU C7609 C7609 (2) (2) ONS15454 ONS15454 NSYSU NCNU C7609 C7609 (2) (2) ONS15454 ONS15454 TWAREN Optical Network Taipei GSR (2) (6) ONS15600 ONS15454 TWAREN ONS15454 ONS15454 Tainan ONS15600 (6) ONS15600 (6) (3) (3) GSR Hsinchu GSR ONS15454 (4) (2) NTHU NCHU GSR C7609 C7609 (2) Taichung (2) ONS15454 ONS15454

  26. Production Research IPv4/IPv6 IPv4/IPv6 IPv4 IPv6 IPv4 IPv6 Production IPv4 Research IPv4/IPv6 Native IPv6 6to4 Tunnel Or 6PE IPv4 IPv6 IPv4/IPv6 TWAREN IPv6 Service (pending) • TWAREN Production Network to provide IPv4 service • Backs up IPv6 • Native IPv6 service on Research Network

  27. TANet2 A research network managed by the NCHC TWAREN will succeed TANet2 when completed

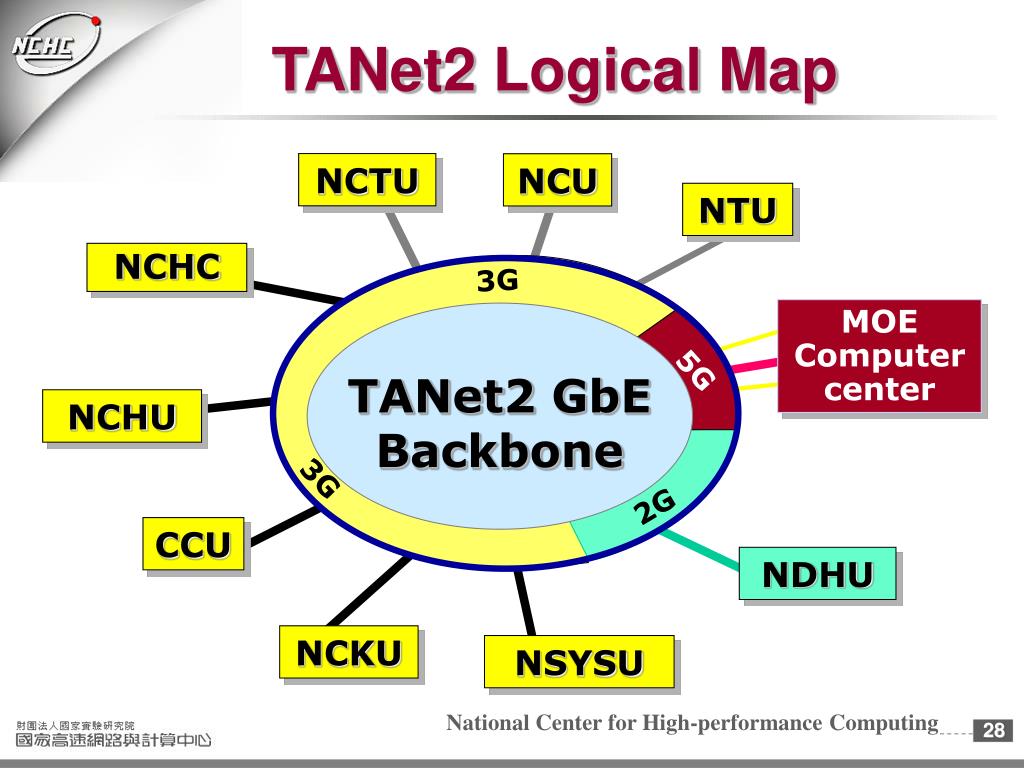

  28. NCTU NCU NTU NCHC 3G MOE Computer center 5G TANet2 GbE Backbone NCHU 3G 2G CCU NDHU NCKU NSYSU TANet2 Logical Map

  29. Edmonton Vancouver Halifax Winnipeg CA*net4 Calgary Montreal StarTap Toronto StarLight Taipei TANet2 Abilene In Nov. 2003: the link to Seattle and extension to STARLight upgraded from OC-3 Possibly there will be another link to LA International Connectivity

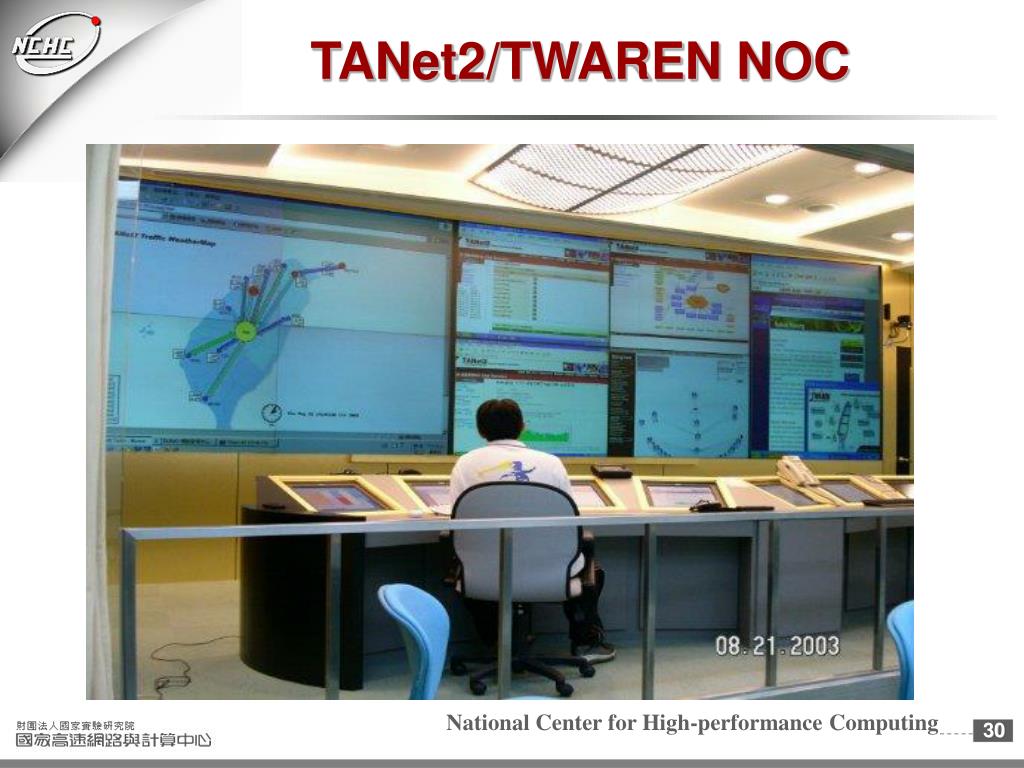

  30. TANet2/TWAREN NOC

  31. Collaborations

  32. Research Objectives Engineering Advisory TWAREN Collaboration Council & Steering Committee TWAREN Research Working Group (TWAREN + Cisco Engineers) TWAREN Members International Collaboration Optical Research IPv6 Research Network Monitoring IP phone + eNum Gigabit Initiatives Possible TWAREN Collaboration Working Groups Structure for Collaboration With Cisco support

  33. Imaging Neural Structures • A collaboration between Cold Spring Harbor Laboratory (US) and Taiwan • The Taiwan NSC awarded one million US dollars to Prof. Chiang Ann-Shyn of NCTU for probing the brains of fruit flies • Mutants (memory) are supplied by CSH • The NCHC does the image processing and buids the database online (led by Dr. Chang-Huain Hsieh) • Analyzed images will be stored at the NCHC, a case in collaborative, distributed storage

  34. http://bioinfo.nchc.org.tw/flybrain/ Neural structure of Drosophila mutants 3D rendering of images from confocal microspy Some are mutants of a gene that controls memory Flybrain Image Database

  35. Grid Applications (KING) Our Center is heavily involved with grid activities. Ongoing projects include: • Eco-Grid • National Land Use Monitoring & Analysis • Structure Monitoring of Buildings for Earthquake Risk • Flood Forecasting & Monitoring • SARS Grid • …..

  36. Thank You!
