Stanford Nonstructural Hazard Mitigation Project

1. Stanford Nonstructural Hazard Mitigation Project Fouad Bendimerad & Nathan Canney Equipment Classification System April 3, 2009

2. Classification Methodology • Class • Overarching category that identifies equipment location or standard attributes. (i.e. desktop location, book shelves, or computer equipment) • Classes are arranged based upon how common they are on campus. • A class for “Unique Equipment” is formed to allow for discussion of “one-of-a-kind” equipment such as large magnets or pressure chambers. These will probably require non-standard bracing systems and will therefore require an equipment specific assessment.

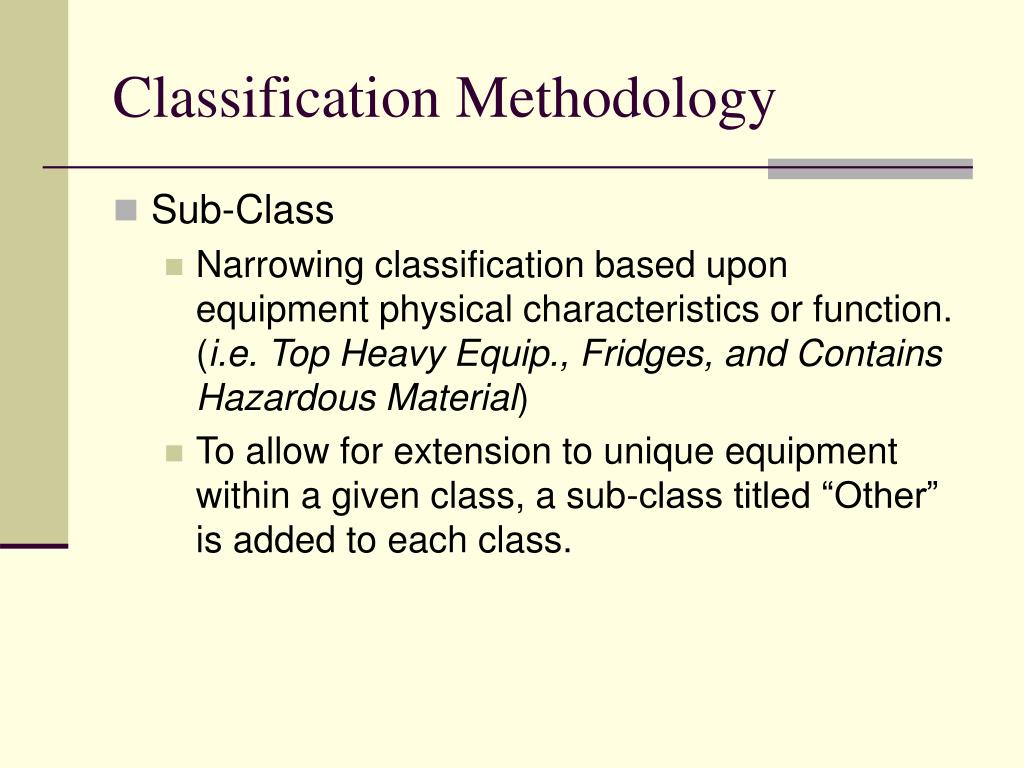

3. Classification Methodology • Sub-Class • Narrowing classification based upon equipment physical characteristics or function. (i.e. Top Heavy Equip., Fridges, and Contains Hazardous Material) • To allow for extension to unique equipment within a given class, a sub-class titled “Other” is added to each class.

4. Classification Methodology • Bracing Solutions • A logic tree will connect a given Class and Sub-class to standard bracing options based upon user inputs about the equipment. These inputs will include equipment location in a room, surroundings and special user requirements. • There may be multiple bracing options for a given piece of equipment and many types of equipment will use similar bracing systems.

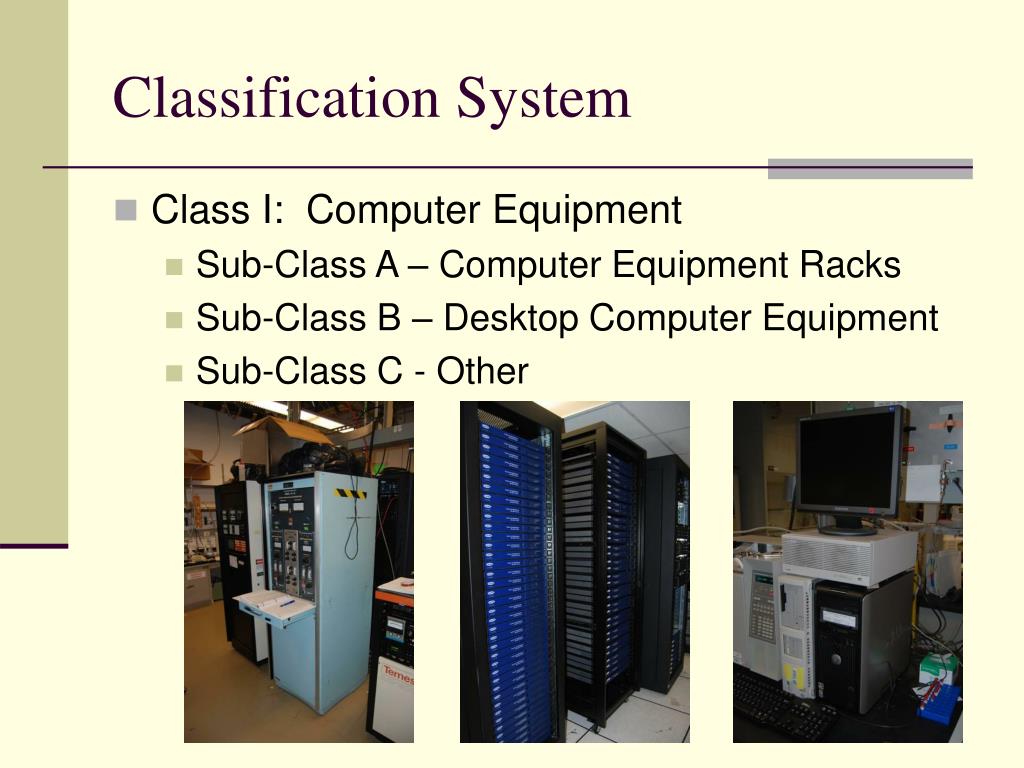

5. Classification System • Class I: Computer Equipment • Sub-Class A – Computer Equipment Racks • Sub-Class B – Desktop Computer Equipment • Sub-Class C - Other

6. Classification System • Class II: Shelves/Storage • Sub-Class A – Shelves/Storage housing Hazardous Material • Sub-Class B – Shelves/Storage housing books and other non-hazardous contents

7. Classification System • Class II: Shelves/Storage (con’t) • Sub-Class C – Overhead Shelves housing lab equipment • Sub-Class D – Bracing of Shelving/Storage Units • Sub-Class E – Furniture • Sub-Class F - Other

8. Classification System • Class III: Bench Top Equipment • Sub-Class A – Top Heavy Equipment • Sub-Class B – Large Base Equipment • Sub-Class C – Medium Box-Shaped Equipment

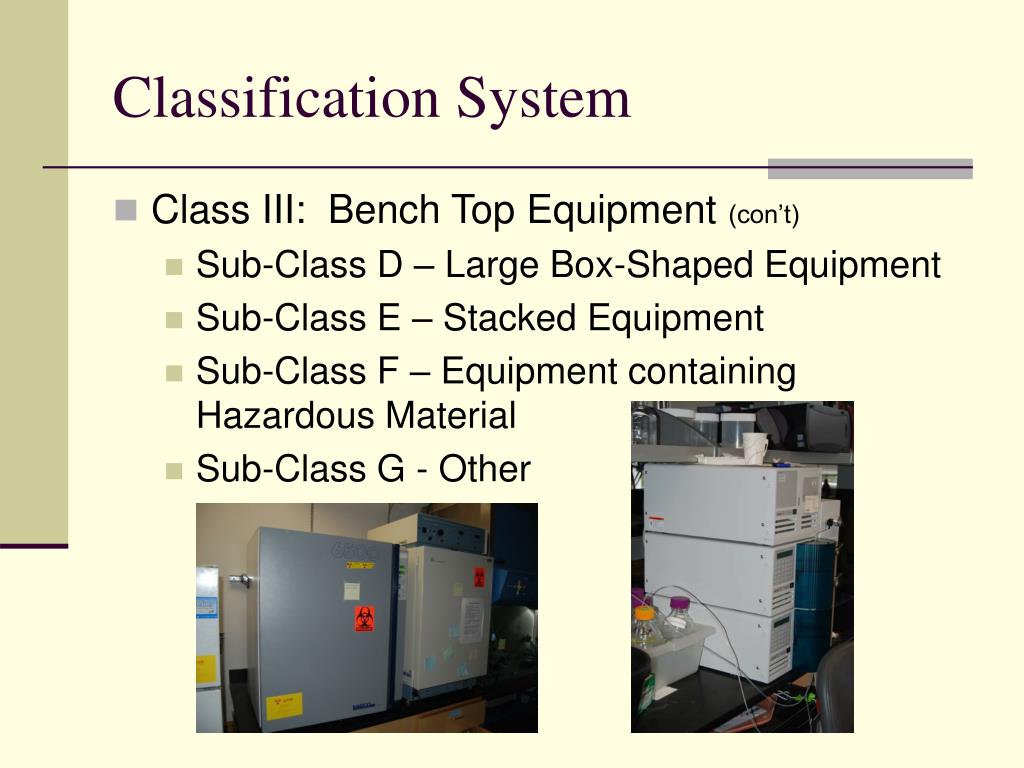

9. Classification System • Class III: Bench Top Equipment (con’t) • Sub-Class D – Large Box-Shaped Equipment • Sub-Class E – Stacked Equipment • Sub-Class F – Equipment containing Hazardous Material • Sub-Class G - Other

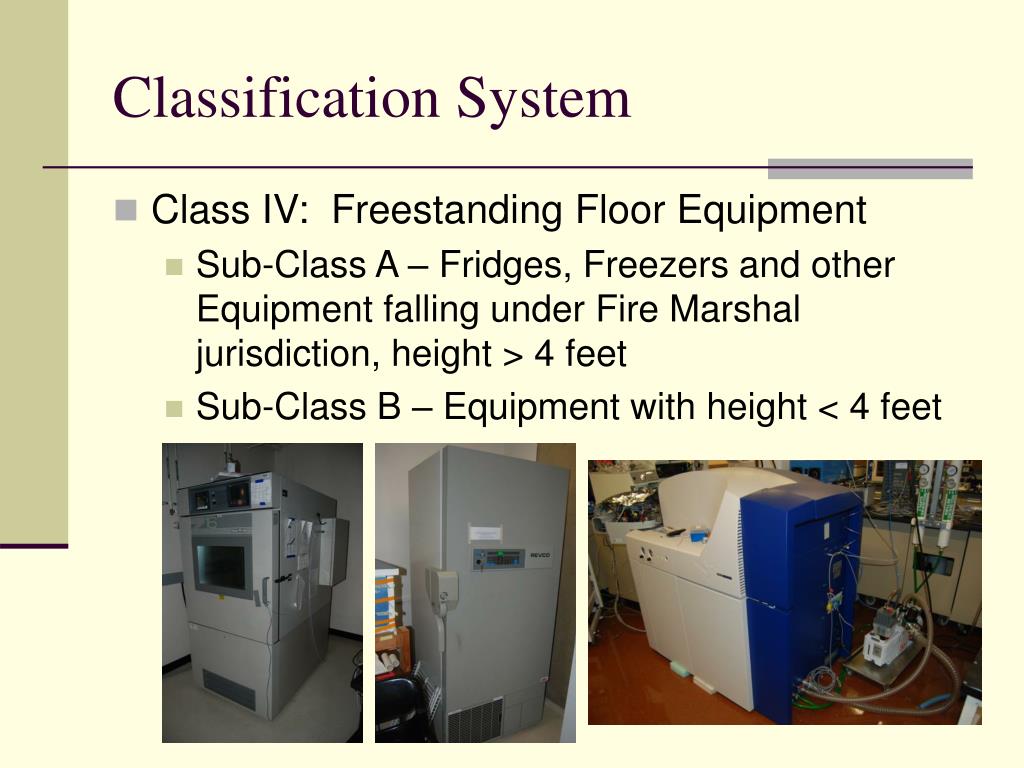

10. Classification System • Class IV: Freestanding Floor Equipment • Sub-Class A – Fridges, Freezers and other Equipment falling under Fire Marshal jurisdiction, height > 4 feet • Sub-Class B – Equipment with height < 4 feet

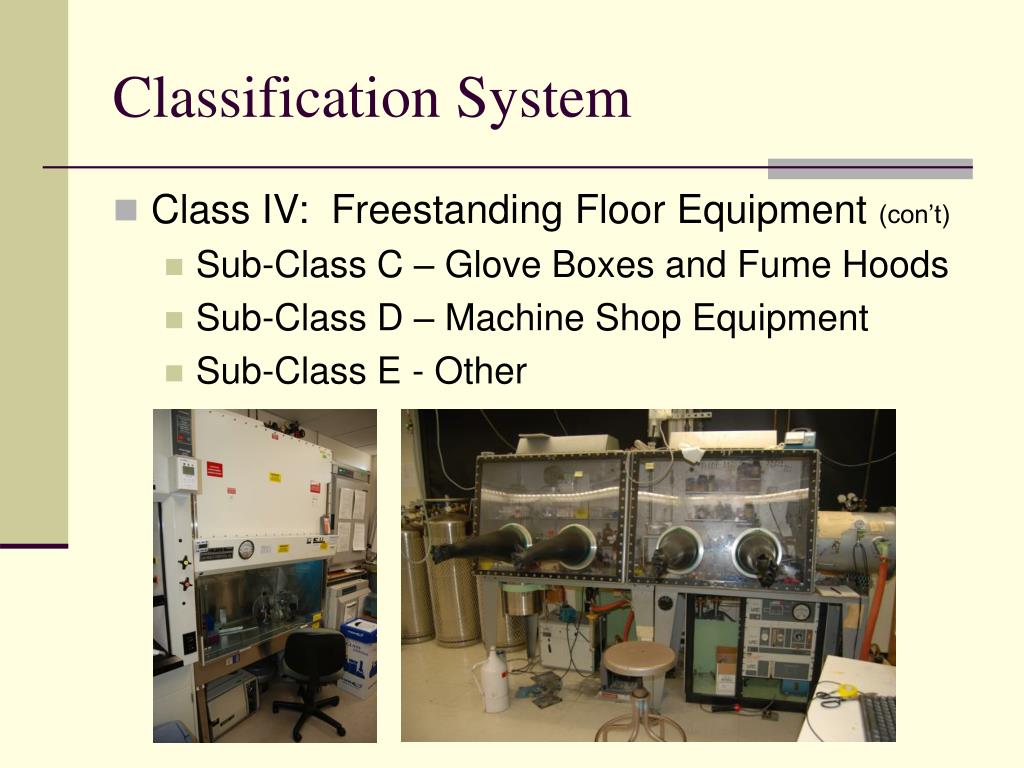

11. Classification System • Class IV: Freestanding Floor Equipment (con’t) • Sub-Class C – Glove Boxes and Fume Hoods • Sub-Class D – Machine Shop Equipment • Sub-Class E - Other

12. Classification System • Class V: Compressed Gases • Sub-Class A – Portable Gas Cylinders • Sub-Class B – Large Outdoor Storage Tank • Sub-Class C - Other

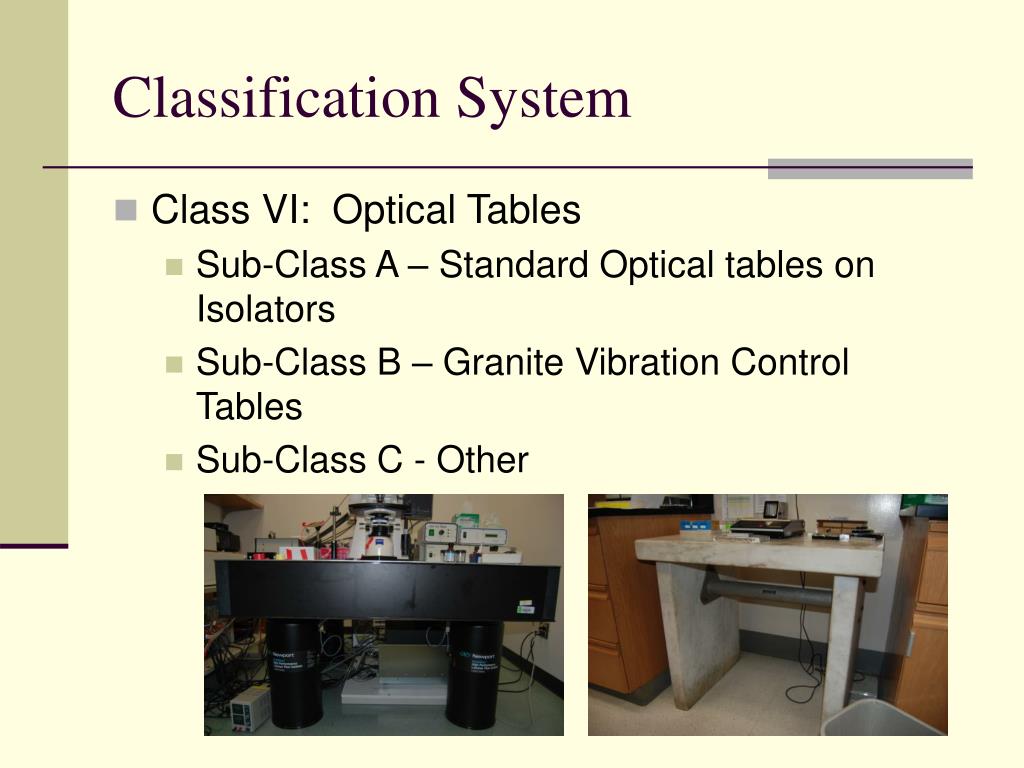

13. Classification System • Class VI: Optical Tables • Sub-Class A – Standard Optical tables on Isolators • Sub-Class B – Granite Vibration Control Tables • Sub-Class C - Other

14. Classification System • Class VII: Animal Storage • Sub-Class A – Glass Containers • Sub-Class B – Cages stored on movable racks • Sub-Class C – Large Animal Cages • Sub-Class D – Cages containing Hazardous/Biological Elements • Sub-Class E – Other

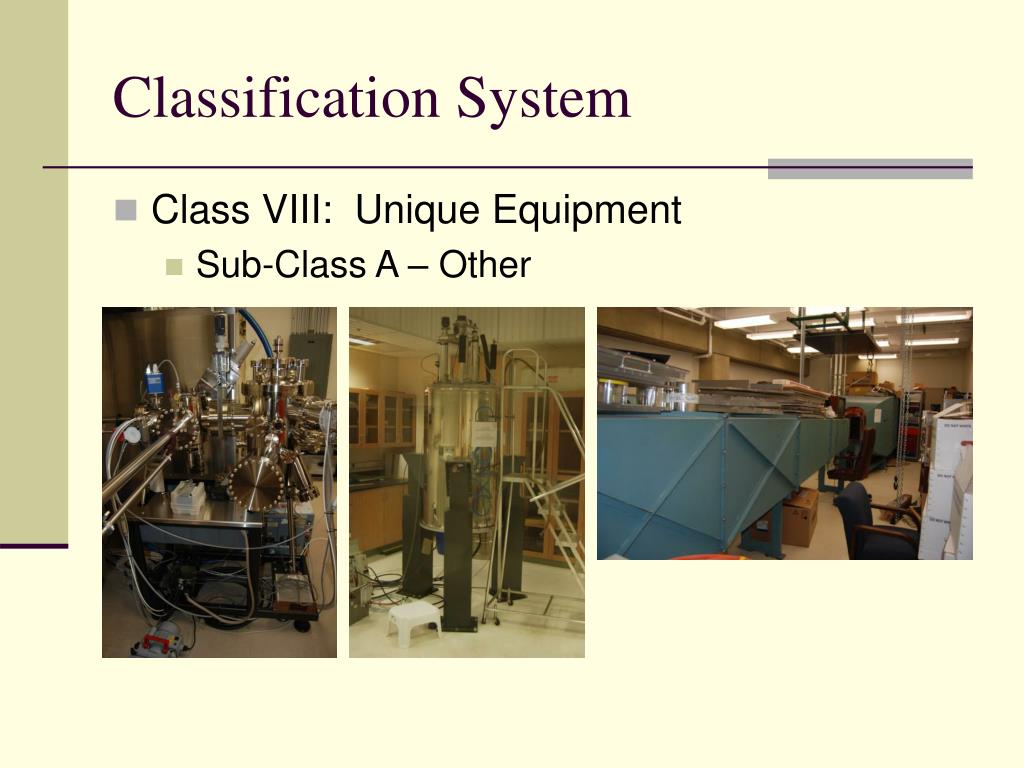

15. Classification System • Class VIII: Unique Equipment • Sub-Class A – Other
