  1. Kyle Sigo and Andrew Lowe Recognition of volumetric features using 2d hints

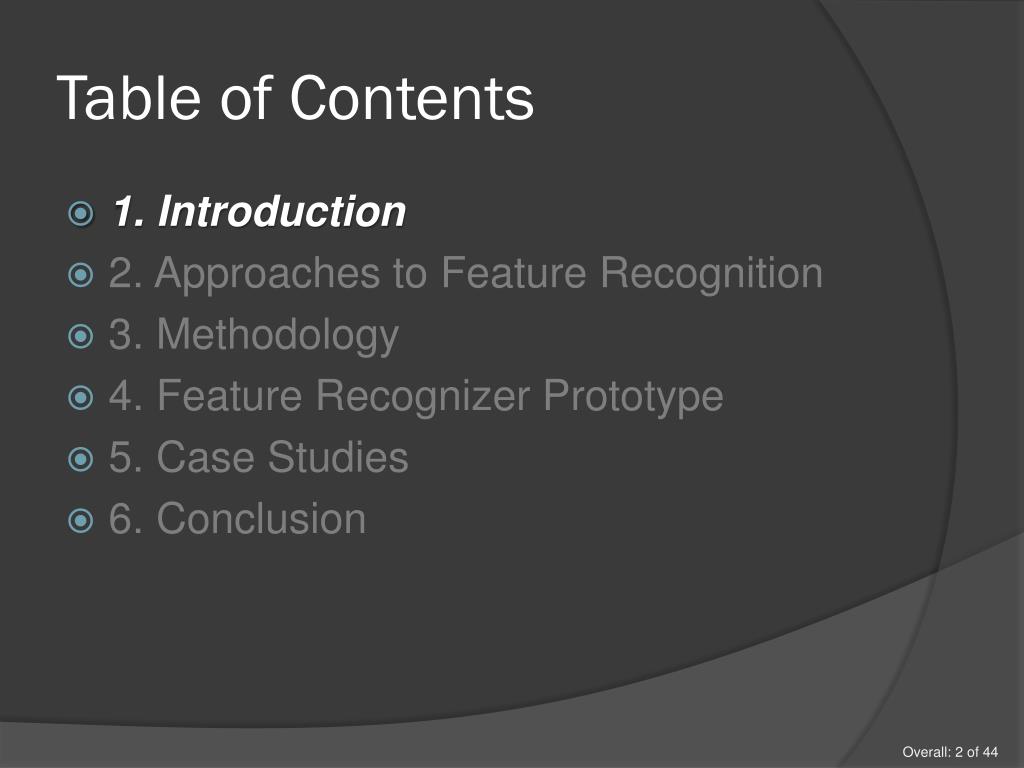

  2. Table of Contents • 1. Introduction • 2. Approaches to Feature Recognition • 3. Methodology • 4. Feature Recognizer Prototype • 5. Case Studies • 6. Conclusion

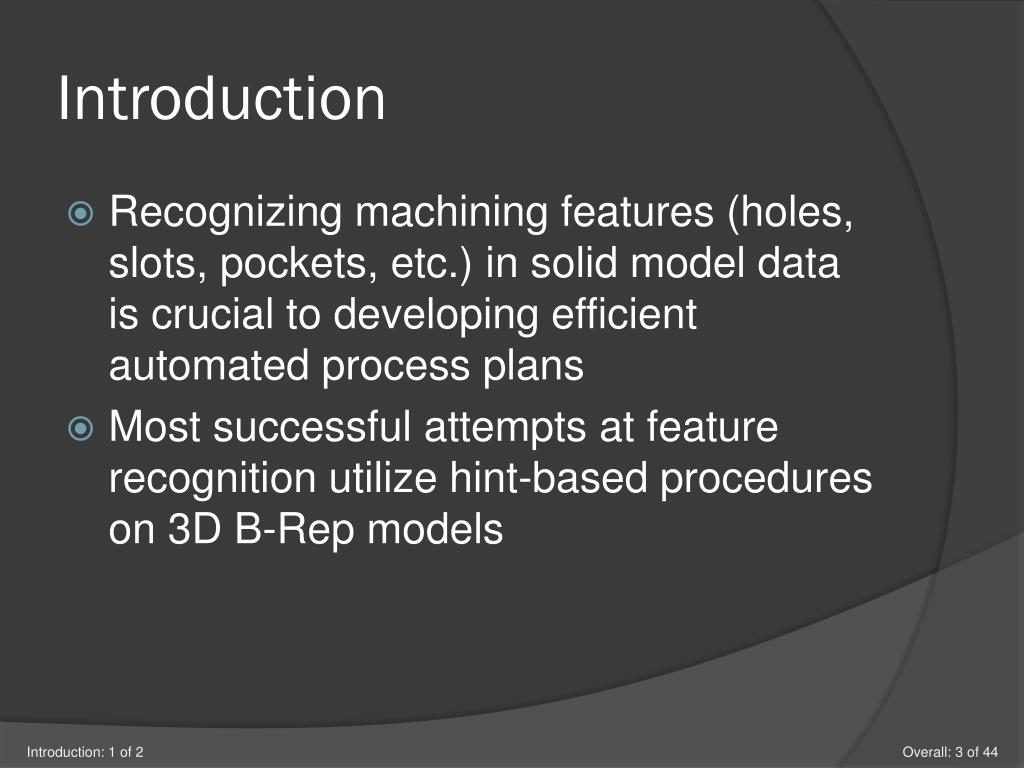

  3. Introduction • Recognizing machining features (holes, slots, pockets, etc.) in solid model data is crucial to developing efficient automated process plans • Most successful attempts at feature recognition utilize hint-based procedures on 3D B-Rep models Introduction: 1 of 2

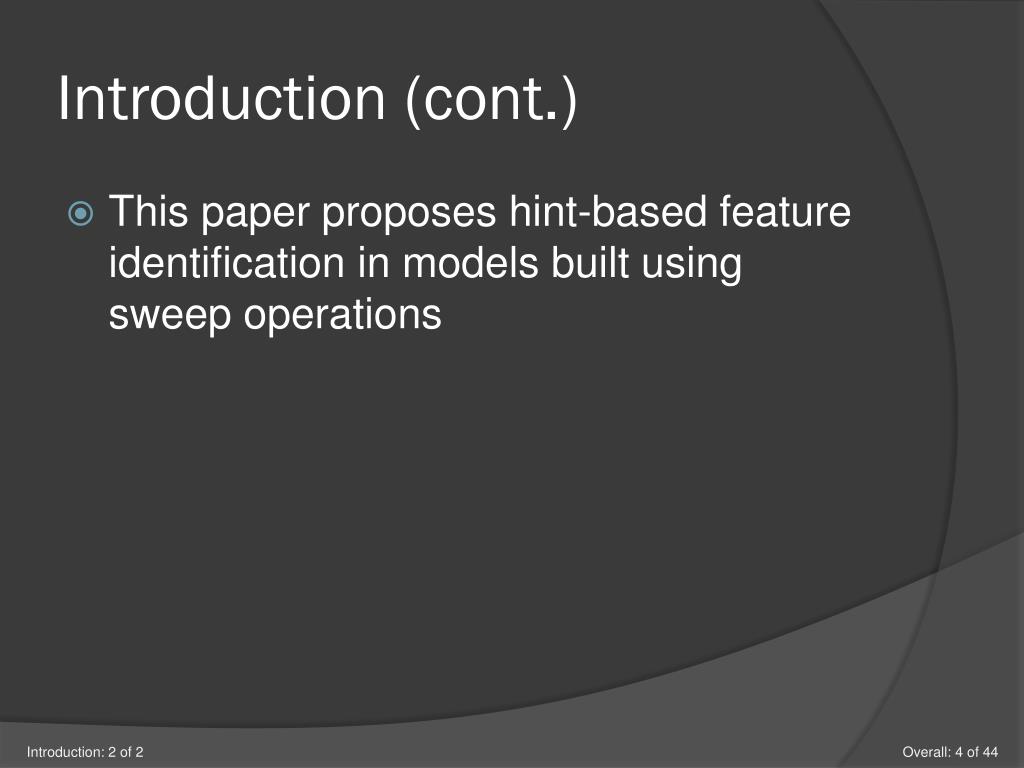

  4. Introduction (cont.) • This paper proposes hint-based feature identification in models built using sweep operations Introduction: 2 of 2

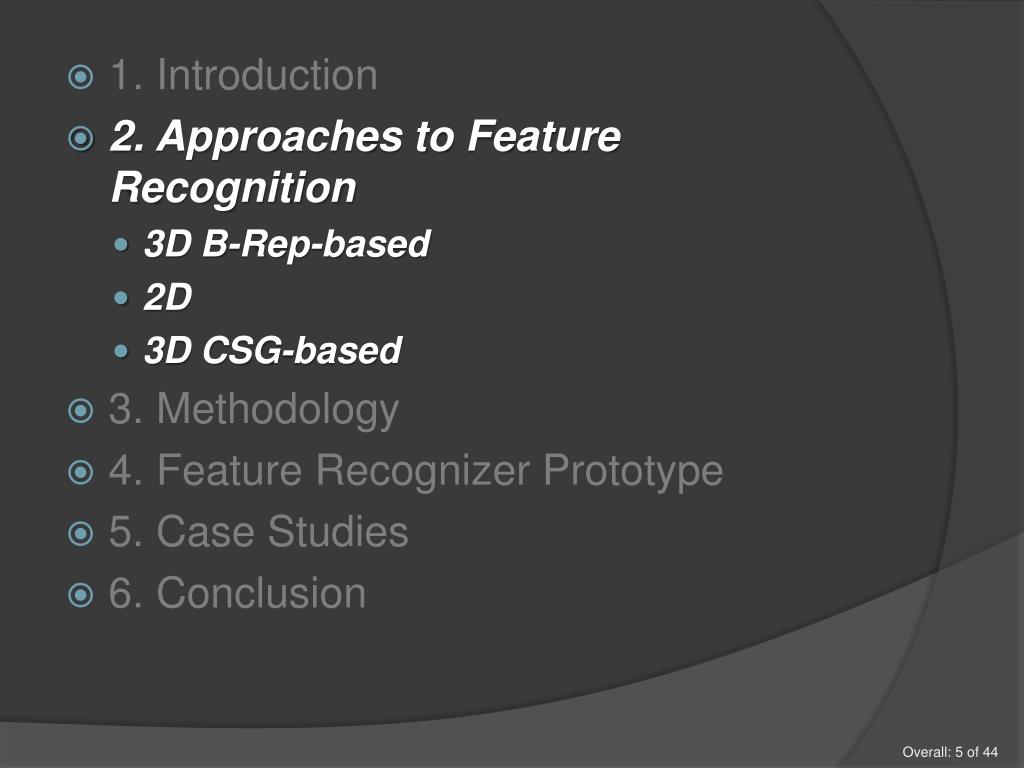

  5. 1. Introduction • 2. Approaches to Feature Recognition • 3D B-Rep-based • 2D • 3D CSG-based • 3. Methodology • 4. Feature Recognizer Prototype • 5. Case Studies • 6. Conclusion

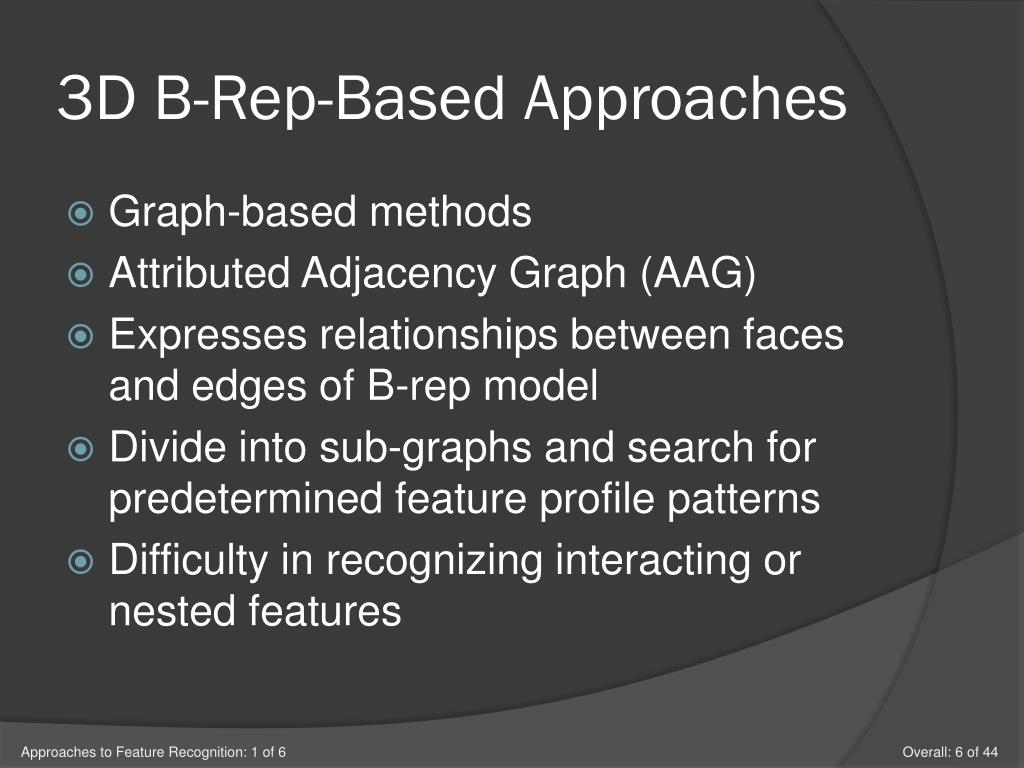

  6. 3D B-Rep-Based Approaches • Graph-based methods • Attributed Adjacency Graph (AAG) • Expresses relationships between faces and edges of B-rep model • Divide into sub-graphs and search for predetermined feature profile patterns • Difficulty in recognizing interacting or nested features Approaches to Feature Recognition: 1 of 6

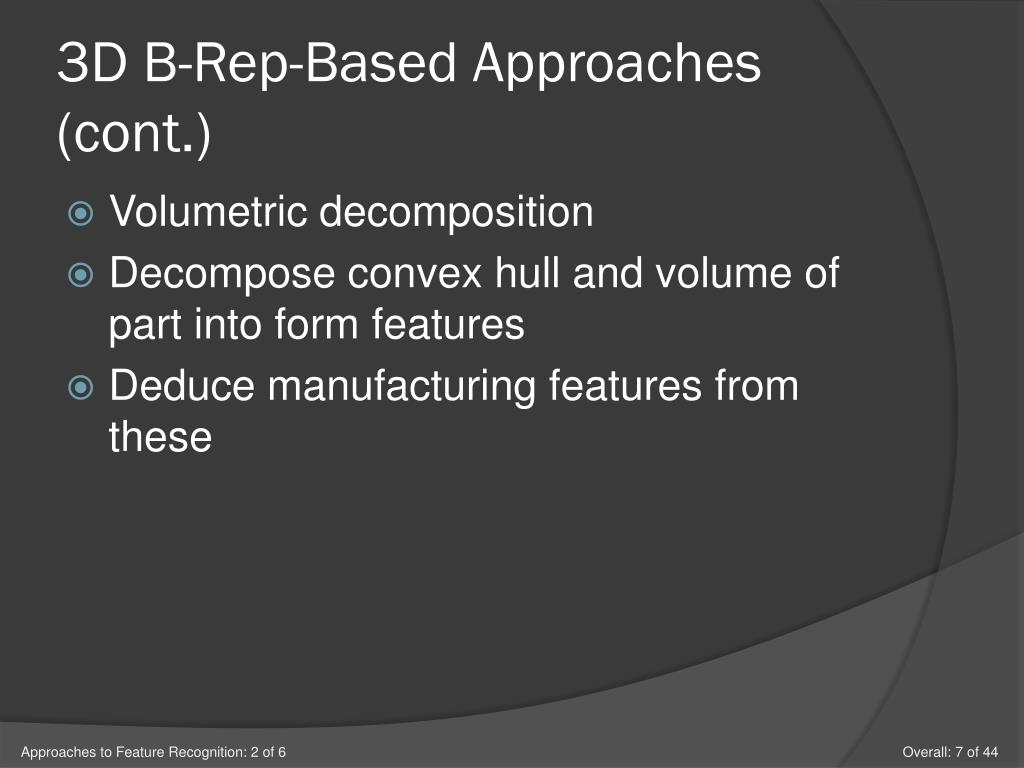

  7. 3D B-Rep-Based Approaches (cont.) • Volumetric decomposition • Decompose convex hull and volume of part into form features • Deduce manufacturing features from these Approaches to Feature Recognition: 2 of 6

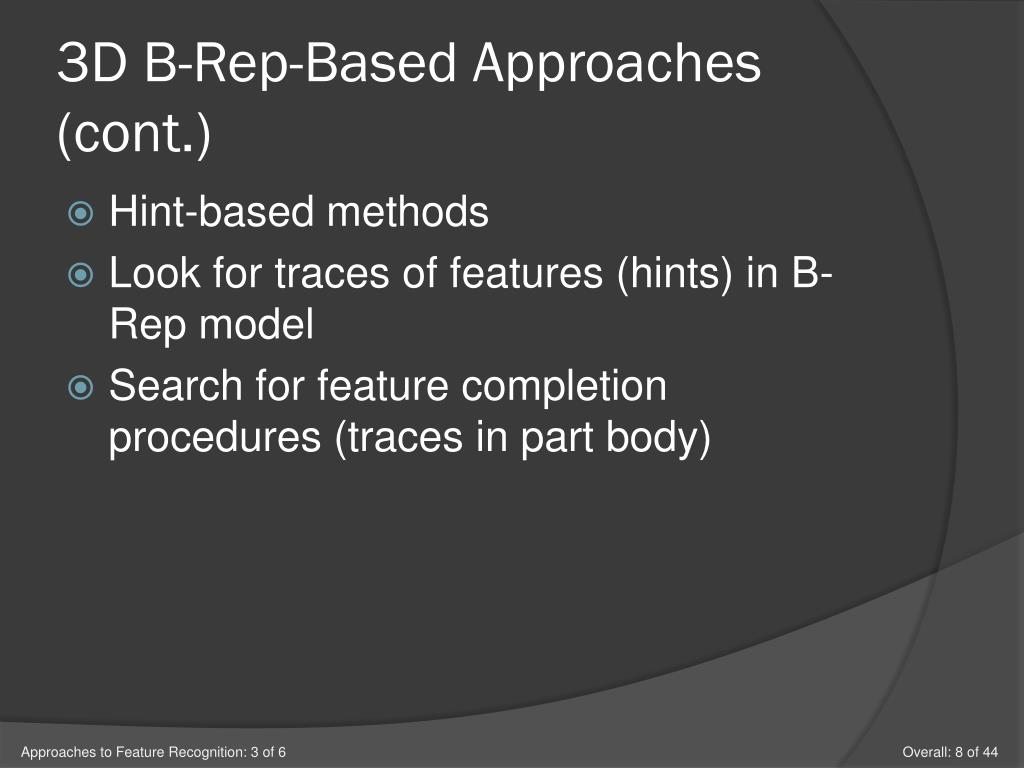

  8. 3D B-Rep-Based Approaches (cont.) • Hint-based methods • Look for traces of features (hints) in B-Rep model • Search for feature completion procedures (traces in part body) Approaches to Feature Recognition: 3 of 6

  9. 3D B-Rep-Based Approaches (cont.) • Trace for pocket is it’s floor, for hole is it’s cylindrical surface • Analyze traces for completion • Can handle interacting and nested features Approaches to Feature Recognition: 4 of 6

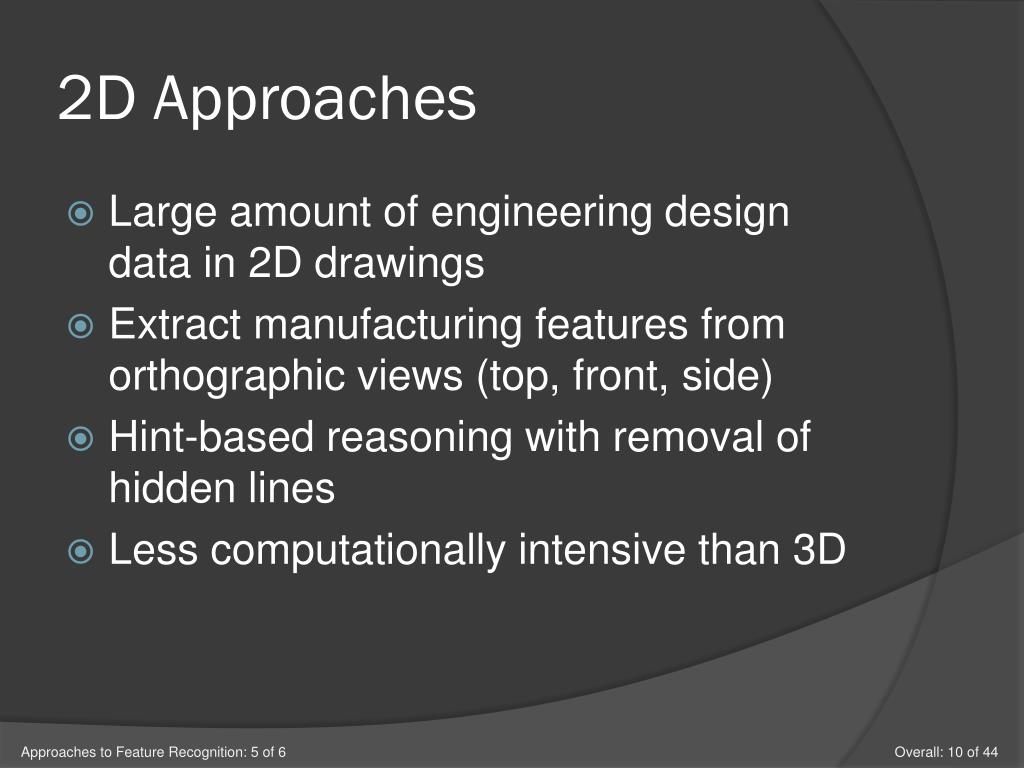

  10. 2D Approaches • Large amount of engineering design data in 2D drawings • Extract manufacturing features from orthographic views (top, front, side) • Hint-based reasoning with removal of hidden lines • Less computationally intensive than 3D Approaches to Feature Recognition: 5 of 6

  11. 3D CSG-Based Approaches • Earliest attempts at feature recognition • Search for patterns in CSG representation of part model • Difficulty handling curved surfaces, interacting features and non-unique representations Approaches to Feature Recognition: 6 of 6

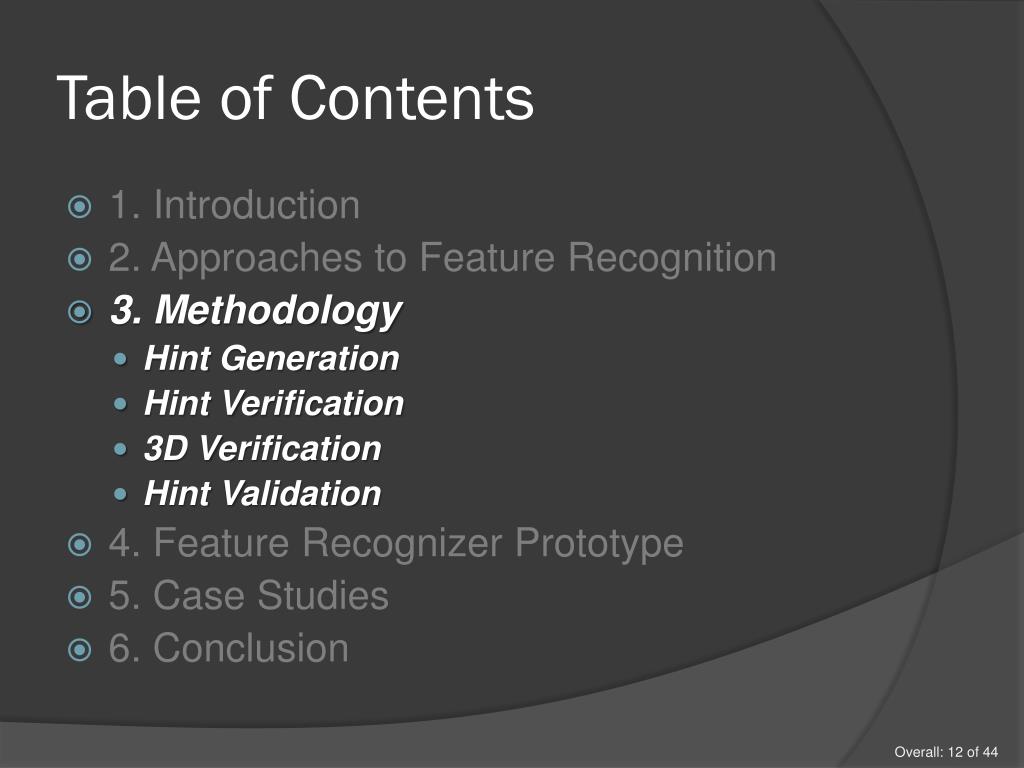

  12. Table of Contents • 1. Introduction • 2. Approaches to Feature Recognition • 3. Methodology • Hint Generation • Hint Verification • 3D Verification • Hint Validation • 4. Feature Recognizer Prototype • 5. Case Studies • 6. Conclusion

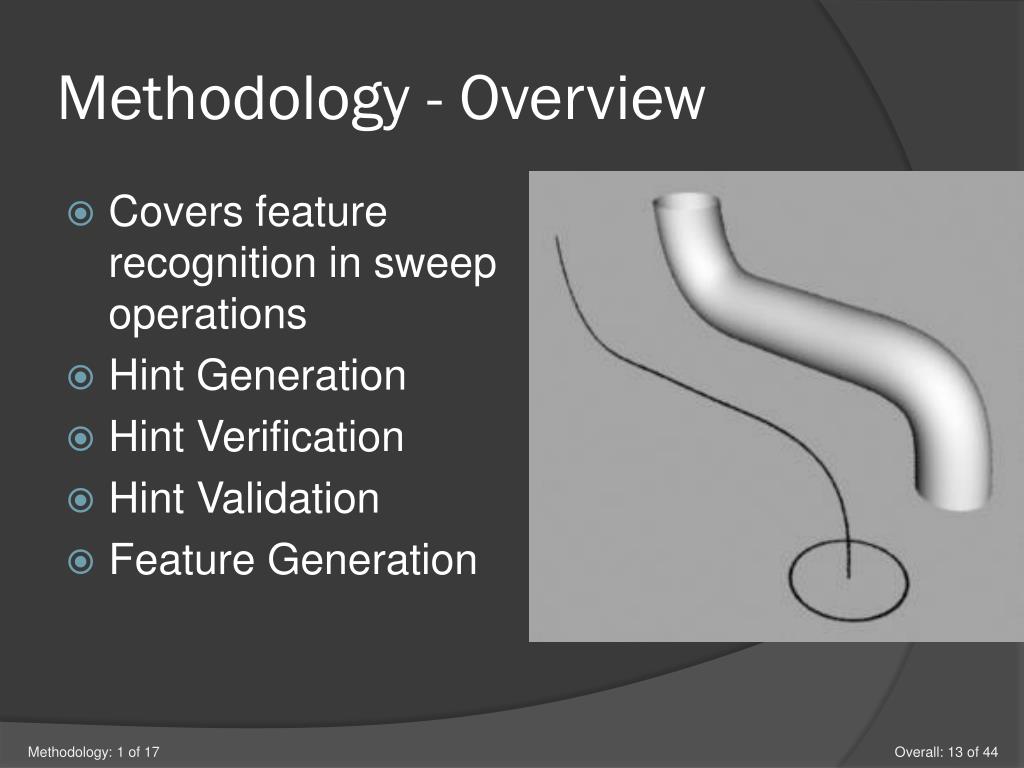

  13. Methodology - Overview • Covers feature recognition in sweep operations • Hint Generation • Hint Verification • Hint Validation • Feature Generation Methodology: 1 of 17

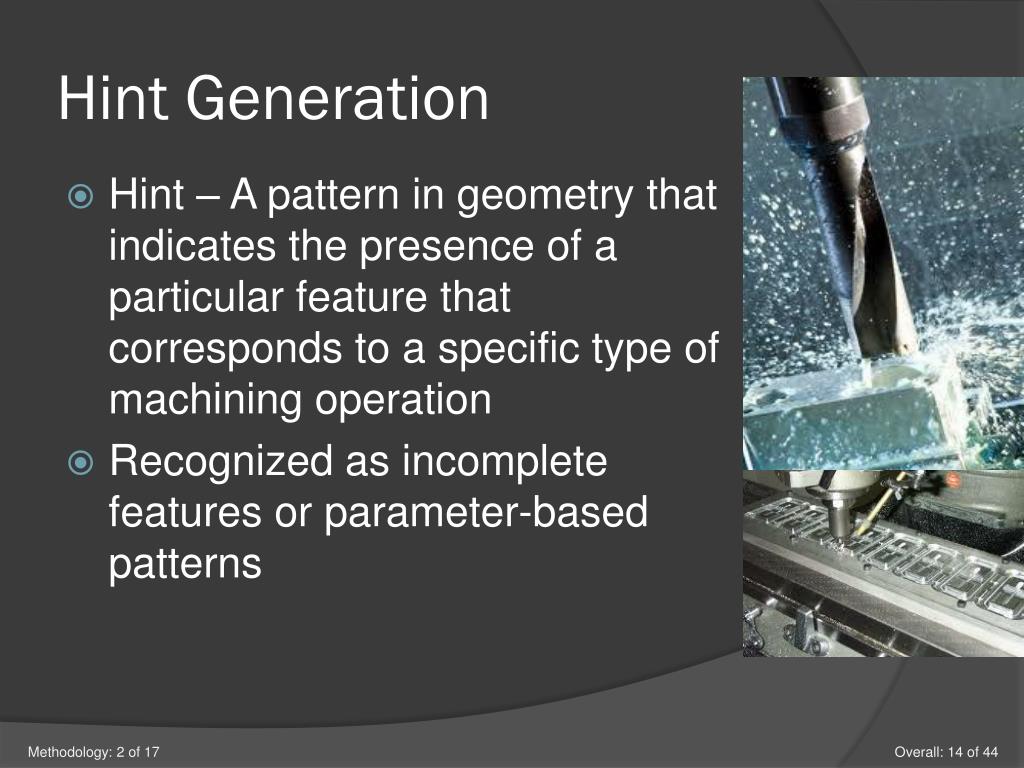

  14. Hint Generation • Hint – A pattern in geometry that indicates the presence of a particular feature that corresponds to a specific type of machining operation • Recognized as incomplete features or parameter-based patterns Methodology: 2 of 17

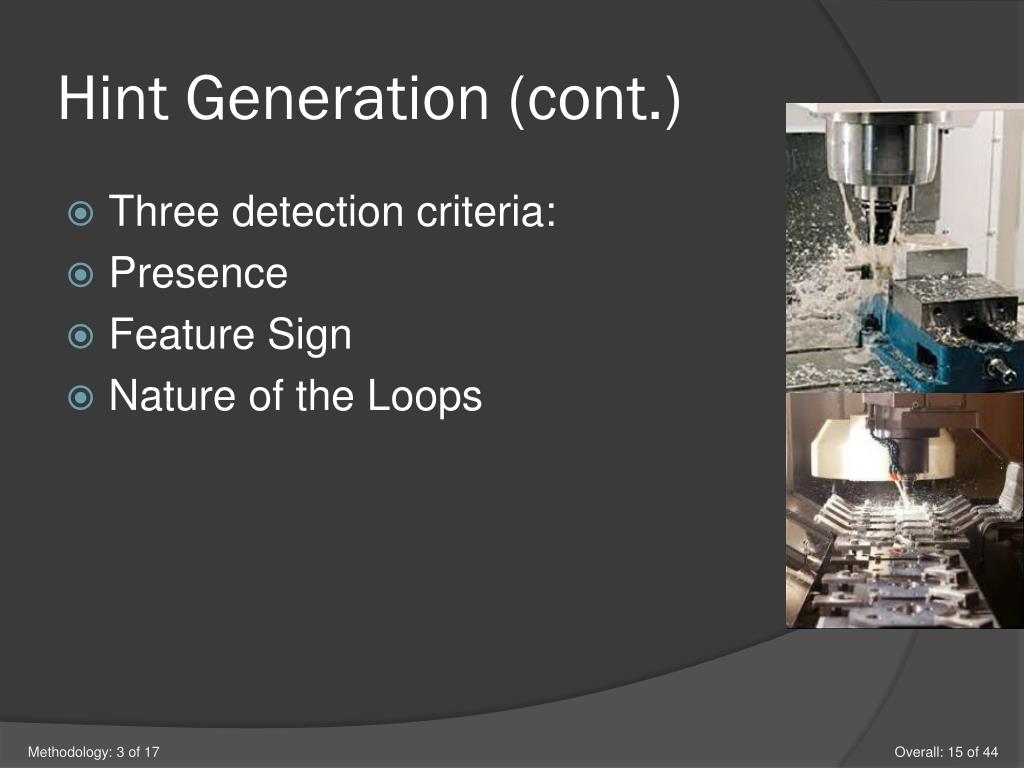

  15. Hint Generation (cont.) • Three detection criteria: • Presence • Feature Sign • Nature of the Loops Methodology: 3 of 17

  16. Locating Material Side • Which side of profile curves has material? • Create, unite, intersect • Material between outer and inner curves • Subtract • Material inside inner curve, outside outer Methodology: 4 of 17

  17. Locating Material Side (cont.) • Hint generated by analyzing surface normals and feature sign • Crucial for identifying location of material removal Methodology: 5 of 17

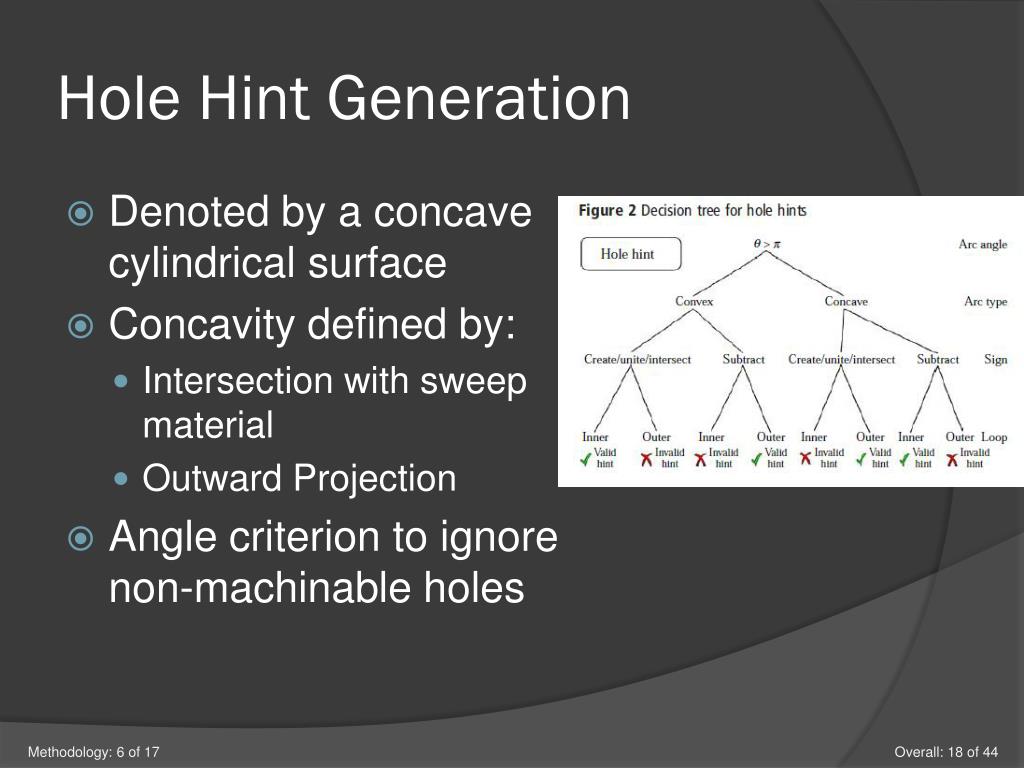

  18. Hole Hint Generation • Denoted by a concave cylindrical surface • Concavity defined by: • Intersection with sweep material • Outward Projection • Angle criterion to ignore non-machinable holes Methodology: 6 of 17

  19. Slot Hint Generation • Slots produced by linear sweep of a cutter • Slot Indicators • Parallel faces intersecting material • Faces coincident when perpendicular to normal • Parallel lines coincident when projected Methodology: 7 of 17

  20. Slot Hint Rules • Parallel lines with facing normals • Parallel lines forming loops with opposing normals • Parallel lines in opposite loops under subtract condition Methodology: 8 of 17

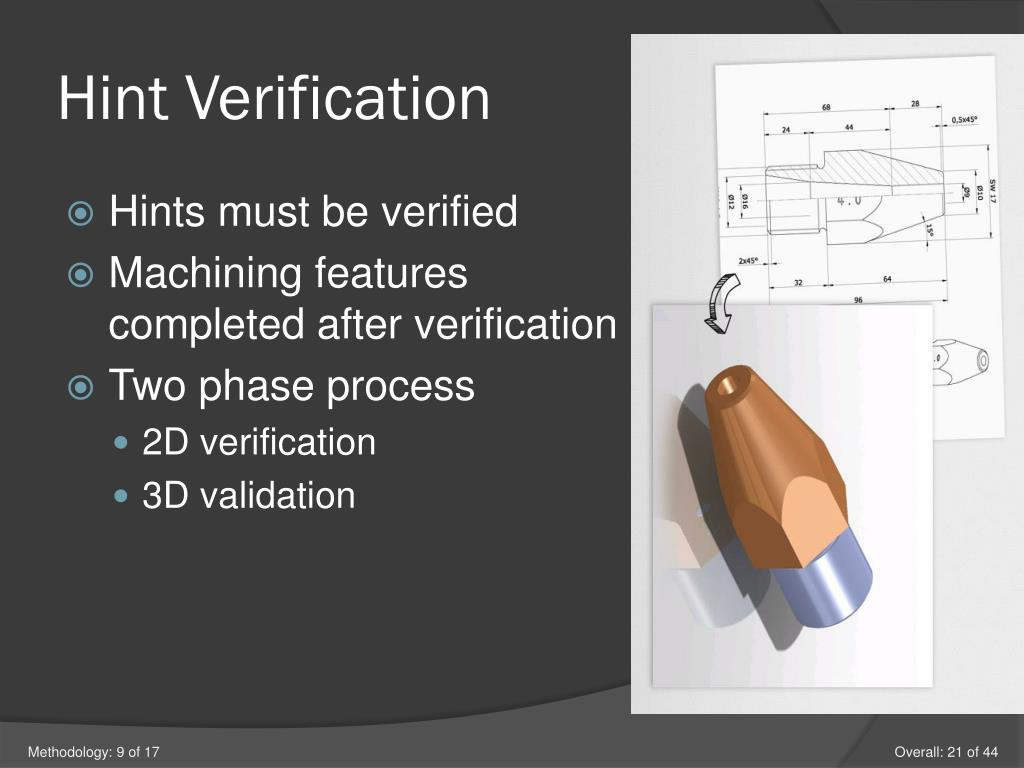

  21. Hint Verification • Hints must be verified • Machining features completed after verification • Two phase process • 2D verification • 3D validation Methodology: 9 of 17

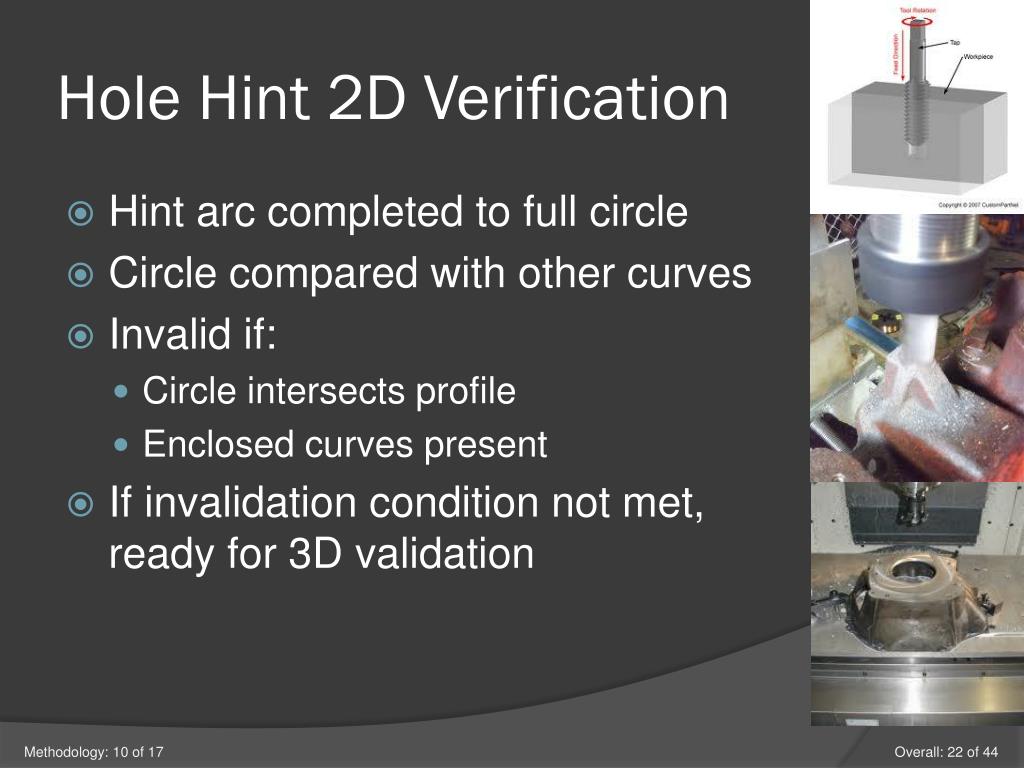

  22. Hole Hint 2D Verification • Hint arc completed to full circle • Circle compared with other curves • Invalid if: • Circle intersects profile • Enclosed curves present • If invalidation condition not met, ready for 3D validation Methodology: 10 of 17

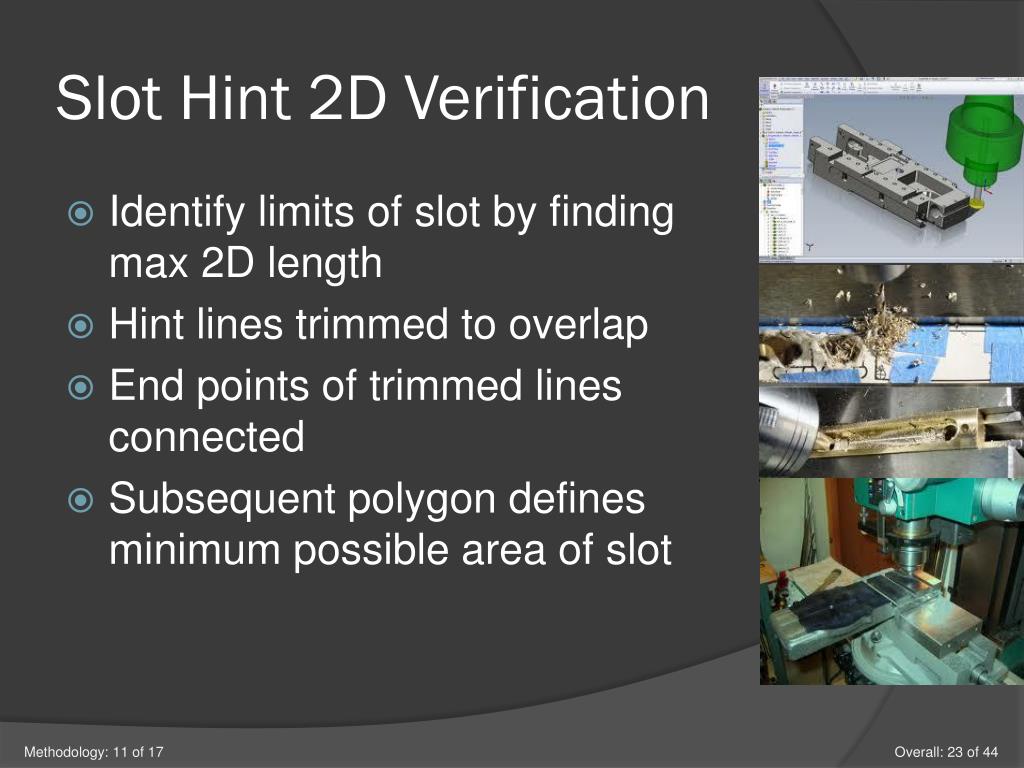

  23. Slot Hint 2D Verification • Identify limits of slot by finding max 2D length • Hint lines trimmed to overlap • End points of trimmed lines connected • Subsequent polygon defines minimum possible area of slot Methodology: 11 of 17

  24. Slot Hint 2D Verification (cont.) • Limits on minimum area must be determined • All curves in profile searched to identify those that: • Are enclosed by material • Overlap the slot Methodology: 12 of 17

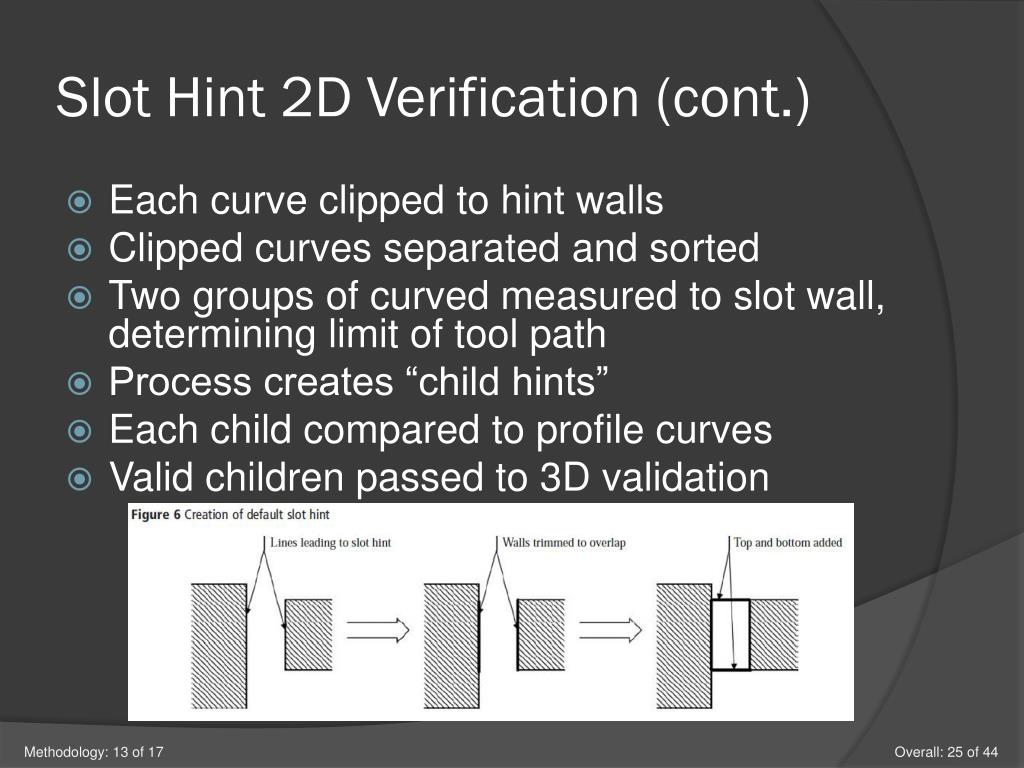

  25. Slot Hint 2D Verification (cont.) • Each curve clipped to hint walls • Clipped curves separated and sorted • Two groups of curved measured to slot wall, determining limit of tool path • Process creates “child hints” • Each child compared to profile curves • Valid children passed to 3D validation Methodology: 13 of 17

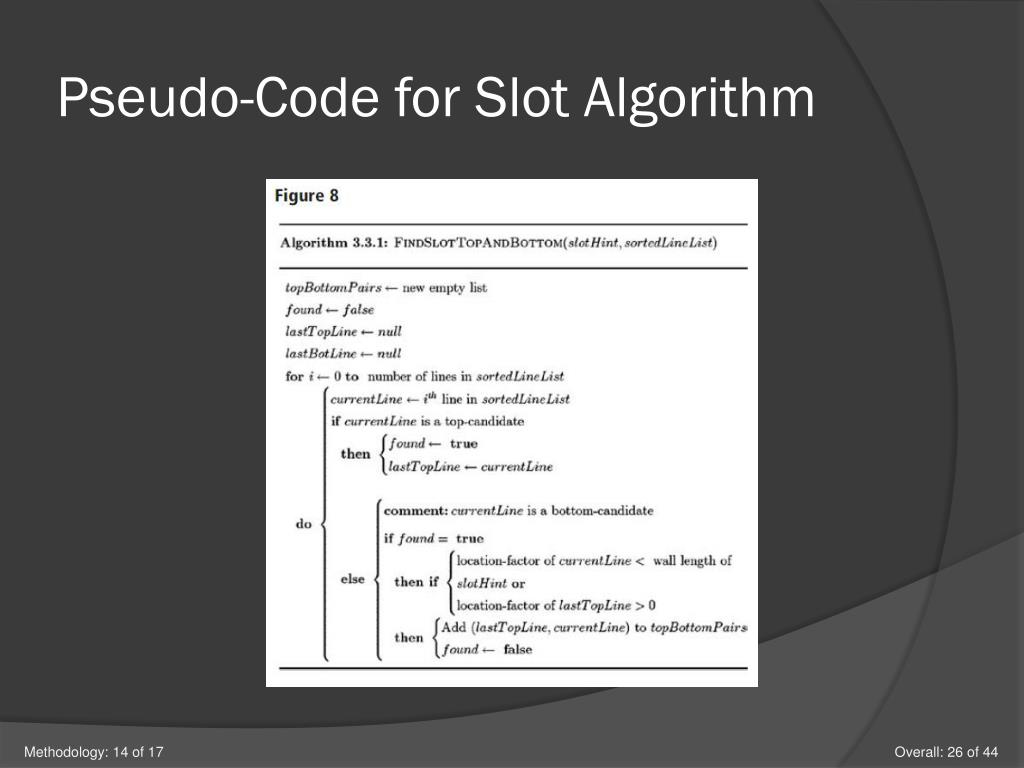

  26. Pseudo-Code for Slot Algorithm Methodology: 14 of 17

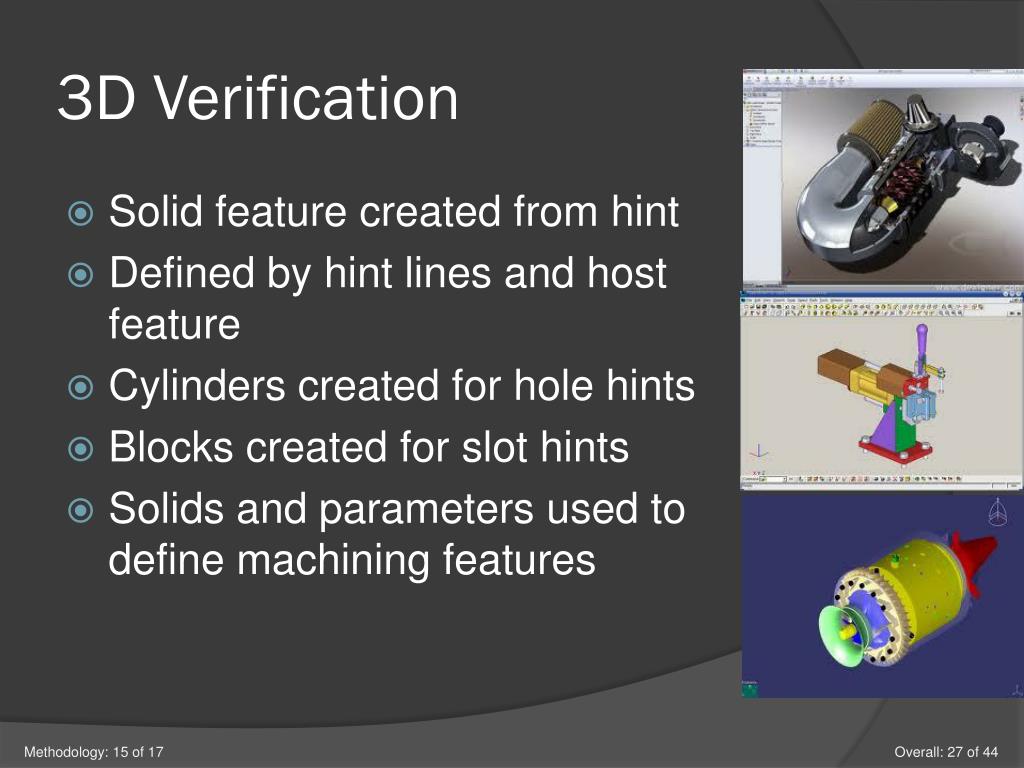

  27. 3D Verification • Solid feature created from hint • Defined by hint lines and host feature • Cylinders created for hole hints • Blocks created for slot hints • Solids and parameters used to define machining features Methodology: 15 of 17

  28. 3D Verification (cont.) • Hint solids compared to host geometry • Those with clashes are rejected • Accepted if there is contact but no interference Methodology: 16 of 17

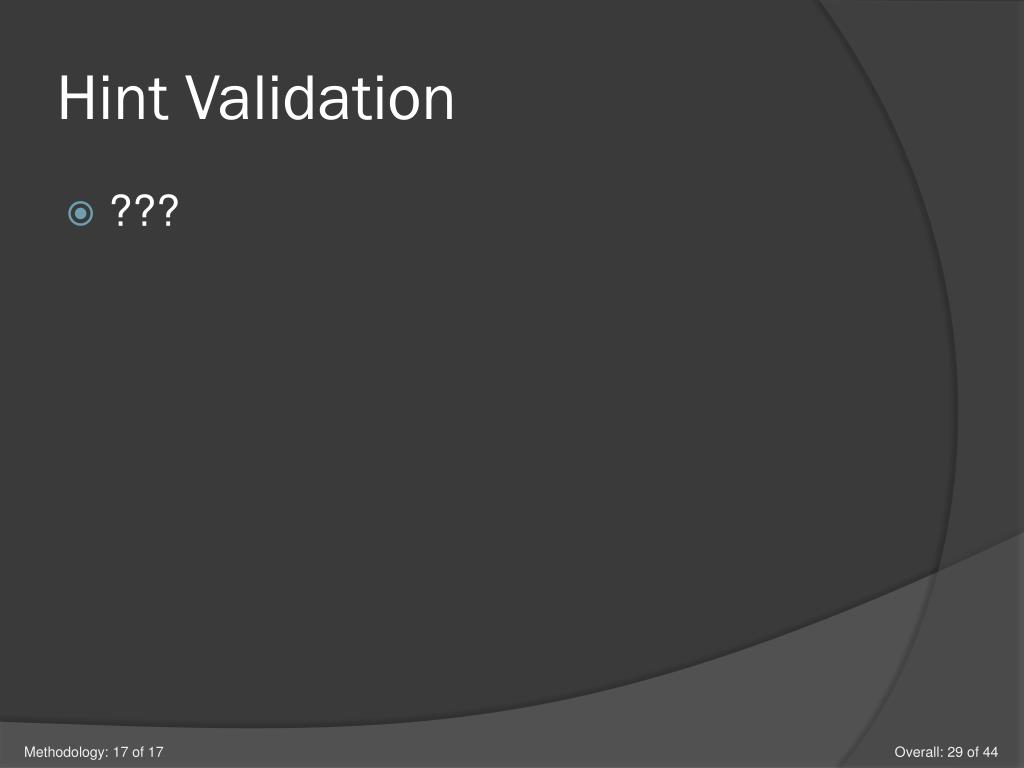

  29. Hint Validation • ??? Methodology: 17 of 17

  30. Table of Contents • 1. Introduction • 2. Approaches to Feature Recognition • 3. Methodology • 4. Feature Recognizer Prototype • 5. Case Studies • 6. Conclusion

  31. Feature Recognizer Prototype • Implemented as part of Intelligent Manufacturing Planner (IMPlanner) prototype system at Ohio University • Allows system to handle models designed using hybrid techniques (design features and extruded operations) Feature Recognizer Prototype: 1 of 4

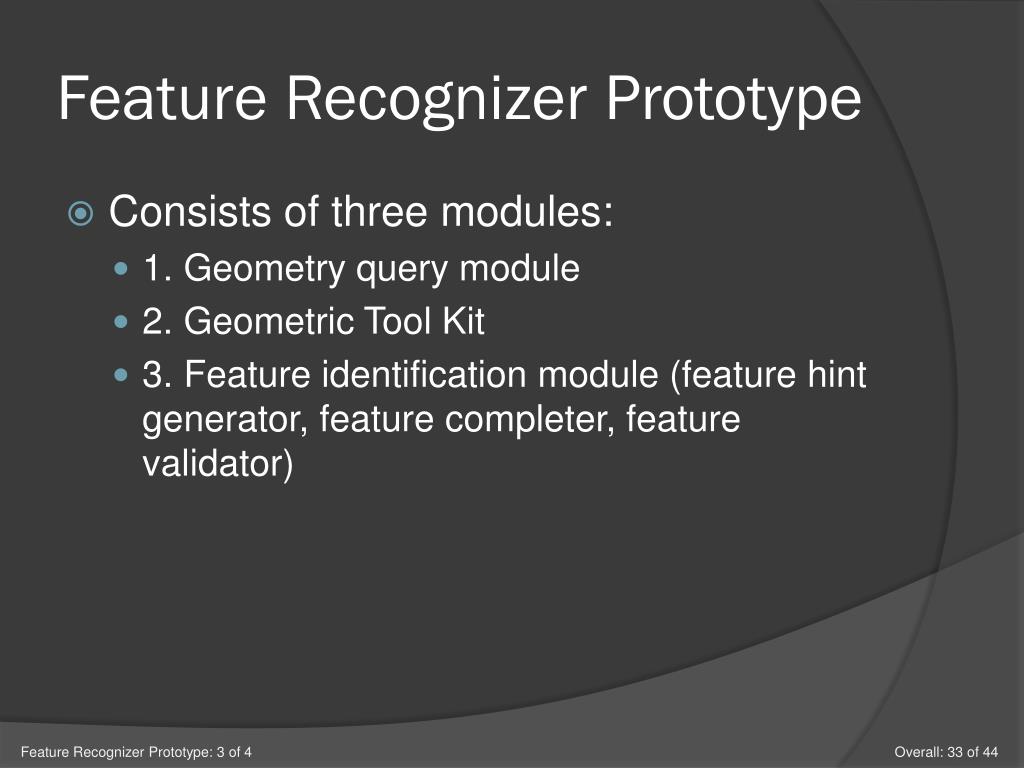

  32. Feature Recognizer Prototype • Consists of three modules: • 1. Geometry query module • 2. Geometric Tool Kit • 3. Feature identification module (feature hint generator, feature completer, feature validator) • Modules interact with CAD system to extract and process relevant part information to generate machining feature model Feature Recognizer Prototype: 2 of 4

  33. Feature Recognizer Prototype • Consists of three modules: • 1. Geometry query module • 2. Geometric Tool Kit • 3. Feature identification module (feature hint generator, feature completer, feature validator) Feature Recognizer Prototype: 3 of 4

  34. Feature Recognizer Prototype • Modules interact with CAD system to extract and process relevant part information to generate machining feature model Feature Recognizer Prototype: 4 of 4

  35. Table of Contents • 1. Introduction • 2. Approaches to Feature Recognition • 3. Methodology • 4. Feature Recognizer Prototype • 5. Case Studies • Slot Test • Coupling • Bracket • 6. Conclusion

  36. Slot Test • Part design developed at Ohio University to test slot hint recognition algorithms • Contains only two extruded operations • First has feature sign create • Second has feature sign subtract • Both profiles contains rectilinear shapes • 14 possible slot hints Case Studies: 1 of 5

  37. Slot Test (cont.) • Eight hints identified as invalid • Six hints validated • Six corresponding slots created • System generates duplicate hints, removed for clarity Case Studies: 2 of 5

  38. Coupling • Simplified version of design from NIST design repository • Two extruded operations • First has feature sign create • Second has feature sign intersect Case Studies: 3 of 5

  39. Coupling (cont.) • Six slot hints generated • Three discarded as invalid • Three hints validated • Three slots created from valid hints • Also recognized hole feature • “Steps” on outside of part not recognized; prototype algorithm doesn’t include analysis of step features Case Studies: 4 of 5

  40. Bracket • Modeled using five extruded operations from more complex profiles than previous examples • Opportunity to test many of the rules in the system at once • System correctly decomposes complex profiles into simpler, interacting manufacturing features Case Studies: 5 of 5

  41. Table of Contents • 1. Introduction • 2. Approaches to Feature Recognition • 3. Methodology • 4. Feature Recognizer Prototype • 5. Case Studies • 6. Conclusion

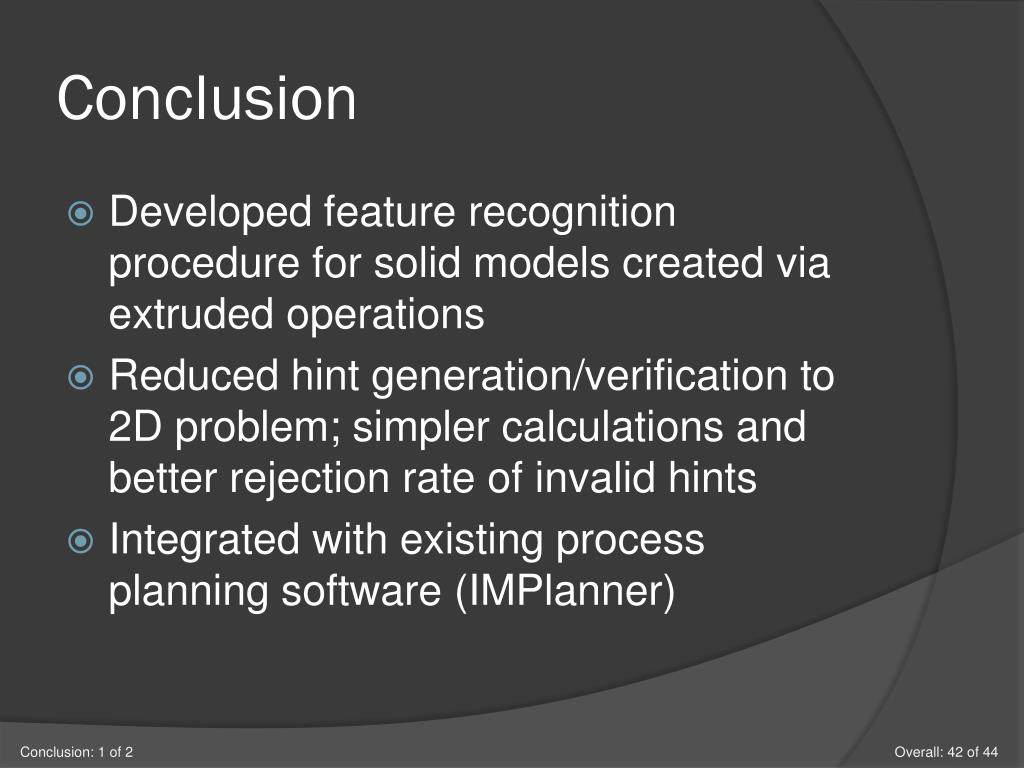

  42. Conclusion • Developed feature recognition procedure for solid models created via extruded operations • Reduced hint generation/verification to 2D problem; simpler calculations and better rejection rate of invalid hints • Integrated with existing process planning software (IMPlanner) Conclusion: 1 of 2

  43. Conclusion (cont.) • Direct use of CAD model while maintaining system independence • Feature recognition algorithms operate on objects replicated from CAD model input but maintain independence from CAD system Conclusion: 2 of 2

  44. Kyle Sigo and Andrew Lowe Recognition of volumetric features using 2d hints
