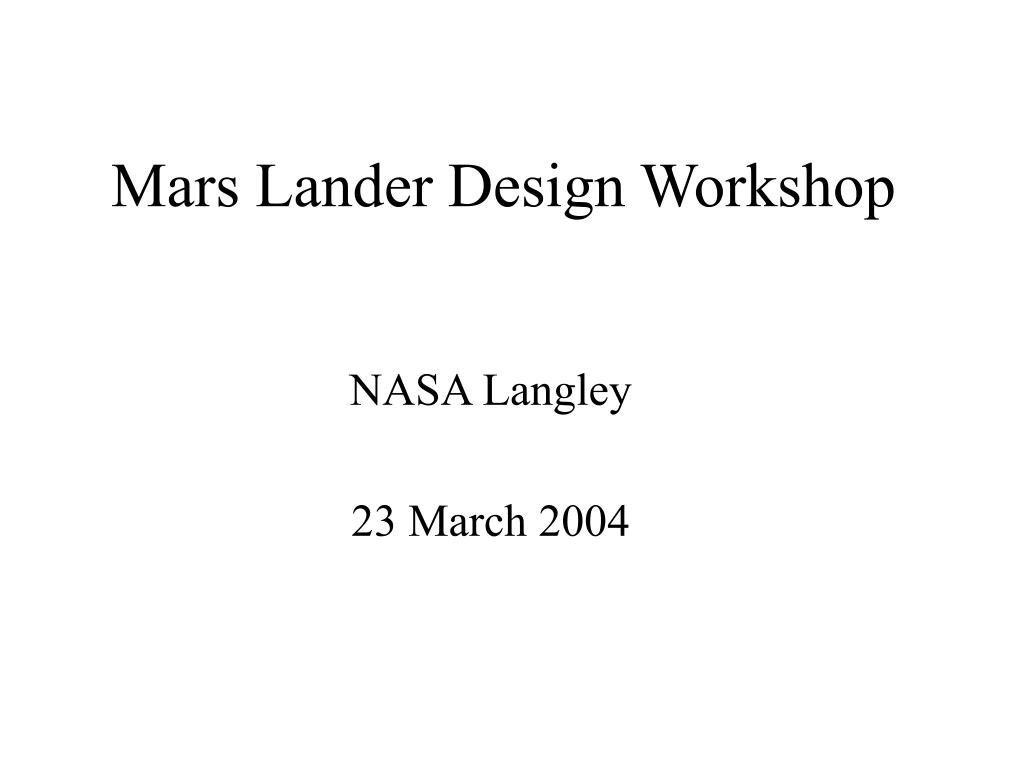

  1. Mars Lander Design Workshop NASA Langley 23 March 2004

  2. Designing Things • Start by defining what the thing will do • Carry people, bake cookies, study Mars,… • Next understand any limits • No loud noise, chocolate chips only, low cost,… • Then find the “wiggle” room • In air or on ground, any size cookies, orbiter or lander • Design the item by balancing the things above (not a simple task!!)

  3. Mars Lander Design • Project scientist defines science objectives (what lander will study) • Study soil and under surface for water • Project leaders determine mission constraints or limits • Total cost amount and vehicle mass • Design engineers adjust the lander to best do the job within the limits • Use rockets or airbags to land • Arrange instruments and necessary equipment to fit inside lander

  4. Design Team • NASA Langley Planetary Team helps design Mars landers • Team leader get requirements from Project leaders and directs team activities • She/He works with team members and Project leaders to achieve the best design within the limits provided

  5. Today’s Activity • Models are used frequently in design process • Your team (led by a NASA Langley Planetary Team Engineer) will develop a Mars Lander model • Your team will decide what pieces to put on the lander and where to put them • These pieces represent different parts of the lander • Limits exist as in actual Mars Lander design • Your lander • can cost no more than $ 300 M • must have less than 500 kg total mass • must provide 60 W Power • must have a rover ($80 M, 120 kg)

  6. Today’s Activity (cont.) • Required components of Lander • Lander will have • 2 science packages • 1 communication unit • 1 power source • 1 computer • Other elements (total $130M, 260 kg) are considered fixed • Your team selects specific components that meet the total cost, mass, power limits while fitting inside the entry aeroshell

  7. Summary Requirements • Overall Lander Requirements • $ 300 M total cost • 500 kg total entry mass • 60 W power • Current Onboard Systems • Rover (120 kg, $80 M) • Other Support Systems ( 260 kg, $130 M) • Required Packages ( 120 kg mass, $ 90 M remaining) • 2 Science • 1 Communication • 1 Power • 1 Computer

  8. Science Package Choices • Camera/Imager • 5 kg mass, Hi CPU, Hi COM, $ 30 M • Meteorology • 15 kg, $ 20 M • Thermal Emission Spectrometer • 10 kg, Hi CPU, $ 10 M • Drill/Core Sampler • 20 kg, $ 15 M • Surface Soil Analyzer • 15 kg, $ 5 M

  9. Communication / Computer Package Choices • Communication • High Gain Com - 20 kg, $ 10 M • Low Gain Com - 25 kg, $ 5 M • Computer • High CPU - 5 kg, $ 15 M • Low CPU - 5 kg, $ 5 M

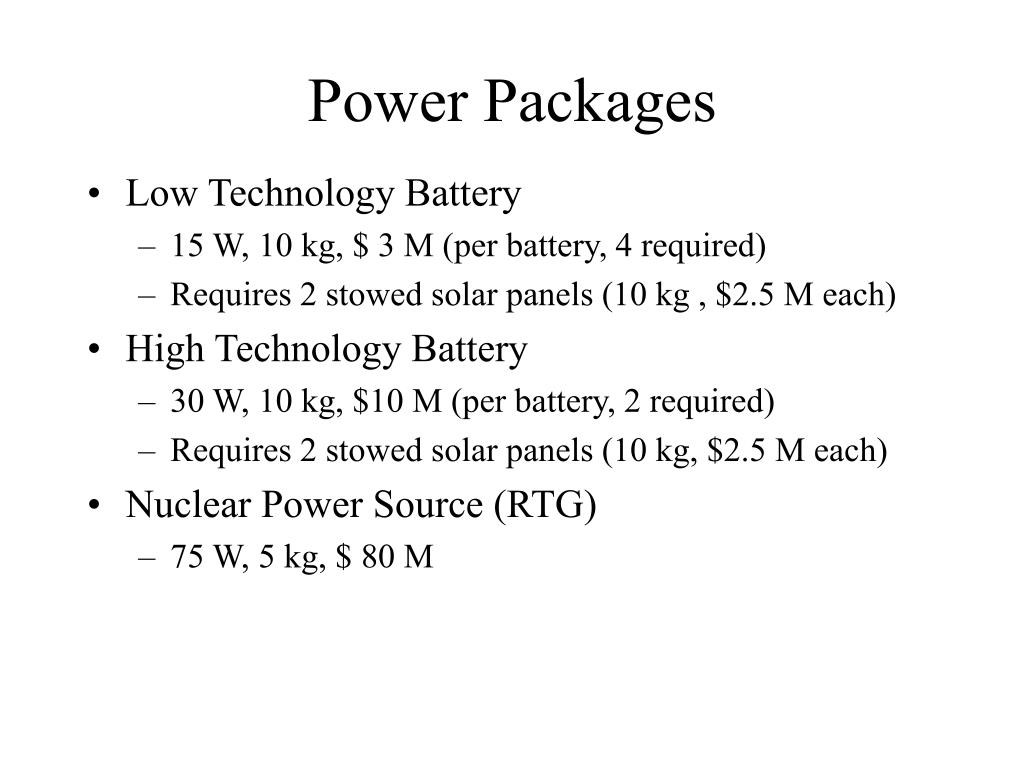

  10. Power Packages • Low Technology Battery • 15 W, 10 kg, $ 3 M (per battery, 4 required) • Requires 2 stowed solar panels (10 kg , $2.5 M each) • High Technology Battery • 30 W, 10 kg, $10 M (per battery, 2 required) • Requires 2 stowed solar panels (10 kg, $2.5 M each) • Nuclear Power Source (RTG) • 75 W, 5 kg, $ 80 M

  11. Activity Start • Using base provided, add components of Lander • Different items represent instruments or systems (on sheets at tables) • Nuudles, finger tip, toothpick, spiral binder, push pin, closepin, brass fasteners, popsicle stick, straw, Q-tip • Damp Nuudles attach to base • Toothpick attach items that don’t attach easily by themselves • The heatshield (plate) and backshell (bowl) will be hole punched and connected using a brass fastener

  12. Activity Wrap-up • Requirements change, re-designs occur • Today’s activity balanced total mass, cost, and volume, actual Lander design has many more issues • Component placement for mass balance • Heat Shield (plate) and Backshell (bowl) shape adjustment for best flight conditions • Engine size for successful touchdown • And many others

  13. Science Packages MET 1/2 Q-tip Drill/Core Sampler clothes pin TES Binder piece (2 rings) Surface Soil Analyzer Binder piece (4 rings) Camera 1/2 Popsicle stick NOTE: Rover is Purple Nuudle

  14. Computer & Communication High Tech Computer Blue or Green push pin High Gain Communication 1/2 Straw Low Tech Computer Red or Yellow push pin Low Gain Communication 1/2 toothpick

  15. Power RTG Brass Fastener Battery Low tech (1 Nuudle = 2 batteries) yellow Nuudle Each Battery Requires 2 solar arrays (stowed) Orange/white nuudle Battery High tech (1 Nuudle = 2 batteries) Red Nuudle
