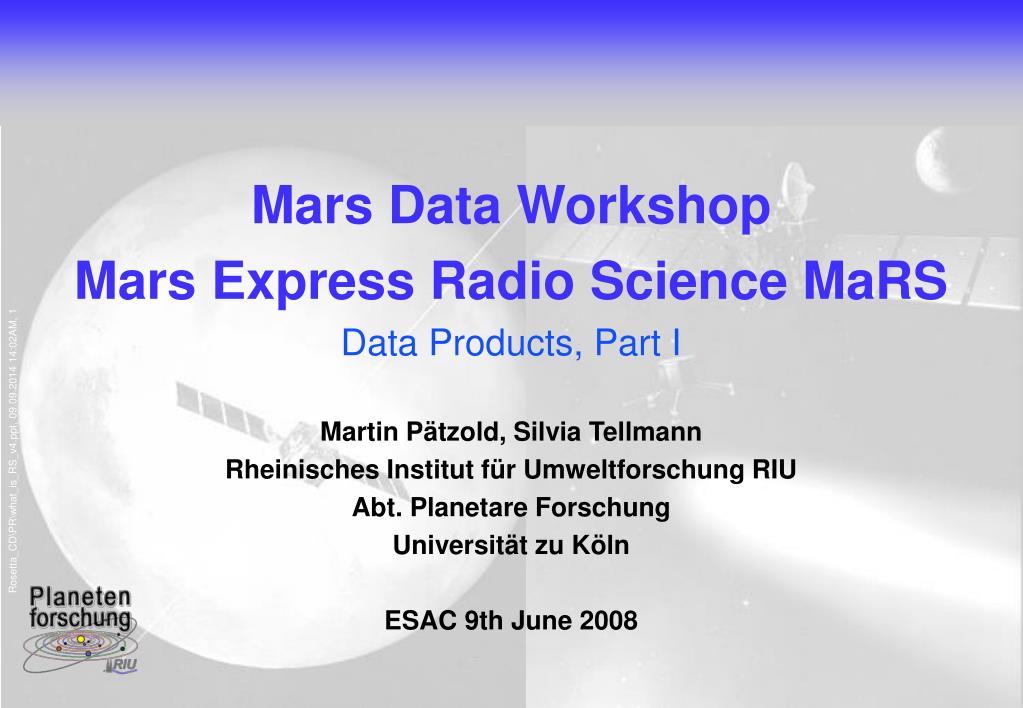

Mars Data Workshop Mars Express Radio Science MaRS Data Products, Part I Martin Pätzold, Silvia Tellmann Rheinisches Institut für Umweltforschung RIU Abt. Planetare Forschung Universität zu Köln ESAC 9th June 2008. MaRS data flow: New Norcia NNO. RIU. MaRS data flow: DSN. RIU.

roddy
Télécharger la présentation

Mars Data Workshop Mars Express Radio Science MaRS Data Products, Part I

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Mars Data Workshop Mars Express Radio Science MaRS Data Products, Part I Martin Pätzold, Silvia Tellmann Rheinisches Institut für Umweltforschung RIU Abt. Planetare Forschung Universität zu Köln ESAC 9th June 2008

  2. MaRS data flow: New Norcia NNO RIU

  3. MaRS data flow: DSN RIU

  4. Data Products Level-1a: raw data products from the ground stations NNO and DSN NNO: IFSM in ASCII format DSN: ODF or RSR in binary format Level-1b: translated Level-1a into sorted ASCII Level-2: calibrated sorted frequency file same format for all ground stations regardless of recording mode

  5. Level-2 data products • Level-2 frequency data files contain for each single observation (occultation): • Ground received time (UTC) in ISO-format, in fraction of day of year and as ephemeris time (seconds) including leap seconds • Distance: closest approach of the ray path to the planet • Received frequency • Predicted frequency • Tropospheric correction from meteo data at the ground station site • Frequency residuals • Received signal level • Differential Doppler

  6. Level 2 data products • There is one Level-2 data file for each observation, for each frequency and for each channel: • NNO IFMS: • Three IFMS receiver with two Doppler channels each • IFMS 1: X-band Doppler channel D1, D2, ranging channel, AGC 1, AGC2, meteo channel; set-up from Flight Dynamics • IFMS 2: X-band Doppler channel D1, D2, AGC1, AGC2; set-up from MaRS; sample rate 10 samples/sec • IFMS 3: S-band Doppler channel D1, D2, ranging channel, AGC1, AGC2; set-up from MaRS; sample rate 10 samples/sec • DSN: • X-band Doppler file, Doppler file • X-band ranging, S-band ranging • Meteo file

  7. MaRS archived data sets • There is one MaRS data set for each observation, containing: • All Level-1a files as recorded • All Level-1b files • All Level-2 data files, frequency prediction files, SPICE kernels, meteo files, Earth ionospheric correction files, documentation etc.

  8. Radio Science file name convention RGGTTTTLLL_SSS_yydddhhhh_QQ.eee

  9. Radio Science file name convention RGGTTTTLLL_SSS_yydddhhhh_QQ.eee Data type (long list) Processing level: L1a, L1b, L02, L03, L04 Data source: IFMS, ODF, RSR + channel Ground station DSS number; NNO=32 Spacecraft: M, V, R

  10. Radio Science file name convention RGGTTTTLLL_SSS_yydddhhhh_QQ.eee Time of first data sample: year, DOY, hh:mm Version number from processing software File extension: DAT, TAB, TXT, LBL each DAT, TAB, TXT has a PDS (PSA) label file (LBL)
