  1. SIP-DECT 4.0Aastra mobility Offer September 2012

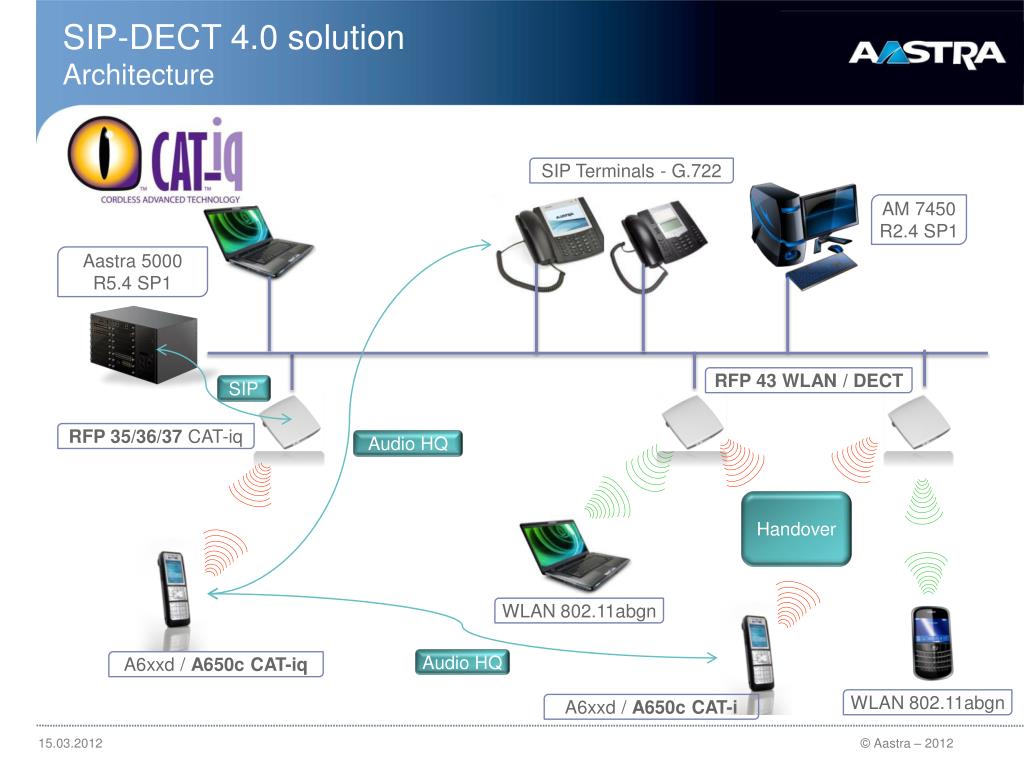

  2. SIP-DECT 4.0 solution Architecture SIP Terminals- G.722 AM 7450 R2.4 SP1 Aastra 5000 R5.4 SP1 RFP 43 WLAN / DECT SIP RFP 35/36/37 CAT-iq Audio HQ Handover WLAN 802.11abgn Audio HQ A6xxd / A650c CAT-iq WLAN 802.11abgn A6xxd / A650c CAT-i

  3. SIP-DECT 4.0 Solution Evolutions • New infrastructure with new generationRFPs • DECT RFP 35, 36, 37 CAT-iq (wide band audio) • New RFP 43 WLAN (bothcapabilities DECT/WLAN) compatible 802.11abgn • New terminals • New range A612d, 622d, 632d • New A650c terminal CAT-iq compatible (wide band audio) • Evolution of the interface between Aastra 5000 and SIP-DECT in SIP standard • Ad-hoc 3 party conference : managed by the OMM • Evolution of the interface for DECT user management • OM AXI between AM7450 / AMP and Open Mobility Manager (OMM) • Increasedintegration Aastra 622d

  4. New DECT RFPs 35, 36, 37 • New generation of DECT RFPs • Compliant with wide band audio (CAT-iq 1.0) • G.722 support • More powerfull processor • 1Gbit compact flash allowing local boot of the RFP (no need TFTP server) • Ports : • Ethernet 10/100/1000 Mbits • USB 2.0 (indoor RFPs only) • RFP 32/34 compatible (size/ screw) RFP 36 RFP 37 Indoor RFP 35 Outdoor RFPs 36 and 37

  5. RFP 35New indoor RFP • 12 DECT channels, 8 voice channels and 4 signalling channels • DECT CAT-iq 1.0 compliant (A650c only) • DECT XQ compliant (reflective buildings) • PoE 802.3af class 3 • Or external power supply 230V AC • LAN 1 Gbit/s • New USB 2.0 port • The RFP downloads its software : • Via the Aastra 5000 TFTP server, or an external TFTP serveur • Via its USB 2.0 port Port USB 2.0 Alimentation Externe Port LAN 1 Gbit/s

  6. RFP 36New outdoor RFP with integrated antennas • 12 DECT channels, 8 voice channels and 4 signalling channels • DECT CAT-iq 1.0 compliant (A650c only) • DECT XQ compliant (reflective buildings) • Integrated antennas (dipole) • PoE 802.3af class 3 • LAN 1 Gbit/s • Protection IP 65 • Dust & water • Can be fixed on the wall or mast-mounted

  7. RFP 37New outdoor RFP with external antennas • 12 DECT channels, 8 voice channels and 4 signalling channels • DECT CAT-iq 1.0 compliant (A650c only) • DECT XQ compliant (reflective buildings) • External antennas (dipoles or directionnels) • PoE 802.3af class 3 • LAN 1 Gbit/s • Protection IP 65 • dust & water • Can be fixed on the wall or mast-mounted

  8. RFP 43 WLANNew indoor RFP DECT / WLAN • 12 DECT channels, 8 voice channels and 4 signalling channels • DECT CAT-iq 1.0 compliant (A650c only) • DECT XQ compliant (reflective buildings) • WLAN Access Point IEEE 802.11a, b, g and n (MIMO 2x2) • Integrated WLAN antennas (2,4 GHz / 5 GHz frequency ranges) • 1 to 4 BSSIDs (Basic Service Set Identifiers) per WLAN access point • PoE 802.3af class 3 • Or external power supply 230V AC • LAN 1 Gbit/s • Unique for DECT/WLAN • New USB 2.0 port (similar usage than RFP 35) Port USB 2.0 Alimentation Externe Port LAN 1 Gbit/s DECT & WLAN

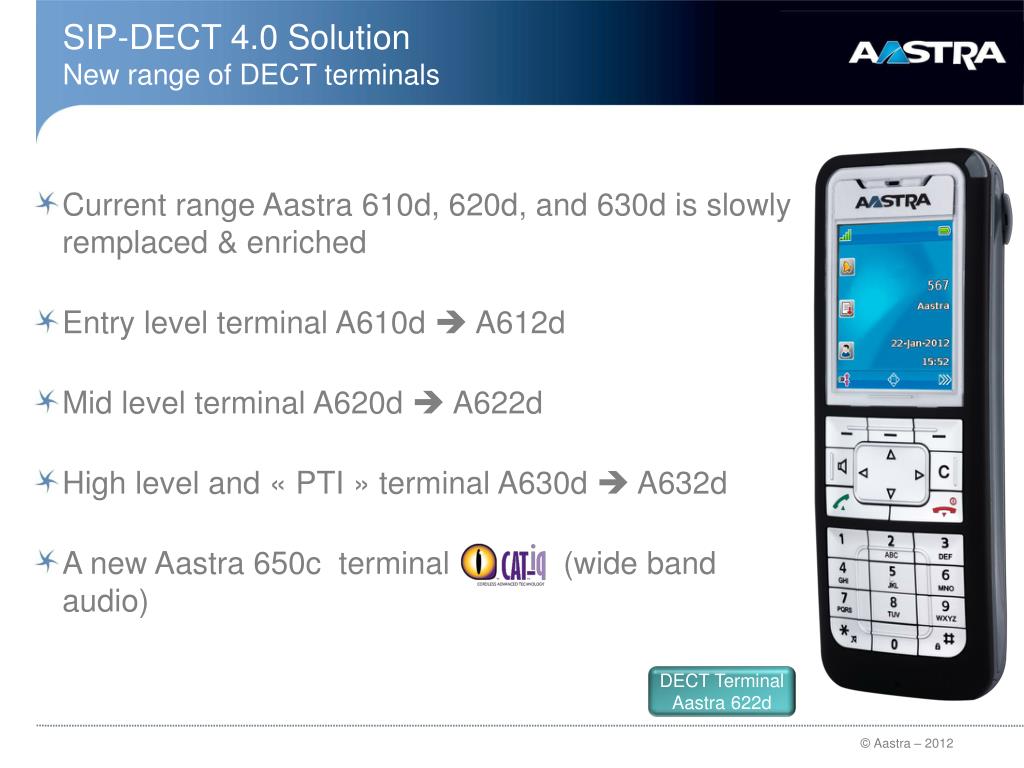

  9. SIP-DECT 4.0 SolutionNew range of DECT terminals • Current range Aastra 610d, 620d, and 630d is slowly remplaced & enriched • Entry level terminal A610d  A612d • Mid level terminal A620d  A622d • High level and « PTI » terminal A630d  A632d • A new Aastra 650c terminal (wide band audio) DECT Terminal Aastra 622d

  10. SIP-DECT 4.0 SolutionRange of terminals Aastra 6x2d Aastra 612d Aastra 622d Aastra 632d • Entry level • IP 50 compatible • Industrial • IP 65 compatible • Business • IP 50 Compatible 1 Hotkey (prog.) (622d/632d only) Volume & Prog (3 sidekeys) NEW • Hands free full duplex • 44 rings • Headset jack • Personal directory 200 contacts • Call logs • Vibrator • Prog. audio profiles • Bluetooth interface • 7 prog. keys • 10 access for speed dial • A632d • Alarmsensor for • Man down, immobility, • evacuation • 9 level for ring volume (1 veryloud) Backlit colour display 3 soft keys Loudspeaker Navigation pad • Hands free full duplex • 44 rings • Headset jack • Personal directory 200 contacts • Call logs • 3 programmables keys • 10 access for speed dial • Ambiant noise filter Emergency key

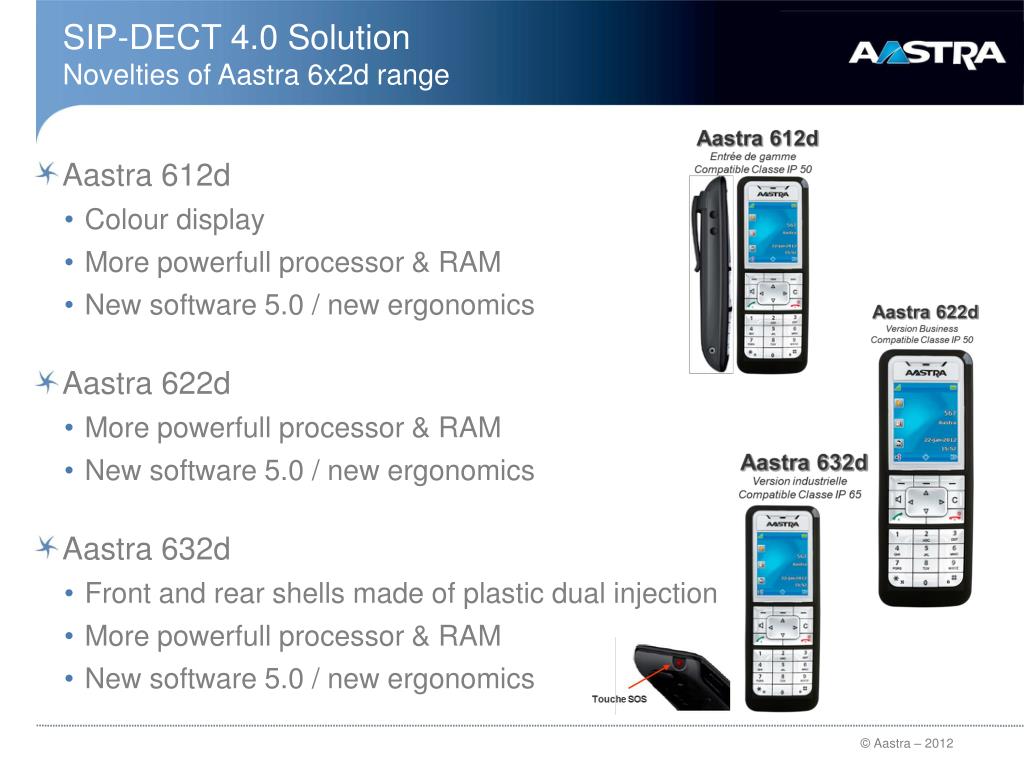

  11. SIP-DECT 4.0 SolutionNovelties of Aastra 6x2d range • Aastra 612d • Colour display • More powerfull processor & RAM • New software 5.0 / new ergonomics • Aastra 622d • More powerfull processor & RAM • New software 5.0 / new ergonomics • Aastra 632d • Front and rear shells made of plastic dual injection • More powerfull processor & RAM • New software 5.0 / new ergonomics

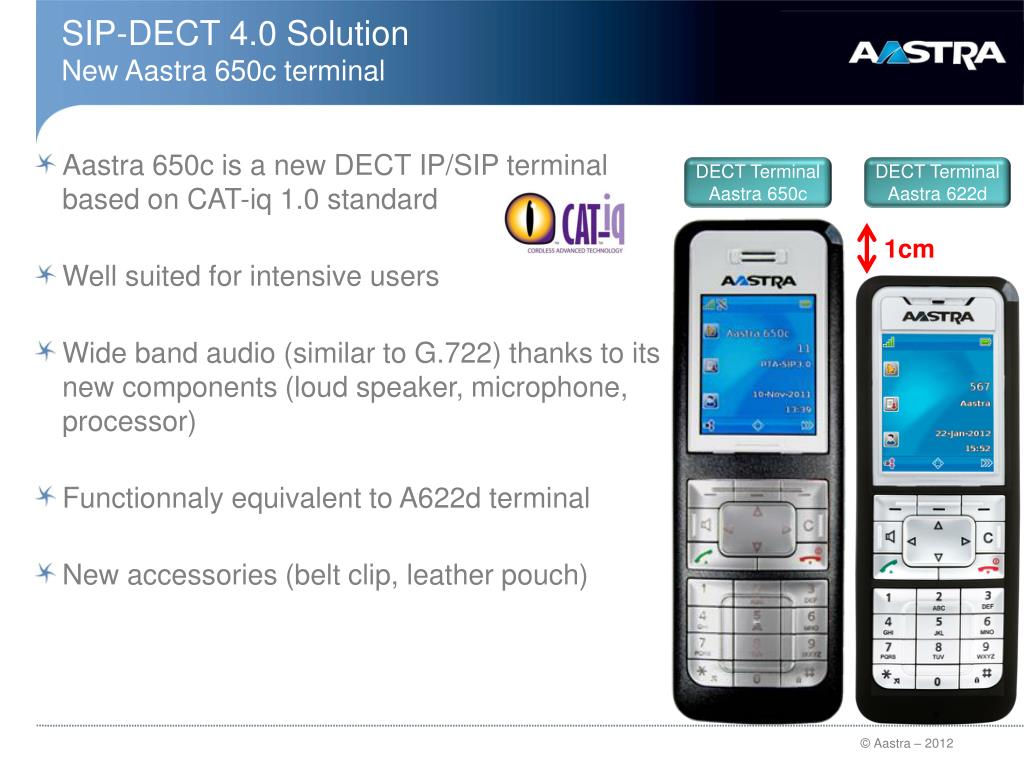

  12. SIP-DECT 4.0 SolutionNew Aastra 650c terminal DECT Terminal Aastra 650c DECT Terminal Aastra 622d • Aastra 650c is a new DECT IP/SIP terminal based on CAT-iq 1.0 standard • Well suited for intensive users • Wide band audio (similar to G.722) thanks to its new components (loud speaker, microphone, processor) • Functionnaly equivalent to A622d terminal • New accessories (belt clip, leather pouch) 1cm

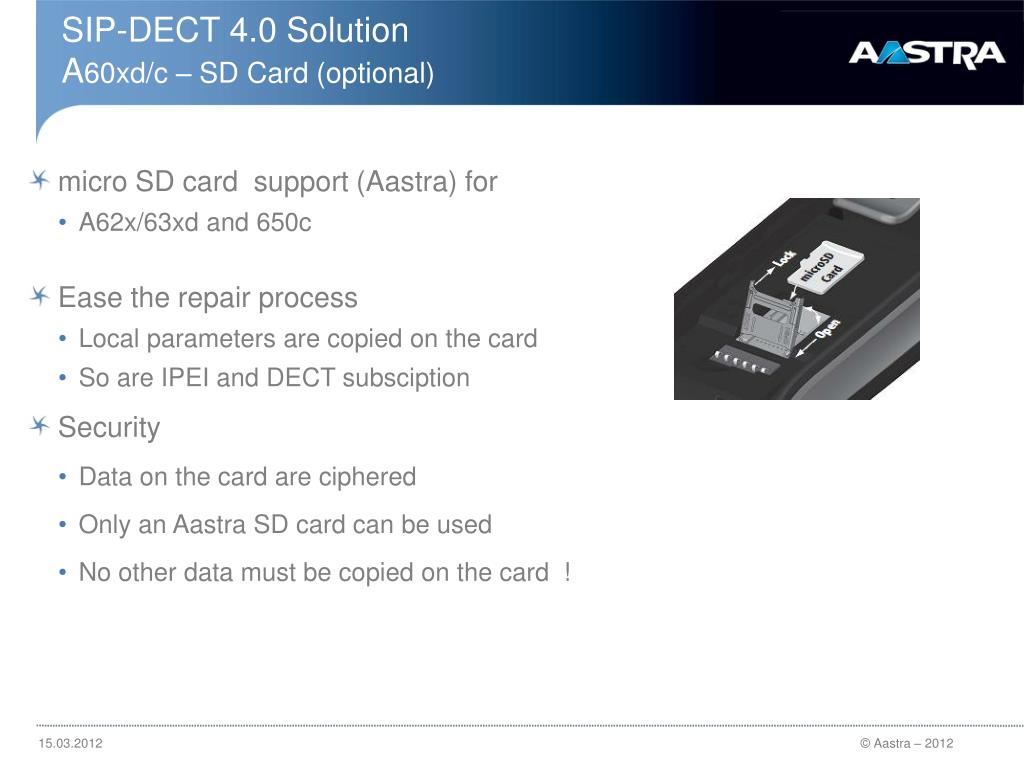

  13. SIP-DECT 4.0 SolutionA60xd/c – SD Card (optional) • micro SD card support (Aastra) for • A62x/63xd and 650c • Ease the repair process • Local parameters are copied on the card • So are IPEI and DECT subsciption • Security • Data on the card are ciphered • Only an Aastra SD card can be used • No other data must be copied on the card !

  14. SIP-DECT 4.0 SolutionRelease : new features • Full SIP interface between Aastra 5000 and OMM • New OM AXI Web Services interface between AM7450/AMP and OMM for user provisioning • CAT-iq 1.0 wide band audio support • VoIP codecs support : G.722, G.729 • Integrated ad-hoc 3 party conference in OMM • Free Seating between DECT terminals

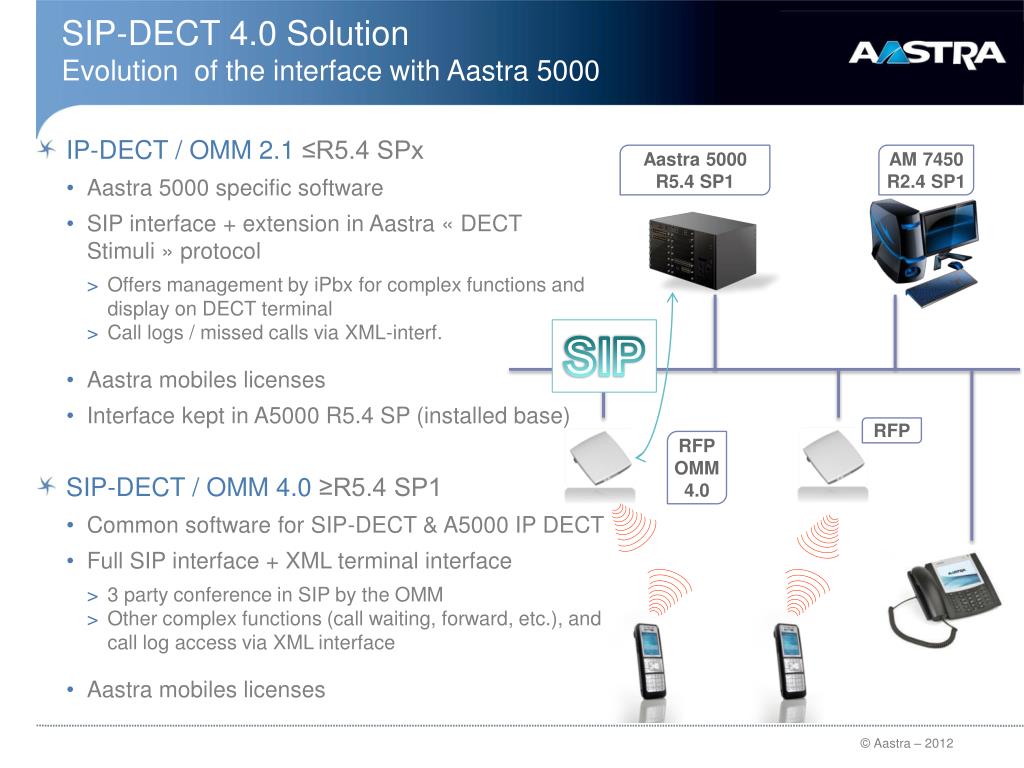

  15. SIP-DECT 4.0 SolutionEvolution of the interface with Aastra 5000 Aastra 5000 R5.4 SP1 AM 7450 R2.4 SP1 • IP-DECT / OMM 2.1 ≤R5.4 SPx • Aastra 5000 specific software • SIP interface + extension in Aastra « DECT Stimuli » protocol • Offers management by iPbx for complex functions and display on DECT terminal • Call logs / missed calls via XML-interf. • Aastra mobiles licenses • Interface kept in A5000 R5.4 SP (installed base) • SIP-DECT / OMM 4.0 ≥R5.4 SP1 • Common software for SIP-DECT & A5000 IP DECT • Full SIP interface + XML terminal interface • 3 party conference in SIP by the OMM • Other complex functions (call waiting, forward, etc.), and call log access via XML interface • Aastra mobiles licenses SIP RFP RFP OMM 4.0

  16. SIP-DECT 4.0 SolutionEvolution of the user’s provisioning interface • IP-DECT / OMM 2.1 ≤R5.4 SPx • Interface based on file exchange between OMM and AMP of Call Manager A5000 / AX Series • Offers automatic update of OMM 2.1 database for the DECT users declared in A5000 • Interface kept in A5000 R5.4 SP (installed base) • SIP-DECT / OMM 4.0 ≥R5.4 SP1 • Use of the public interface « OM AXI » (application XML Interface) between OMM and Aastra 5000 / AX Series Call Manager • Offers automatic update of OMM 4.0 database for the DECT users and the conference rooms declared in A5000 • DECT users can be dynamic (for free seating) or static • OM AXI interface is not locked for this purpose AM 7450 R2.4 SP1 Aastra 5000 R5.4 SP1 Abt. DECT Abt. Conférences Configuration XML OM AXI RFP RFP OMM 4.0

  17. SIP-DECT 4.0 SolutionWide band audio : CAT-iq (Cordless Advanced Technology - Internet and Quality) • Calls are done in wide band audio when infrastructure + DECT terminals support CAT-iq 1.0 • The G.722 audio codec is used • This wide band audio function needs to be activated for a SITE. The SITE must contain new generation RFPs only to allow CAT-iq activation. • Limitations : • RFPs manage only 4 wide band audio channels (instead of 8 channels in narrow band) • You must not mix CAT-iq sites and non CAT-iq sites inside a cluster • Wide band audio is available only if all parties involved are compatible, eg. Call Serveur, caller and called are G.722 compatible • The DECT-XQ activation and the CAT-iq activation are not compatible simultaneously

  18. SIP-DECT 4.0 SolutionCodecs • Support of Codecs VoIP : • G.722 (10, 20, 30 ms) • G.711 (10, 20, 30 ms) • G.729 (10, 20, 30 ms) • G.729 is licensed on OMM • G.722 only with new generation RFPs (RFP 35,36,37,43) et le terminal 650c • G.723 no more supported as from R4.0

  19. SIP-DECT 4.0 Solution3 party conference by the OMM • New function for 3 party conference in SIP • Inside OMM • Conf. ressources in the RFPs • New generation RFPs only 1 Put on Hold 2 3 Second call Conference Menu 4 Both calls are Transfered to Conf. room 5 Raccroché Remaining users stay in the conference untill they hang up Conference bridge in new generation RFPs

  20. SIP-DECT 4.0 SolutionDECT Free-Seating Abo 300 2 • Login / Logout in the DECT network • Access by FAC 1 + extension + PIN code 1 • DECT user must beconfiguredwith the right « dislodgeable» on A5000 side • A user can’t log off on a IP/SIP Aastra terminal and log in on a DECT terminal Nota : 1configuredinto the OMM 1 3 4

  21. SIP-DECT 4.0 & IP DECT 2.1 Solutions Releases compatibility Notes • RFP 32/34 compatible with SIP-DECT 4.0, with 1 RFP 35,36,37 or 43 to host the OMM 4.0 software • A61x/62x/63xd/650c compatible with IP DECT 2.1 and Aastra 5000 TDM DECT • A622/632d/650c are not DOA in OMM 2.1

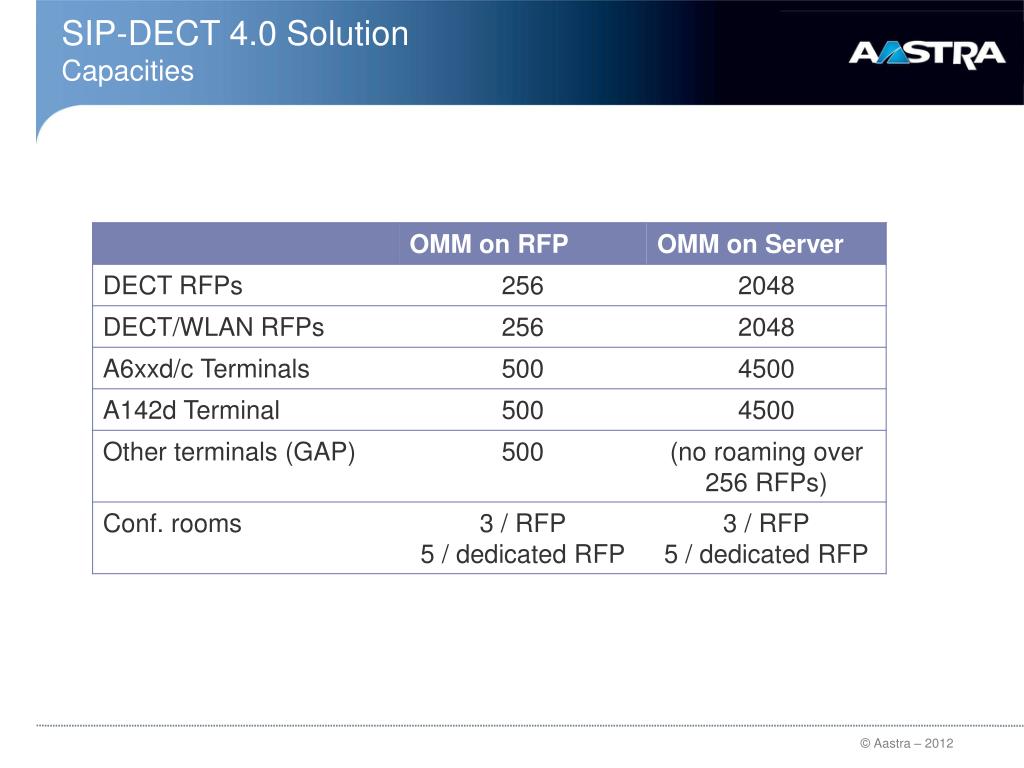

  22. SIP-DECT 4.0 SolutionCapacities

  23. Thankyou ! Title of the presentation
