Create an Earthquake-Proof Building Project

In this hands-on project, your group will design and construct an earthquake-proof building model using limited materials: 20 notecards, 30 paperclips, and 1 foot of masking tape. The model must meet specific size requirements and withstand various seismic waves during a shake test. Each group member is expected to participate and adhere to lab rules throughout the construction process. Collaborate effectively to create a sturdy, innovative structure that demonstrates your understanding of earthquake engineering principles!

elon
Télécharger la présentation

Create an Earthquake-Proof Building Project

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

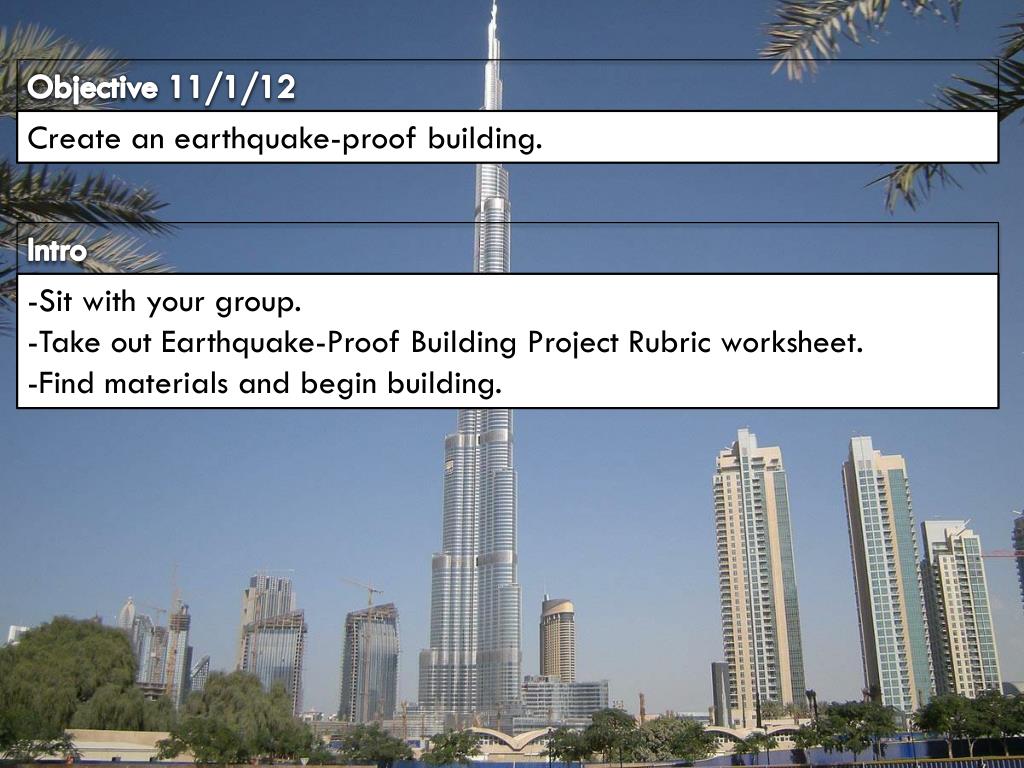

  1. Objective 11/1/12 Create an earthquake-proof building. Intro • Sit with your group. • Take out Earthquake-Proof Building Project Rubric worksheet. • Find materials and begin building.

  2. Instructions • The model must be: • At least as high as a piece of paper • No wider than half a piece of paper • Can only use these materials: • 20 note cards • 30 paperclips • 1 foot of masking tape • Able to withstand the three types of seismic waves

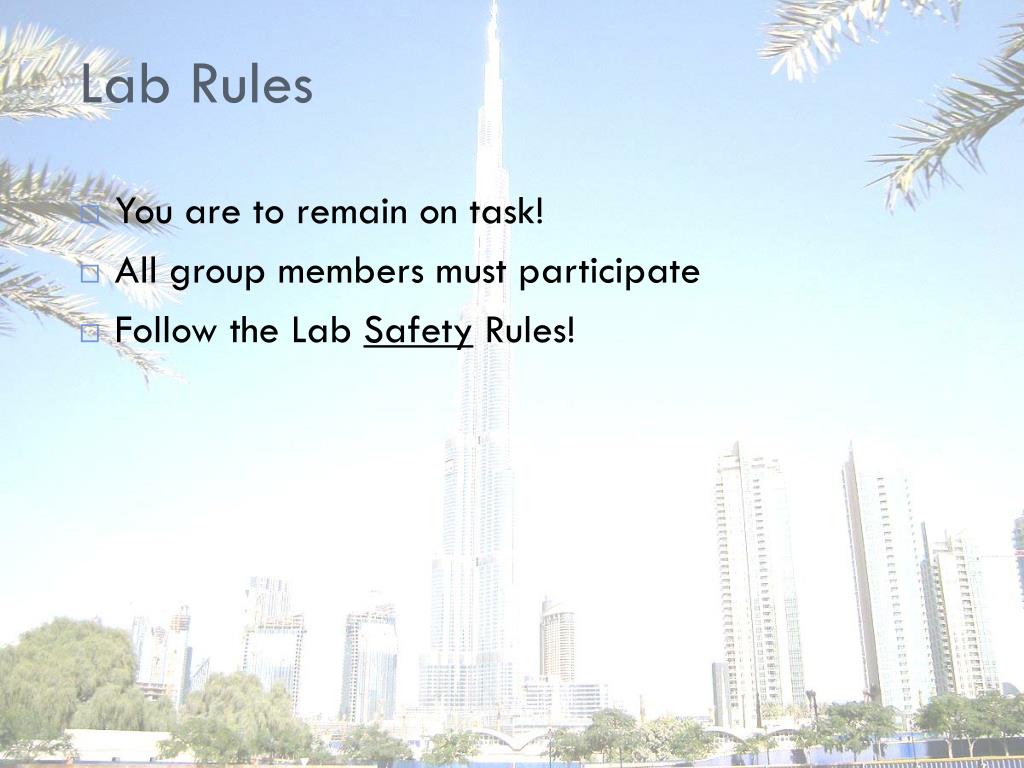

  3. Lab Rules • You are to remain on task! • All group members must participate • Follow the Lab Safety Rules!

  4. Project: Supplies: 20 notecards 30 paperclips 1 foot of tape Building must have a footprint the size of a half-sheet of paper. Must be as tall as a piece of paper (5 ½ footprint, 11 inches tall) Goal: not fall down or fall apart on shake table (3 shakes per wave type). Masking tape to show boundaries and amount of movement.

  5. Objective 11/1/12 Create an earthquake-proof building. DO NOW • One person from each group pick up your project • Hand-in Missing Assignments • Pick up Earthquakes worksheet from front lab table (tape into pg. 35) • Take out V-Map Outro None
