  1. Performance Modelingof Anonymity Protocols Carey Williamson Niklas Carlsson Andreas Hirt Michael J. Jacobson, Jr. Department of Computer Science University of Calgary Financial support for this research support was provided by: Natural Sciences and Engineering Research Council (NSERC), Informatics Circle of Research Excellence (iCORE), Alberta Ingenuity Fund (AIF), and Canada Foundation for Innovation (CFI)

  2. Introduction • Anonymous communication conceals who communicates what, to whom, and when • Allows individuals to communicate without fear of embarrassment, ridicule, or retribution • Cornerstone for freedom of speech

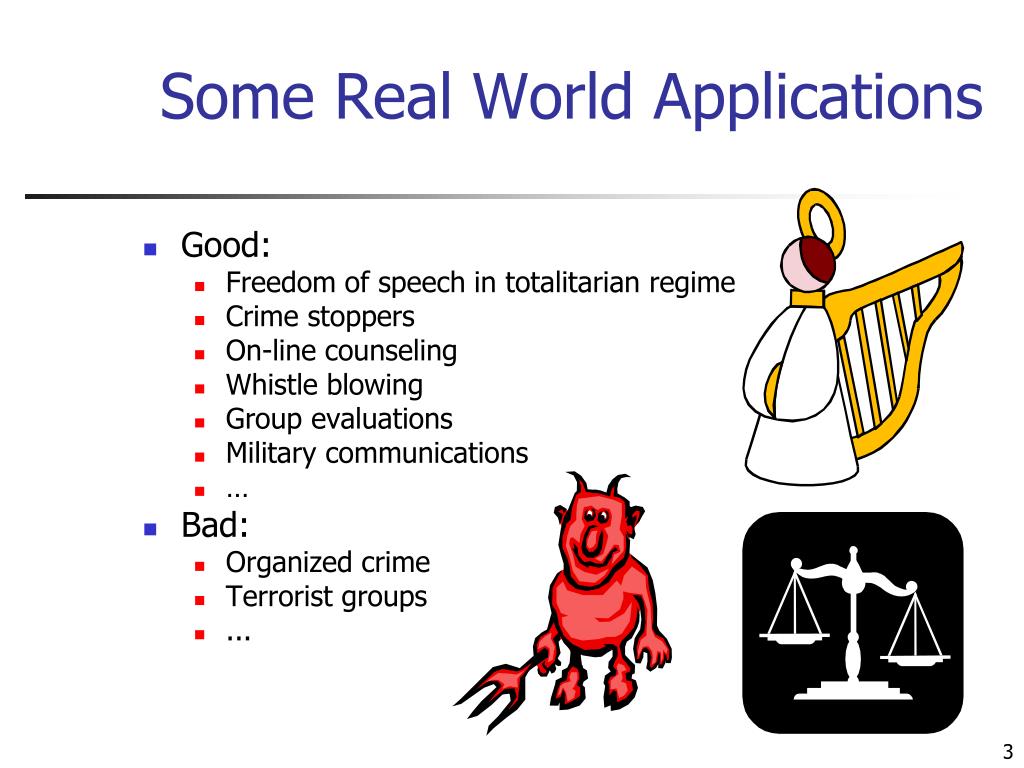

  3. Some Real World Applications • Good: • Freedom of speech in totalitarian regime • Crime stoppers • On-line counseling • Whistle blowing • Group evaluations • Military communications • … • Bad: • Organized crime • Terrorist groups • ...

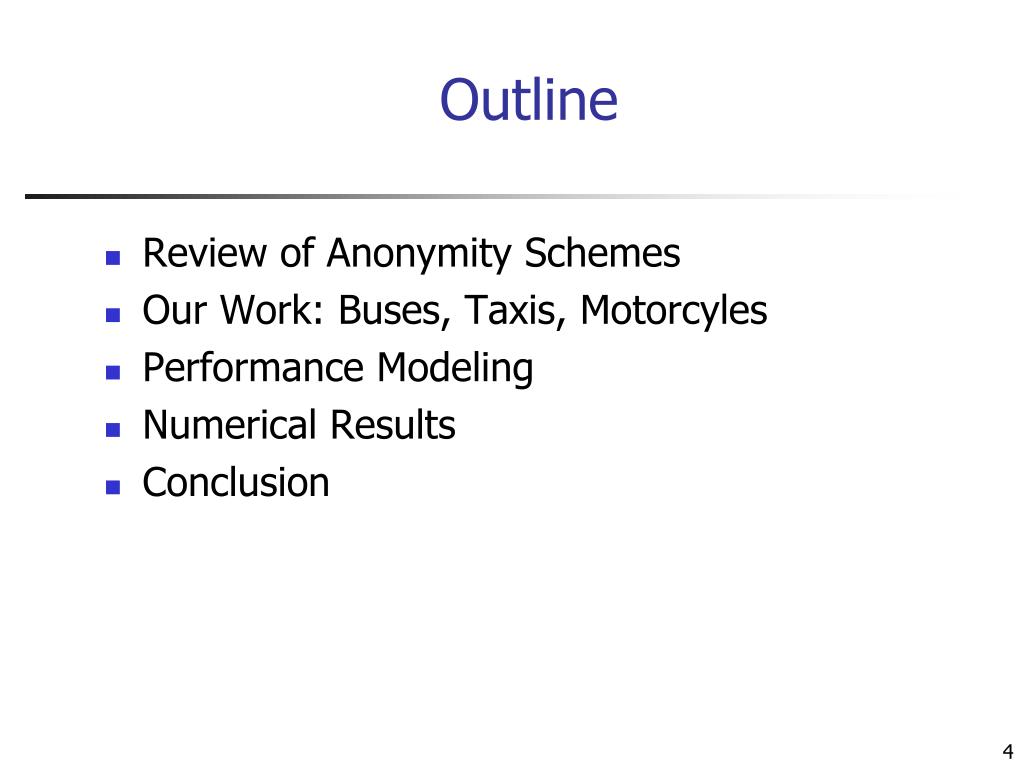

  4. Outline • Review of Anonymity Schemes • Our Work: Buses, Taxis, Motorcyles • Performance Modeling • Numerical Results • Conclusion

  5. Re-routing with Layered Encryption • Layered Encryption: Add layers of encryption to make message contents change each hop hello qkdx iwqm ykrz xmkz

  6. Re-routing with Layered Encryption • Layered Encryption: Add layers of encryption to make message contents change each hop hello iwqm ykrz xmkz

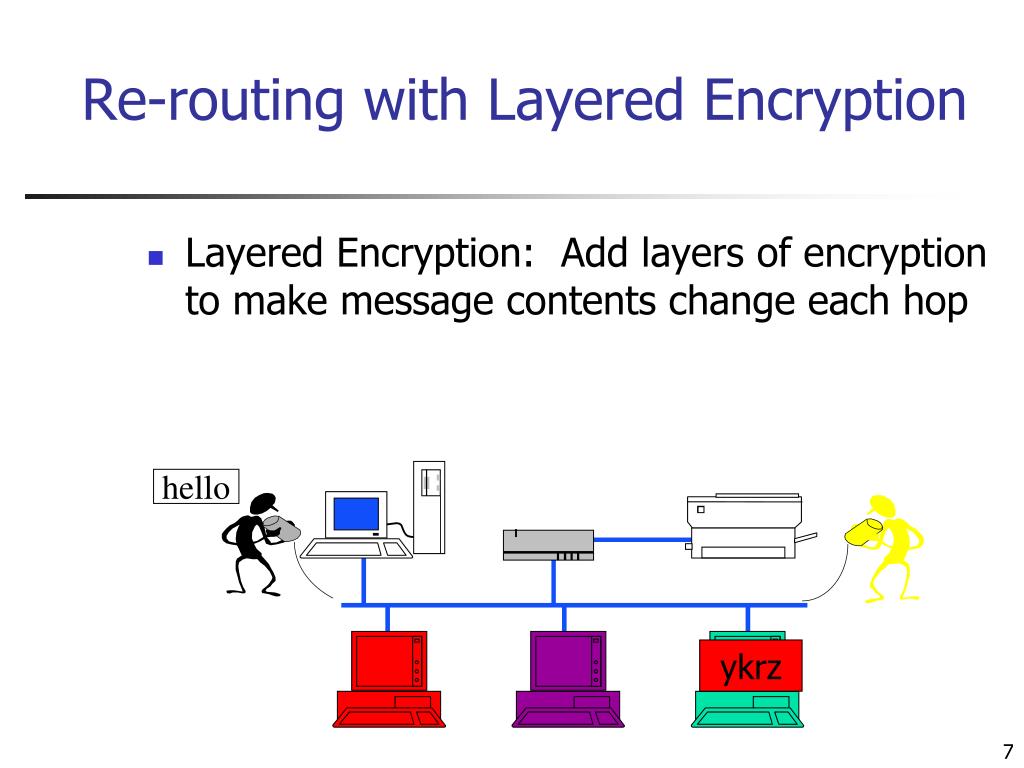

  7. Re-routing with Layered Encryption • Layered Encryption: Add layers of encryption to make message contents change each hop hello ykrz xmkz

  8. Re-routing with Layered Encryption • Layered Encryption: Add layers of encryption to make message contents change each hop • Problem: Timing analysis Sender? hello xmkz hello

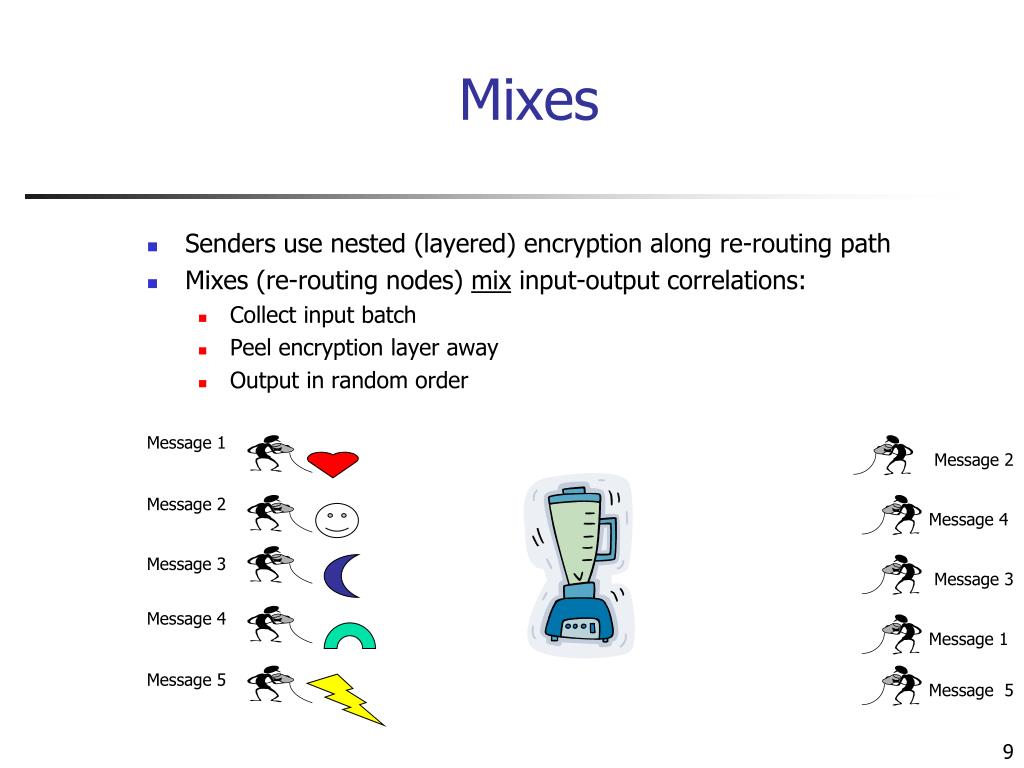

  9. Mixes • Senders use nested (layered) encryption along re-routing path • Mixes (re-routing nodes) mix input-output correlations: • Collect input batch • Peel encryption layer away • Output in random order Message 1 Message 2 Message 2 Message 4 Message 3 Message 3 Message 4 Message 1 Message 5 Message 5

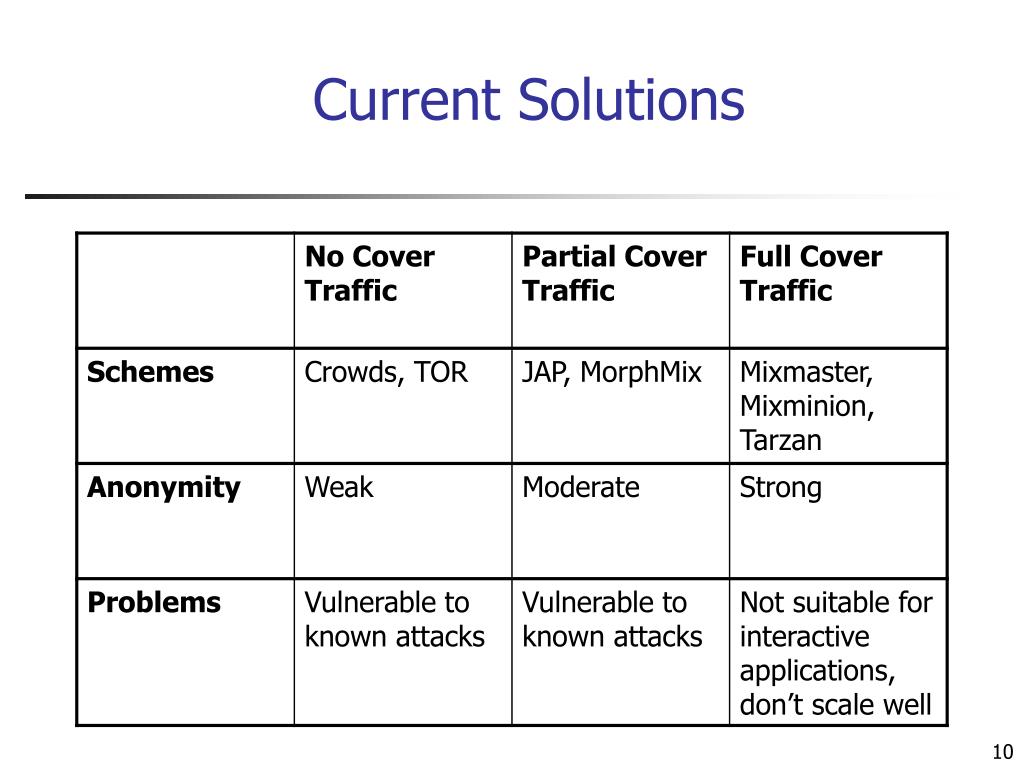

  10. Current Solutions

  11. Classic Buses Protocol[Beimel and Dolev 2003] • Metaphor: city bus, with regularly scheduled route, which obscures the movements of its messengers • Assume dark windows, and enclosed garages at each stop hello hello

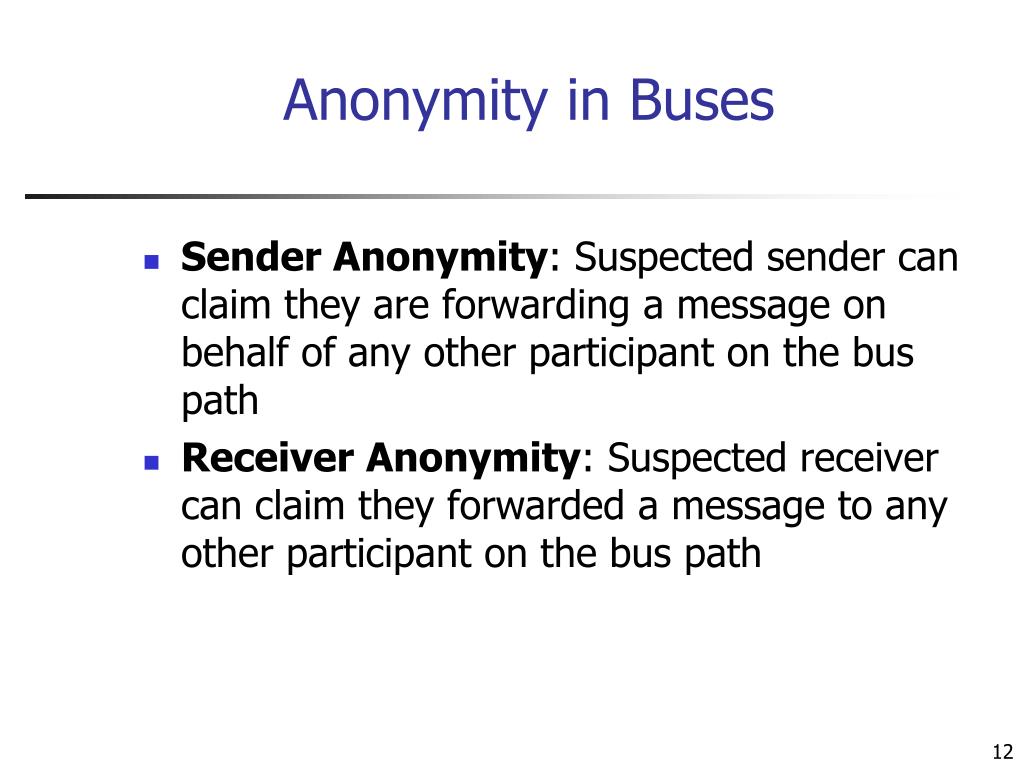

  12. Anonymity in Buses • Sender Anonymity: Suspected sender can claim they are forwarding a message on behalf of any other participant on the bus path • Receiver Anonymity: Suspected receiver can claim they forwarded a message to any other participant on the bus path

  13. Key Ideas in Our Buses • Indirection path: re-routing path on top of bus overlay • Layered Encryption: encryption on reverse indirection path • Owned Seats: Each participant replaces owned seats every bus tour (online) • Receiving seats: bus copied and decrypted offline to find messages

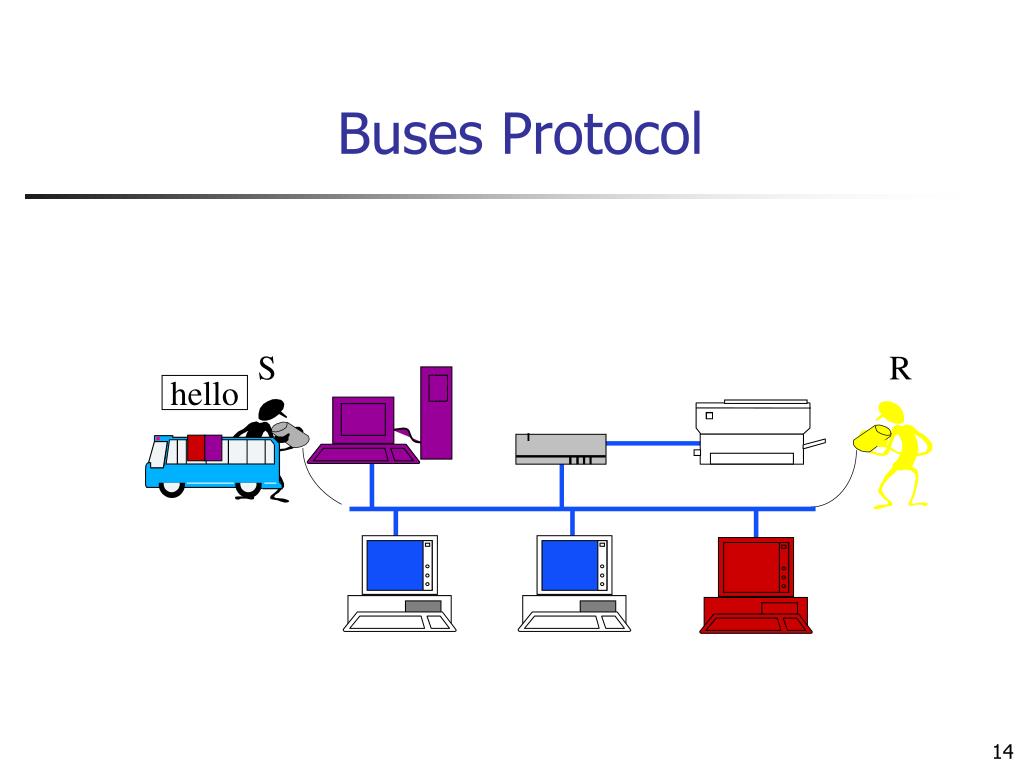

  14. Buses Protocol S R hello

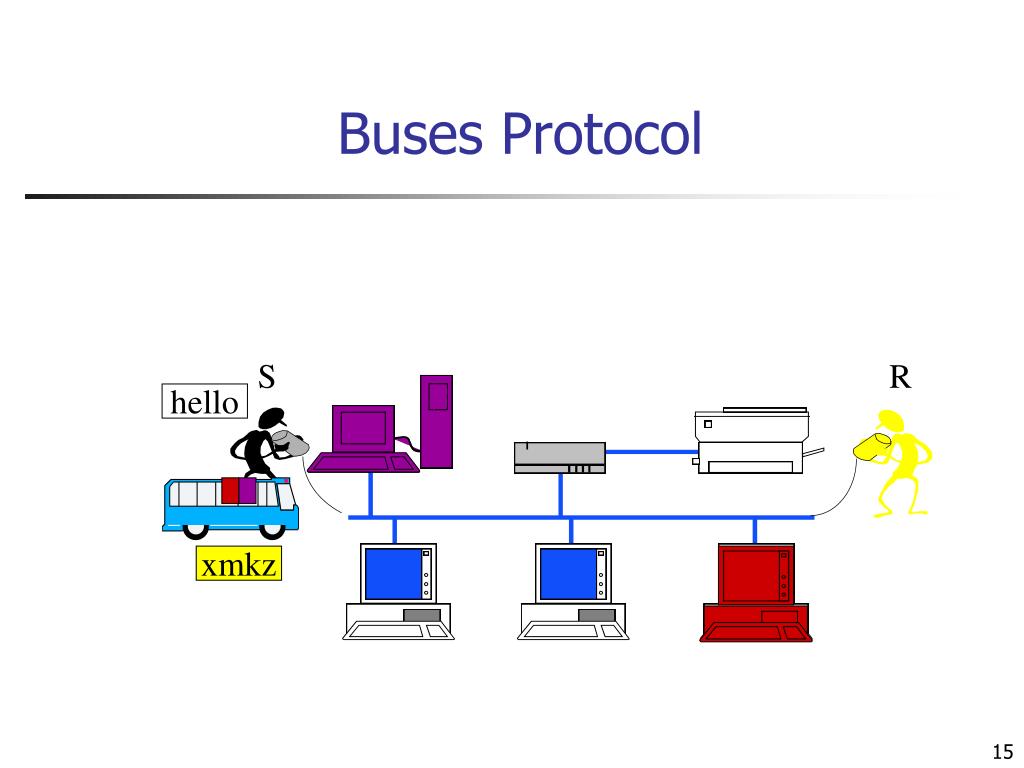

  15. Buses Protocol S R hello xmkz

  16. Buses Protocol S R hello ymkq

  17. Buses Protocol S R hello

  18. Buses Protocol S R hello

  19. Buses Protocol S R hello ymkq xmkz

  20. Buses Protocol S R hello hello xmkz

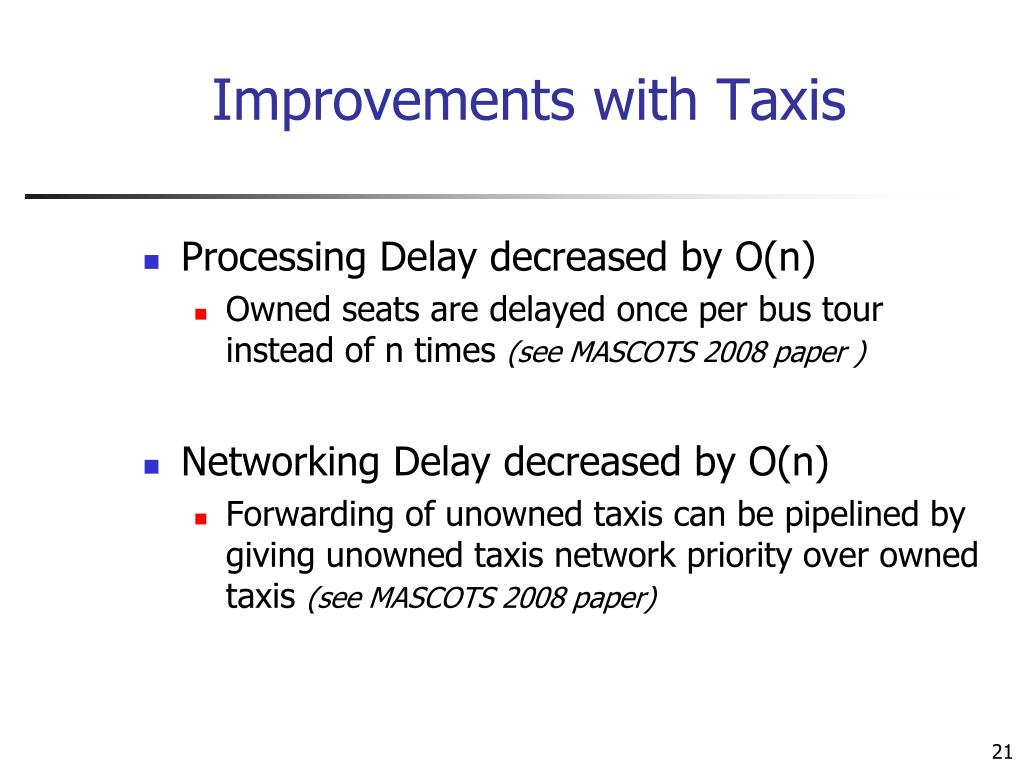

  21. Improvements with Taxis • Processing Delay decreased by O(n) • Owned seats are delayed once per bus tour instead of n times (see MASCOTS 2008 paper ) • Networking Delay decreased by O(n) • Forwarding of unowned taxis can be pipelined by giving unowned taxis network priority over owned taxis (see MASCOTS 2008 paper)

  22. Improvements with Motorcycles • Routing Path length decreased to O(log n) • Chord-based routing using finger table • Forwarding delay actually increases • More “message transfers” occur at nodes • Still a net win overall!

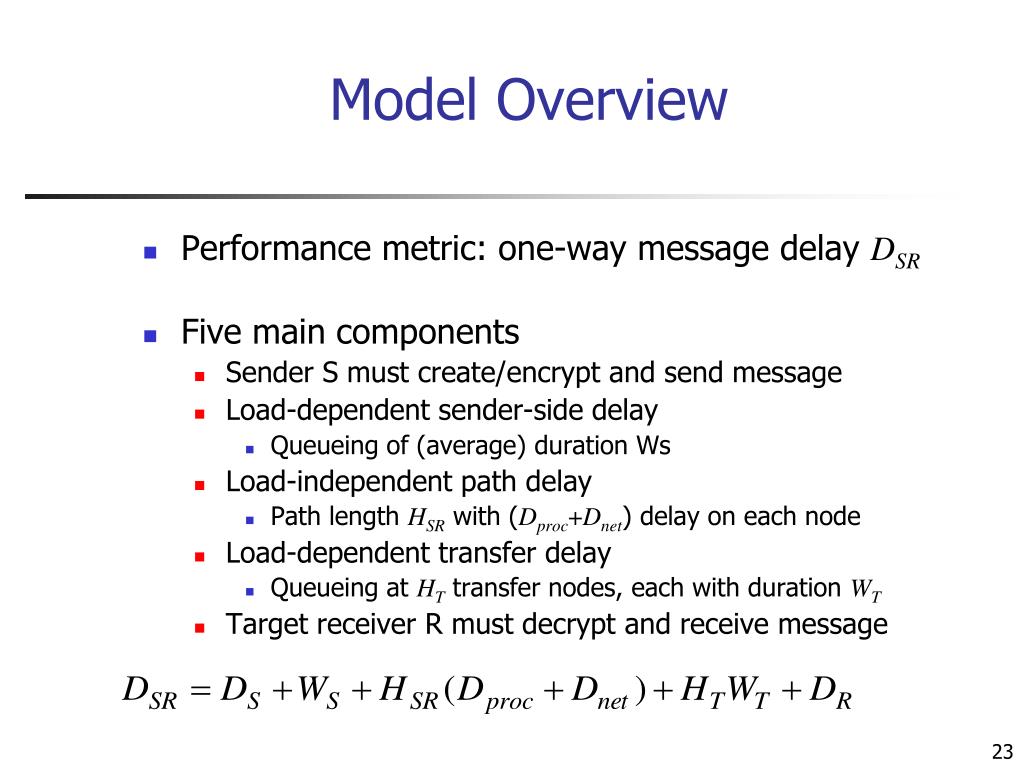

  23. Model Overview • Performance metric: one-way message delay DSR • Five main components • Sender S must create/encrypt and send message • Load-dependent sender-side delay • Queueing of (average) duration Ws • Load-independent path delay • Path length HSR with (Dproc+Dnet) delay on each node • Load-dependent transfer delay • Queueing at HT transfer nodes, each with duration WT • Target receiver R must decrypt and receive message

  24. Load-independent Delays • N nodes; K seats per node; Dseat processing per seat; s/r transmission time per seat; p per-hop propagation delay

  25. Hop counts

  26. Load-dependent Delays

  27. Light Load Case • Light load: No queueing QC  0 • Example: Buses protocol • Dproc ~ N; Dnet ~ N; TC ~ N2; hence, DSR ~ N2 • Scaling behavior • Buses: DSR ~ N2 • Taxis: DSR ~ N • Motorcycles: DSR ~ log2N

  28. Queueing Analysis (1 of 3) • Single-seat (K=1) case • Analysis on per-node basis • New messages at rate /N • Message transfers at rate HT/N • Assume Poisson arrivals at aggregate rate (1+ HT)/N (1+ HT)/N Either: - service period of duration TC - vacation period of duration TC Node i

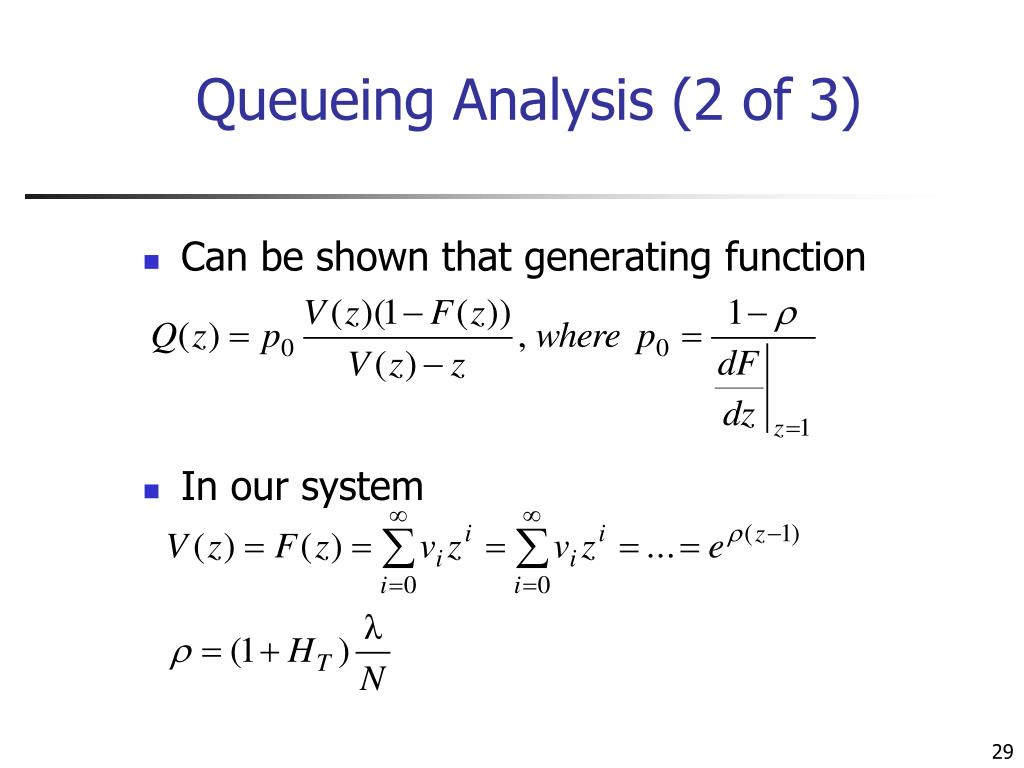

  29. Queueing Analysis (2 of 3) • Can be shown that generating function • In our system

  30. Queueing Analysis (3 of 3) • Expected queue length • Other metrics “relatively straightforward” to obtain, given the generating function • Variance • State probabilities q0,q1,…,qm

  31. Experimental Validation (Buses)

  32. Experimental Validation (Taxis)

  33. Simulation Validation (Buses)

  34. Simulation Validation (Taxis)

  35. Simulation Validation (Motorcycles)

  36. Impact of message generation rate  N=4 N=16 • Different saturation points (  1) • E.g., capacity planning

  37. Buses Impact of node utilization  • Queueing delays dominate when  > 0.8 • Note higher saturation point … • can sustain higher  • Hence, differences even greater than shown … Taxis Motorcycles

  38. Buses Scaling results for light load with K seats per node • Low load results • As expected, scales as (roughly) • Buses N2 • Taxis N • Motorcycles log2N Taxis Motorcycles

  39. Buses Scaling results for different load levels • Relative performance differences maintained at higher loads • In summary: Motorcycles provide a robust and scalable approach for anonymous network communication. Taxis Motorcycles

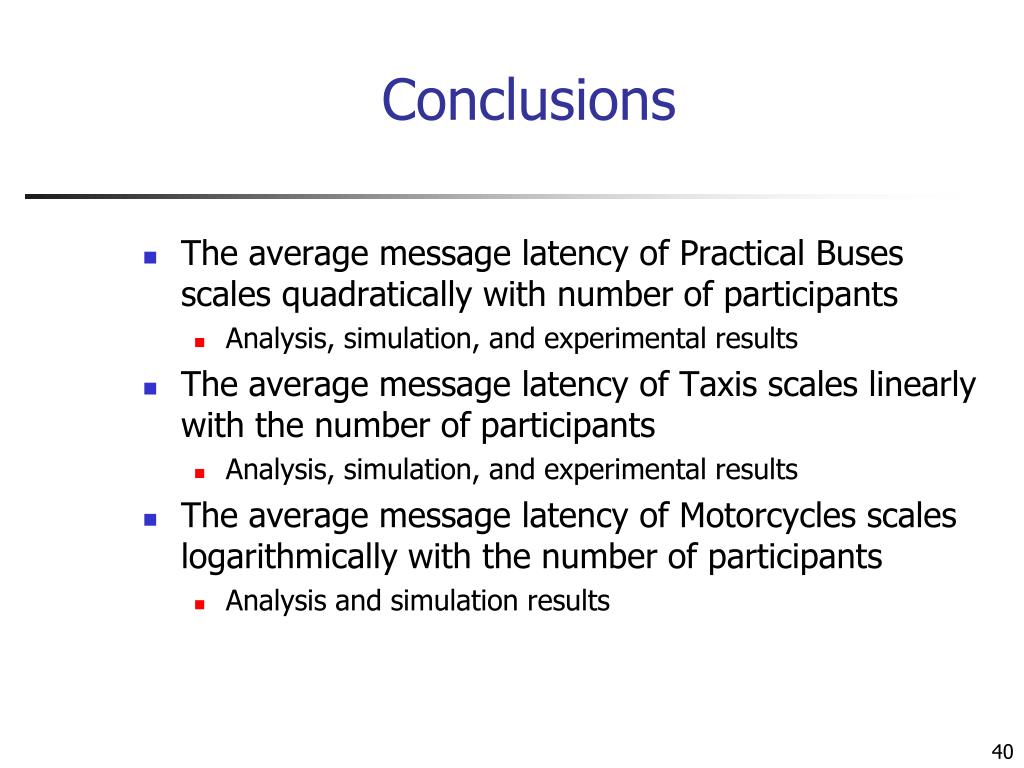

  40. Conclusions • The average message latency of Practical Buses scales quadratically with number of participants • Analysis, simulation, and experimental results • The average message latency of Taxis scales linearly with the number of participants • Analysis, simulation, and experimental results • The average message latency of Motorcycles scales logarithmically with the number of participants • Analysis and simulation results
