  1. Propagation of radio waves

  2. Ways of travelling • Propagation in ionosphere • Propagation in troposphere • Special ways of reflecting • Propagation depends on • the properties of the medium • frequency • weather, time of day, sun activity

  3. Propagation in ionosphere • Solar radiation (UV, X-ray) partially ionize the atmosphere • Ionization depends on the density of the gases • Waves reflect (refract) from the ionized layers • Directly dependent • on day of time, most neutralized just before sunrise • actitivity of sun • sun spot number • solar flux

  4. Ionization level and reflection properties divide the ionosphere in different layers: • D: 55-90 km • E: 90-150 km • F: 150-400 km

  5. D layer • lowest layer: exist only during daylight • unsuitable for contacts, absorbs radio energy • 7 & 10 MHz can travel through at high angles

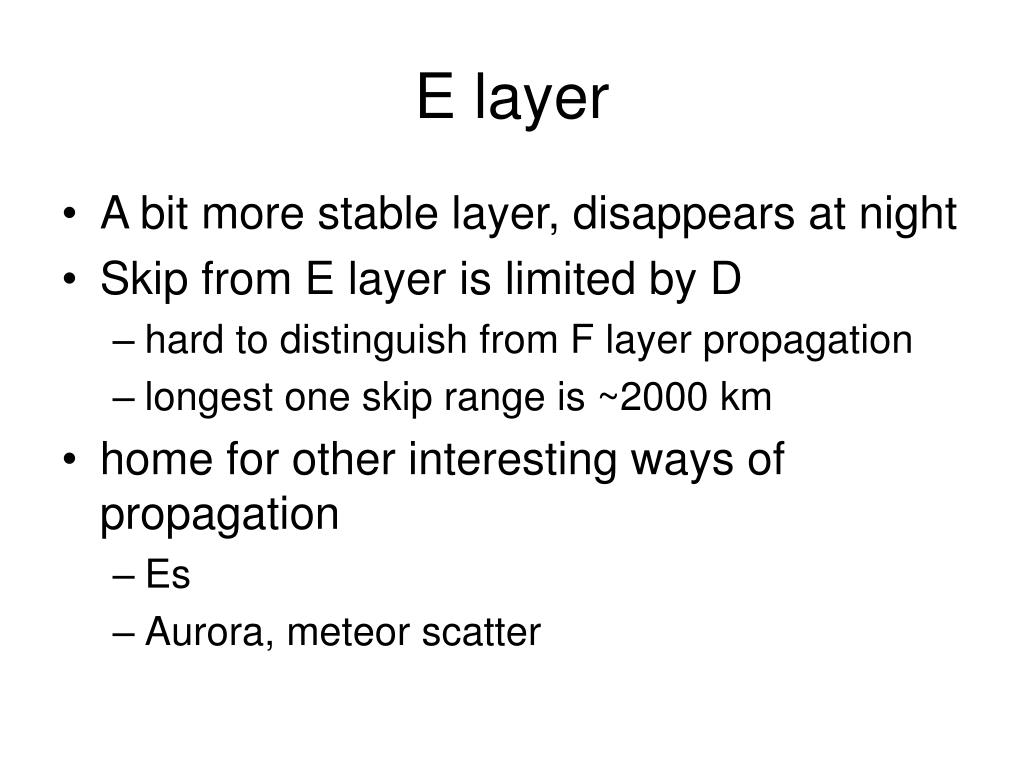

  6. E layer • A bit more stable layer, disappears at night • Skip from E layer is limited by D • hard to distinguish from F layer propagation • longest one skip range is ~2000 km • home for other interesting ways of propagation • Es • Aurora, meteor scatter

  7. F layer • Divided in two during daytime F1, F2 • F2 more important, never absent • one skip almost 4000 km, multihops even longer • reflects from ground, E-layer once or several times • Controlled by sun activity

  8. Propagation in troposphere • VHF, UHF & microwaves • weather effects • tropospheric scattering primary form • rain, fog, dust, snow, clouds • ducting • Radiation inversions: • air layers with different temperatures and dew points • can travel long (1500 km) • calm summer evenings

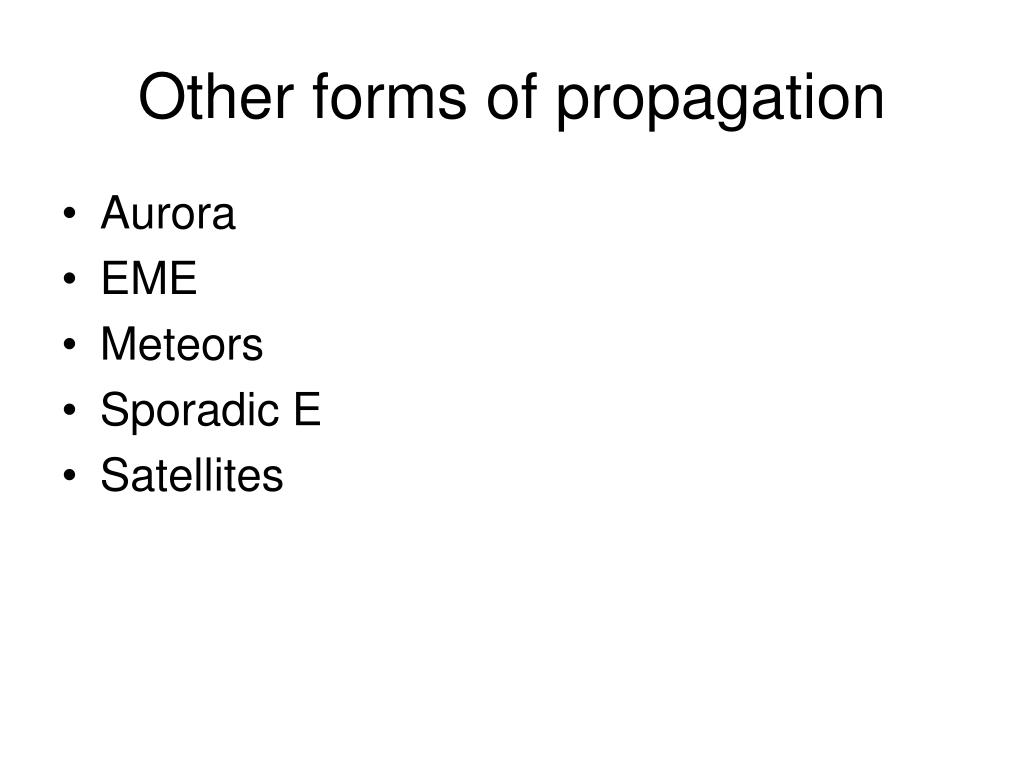

  9. Other forms of propagation • Aurora • EME • Meteors • Sporadic E • Satellites

  10. Aurora • High-energy particles flow into ionosphere during geomagnetic storm  ionize E layer • 28 – 432 MHz • K index: magnetic activity 0-9 • Signals sound distorted, sometimes only CW at VHF-UHF (A=Aurora)

  11. EME • Earth-Moon-Earth • 50 MHz to 10 GHz • Free space loss, ½ degree target, Doppler shift, Faraday rotation... not that easy • eFFe-mobiili

  12. Meteor scatter • Ionize a column of air at E layer • stays ionized for a few seconds to a minute  just enough time for brief contacs • 50 MHz, 144 MHz • High speed Morse code, pieced together

  13. Sporadic E • Ionization level gets abnormally high • 28, 50, 144 MHz • Usually at summer time at morning and again at early evening • Might dissipate quickly or move

  14. Satellites • Works as repeater station
