CS 563 Advanced Topics in Computer Graphics Introduction To IBR

1. CS 563 Advanced Topics in Computer GraphicsIntroduction To IBR By Cliff Lindsay Slide Show ’99 Siggraph[6]

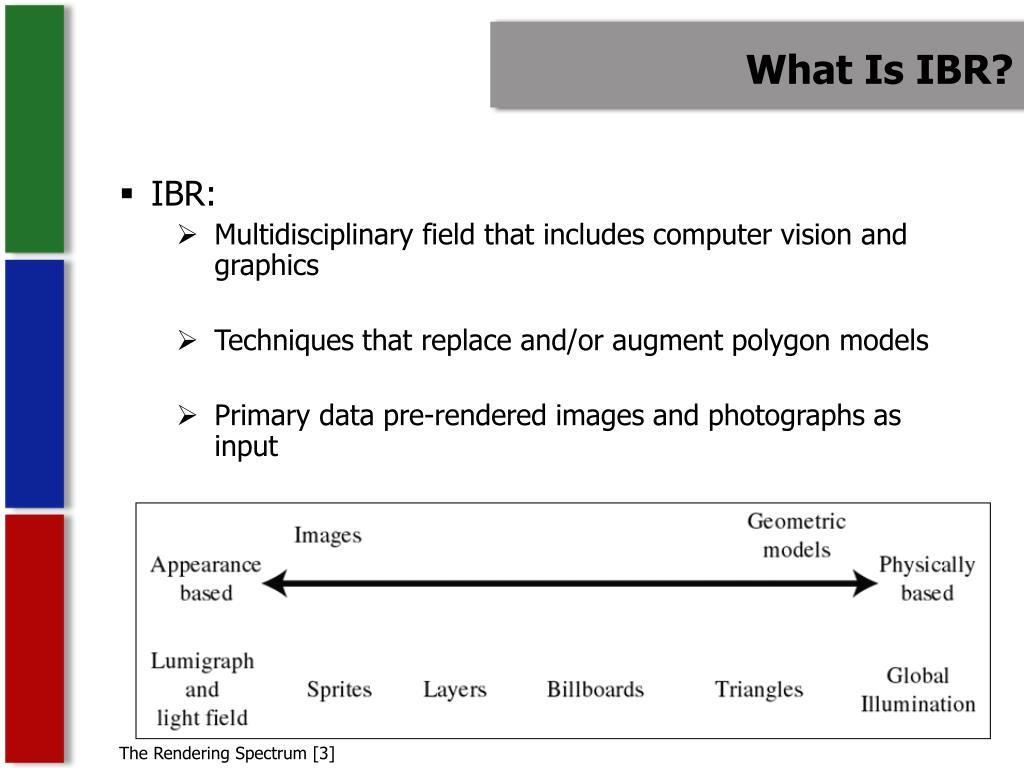

2. What Is IBR? • IBR: • Multidisciplinary field that includes computer vision and graphics • Techniques that replace and/or augment polygon models • Primary data pre-rendered images and photographs as input The Rendering Spectrum [3]

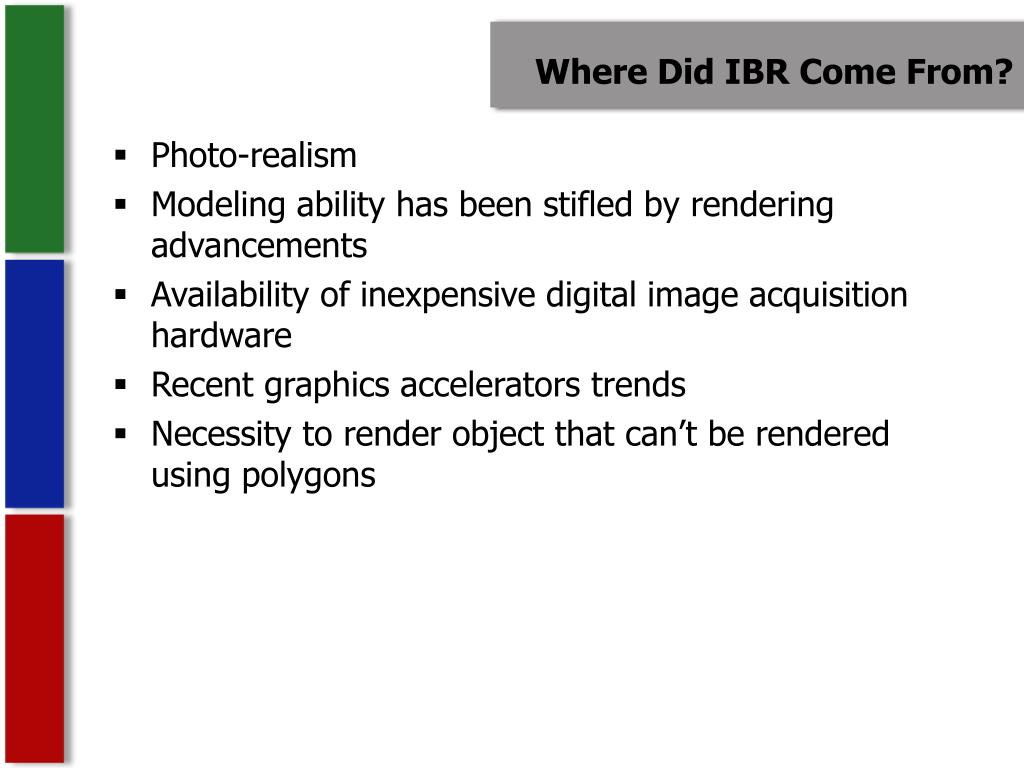

3. Where Did IBR Come From? • Photo-realism • Modeling ability has been stifled by rendering advancements • Availability of inexpensive digital image acquisition hardware • Recent graphics accelerators trends • Necessity to render object that can’t be rendered using polygons

4. Tenants and Common Techniques of IBR • Rendering time is decoupled from scene complexity • Images are used as input • Exploits coherence • Pre-calculation of scene data/images

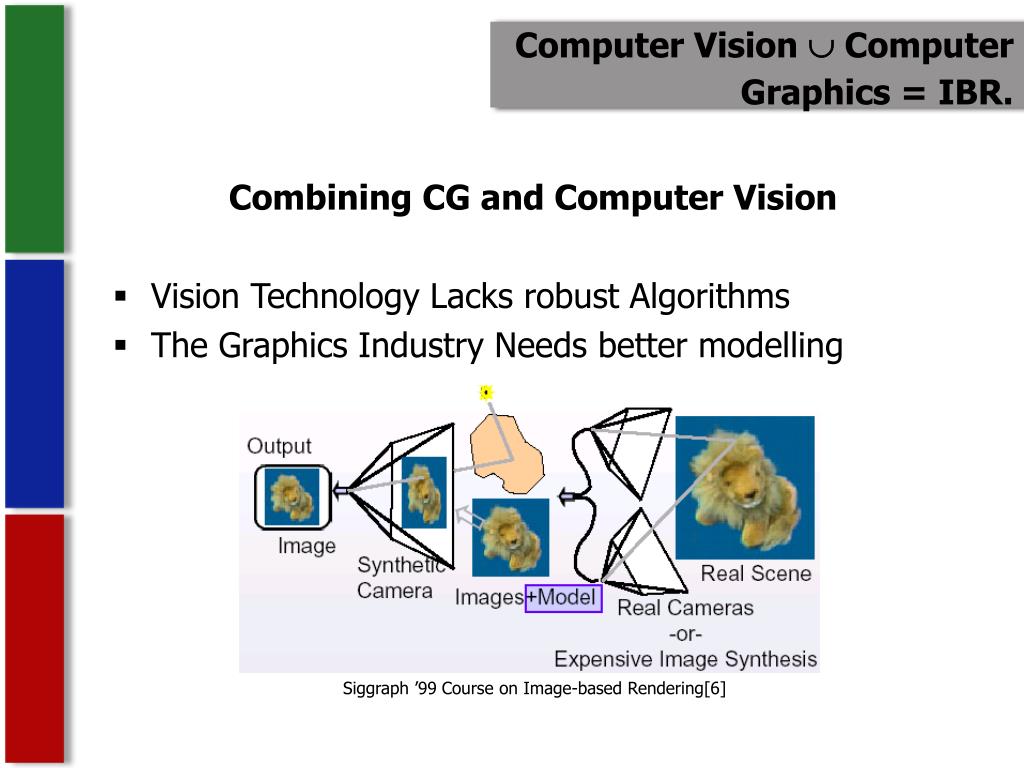

5. Computer Vision  Computer Graphics = IBR. Combining CG and Computer Vision • Vision Technology Lacks robust Algorithms • The Graphics Industry Needs better modelling Siggraph ’99 Course on Image-based Rendering[6]

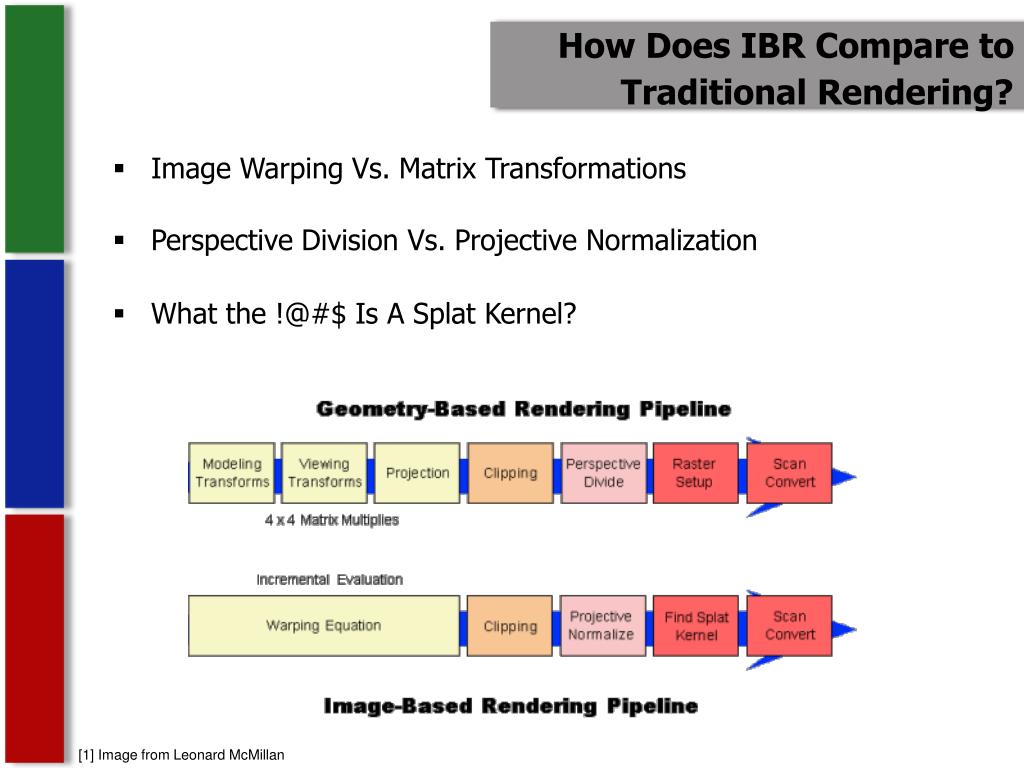

6. How Does IBR Compare to Traditional Rendering? • Image Warping Vs. Matrix Transformations • Perspective Division Vs. Projective Normalization • What the !@#$ Is A Splat Kernel? [1] Image from Leonard McMillan

7. Approaches • 2D Approaches: • Texture Mapping • Sprite, Billboards, and Impostors • Image Layering • 3D approaches: • LDI (2.5D) • View Interpolation & Morphing • Mosaics • 4D approaches: • The Lumigraph • Light Fields

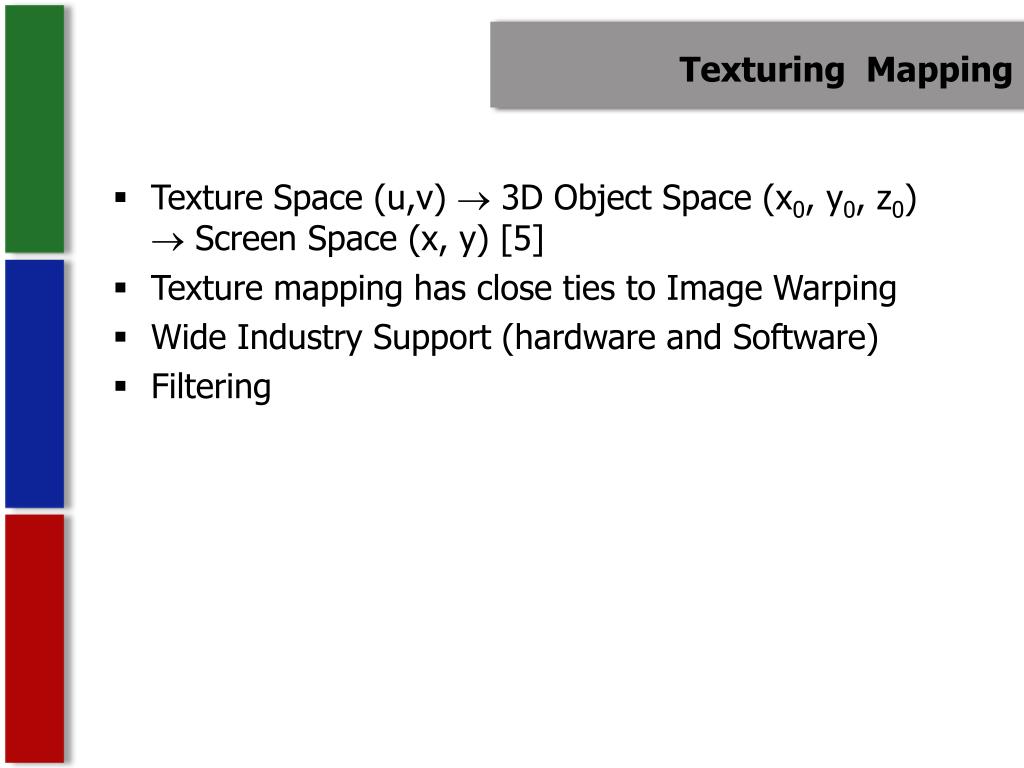

8. Texturing Mapping • Texture Space (u,v)  3D Object Space (x0, y0, z0)  Screen Space (x, y) [5] • Texture mapping has close ties to Image Warping • Wide Industry Support (hardware and Software) • Filtering

9. Sprites, Billboards, and Impostors (Oh my!) • Sprites: • Pure 2D image • No warping, or projection (like mouse cursor) • Billboards: • Sprite applied to a polygon • Alpha channel usually employed • Uses texture mapping for acceleration • Impostors: • Billboards created on the fly. • Can represent complex models • Error metric associated w/ changed views

10. Billboards • Billboards: • Oriented toward viewer • Matrix transformations (classical pipeline) • Special effects (lens flares, laser/light bursts, etc) • Hard to render objects (clouds, fire, smoke)

11. Impostors • Impostor Techniques: • Error Angle • Off Screen Rendering • Polygon Texturing • Texture resolution need not exceed screen resolution • texres = screenres * objsize/(2 * distance * tan(fov/2))

12. Billboard Example

13. Billboard Example

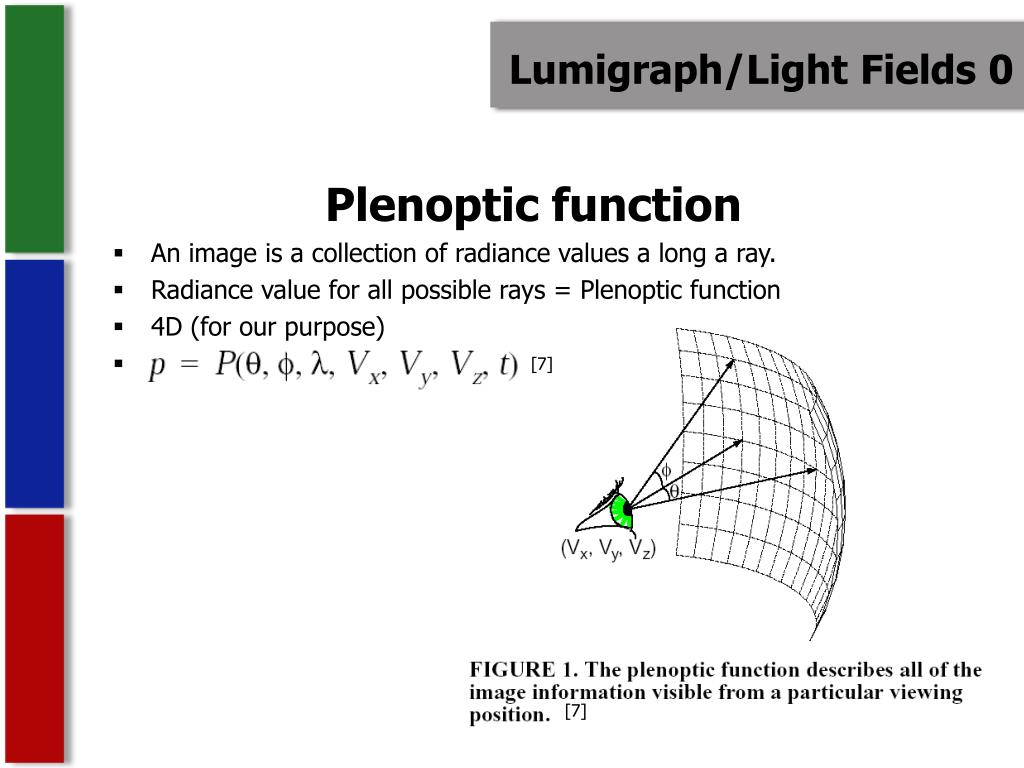

14. Lumigraph/Light Fields 0 Plenoptic function • An image is a collection of radiance values a long a ray. • Radiance value for all possible rays = Plenoptic function • 4D (for our purpose) [7] [7]

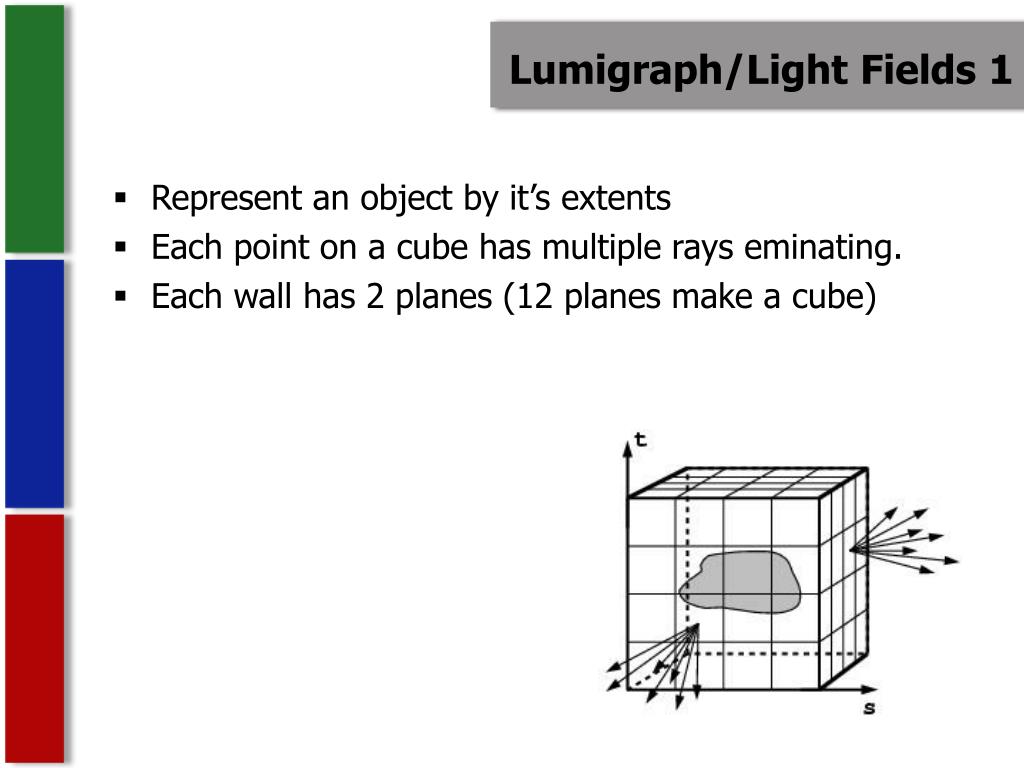

15. Lumigraph/Light Fields 1 • Represent an object by it’s extents • Each point on a cube has multiple rays eminating. • Each wall has 2 planes (12 planes make a cube)

16. Lumigraph/Light Fields 2 • You parameterize a ray using the 2 planes • L(s, t, u, v) = radiance for a ray • Ray – plane intersection make it easy and fast

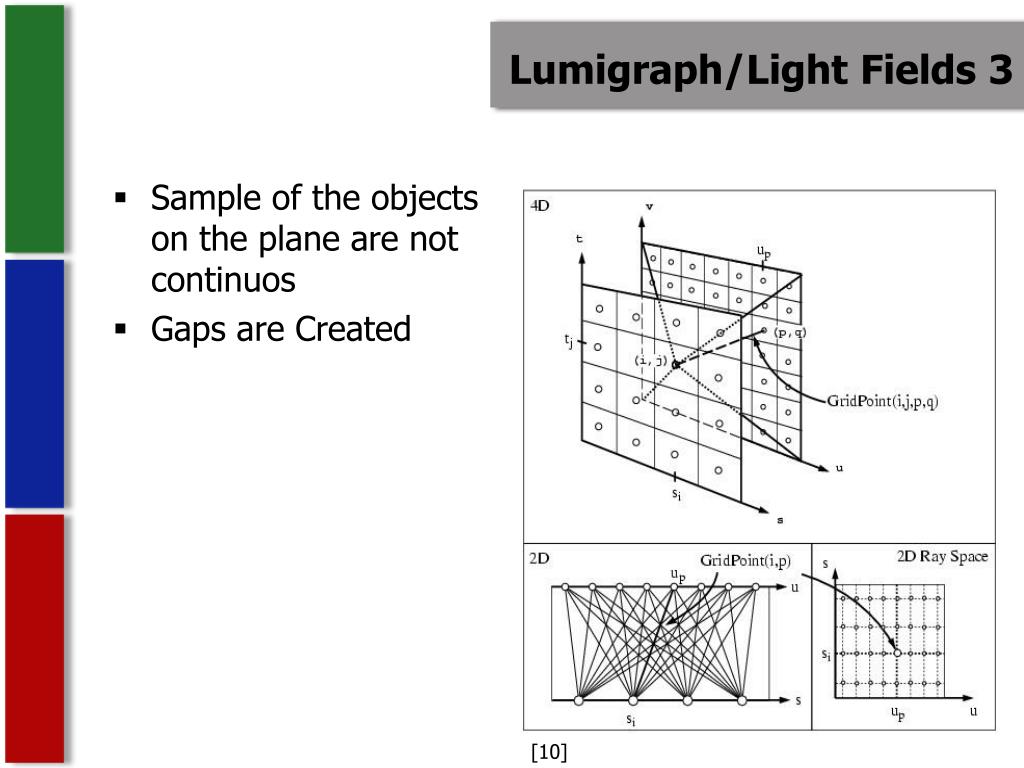

17. Lumigraph/Light Fields 3 • Sample of the objects on the plane are not continuos • Gaps are Created [10]

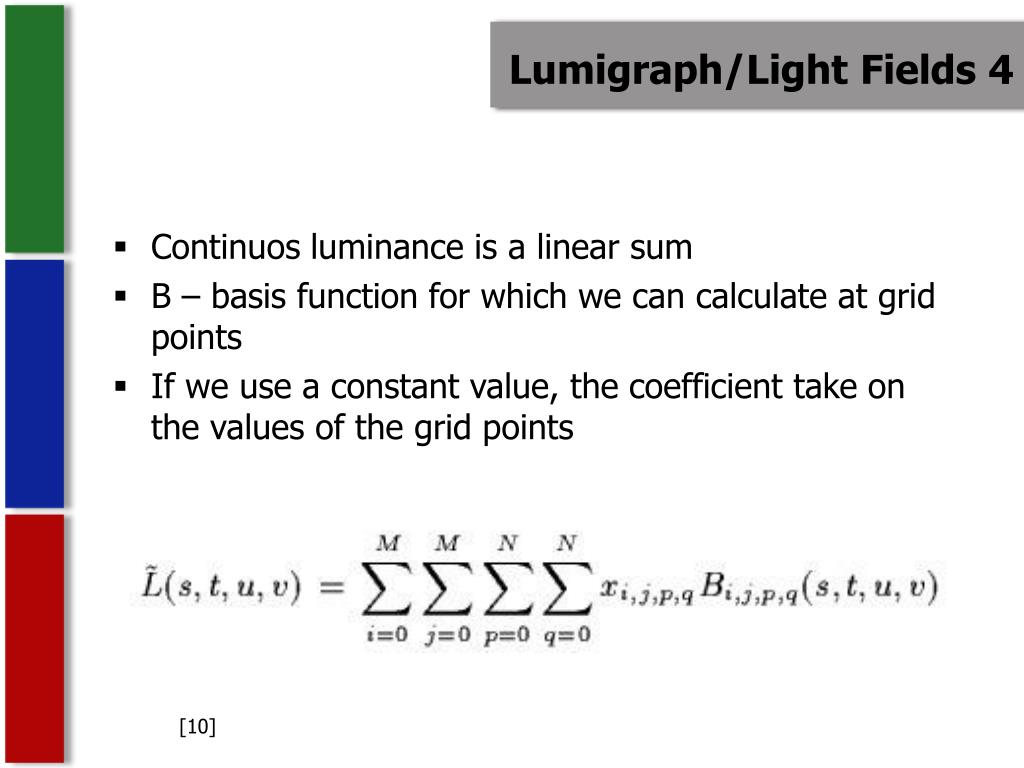

18. Lumigraph/Light Fields 4 • Continuos luminance is a linear sum • B – basis function for which we can calculate at grid points • If we use a constant value, the coefficient take on the values of the grid points [10]

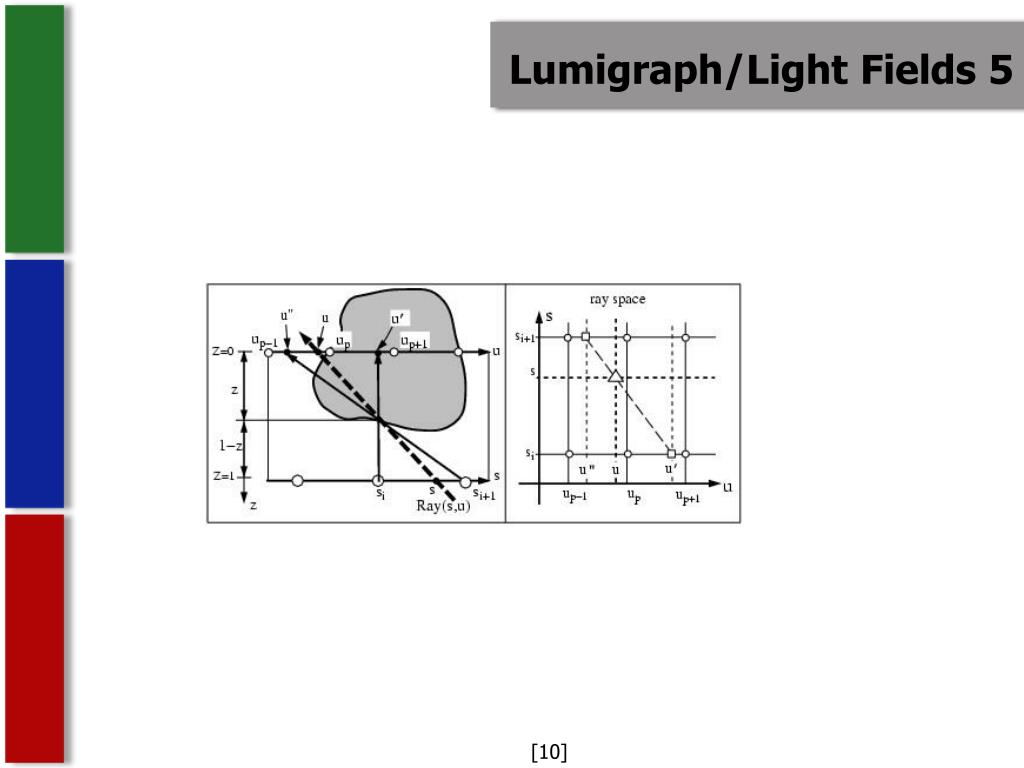

19. Lumigraph/Light Fields 5 [10]

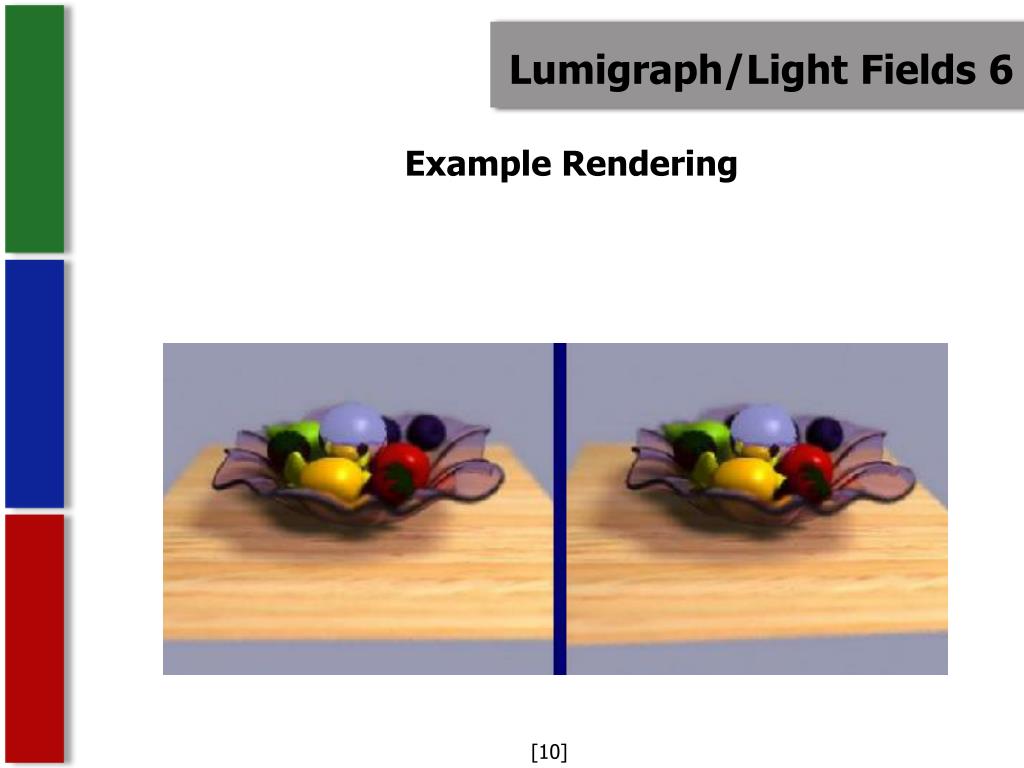

20. Lumigraph/Light Fields 6 Example Rendering [10]

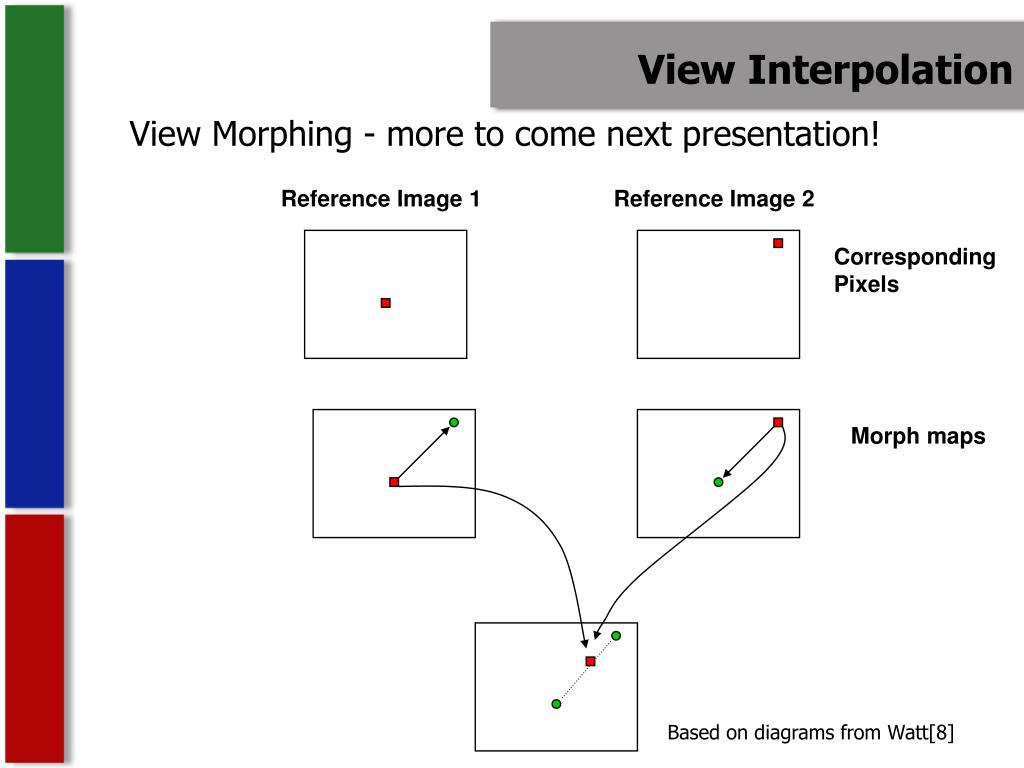

21. View Interpolation View Morphing - more to come next presentation! Reference Image 1 Reference Image 2 Corresponding Pixels Morph maps Based on diagrams from Watt[8]

22. View Morphing View Morphing - more to come next presentation! View Morphing[9]

23. View Morphing View Morphing - more to come next presentation! 3 1 1 2 2 View Morphing[9]

24. Recent Developments & The Future of IBR • Surface Light fields • High Dynamic Range Radiance Maps • View-dependent texture-mapping (VDTM) • IBO (Image Based Objects)

25. Conclusion • Rendering time is decoupled from scene complexity • Images are used as input • Pre-calculation of scene data/images

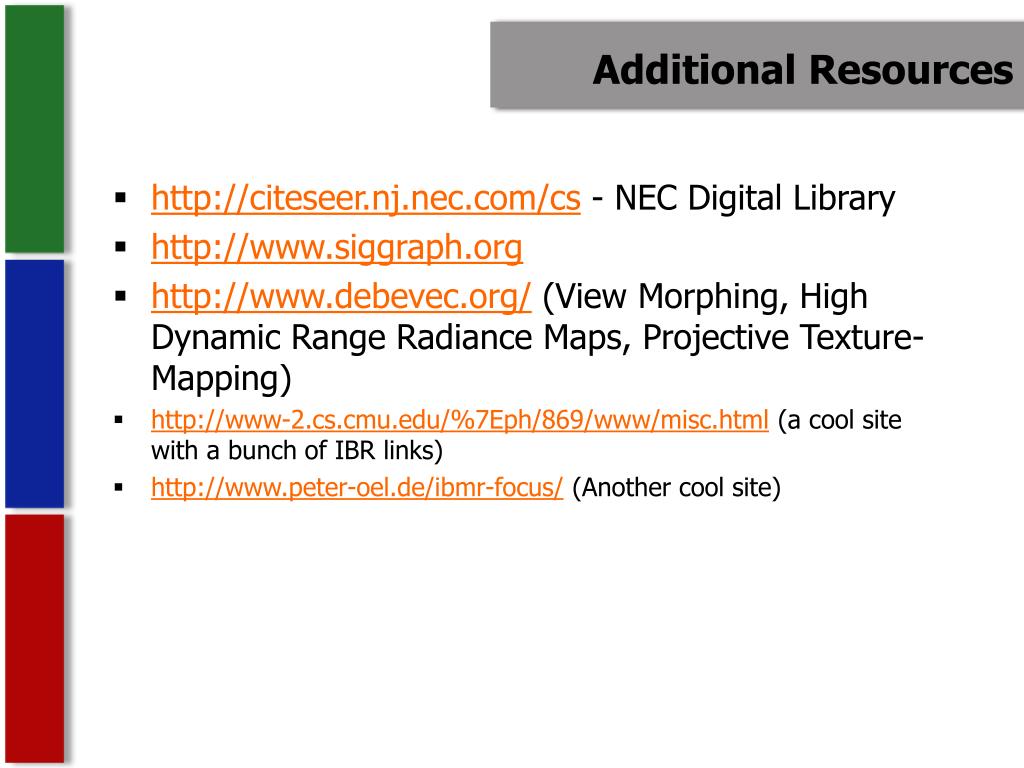

26. Additional Resources • http://citeseer.nj.nec.com/cs - NEC Digital Library • http://www.siggraph.org • http://www.debevec.org/ (View Morphing, High Dynamic Range Radiance Maps, Projective Texture-Mapping) • http://www-2.cs.cmu.edu/%7Eph/869/www/misc.html (a cool site with a bunch of IBR links) • http://www.peter-oel.de/ibmr-focus/ (Another cool site)
