  1. Working document Linguistic Review 29-09-07 Isometric drawing in technology

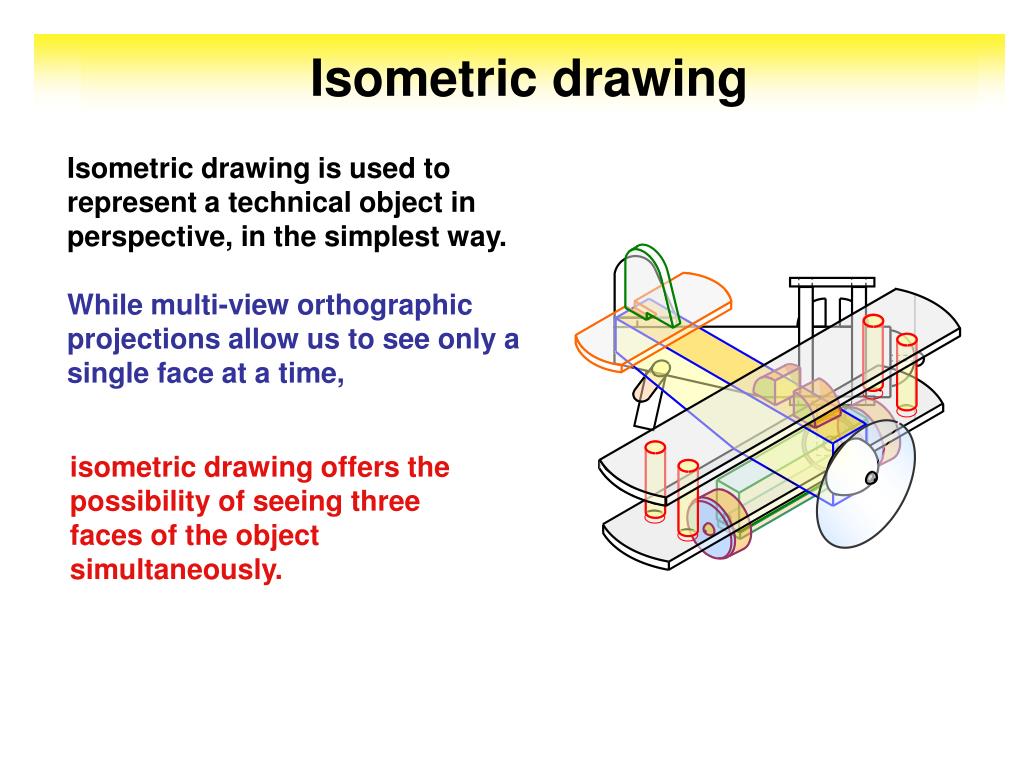

  2. Isometric drawing Isometric drawing is used to represent a technical object in perspective, in the simplest way. While multi-view orthographic projections allow us to see only a single face at a time, isometric drawing offers the possibility of seeing three faces of the object simultaneously.

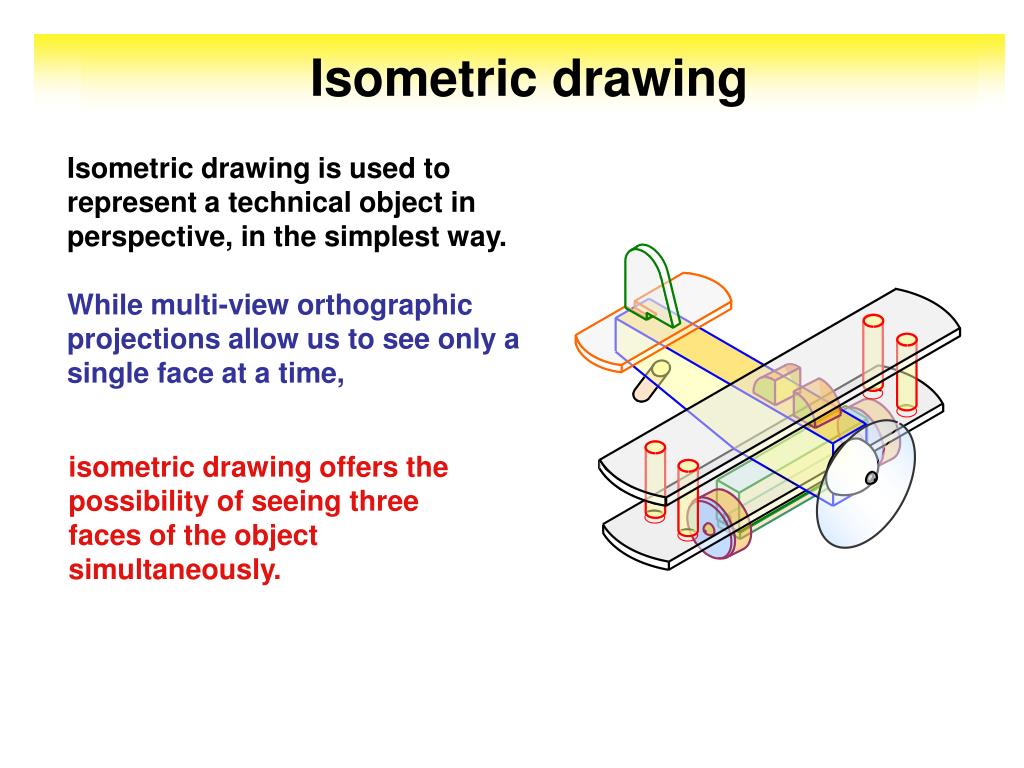

  3. Isometric drawing Isometric drawing is used to represent a technical object in perspective, in the simplest way. While multi-view orthographic projections allow us to see only a single face at a time, isometric drawing offers the possibility of seeing three faces of the object simultaneously.

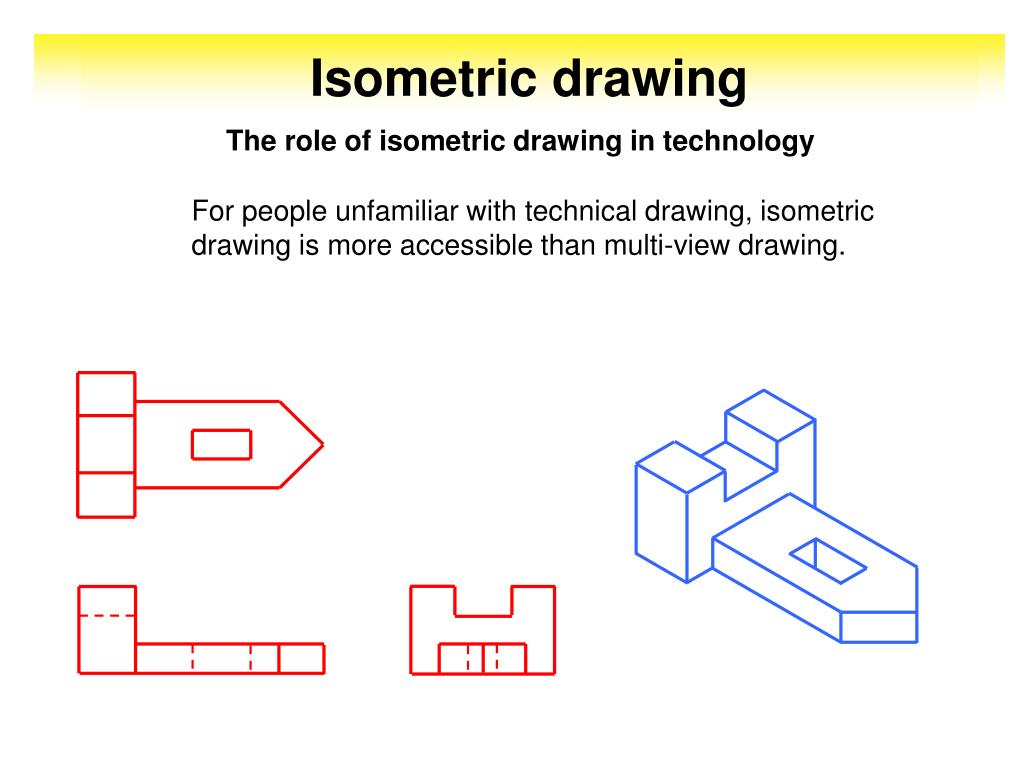

  4. Isometric drawing The role of isometric drawing in technology For people unfamiliar with technical drawing, isometric drawing is more accessible than multi-view drawing.

  5. Isometric drawing The role of isometric drawing in technology For people unfamiliar with technical drawing, isometric drawing is more accessible than multi-view drawing.

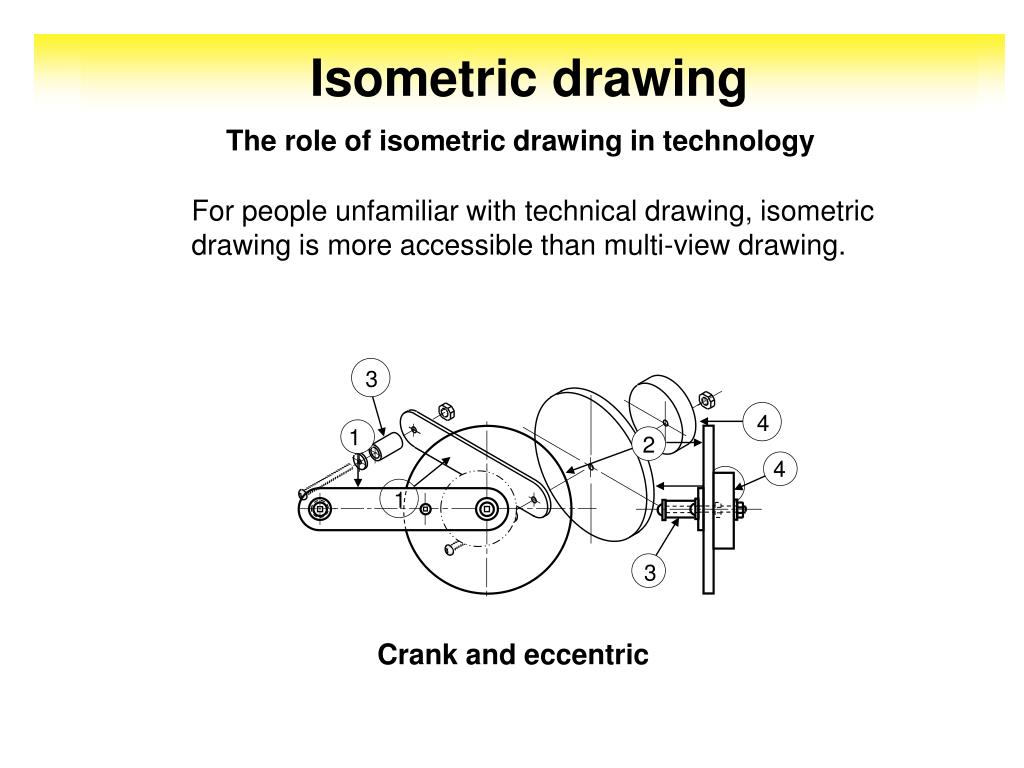

  6. Isometric drawing 4 1 2 4 3 3 2 1 The role of isometric drawing in technology For people unfamiliar with technical drawing, isometric drawing is more accessible than multi-view drawing. Crank and eccentric

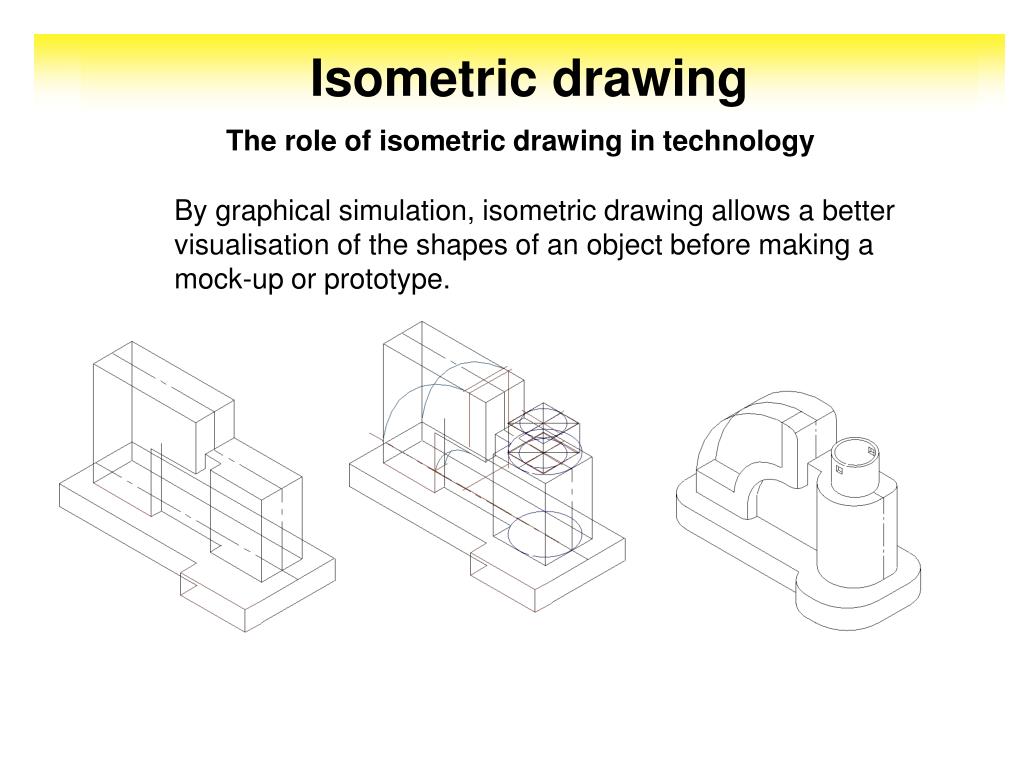

  7. Isometric drawing The role of isometric drawing in technology By graphical simulation, isometric drawing allows a better visualisation of the shapes of an object before making a mock-up or prototype.

  8. Isometric drawing The role of isometric drawing in technology This form of drawing simplifies communication between the originator and his client. It reduces ambiguities and bad interpretations that can crop up from a two dimensional drawing.

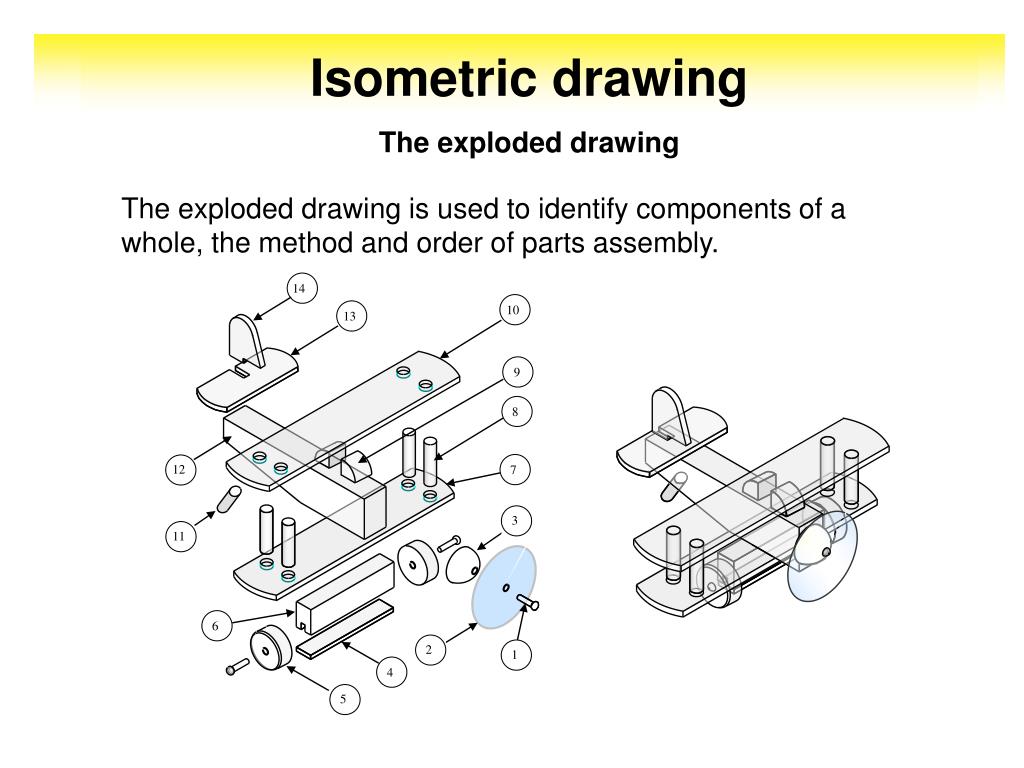

  9. Isometric drawing 14 1 2 3 4 5 6 7 8 9 10 11 12 13 The exploded drawing The exploded drawing is used to identify components of a whole, the method and order of parts assembly.

  10. Isometric drawing The exploded drawing In workshops, the exploded drawing allows replacement parts to be ordered more easily.

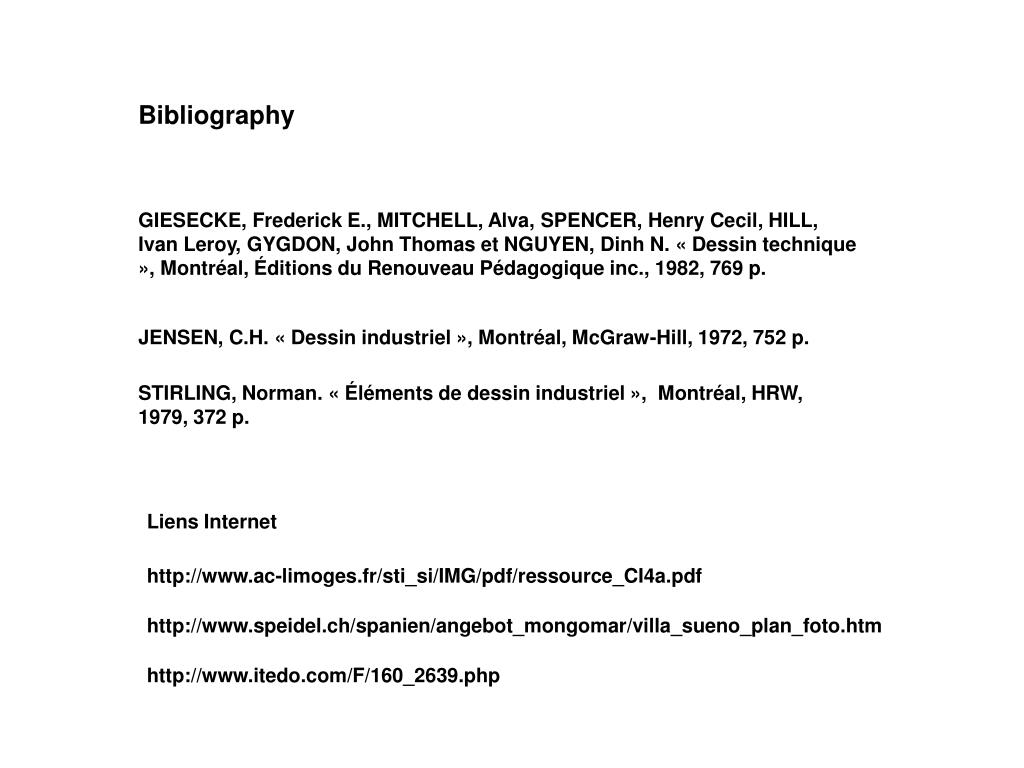

  11. Bibliography GIESECKE, Frederick E., MITCHELL, Alva, SPENCER, Henry Cecil, HILL, Ivan Leroy, GYGDON, John Thomas et NGUYEN, Dinh N. « Dessin technique », Montréal, Éditions du Renouveau Pédagogique inc., 1982, 769 p. JENSEN, C.H. « Dessin industriel », Montréal, McGraw-Hill, 1972, 752 p. STIRLING, Norman. « Éléments de dessin industriel », Montréal, HRW, 1979, 372 p. Liens Internet http://www.ac-limoges.fr/sti_si/IMG/pdf/ressource_CI4a.pdf http://www.speidel.ch/spanien/angebot_mongomar/villa_sueno_plan_foto.htm http://www.itedo.com/F/160_2639.php
