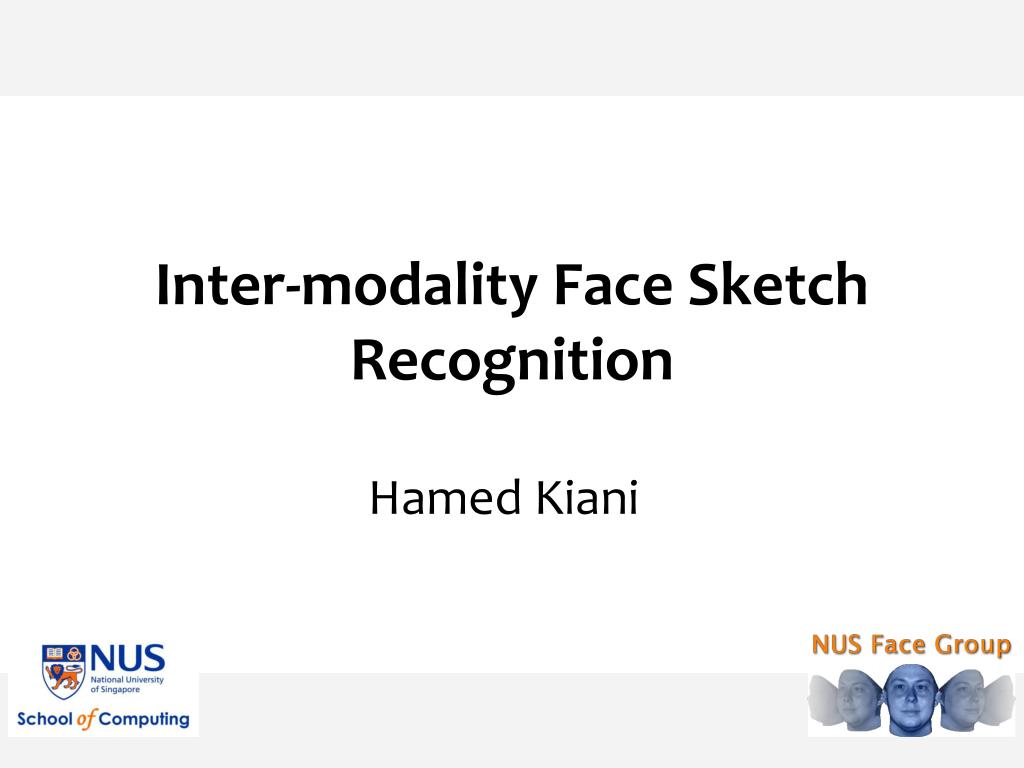

  1. Inter-modality Face Sketch Recognition HamedKiani

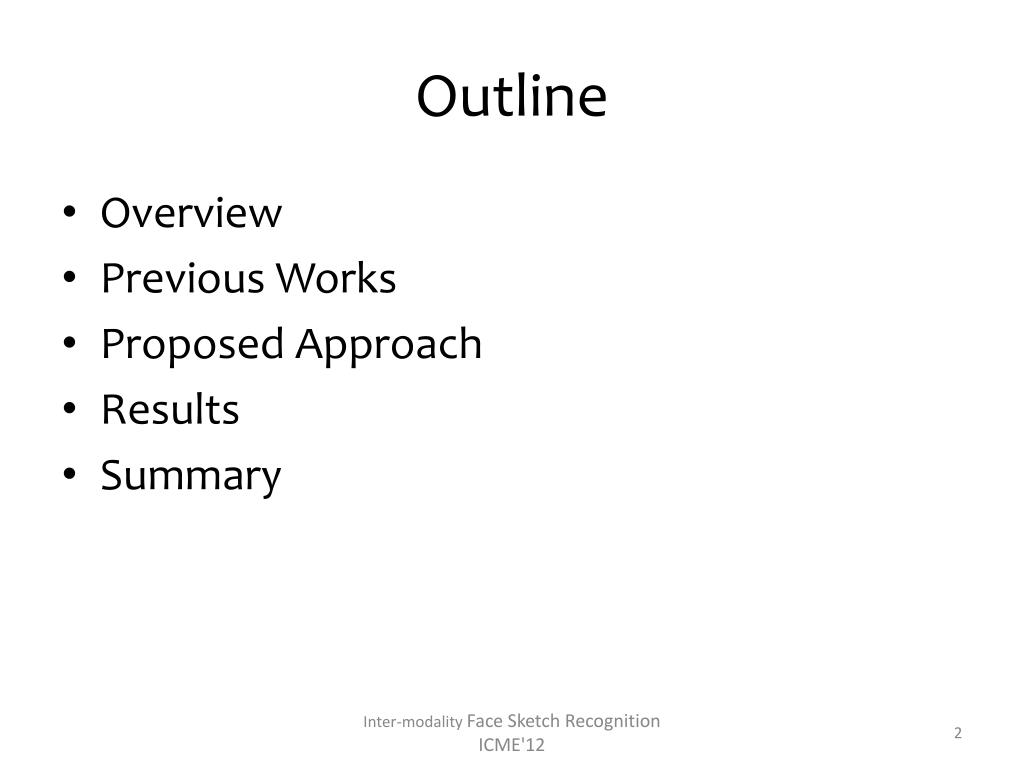

  2. Outline • Overview • Previous Works • Proposed Approach • Results • Summary Inter-modality Face Sketch Recognition ICME'12

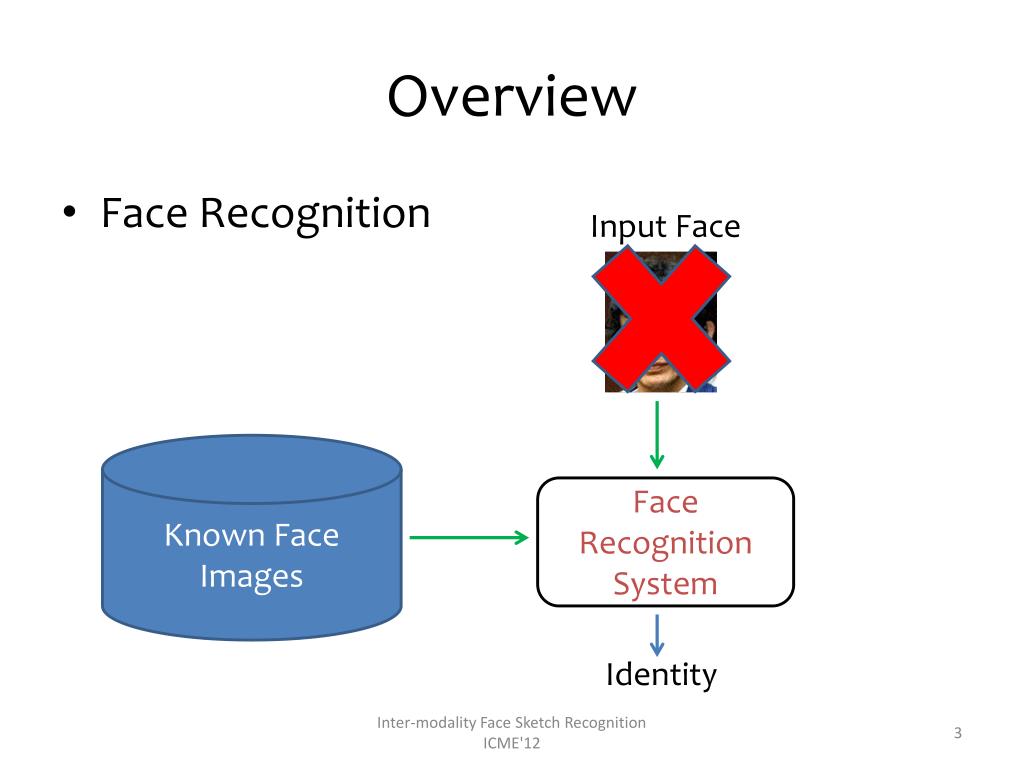

  3. Overview • Face Recognition Input Face Known Face Images Face Recognition System Identity Inter-modality Face Sketch Recognition ICME'12

  4. Overview • Face sketch recognition Verbal description Viewing Drawing Police artist Sketch Eyewitness Known Face Photos (Mug shot) Photo-Sketch Matching Suspect’s identity Inter-modality Face Sketch Recognition ICME'12

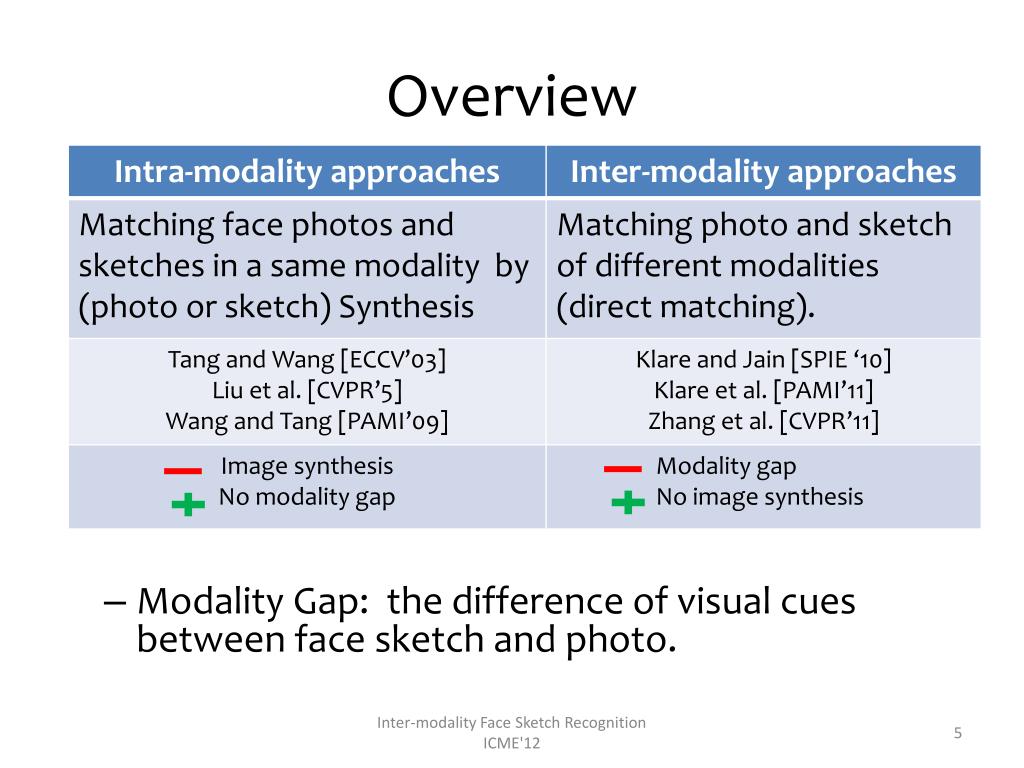

  5. Overview • Modality Gap: the difference of visual cues between face sketch and photo. Inter-modality Face Sketch Recognition ICME'12

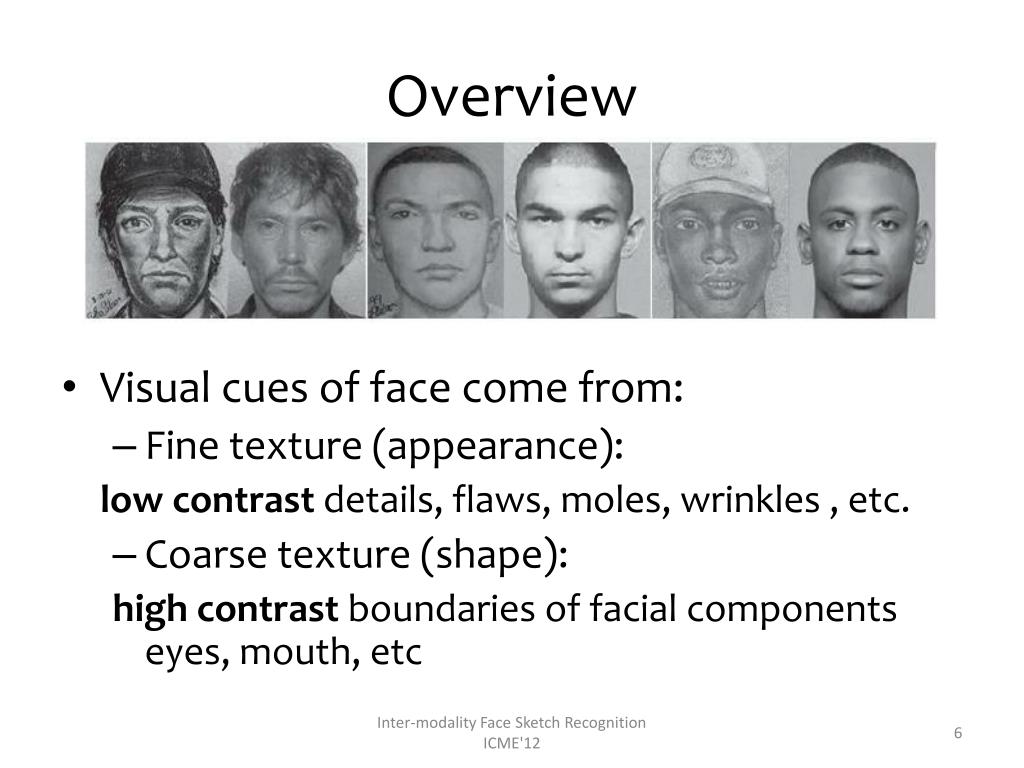

  6. Overview • Visual cues of face come from: • Fine texture (appearance): low contrast details, flaws, moles, wrinkles , etc. • Coarse texture (shape): high contrast boundaries of facial components eyes, mouth, etc Inter-modality Face Sketch Recognition ICME'12

  7. Overview • Face textures and modality gap: • Fine textures of a face photo captured by camera (true pixels) • Fine texture of a sketch is rendered by artist, depending on drawing style and tools • Fine textures of face photo and sketch are not equivalent: high amount of modality gap • Coarse texture (facial component and boundaries) exists in both sketch and photo • modality gap is not affected significantly by coarse texture Inter-modality Face Sketch Recognition ICME'12

  8. Proposed Approach • Histogram of Averaged Oriented Gradients (HAOG): a modified version of Histogram of Oriented Gradients (HOG) • HOG for sketch recognition: Modeling local appearance and shape Based on fineand coarse textures. “Fine texture leads to a high amount of modality gap” Inter-modality Face Sketch Recognition ICME'12

  9. Proposed Approach • Idea of HAOG: Emphasizing coarse texture much more than fine texture in feature extraction. • How? By averagedgradient vector (dominant gradient) instead of pixel’s gradient vector (orientation and magnitude). Inter-modality Face Sketch Recognition ICME'12

  10. Proposed Approach • But: Local gradients cannot directly be averaged, opposite gradient vectors cancel each other • Solution: Doubling the angles of the gradient vectors before averaging: equal to squaring the length of gradient vectors [Bazen and Grez, 2002]. Inter-modality Face Sketch Recognition ICME'12

  11. Proposed Approach • Thus, we define squared gradient vectors Inter-modality Face Sketch Recognition ICME'12

  12. Proposed Approach • HAOG x-gradient y-gradient Inter-modality Face Sketch Recognition ICME'12

  13. Proposed Approach • HAOG HAOG Inter-modality Face Sketch Recognition ICME'12

  14. Proposed Approach • Given a query sketch and a gallery of face photos , face sketch recognition is done by: : HAOG descriptor , :chi-square Inter-modality Face Sketch Recognition ICME'12

  15. Proposed Approach Figure 1. (a1) Face photo, (a2) Face sketch, (b1,b2) Gradient magnitudes of (a1,a2), Squared gradient magnitudes of (a1,a2). Inter-modality Face Sketch Recognition ICME'12

  16. Proposed Approach Figure 2. Face sketch (top), photo (bottom), (b,c,d) local patches (first row), HAOG descriptors (second row) and HOG descriptors (third row). Inter-modality Face Sketch Recognition ICME'12

  17. Results • Results on CUHK dataset with 606 pairs of face photo/sketch Inter-modality Face Sketch Recognition ICME'12

  18. Summary • Face sketch recognition vs. face recognition • Modality gap • HOG vs. HAOG • Future work Inter-modality Face Sketch Recognition ICME'12

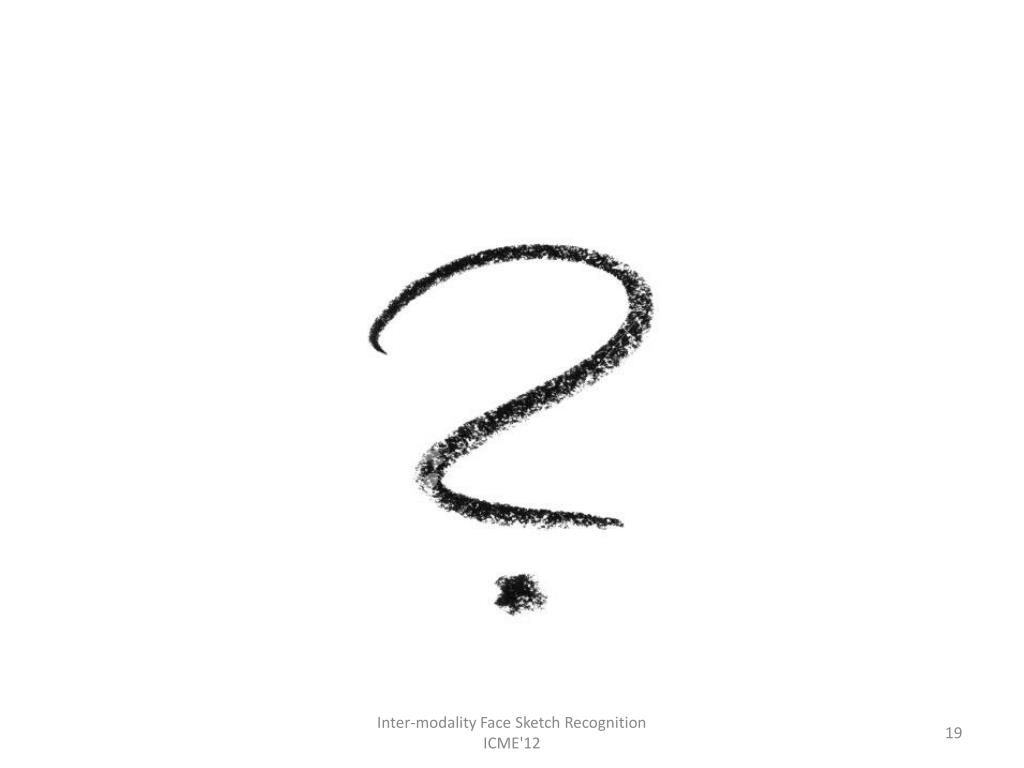

  19. Inter-modality Face Sketch Recognition ICME'12
