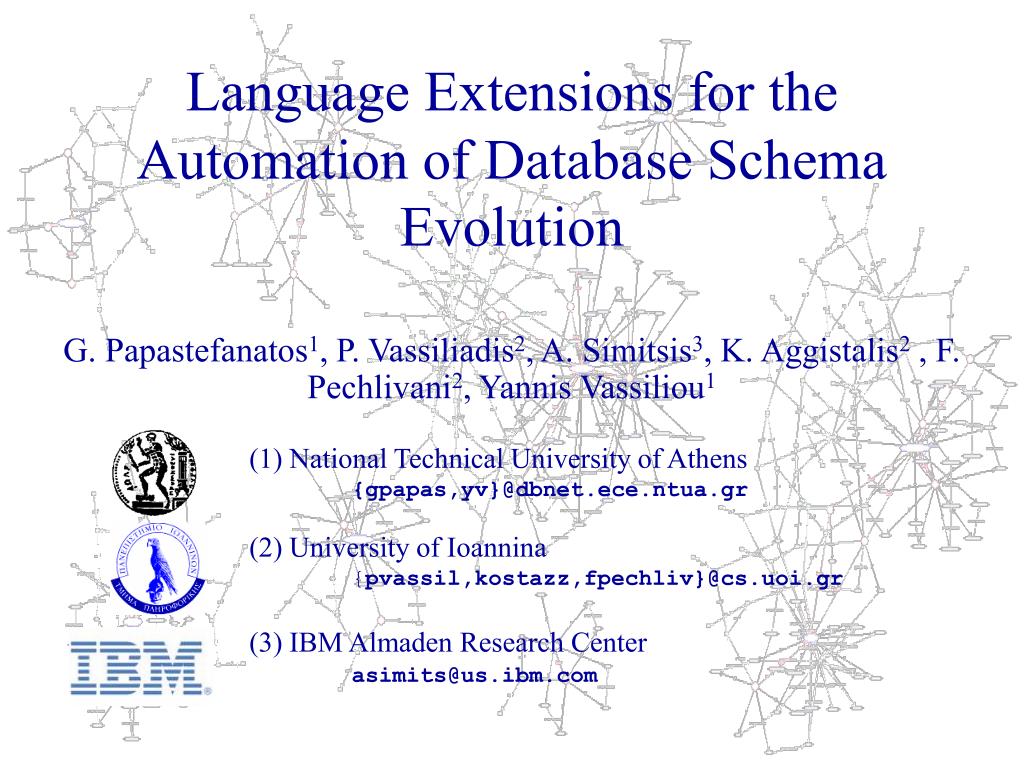

Language Extensions for the Automation of Database Schema Evolution. G. Papastefanatos 1 , P. Vassiliadis 2 , A. Simitsis 3 , K. Aggistalis 2 , F. Pechlivani 2 , Yannis Vassiliou 1 (1) National Technical University of Athens {gpapas,yv}@dbnet . ece . ntua . gr (2) University of Ioannina

emile
Télécharger la présentation

Language Extensions for the Automation of Database Schema Evolution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Language Extensions for the Automation of Database Schema Evolution G. Papastefanatos1, P. Vassiliadis2, A. Simitsis3, K. Aggistalis2 , F. Pechlivani2, Yannis Vassiliou1 (1) National Technical University of Athens {gpapas,yv}@dbnet.ece.ntua.gr (2) University of Ioannina {pvassil,kostazz,fpechliv}@cs.uoi.gr (3) IBM Almaden Research Center asimits@us.ibm.com

  2. Outline • Motivation • Graph-based modeling • A language for policy annotation • Evaluation • Conclusions ICEIS'08, Barcelona, June 2008

  3. Outline • Motivation • Graph-based modeling • A language for policy annotation • Evaluation • Conclusions ICEIS'08, Barcelona, June 2008

  4. Act3 Act4 Act2 Act5 Act1 Data Warehouse Environment WWW ICEIS'08, Barcelona, June 2008

  5. Act3 Act4 Act2 Act5 Act1 Motivation WWW ICEIS'08, Barcelona, June 2008

  6. Database Schema Evolution • Current database systems are continuously evolving environments, where design constructs are • Added • Removed • Modified • Evolution is not handled by current DBMS with an automatic way • Syntactic as well as semantic adaptation of queries and views is a time-consuming task, treated in most of the cases manually • Evolution-driven database design is missing ICEIS'08, Barcelona, June 2008

  7. Evolution Effects • SW artifacts around the DBMS are affected: • Syntactically – i.e., become invalid • Semantically – i.e., query must conform to the new source database semantics • Adaptation of activities, queries and views • time-consuming task • treated in most of the cases manually by the administrators/developers ICEIS'08, Barcelona, June 2008

  8. We would like to know… • What part of the process is affected and how if e.g., an attribute is deleted? • Can we predict the impact of changes? • To what extent can readjustment be automated? • Can we perform what-if analysis for potential changes of source configurations? ICEIS'08, Barcelona, June 2008

  9. Outline • Motivation • Graph-based modeling • A language for policy annotation • Evaluation • Conclusions ICEIS'08, Barcelona, June 2008

  10. Evolving databases Evolving applications Queries Database Schema Graph-based modeling for uniform representation Rules for Handling Evolution Metrics for Evaluating Evolution Design Database Schema Evolution – Our approach Graph based representation of database constructs (i.e., relations, views, constraints, queries) Annotation of graph with rules for adapting queries to database schema evolution Mechanism for performing what-if analysis for potential changes of database configurations ICEIS'08, Barcelona, June 2008

  11. Graph based representation SELECT EMP.Emp#, Sum(WORKS.Hours) as T_Hours FROM EMP, WORKS WHERE EMP.Emp# = WORKS.Emp# GROUP BY EMP.Emp# ICEIS'08, Barcelona, June 2008

  12. 1 • Set of evolving database constructs: • relations • attributes • constraints 3 • Set of reaction policies: • propagate • block • prompt 2 • Set of potential evolution changes: • addition • deletion • modification Annotating the graph with adaptation rules ICEIS'08, Barcelona, June 2008

  13. Name EID Name EID Query Adaptation - Example Q: SELECT EID, Name FROM EMP Q: SELECT EID, Name, Phone FROM EMP Annotated Query Graph Transformed Query Graph Event ON attribute addition TO EMP THEN propagate ON attribute addition TO EMP THEN propagate Add attribute Phone to relation EMP EMP EMP map-select map-select S S … … S S EID S EID S Q Q map-select map-select S S S Name Name S map-select Phone Phone ICEIS'08, Barcelona, June 2008

  14. Contributions • Based on • a graph-based model for database constructs (relational tables, views, database constraints) and SQL queries • we present • a mechanism for the annotation of the graph’s constructs with elements that facilitate what-if analysis and predetermine the reaction to evolution events occurring in the database schema • SQL extensions that enable the implementation of our approach for evolution management • Case study ICEIS'08, Barcelona, June 2008

  15. Outline • Motivation • Graph-based modeling • A language for policy annotation • Evaluation • Conclusions ICEIS'08, Barcelona, June 2008

  16. Annotation of graph constructs with policies • {relation, query, view, attribute constraint, condition} • specific nodes ON <event> TO <element> THEN <policy> {delete update insert} {block propagate prompt} ICEIS'08, Barcelona, June 2008

  17. Global constraints ON DELETE NODE THEN PROPAGATE ON DELETE ATTRIBUTE THEN PROMPT Example: CREATE DATABASE company ON DELETE ATTRIBUTE THEN PROMPT ICEIS'08, Barcelona, June 2008

  18. Top – level constructs Examplefor relations: CREATE TABLE works(EMP# NUMBER(3), PROJ# NUMBER(3), HOURS NUMBER(5), ON Add AttributeTO works THEN propagate) This statement for relation works allows the addition of attributes and propagates this addition to all queries and views accessing this relation ICEIS'08, Barcelona, June 2008

  19. Top – level constructs Examplefor views: CREATE VIEW emps-prjs AS SELECT E.Emp#, E.Name, P.Projname FROM Emp E,Works W,Proj P WHERE E.EMP#=W.EMP# AND W.Proj#=P.Proj# ON Modify Condition TO emps-prjs THEN block This syntax blocks changes in the WHERE clause of the view definition for view emps-prjs ICEIS'08, Barcelona, June 2008

  20. Top – level constructs Examplefor queries: Q: SELECT EP.Emp#, EP.Name FROM emps-prjs EP WHERE EP.PRJNAME = ‘Olympic Games’ ON Add Attribute TO emps-prjs THEN block The above syntax blocks the inclusion of added attributes in the underlying view emps-prjs in the select clause of the query. ICEIS'08, Barcelona, June 2008

  21. Specific node annotation CREATE TABLE emp (EMP# NUMBER(3), Name Varchar2(150), ... , ON Delete Attribute TO Name THEN block) Q: SELECT E.Emp#, E.Name, P.Projname FROM Emp E,Works W,Proj P WHERE E.EMP#=W.EMP# AND W.Proj#=P.Proj# ON Delete Attribute TO Name THEN propagate ICEIS'08, Barcelona, June 2008

  22. Constraints CREATE TABLE emp (EMP# NUMBER(3), Name Varchar2(150), Constraint EMP.PK PRIMARY KEY (EMP#), ON Modify Constraint TO EMP.PK THEN propagate) ICEIS'08, Barcelona, June 2008

  23. Conditions CREATE CONDITION <condition> AS <expression> CREATE CONDITION Emp_Age_Cond AS AGE>50 CREATE CONDITION Works_Emp_FK AS WORKS.EMP# IN EMP.EMP# CREATE CONDITION Works_Emp_J AS WORKS.EMP#=EMP.EMP# • Then, a query SELECT * FROM EMP WHERE AGE_COND would simply use the condition as a macro. • Parametric conditions, to allow referring to aliases in SQL queries are straightforward. • Reverse eng. of existing code: automatic condition names can be assigned to all the queries. ICEIS'08, Barcelona, June 2008

  24. Outline • Motivation • Graph-based modeling • A language for policy annotation • Evaluation • Conclusions ICEIS'08, Barcelona, June 2008

  25. Testbed • A data mart of an agency for the Greek public sector • 6 months of monitoring • 52 “queries” (in reports, scripts) over 18 relations • When converted to our graph structure: 2500 nodes ICEIS'08, Barcelona, June 2008

  26. Distribution of policies over the annotated nodes ICEIS'08, Barcelona, June 2008

  27. Global policy and individual annotations ICEIS'08, Barcelona, June 2008

  28. Outline • Motivation • Graph-based modeling • A language for policy annotation • Evaluation • Conclusions ICEIS'08, Barcelona, June 2008

  29. Conclusions • Coherent framework for propagating potential changes of the database to all the software artifacts around the database based on a model-policy-event scheme • Extension to the SQL language specifically tailored for the management of evolution. • Limited overhead imposed on both the system and the humans, who design and maintain it. • Tested in a real-world scenario of the Greek public sector. ICEIS'08, Barcelona, June 2008

  30. On-going/Future Work • Hecataeus: A tool for visualizing and performing what-if analysis for several evolution scenarios. • Patterns of evolution sequences ICEIS'08, Barcelona, June 2008

  31. Acknowledgment Information dissemination of this work was supported by the European Union in the framework of the project “Support of Computer Science Studies in the University of Ioannina” of the “Operational Program for Education and Initial Vocational Training” of the 3rd Community Support Framework of the Hellenic Ministry of Education, funded by national sources and by the European Social Fund (ESF). ICEIS'08, Barcelona, June 2008

  32. Gracias! ICEIS'08, Barcelona, June 2008 Sources: http://en.wikipedia.org/wiki/Image:Barcelona_-_planol_ciutat_vella_1860.jpg http://maps.google.com

  33. Questions? http://www.cs.uoi.gr/~pvassil/projects/architecture_graph/ ICEIS'08, Barcelona, June 2008

  34. Input: an ETL summary S over a graph Go=(Vo,Eo) and an event e Output: a graph Gn=(Vn,En) Variables: a set of events E, and an affected node A Begin dps(S, Go, Gn, {e}, A) End dps(S, Gn, Go, E,A){ I = Ins_by_policy(affected(E)) D = Del_by_policy(affected(E)) Gn = Go – DI E = E–{e}action(affected(E)) if consumer(A)nil for each consumer(A) dps(S,Gn,Go,E,consumer(A)) } Algorithm Propagate changeS (DaWaK 2007) ICEIS'08, Barcelona, June 2008

  35. Conflict resolution (DaWaK 2007) • Graph constructs may have contradictory policies for the same event Rule Policies defined on query graph structures are stronger than policies defined on view graph structures which in turn prevail on policies defined on relation graph structures ICEIS'08, Barcelona, June 2008

  36. Configuration of our setting (DaWaK 2007) 7 ETL processes 7 source tables 53 ETL activities 3 lookup tables 9 target tables ICEIS'08, Barcelona, June 2008

  37. Adapted activities per Event(DaWaK 2007) ICEIS'08, Barcelona, June 2008

  38. Related work • DB schema Evolution • Schema Versioning • DW schema Evolution • Materialized View Evolution • Evolution wrt Model Mappings ICEIS'08, Barcelona, June 2008
