  1. ANALOGUE ELECTRONICS I EKT 204 Basic FET Amplifier

  2. MOSFET AMPLIFIER Graphical Analysis, Load Lines Small-signal Parameters

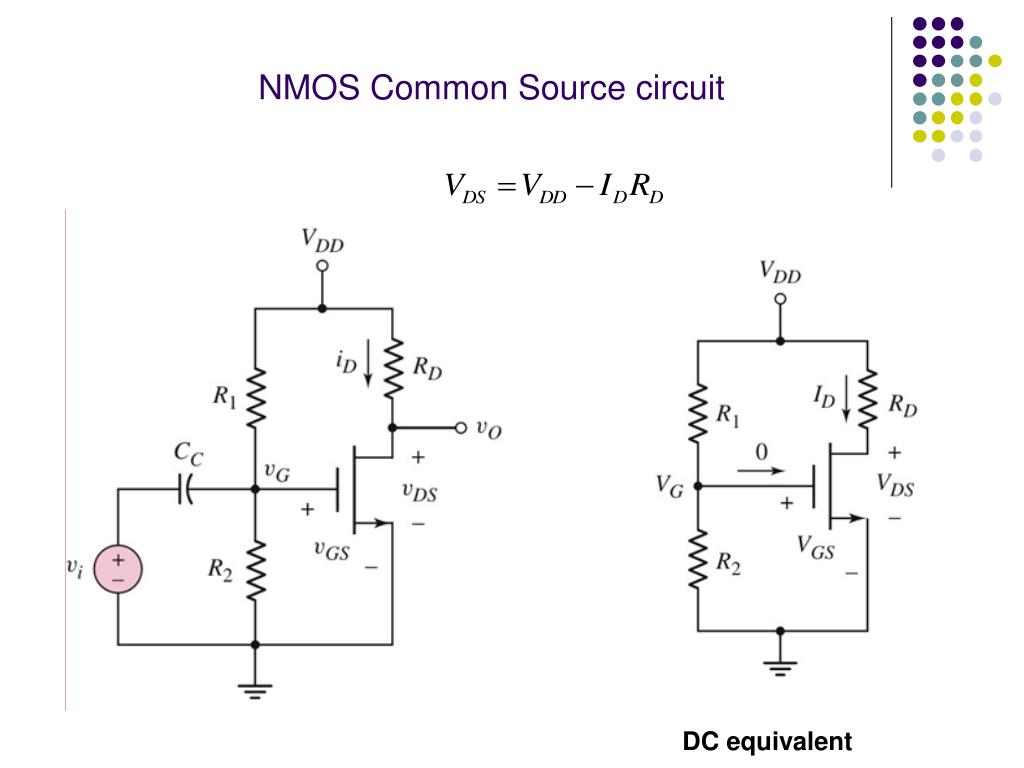

  3. NMOS Common Source circuit DC equivalent

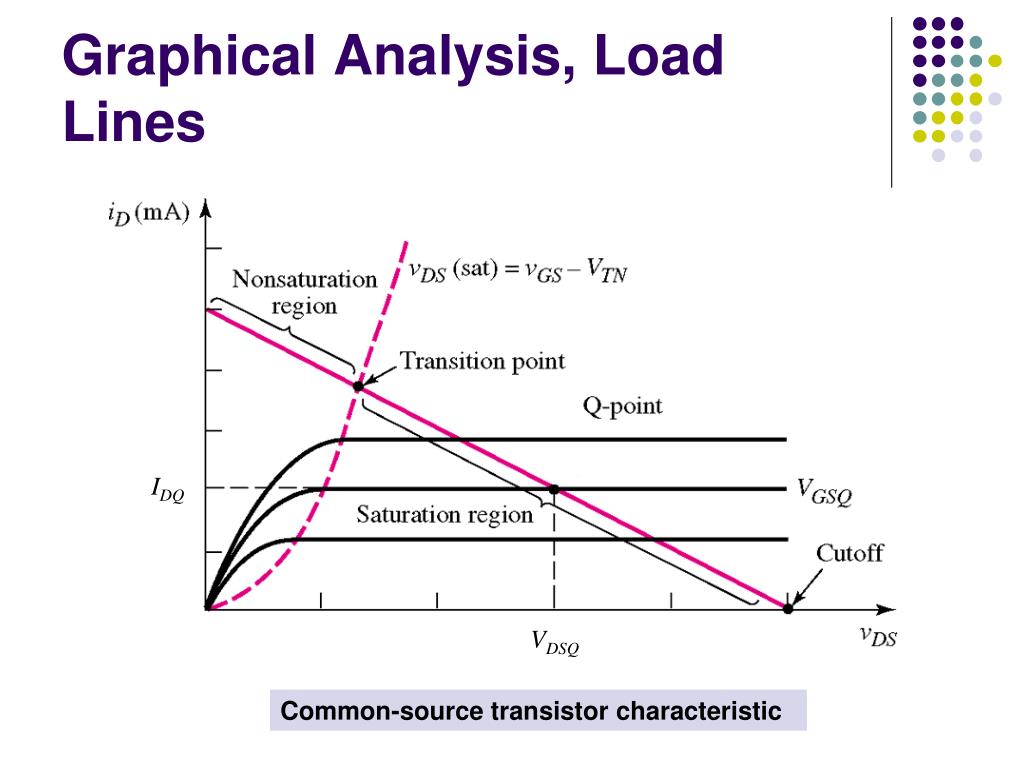

  4. Graphical Analysis, Load Lines IDQ VDSQ Common-source transistor characteristic

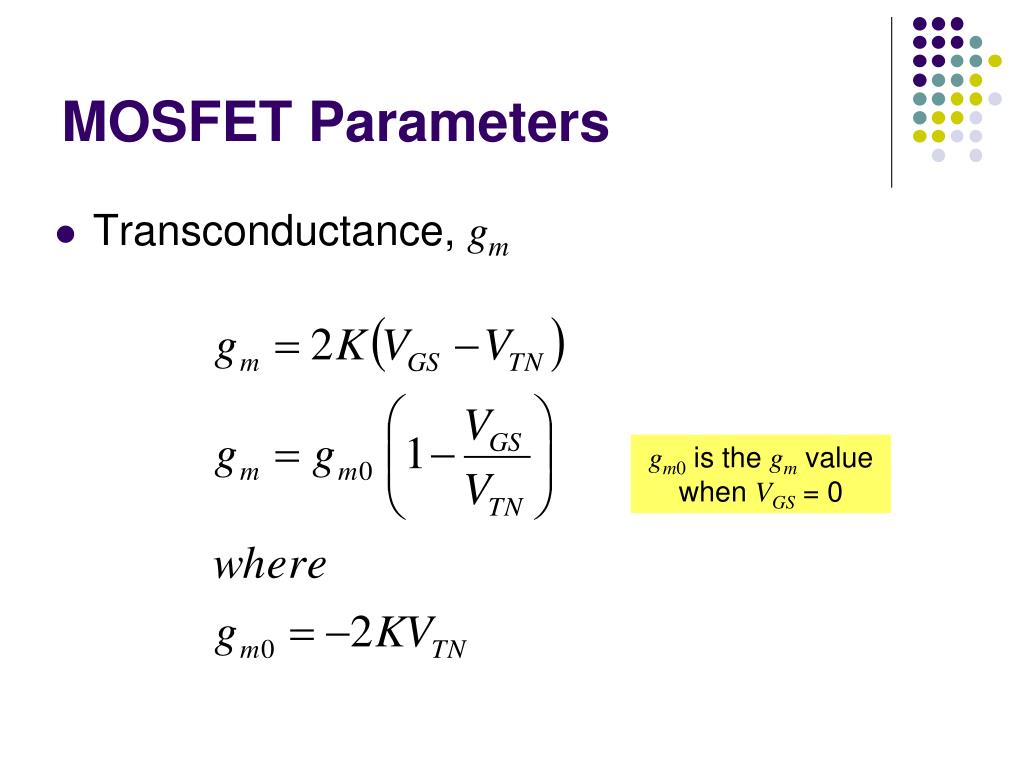

  5. MOSFET Parameters • Transconductance, gm gm0 is the gm value when VGS = 0

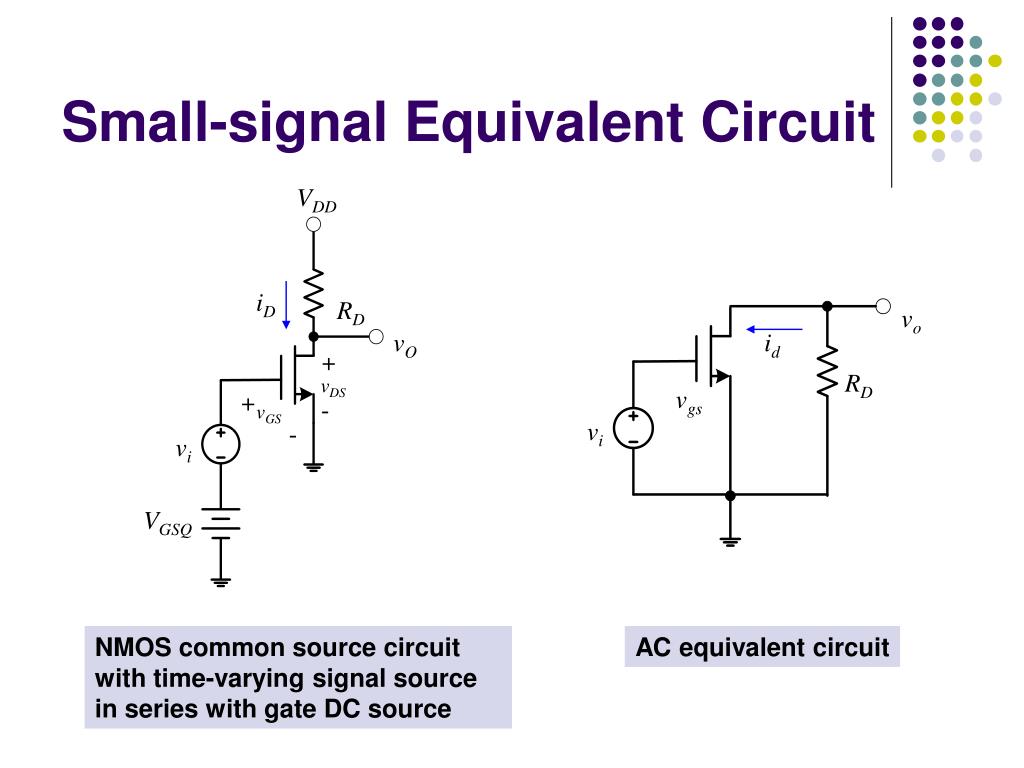

  6. VDD vo id iD RD RD vO vgs + vi vDS + vGS - - vi VGSQ Small-signal Equivalent Circuit NMOS common source circuit with time-varying signal source in series with gate DC source AC equivalent circuit

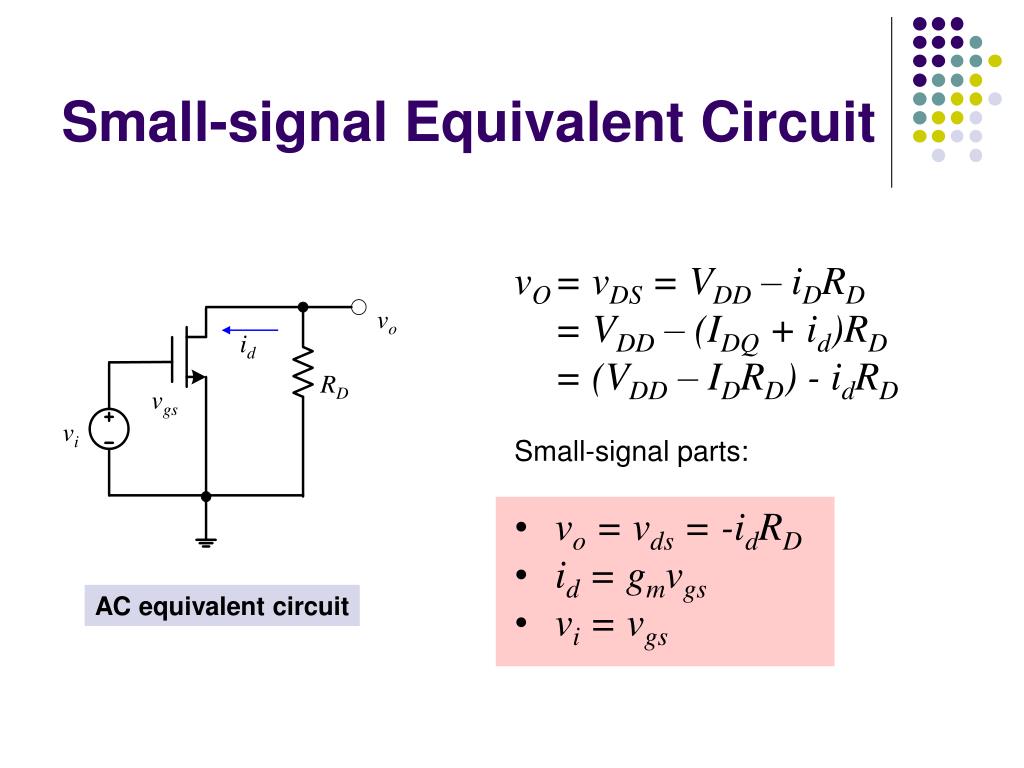

  7. vo id RD vgs vi Small-signal Equivalent Circuit • vO = vDS = VDD – iDRD • = VDD – (IDQ + id)RD • = (VDD – IDRD) - idRD • Small-signal parts: • vo = vds = -idRD • id = gmvgs • vi = vgs AC equivalent circuit

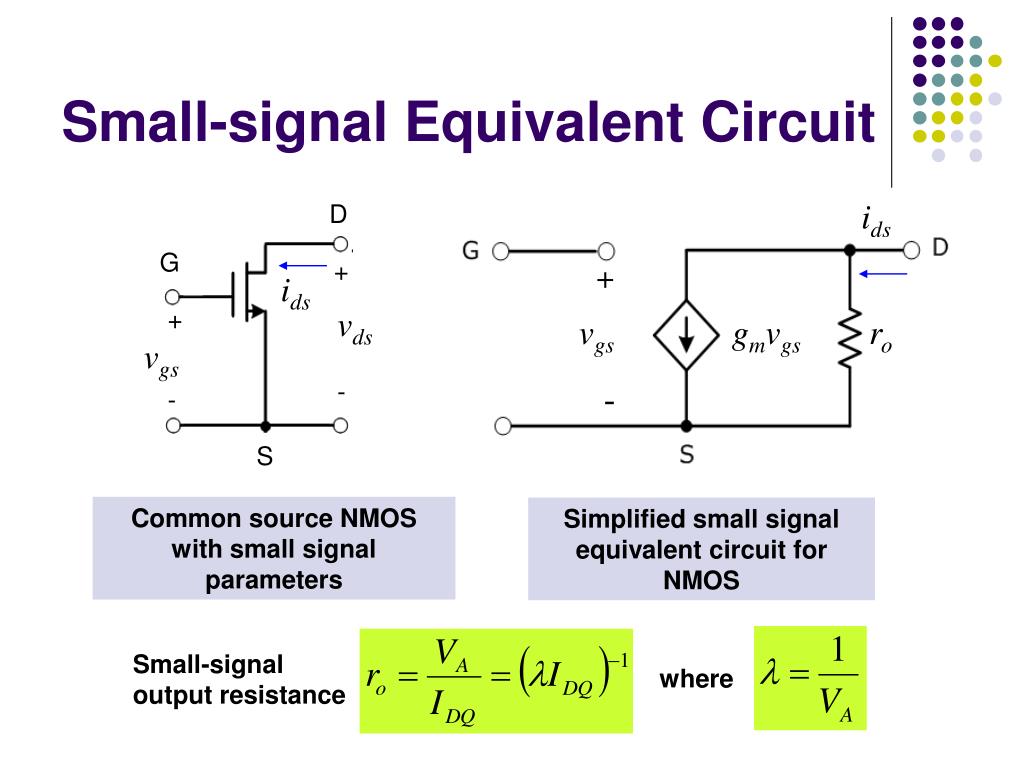

  8. ids D + G + ids vgs gmvgs ro + vds vgs - - - S Small-signal Equivalent Circuit Common source NMOS with small signal parameters Simplified small signal equivalent circuit for NMOS Small-signal output resistance where

  9. VDD VDD ID RD RD R1 R1 iD vO 0 + CC vG VG VDS - + VGS R2 - vi R2 DC Analysis – Saturation Region Voltage-divider circuit for MOSFET DC equivalent circuit

  10. VDD ID RD R1 0 + VG VDS - + VGS R2 - DC Analysis– Saturation Region DC equivalent circuit

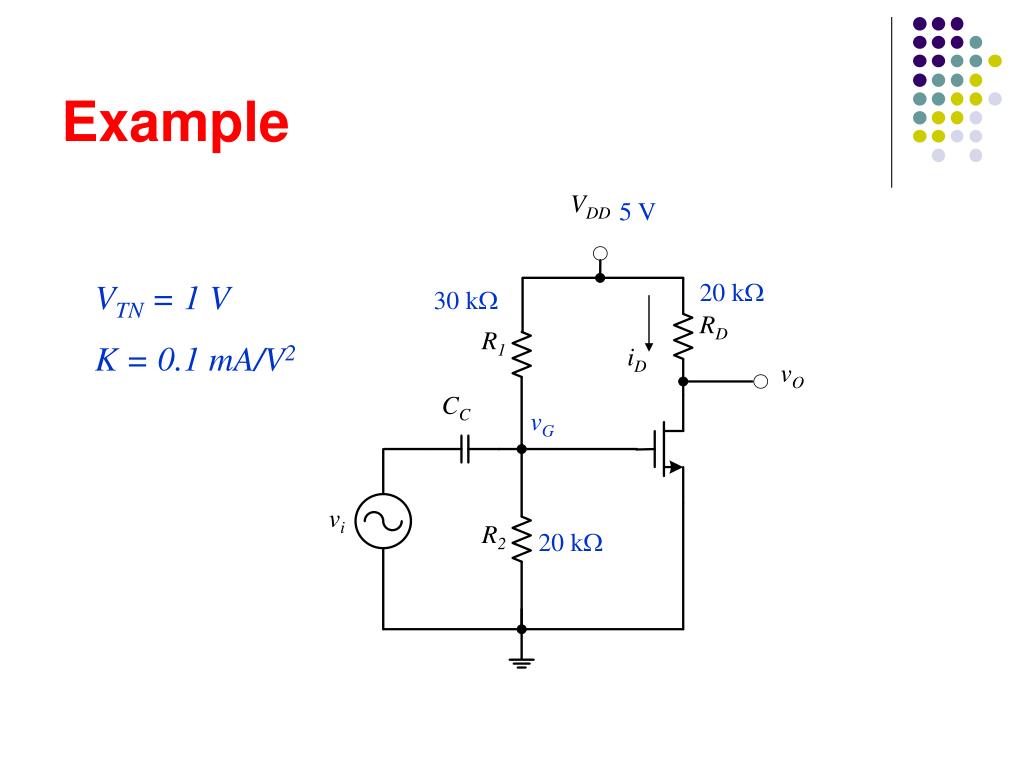

  11. VDD 5 V 20 k 30 k RD R1 iD vO CC vG vi R2 20 k Example VTN = 1 V K = 0.1 mA/V2

  12. VDD RD R1 ID + 0 VG VDS + - VGS R2 - DC equivalent circuit The transistor is biased in the saturation region because VDS > VDS(sat) ; since VDS(sat)= VGS – VTN = 2 – 1 = 1 V

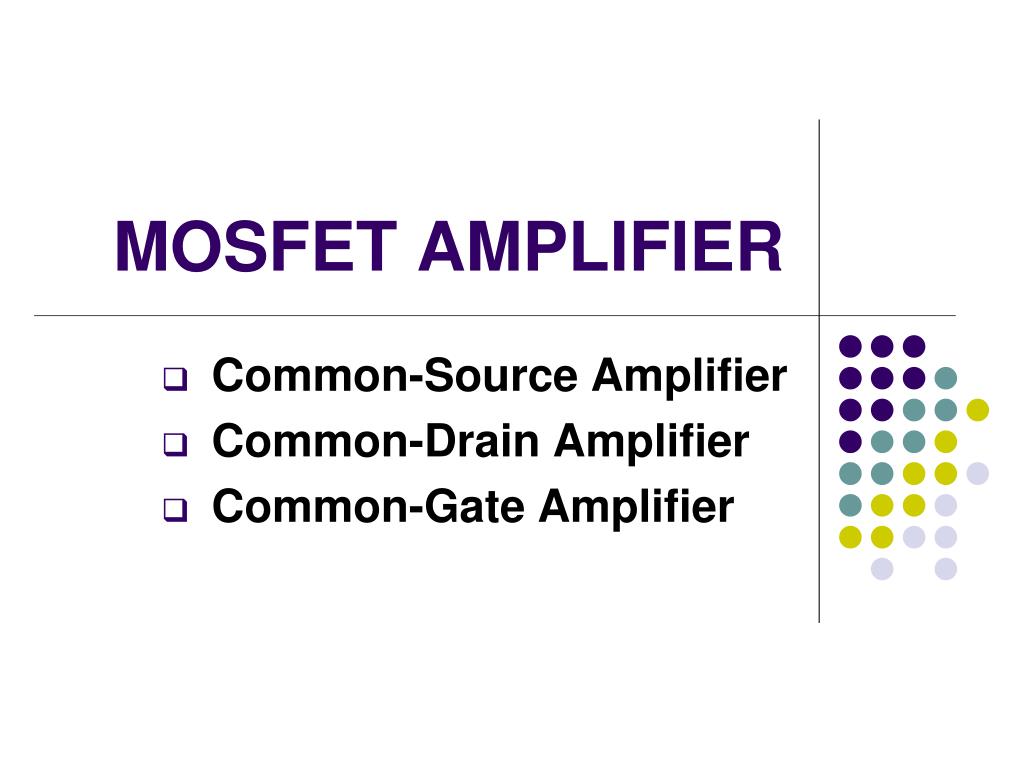

  13. MOSFET AMPLIFIER Common-Source Amplifier Common-Drain Amplifier Common-Gate Amplifier

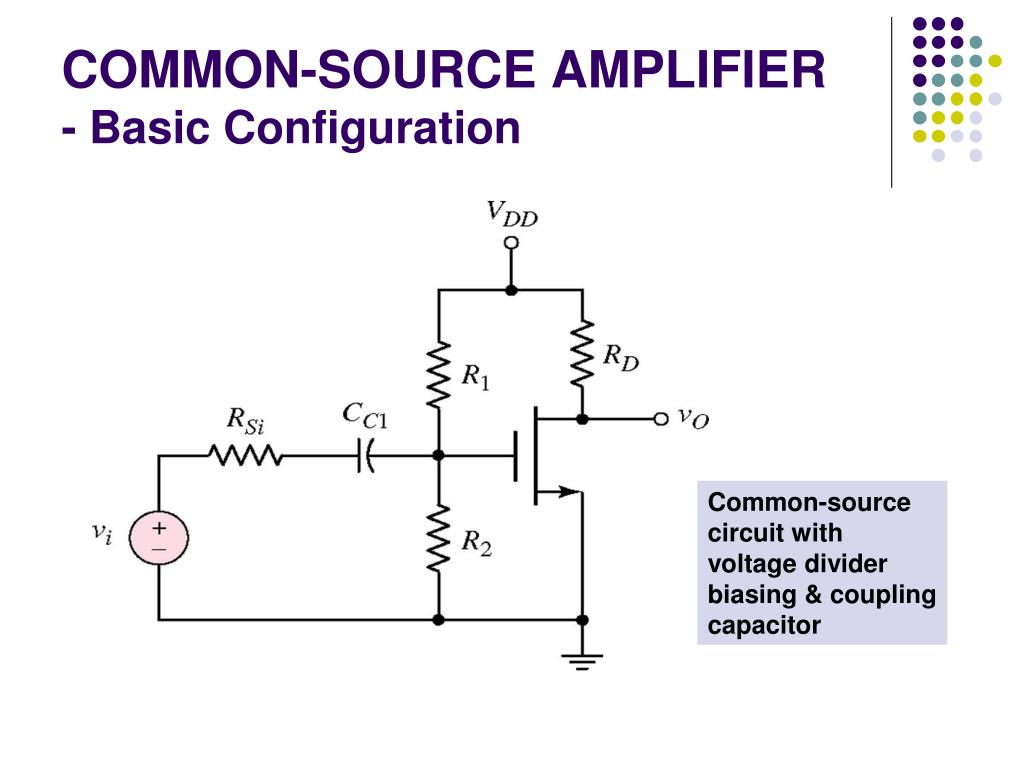

  14. COMMON-SOURCE AMPLIFIER- Basic Configuration Common-source circuit with voltage divider biasing & coupling capacitor

  15. Small-signal equivalent circuit input resistance input voltage output voltage small-signal voltage gain

  16. iD Transition point Q-point IDQ vDS VDSQ VDD DC Load Line DC load line & transition point

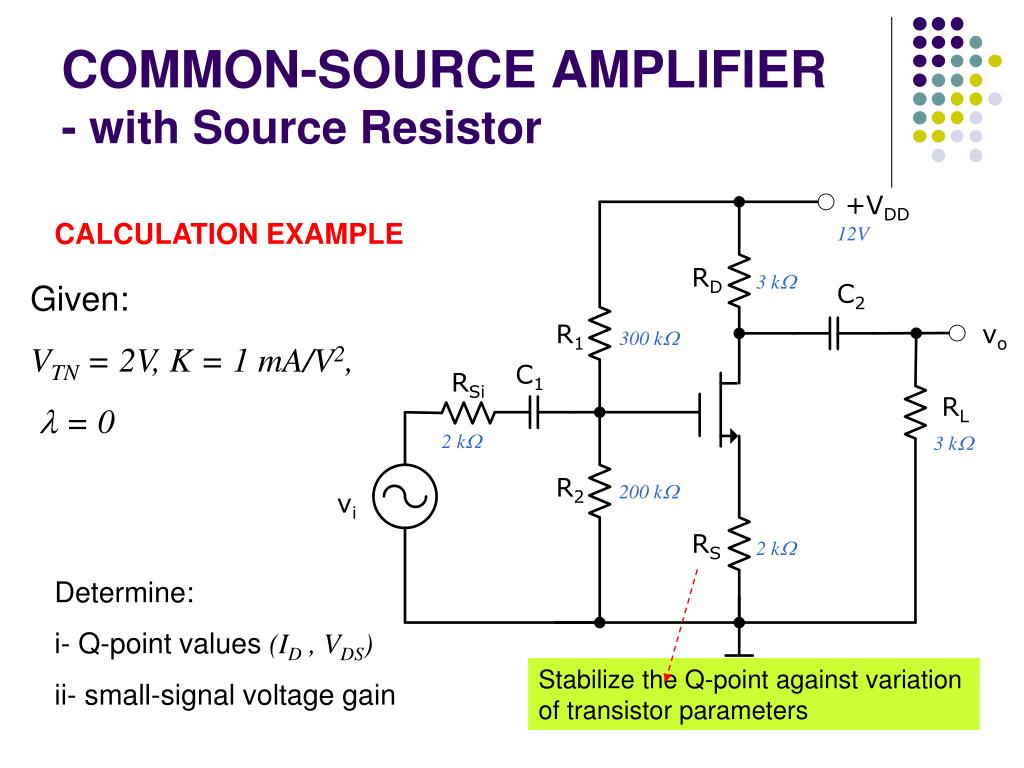

  17. +VDD 12V RD 3 k C2 R1 vo 300 k C1 RSi RL 2 k 3 k R2 200 k vi RS 2 k COMMON-SOURCE AMPLIFIER - with Source Resistor CALCULATION EXAMPLE Given: VTN = 2V, K = 1 mA/V2,  = 0 Determine: i- Q-point values (ID , VDS) ii- small-signal voltage gain Stabilize the Q-point against variation of transistor parameters

  18. VDD=12V RD=3 k R1=300 k VG R2=200 k RS=2 k Q-point values dc equivalent circuit

  19. Q-point values (Cont) For VGS = 0.54 V, MOSFET  cutoff ‘coz VGS<VTN . Therefore, VGS = 2.96V So, the Q point values:

  20. RSi Vo + Vi R1||R2 RD||RL Vgs gmVgs _ RS Small-signal analysis

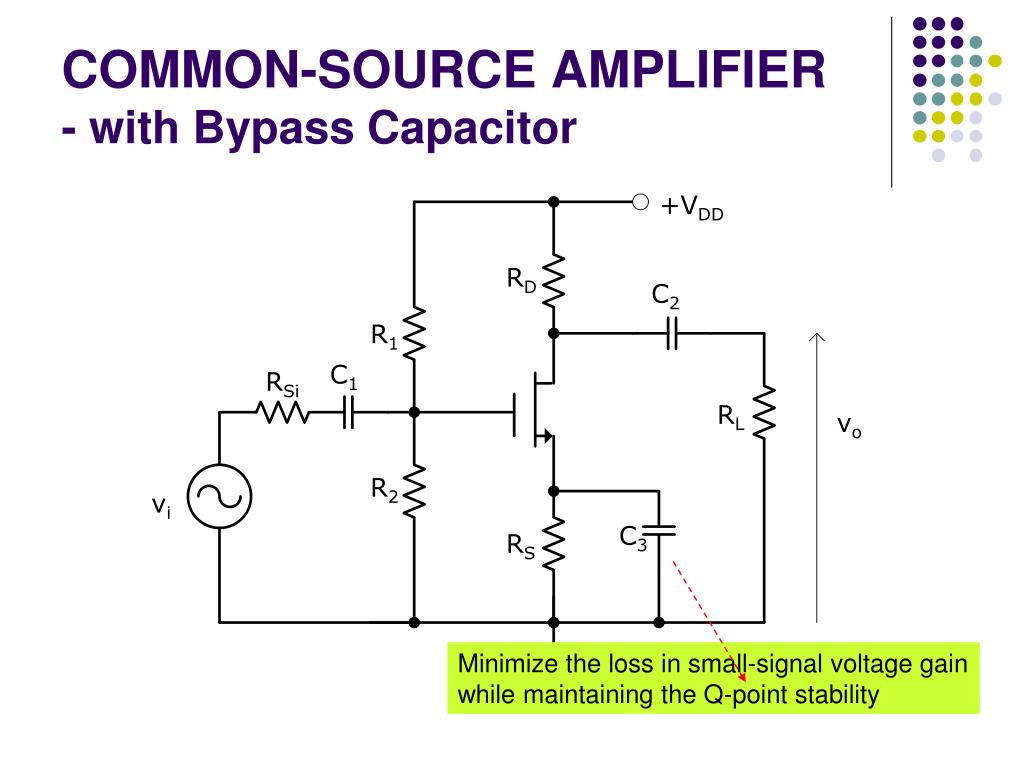

  21. +VDD RD C2 R1 C1 RSi RL vo R2 vi C3 RS COMMON-SOURCE AMPLIFIER - with Bypass Capacitor Minimize the loss in small-signal voltage gain while maintaining the Q-point stability

  22. RSi Vo + Vi R1||R2 Vgs ro RD||RL gmVgs _ Ri Small signal equivalent circuit

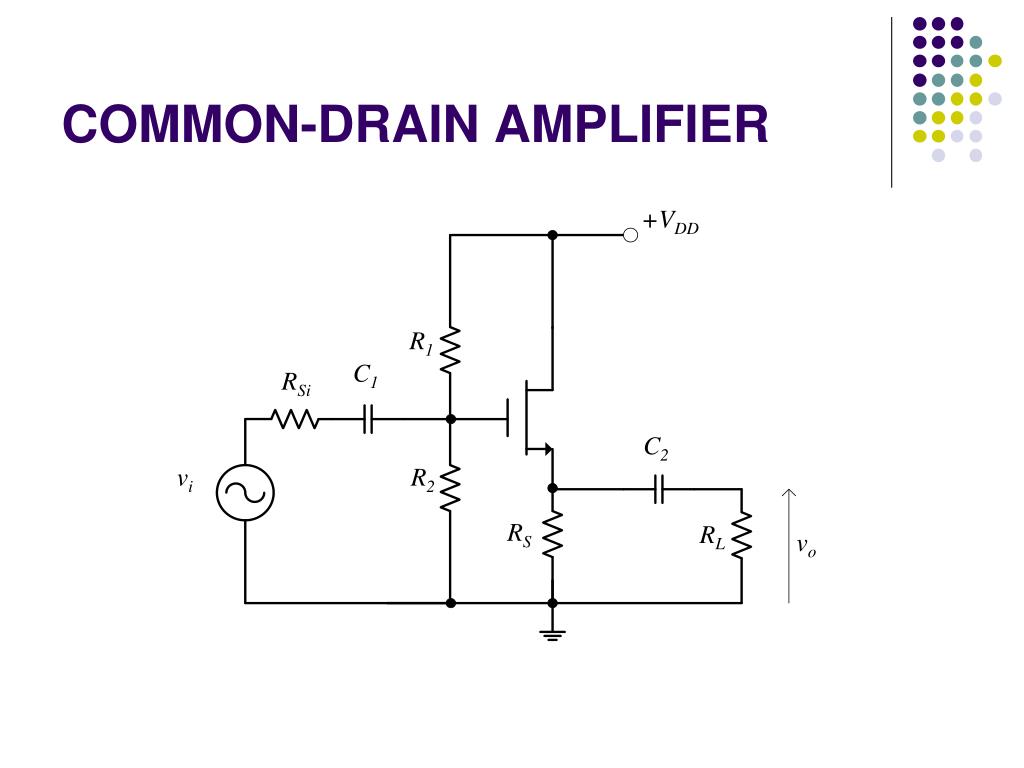

  23. +VDD R1 C1 RSi C2 vi R2 RS RL vo COMMON-DRAIN AMPLIFIER

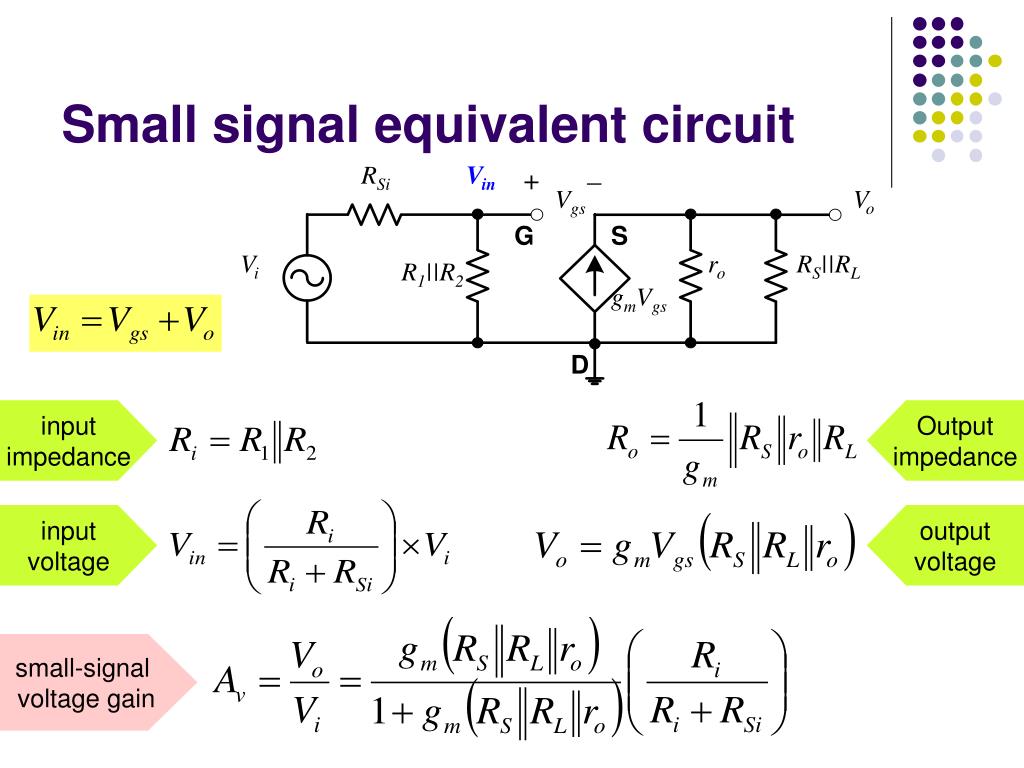

  24. RSi Vin _ + Vgs Vo G S Vi ro RS||RL R1||R2 gmVgs D Small signal equivalent circuit input impedance Output impedance input voltage output voltage small-signal voltage gain

  25. V+ RD RSi C1 C2 IQ vi RL vo RG C3 V - COMMON-GATE AMPLIFIER

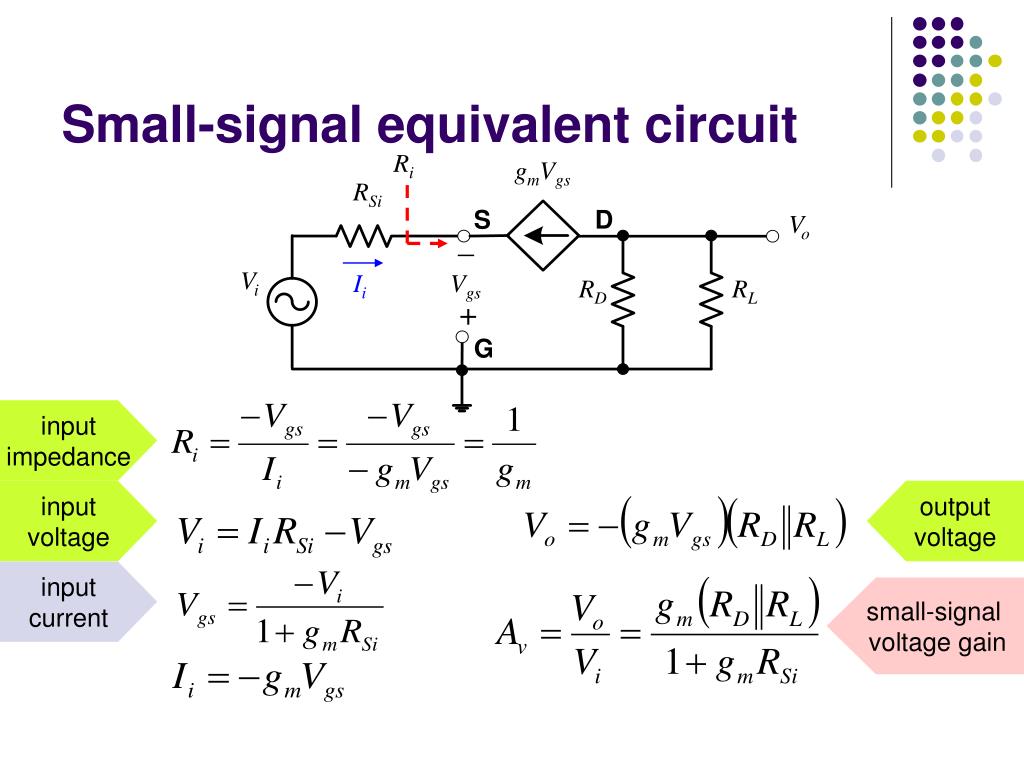

  26. Ri gmVgs RSi S D Vo _ Vi Ii Vgs RD RL + G Small-signal equivalent circuit input impedance input voltage output voltage input current small-signal voltage gain

  27. JFET AMPLIFIER JFET Parameters DC Analysis Common-Source Amplifier Common-Drain Amplifier

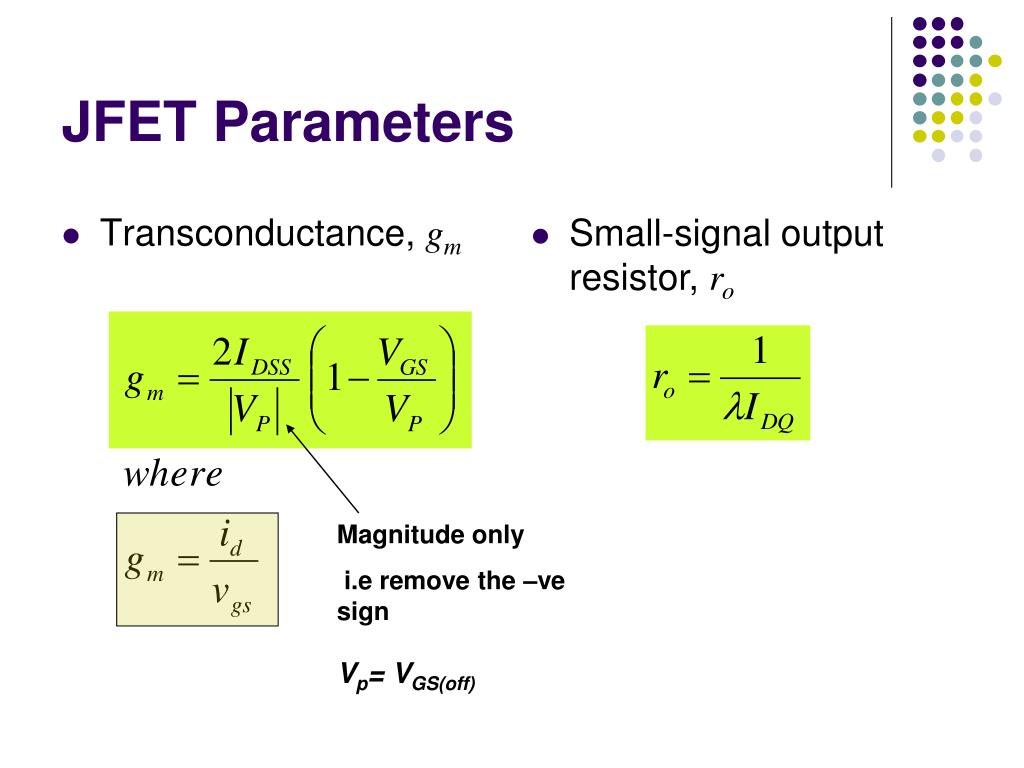

  28. Transconductance, gm JFET Parameters • Small-signal output resistor, ro Magnitude only i.e remove the –ve sign Vp= VGS(off)

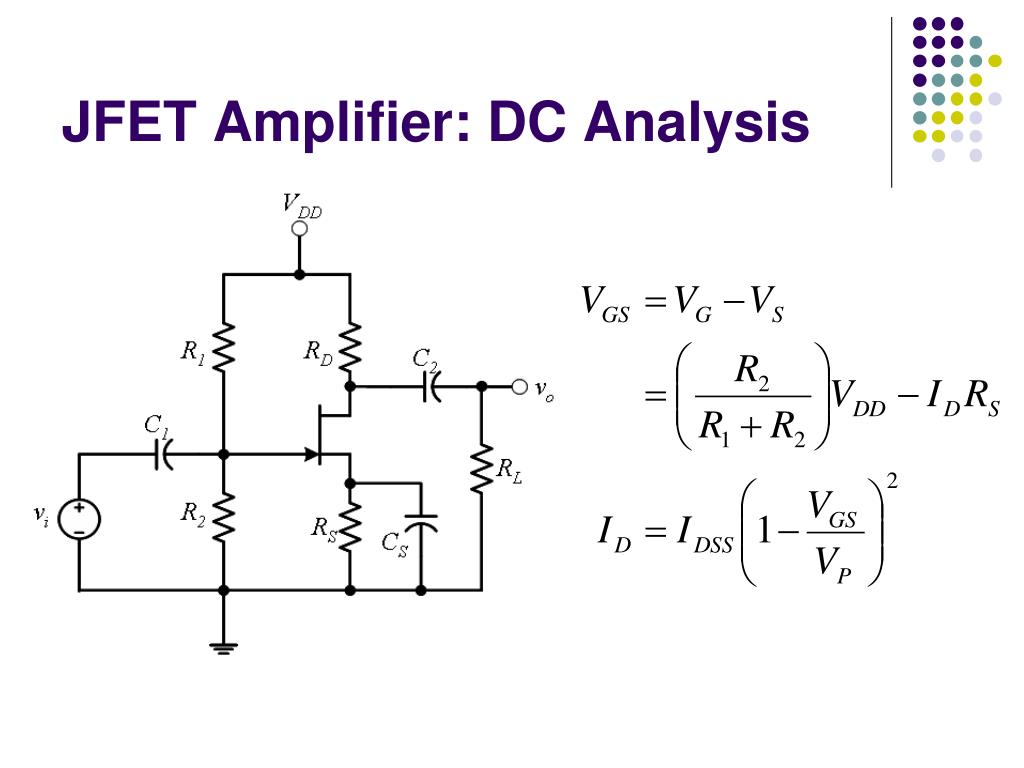

  29. JFET Amplifier: DC Analysis

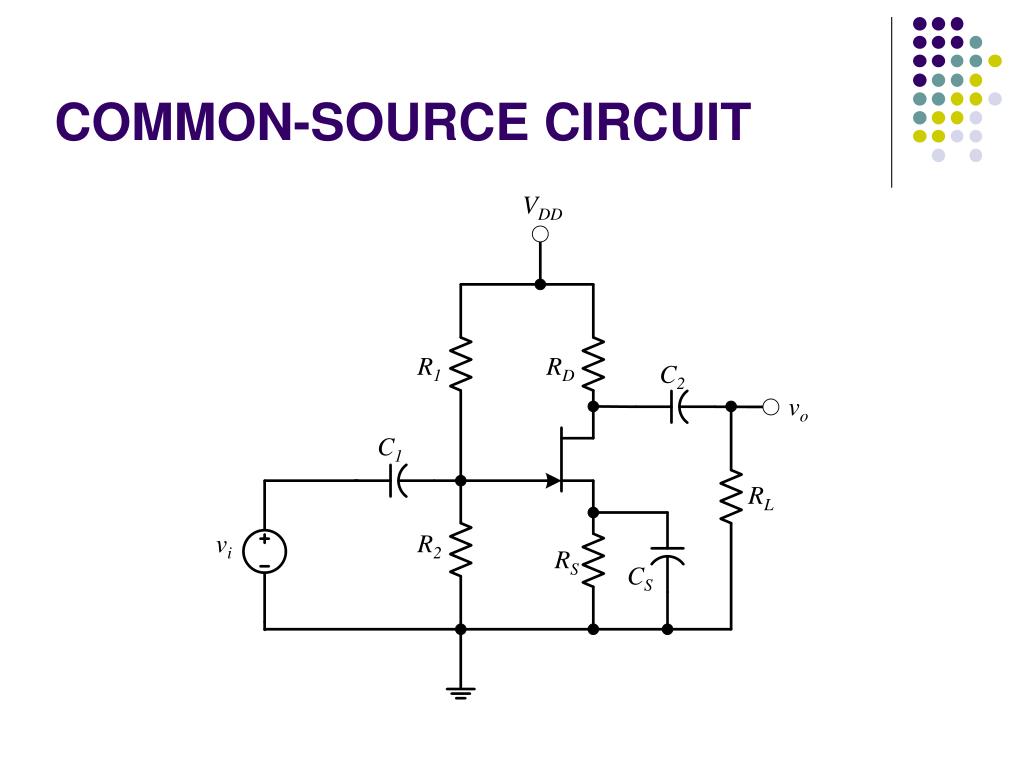

  30. VDD R1 RD C2 vo C1 RL vi R2 RS CS COMMON-SOURCE CIRCUIT

  31. Vo + R1||R2 Vi Vgs ro RD||RL gmVgs - Small-signal equivalent circuit output voltage input voltage small-signal voltage gain

  32. V+ C1 C2 vo vi RG RS RL V- COMMON-DRAIN CIRCUIT

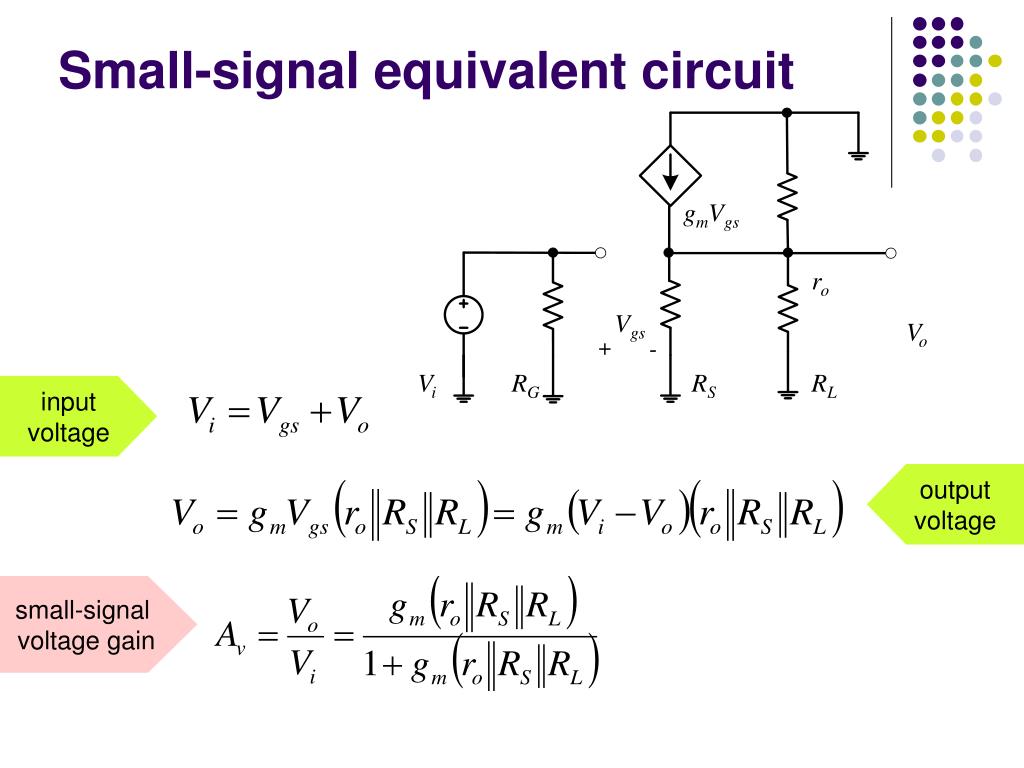

  33. gmVgs ro Vgs Vo - + Vi RG RS RL Small-signal equivalent circuit input voltage output voltage small-signal voltage gain

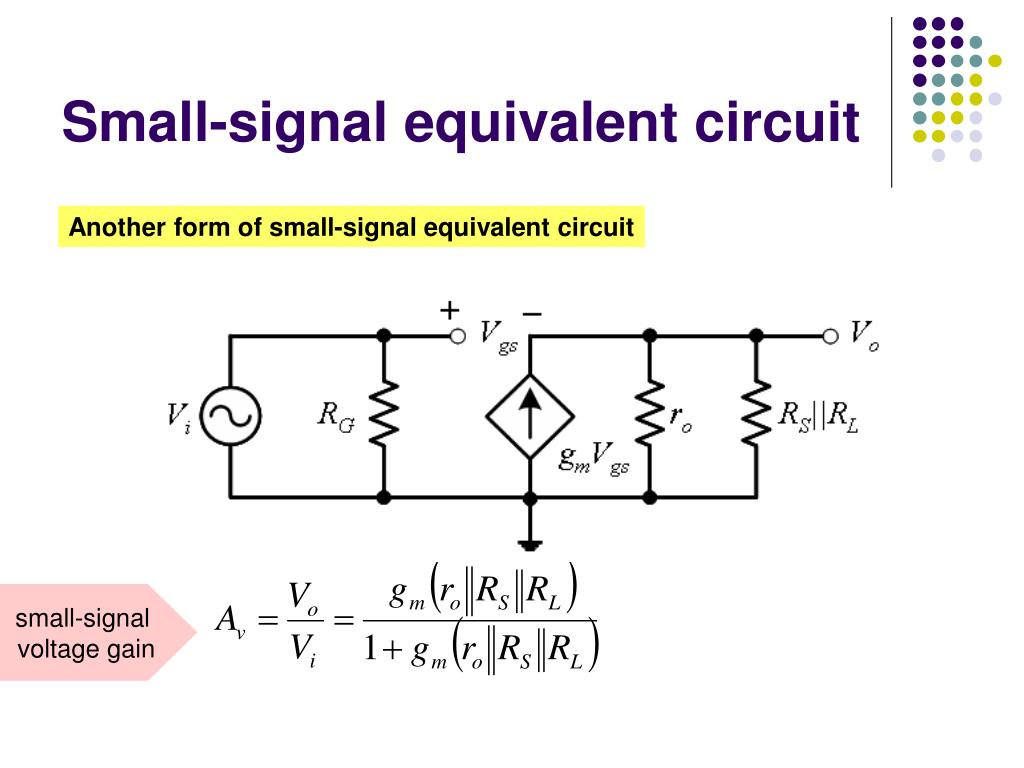

  34. Small-signal equivalent circuit Another form of small-signal equivalent circuit small-signal voltage gain
