Physics 211 – lecture 28: Sound Waves

Sound Spectrum – three classes of sound waves. infrasonic audible ultrasonic. increasing f decreasing . 20Hz 20kHz. Physics 211 – lecture 28: Sound Waves. Sound Waves - mechanical longitudinal waves

emory
Télécharger la présentation

Physics 211 – lecture 28: Sound Waves

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

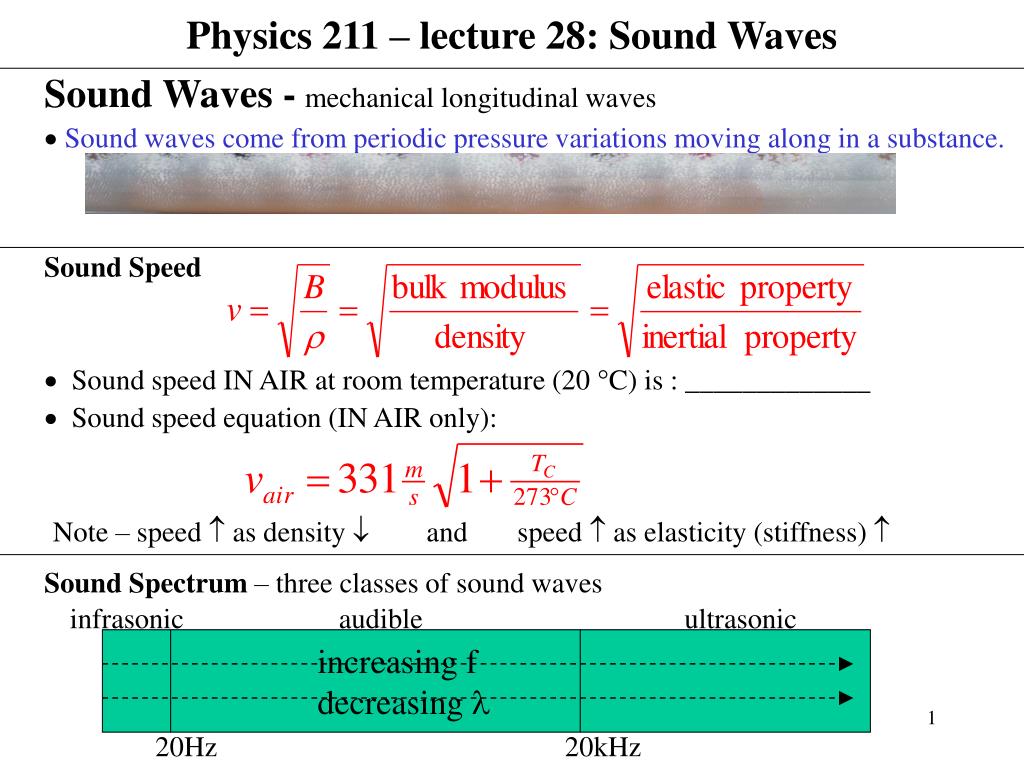

  1. Sound Spectrum – three classes of sound waves infrasonic audible ultrasonic increasing f decreasing  20Hz 20kHz Physics 211 – lecture 28: Sound Waves Sound Waves -mechanical longitudinal waves ·Sound waves come from periodic pressure variations moving along in a substance. Sound Speed ·  Sound speed IN AIR at room temperature (20 C) is : _____________ ·  Sound speed equation (IN AIR only): Note – speed  as density  and speed  as elasticity (stiffness) 

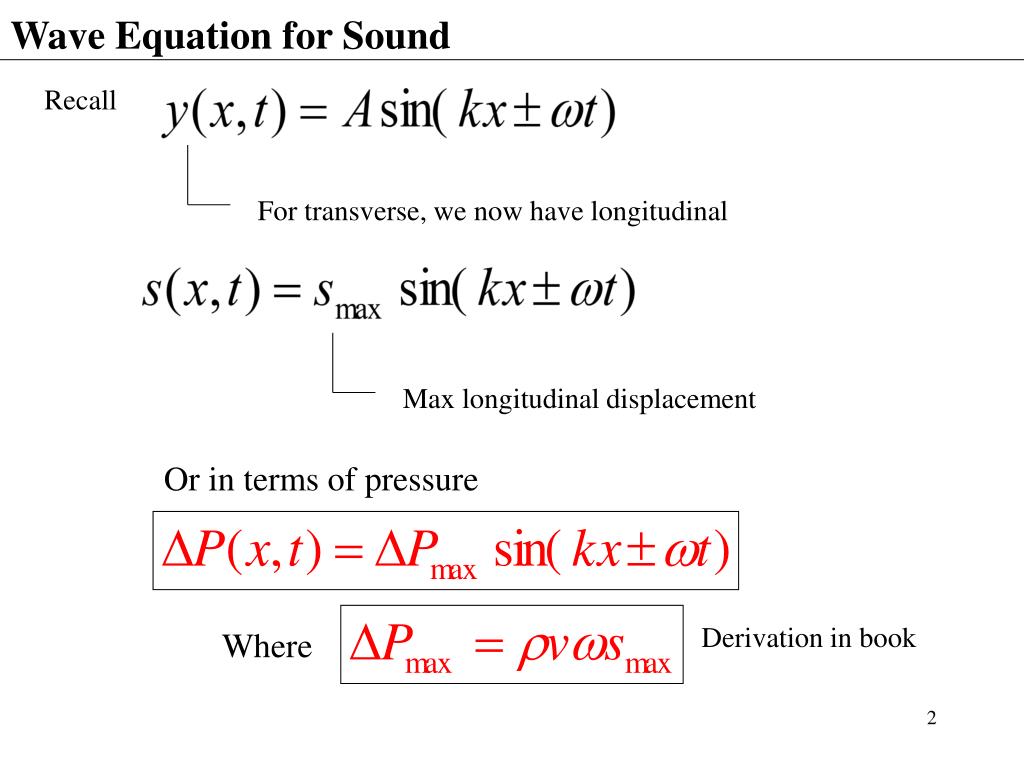

  2. Wave Equation for Sound Recall For transverse, we now have longitudinal Max longitudinal displacement Or in terms of pressure Derivation in book Where

  3. Sound Intensity Intensity = power (or energy transfer rate) divided by area Units: W/m2 Inverse Square Law: Decibels = measure intensity relative to the minimum intensity we can hear. The decibel is a __________ scale. Our hearing works on this scale. 10 dB increase  increase by factor of 10 in intensity 20 dB increase  increase by factor of 100 in intensity 30 dB increase  increase by factor of 1000 in intensity and so on… Decibel Equation:

  4. Doppler Effect Doppler EffectThe Doppler effect describes a change in frequency (pitch) of sound waves due to a moving source or moving observer. Example: train approaches with high pitched whistle, passes by, and pitch decreases. Source moves: toward observer ________away from observer________ Observer moves: toward source _______away from source _________ Source: http://hyperphysics.phy-astr.gsu.edu/hbase/sound/imgsou/dopp2.gif

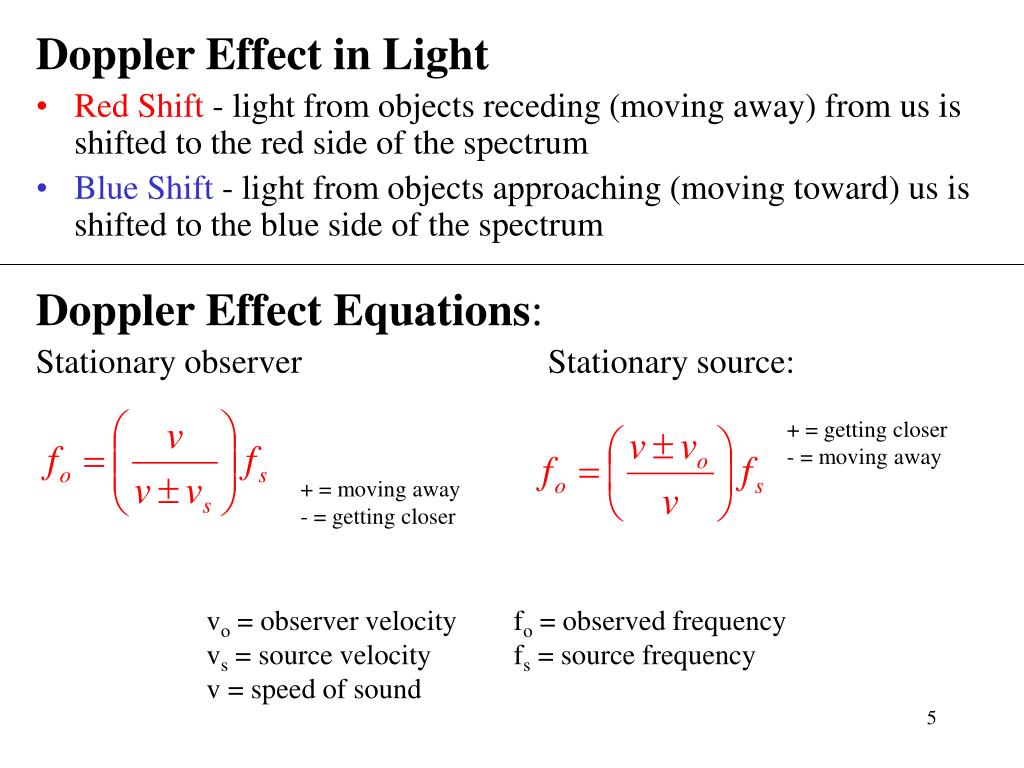

  5. Doppler Effect in Light • Red Shift - light from objects receding (moving away) from us is shifted to the red side of the spectrum • Blue Shift - light from objects approaching (moving toward) us is shifted to the blue side of the spectrum Doppler Effect Equations: Stationary observer Stationary source: + = getting closer - = moving away + = moving away - = getting closer vo = observer velocity fo = observed frequency vs = source velocity fs = source frequency v = speed of sound

  6. Example (Doppler Effect): A storm is formulating with winds of up to 150km/hr. A Doppler radar device is monitoring the storm by sending out a 35MHz signal? What frequency will bounce back to the station if the storm winds are A) approaching? B) receding ? GivenPathWantConversions/Equations Note: Storm is like observer moving toward storm. Then, it bounces back signals with same frequency it observed.

  7. Example: Ch17 # 3Flowerpot 20m up falls towards 1.75m tall person. Find max time can wait before shouting from top if person below needs 0.3s to move.

  8. Example: Ch17 # 16Cu bar is at 99.5% of Y=13N/m^2. 500Hz sound wave is then transmitted. • Find displacement amplitude required to break bar • Find max speed of Cu atoms at breaking. • Find sound intensity in bar.

  9. Example: Ch17 # 34Firework explodes 100m up. Observer directly under explosion hears average intensity of 0.07W/m^2 for 0.2s. a) Find total sound energy of explosion b) Find decibels measured by observer

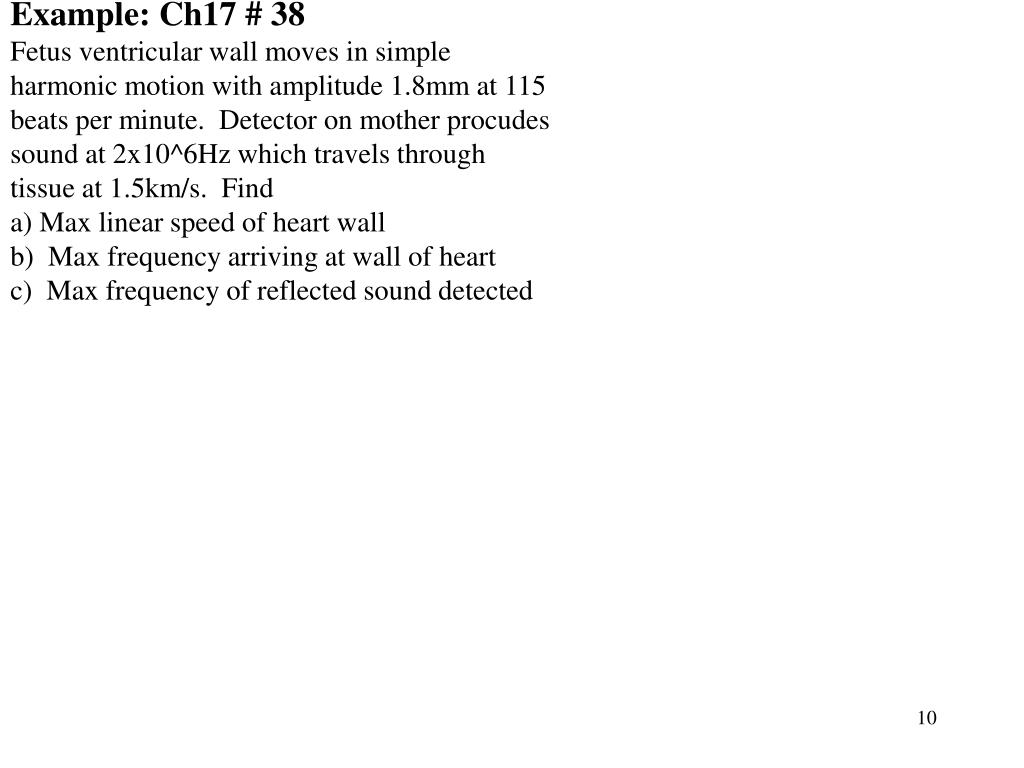

  10. Example: Ch17 # 38Fetus ventricular wall moves in simple harmonic motion with amplitude 1.8mm at 115 beats per minute. Detector on mother procudes sound at 2x10^6Hz which travels through tissue at 1.5km/s. Find a) Max linear speed of heart wall b) Max frequency arriving at wall of heart c) Max frequency of reflected sound detected
