Chapter 6: Sequences : vectors and lists

1. Chapter 6: Sequences : vectors and lists COL 106 Shweta Agrawal

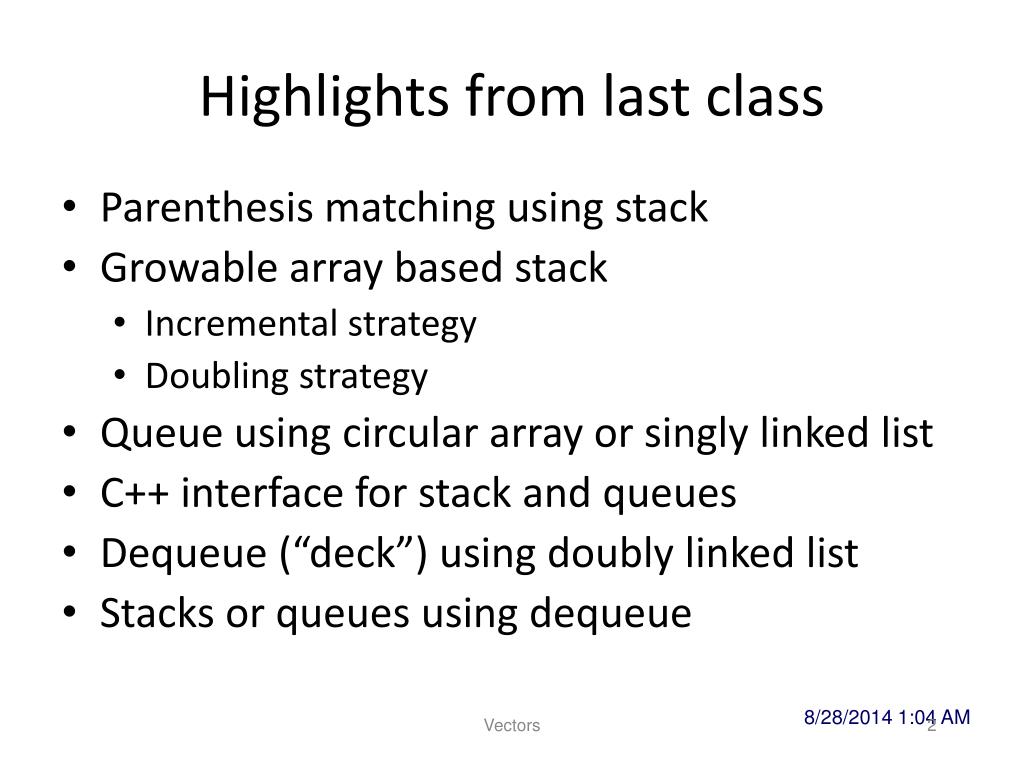

2. Highlights from last class • Parenthesis matching using stack • Growable array based stack • Incremental strategy • Doubling strategy • Queue using circular array or singly linked list • C++ interface for stack and queues • Dequeue (“deck”) using doubly linked list • Stacks or queues using dequeue Vectors

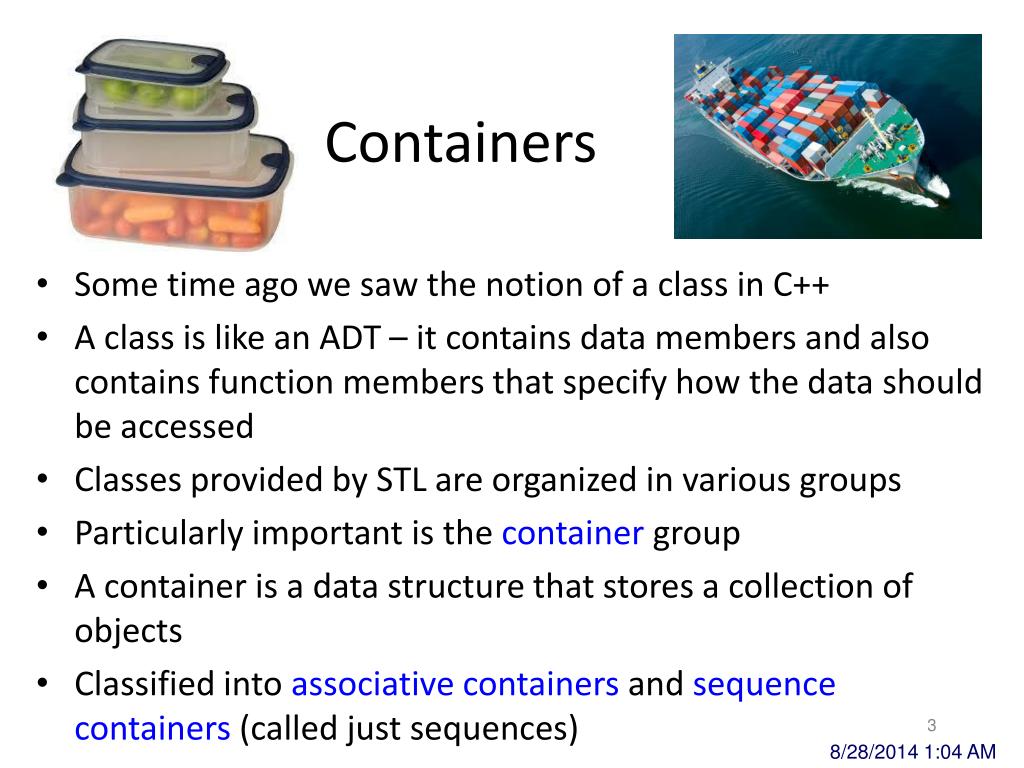

3. Containers • Some time ago we saw the notion of a class in C++ • A class is like an ADT – it contains data members and also contains function members that specify how the data should be accessed • Classes provided by STL are organized in various groups • Particularly important is the container group • A container is a data structure that stores a collection of objects • Classified into associative containers and sequence containers (called just sequences)

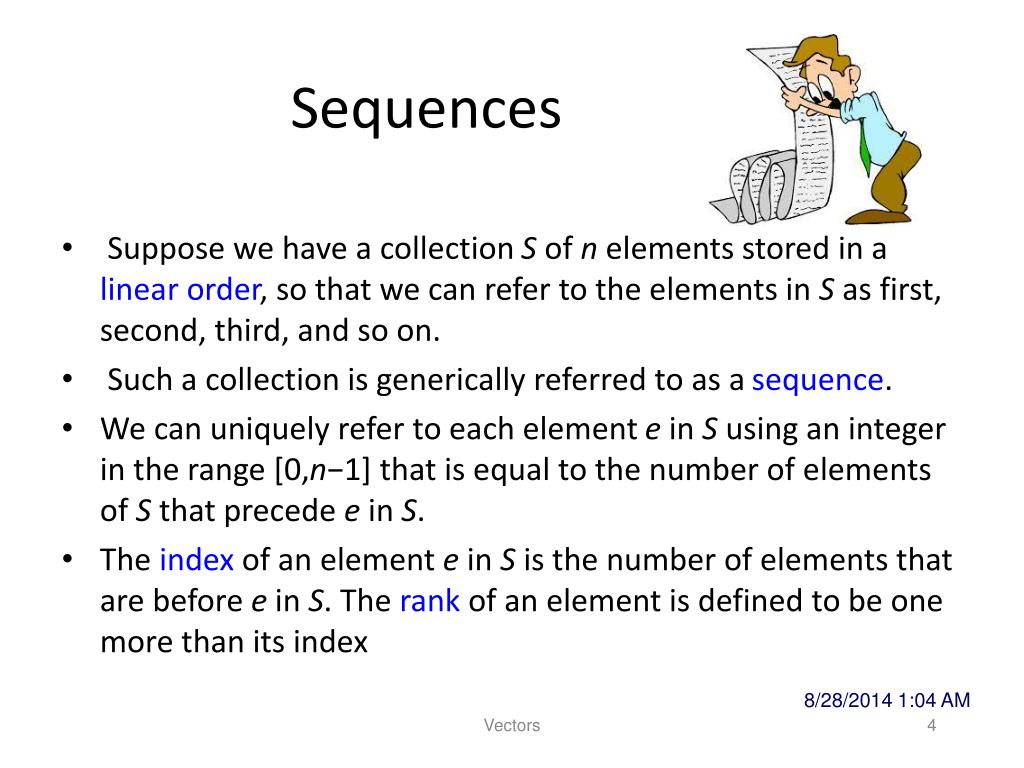

4. Sequences • Suppose we have a collection S of n elements stored in a linear order, so that we can refer to the elements in S as first, second, third, and so on. • Such a collection is generically referred to as a sequence. • We can uniquely refer to each element e in S using an integer in the range [0,n−1] that is equal to the number of elements of S that precede e in S. • The index of an element e in S is the number of elements that are before e in S. The rank of an element is defined to be one more than its index Vectors

5. Examples of sequences • Array :  implements a compile-time non-resizeable array. • Vector : implements an array with fast random access and an ability to automatically resize when appending elements. • Deque : implements a double ended queue with comparatively fast random access. • List : implements a doubly linked list. • Forward_list : implements a singly linked list Vectors

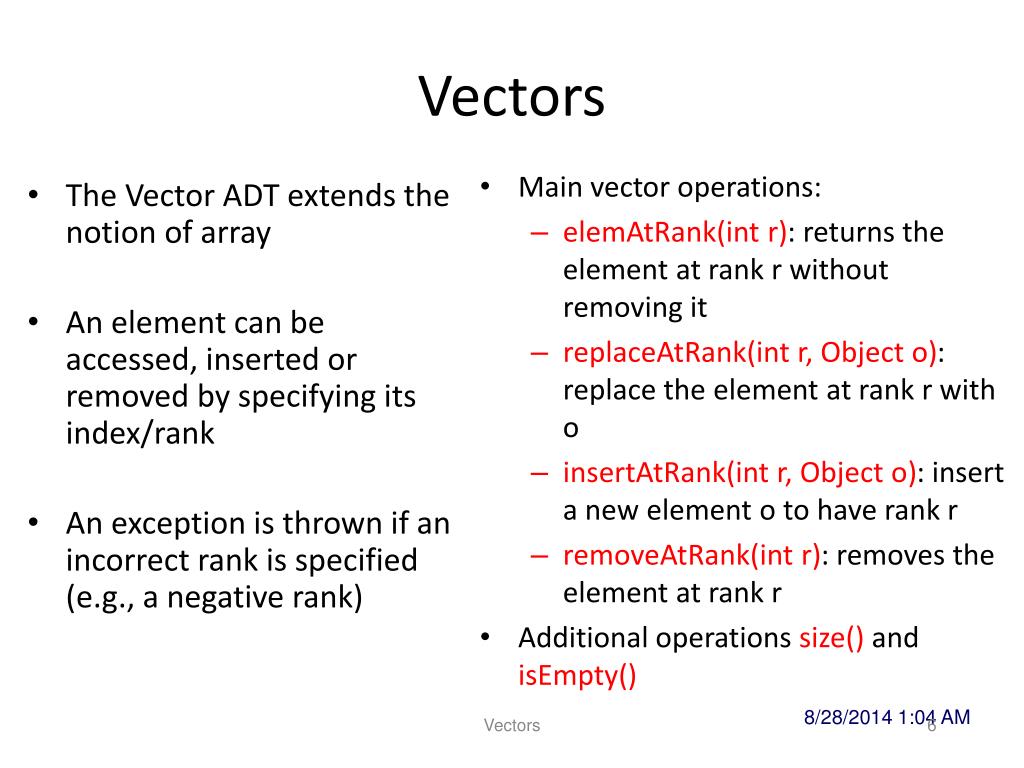

6. Vectors • The Vector ADT extends the notion of array • An element can be accessed, inserted or removed by specifying its index/rank • An exception is thrown if an incorrect rank is specified (e.g., a negative rank) • Main vector operations: • elemAtRank(int r): returns the element at rank r without removing it • replaceAtRank(int r, Object o): replace the element at rank r with o • insertAtRank(int r, Object o): insert a new element o to have rank r • removeAtRank(int r): removes the element at rank r • Additional operations size() and isEmpty() Vectors

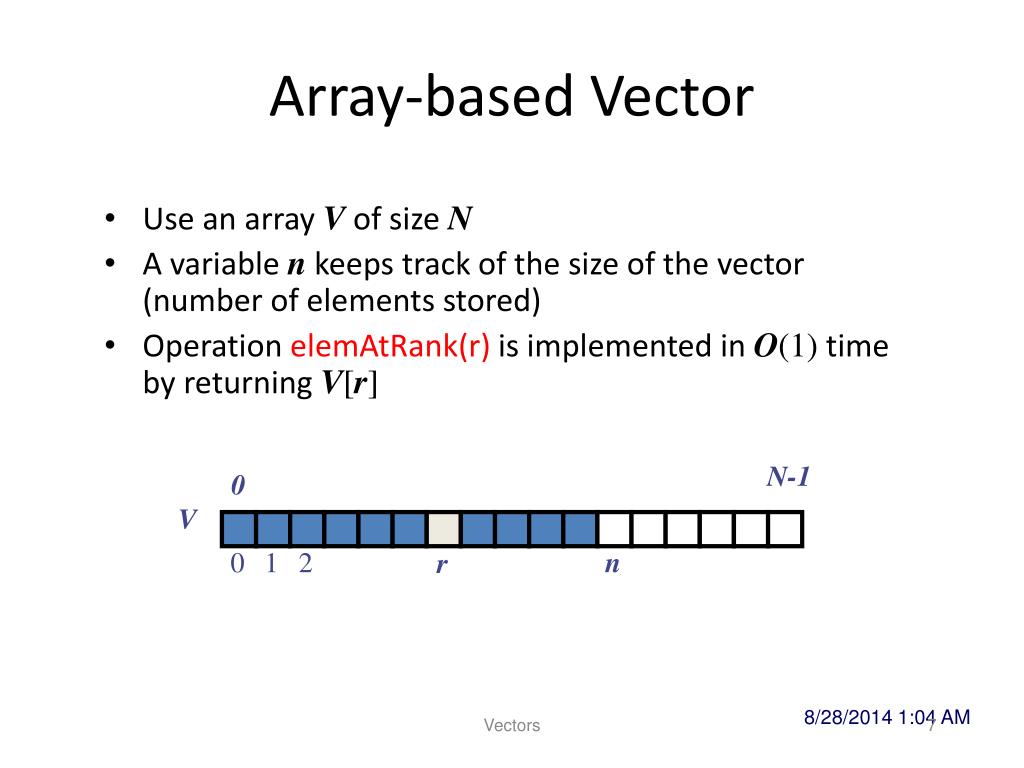

7. Array-based Vector • Use an array V of size N • A variable n keeps track of the size of the vector (number of elements stored) • Operation elemAtRank(r) is implemented in O(1) time by returning V[r] N-1 0 V 0 1 2 n r Vectors

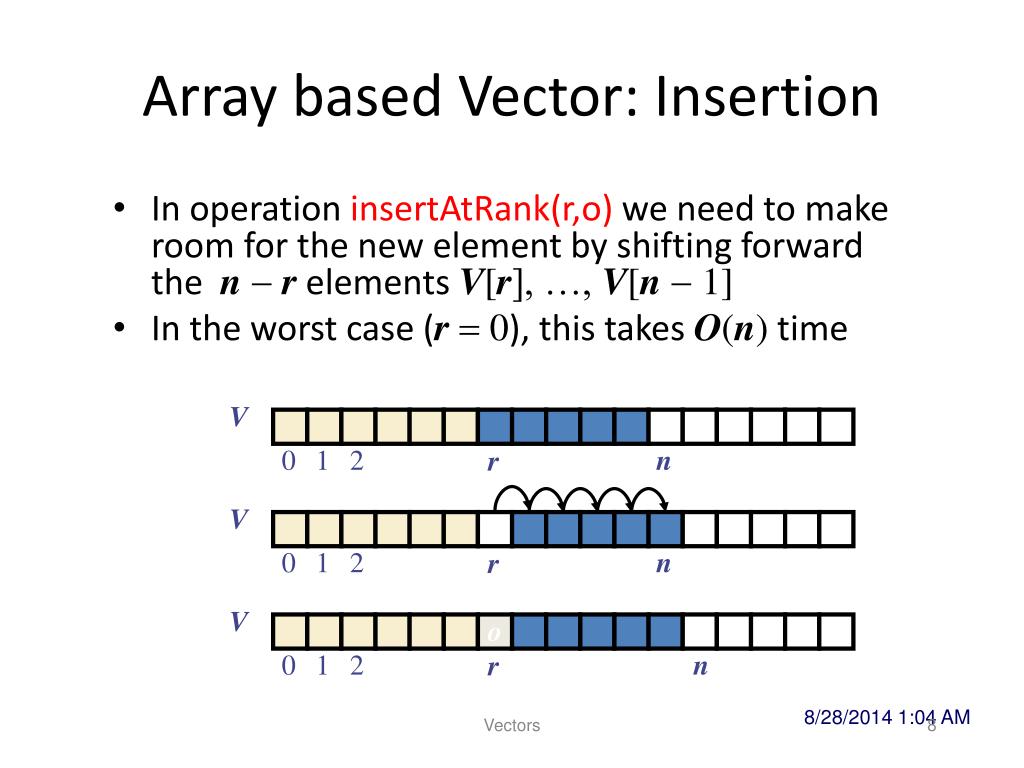

8. Array based Vector: Insertion • In operation insertAtRank(r,o) we need to make room for the new element by shifting forward the n - r elements V[r], …, V[n -1] • In the worst case (r =0), this takes O(n) time V 0 1 2 n r V 0 1 2 n r V o 0 1 2 n r Vectors

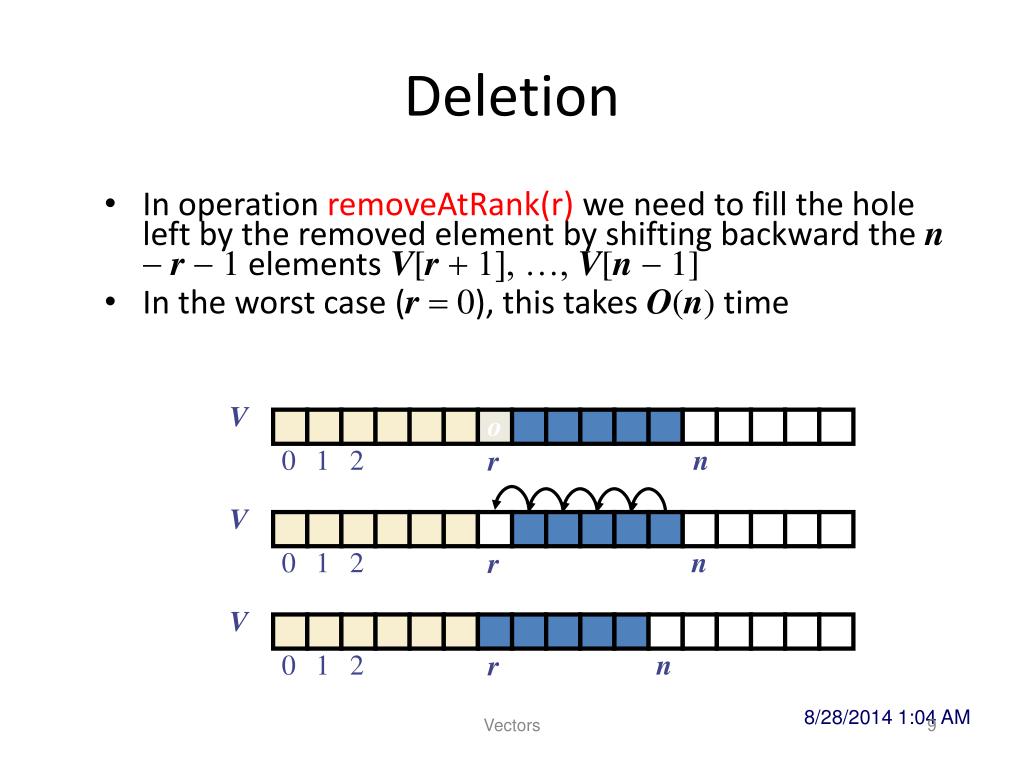

9. V 0 1 2 n r V 0 1 2 n r V o 0 1 2 n r Deletion • In operation removeAtRank(r) we need to fill the hole left by the removed element by shifting backward the n - r -1 elements V[r +1], …, V[n -1] • In the worst case (r =0), this takes O(n) time Vectors

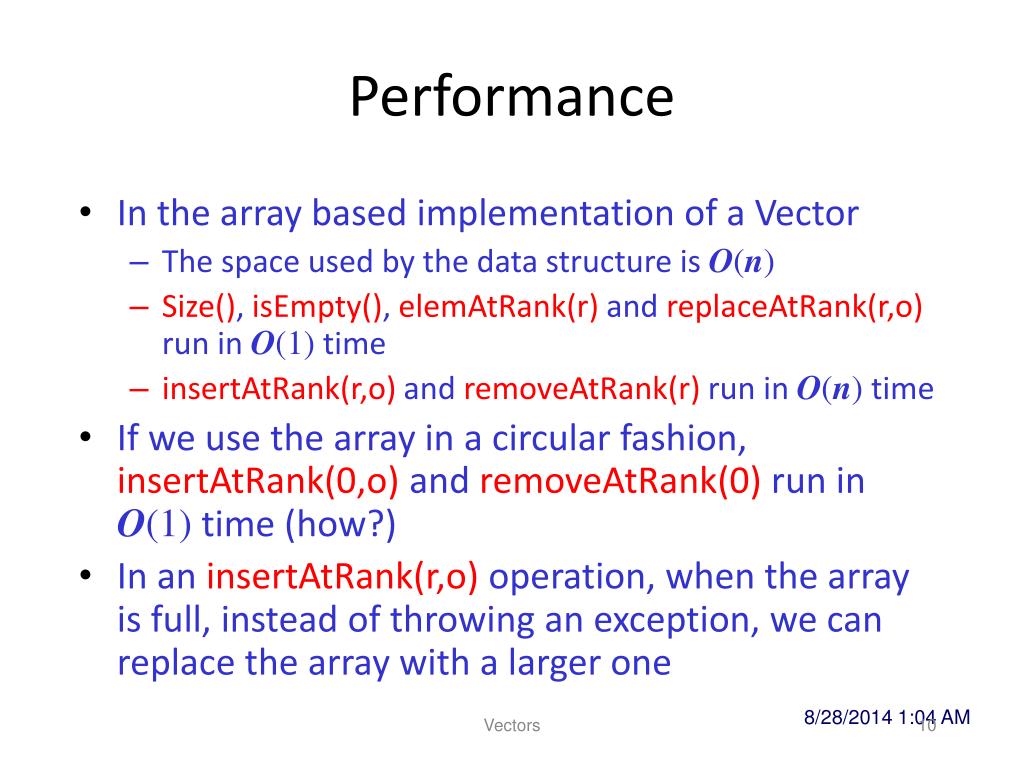

10. Performance • In the array based implementation of a Vector • The space used by the data structure is O(n) • Size(), isEmpty(), elemAtRank(r) and replaceAtRank(r,o) run in O(1) time • insertAtRank(r,o) and removeAtRank(r) run in O(n) time • If we use the array in a circular fashion,insertAtRank(0,o) and removeAtRank(0) run in O(1) time (how?) • In an insertAtRank(r,o) operation, when the array is full, instead of throwing an exception, we can replace the array with a larger one Vectors

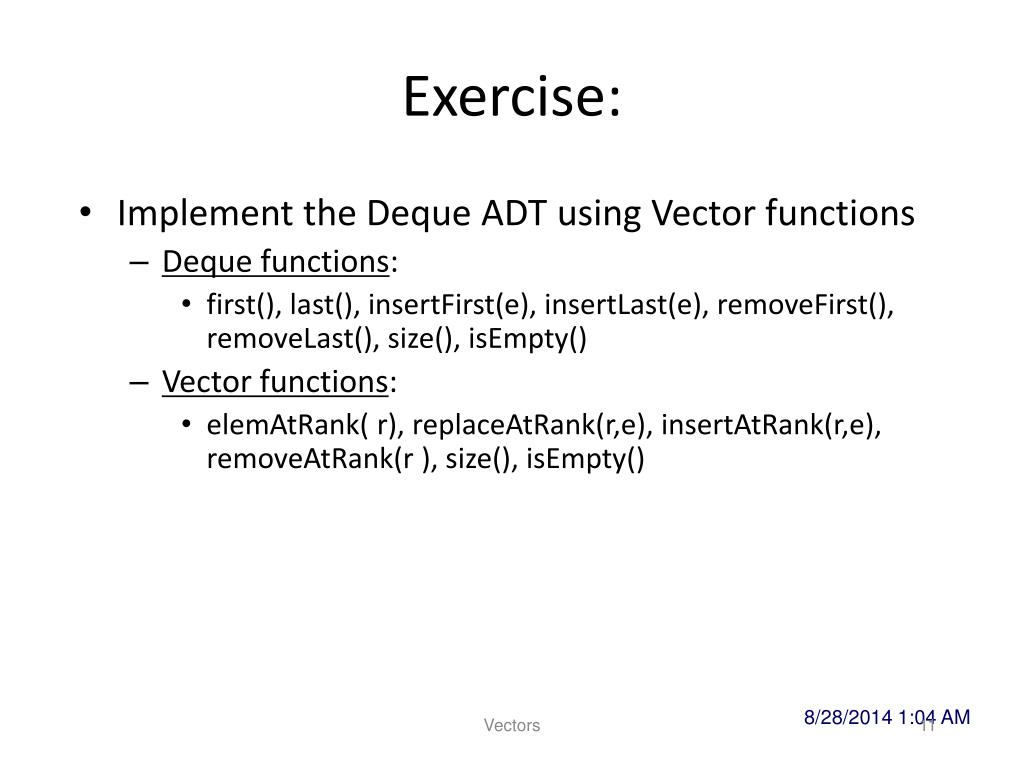

11. Exercise: • Implement the Deque ADT using Vector functions • Deque functions: • first(), last(), insertFirst(e), insertLast(e), removeFirst(), removeLast(), size(), isEmpty() • Vector functions: • elemAtRank( r), replaceAtRank(r,e), insertAtRank(r,e), removeAtRank(r ), size(), isEmpty() Vectors

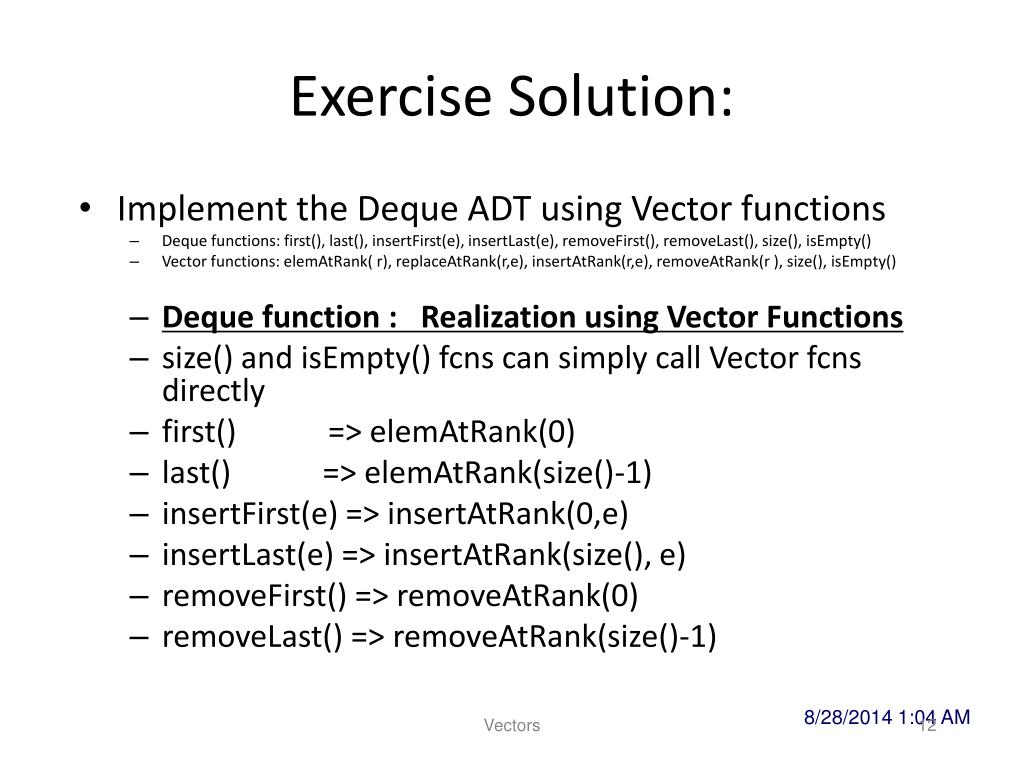

12. Exercise Solution: • Implement the Deque ADT using Vector functions • Deque functions: first(), last(), insertFirst(e), insertLast(e), removeFirst(), removeLast(), size(), isEmpty() • Vector functions: elemAtRank( r), replaceAtRank(r,e), insertAtRank(r,e), removeAtRank(r ), size(), isEmpty() • Deque function : Realization using Vector Functions • size() and isEmpty() fcns can simply call Vector fcns directly • first() => elemAtRank(0) • last() => elemAtRank(size()-1) • insertFirst(e) => insertAtRank(0,e) • insertLast(e) => insertAtRank(size(), e) • removeFirst() => removeAtRank(0) • removeLast() => removeAtRank(size()-1) Vectors

13. STL vector class • Functions in the STL vector class (incomplete) • Size(), capacity() - return #elts in vector, #elts vector can hold • empty() - boolean • Operator[r] - returns reference to elt at rank r (no index check) • At( r) - returns reference to elt at rank r (index checked) • Front(), back() - return references to first/last elts • push_back(e) - insert e at end of vector • pop_back() - remove last elt • vector(n) - creates a vector of size n • Similarities & Differences with book’s Vector ADT • STL assignment v[r]=e is equivalent to v.replaceAtRank(r,e) • No direct STL counterparts of insertAtRank( r) & removeAtRank( r) • STL also provides more general functions for inserting & removing from arbitrary positions in the vector - these use iterators Vectors

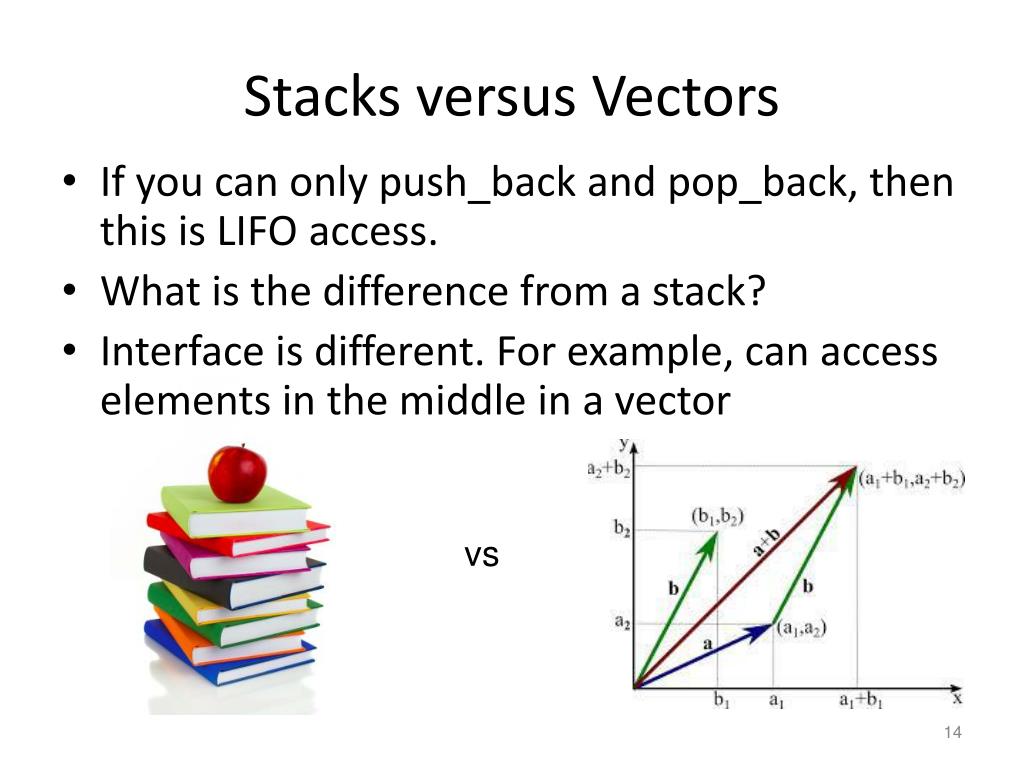

14. Stacks versus Vectors • If you can only push_back and pop_back, then this is LIFO access. • What is the difference from a stack? • Interface is different. For example, can access elements in the middle in a vector vs

15. Vectors vs Arrays • Apart from usual index operator (“[ ]”), elements can be accessed by member function at which performs range checking. • Unlike C++ arrays, STL vectors can be dynamically resized • When an STL vector of class objects is destroyed, it automatically invokes the destructor for each of its elements. With C++ arrays, it is the obligation of the programmer to do this explicitly. • Several functions that operate on entire vectors, not just on individual elements. E.g. : copy all or part of one vector to another, compare the contents of two vectors, insert and erase multiple elements.

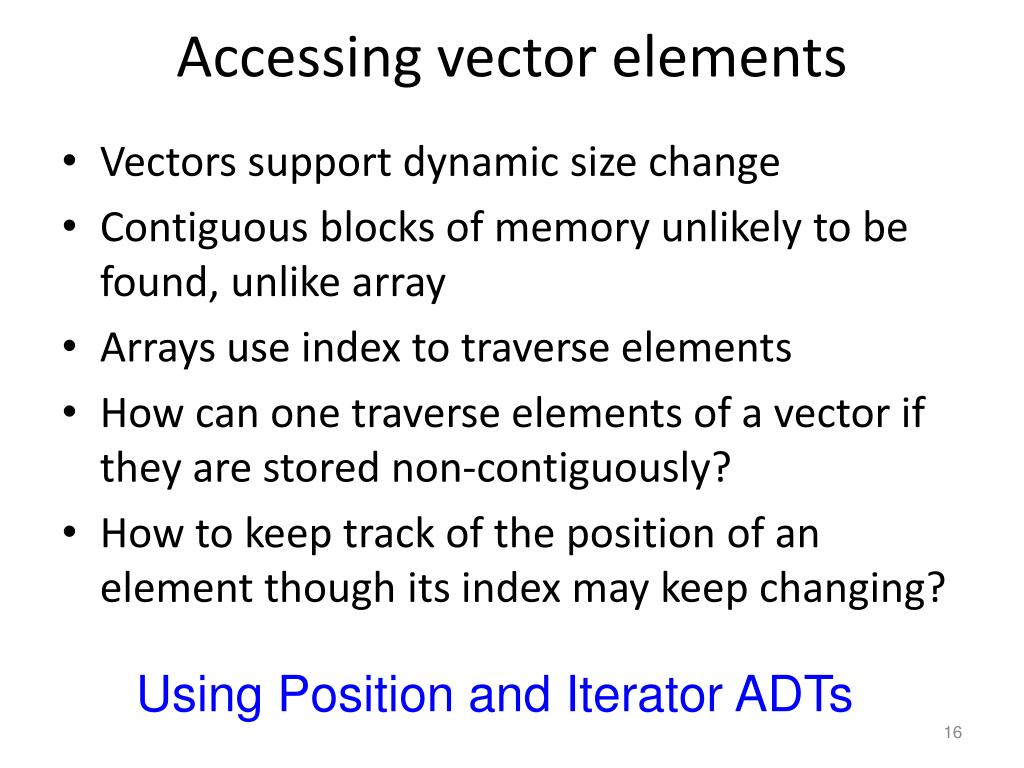

16. Accessing vector elements • Vectors support dynamic size change • Contiguous blocks of memory unlikely to be found, unlike array • Arrays use index to traverse elements • How can one traverse elements of a vector if they are stored non-contiguously? • How to keep track of the position of an element though its index may keep changing? Using Position and Iterator ADTs

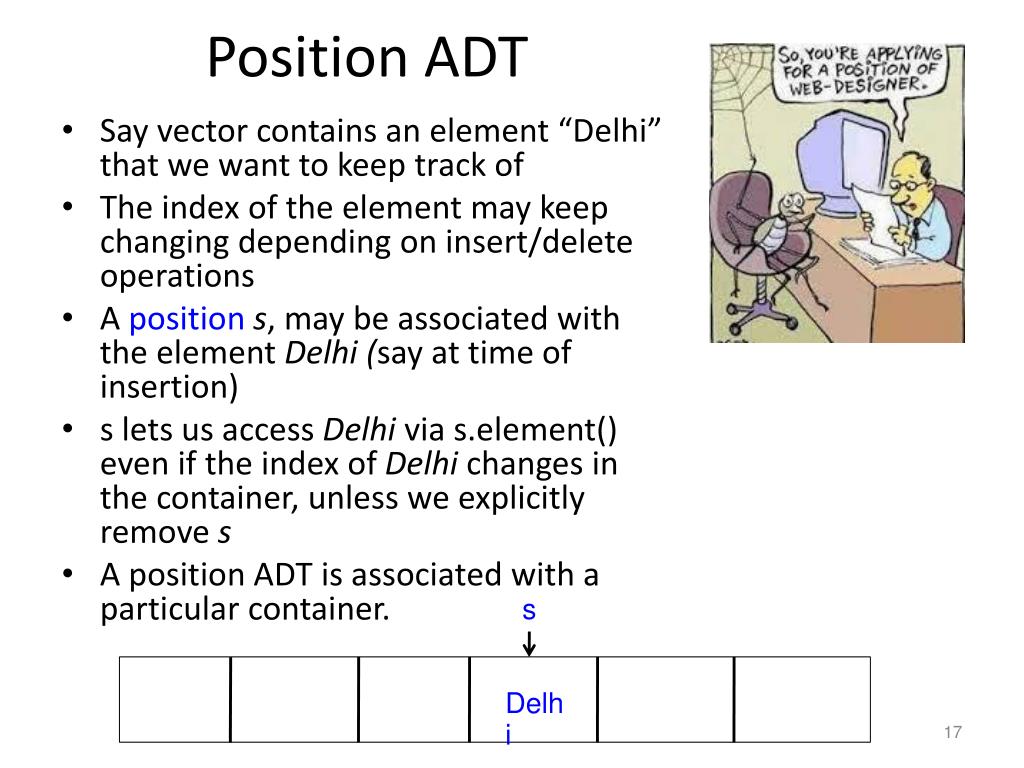

17. Position ADT • Say vector contains an element “Delhi” that we want to keep track of • The index of the element may keep changing depending on insert/delete operations • A position s, may be associated with the element Delhi (say at time of insertion) • s lets us access Delhi via s.element() even if the index of Delhi changes in the container, unless we explicitly remove s • A position ADT is associated with a particular container. s Delhi

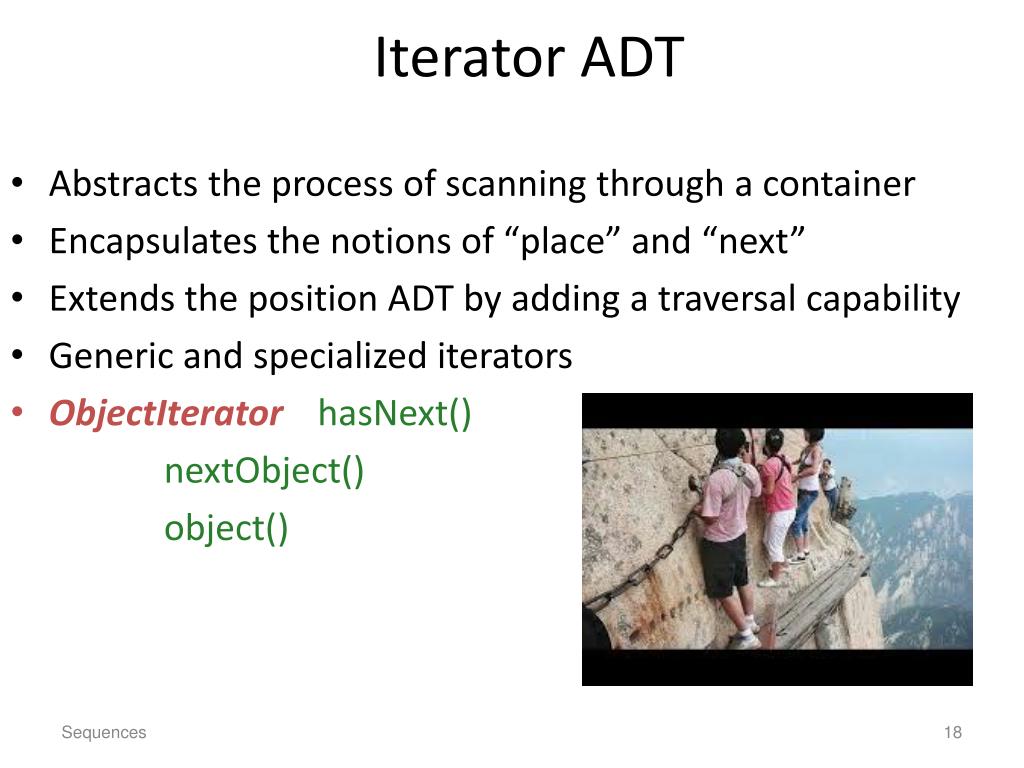

18. Iterator ADT • Abstracts the process of scanning through a container • Encapsulates the notions of “place” and “next” • Extends the position ADT by adding a traversal capability • Generic and specialized iterators • ObjectIteratorhasNext() nextObject() object()

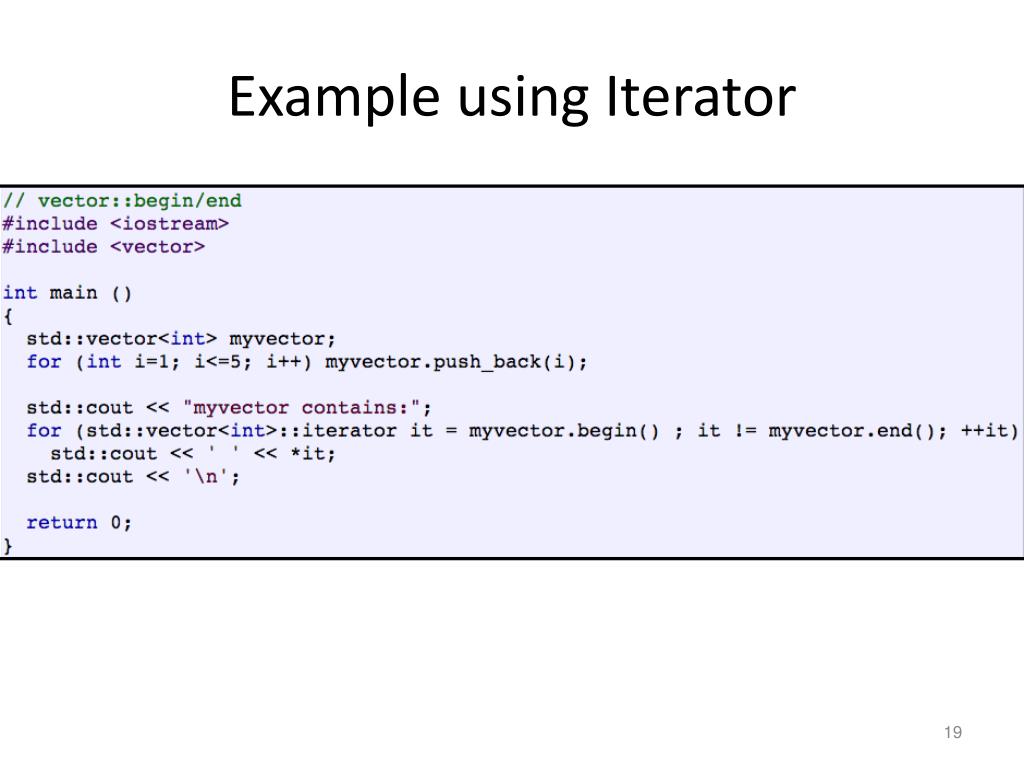

19. Example using Iterator

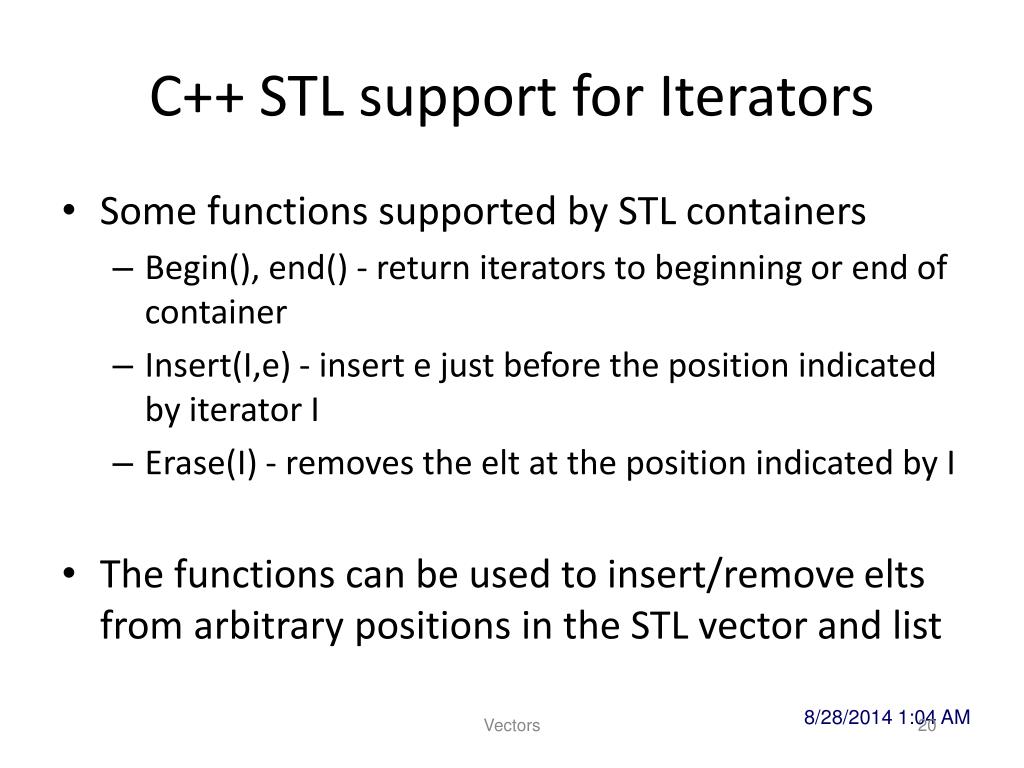

20. C++ STL support for Iterators • Some functions supported by STL containers • Begin(), end() - return iterators to beginning or end of container • Insert(I,e) - insert e just before the position indicated by iterator I • Erase(I) - removes the elt at the position indicated by I • The functions can be used to insert/remove elts from arbitrary positions in the STL vector and list Vectors

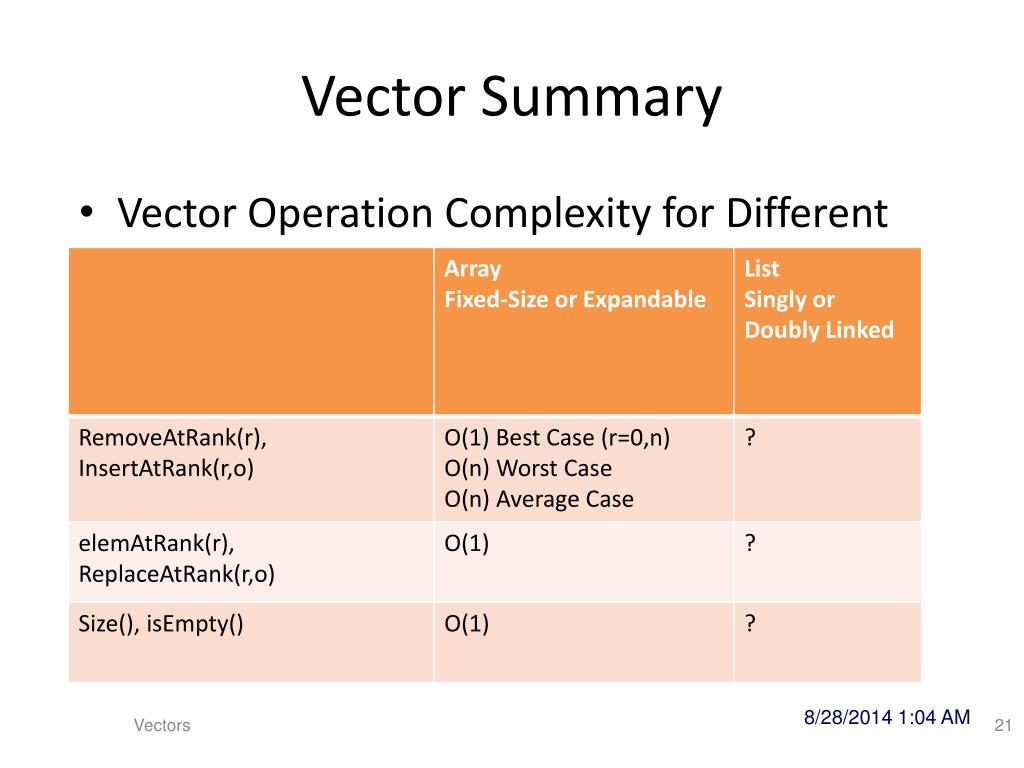

21. Vector Summary • Vector Operation Complexity for Different Implementations Vectors

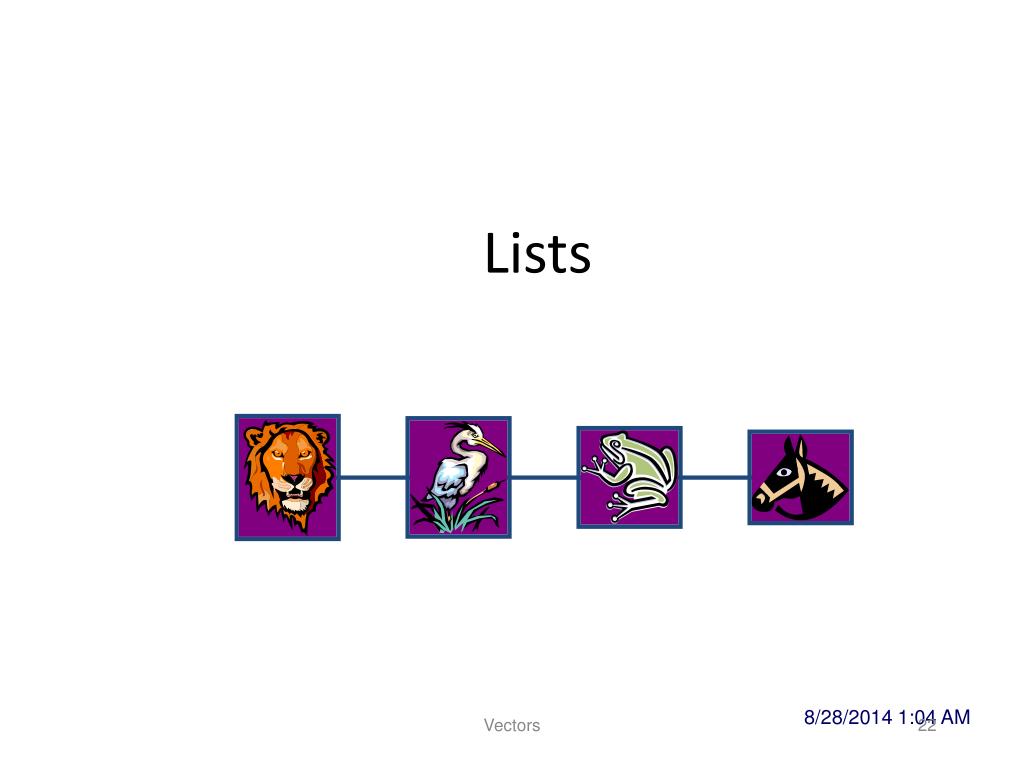

22. Lists Vectors

23. Outline and Reading • Singly linked list • Position ADT (§6.2.1) • List ADT (§6.2.2) • Doubly linked list (§ 6.2.3) • Sequence ADT (§6.3.1) • Implementations of the sequence ADT (§6.3.2-3) • Iterators (§6.2.5) Vectors

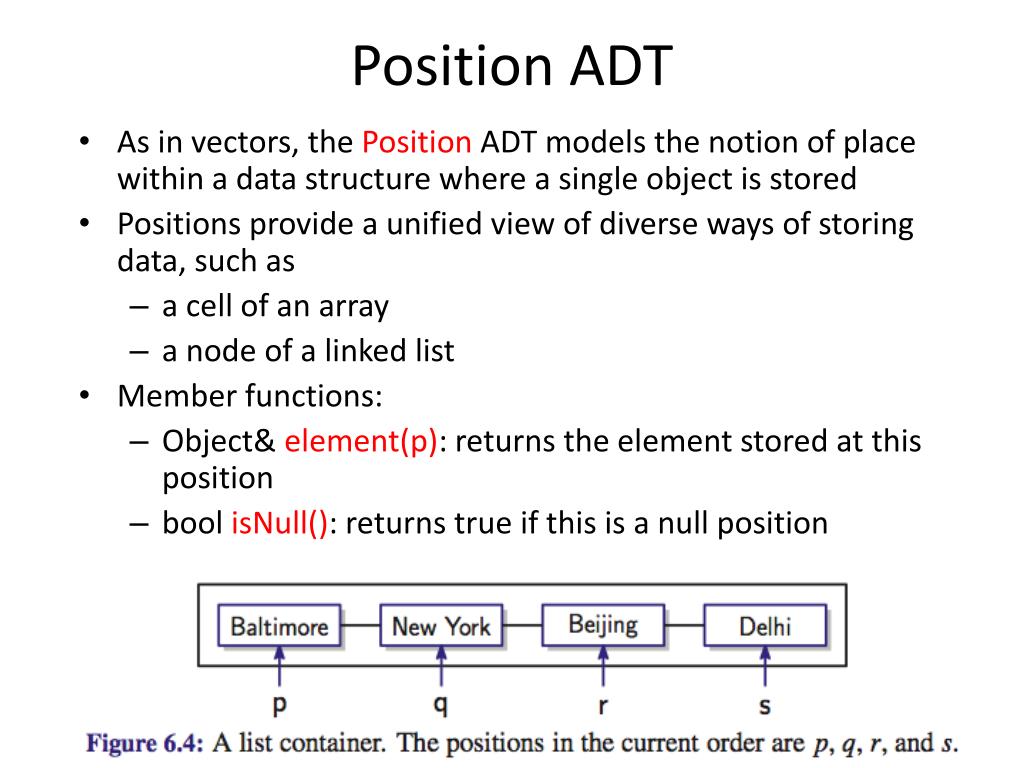

24. Position ADT • As in vectors, the Position ADT models the notion of place within a data structure where a single object is stored • Positions provide a unified view of diverse ways of storing data, such as • a cell of an array • a node of a linked list • Member functions: • Object& element(p): returns the element stored at this position • bool isNull(): returns true if this is a null position Vectors

25. List ADT ADT that captures linked lists • The List ADT models a sequence of positions storing arbitrary objects • establishes a before/after relation between positions • It allows for insertion and removal in the “middle” • Query methods: • isFirst(p), isLast(p) • Generic methods: • size(), isEmpty() • Accessor methods: • first(), last() • before(p), after(p) • Update methods: • replaceElement(p, o), swapElements(p, q) • insertBefore(p, o), insertAfter(p, o), • insertFirst(o), insertLast(o) • remove(p)

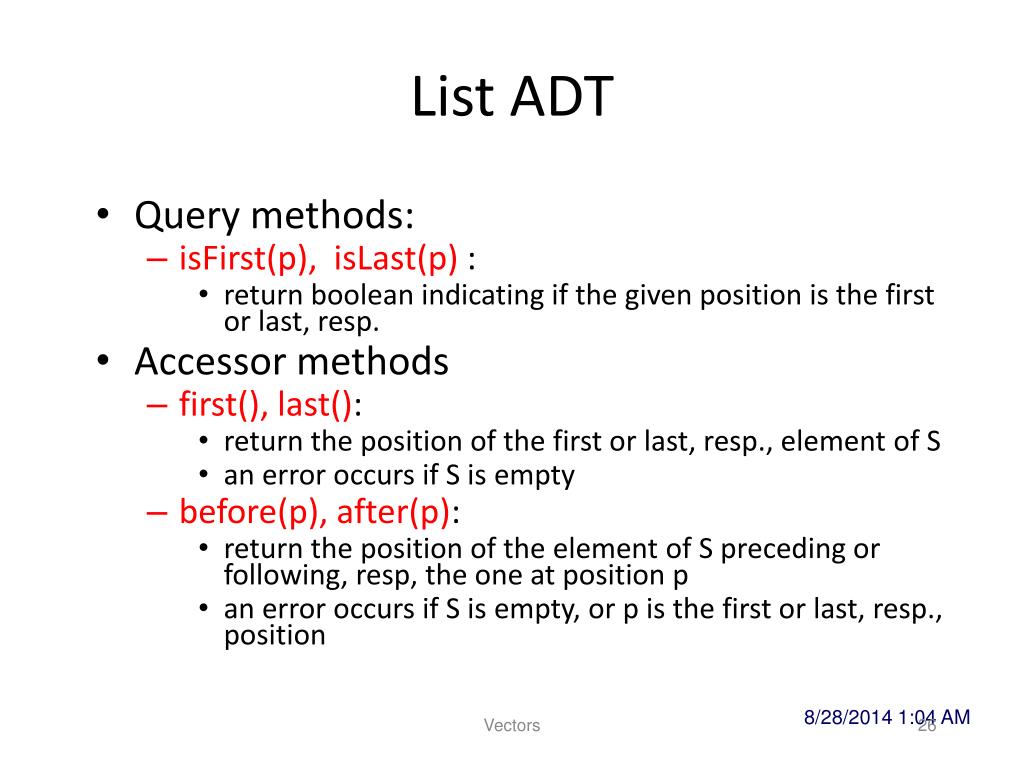

26. List ADT • Query methods: • isFirst(p), isLast(p) : • return boolean indicating if the given position is the first or last, resp. • Accessor methods • first(), last(): • return the position of the first or last, resp., element of S • an error occurs if S is empty • before(p), after(p): • return the position of the element of S preceding or following, resp, the one at position p • an error occurs if S is empty, or p is the first or last, resp., position Vectors

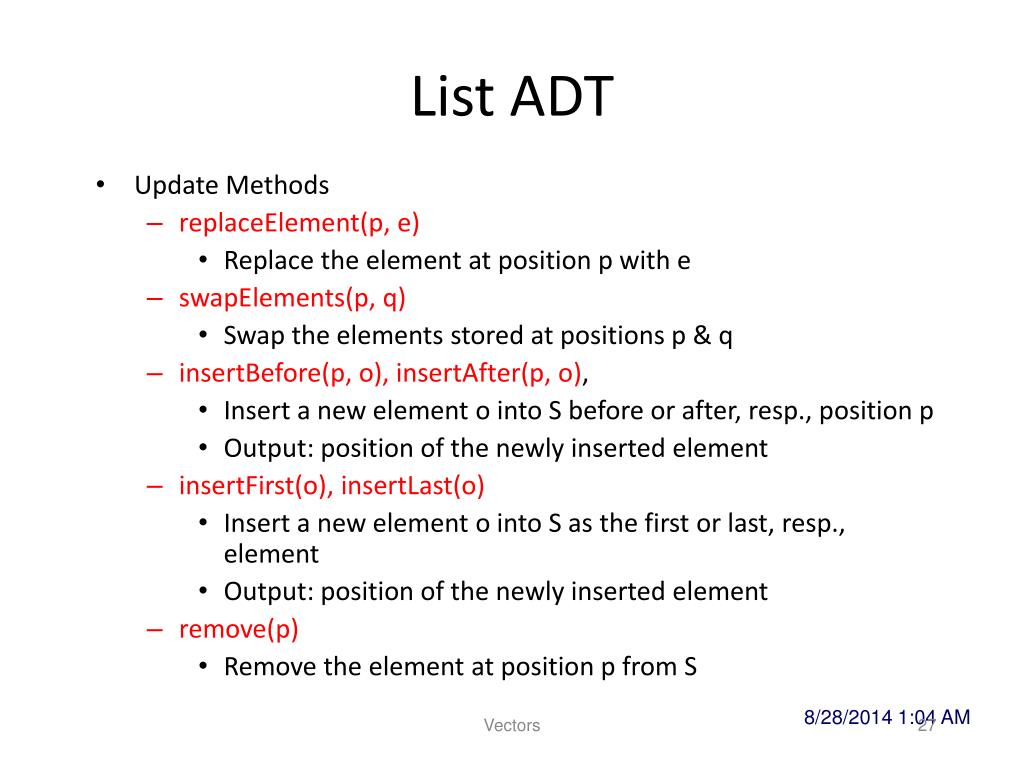

27. List ADT • Update Methods • replaceElement(p, e) • Replace the element at position p with e • swapElements(p, q) • Swap the elements stored at positions p & q • insertBefore(p, o), insertAfter(p, o), • Insert a new element o into S before or after, resp., position p • Output: position of the newly inserted element • insertFirst(o), insertLast(o) • Insert a new element o into S as the first or last, resp., element • Output: position of the newly inserted element • remove(p) • Remove the element at position p from S Vectors

28. Exercise: • Describe how to implement the following list ADT operations using a singly-linked list • list ADT operations: first(), last(), before(p), after(p) • For each operation, explain how it is implemented and provide the running time next node elem • A singly linked list concrete data structure consists of a sequence of nodes • Each node stores • element • link to the next node  A C D B Vectors

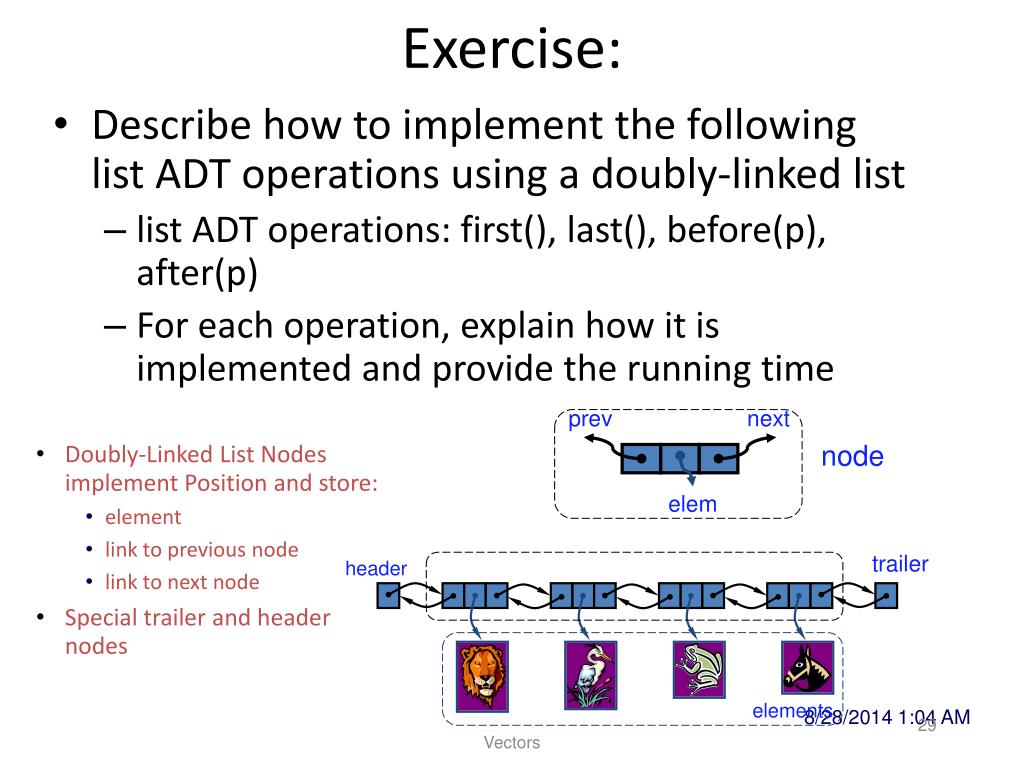

29. Exercise: prev next • Describe how to implement the following list ADT operations using a doubly-linked list • list ADT operations: first(), last(), before(p), after(p) • For each operation, explain how it is implemented and provide the running time node elem • Doubly-Linked List Nodes implement Position and store: • element • link to previous node • link to next node • Special trailer and header nodes trailer header elements Vectors

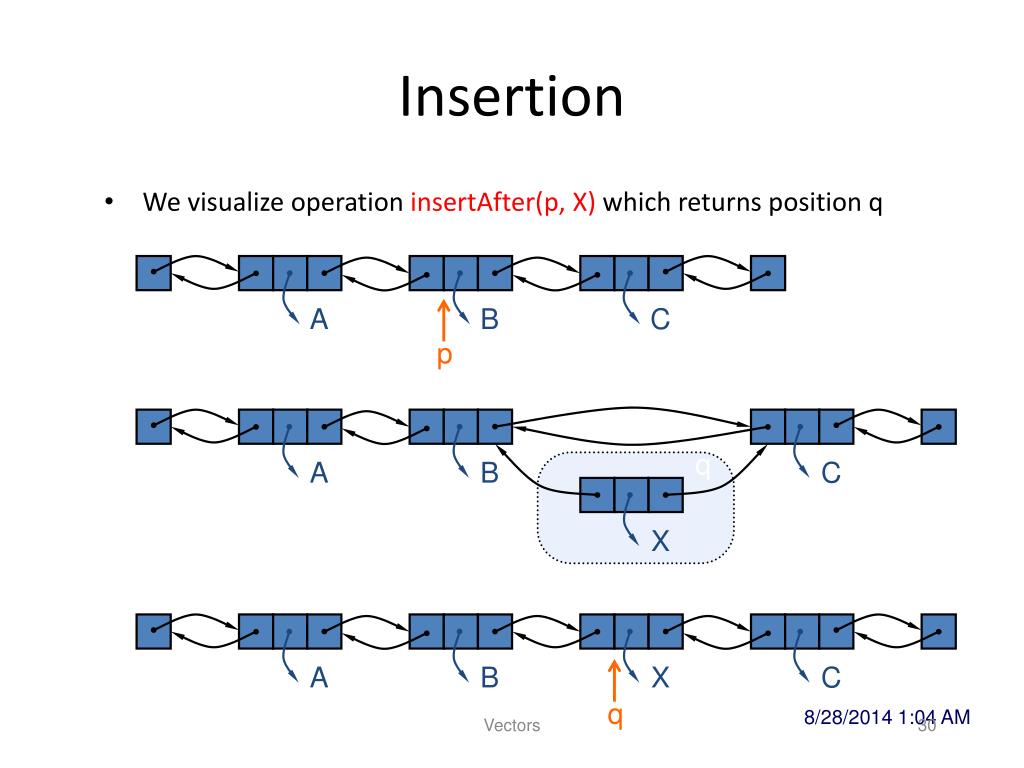

30. Insertion • We visualize operation insertAfter(p, X) which returns position q p A B C q p p q A B C X p q A B X C Vectors

31. p A B C D Deletion • We visualize remove(p), where p = last() A B C p D A B C Vectors

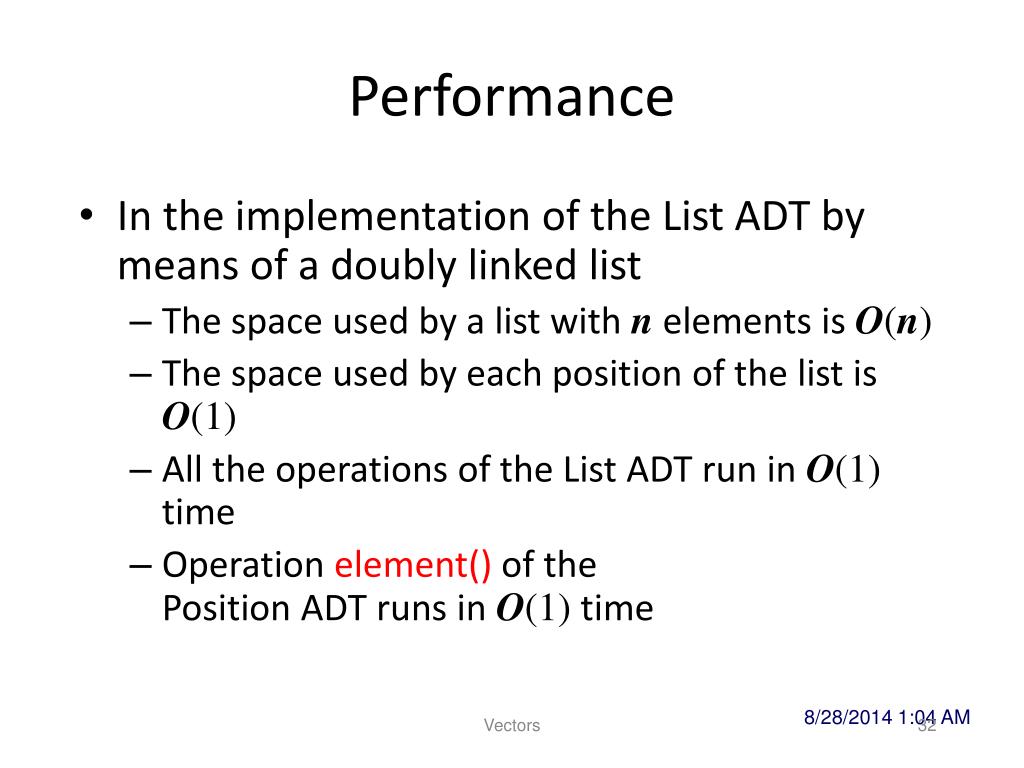

32. Performance • In the implementation of the List ADT by means of a doubly linked list • The space used by a list with n elements is O(n) • The space used by each position of the list is O(1) • All the operations of the List ADT run in O(1) time • Operation element() of the Position ADT runs in O(1) time Vectors

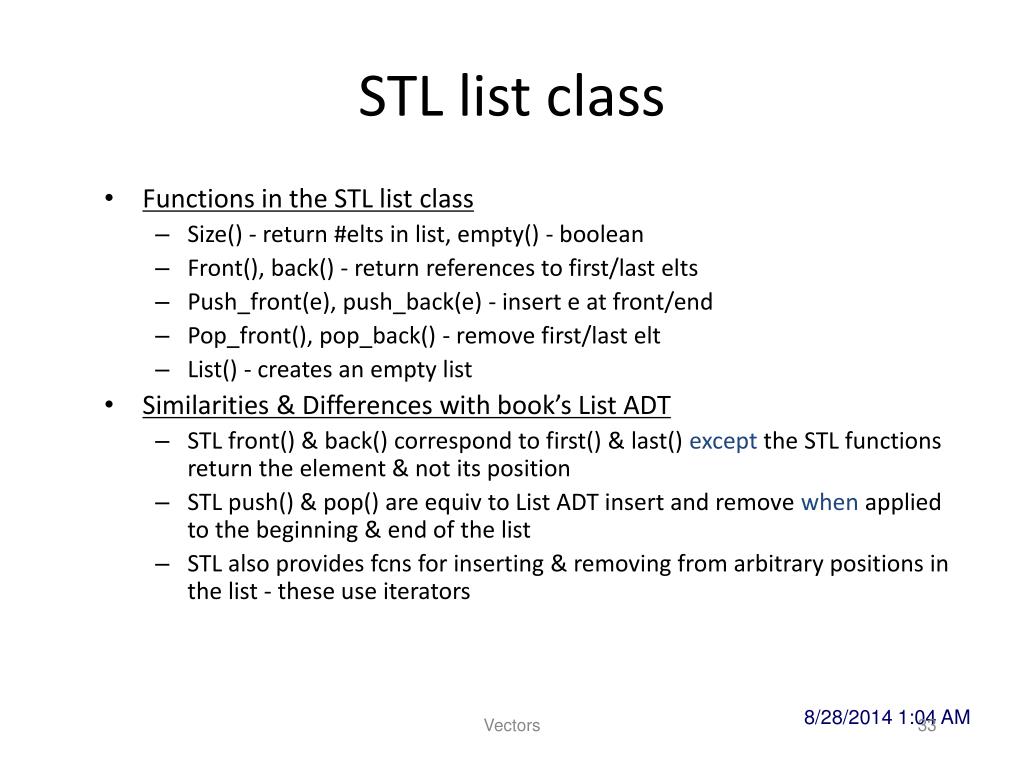

33. STL list class • Functions in the STL list class • Size() - return #elts in list, empty() - boolean • Front(), back() - return references to first/last elts • Push_front(e), push_back(e) - insert e at front/end • Pop_front(), pop_back() - remove first/last elt • List() - creates an empty list • Similarities & Differences with book’s List ADT • STL front() & back() correspond to first() & last() except the STL functions return the element & not its position • STL push() & pop() are equiv to List ADT insert and remove when applied to the beginning & end of the list • STL also provides fcns for inserting & removing from arbitrary positions in the list - these use iterators Vectors

34. List Summary • List Operation Complexity for different implementations Vectors

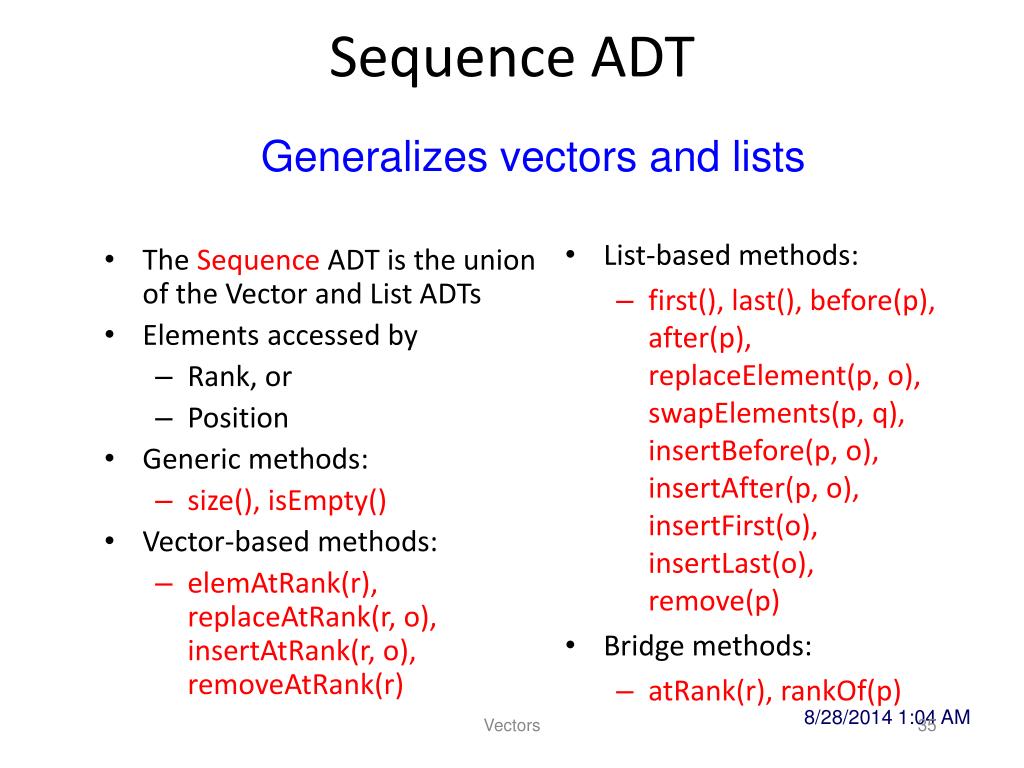

35. Sequence ADT Generalizes vectors and lists • The Sequence ADT is the union of the Vector and List ADTs • Elements accessed by • Rank, or • Position • Generic methods: • size(), isEmpty() • Vector-based methods: • elemAtRank(r), replaceAtRank(r, o), insertAtRank(r, o), removeAtRank(r) • List-based methods: • first(), last(), before(p), after(p), replaceElement(p, o), swapElements(p, q), insertBefore(p, o), insertAfter(p, o), insertFirst(o), insertLast(o), remove(p) • Bridge methods: • atRank(r), rankOf(p) Vectors

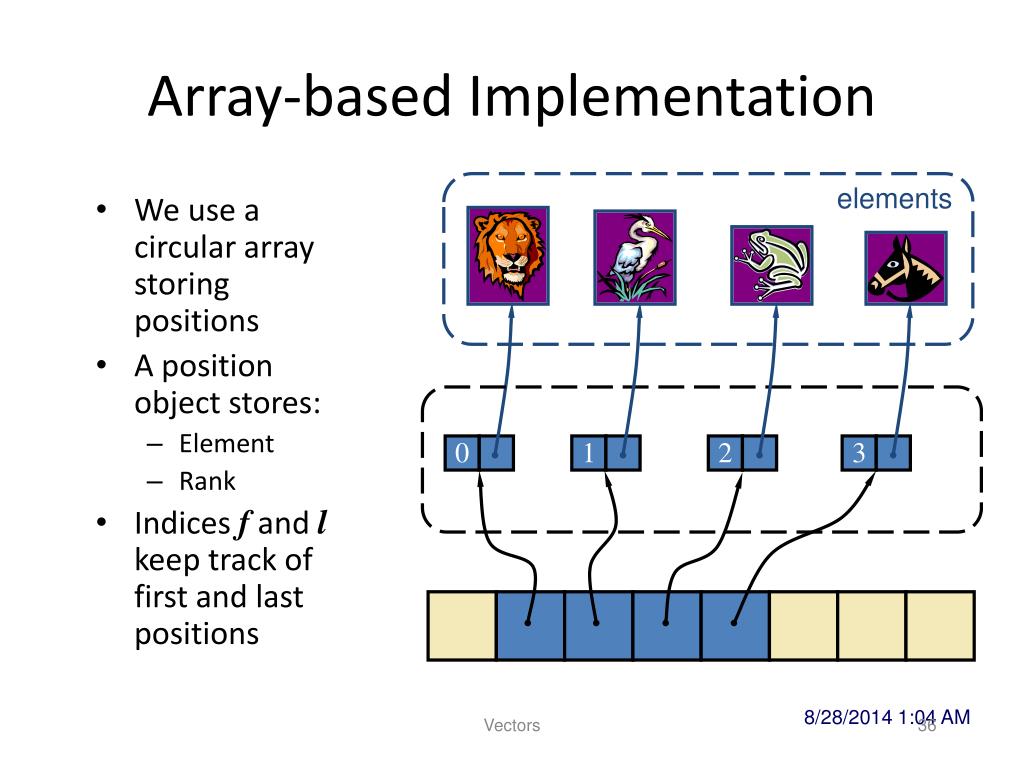

36. Array-based Implementation elements • We use a circular array storing positions • A position object stores: • Element • Rank • Indices f and l keep track of first and last positions 0 1 2 3 positions S f l Vectors

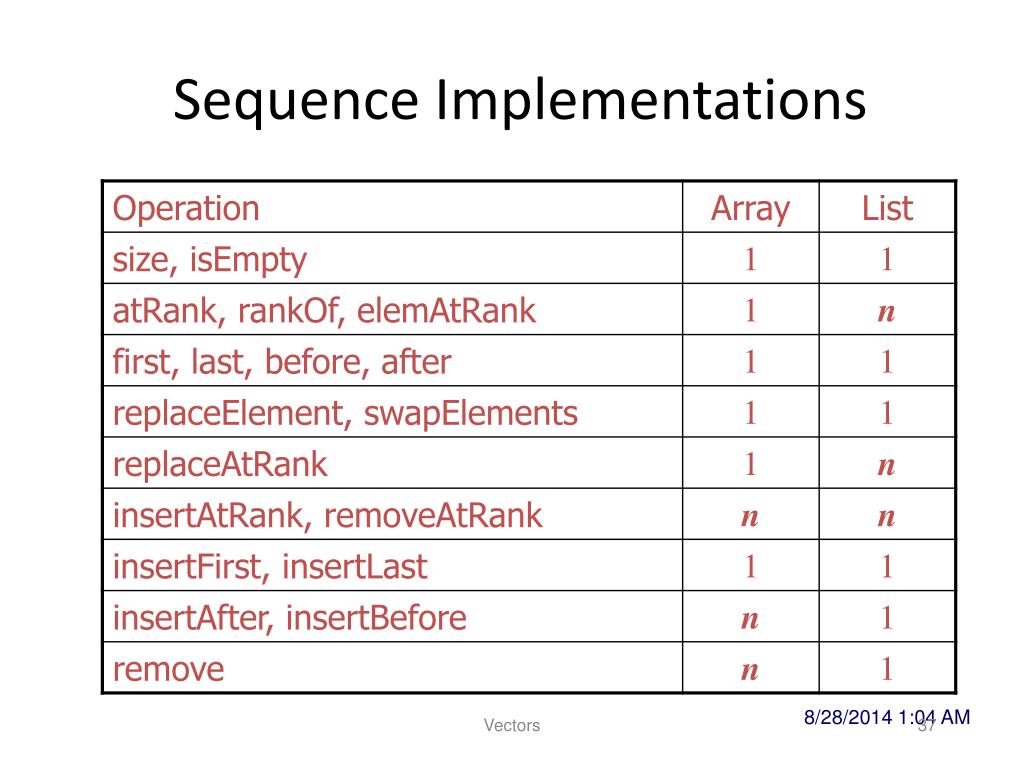

37. Sequence Implementations Vectors
