Presentation Transcript

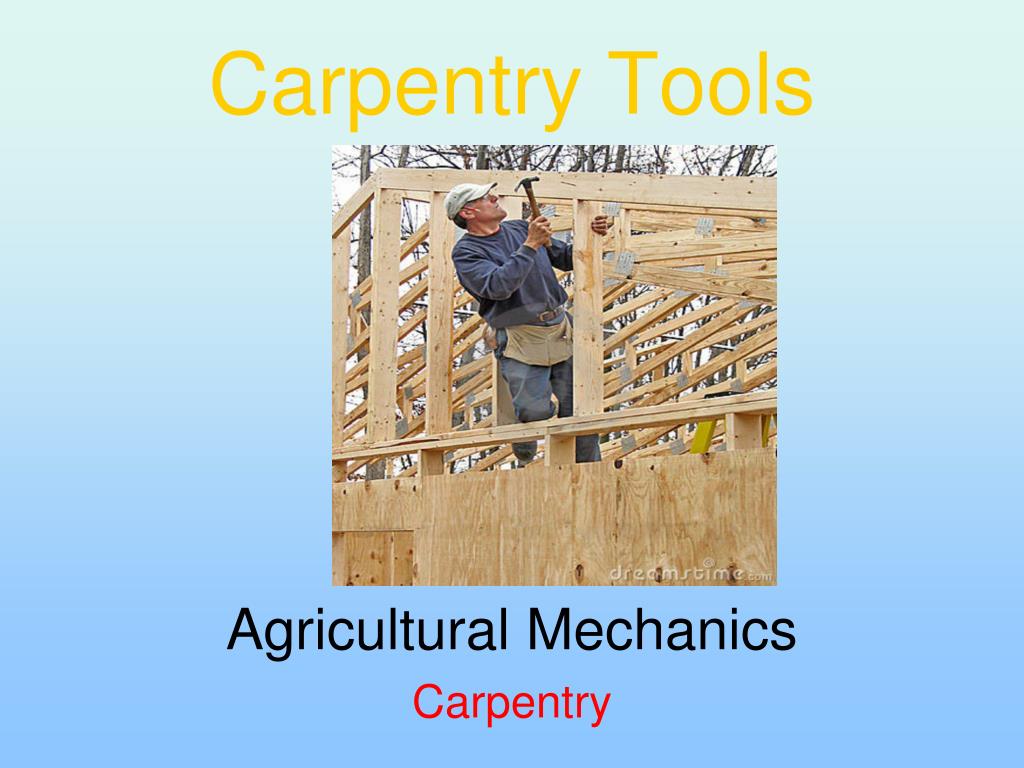

  1. Carpentry Tools Agricultural Mechanics Carpentry

  2. Next Generation Science/Common Core Standards Addressed! CCSS.ELALiteracy.RST.9‐10.4 Determine the meaning of symbols, key terms, and other domain‐specific words and phrases as they are used in a specific scientific or technical context relevant to grades 9–10 texts and topics. CCSS.ELALiteracy.RST.9‐10.7 Translate quantitative or technical information expressed in words in a text into visual form (e.g., a table or chart) and translate information expressed visually or mathematically (e.g., in an equation) into words. CCSS.ELALiteracy.RST.11‐12.9 Synthesize information from a range of sources (e.g., texts, experiments, simulations) into a coherent understanding of a process, phenomenon, or concept, resolving conflicting information when possible.

  3. Asphalt Shingle • The most common type of roofing shingle. It generally has three tabs. The top black portion is nailed down and covered by the colored portion.

  4. Auger Bit • Used for boring holes through wood. With a square tapered shank, it can be used in a bit brace

  5. Back Saw • Used for bench sawing of dovetail joints, dado joints, and other joints where wood is held with a vise or miter box.

  6. Bar Clamp • Used to clamp glued wood joints until dry or positioning metal until welded.

  7. Biscuit Jointer • Cuts a football shaped groove into the ends of lumber. A biscuit wafer is inserted into the notch to form a glue joint.

  8. Block Plane • Used to plane small pieces of lumber and ends of moldings, trim and siding.

  9. Butt Hinge • Used for hanging various types of doors. The hinge is set into the grain notch, flush with the wood.

  10. Carpenter’s Framing Square • Used for squaring boards and timbers, measuring and laying out rafters.

  11. Carpenter’s Level or Plumb Level • Used for checking, laying out or marking vertical or horizontal level lines. It can also be used for leveling and plumbing objects.

  12. Caulking Gun • Used to apply caulking for sealing cracks or applying adhesive for gluing.

  13. Chain Saw • Used to cut trees, logs, and heavy timber. Chain saws are gasoline or electrically powered. The size of the saw is determined by the length of the bar and the horsepower or displacement of the engine.

  14. Chalk Line • Used for marking a long straight line on a board, wall, ceiling, or floor. A chalk line is a string that has been coated with chalk dust so it leaves a line when snapped.

  15. Circular Saw Blade • Used for ripping or crosscutting wood. It forms a complete circle and has saw teeth all the way around the circular edge.

  16. Combination Square • Used as a try square, miter, depth gauge, plumb level, locating the center on the end of round stock or measuring angles depending on which head is used. The three heads used on a combination square are: square-miter, center, and bevel protractor.

  17. Corner Clamp • Used to hold lumber in place when gluing wood frames to a ninety degree corner.

  18. Corrugated Fiberglass Siding • Commonly used in greenhouses. Inexpensive wall material which allows some light to pass through. Corrugation provides strength.

  19. Corrugated Metal Siding • Commonly used in barn and shed construction. Corrugation provides great strength.

  20. Countersink • Used to countersink holes for flathead wood and machine screws and stove bolts.

  21. Curved Claw Hammer • Used for driving and pulling nails. It is the most common hammer used by the carpenter. The size of the hammer is determined by the weight of its head.

  22. Dado Saw Set • Used to cut grooves/joints in lumber. Adjustable to various thicknesses.

  23. Dowel Rod • Round rods which come in assorted sizes, used to insert into drilled holes when gluing wood together.

  24. Dry wall Screwdriver • Designed specifically to drive drywall screws through sheetrock into the support walls behind it.

  25. Felt Paper • Used as a underlayment material for shingles or rolled roofing materials. Aids I shedding water that may get under the roofing materials.

  26. Flashing • Thin galvanized metal strips placed under roofing material to protect the edges of exposed lumber to prevent weathering.

  27. Folding Rule • Used for taking or laying off long or short measurements where rigid support is needed.

  28. Glass Cutter • Used to score and cut glass.

  29. Hand Saw • Used for straight sawing in hand woodworking. The size of the saw is determined by the length of the blade from toe to heel. The coarseness for fineness of the saw cut is determined by the number of points (teeth) per inch. Available for either cross cutting (across the grain) or ripping (with the grain).

  30. Hand Screw • Used to clamp flat wood joints after applying glue.

  31. Hinge Hasp • Used for fastening doors or lids and a place for a lock is provided.

  32. Hole Saw • Used with an electric drill to bore round holes in wood or other materials.

  33. Insulation • Used in home construction to insulate between wall studs and in ceilings. May come in sheets or rolls.

  34. Jig Saw or Saber Saw • Used to make straight or bevel cuts and cutting circles or curved shapes in lumber.

  35. Keyhole or Compass Saw • Used to cut irregular shapes or work where space is limited. The blade tapers from the handle to a sharp point.

  36. Line Level • Used to check the level of foundations and other construction jobs, when attached to a string line. Also used to line up bricks & blocks

  37. Marking Gauge • Used when marking lines parallel to the edges of material.

  38. Metal Stud • Used as a replacement for lumber framing when called for by building codes.

  39. Miter Box and Saw • Used for squaring wood stock and cutting angles from 90 degrees in either direction. The miter box guides the blade when forming miter cuts and other types of joints.

  40. Nail-Set • Used to set heads of nails (casing and finishing) below the surface of wood.

  41. Paint Roller • Used to apply paint rapidly over a larger area.

  42. Palm/Finish Sander • Sander provides the smooth surface needed before wood finish is applied.

  43. Particle Board • Constructed of sawdust and wood chips which are fused together. Most commonly used in flooring.

  44. Plywood • A sheet of wood that is formed by gluing thin layers of wood together. Exceptional strength. Commonly used for roofing, floors, decks, and walls.

  45. Pneumatic Finish Nail Gun • Used to apply finish nails rapidly with little surface distortion.

  46. Pneumatic Nail Gun • Used for rapid framing of large structures.

  47. Portable Belt Sander • Most powerful of the portable sanders These sanders are used to strip off paint and varnish, and remove rust and corrosion.

  48. Portable Circular Saw Used to cut structural lumber and rip plywood, strand board etc.

  49. Portable Power Planer • Used to smooth surfaces of lumber prior to sanding.

  50. Power/Battery Charger • Used to charge a variety of batteries.
