  1. Formal verification in SPIN Karthikeyan Bhargavan, Davor Obradovic CIS573, Fall 1999

  2. Formal verification • Formal verification means using methods of mathematical argument to determine correctness of systems. • Can be applied to hardware, software and other kinds of systems. • Bugs are expensive when discovered in a finished product. Idea: use FV to discover bugs during the design phase.

  3. Model checkers • Model checkers are among the most widely used FV tools. • Human inspection is not effective: • Currently designed systems are too large • Concurrency, race conditions • Big verifications done by paper and pencil are hard to re-construct and re-check • Model checkers are good at doing massive (but often simple) case analyses.

  4. The BIG picture YES model description Model checker property NO + counterexample

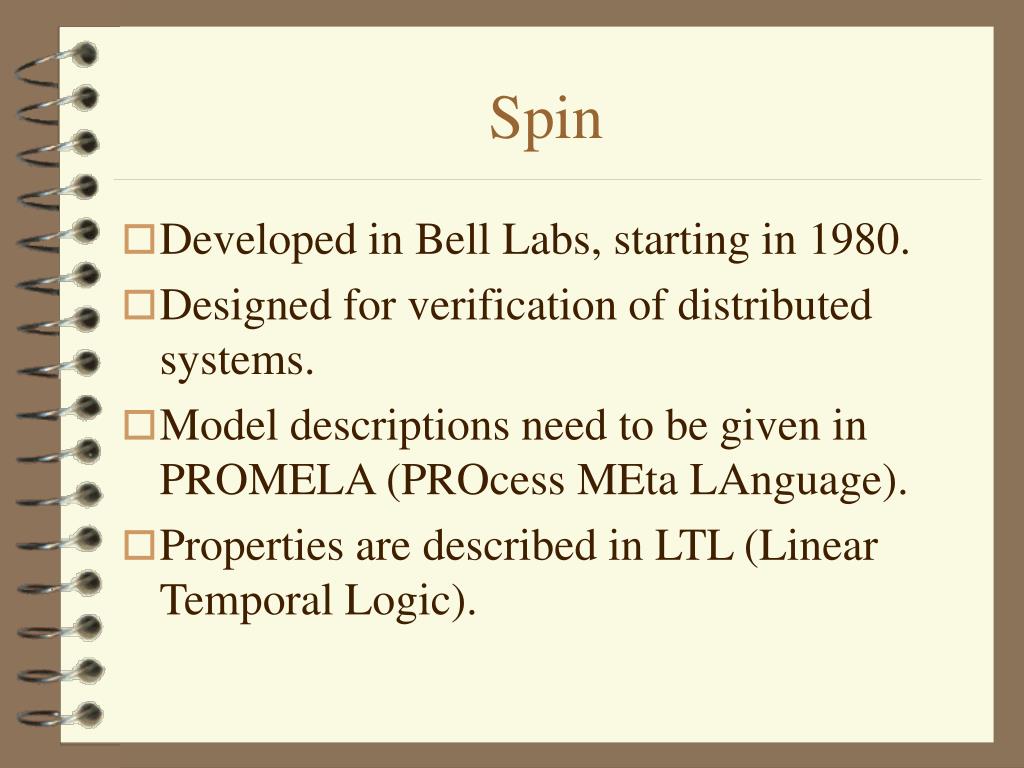

  5. Spin • Developed in Bell Labs, starting in 1980. • Designed for verification of distributed systems. • Model descriptions need to be given in PROMELA (PROcess MEta LAnguage). • Properties are described in LTL (Linear Temporal Logic).

  6. PROMELA overview • A PROMELA program describes a set of concurrent processes. • Execution is asynchronous (each time only one process does a step), except in special cases (rendezvous message passing). • Processes can die or be created dynamically. • Processes can communicate through global variables and channels (message passing).

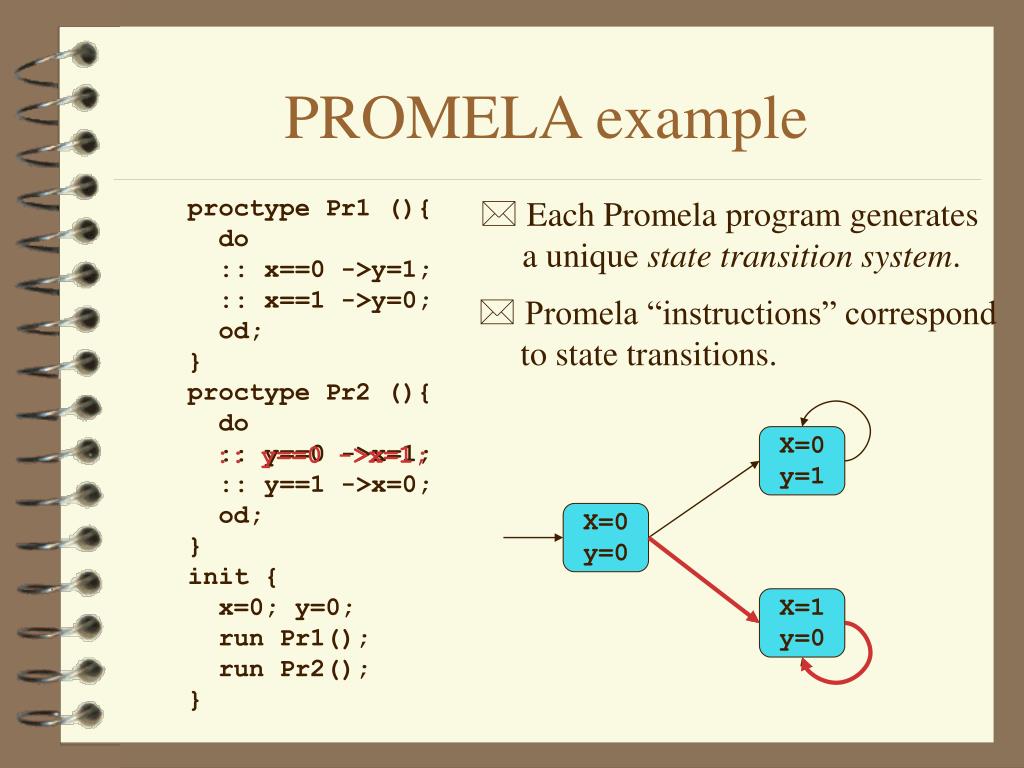

  7.  Each Promela program generates a unique state transition system.  Promela “instructions” correspond to state transitions. X=0 y=1 X=0 y=0 :: y==0 ->x=1; X=1 y=0 PROMELA example proctype Pr1 (){ do :: x==0 ->y=1; :: x==1 ->y=0; od; } proctype Pr2 (){ do :: y==0 ->x=1; :: y==1 ->x=0; od; } init { x=0; y=0; run Pr1(); run Pr2(); }

  8. PROMELA special features • Nondeterministic choice: if if :: g1 -> s1; :: (x>3) -> x--; :: g2 -> s2; :: true -> y=1; . . . :: y -> x=x+y; fi fi; At each step, execute one of the statements whose guard evaluates to true.

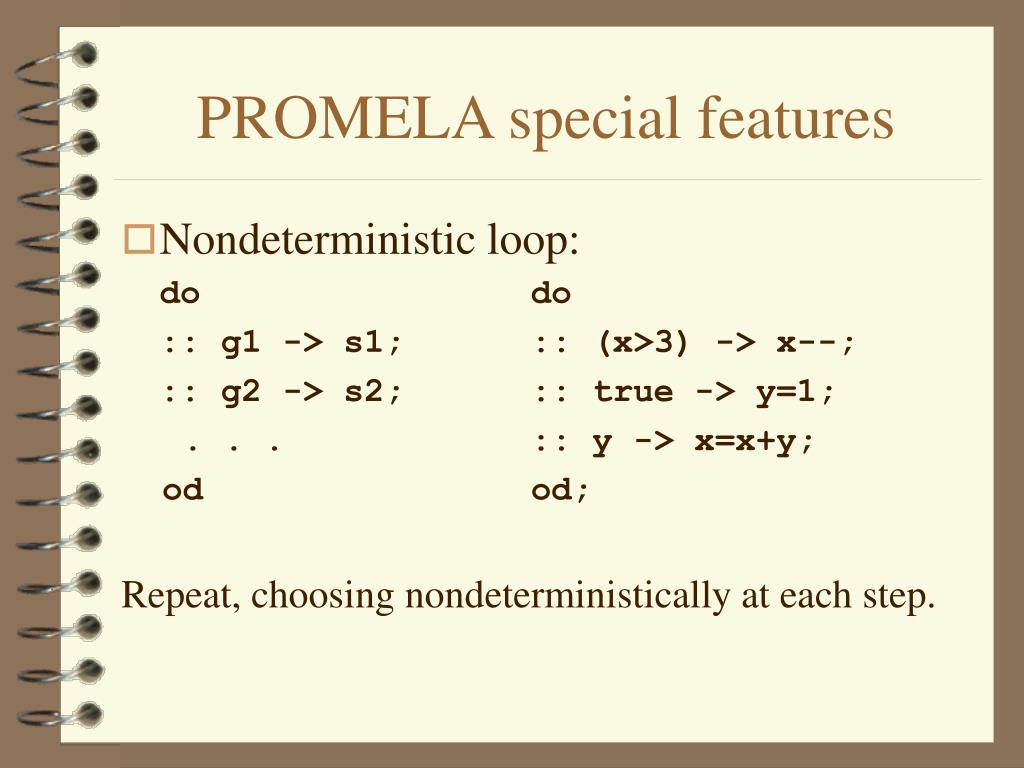

  9. PROMELA special features • Nondeterministic loop: do do :: g1 -> s1; :: (x>3) -> x--; :: g2 -> s2; :: true -> y=1; . . . :: y -> x=x+y; od od; Repeat, choosing nondeterministically at each step.

  10. PROMELA special features • Channel communication: chan c = [2] of {bit}; chan din = [0] of {byte}; chan dout = [1] of {byte}; Send a message m on channel c: c!m Receive a message from channel c: c?x din?v -> dout!(v+v); c?1 -> x++; dout!v -> skip;

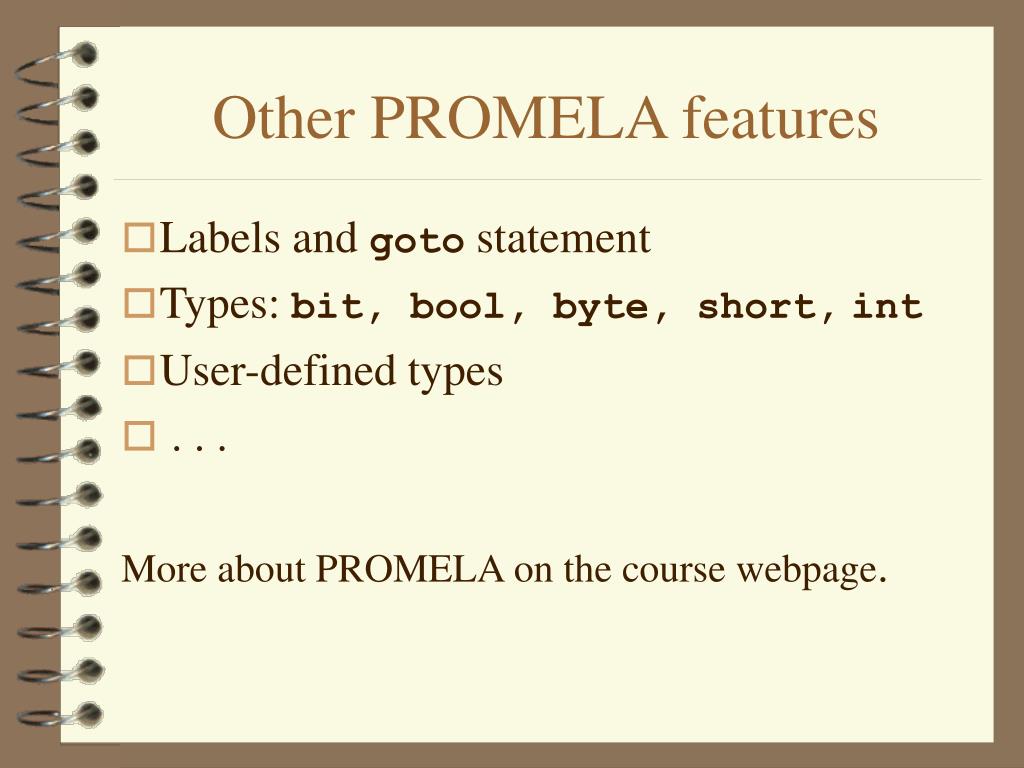

  11. Other PROMELA features • Labels and goto statement • Types: bit, bool, byte, short,int • User-defined types • . . . More about PROMELA on the course webpage.

  12. LTL overview • Expresses properties dependent on time (temporal) • LTL formulas are evaluated on sequences of states (linear) • Standard predicate logic + temporal operators: [] = always <> = eventually

  13. LTL in practice • x is always strictly greater than y: [](x>y) • Eventually x becomes equal to 1: <>(x==1) • Eventually x becomes equal to 1 and never changes afterwards: <>[](x==1) • If at any moment x becomes negative, y will become negative at some later moment: []((x<0) ==> <>(y<0))

  14. LTL, formal definitions F ::= p (a state predicate, like (x>0) or (x!=y)) | F1 && F2 | F1 || F2 | !F | []F | <>F Given a sequence of states s = s(0), s(1), s(2), ...  s(i) satisfies []Fif for every j>=i, s(j) satisfies F.  s(i) satisfies <>F if for some j>=i, s(j) satisfies F. The whole sequence s satisfies Fif s(0) satisfies F.

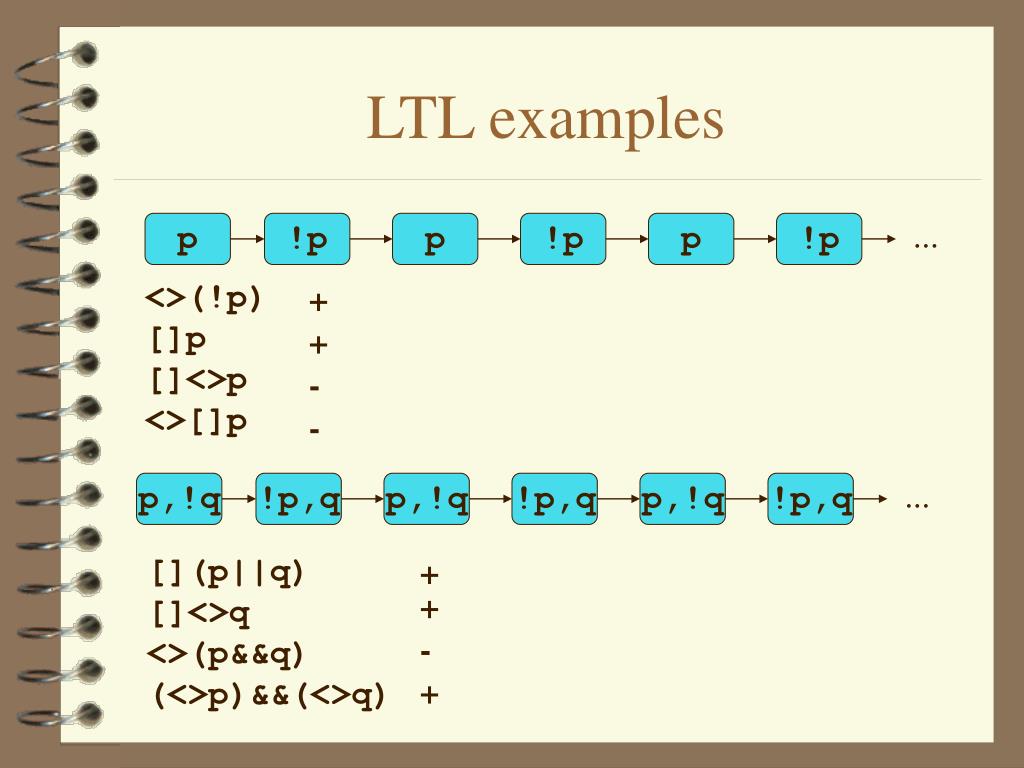

  15. ... ... p p,!q !p !p,q p p,!q !p !p,q p p,!q !p !p,q LTL examples <>(!p) []p []<>p <>[]p + + - - + [](p||q) []<>q <>(p&&q) (<>p)&&(<>q) + - +

  16. LTL verification in Spin • Given a PROMELA program and an LTL formula, Spin checks whether all possible computation paths satisfy the formula. int a,b,d; init { bit ready=0; a=100; proctype Euclid (int x,y){ b=1; do do ::(x>y) -> x=x-y :: (b<a) -> b++ ::(y>x) -> y=y-x :: true -> goto enough :: (x==y)-> goto done od; od; enough: run Euclid(a,b)} done: ready=1; d=x } LTL: <>(ready && (a%d==0))
