Christelle Scharff http://www.csis.pace.edu/~scharff May 2004 Formal Software Verification DPS, Pace University

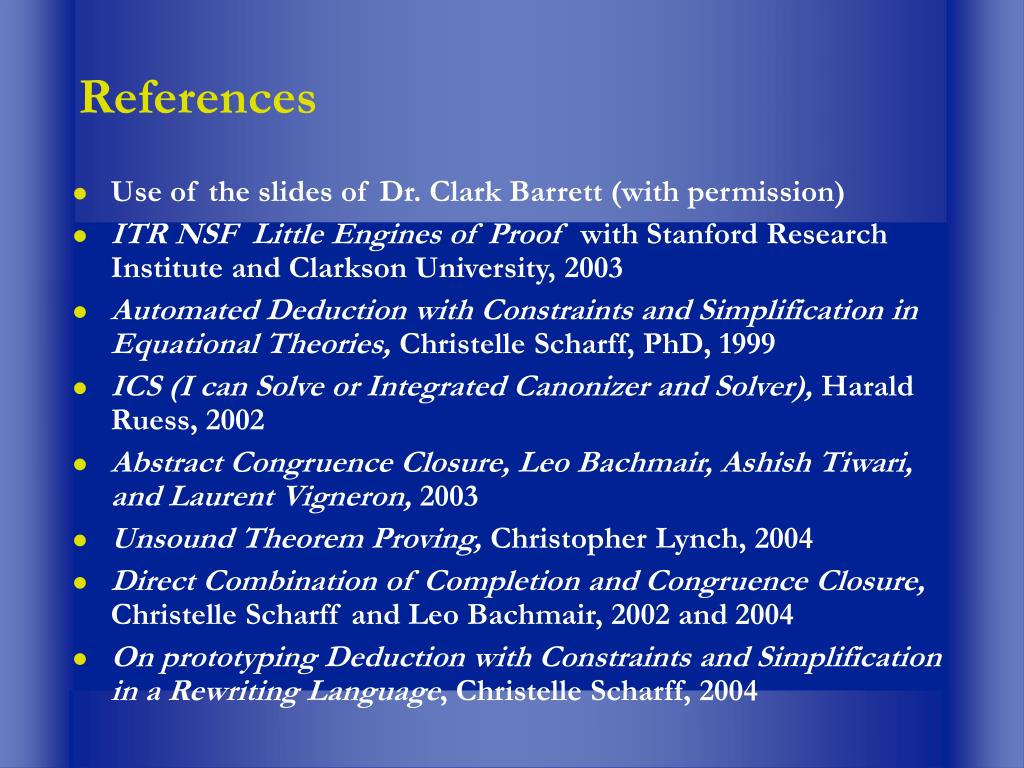

References • Use of the slides of Dr. Clark Barrett (with permission) • ITR NSF Little Engines of Proof with Stanford Research Institute and Clarkson University, 2003 • Automated Deduction with Constraints and Simplification in Equational Theories, Christelle Scharff, PhD, 1999 • ICS (I can Solve or Integrated Canonizer and Solver), Harald Ruess, 2002 • Abstract Congruence Closure, Leo Bachmair, Ashish Tiwari, and Laurent Vigneron, 2003 • Unsound Theorem Proving, Christopher Lynch, 2004 • Direct Combination of Completion and Congruence Closure, Christelle Scharff and Leo Bachmair, 2002 and 2004 • On prototyping Deduction with Constraints and Simplification in a Rewriting Language, Christelle Scharff, 2004

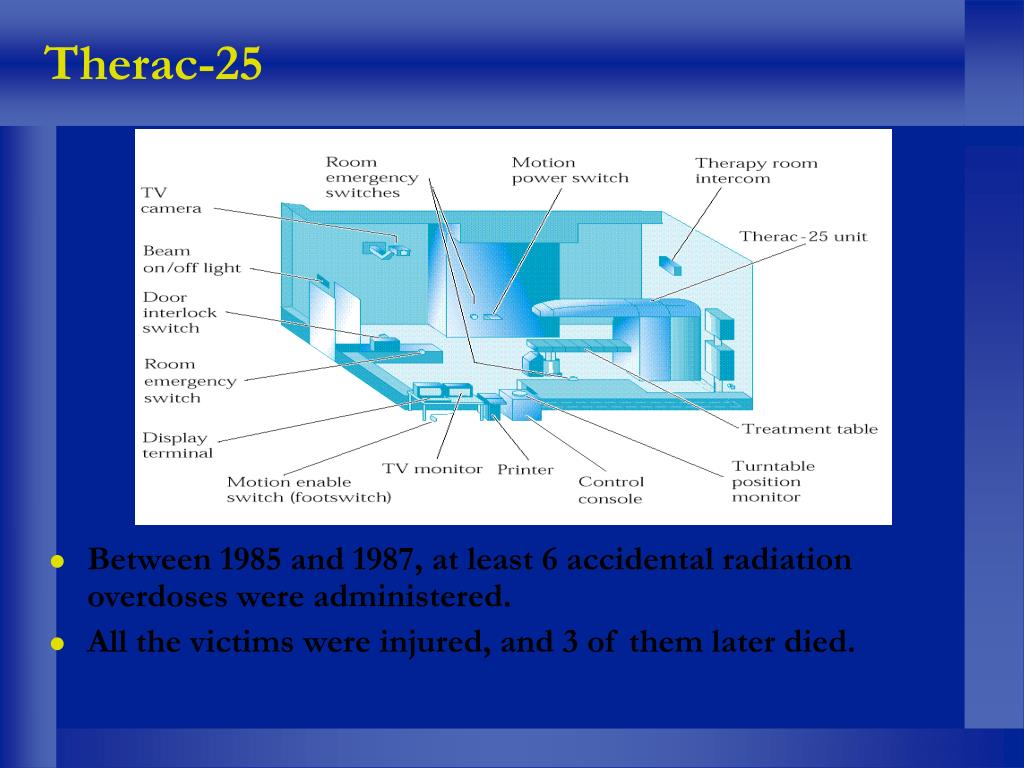

Between 1985 and 1987, at least 6 accidental radiation overdoses were administered. • All the victims were injured, and 3 of them later died. Therac-25
Ariane 5 Rocket • On June 4, 1996, an unmanned Ariane 5 rocket launched by the European Space Agency exploded just 40 seconds after its lift-off. • Value of rocket and cargo: $500 million

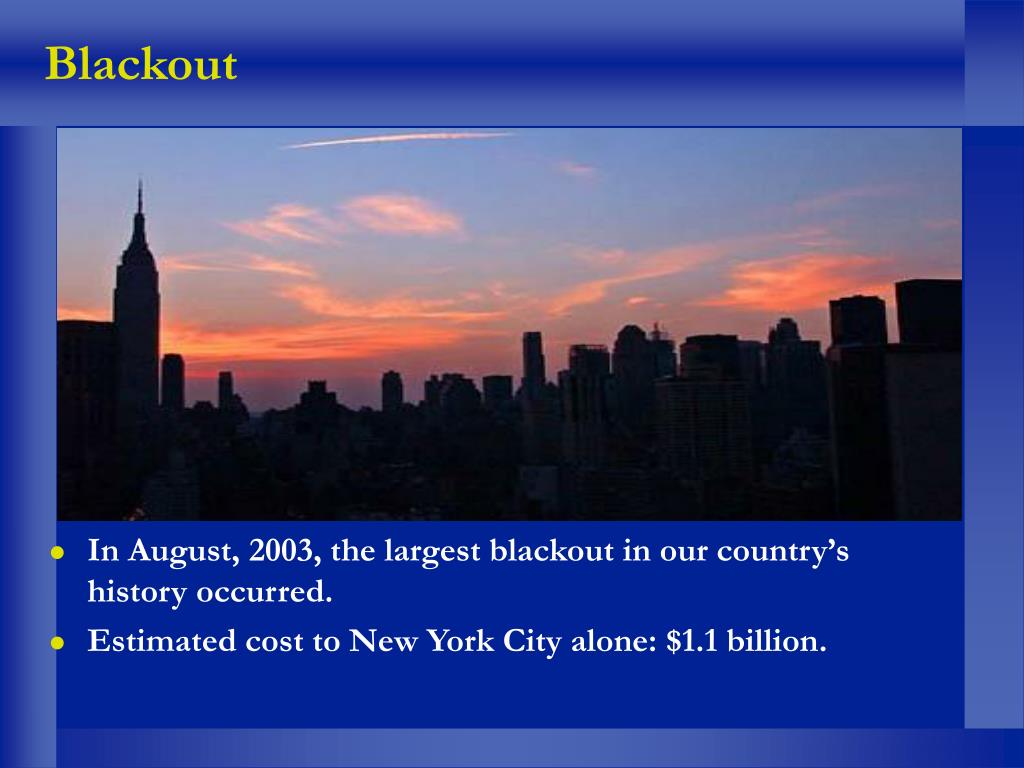

Blackout • In August, 2003, the largest blackout in our country’s history occurred. • Estimated cost to New York City alone: $1.1 billion.
What do these events have in common? Caused by Software Bugs! • Each of the overdoses from the Therac-25 was the result of a bug in the controlling software. • The Ariane 5 explosion was the result of an unsafe floating point to integer conversion in the rocket’s software system. • A software bug caused an alarm system failure at FirstEnergy in Akron, Ohio. An early response to those alarms would likely have prevented the blackout.

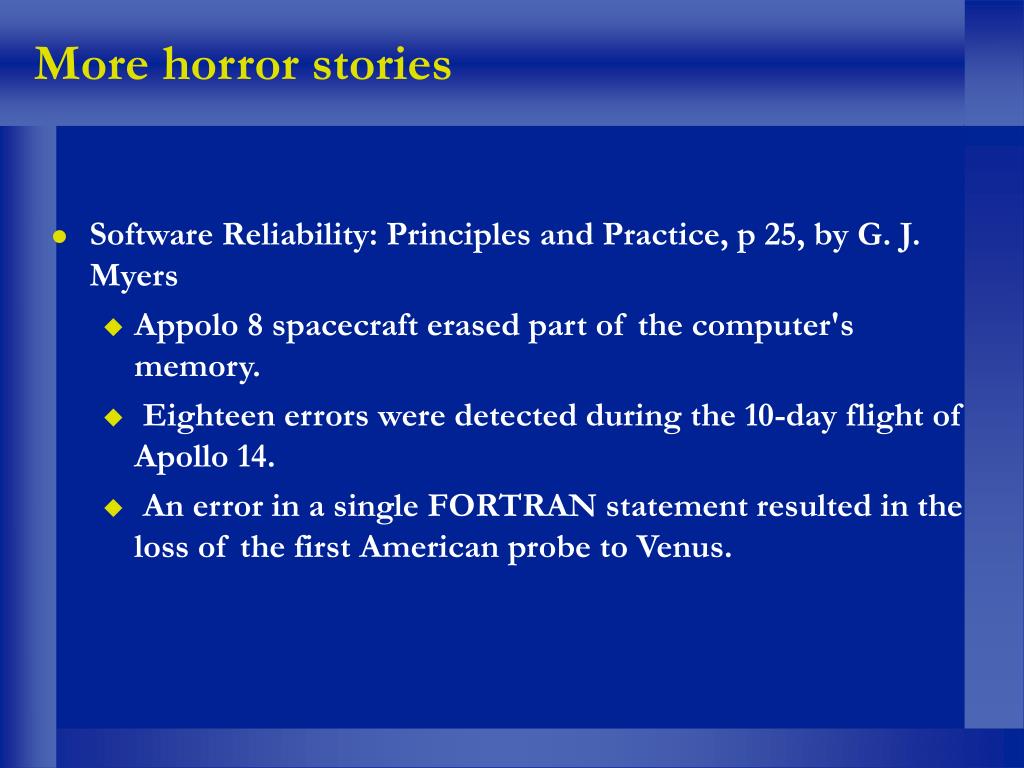

More horror stories • Software Reliability: Principles and Practice, p 25, by G. J. Myers • Appolo 8 spacecraft erased part of the computer's memory. • Eighteen errors were detected during the 10-day flight of Apollo 14. • An error in a single FORTRAN statement resulted in the loss of the first American probe to Venus.
Why must we suffer so? • Engineers are supposed to be good at building things. • When we build a building, we don’t expect it to crumble and have to be rebuilt twice a week. • Why don’t we have software engineers who build better software? • It’s not all Microsoft’s fault. • Software may be the most complex thing ever created. • Getting software right is a very, very difficult task. • Existing engineering techniques are inadequate.
Outline • What is Formal Verification? • Model Checking • Theorem Proving • Systems and Tools • Demonstrations (Eclipse, ICS, GACC) • Conclusions and Future Work
What is Formal Verification? • “[Formal] software verification … has been the Holy Grail of computer science for many decades” – Bill Gates • Formal Verification (Proving) versus Validation (Testing) • Create a mathematical model of the system • An inaccurate model can introduce or mask bugs. • Fortunately, this can often be done automatically. • Specify formally what the properties of the system should be • Prove that the model has the desired properties • Much better than any testing method • Covers all possible cases • This is the hard part • There are a variety of tools and techniques

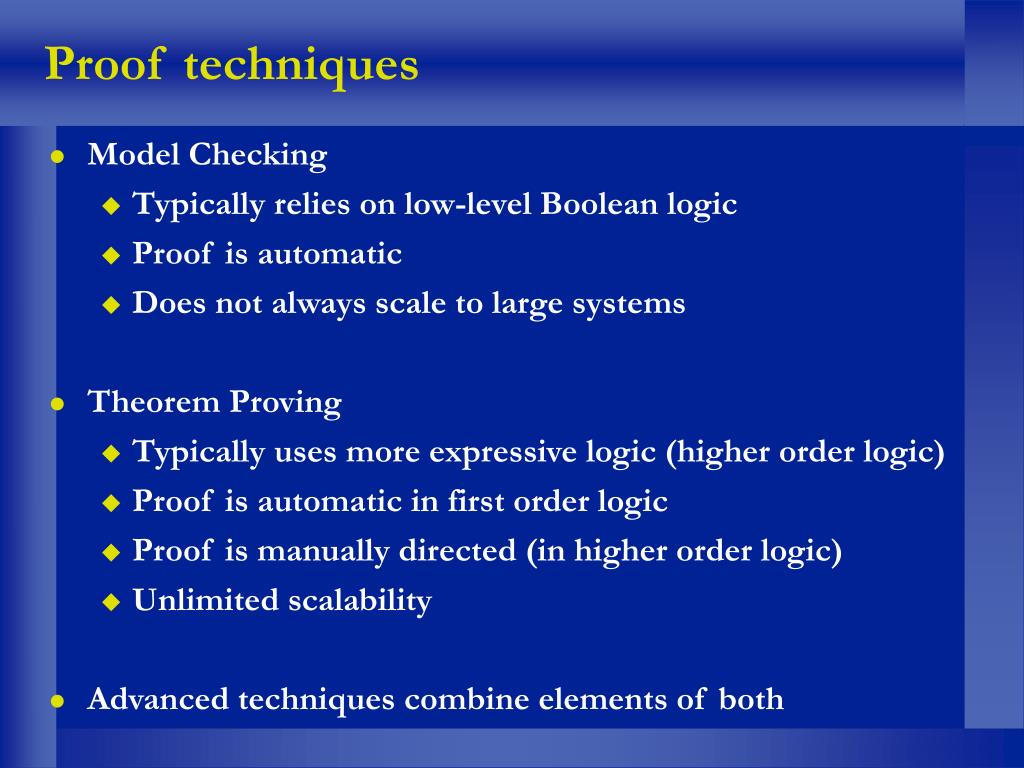

Proof techniques • Model Checking • Typically relies on low-level Boolean logic • Proof is automatic • Does not always scale to large systems • Theorem Proving • Typically uses more expressive logic (higher order logic) • Proof is automatic in first order logic • Proof is manually directed (in higher order logic) • Unlimited scalability • Advanced techniques combine elements of both

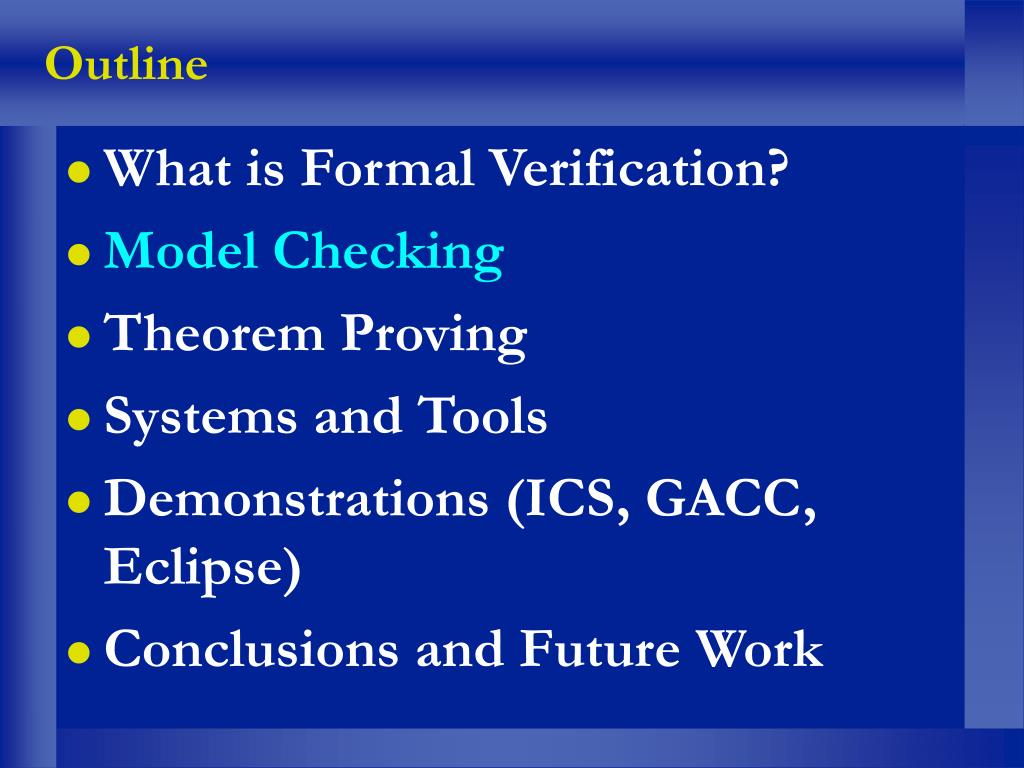

Outline • What is Formal Verification? • Model Checking • Theorem Proving • Systems and Tools • Demonstrations (ICS, GACC, Eclipse) • Conclusions and Future Work

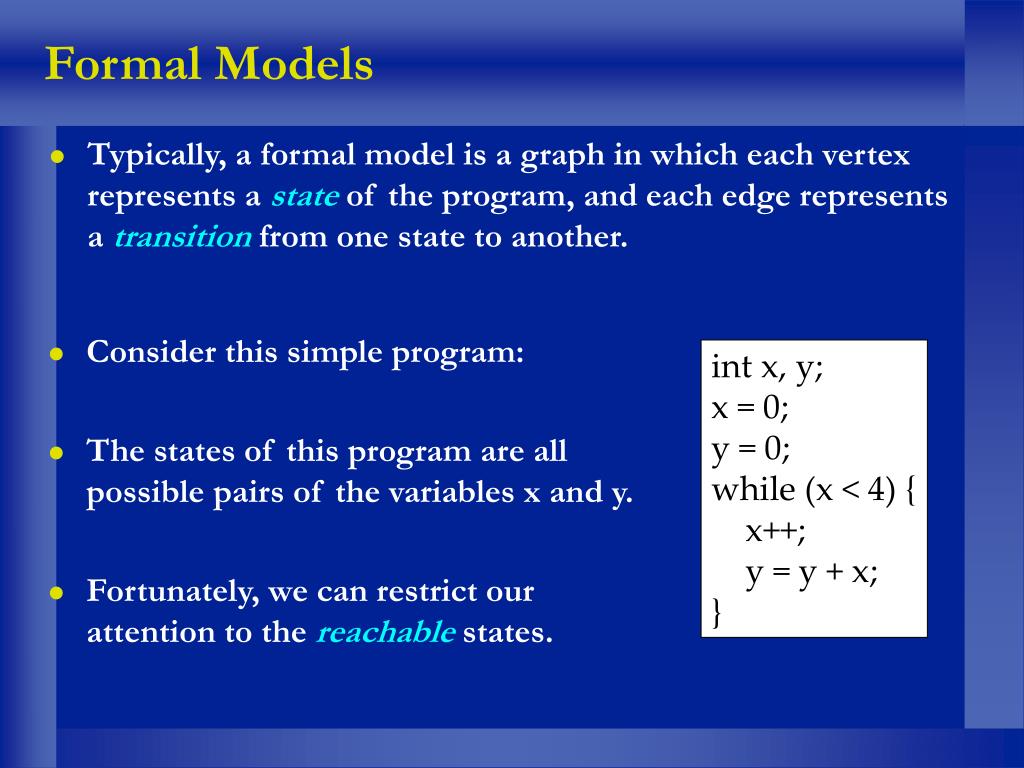

Consider this simple program: • The states of this program are all possible pairs of the variables x and y. • Fortunately, we can restrict our attention to thereachablestates. int x, y; x = 0; y = 0; while (x < 4) { x++; y = y + x; } Formal Models • Typically, a formal model is a graph in which each vertex represents a state of the program, and each edge represents a transition from one state to another.
x ≥ 0 x ≥ 0 0,0 0,0 x ≥ y int x, y; x = 0; y = 0; while (x < 4) { x++; y = y + x; } 1,0 1,0 1,1 2,1 2,3 3,3 3,6 Reachable States and Checking Properties • We can check a property by verifying that it is true in every reachable state. If the property is false, then there is a bug. Initial State Final State
Outline • What is Formal Verification? • Model Checking • Theorem Proving • Systems and Tools • Demonstrations (Eclipse, ICS, GACC) • Conclusions and Future Work

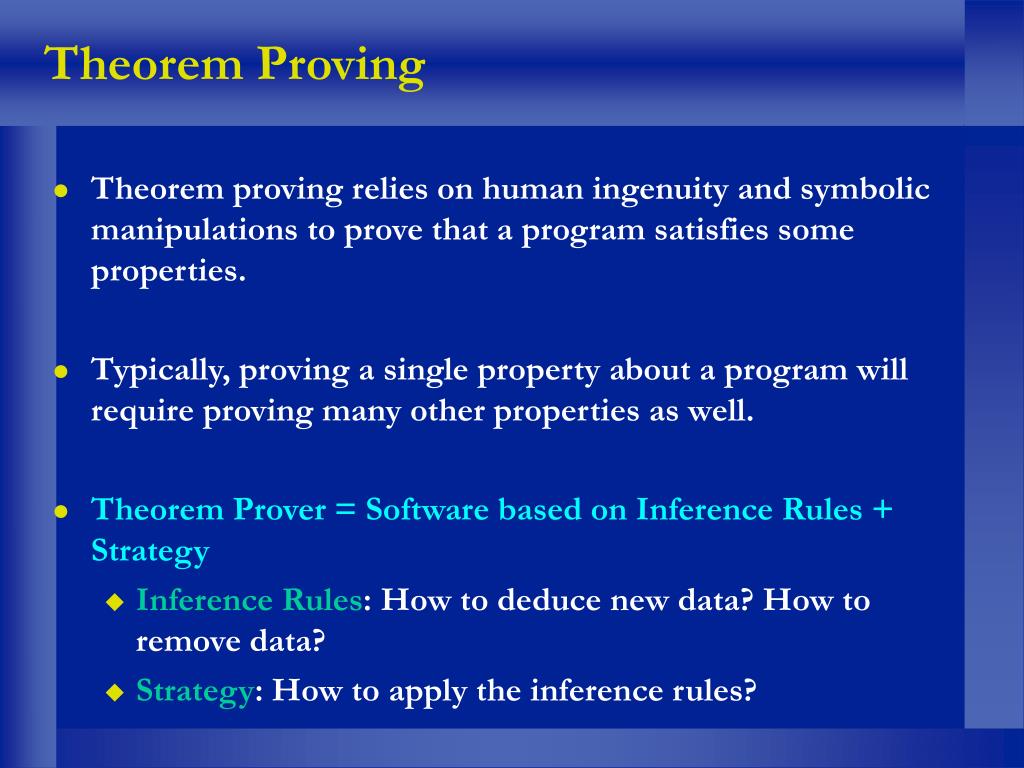

Theorem Proving • Theorem proving relies on human ingenuity and symbolic manipulations to prove that a program satisfies some properties. • Typically, proving a single property about a program will require proving many other properties as well. • Theorem Prover = Software based on Inference Rules + Strategy • Inference Rules: How to deduce new data? How to remove data? • Strategy: How to apply the inference rules?
Theorem Proving • What are the properties of theorem provers? • Soundness (Mandatory Property) • Do not prove that True = False • Prove only true formulae • Completeness(Optional Property) • If a formula is true, it can be proved. • Termination (Undecidable Property) • Does the application of the rules with the strategy terminate?

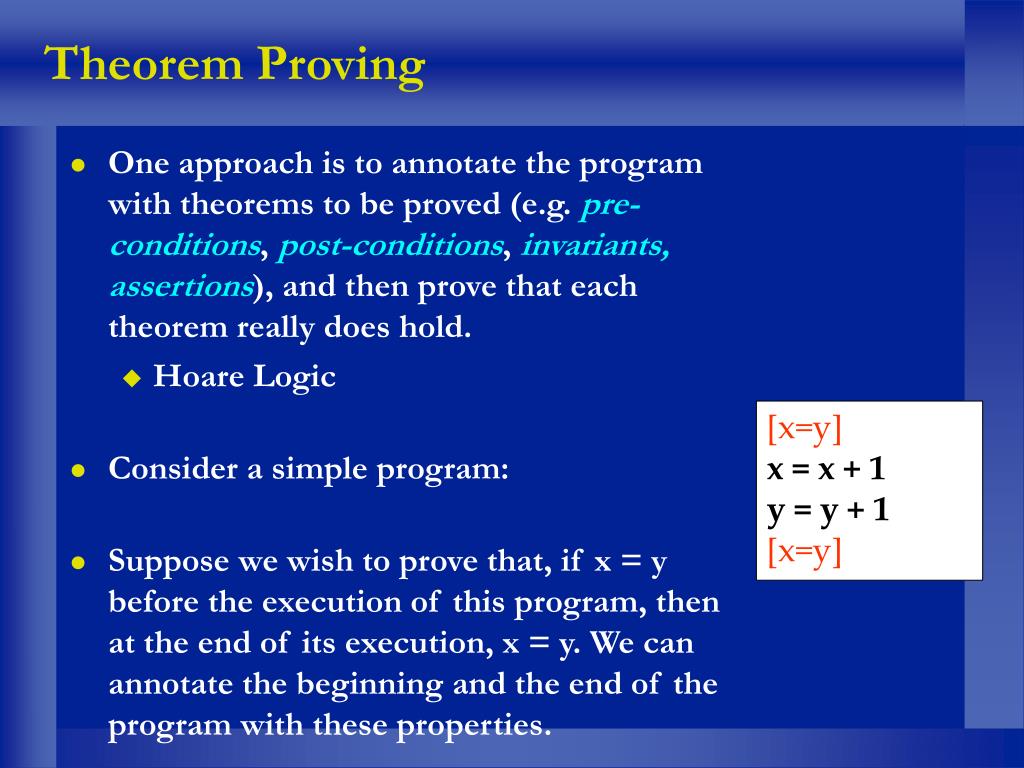

[x=y] x = x + 1 y = y + 1 [x=y] Theorem Proving • One approach is to annotate the program with theorems to be proved (e.g. pre-conditions, post-conditions, invariants, assertions), and then prove that each theorem really does hold. • Hoare Logic • Consider a simple program: • Suppose we wish to prove that, if x = y before the execution of this program, then at the end of its execution, x = y. We can annotate the beginning and the end of the program with these properties.

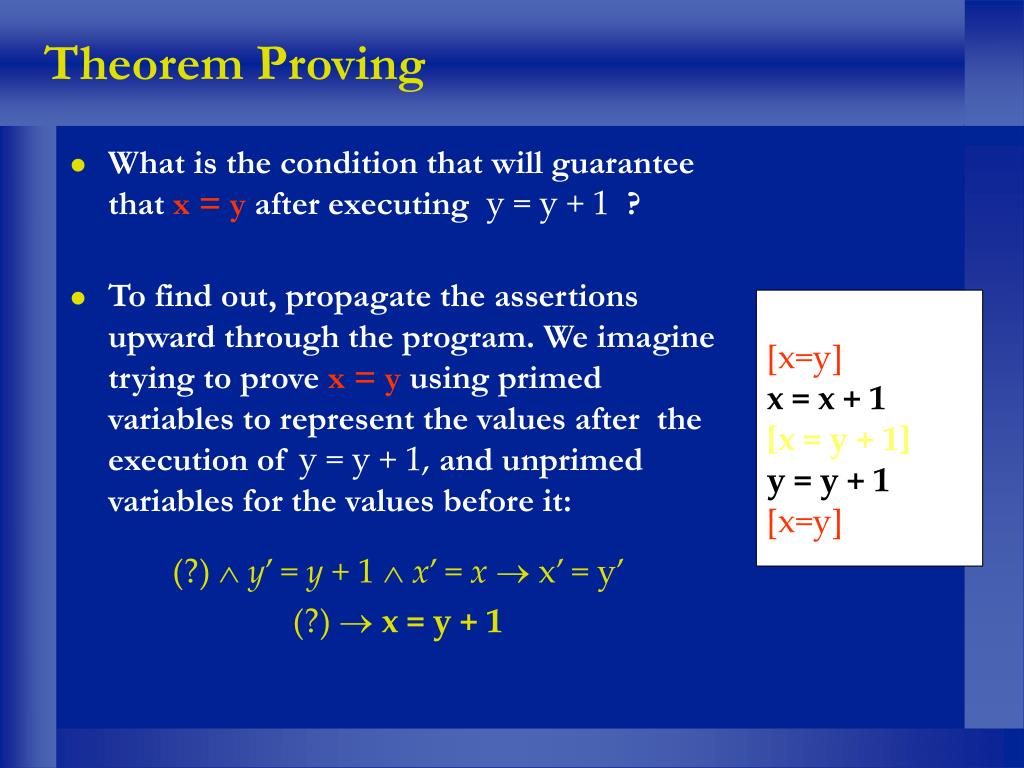

[x=y] x = x + 1 [x = y + 1] y = y + 1 [x=y] Theorem Proving • What is the condition that will guarantee that x = y after executing y = y + 1 ? • To find out, propagate the assertions upward through the program. We imagine trying to prove x = y using primed variables to represent the values after the execution of y = y + 1, and unprimed variables for the values before it: (?) y’ = y + 1 x’ = x x’ = y’ (?) x = y + 1
[x=y] [x + 1 = y + 1] x = x + 1 [x = y + 1] y = y + 1 [x=y] Theorem Proving • What is the condition that will guarantee that x = y + 1 after executing x = x + 1 ? • To find out, we imagine trying to prove x = y + 1 using primed variables to represent the values after the execution of x = x + 1, and unprimed variables for the values before it: (?) x’ = x + 1 y’ = y x’ = y’ + 1 (?) x + 1 = y + 1
[x=y] [x + 1 = y + 1] x = x + 1 [x = y + 1] y = y + 1 [x=y] Theorem Proving • We prove that the program is correct by proving that: • x = y implies x + 1 = y + 1 • using a theorem prover.

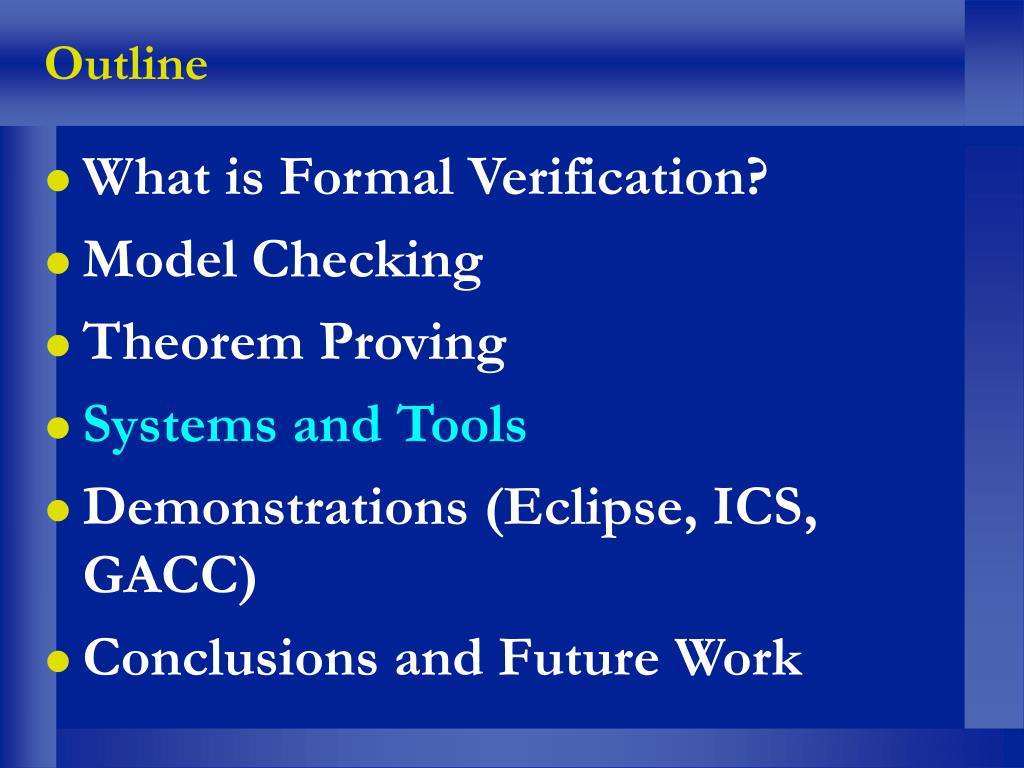

Outline • What is Formal Verification? • Model Checking • Theorem Proving • Systems and Tools • Demonstrations (Eclipse, ICS, GACC) • Conclusions and Future Work
Systems and Tools • Model checkers • SMV • SPIN • Theorem provers • Little Engines of proof • Automated domain-specific theorem provers (uninterpreted functions, linear arithmetic, arrays, bitvectors...) • ICS, CVC lite • GACC (Graph-based Abstract Congruence Closure) • Other Engines of proof • PVS, Isabelle, HOL • BaCCS (Basic Completion with Constraint and Simplification)

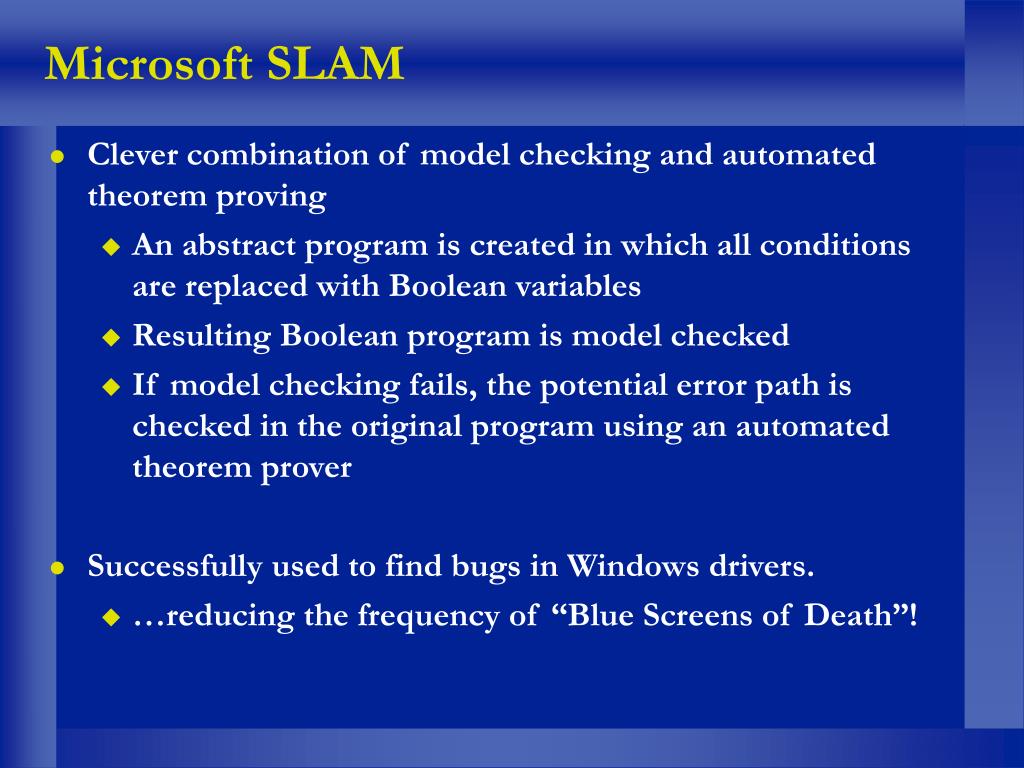

Microsoft SLAM • Clever combination of model checking and automated theorem proving • An abstract program is created in which all conditions are replaced with Boolean variables • Resulting Boolean program is model checked • If model checking fails, the potential error path is checked in the original program using an automated theorem prover • Successfully used to find bugs in Windows drivers. • …reducing the frequency of “Blue Screens of Death”!

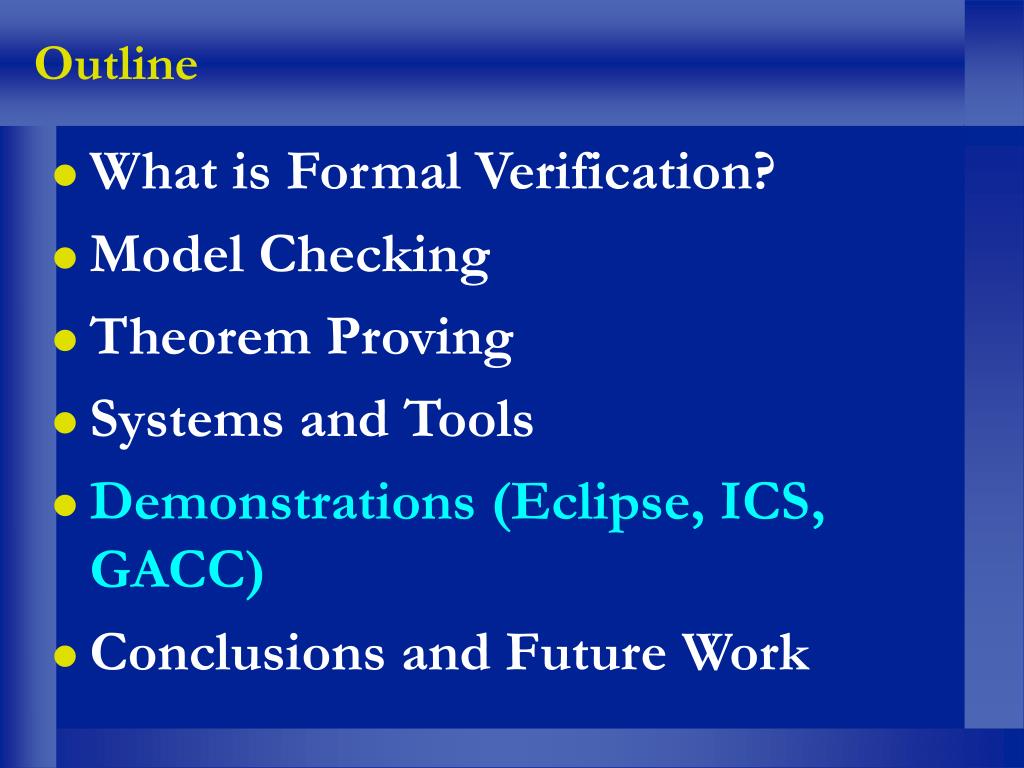

Outline • What is Formal Verification? • Model Checking • Theorem Proving • Systems and Tools • Demonstrations (Eclipse, ICS, GACC) • Conclusions and Future Work

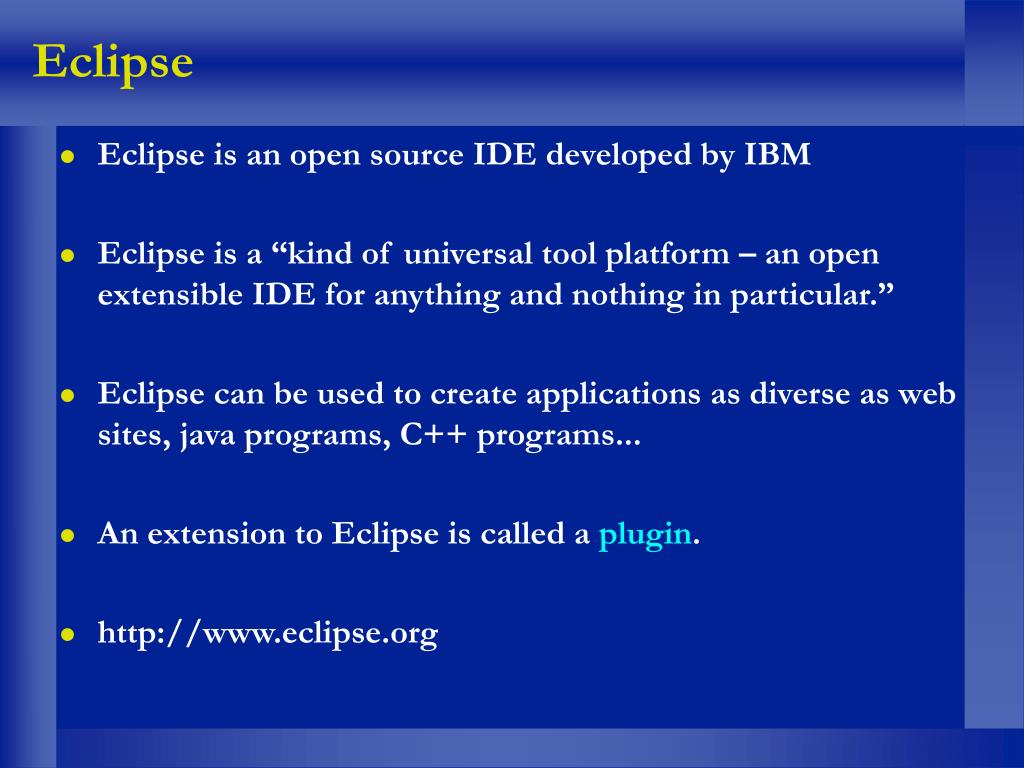

Eclipse • Eclipse is an open source IDE developed by IBM • Eclipse is a “kind of universal tool platform – an open extensible IDE for anything and nothing in particular.” • Eclipse can be used to create applications as diverse as web sites, java programs, C++ programs... • An extension to Eclipse is called a plugin. • http://www.eclipse.org
Demo of ICS (I can solve or Integrated Canonizer and Solver) • Developed at SRI. http://www.ics.com • Decides formulae in a useful combination of theories (non interpreted formulae, bitvectors, reals, arrays…) • & means AND, | means OR, and ~ means NOT. • Example 1: • Ics> sat x = 2 & x = 3; • Answer: unsat • Example 2: • Ics> sat [x = 2 | x = 3] & x < 3; • Answer: sat, model [x = 2; 3 + - 1 * x > 0]

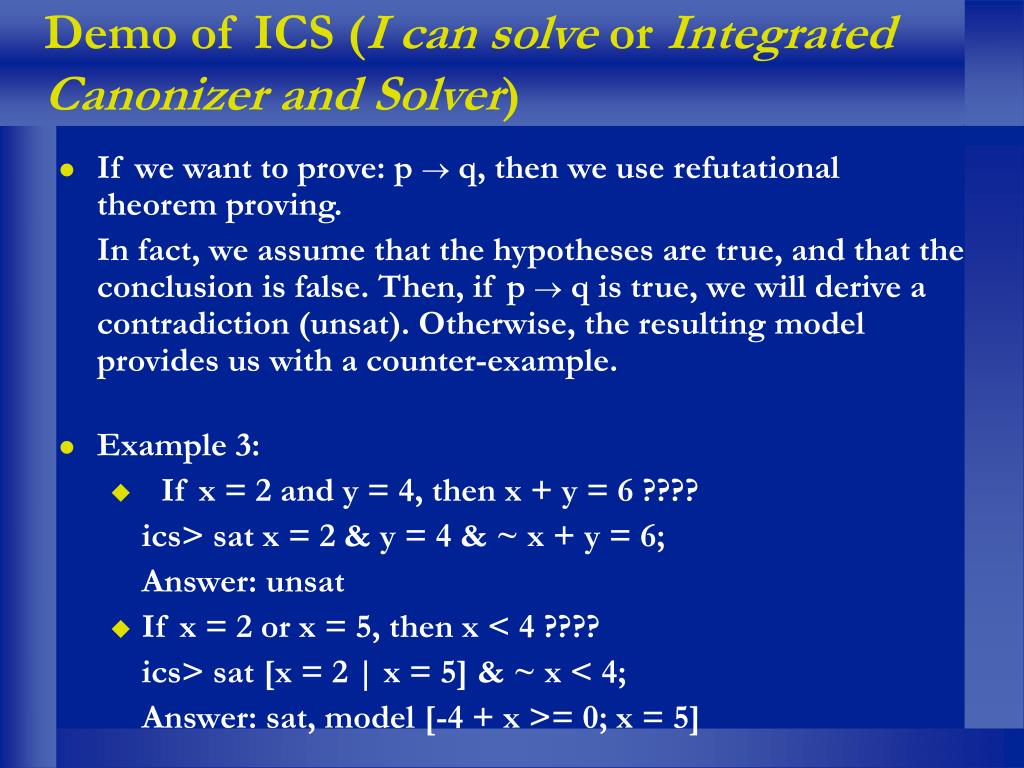

Demo of ICS (I can solve or Integrated Canonizer and Solver) • If we want to prove: p q, then we use refutational theorem proving. In fact, we assume that the hypotheses are true, and that the conclusion is false. Then, if p q is true, we will derive a contradiction (unsat). Otherwise, the resulting model provides us with a counter-example. • Example 3: • If x = 2 and y = 4, then x + y = 6 ???? ics> sat x = 2 & y = 4 & ~ x + y = 6; Answer: unsat • If x = 2 or x = 5, then x < 4 ???? ics> sat [x = 2 | x = 5] & ~ x < 4; Answer: sat, model [-4 + x >= 0; x = 5]
Demo of GACC (Graph-based Abstract Congruence Closure) • Congruence Closure is a method for deciding ground equalities. • Example: From f(a) = b and a = c, we can deduce f(c) =b. • The system GACC implements a new algorithm of congruence closure based on the use of graph with labeled vertices and edges. • GACC was implemented by Eugene Kipnis from Pace University under my supervision, and is available for online experimentation at: http://www.csis.pace.edu/~scharff/SOFTWARE
Outline • What is Formal Verification? • Model Checking • Theorem Proving • Systems and Tools • Demonstrations (Eclipse, ICS, GACC) • Conclusions and Future Work

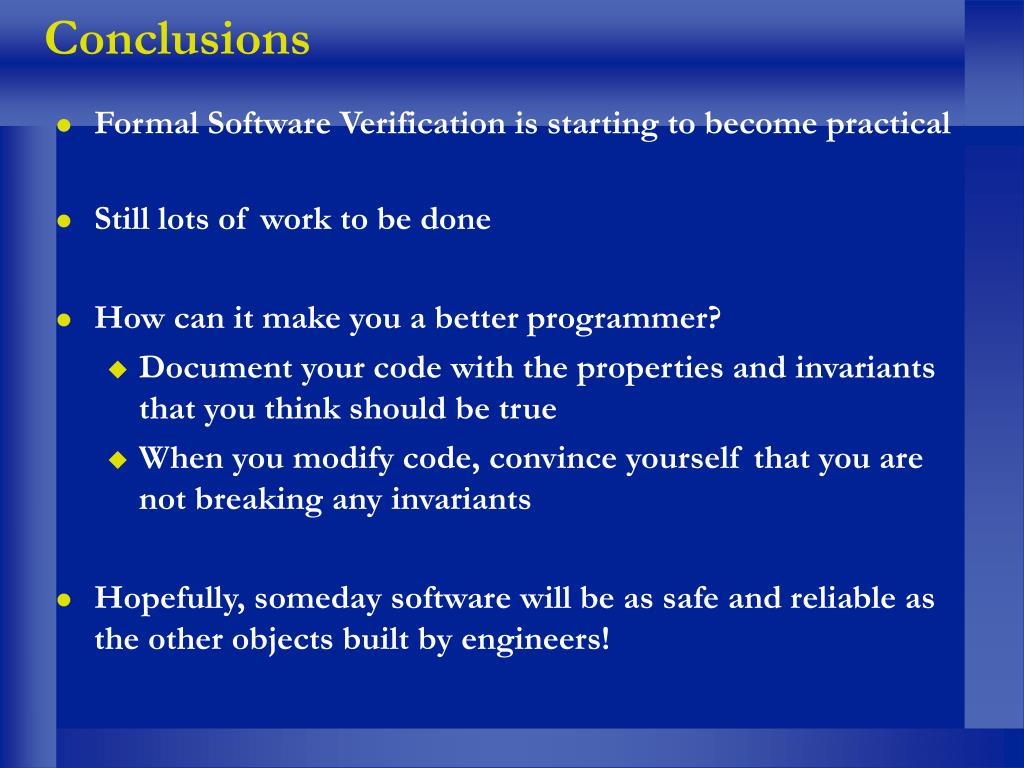

Conclusions • Formal Software Verification is starting to become practical • Still lots of work to be done • How can it make you a better programmer? • Document your code with the properties and invariants that you think should be true • When you modify code, convince yourself that you are not breaking any invariants • Hopefully, someday software will be as safe and reliable as the other objects built by engineers!
Environment • CAFME Center create by Dr. Skevoulis • CS 851: Software Validation and Verification • New course offered in the Fall 2004 • Part of the degree in Software Design and Development • Validation = Testing • Verification = Proving • ITR NSF Grant “Little Engines of Proof” with Stanford Research Institute, and Clarkson University

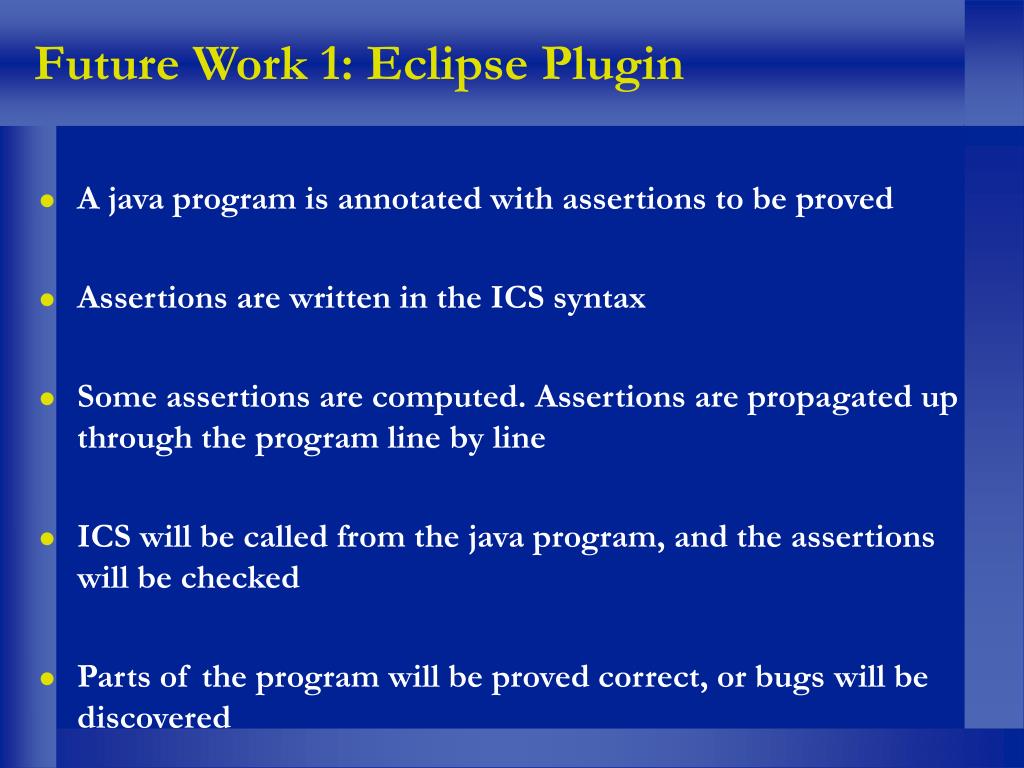

Future Work 1: Eclipse Plugin • A java program is annotated with assertions to be proved • Assertions are written in the ICS syntax • Some assertions are computed. Assertions are propagated up through the program line by line • ICS will be called from the java program, and the assertions will be checked • Parts of the program will be proved correct, or bugs will be discovered
Future Work 2: Strategies • Rewriting languages (e.g. ELAN, MAUDE, OBJ, ASF+SDF) are very expressive, and very convenient to prototype theorem provers • Rewriting languages share many features with functional programming languages (no side-effect, use of recursion, pattern matching…), but they are based on rewriting instead of lambda calculus • Can we develop a Java API that would be used to prototype theorem provers? Can we define the strategy on the rules in an XML document?

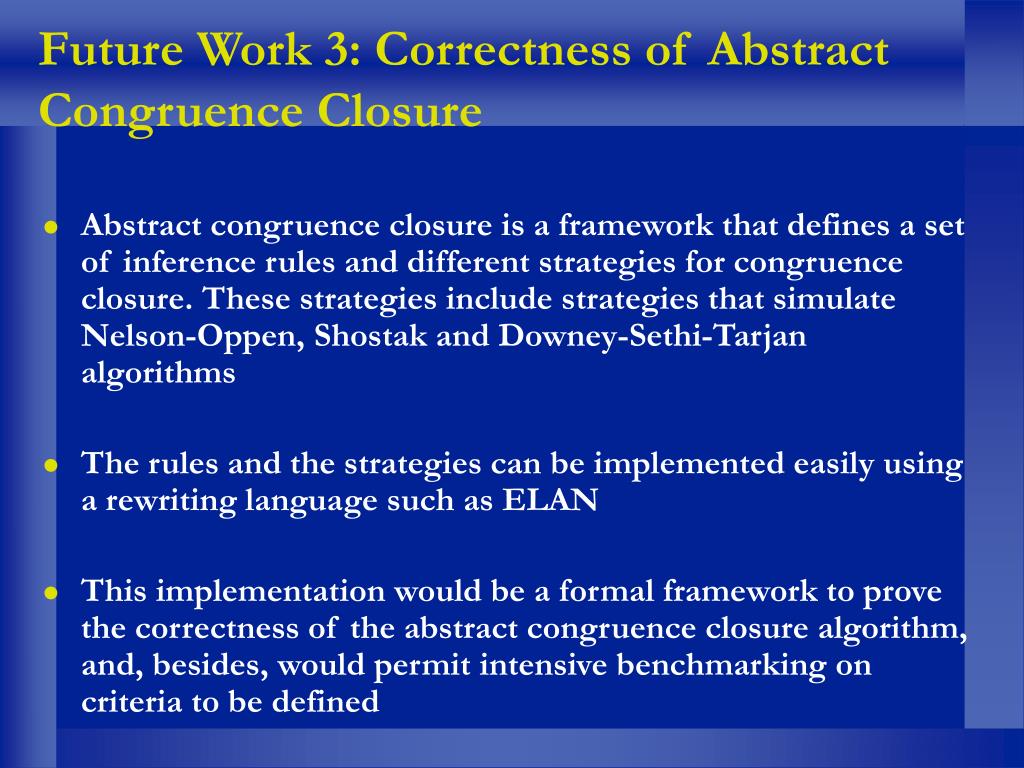

Future Work 3: Correctness of Abstract Congruence Closure • Abstract congruence closure is a framework that defines a set of inference rules and different strategies for congruence closure. These strategies include strategies that simulate Nelson-Oppen, Shostak and Downey-Sethi-Tarjan algorithms • The rules and the strategies can be implemented easily using a rewriting language such as ELAN • This implementation would be a formal framework to prove the correctness of the abstract congruence closure algorithm, and, besides, would permit intensive benchmarking on criteria to be defined
Future Work 4: Unsound Theorem Proving • Many problems given to a theorem prover will be false conjectures. It is important to be able to find quickly bugs in programs. • An inference system for unsound theorem proving (or theorem (dis)proving) has been defined by Christopher Lynch. • The theorem (dis)prover can be prototyped in a rewriting language such as ELAN. • This framework could be used to show the correctness of the procedure, and benchmark the method on criteria to be defined
