1 / 8

Progress Report on XMSF Modeling and Simulation Framework Activities (August 2003)

This report outlines the activities and significant accomplishments of the XMSF (Extensible Modeling and Simulation Framework) during March to August 2003. Key highlights include the investigation of Overlay Multicast for the framework, the creation of a pre-prototype, the initial deployment of a distributed testbed, and a demonstration of Selectively Reliable Multicast. Additionally, a course on Networking Virtual Environments was delivered over the Internet, showcasing advancements in community development and collaboration with multiple organizations such as SISO and OGC.

ernie
Télécharger la présentation

Progress Report on XMSF Modeling and Simulation Framework Activities (August 2003)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. XMSFExtensible Modeling and Simulation FrameworkProgress ReportNPS-MOVES Open House 2003 Mark Pullen George Mason University (GMU) C3I Center 5 August 2003

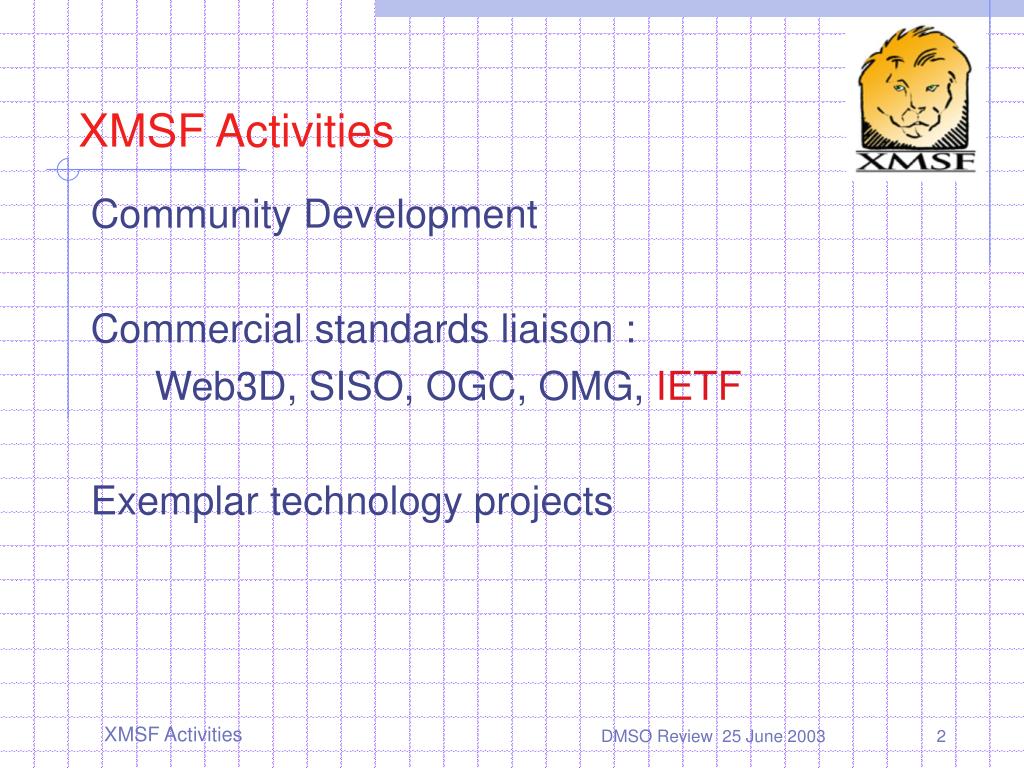

  2. XMSF Activities • Community Development • Commercial standards liaison : • Web3D, SISO, OGC, OMG, IETF • Exemplar technology projects XMSF Activities

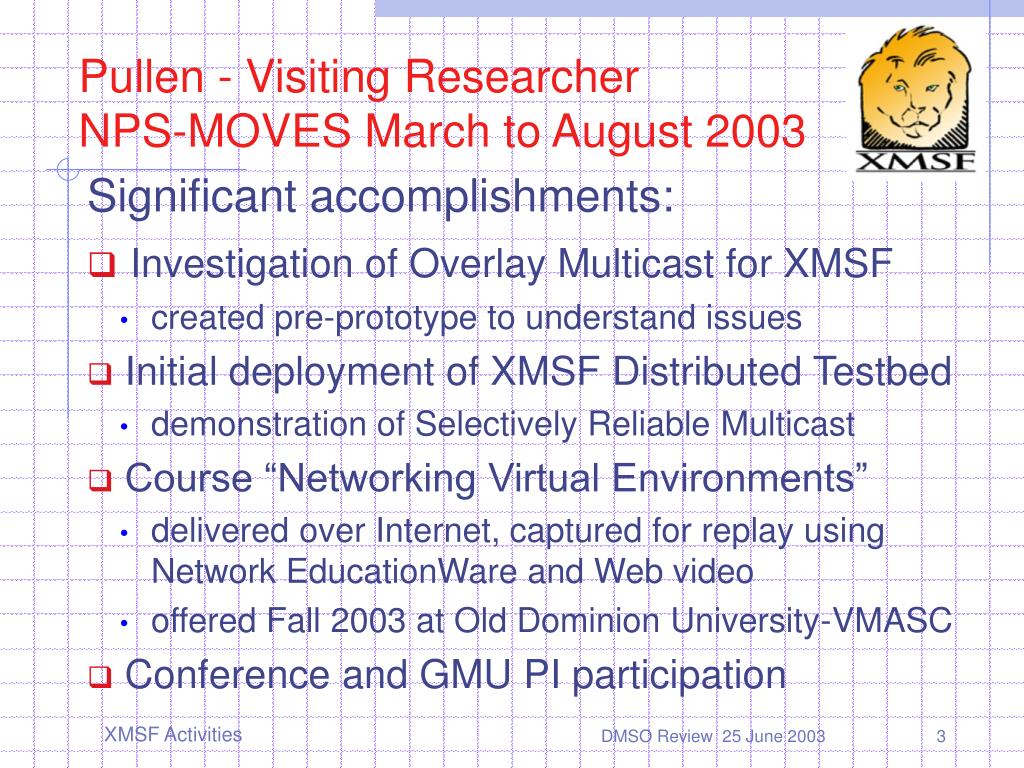

  3. Pullen - Visiting ResearcherNPS-MOVES March to August 2003 • Significant accomplishments: • Investigation of Overlay Multicast for XMSF • created pre-prototype to understand issues • Initial deployment of XMSF Distributed Testbed • demonstration of Selectively Reliable Multicast • Course “Networking Virtual Environments” • delivered over Internet, captured for replay using Network EducationWare and Web video • offered Fall 2003 at Old Dominion University-VMASC • Conference and GMU PI participation XMSF Activities

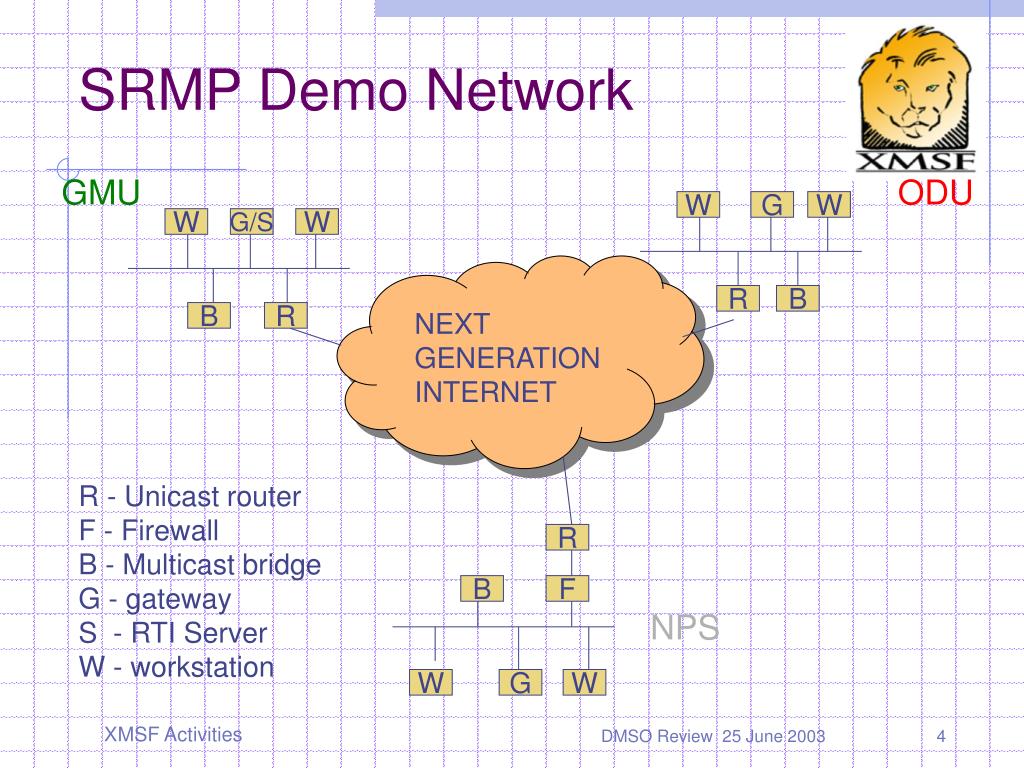

  4. G/S G SRMP Demo Network GMU ODU W W W W NEXT GENERATION INTERNET R B B R R - Unicast router F - Firewall B - Multicast bridge G - gateway S - RTI Server W - workstation R B F NPS W G W XMSF Activities

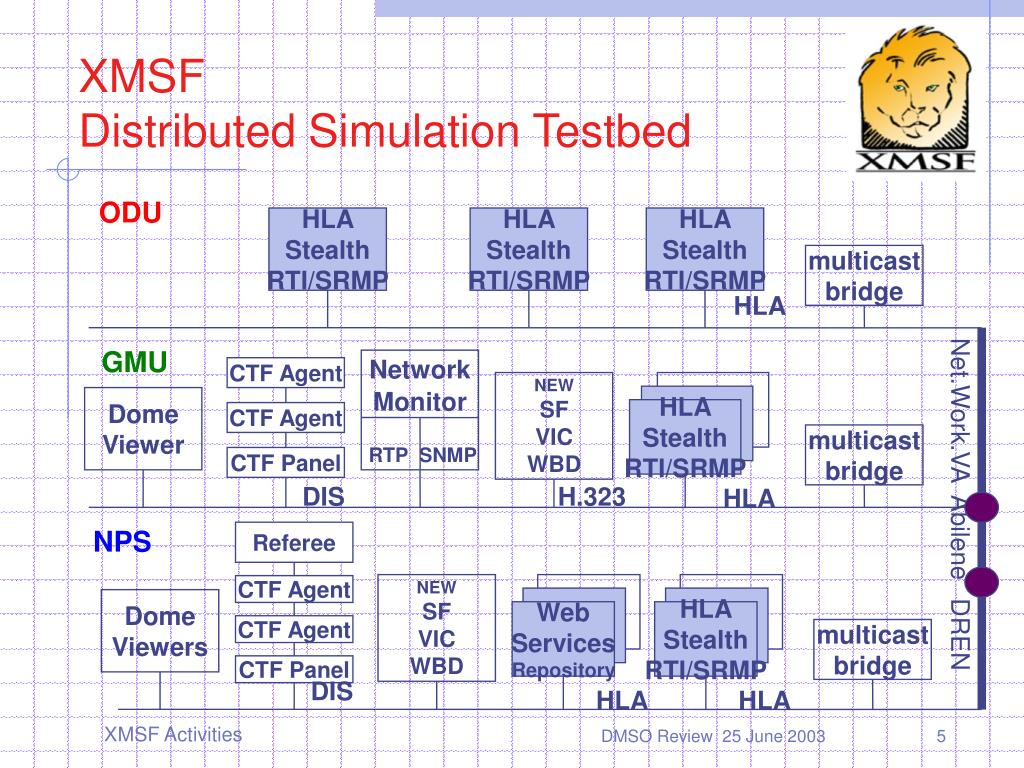

  5. ODU NEW SF VIC WBD NEW SF VIC WBD multicast bridge CTF Agent CTF Agent HLA Dome Viewer HLA Stealth RTI/SRMP Web Services Repository HLA Stealth RTI/SRMP HLA Stealth RTI/SRMP HLA Stealth RTI/SRMP HLA Stealth RTI/SRMP CTF Agent CTF Agent GMU Network Monitor RTP SNMP CTF Panel CTF Panel Net.Work.VA multicast bridge HLA HLA HLA DIS H.323 Referee Abilene NPS Dome Viewers DREN multicast bridge DIS XMSFDistributed Simulation Testbed XMSF Activities

  6. XMSF Overlay Multicaster (XOM) • August ‘02 Monterey workshop identified many-to-many multicasting with Quality of Service as a significant technology gap for Web-enabled M&S • and overlay multicast as a solution • approach emerging at CMU, MIT, elsewhere • Funding not available for prototype in 2003 • did a study instead (published in DS-RT’03 paper) • but we have been able to create a pre-prototype as GMU/NPS student project • potential: multicast with QoS-priority Internet-wide! • also compatible with reliable multicast development XMSF Activities

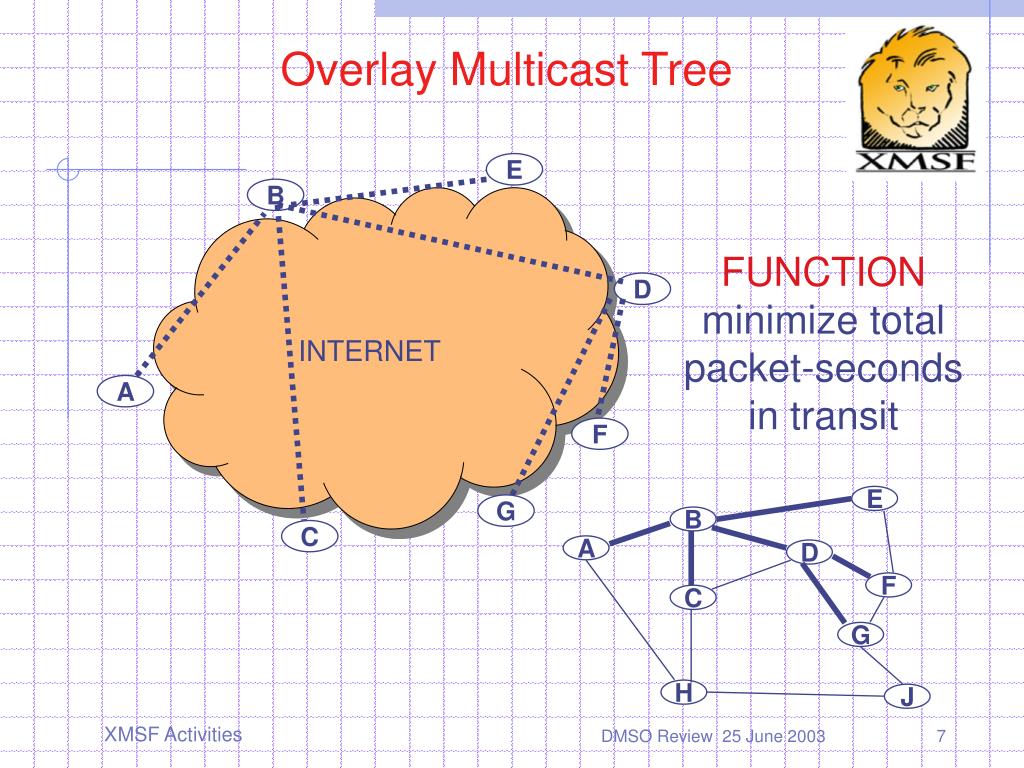

  7. E B A D F C G H J Overlay Multicast Tree E B INTERNET FUNCTION minimize total packet-seconds in transit D A F G C XMSF Activities

  8. Registries Other XOM Sites Internet incoming outgoing Statistics MulticastRouter Routing WAN stats LAN stats data routing data routing table multicast to WAN multicast from LAN IPmc Host IPmc Host Major Modules of XOMmacro data flow XMSF Activities

More Related
