  1. Unit 4: Inertia and Force Diagrams

  2. Newton’s 2nd Law of Motion • An object in motion tends to stay in motion unless acted upon by an unbalanced force. • An object at rest tends to stay at rest unless acted upon by an unbalanced force.

  3. Force • Force – interaction caused by a push or pull • System schema – model that represents the interactions

  4. System Schema • All of the objects involved are drawn in bubbles. • Draw double sided arrows between objects that interact with each other. • Make a dotted circle around the object your are going to draw the force diagram for. • The number of arrows that cross the dotted line are the number you have in your force diagram.

  5. Constant Velocity Hover Ball Example

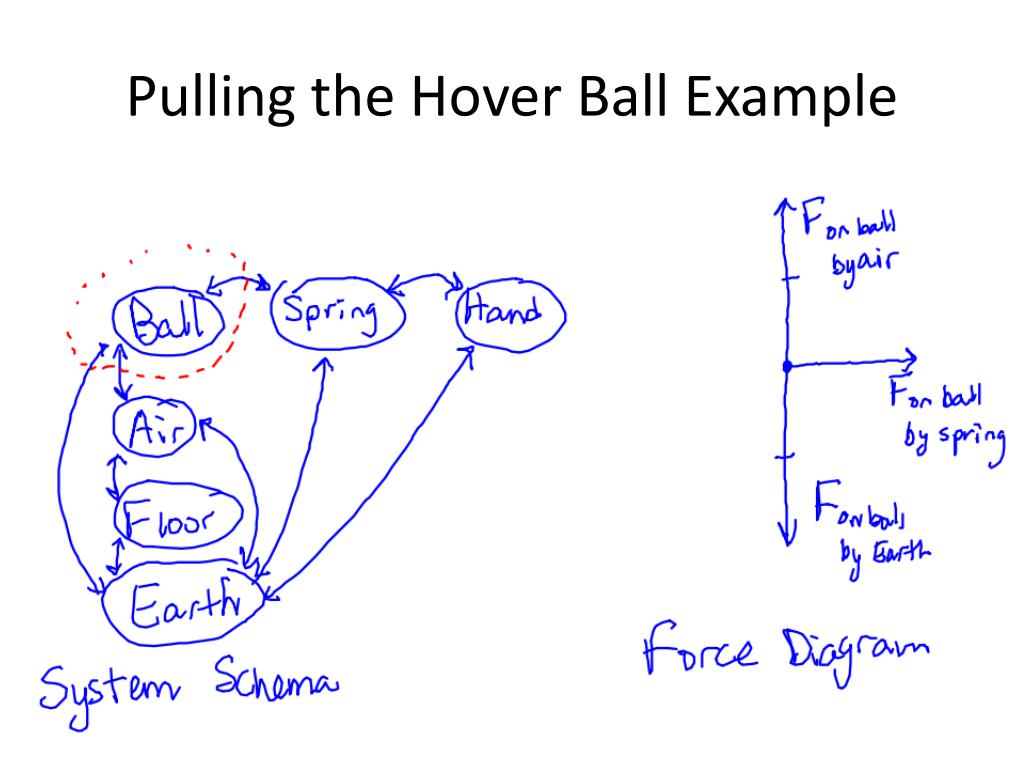

  6. Pulling the Hover Ball Example
