Distributed Database Management Systems

1. Distributed Database Management Systems Lecture 35

2. In the previous lecture • Query Optimization • Centralized QO • Best access path • Join Processing • QO in Distributed Environment.

3. In this lecture • Query Optimization • Fragmented Queries • Joins replaced by Semijoins • Three major QO algorithms.

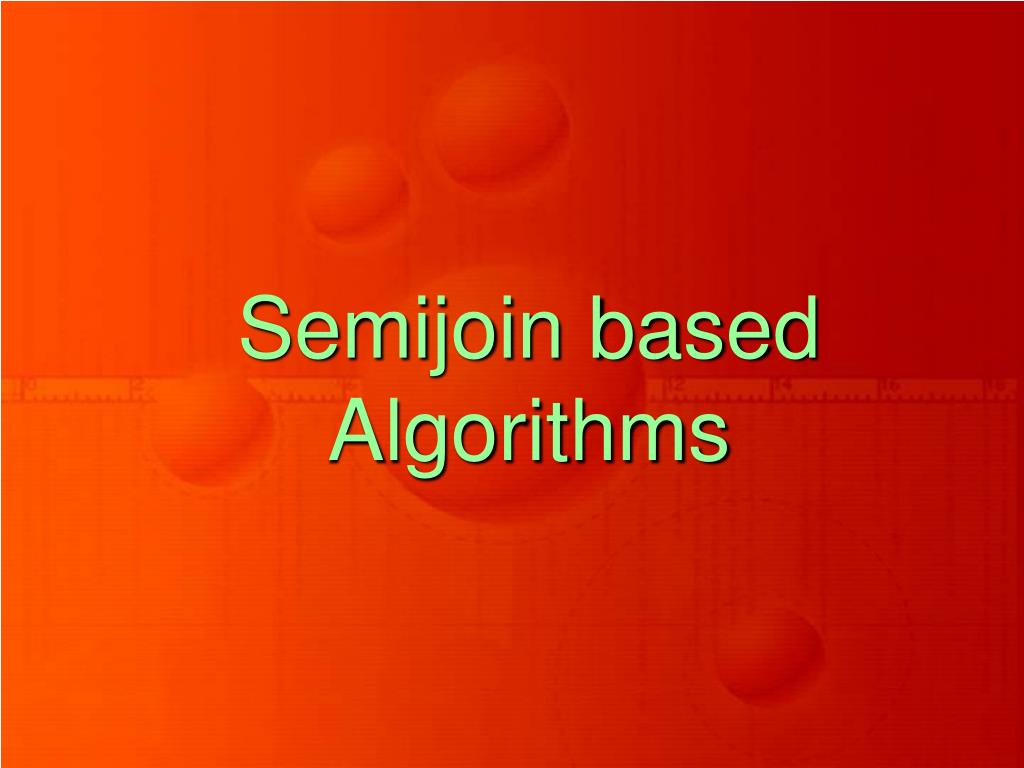

4. Semijoin based Algorithms

5. Reduces cost of join queries • Semijoin is ……. • Join of two relations can be replaced SJ of one or both relations.

6. So R⋈A S can be replaced: • (R ⋉A S) ⋈A S • R ⋈A (S ⋉A R) • (R ⋉A S) ⋈A (S ⋉A R) • Which one? • Need to estimate costs.

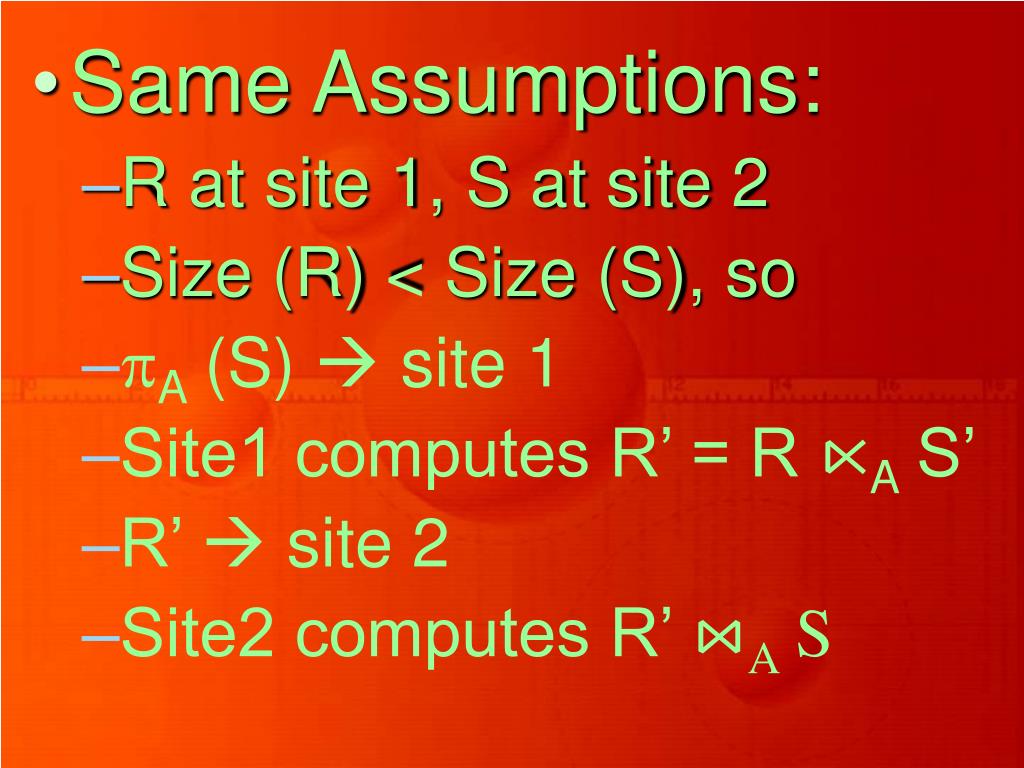

7. Same Assumptions: • R at site 1, S at site 2 • Size (R) < Size (S), so • A (S)  site 1 • Site1 computes R’ = R⋉A S’ • R’  site 2 • Site2 computes R’ ⋈A S

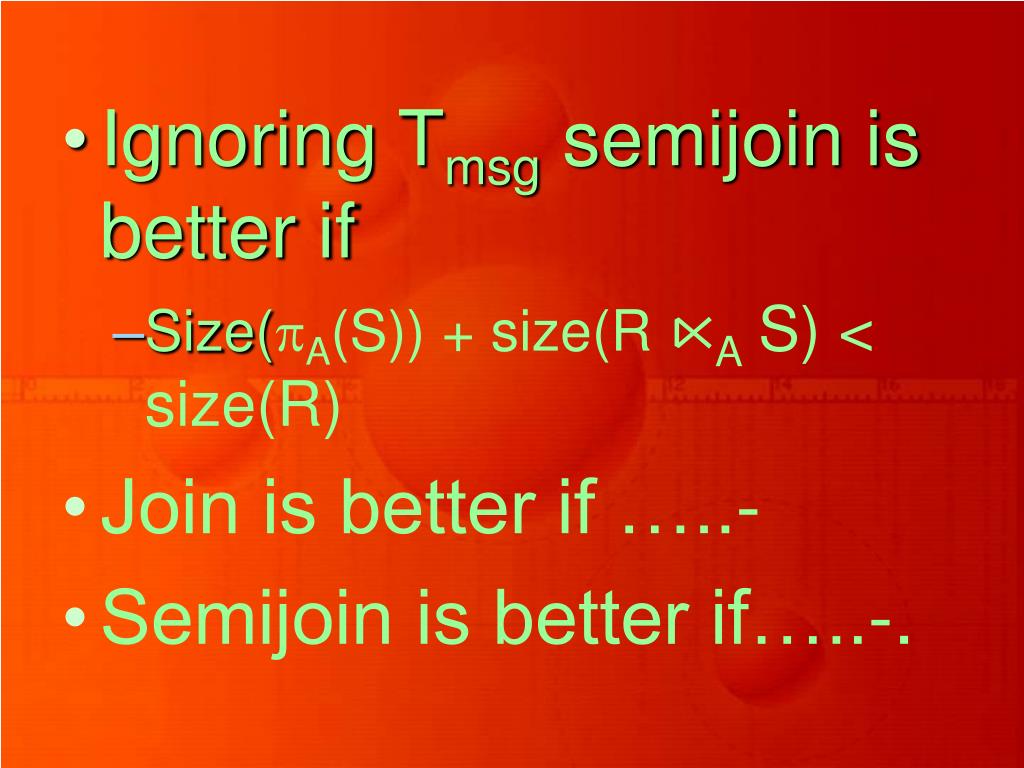

8. Ignoring Tmsg semijoin is better if • Size(A(S)) + size(R ⋉A S) < size(R) • Join is better if …..- • Semijoin is better if…..-.

9. SJ with more than two tables Will be more complex • Semijoin approach can be applied to each individual join, consider EMP ⋈ ASG ⋈ PROJ

10. EMP ⋈ ASG ⋈ PROJ = • EMP’ ⋈ ASG’ ⋈ PROJ where • EMP’ = EMP ⋉ ASG and • ASG’ = ASG ⋉ PROJ rather • EMP” = EMP ⋉ (ASG ⋉ PROJ)

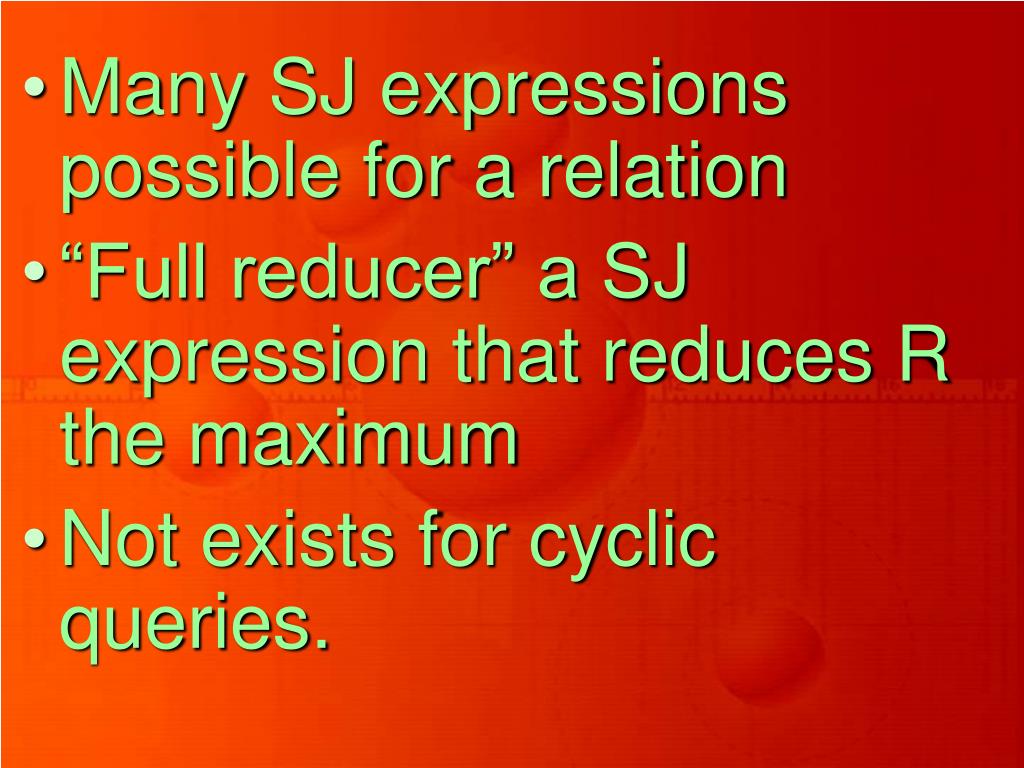

11. Many SJ expressions possible for a relation • “Full reducer” a SJ expression that reduces R the maximum • Not exists for cyclic queries.

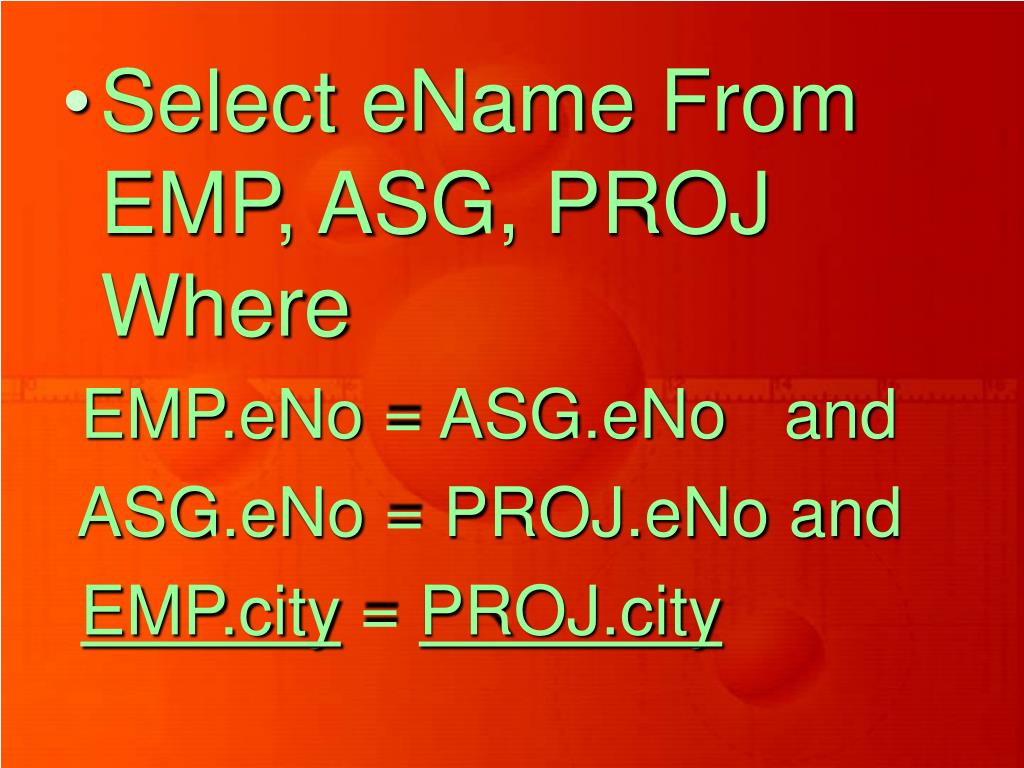

12. Select eName From EMP, ASG, PROJ Where EMP.eNo = ASG.eNo and ASG.eNo = PROJ.eNo and EMP.city = PROJ.city

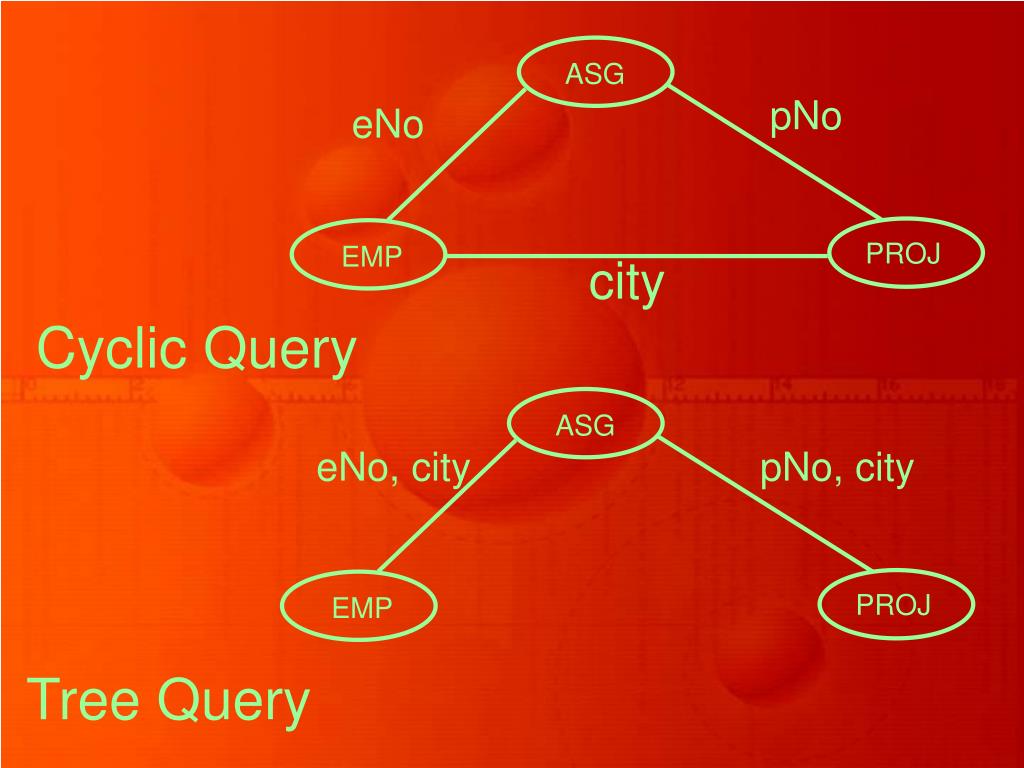

13. ASG pNo eNo PROJ EMP city Cyclic Query ASG eNo, city pNo, city PROJ EMP Tree Query

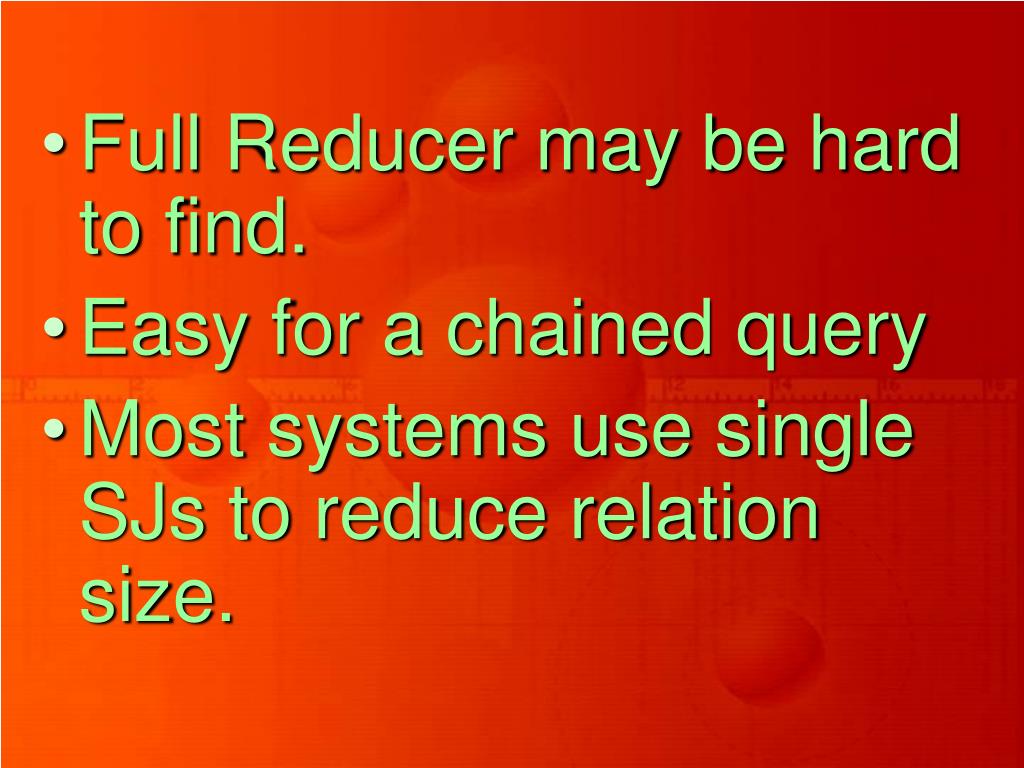

14. Full Reducer may be hard to find. • Easy for a chained query • Most systems use single SJs to reduce relation size.

15. Distributed Query Processing Algorithms

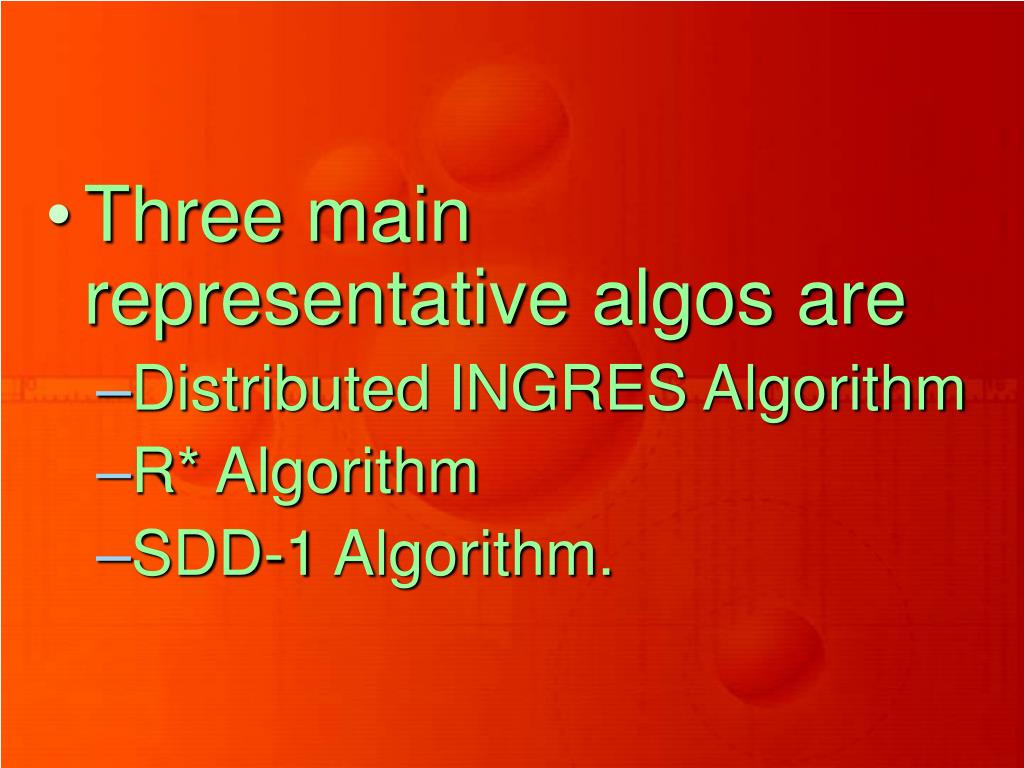

16. Three main representative algos are • Distributed INGRES Algorithm • R* Algorithm • SDD-1 Algorithm.

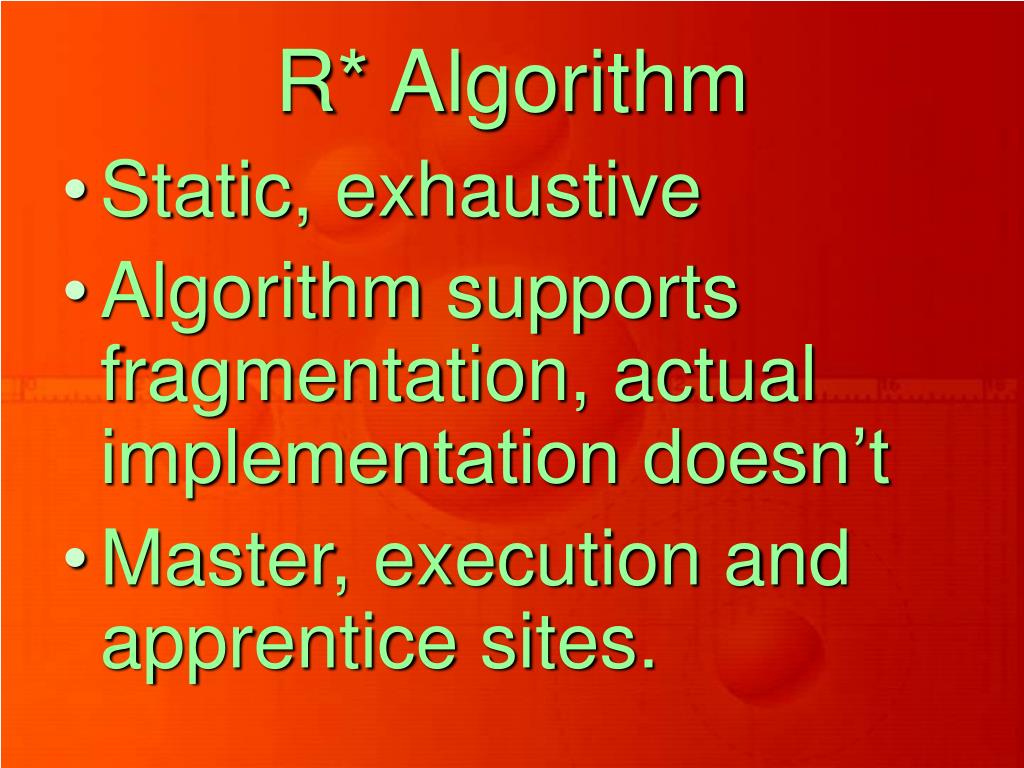

17. R* Algorithm • Static, exhaustive • Algorithm supports fragmentation, actual implementation doesn’t • Master, execution and apprentice sites.

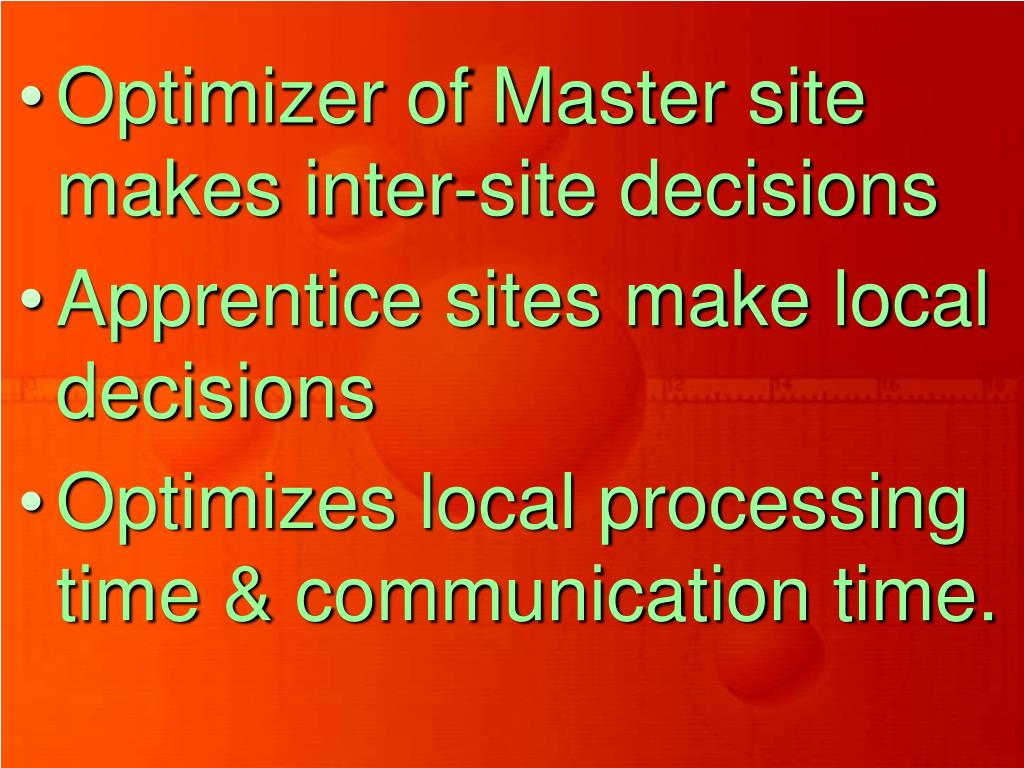

18. Optimizer of Master site makes inter-site decisions • Apprentice sites make local decisions • Optimizes local processing time & communication time.

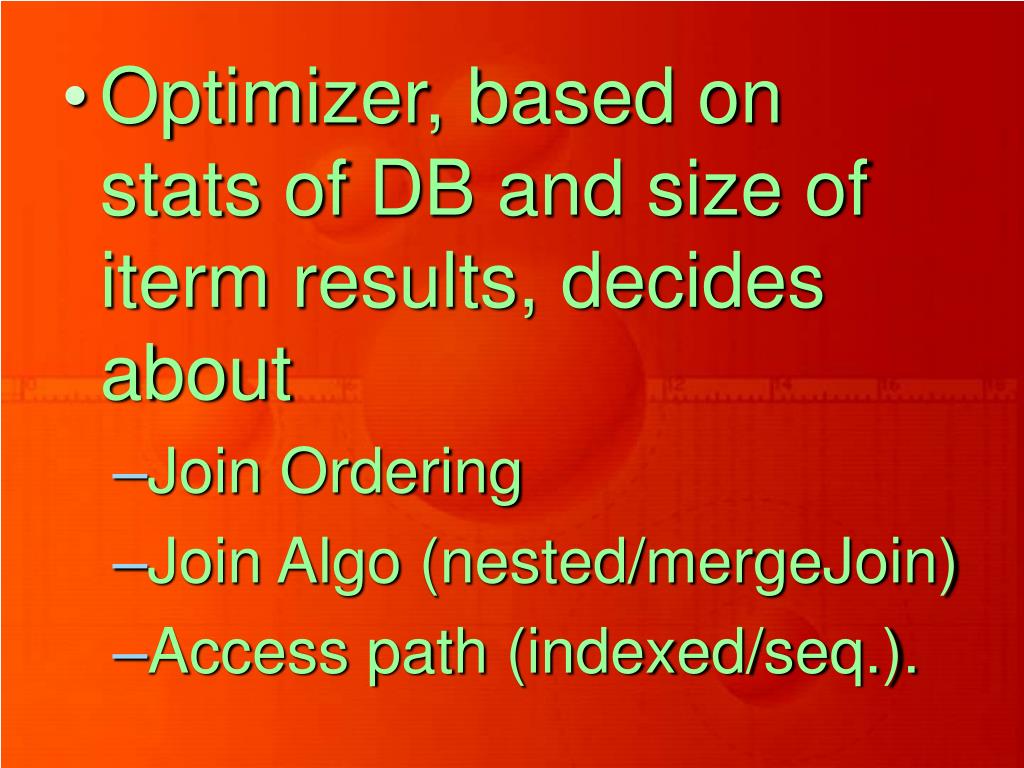

19. Optimizer, based on stats of DB and size of iterm results, decides about • Join Ordering • Join Algo (nested/mergeJoin) • Access path (indexed/seq.).

20. Inter-site transfers • Ship-whole • Entire relation transferred • Stored in a temp relation • In case of merge-join approach, tuples can be processed as they arrive • Fetch-as-needed • nExternal relation is sequentially scanned • Join attribute value is sent to other relation • Relevant tuples scanned at other site and sent to first site.

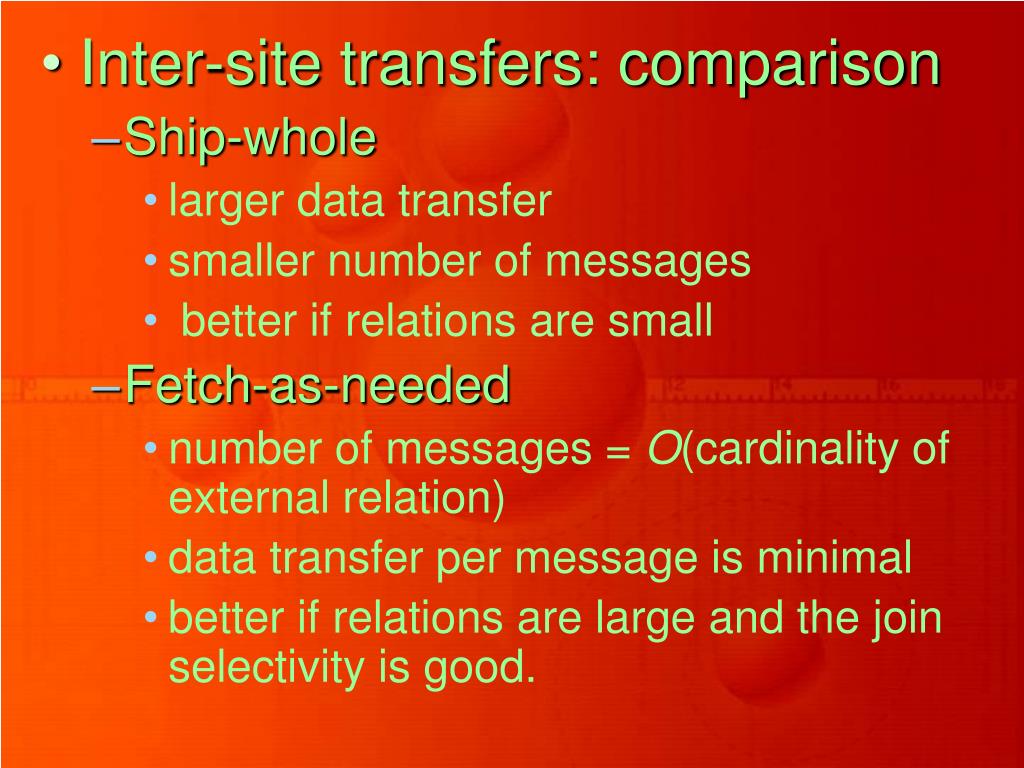

21. Inter-site transfers: comparison • Ship-whole • larger data transfer • smaller number of messages • better if relations are small • Fetch-as-needed • number of messages = O(cardinality of external relation) • data transfer per message is minimal • better if relations are large and the join selectivity is good.

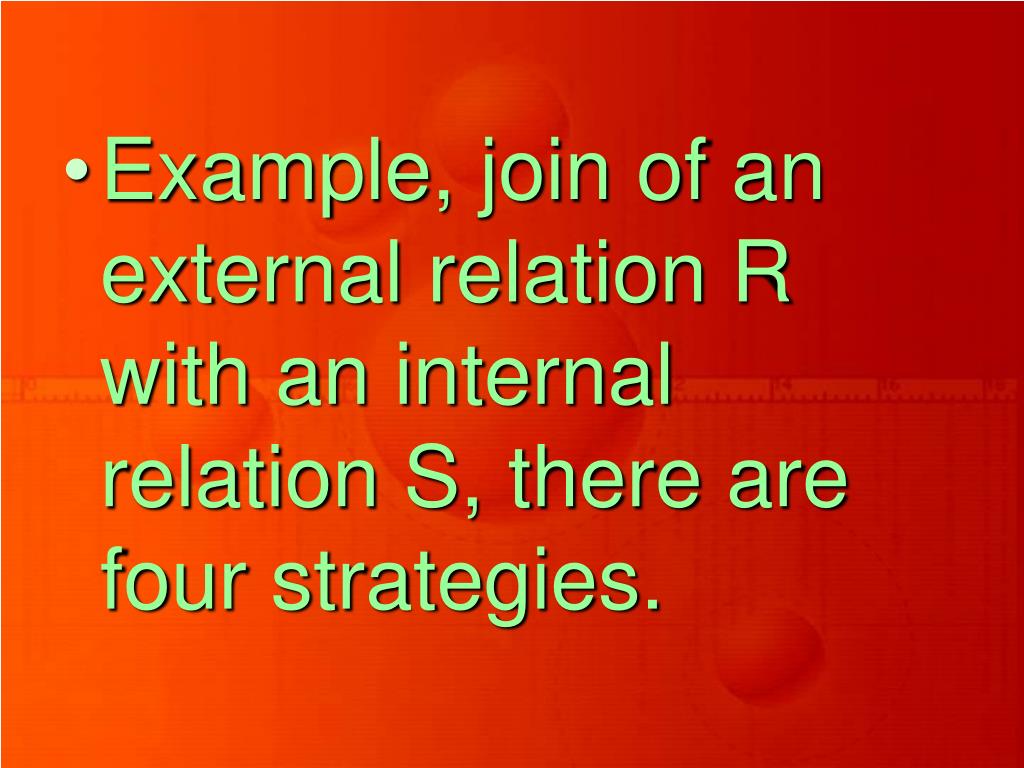

22. Example, join of an external relation R with an internal relation S, there are four strategies.

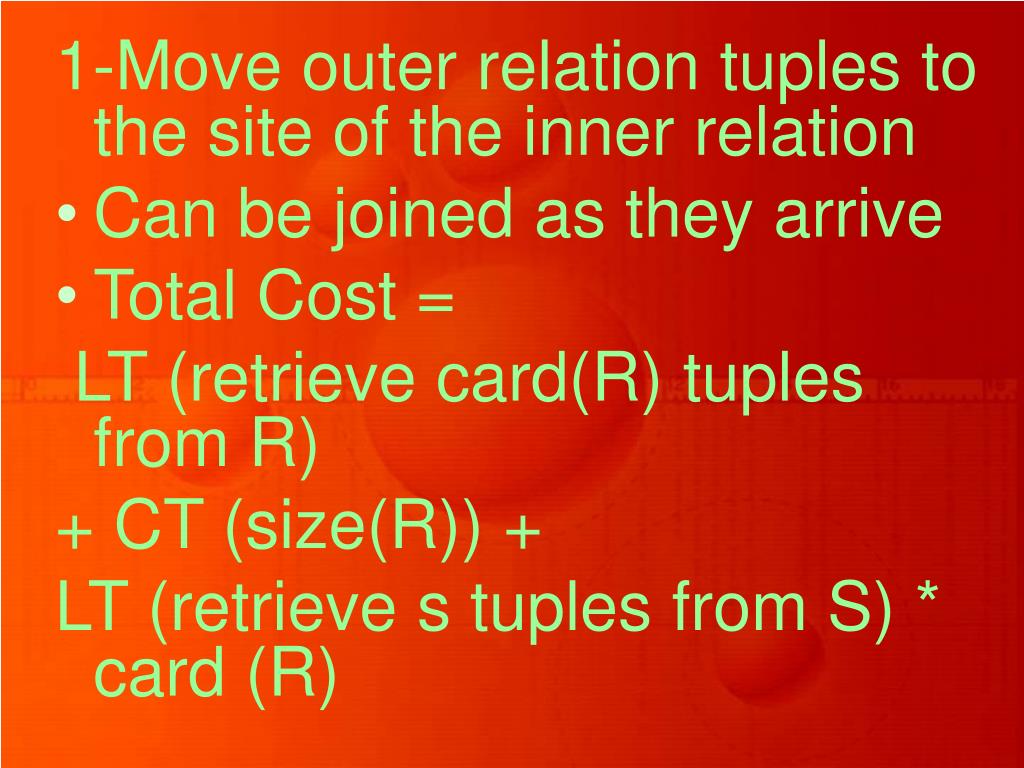

23. 1-Move outer relation tuples to the site of the inner relation • Can be joined as they arrive • Total Cost = LT (retrieve card(R) tuples from R) + CT (size(R)) + LT (retrieve s tuples from S) * card (R)

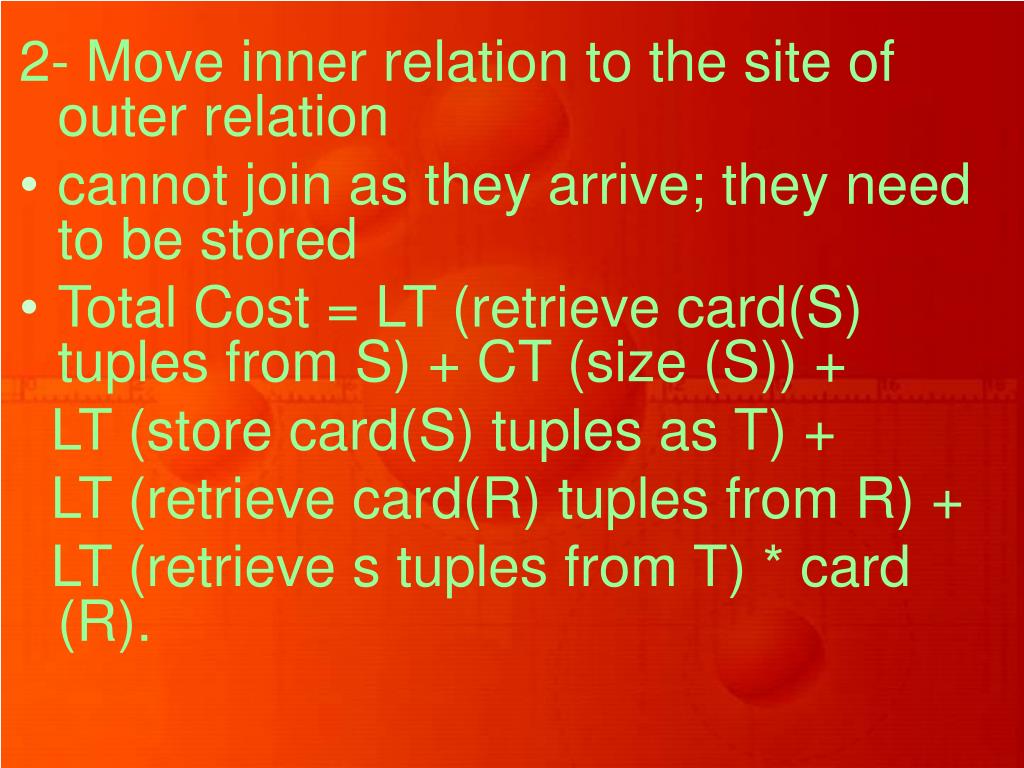

24. 2- Move inner relation to the site of outer relation • cannot join as they arrive; they need to be stored • Total Cost = LT (retrieve card(S) tuples from S) + CT (size (S)) + LT (store card(S) tuples as T) + LT (retrieve card(R) tuples from R) + LT (retrieve s tuples from T) * card (R).

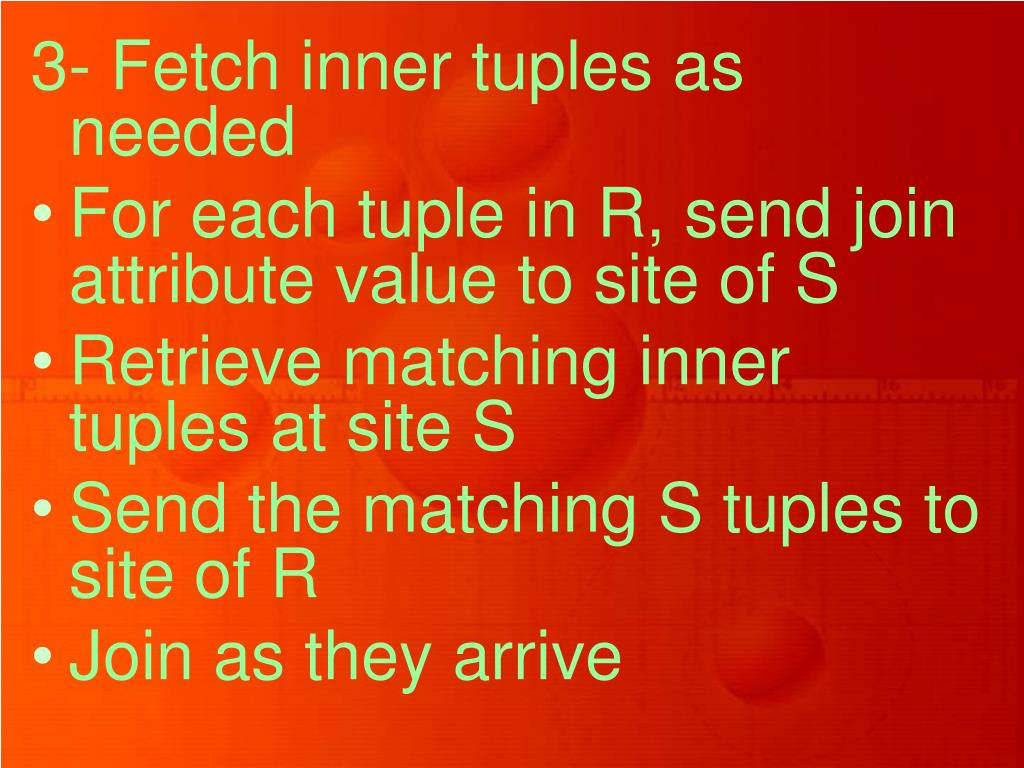

25. 3- Fetch inner tuples as needed • For each tuple in R, send join attribute value to site of S • Retrieve matching inner tuples at site S • Send the matching S tuples to site of R • Join as they arrive

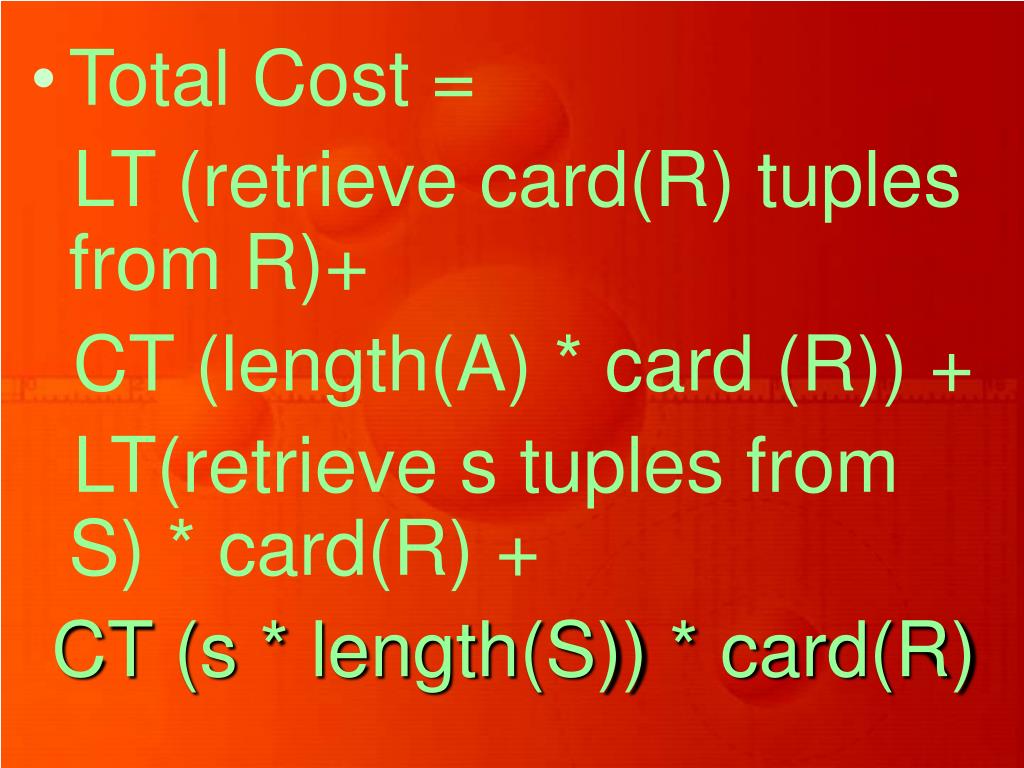

26. Total Cost = LT (retrieve card(R) tuples from R)+ CT (length(A) * card (R)) + LT(retrieve s tuples from S) * card(R) + CT (s * length(S)) * card(R)

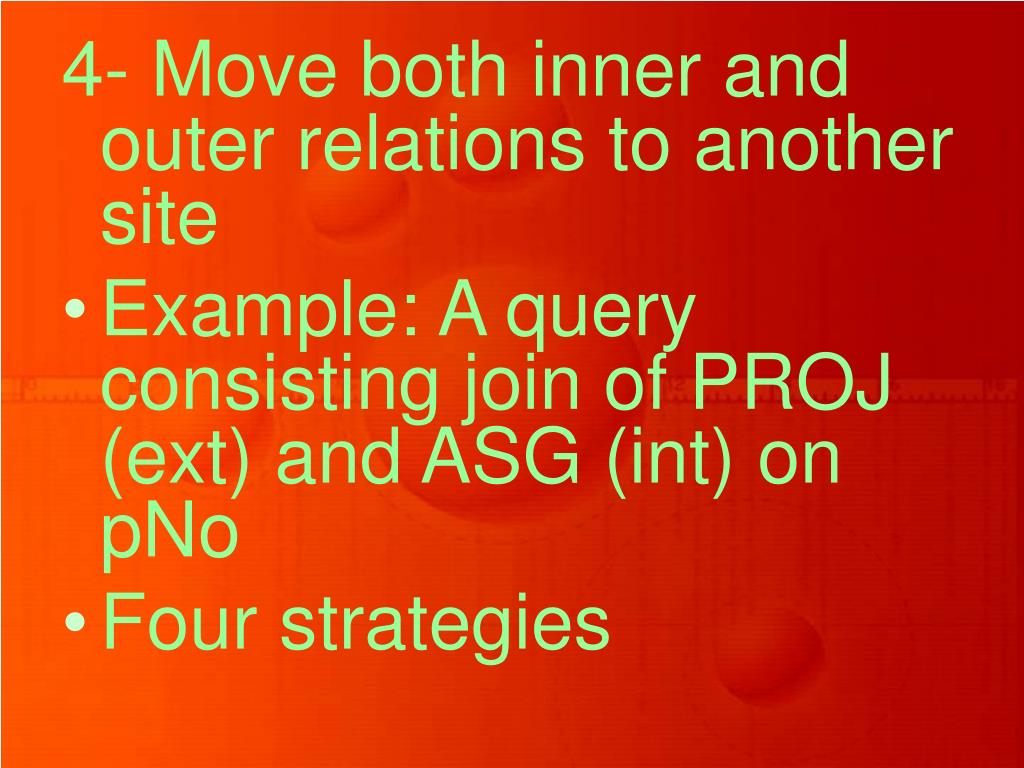

27. 4- Move both inner and outer relations to another site • Example: A query consisting join of PROJ (ext) and ASG (int) on pNo • Four strategies

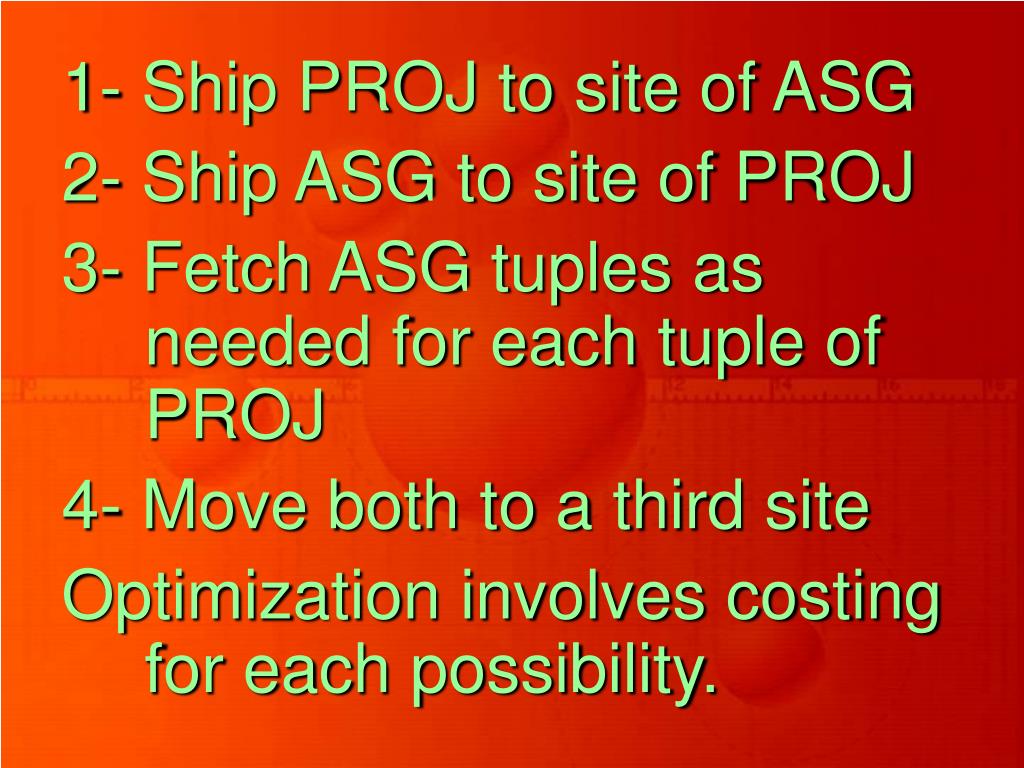

28. 1- Ship PROJ to site of ASG 2- Ship ASG to site of PROJ 3- Fetch ASG tuples as needed for each tuple of PROJ 4- Move both to a third site Optimization involves costing for each possibility.

29. That is it regarding R* algorithm for distributed query optimization • Lets review it.

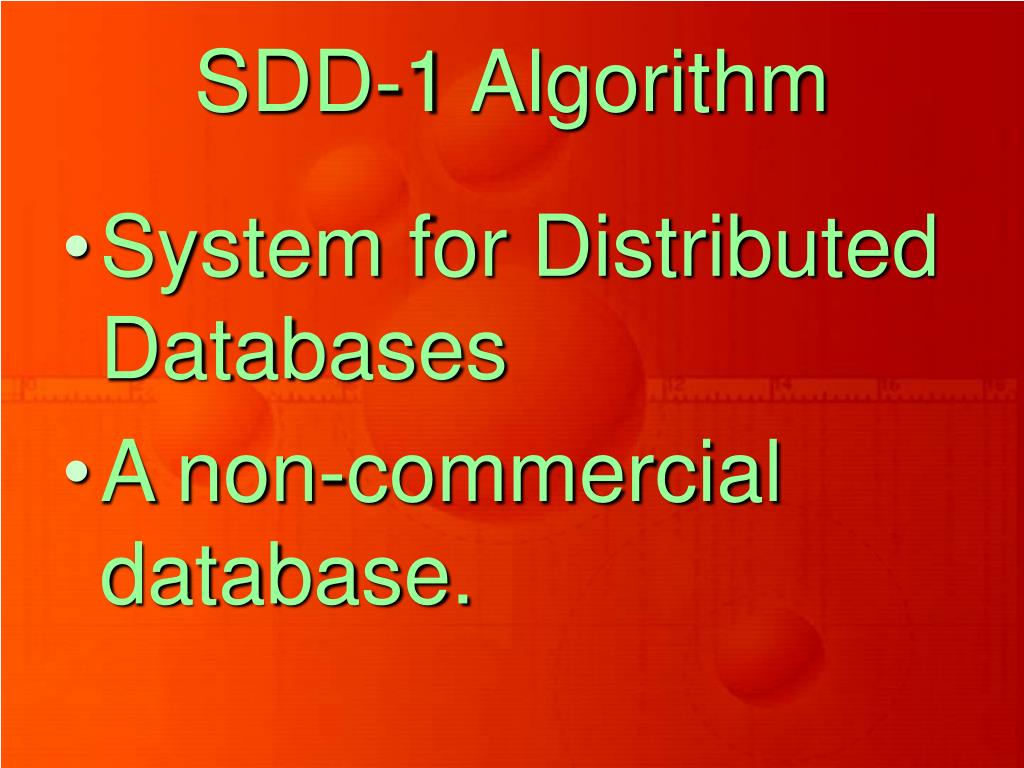

30. SDD-1 Algorithm • System for Distributed Databases • A non-commercial database.

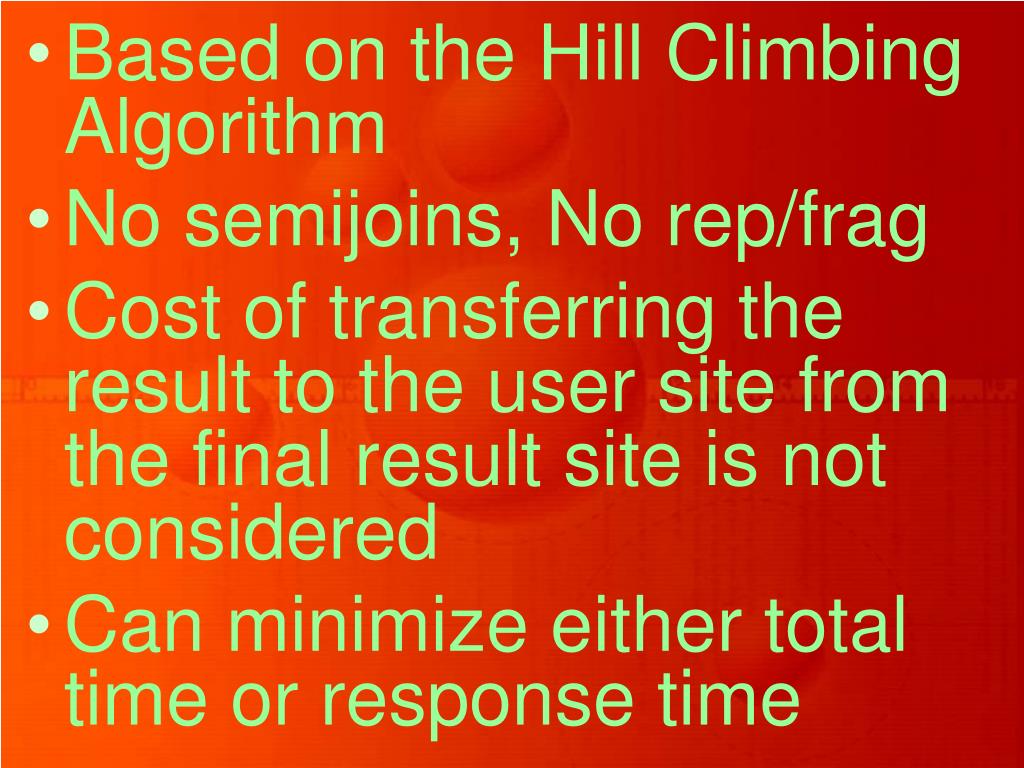

31. Based on the Hill Climbing Algorithm • No semijoins, No rep/frag • Cost of transferring the result to the user site from the final result site is not considered • Can minimize either total time or response time

32. Input include • Query Graph • Locations of relations • Relations’ statistics.

33. 1- Do the initial local processing 2- Select the initial best plan (ES0) • Calculate cost of moving all relations to a single site • Plan with the least cost is ES0

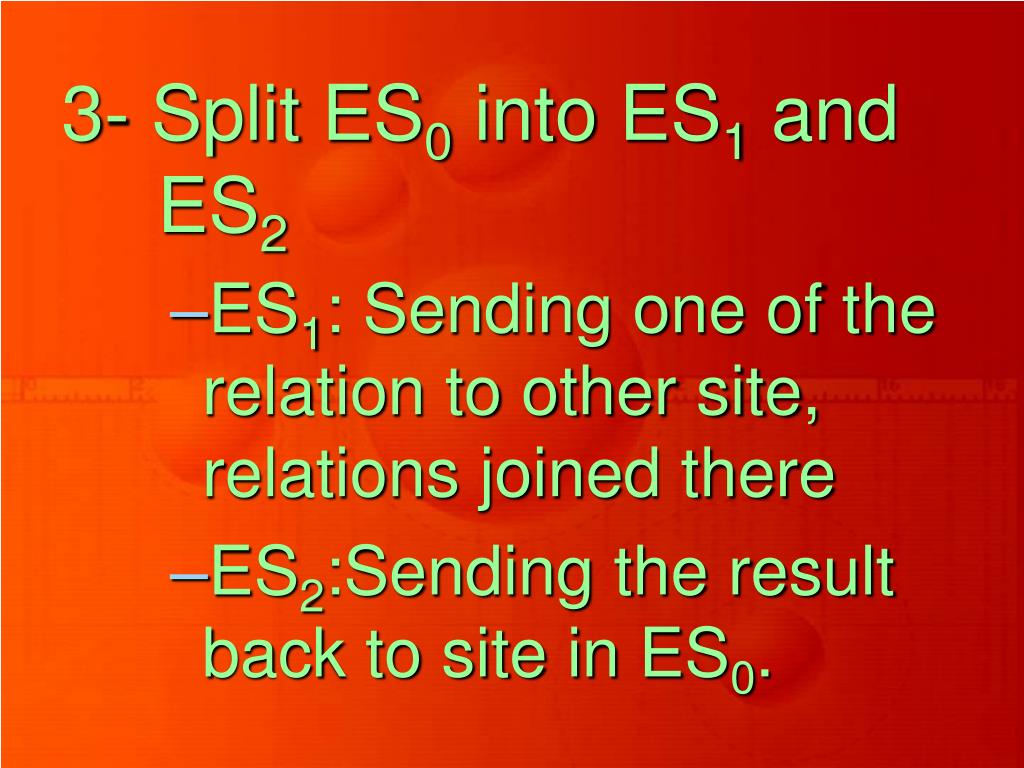

34. 3- Split ES0 into ES1 and ES2 • ES1: Sending one of the relation to other site, relations joined there • ES2:Sending the result back to site in ES0.

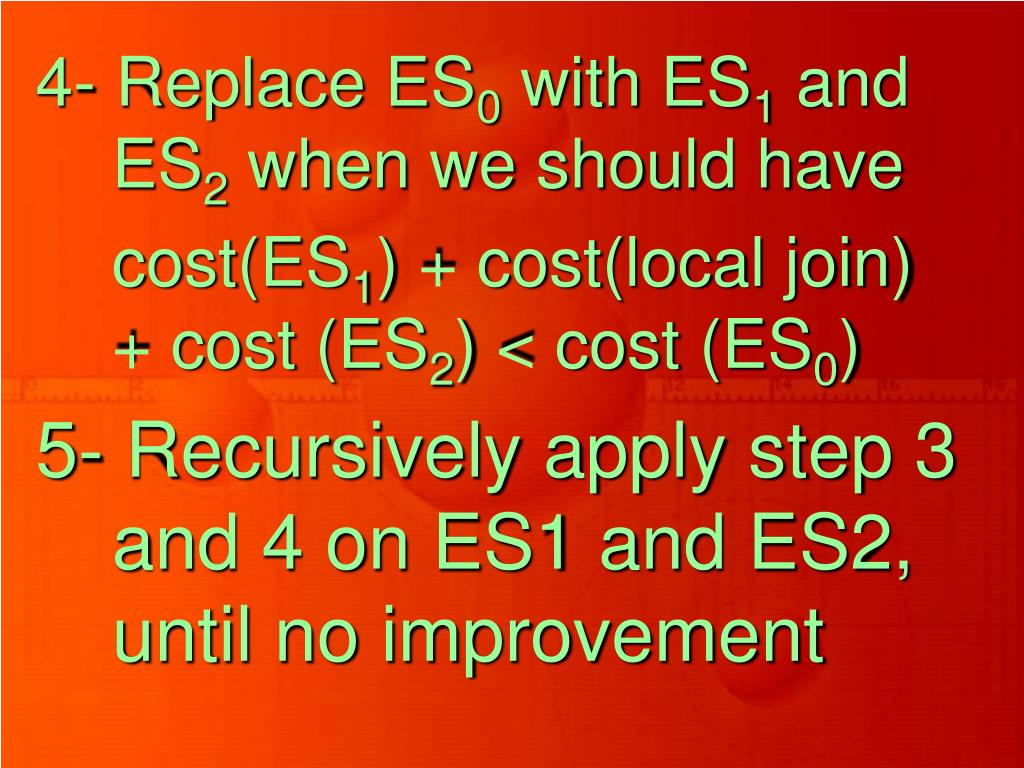

35. 4- Replace ES0 with ES1 and ES2 when we should have cost(ES1) + cost(local join) + cost (ES2) < cost (ES0) 5- Recursively apply step 3 and 4 on ES1 and ES2, until no improvement

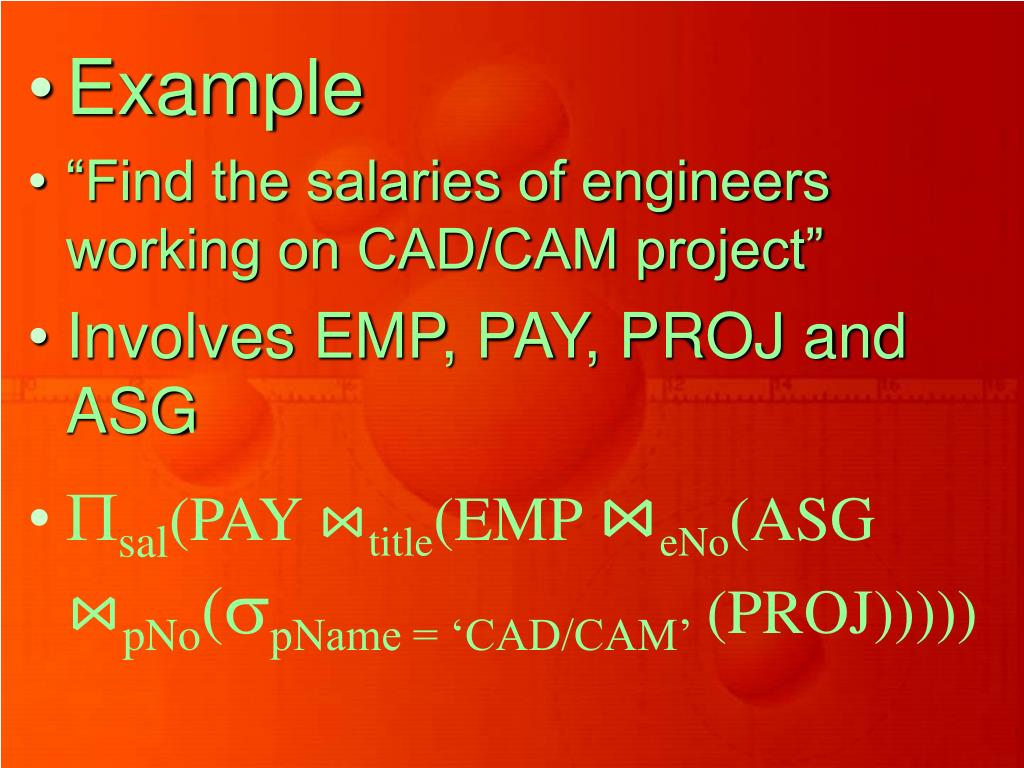

36. Example • “Find the salaries of engineers working on CAD/CAM project” • Involves EMP, PAY, PROJ and ASG • sal(PAY ⋈title(EMP ⋈eNo(ASG ⋈pNo(pName = ‘CAD/CAM’(PROJ)))))

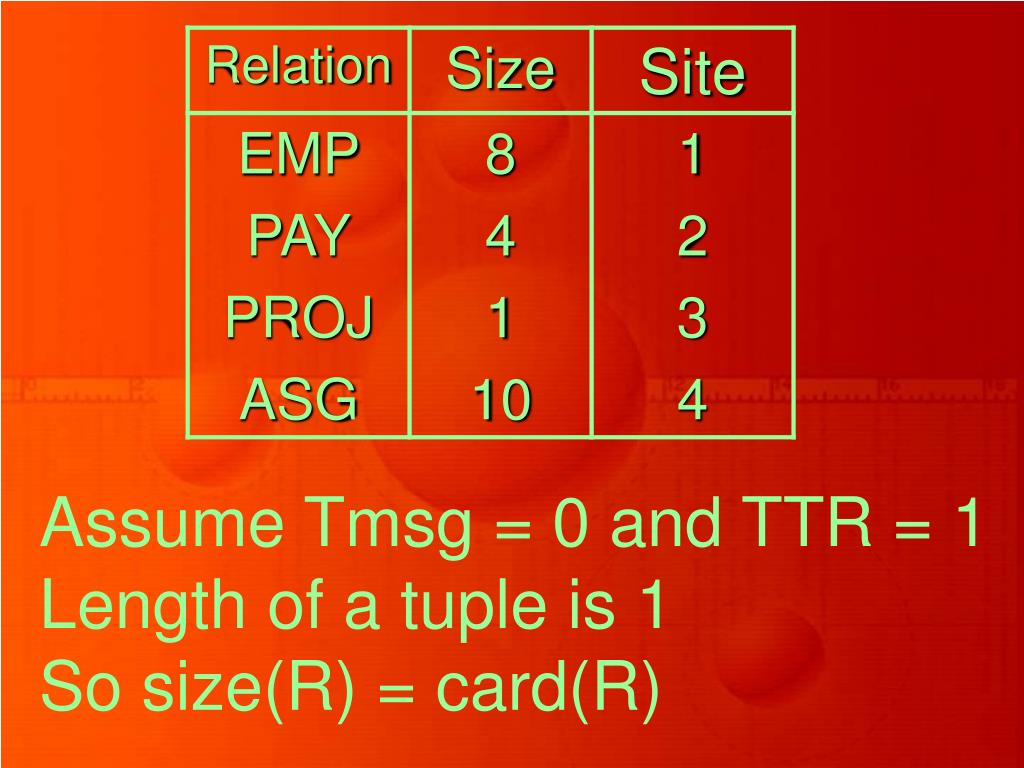

37. Assume Tmsg = 0 and TTR = 1 Length of a tuple is 1 So size(R) = card(R)

38. Considering only transfers costs • Site 1 • PAY  site 1 = 4 • PROJ  site 1 = 1 • ASG  site 1 = 10 • Total = 15

39. Assume Tmsg = 0 and TTR = 1 Length of a tuple is 1 So size(R) = card(R)

40. Considering only transfers costs • Site 1 • PAY  site 1 = 4 • PROJ  site 1 = 1 • ASG  site 1 = 10 • Total = 15

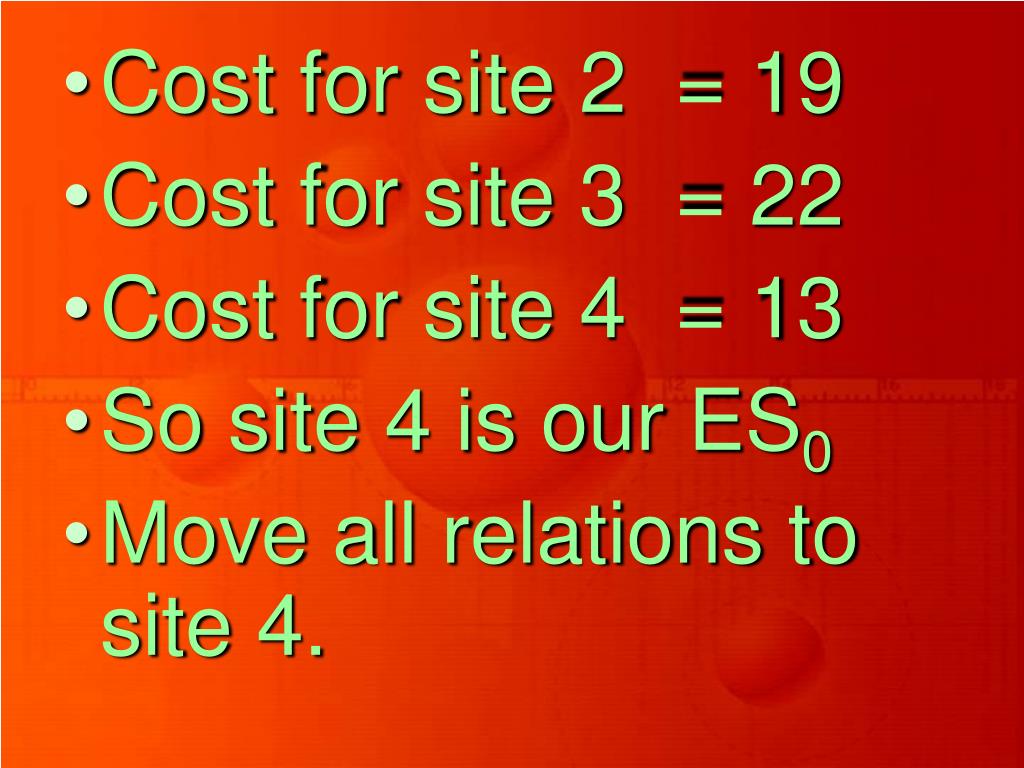

41. Cost for site 2 = 19 • Cost for site 3 = 22 • Cost for site 4 = 13 • So site 4 is our ES0 • Move all relations to site 4.
