Chromosomal Basis of Inheritance

Chromosomal Basis of Inheritance. Chapter 15 . Objectives. Be familiar with patterns of inheritance for autosomal and sex linked genes Understand the concept of “Linked Genes”

etoile
Télécharger la présentation

Chromosomal Basis of Inheritance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

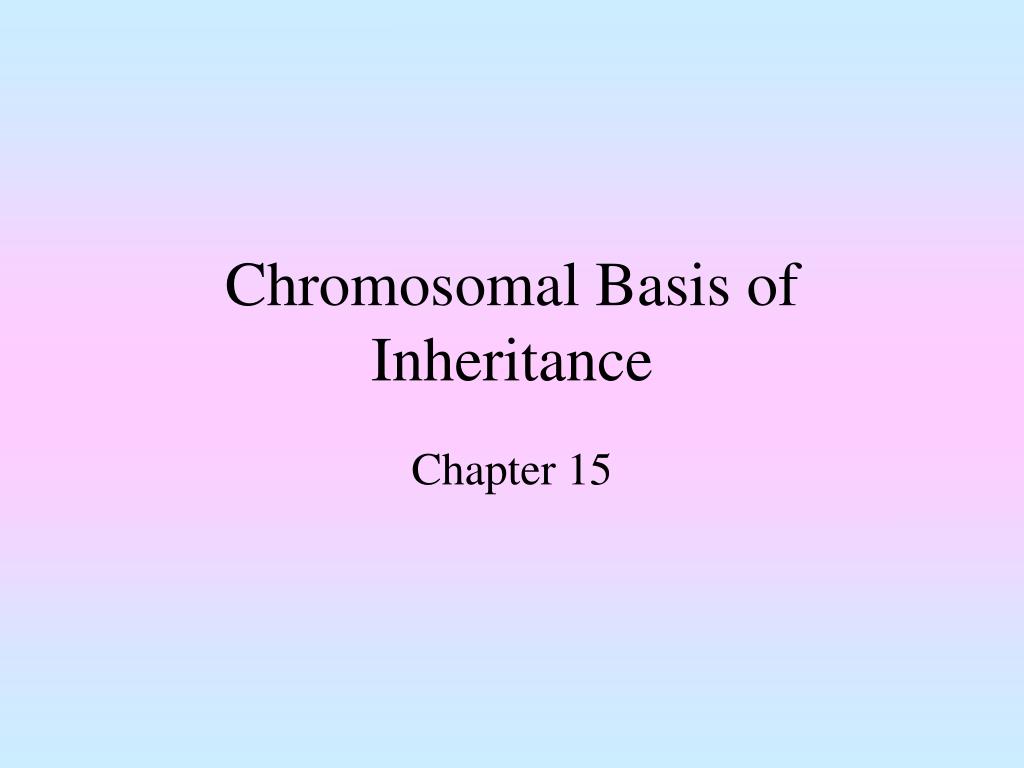

  1. Chromosomal Basis of Inheritance Chapter 15

  2. Objectives • Be familiar with patterns of inheritance for autosomal and sex linked genes • Understand the concept of “Linked Genes” • Understand how traits affected by incomplete dominance and codominance differ from autosomal dominant and autosomal recessive traits • Understand how nondisjunction of chromosomes can lead to disorders.

  3. Linked Genes • Linked genes are those that reside on the same chromosome and tend to be inherited together • Humans have 23 pairs of chromosomes • Autosomal genes reside on the autosomal chromosomes (pairs 1-22) • Sex-linked genes are found on the sex chromosomes (pair 23, usually on the X)

  4. Karyotype: picture of a complete set of chromosomes

  5. Autosomal Genes • Autosomal genes are usually represented by a pair of alleles • The phenotype of the gene reflects the dominant/recessive relationship of the alleles

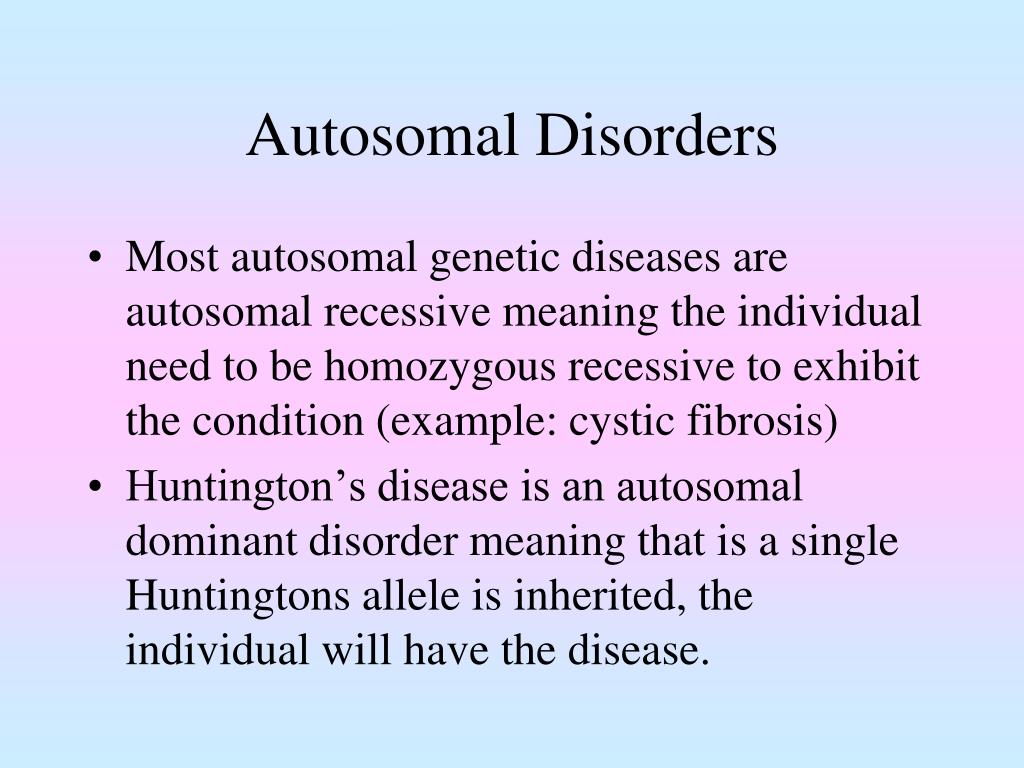

  6. Autosomal Disorders • Most autosomal genetic diseases are autosomal recessive meaning the individual need to be homozygous recessive to exhibit the condition (example: cystic fibrosis) • Huntington’s disease is an autosomal dominant disorder meaning that is a single Huntingtons allele is inherited, the individual will have the disease.

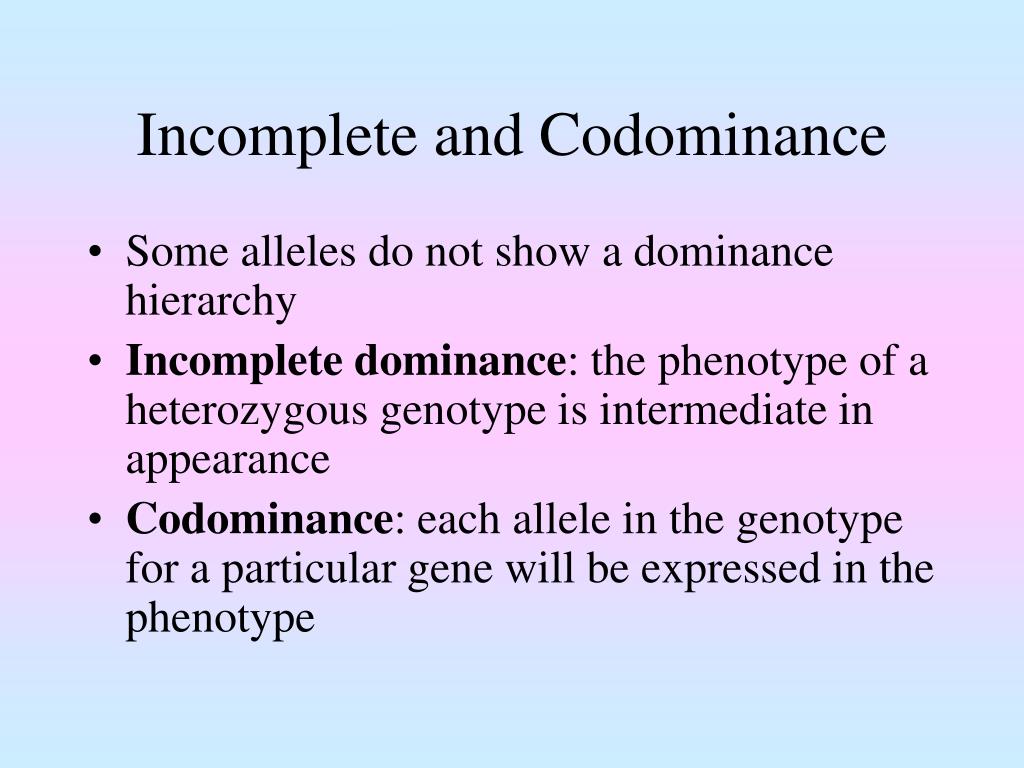

  7. Incomplete and Codominance • Some alleles do not show a dominance hierarchy • Incomplete dominance: the phenotype of a heterozygous genotype is intermediate in appearance • Codominance: each allele in the genotype for a particular gene will be expressed in the phenotype

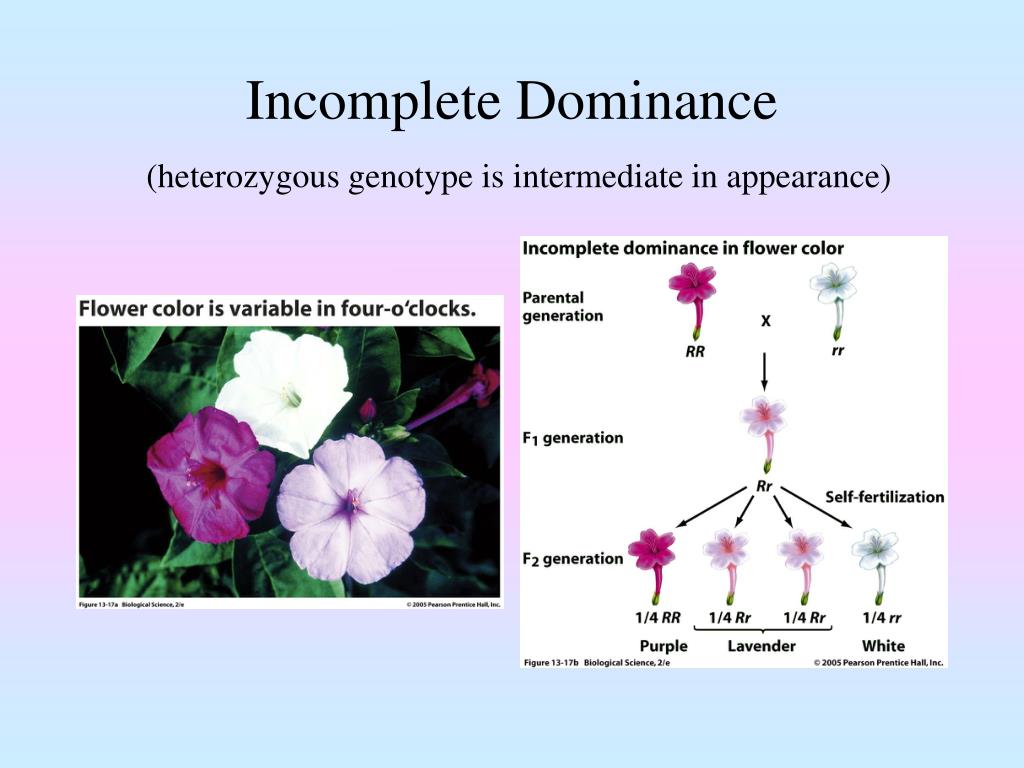

  8. Incomplete Dominance(heterozygous genotype is intermediate in appearance)

  9. Codominance(each genotypic allele will be expressed)

  10. Sex Linked Inheritance • Males and females differ in their sex chromosome combination (females XX; males XY) • Because the X contains genes and the Y “does not”, inheritance patterns of sex-linked genes vary between the sexes • recessive traits more prevalent in males

  11. Is the Disorder an Autosomal Recessive Disorder or Is It Sex Linked?

  12. Is This Disorder Autosomal Recessive or Sex Linked?

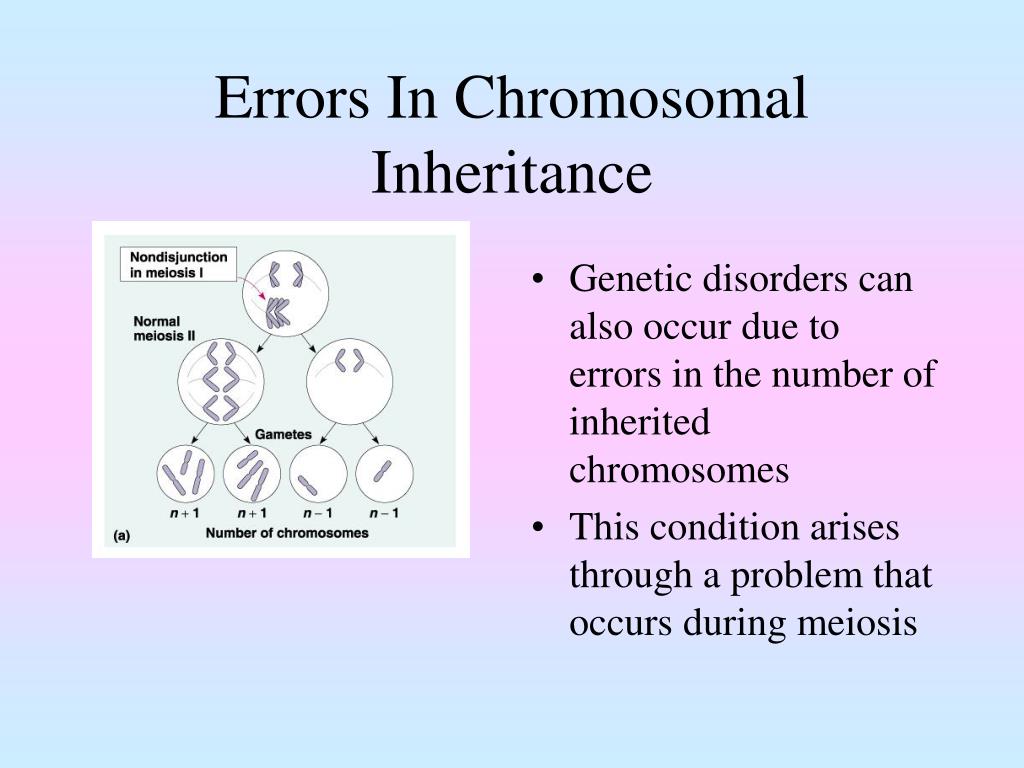

  13. Errors In Chromosomal Inheritance • Genetic disorders can also occur due to errors in the number of inherited chromosomes • This condition arises through a problem that occurs during meiosis

  14. Nondisjunction • Failure of a pair of chromosomes to separate during gamete formation • Genetic disorders like: • Down’s syndrome (#21, 3n) • Turner syndrome (XO) • Metafemale (XXX) • Kleinfelter Male (XXY) • Jacob’s Male (XYY)

  15. X inactivation in female mammals • Although female mammals, including humans, inherit two X chromosomes, one X chromosome in each cell becomes almost completely inactivated during embryonic development. • Barr body AP Biology Corona High School Sainato

  16. Example of Barr Body http://griffing.tamu.edu/BIOETCSITE/Biology01/Module11/Unit8/Barr.htm AP Biology Corona High School Sainato

  17. Abnormal Chromosome # • Nondisjunction • Leads to aneuploidy: • Aneuploidy is the condition of having less than or more than the normal diploid number of chromosomes, and is the most frequently observed type of cytogenetic abnormality. AP Biology Corona High School Sainato

  18. Abnormal Chromosome # • Nondisjunction • Leads to aneuploidy: • Aneuploidy is the condition of having less than or more than the normal diploid number of chromosomes, and is the most frequently observed type of cytogenetic abnormality. AP Biology Corona High School Sainato

  19. Alterations of chromosome structure AP Biology Corona High School Sainato

  20. The Key Points in Review • Mendelian inheritance has its physical basis in the behavior of chromosomes during sexual life cycles. • Morgan traced a gene to a specific chromosome. AP Biology Corona High School Sainato

  21. Key Points in Review • Linked genes tend to be inherited together because they are located on the same chromosome. • Independent assortment of chromosomes and crossing over produce genetic variation (recombinants) AP Biology Corona High School Sainato

  22. Key Points in Review • Geneticists can use recombination data to map a chromosomes genetic loci. • Chromosomal basis for sex is dependent upon the organism. AP Biology Corona High School Sainato

  23. Key Points for Review • Sex-linked genes have unique patterns of inheritance. • Alterations of chromosome numbers or structure cause some genetic disorders. AP Biology Corona High School Sainato
