  1. Calibration needs for photometry with wide field imagers Fernando J. Selman • What accuracy? • The importance of simulations • The need to match bandpasses • How should the data be obtained? • How should the data be processed? • How should the data be archived?

  2. Photometric redshifts 5% Stellar rotation: <1% F. Barrientos, PUC Massive stars photometry 1% What accuracy? this depends on the application...

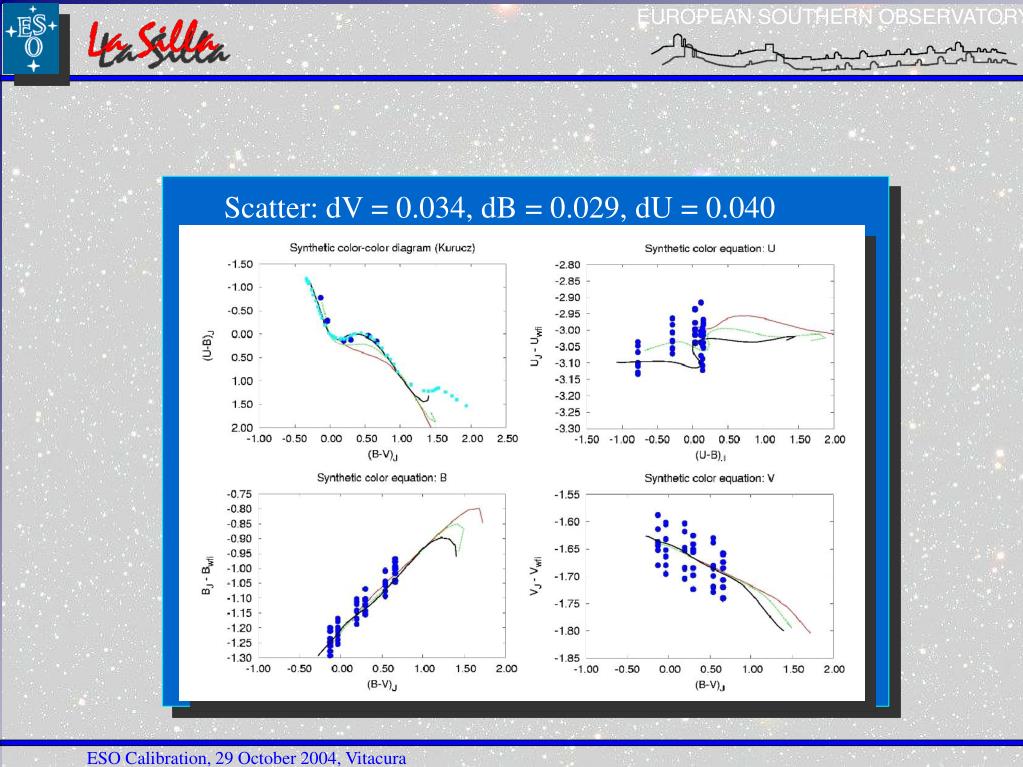

  3. Scatter: dV = 0.034, dB = 0.029, dU = 0.040

  4. Scatter: dV = 0.009, dB = 0.010, dU = 0.014

  5. The need to match bandpasses

  6. simulatedreddening law in the WFI system Fitzpatrick 1999

  7. The WFI system equations

  8. We thus need... - a set of fields at: low airmasses, equator, SCP.-If we can match the bandpasses we need a set of standards, with magnitudes known to within 1%, across the sky, and that is it.- If we can not match band-passes (likely), we need to either: (a) do a full determination of the photometric system: primary and secondary standards, or (b) a set of standard stars with varying luminosity classes, and reddenings, observed in both systems.

  9. How should the data be obtained? Dither Dual-dither Jitter -homogeneity of ctxt map -pixel data from same CCD - e.g. High precision light curves, proper motion of LG dwarfs -complexf ctxt map -couple CCDs - e.g. Precission photometry accros field -designed for precise sky sub. - e.g. Precission photometry of extended features, intergalactic light in clusters. Spacial strategies Spacio-temporal strategies

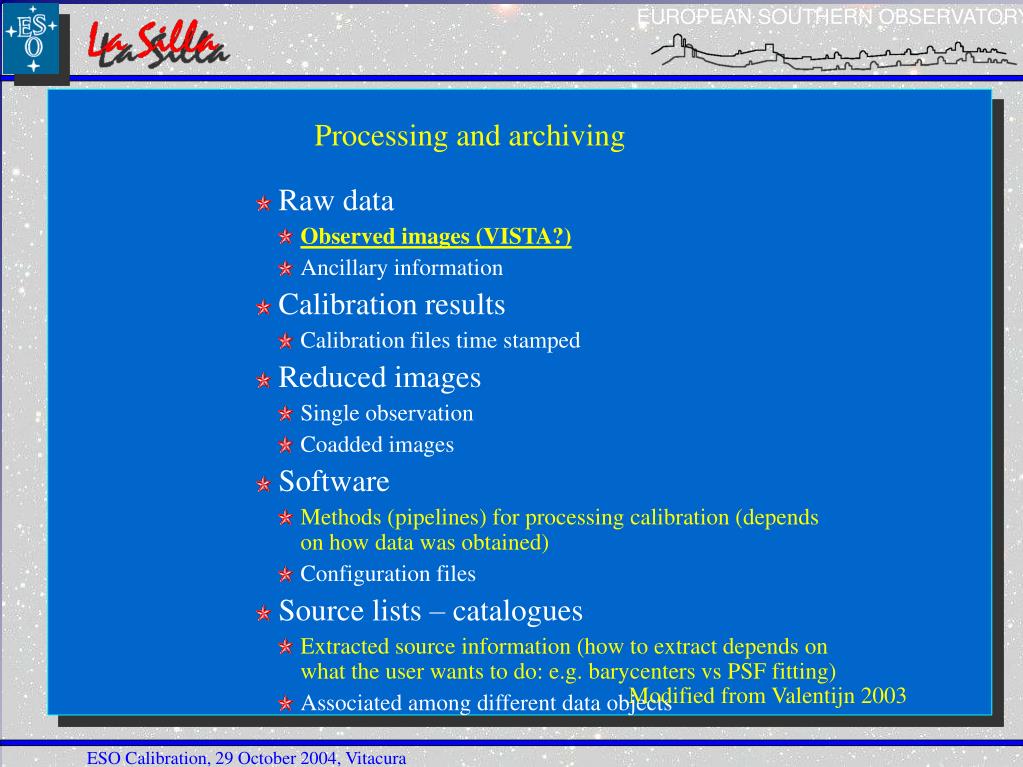

  10. Processing and archiving • Raw data • Observed images (VISTA?) • Ancillary information • Calibration results • Calibration files time stamped • Reduced images • Single observation • Coadded images • Software • Methods (pipelines) for processing calibration (depends on how data was obtained) • Configuration files • Source lists – catalogues • Extracted source information (how to extract depends on what the user wants to do: e.g. barycenters vs PSF fitting) • Associated among different data objects Modified from Valentijn 2003
