Cross Reference AT and MXIC to AMD (EOL Q1/2001)

This guide provides detailed cross-references for AMD, AT, and MXIC memory chips, including specifications for the AM27C256 and AT27C256 series, covering temperature ranges (Commercial, Industrial, Extended), package types (CerDIP, PDIP, PLCC, TSOP), speed grades (45-150ns), density (256k up to 16MB), and voltage ranges (5V, LV). Additional details on the MX27C256DC-150 are included, outlining package types and temperature categories. For further inquiries, please contact your local sales manager at MSC VERTRIEBS GMBH.

fabian
Télécharger la présentation

Cross Reference AT and MXIC to AMD (EOL Q1/2001)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

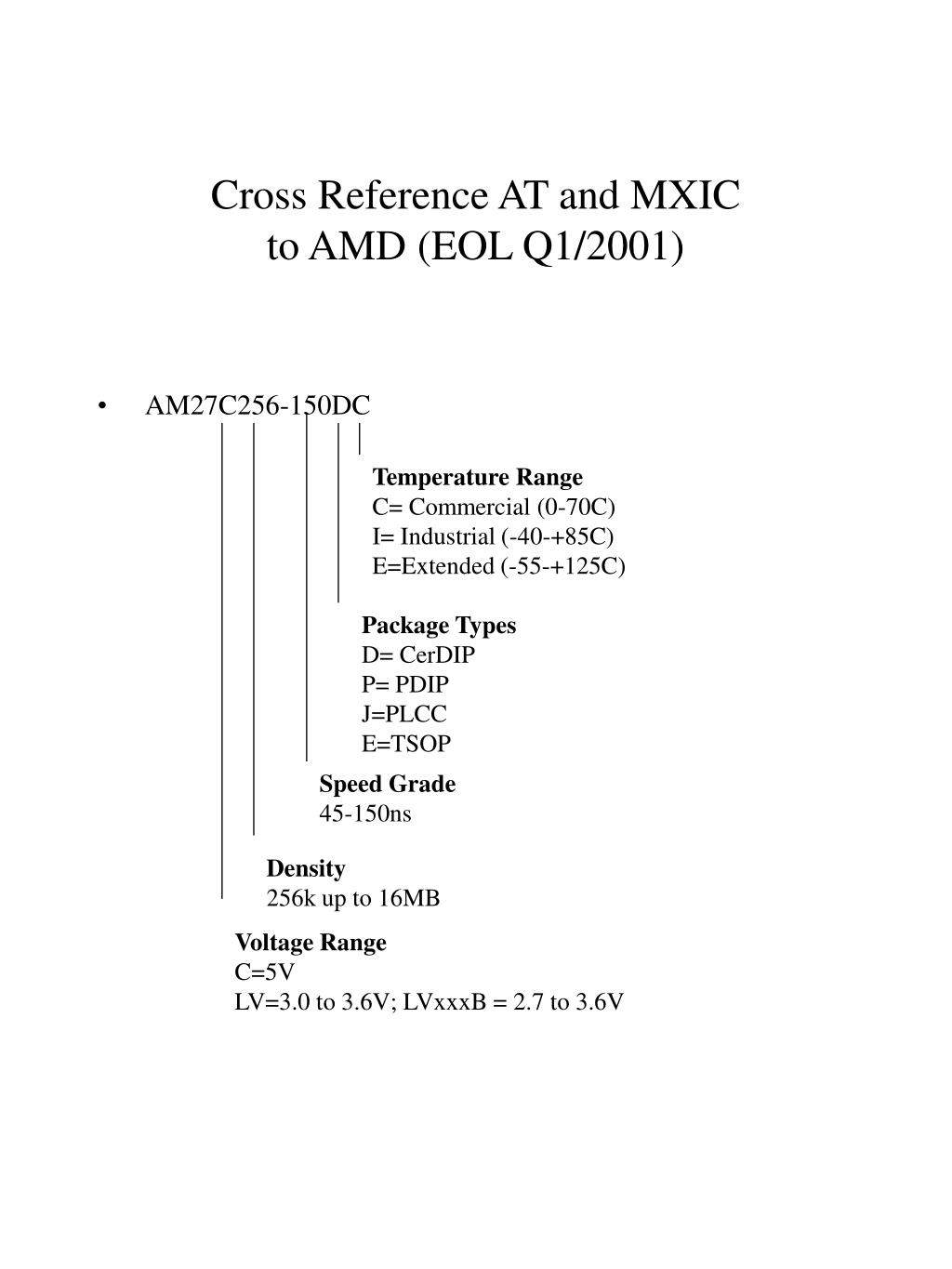

  1. Cross Reference AT and MXICto AMD (EOL Q1/2001) • AM27C256-150DC Temperature Range C= Commercial (0-70C) I= Industrial (-40-+85C) E=Extended (-55-+125C) Package Types D= CerDIP P= PDIP J=PLCC E=TSOP Speed Grade 45-150ns Density 256k up to 16MB Voltage Range C=5V LV=3.0 to 3.6V; LVxxxB = 2.7 to 3.6V

  2. AT27C256R-150DC Temperature Range C= Commercial (0-70C) I= Industrial (-40-+85C) A= Automotive (-40-+125C) Package Types D= CDIP (obsolete) P= PDIP J= PLCC X=TSSOP T=TSOP V= VTSOP R=SOP(330mil) S=SOP(300mil) Speed Grade 45-150ns Density 256k up to 8MB Voltage Range C= 5V LV= 3.0 to 3.6 BV=2.7 to 3.6 For more detailed information, do not hessitate to contact your local salesmanager from MSC VERTRIEBS GMBH, ws@msc-ge.com

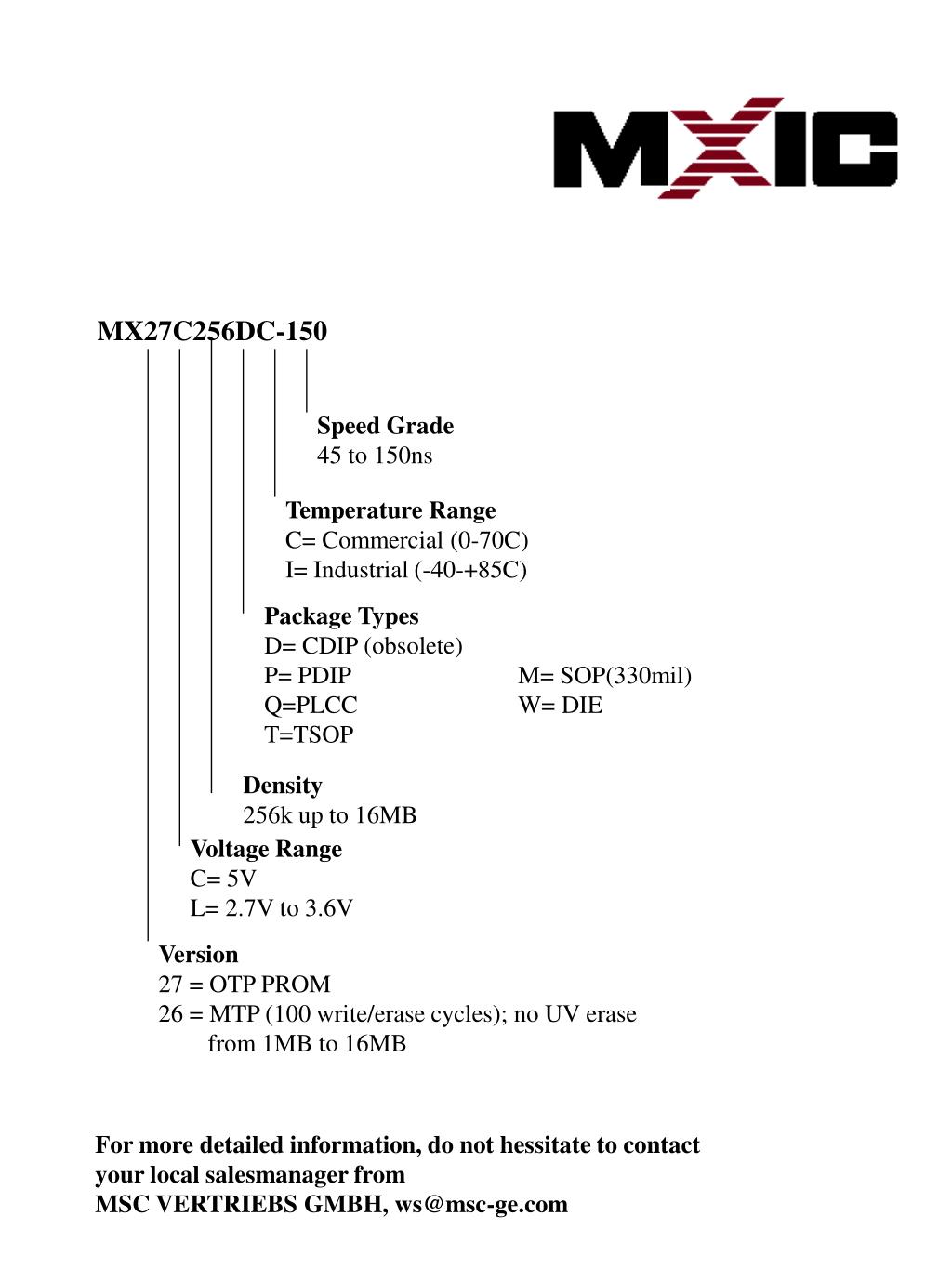

  3. MX27C256DC-150 Speed Grade 45 to 150ns Temperature Range C= Commercial (0-70C) I= Industrial (-40-+85C) Package Types D= CDIP (obsolete) P= PDIP M= SOP(330mil) Q=PLCC W= DIE T=TSOP Density 256k up to 16MB Voltage Range C= 5V L= 2.7V to 3.6V Version 27 = OTP PROM 26 = MTP (100 write/erase cycles); no UV erase from 1MB to 16MB For more detailed information, do not hessitate to contact your local salesmanager from MSC VERTRIEBS GMBH, ws@msc-ge.com
