  1. He Says vs. She SaysModel Validation and Calibration Kevin Chang HNTB Corporation kchang@hntb.com

  2. Model Validation and Calibration • Keys to a Successful Simulation Model • Model Validation Concept • Stories on Model Validation • Lessons Learned Contents

  3. CALIBRATION – an iterative procedure to fine tune model parameters and settings so that the model can achieve what the modeler wants it to perform. • VALIDATION – an analytical process to verify if the model’s behavior and output statistics can truly represent actual traffic system operations. • PURPOSE – to have a valid simulation model that is able to generate representative numerical results that replicate traffic operations in the modeled network for analyses. Model Validation and Calibration

  4. Model Calibration • Results may be limited by the tool used • Modeler’s knowledge of the simulation tool • Usually the most time consuming process • Model and Model Validation • Law and Kelton (1991) : “a simulation model of a complex system can only be an approximation to the actual system.” • Pegden et al. (1995) : “no model can ever be absolutely correct”. “A model is created for a specific purpose, and its adequacy or validity can only be evaluated in terms of that purpose.” • Fu, M : “Model validation is more an art work than science.” Facts

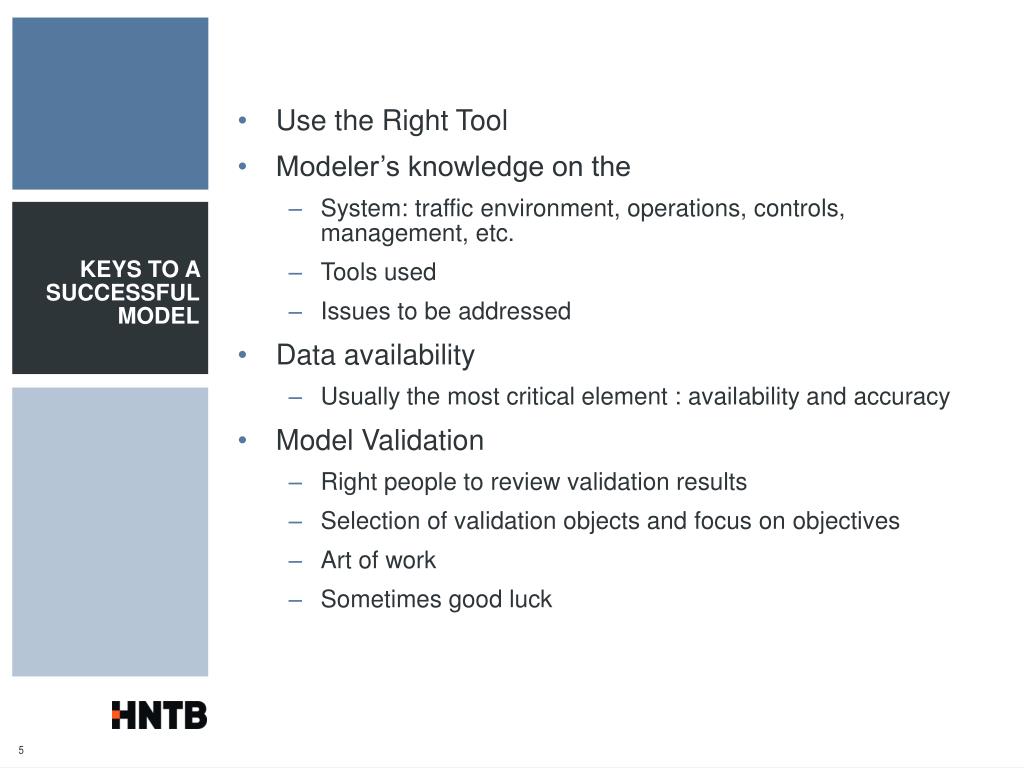

  5. Use the Right Tool • Modeler’s knowledge on the • System: traffic environment, operations, controls, management, etc. • Tools used • Issues to be addressed • Data availability • Usually the most critical element : availability and accuracy • Model Validation • Right people to review validation results • Selection of validation objects and focus on objectives • Art of work • Sometimes good luck KEYS TO A SUCCESSFUL MODEL

  6. Actual System Highway/Freeway Network Traffic Flow Traffic Operations Modeled System ? = • Model Logic • - Vehicle movements and interactions • Traffic assignment, routing decision • Weaving, merging, lane change • Queuing and delay • Traffic controls and managements • etc. Input Data Output Statistics Model Validation Concept

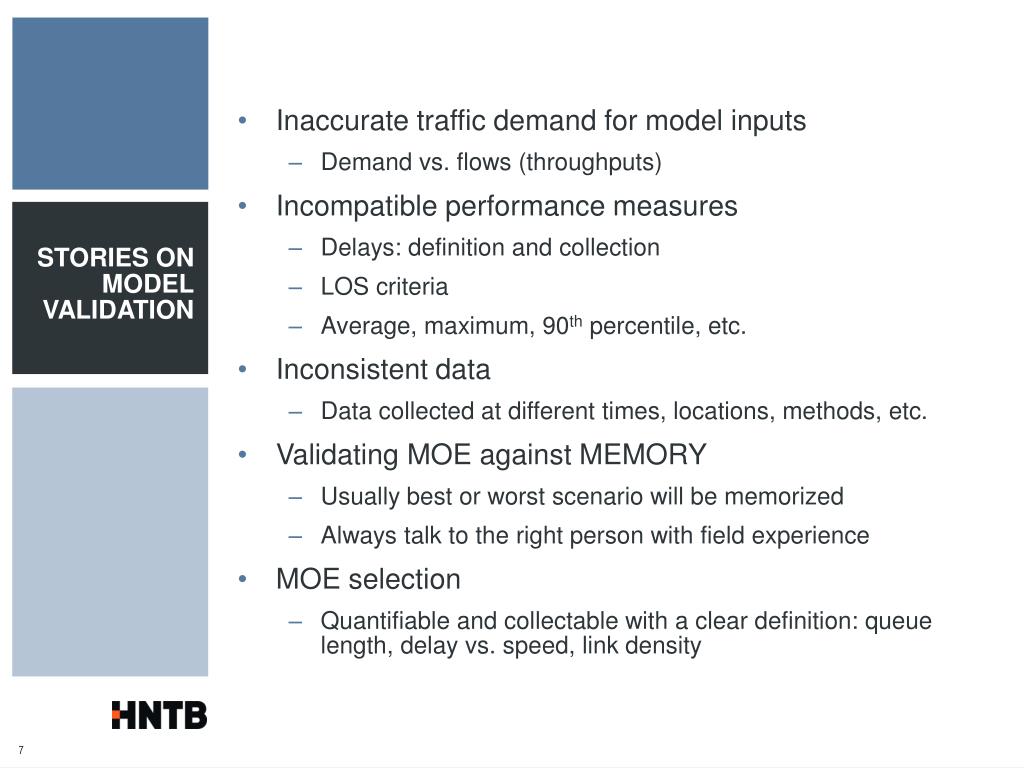

  7. Inaccurate traffic demand for model inputs • Demand vs. flows (throughputs) • Incompatible performance measures • Delays: definition and collection • LOS criteria • Average, maximum, 90th percentile, etc. • Inconsistent data • Data collected at different times, locations, methods, etc. • Validating MOE against MEMORY • Usually best or worst scenario will be memorized • Always talk to the right person with field experience • MOE selection • Quantifiable and collectable with a clear definition: queue length, delay vs. speed, link density STORIES ON MODELVALIDATION

  8. Know your tools • Clear about project issues, system environment, scope of work • Always budget for data collection and analysis • Select “right” MOEs for model validation and presentation • Talk to the right person • Upgrade hardware and update software –be sensitive to the time required to run your models and to get output stats • Art of work and good luck LESSONS LEARNED
