Presentation Transcript

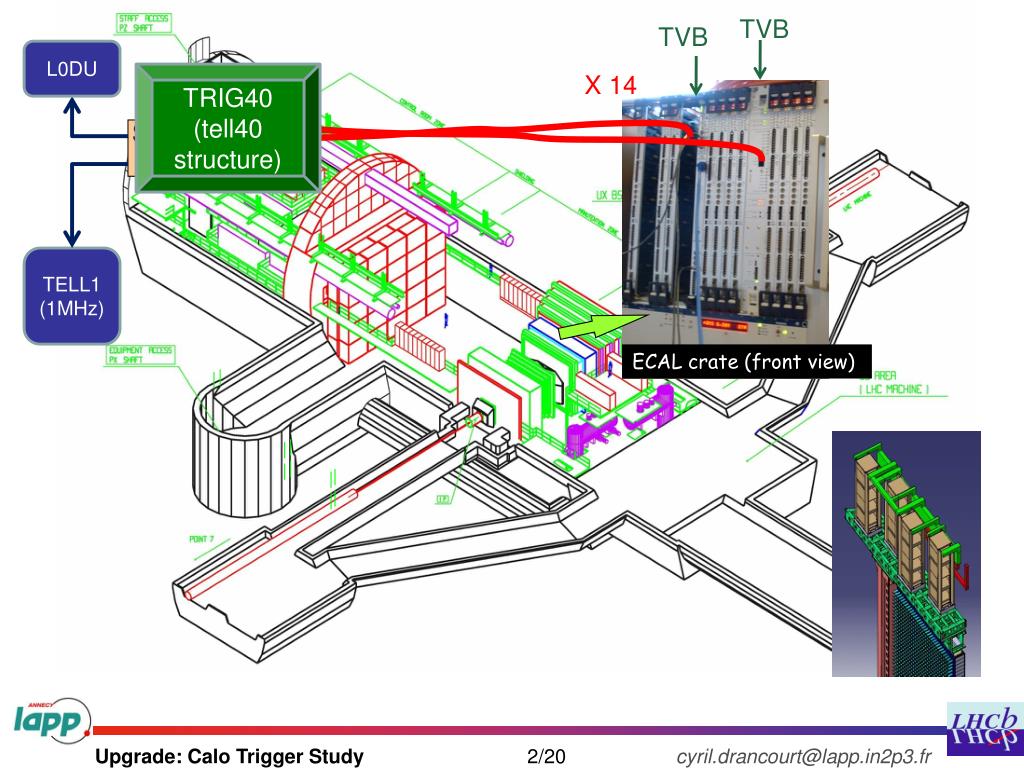

  1. ECAL crate (front view) TVB TVB L0DU TRIG40 (tell40 structure) X 14 Selection board in barrack TELL1 (1MHz) cyril.drancourt@lapp.in2p3.fr

  2. Actual Design Upgrade – setup Calorimeter detector 20 bits @40Mhz Link = 4 copper wire Serial LVDS 280Mhz Front-end boards Optic Mezzanine rubbon of 12 fiber Trigger Validation Board (TVB) 32 bits @40Mhz Link = Optic fibre 1.6 Ghz Tell 40 system with 1.6 GHZ inputs Selection Board (SB) 108x32 bits @40Mhz Link = Optic fibre ~infiniband rate To Be Define 1,6Ghz or 4,8Ghz or… To farm DAQ 40Mhz To SuperODIN(LLT) To farm DAQ 1Mhz To L0DU cyril.drancourt@lapp.in2p3.fr

  3. Previsionnal Tell40 design ATCA board ATCA mezzanine cyril.drancourt@lapp.in2p3.fr

  4. TELL40 To replace LODU TELL40 To replace SB cyril.drancourt@lapp.in2p3.fr

  5. cyril.drancourt@lapp.in2p3.fr

  6. cyril.drancourt@lapp.in2p3.fr

  7. cyril.drancourt@lapp.in2p3.fr

  8. cyril.drancourt@lapp.in2p3.fr

  9. Other input by muons, LLT_L0DU Firmwarework: Clermont? cyril.drancourt@lapp.in2p3.fr

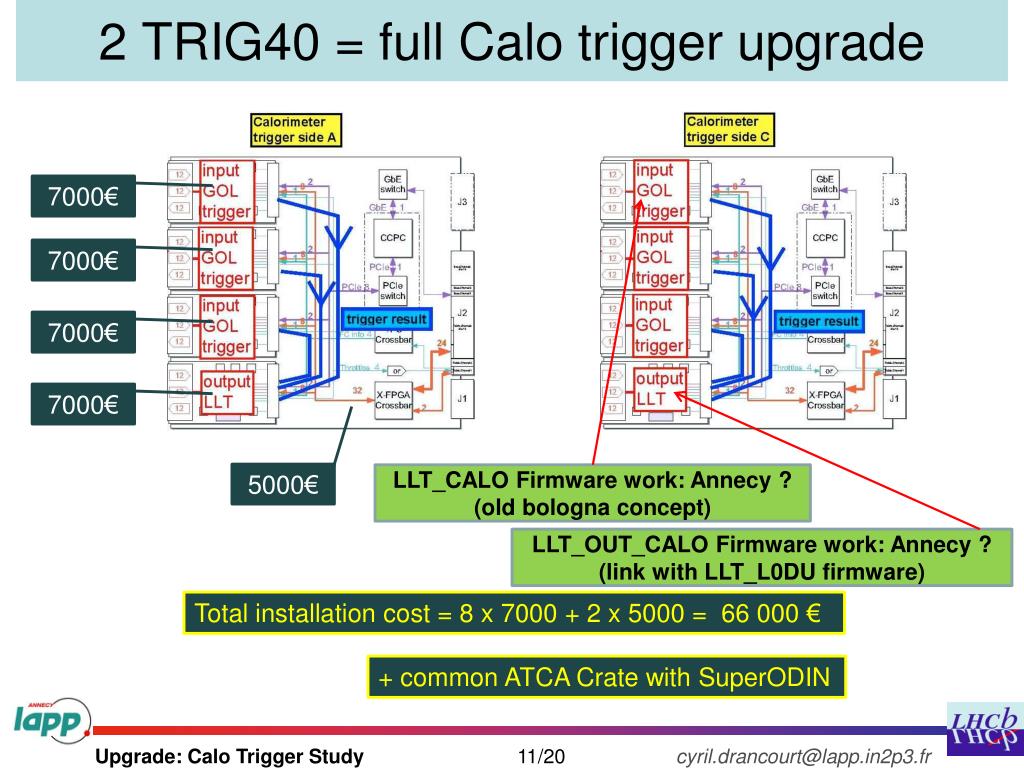

  10. 2 TRIG40 = full Calo trigger upgrade 7000€ 7000€ 7000€ 7000€ 5000€ LLT_CALO Firmwarework: Annecy ? (oldbologna concept) LLT_OUT_CALO Firmwarework: Annecy ? (linkwith LLT_L0DU firmware) Total installation cost = 8 x 7000 + 2 x 5000 = 66 000 € + common ATCA CratewithSuperODIN cyril.drancourt@lapp.in2p3.fr

  11. TELL40: Actual CPPM prototype in may 2011 ATCA board 1 microATCAcrate + commercial µ ATCA board withspecificboard on instead ATCA boardwith normal ATCA Crate ATCA mezzanine 2 stratix4 instead 1 stratix5 cyril.drancourt@lapp.in2p3.fr

  12. TELL40: CPPM schedule cyril.drancourt@lapp.in2p3.fr

  13. LAPP devellopment schedule ATCA Crate (15 slots) ATCA manager board: Commercial + CCPM part First prototype board Summer of 2012 > CCPM (Marseille) CCPM debugging First board available for LAPP: Proto: Spring of 2013 cyril.drancourt@lapp.in2p3.fr

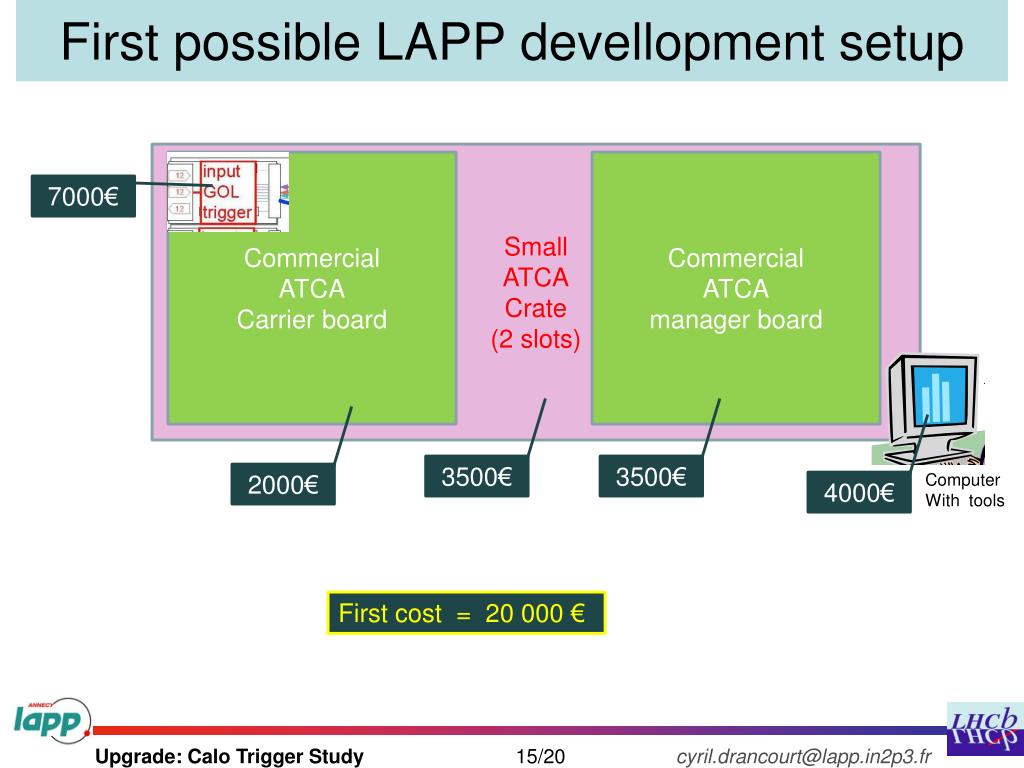

  14. First possible LAPP devellopment setup Small ATCA Crate (2 slots) Commercial ATCA Carrier board Commercial ATCA manager board 7000€ 3500€ 3500€ 2000€ Computer With tools 4000€ First cost= 20 000 € cyril.drancourt@lapp.in2p3.fr

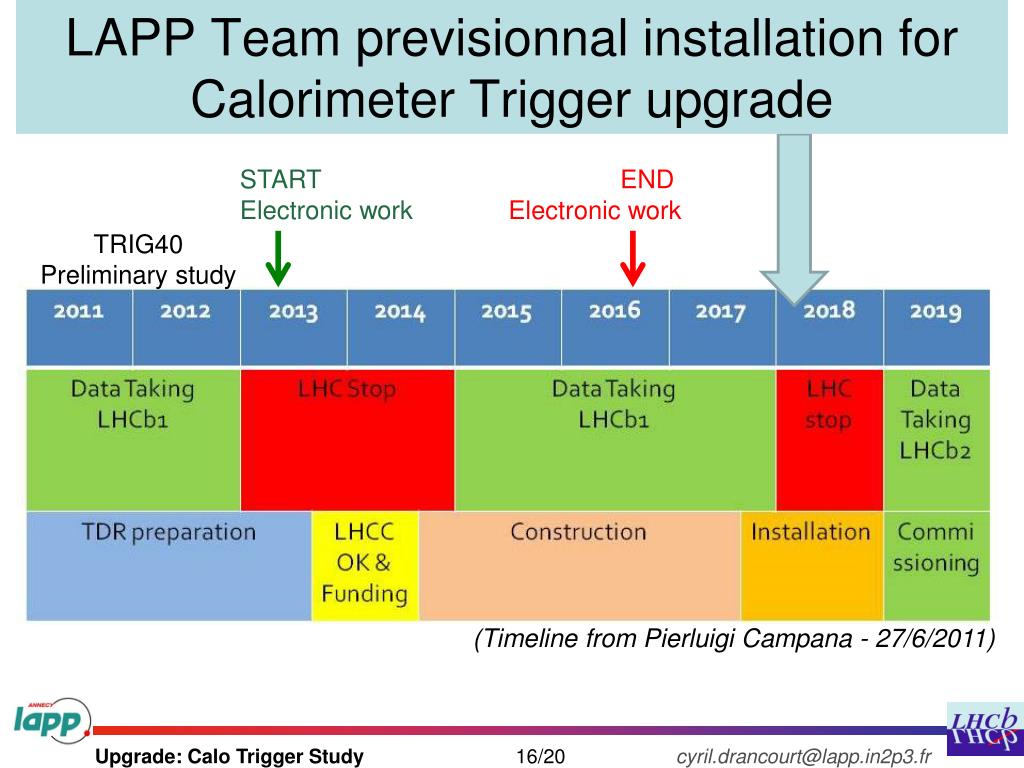

  15. LAPP Team previsionnal installation for Calorimeter Trigger upgrade START Electronic work END Electronic work TRIG40 Preliminary study (Timeline from Pierluigi Campana - 27/6/2011) cyril.drancourt@lapp.in2p3.fr

  16. Possible upgrade TVB Free space in EPPI FPGA TVB To implement new functions • Available Inputs: • 8 RJ45 connector on backplane • (8 bits@40Mz each) • (= instead PSPD Pattern bus) • 8 ECAL total energy • 8 ECAL cluster energy • 8 ECAL cluster adress • Available Outputs: • 3 optical link (32bit@40Mhz each) • Remarks: • Devellpment tools from 2005 • -> old in 2018… EPPI FPGA HCAL FPGA cyril.drancourt@lapp.in2p3.fr

  17. Slow-Control of FE crate – scheme1 FE Backplane CRATE FEB & TVB FEB & TVB FEB & TVB FEB & TVB FEB & TVB FEB & TVB FEB & TVB FEB & TVB FEB & TVB FEB & TVB FEB & TVB conv-SPECS FEB & TVB FEB & TVB FEB & TVB clock-DRIVER GBT-SCA GBT FSC40 board Instead CROC cyril.drancourt@lapp.in2p3.fr

  18. Slow-Control of FE crate – scheme2 FE Backplane CRATE FEB Instead CROC TVB TVB DATA process conv-SPECS clock-DRIVER GBT-SCA GBT GBT FSC40 board TELL40 board cyril.drancourt@lapp.in2p3.fr

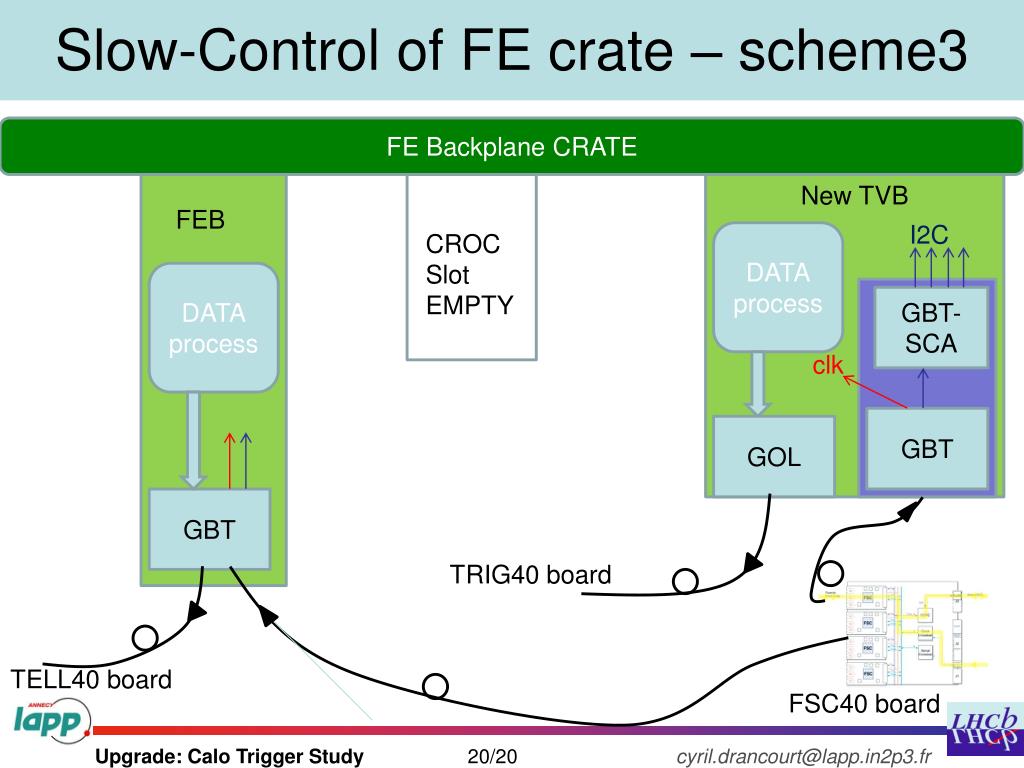

  19. Slow-Control of FE crate – scheme3 FE Backplane CRATE New TVB FEB I2C CROC Slot EMPTY DATA process DATA process GBT-SCA clk GBT GOL GBT TRIG40 board TELL40 board FSC40 board cyril.drancourt@lapp.in2p3.fr
