  1. Data Frame Augmentation of Free Form Queries for Constraint Based Document Filtering Andrew Zitzelberger

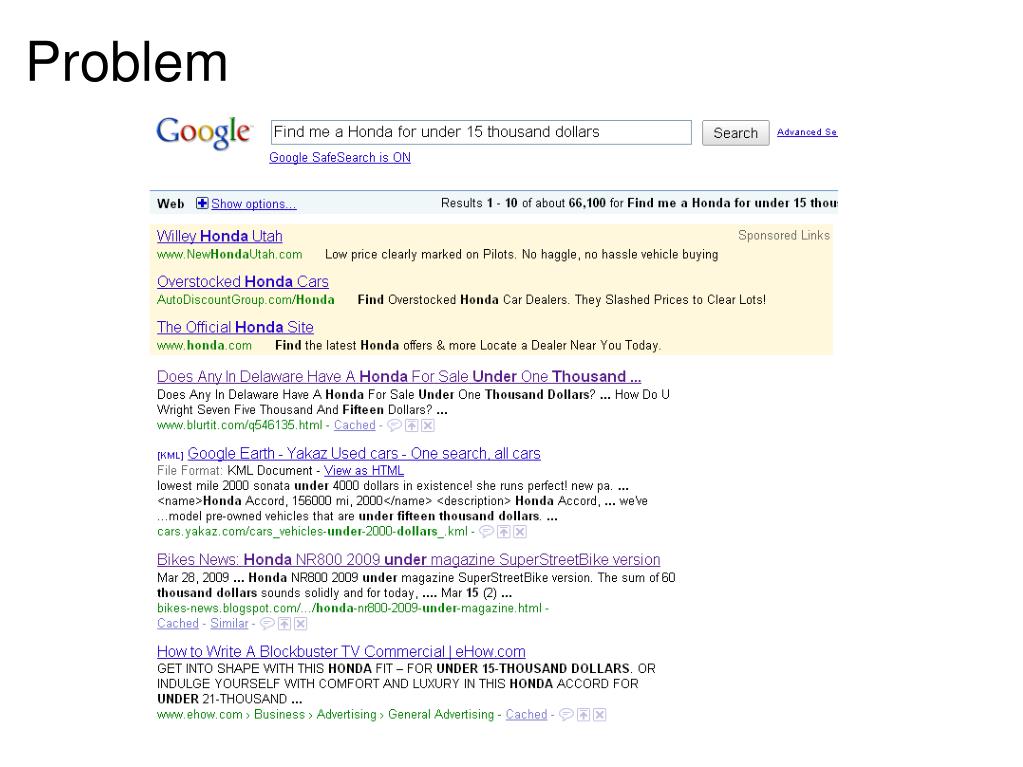

  2. Problem

  3. Constraint Based Queries

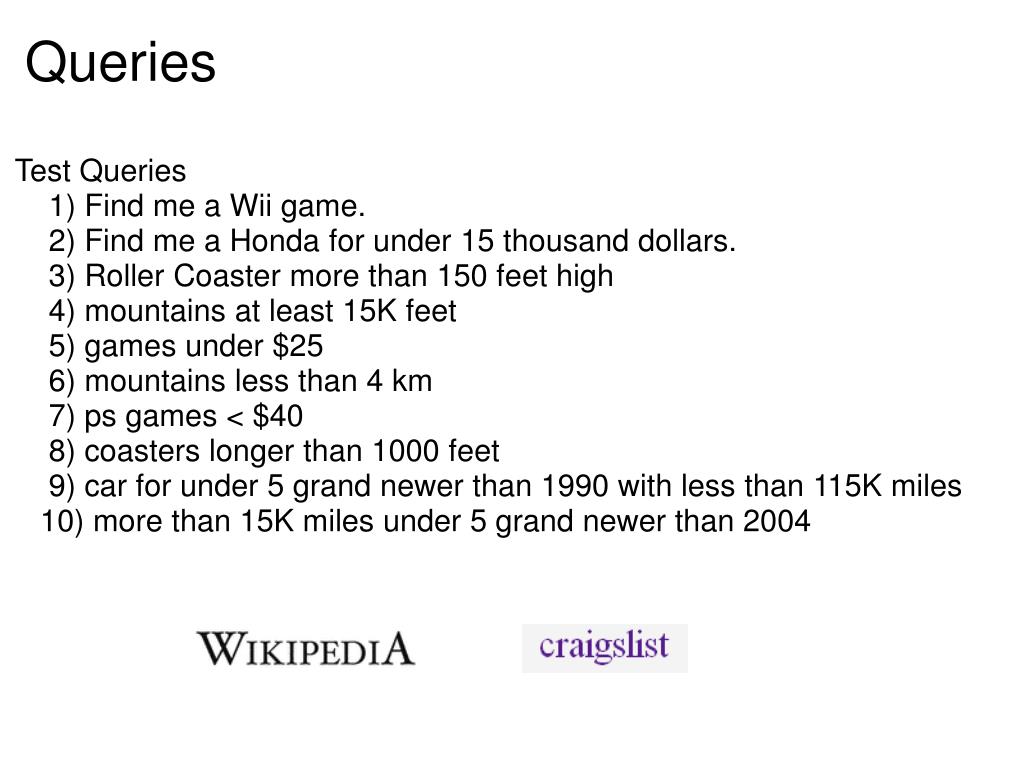

  4. Queries Test Queries     1) Find me a Wii game.     2) Find me a Honda for under 15 thousand dollars.     3) Roller Coaster more than 150 feet high     4) mountains at least 15K feet     5) games under $25     6) mountains less than 4 km     7) ps games < $40     8) coasters longer than 1000 feet     9) car for under 5 grand newer than 1990 with less than 115K miles    10) more than 15K miles under 5 grand newer than 2004

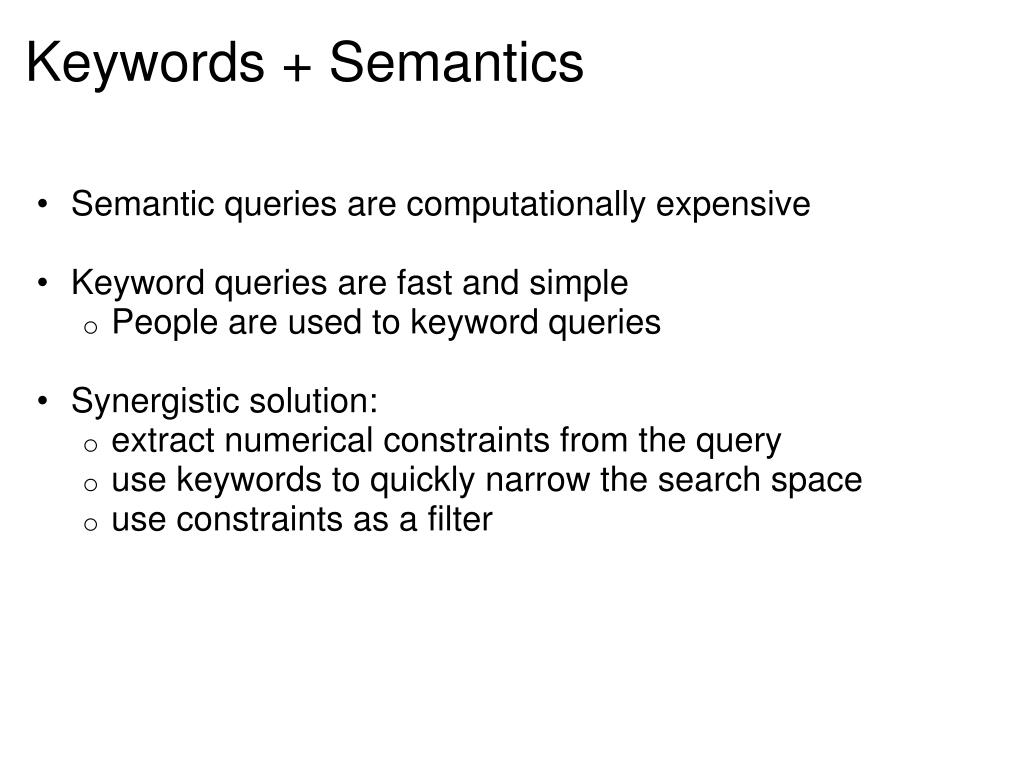

  5. Keywords + Semantics • Semantic queries are computationally expensive • Keyword queries are fast and simple • People are used to keyword queries • Synergistic solution: • extract numerical constraints from the query • use keywords to quickly narrow the search space • use constraints as a filter

  6. Data Frames Price     internal representation: Double     external representation: \$[1-9]\d{0,2}(,\d{3})*|...     ...     right units: (K)?\s*(cents|dollars|[Gg]rand|...)     canonicalization method: toUSDollars     comparison methods:         LessThan(p1: Price, p2: Price) returns (Boolean)         external representation: (less than|<|under|...)\s*{p2}|...         ...     end

  7. Data Frame Library

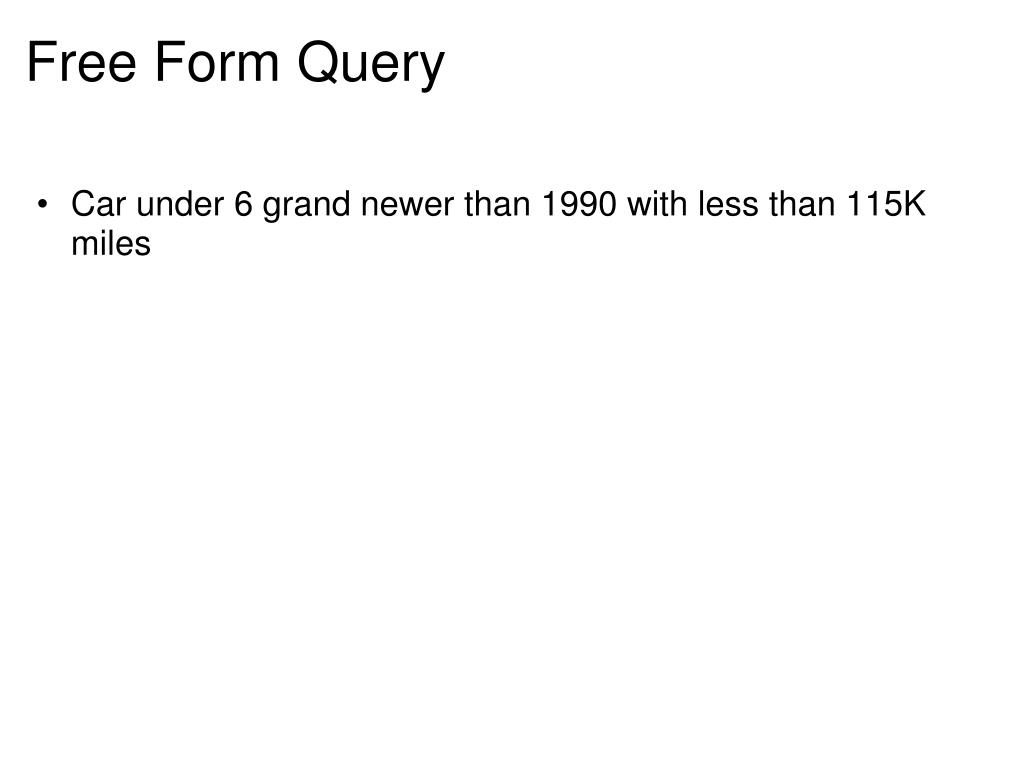

  8. Free Form Query • Car under 6 grand newer than 1990 with less than 115K miles

  9. Step 1: Condition Extraction • Car under 6 grand newer than 1990 with less than 115K miles • Extracted Conditions • (Price < 6000) • (Year > 1990) • (Distance  < 115000)

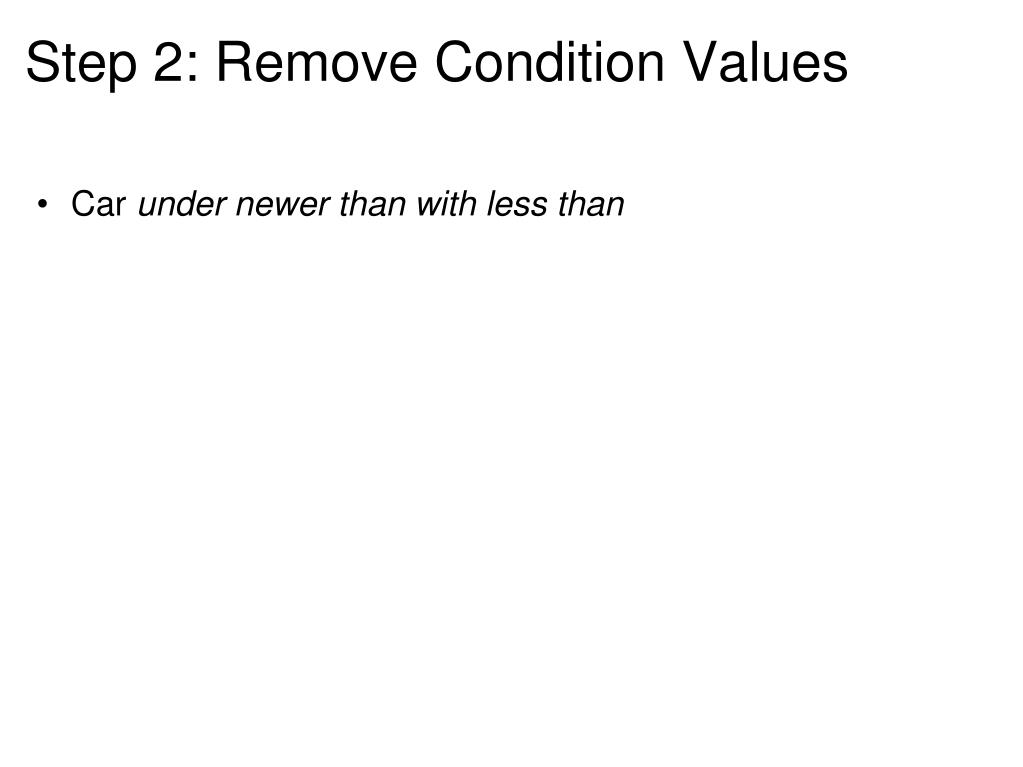

  10. Step 2: Remove Condition Values • Car under newer than with less than

  11. Step 3: Remove Stopwords • Car

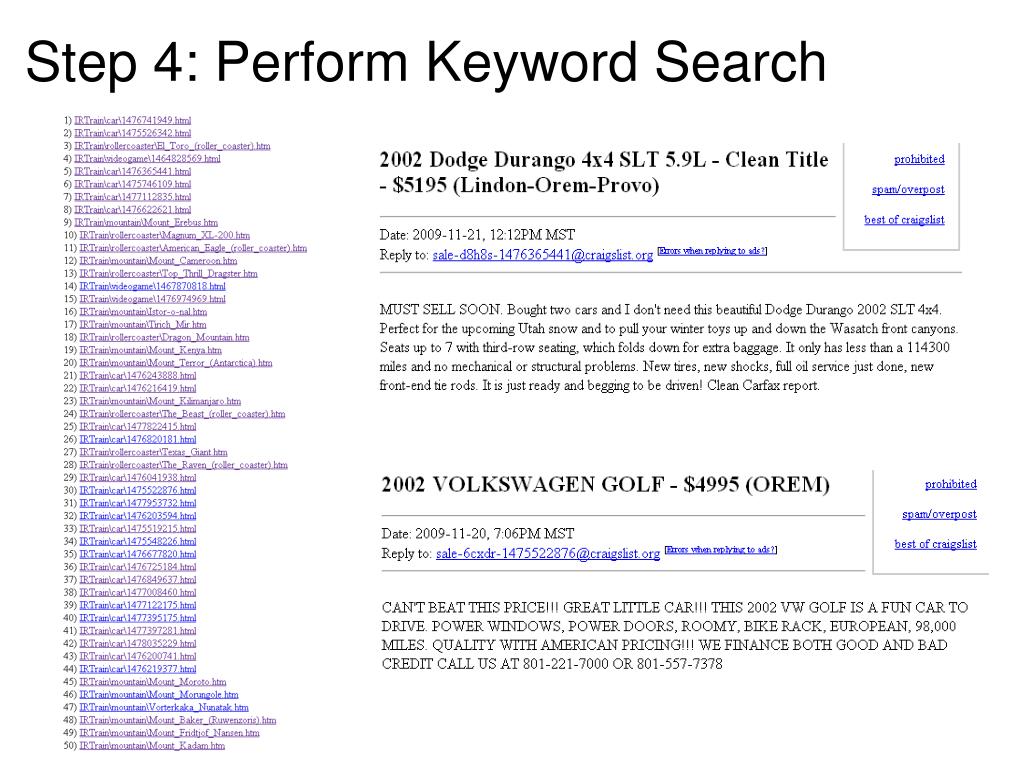

  12. Step 4: Perform Keyword Search

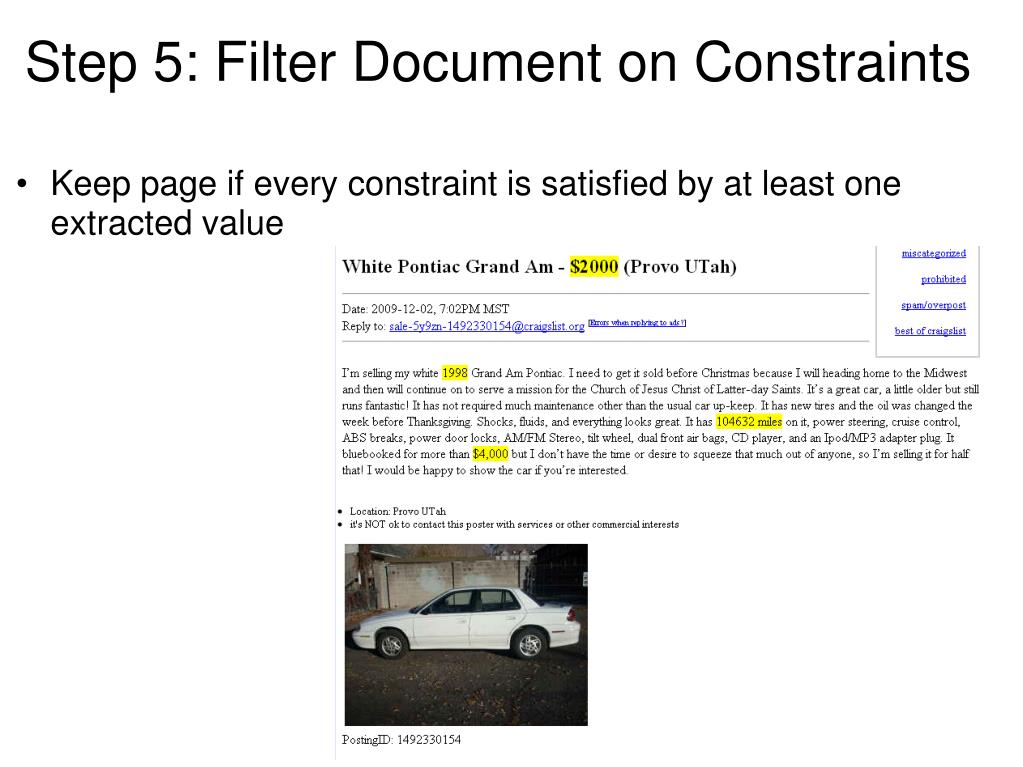

  13. Step 5: Filter Document on Constraints • Keep page if every constraint is satisfied by at least one extracted value

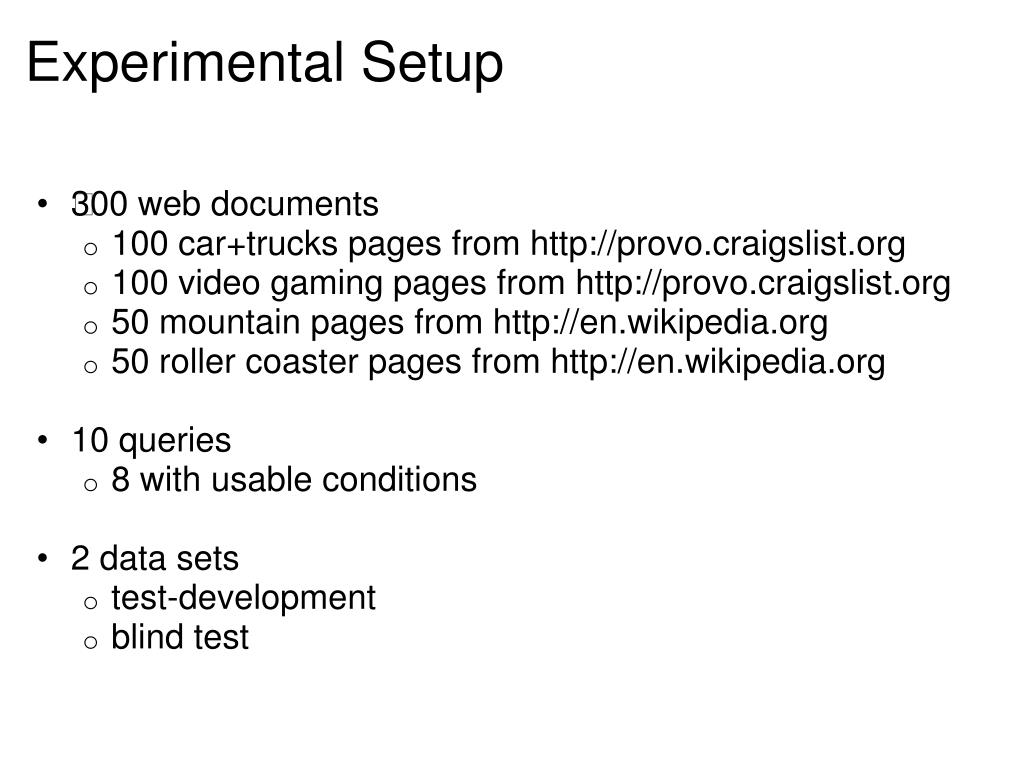

  14. Experimental Setup • 300 web documents • 100 car+trucks pages from http://provo.craigslist.org • 100 video gaming pages from http://provo.craigslist.org • 50 mountain pages from http://en.wikipedia.org • 50 roller coaster pages from http://en.wikipedia.org • 10 queries • 8 with usable conditions • 2 data sets • test-development • blind test

  15. Precision@3/Query Type Keyword Queries Reduced Queries Data Frame Augmented Queries Dev-Test Queries 33% 40% 60% Blind-Test Queries 50% 46% 63% Overall 42% 43% 62% Results Summary • Precision increase for 56% of queries  • 75% for test-dev, 50% for blind-test • Precision never worse than keyword query • Most effective for short, focused documents

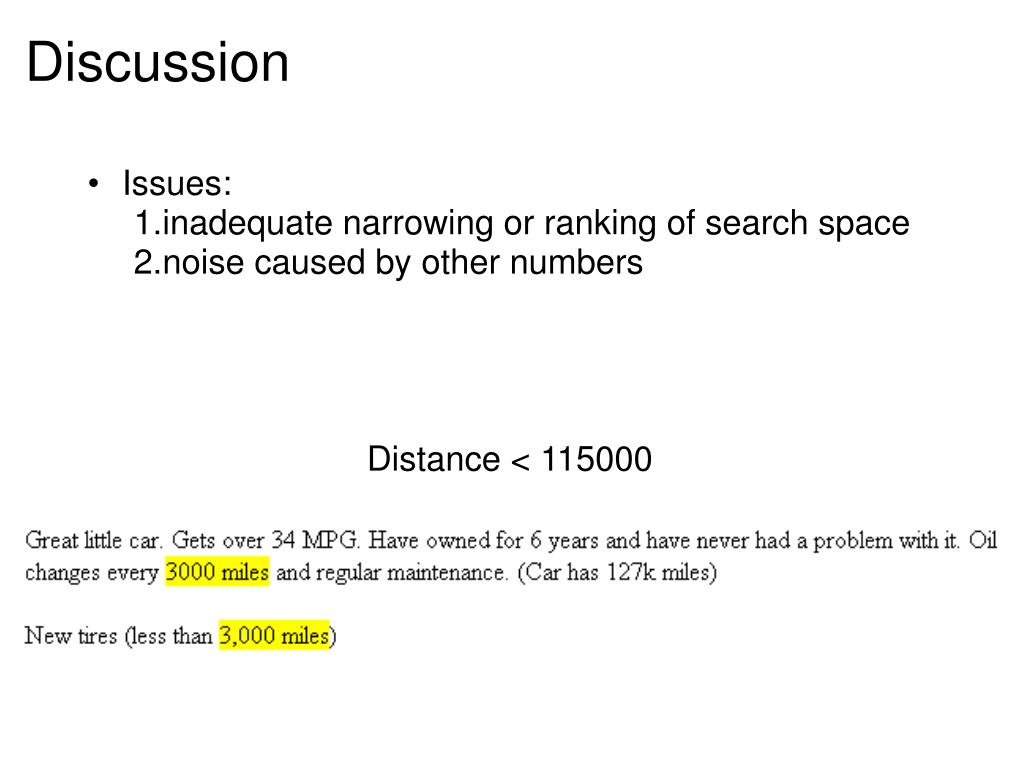

  16. Discussion • Issues: • inadequate narrowing or ranking of search space • noise caused by other numbers • Distance < 115000

  17. Future Work • Scalability • Indexing data frame extracted terms • Precision vs Recall trade-offs • Pay-as-you-go search construction

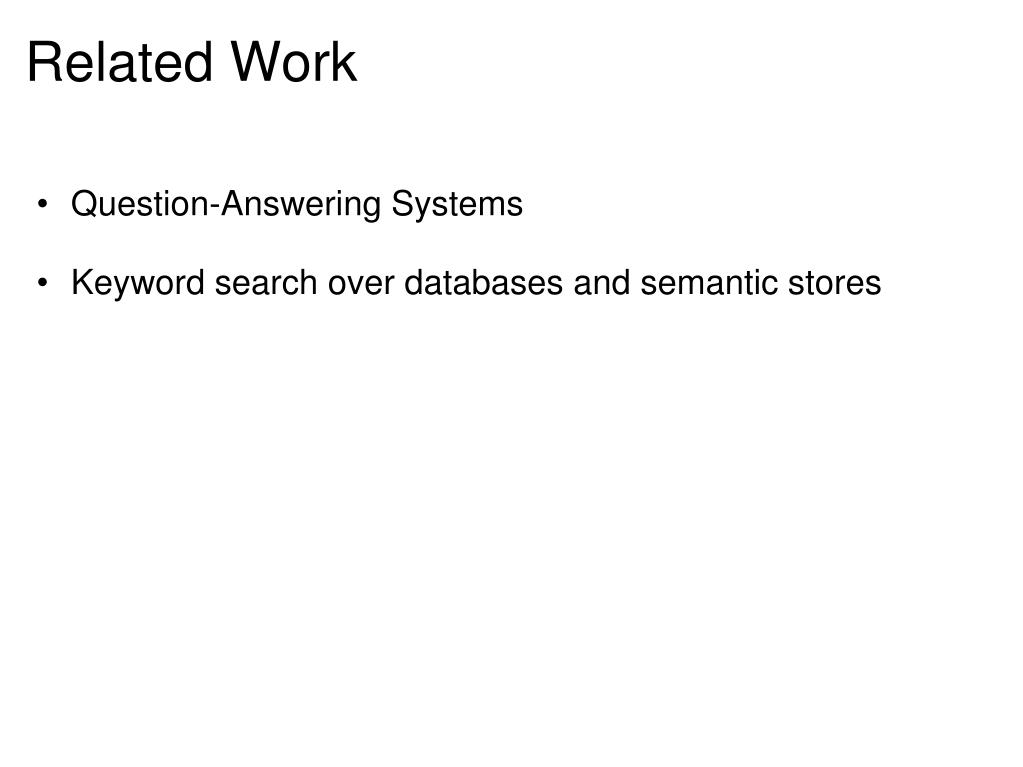

  18. Related Work • Question-Answering Systems • Keyword search over databases and semantic stores

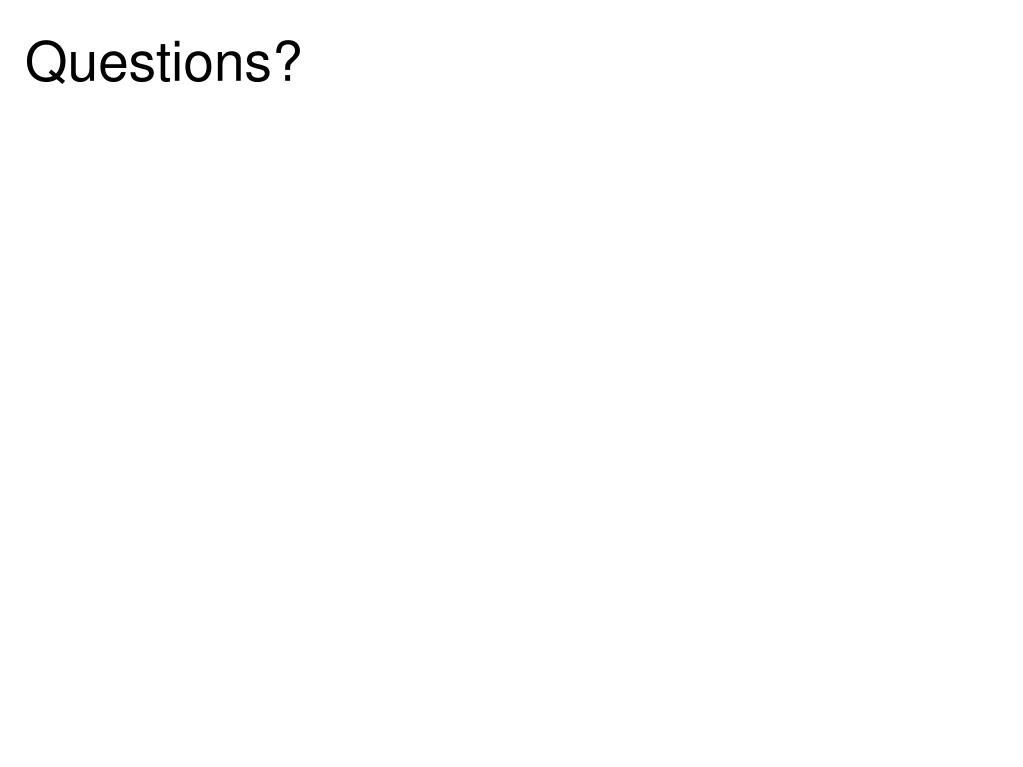

  19. Questions?

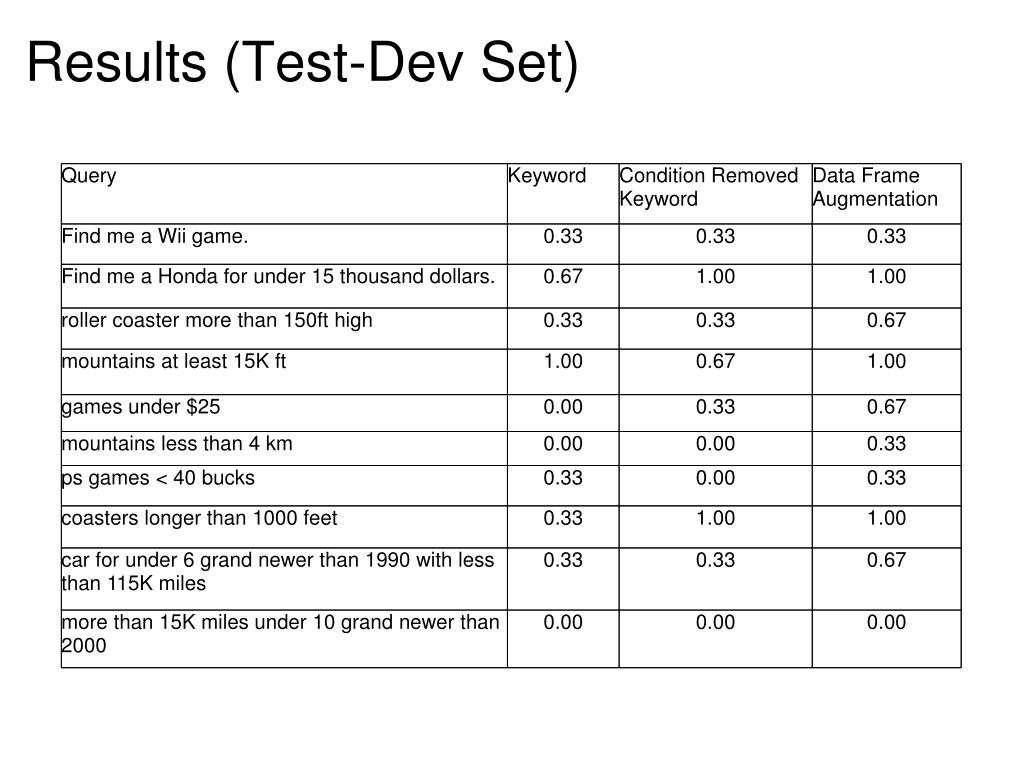

  20. Query Keyword Condition Removed Keyword Data Frame Augmentation Find me a Wii game. 0.33 0.33 0.33 Find me a Honda for under 15 thousand dollars. 0.67 1.00 1.00 roller coaster more than 150ft high 0.33 0.33 0.67 mountains at least 15K ft 1.00 0.67 1.00 games under $25 0.00 0.33 0.67 mountains less than 4 km 0.00 0.00 0.33 ps games < 40 bucks 0.33 0.00 0.33 coasters longer than 1000 feet 0.33 1.00 1.00 car for under 6 grand newer than 1990 with less than 115K miles 0.33 0.33 0.67 more than 15K miles under 10 grand newer than 2000 0.00 0.00 0.00 Results (Test-Dev Set)

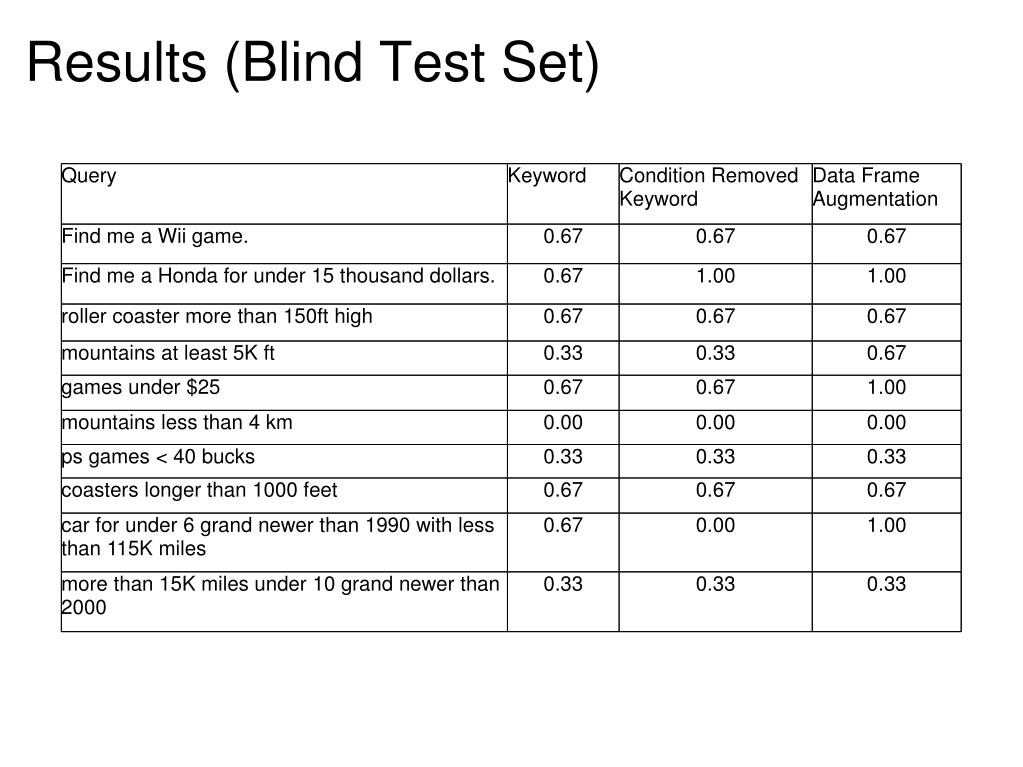

  21. Query Keyword Condition Removed Keyword Data Frame Augmentation Find me a Wii game. 0.67 0.67 0.67 Find me a Honda for under 15 thousand dollars. 0.67 1.00 1.00 roller coaster more than 150ft high 0.67 0.67 0.67 mountains at least 5K ft 0.33 0.33 0.67 games under $25 0.67 0.67 1.00 mountains less than 4 km 0.00 0.00 0.00 ps games < 40 bucks 0.33 0.33 0.33 coasters longer than 1000 feet 0.67 0.67 0.67 car for under 6 grand newer than 1990 with less than 115K miles 0.67 0.00 1.00 more than 15K miles under 10 grand newer than 2000 0.33 0.33 0.33 Results (Blind Test Set)
