35 mm Camera Parts and Their Functions

fathi avatar
fathi
15 diapositives · 787 Views · Jul 29, 2014

35 mm Camera Parts and Their Functions. Lens. It draws the light into the camera and focuses it on the film plane. Return to Quiz. Shutter. An opaque piece of cloth or metal which opens and closes to control the length of time light strikes the film. Shutter Release Button.

35 mm Camera Parts and Their Functions - slide 1
01 / 1535 mm Camera Parts and Their Functions
1 / 17

Télécharger la présentation

35 mm Camera Parts and Their Functions
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. 35 mm Camera Parts and Their Functions

  2. Lens It draws the light into the camera and focuses it on the film plane. Return to Quiz

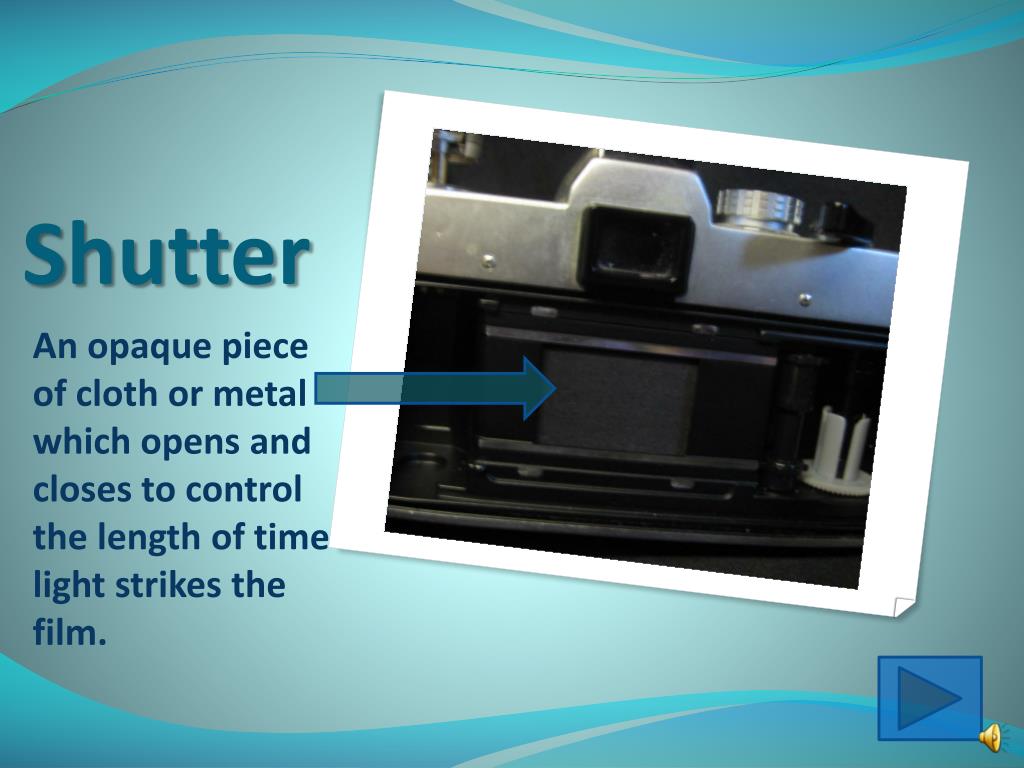

  3. Shutter An opaque piece of cloth or metal which opens and closes to control the length of time light strikes the film.

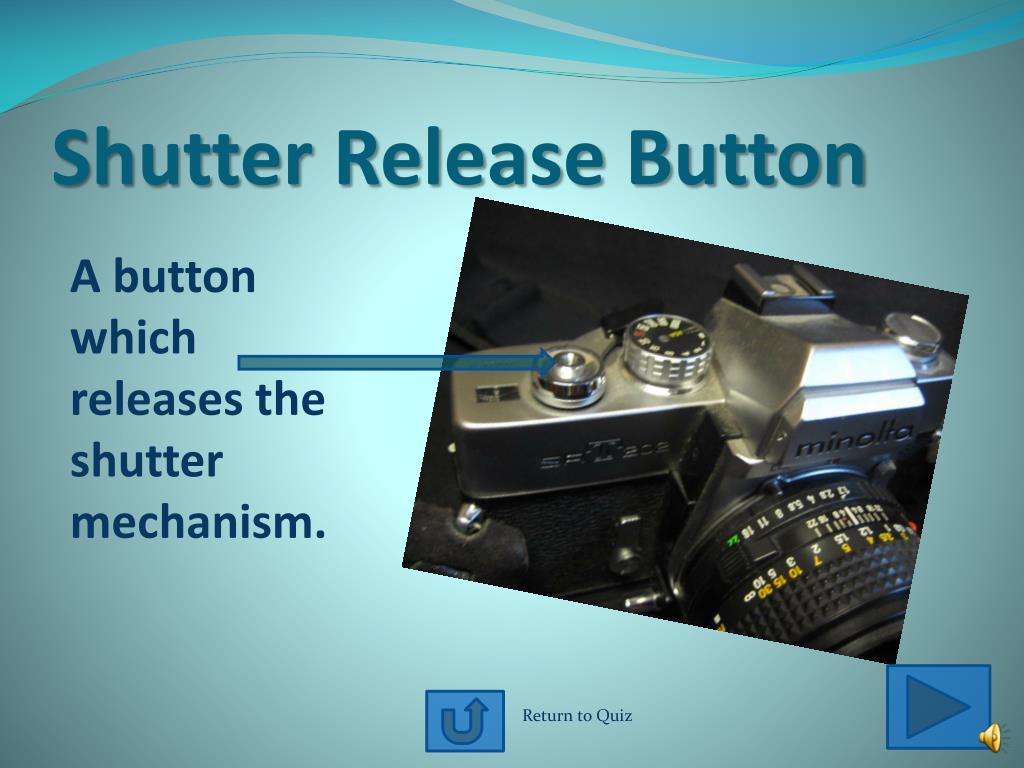

  4. Shutter Release Button A button which releases the shutter mechanism. Return to Quiz

  5. Film Advance Lever Ittransports the film from one frame to the next on the roll of film. Return to Quiz

  6. Aperture Ring The aperture opens and closes to control the diameter, or size, of the hole that the light passes through. The numbers on the aperture ring are called f-numbers. Return to Quiz

  7. Viewfinder The “window” where you look to frame your photo.

  8. Film Rewind Knob This knob rewinds the film back into the film canister as you turn it. Open the lever and turn in the direction of the arrow located on the crank. Return to Quiz

  9. Hot Shoe The flash is mounted or attached at this location. Return to Quiz

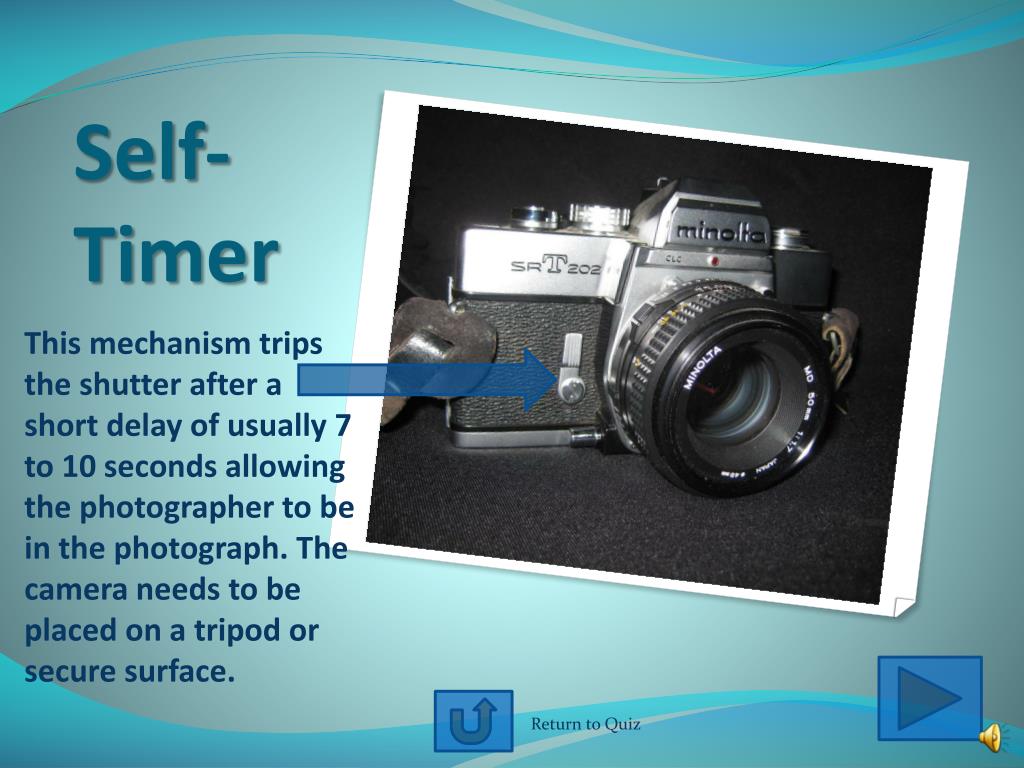

  10. Self-Timer This mechanism trips the shutter after a short delay of usually 7 to 10 seconds allowing the photographer to be in the photograph. The camera needs to be placed on a tripod or secure surface. Return to Quiz

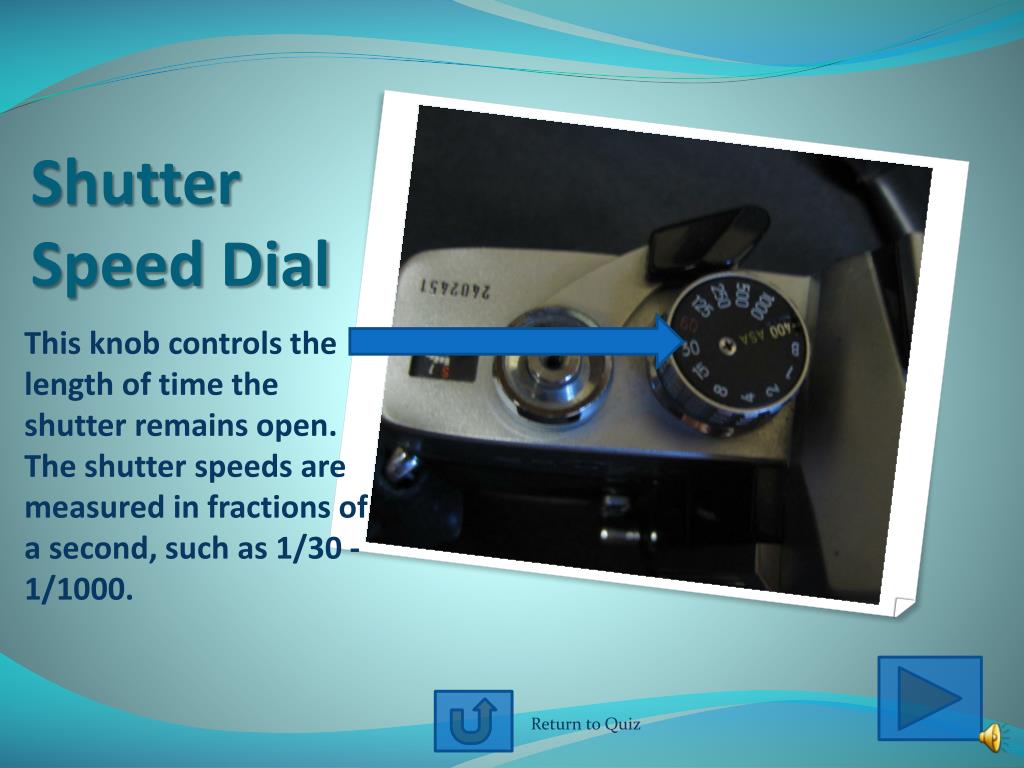

  11. Shutter Speed Dial This knob controls the length of time the shutter remains open. The shutter speeds are measured in fractions of a second, such as 1/30 - 1/1000. Return to Quiz

  12. ASA Dial This knob should be set to match the speed of your film and refers to how sensitive the film is to light or how quickly it reacts to light. ASA – American Standard Association ISO - International Return to Quiz

  13. Now, let’s check to see how much you know.

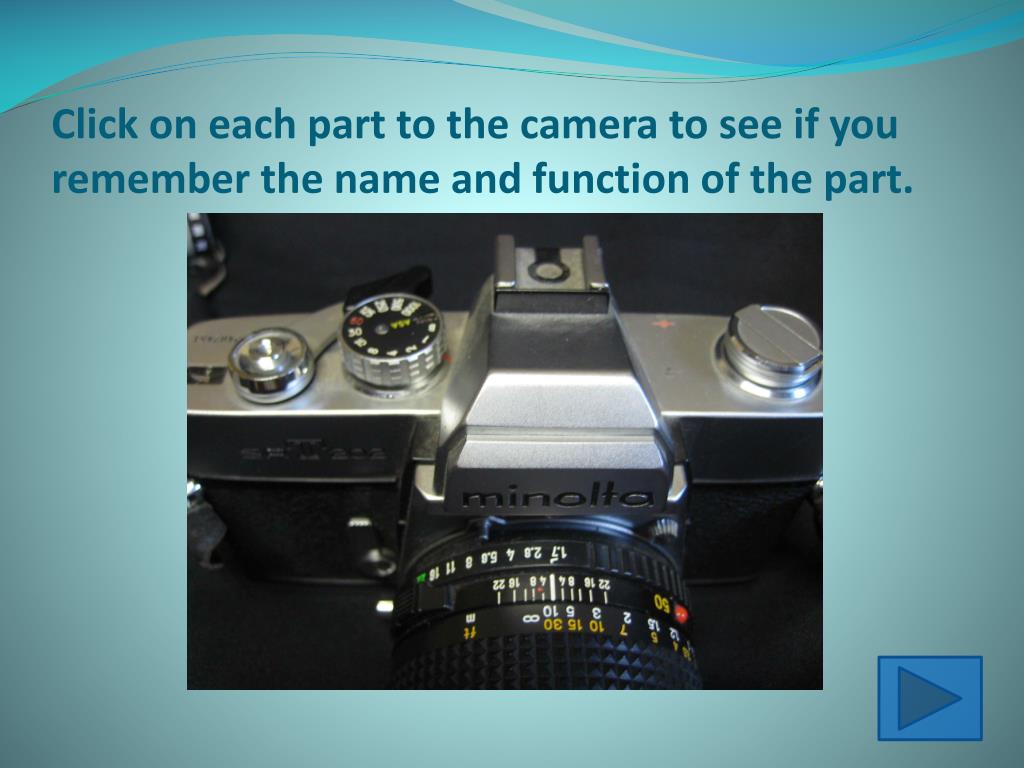

  14. Click on each part to the camera to see if you remember the name and function of the part.

  15. How did you do? If you missed a few, just keep reviewing! Return to beginning Return to Quiz
