  1. AC Inverter Drives 500 Series Product RangeOverview 2000

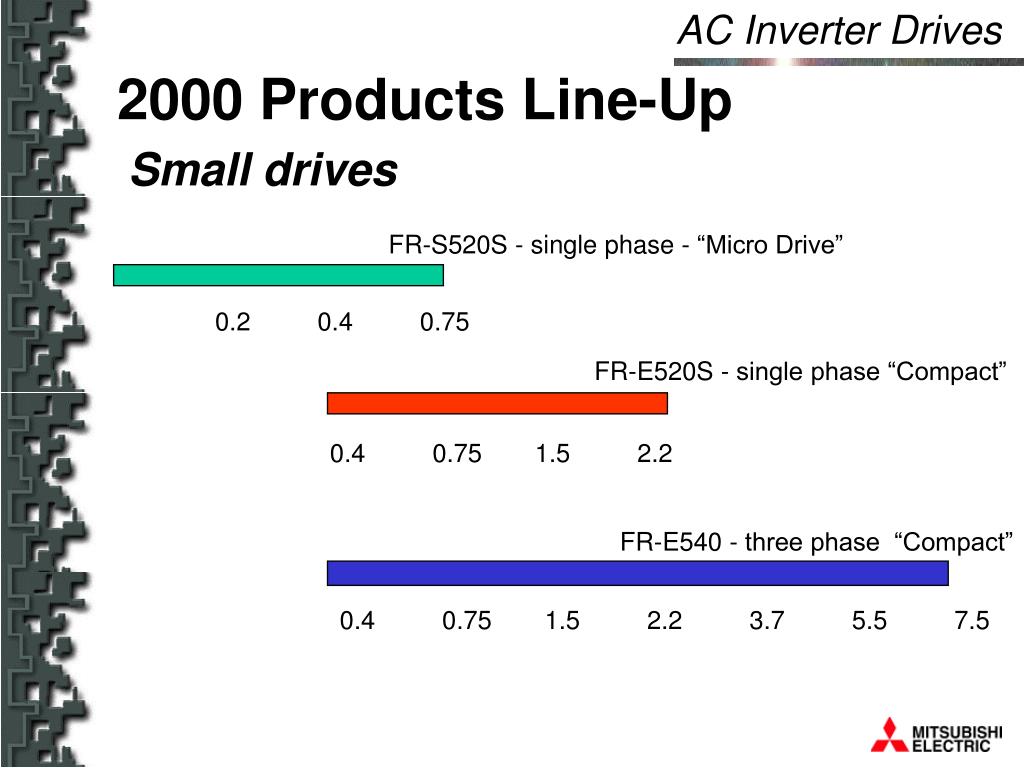

  2. 2000 Products Line-Up Small drives FR-S520S - single phase - “Micro Drive” 0.2 0.4 0.75 FR-E520S - single phase “Compact” 0.4 0.75 1.5 2.2 FR-E540 - three phase “Compact” 0.4 0.75 1.5 2.2 3.7 5.5 7.5

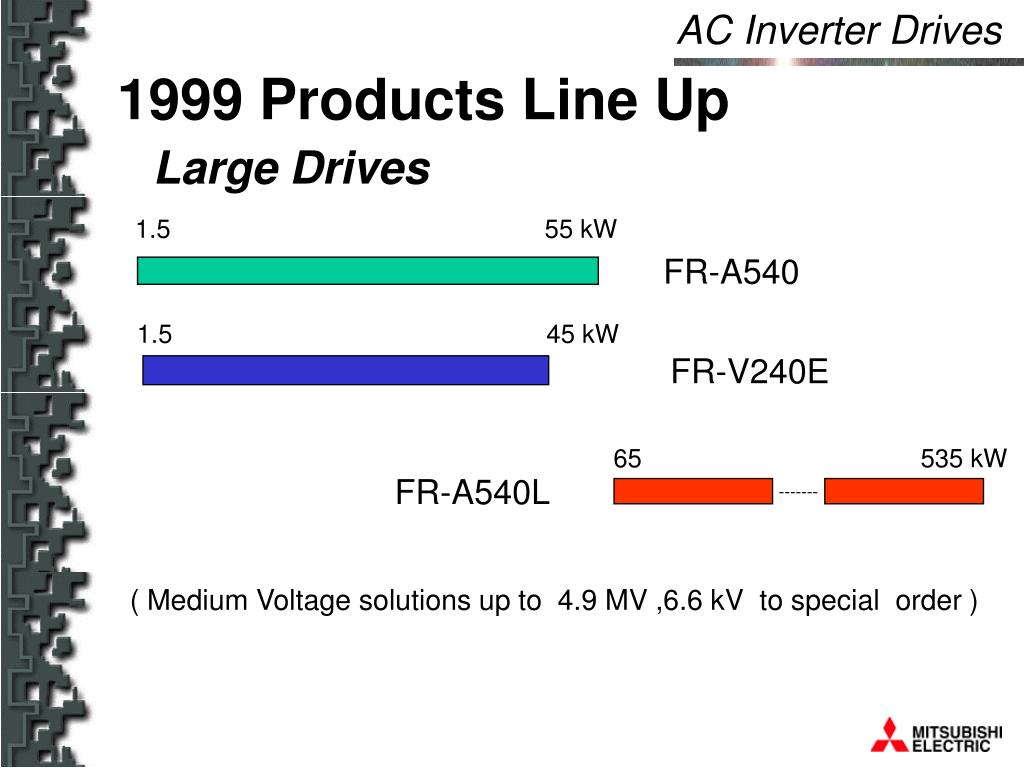

  3. 1999 Products Line Up Large Drives 1.5 55 kW FR-A540 1.5 45 kW FR-V240E 65 535 kW FR-A540L ------- ( Medium Voltage solutions up to 4.9 MV ,6.6 kV to special order )

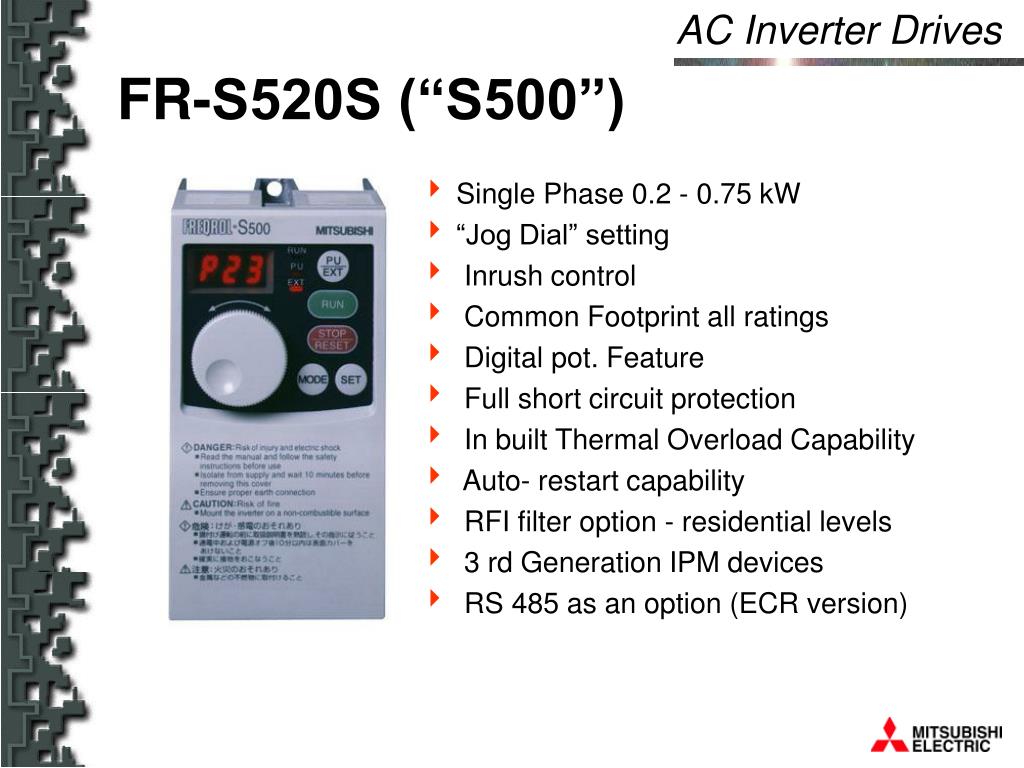

  4. FR-S520S (“S500”) • Single Phase 0.2 - 0.75 kW • “Jog Dial” setting • Inrush control • Common Footprint all ratings • Digital pot. Feature • Full short circuit protection • In built Thermal Overload Capability • Auto- restart capability • RFI filter option - residential levels • 3 rd Generation IPM devices • RS 485 as an option (ECR version)

  5. FR-E520S / E540 (“E500”) • Outstanding Dynamic Performance • Integral Serial Communications Capability • Fieldbus options • Cassette filter design (200V) • Source / Sink Logic • PID Control • High Response Current limit control • 0 - 10 V analogue output • Coasting Motor Restart • Phase Loss protection • Multiple User Group Pr. settings

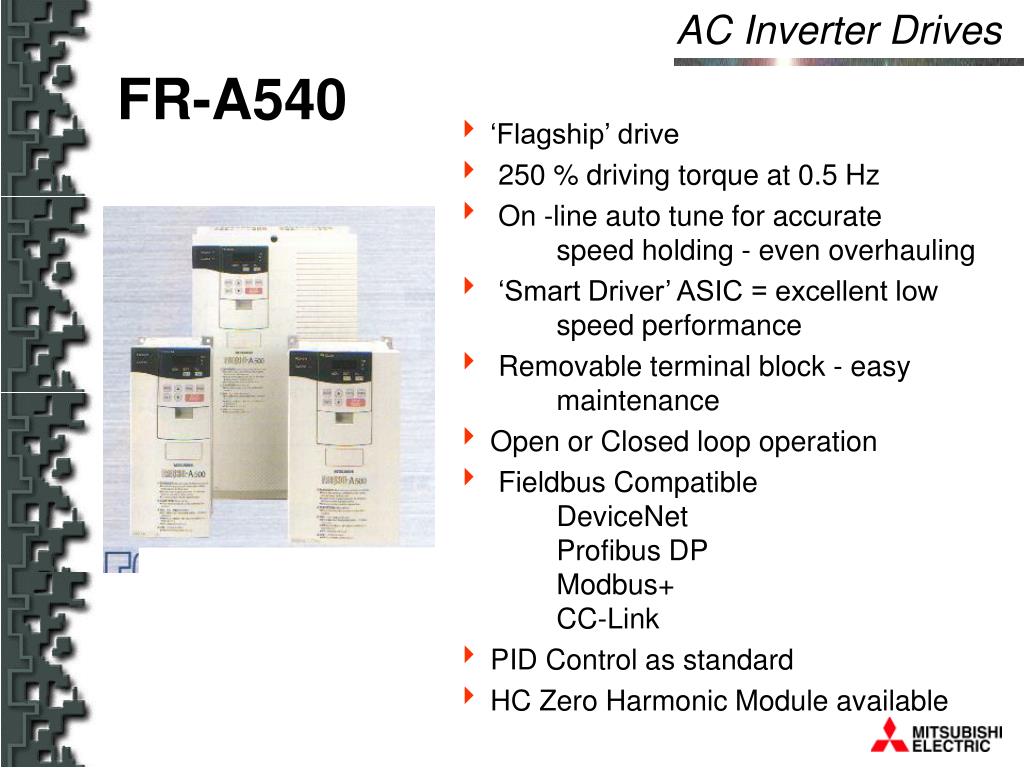

  6. FR-A540 • ‘Flagship’ drive • 250 % driving torque at 0.5 Hz • On -line auto tune for accurate speed holding - even overhauling • ‘Smart Driver’ ASIC = excellent low speed performance • Removable terminal block - easy maintenance • Open or Closed loop operation • Fieldbus Compatible DeviceNet Profibus DP Modbus+ CC-Link • PID Control as standard • HC Zero Harmonic Module available

  7. FR-V240E • True Flux Vector Performance Torque Control Positioning Control Zero speed torque • Uses any std motor (closed loop) • Perfect for hoisting / lifting wire - drawing paper process lines

  8. FR-A540L • Extends A500 range up to 535 kW • Full A500 capability • 6 and 12 pulse versions available series or parallel • DC Link choke is standard • Frame size is 2- 3 times smaller than competition • Totally dependable - often used in site - critical areas without back-ups ! ( Medium Voltage solutions up to 4.9 M VA ,6.6 kV to special order )

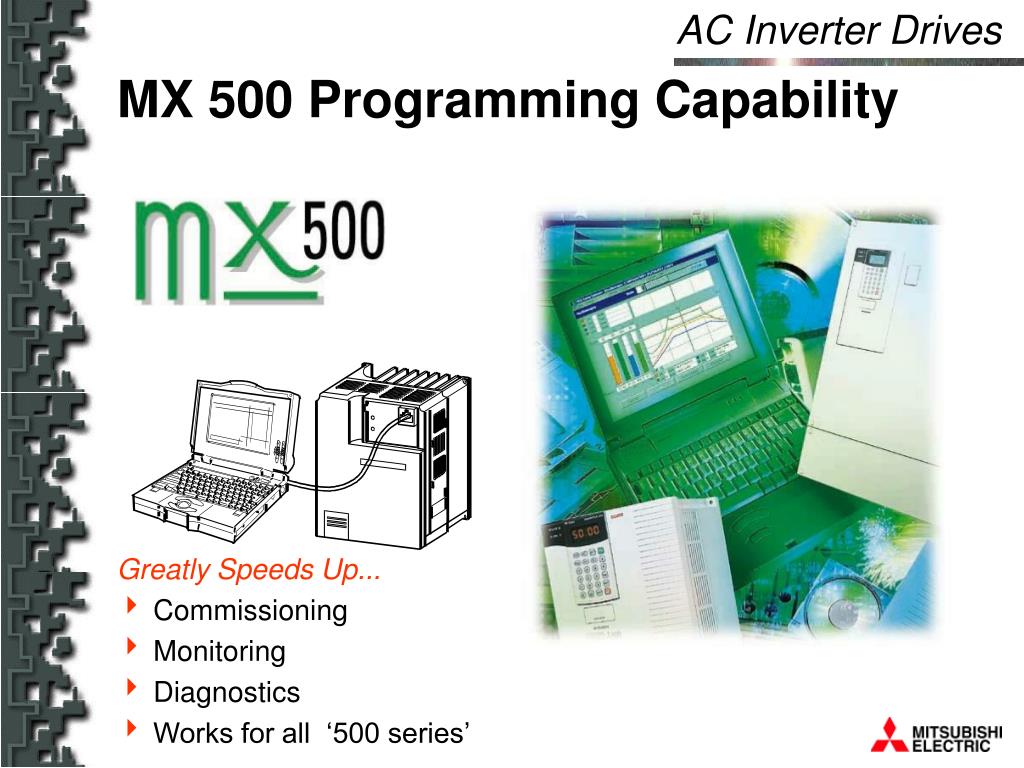

  9. MX 500 Programming Capability Greatly Speeds Up... • Commissioning • Monitoring • Diagnostics • Works for all ‘500 series’

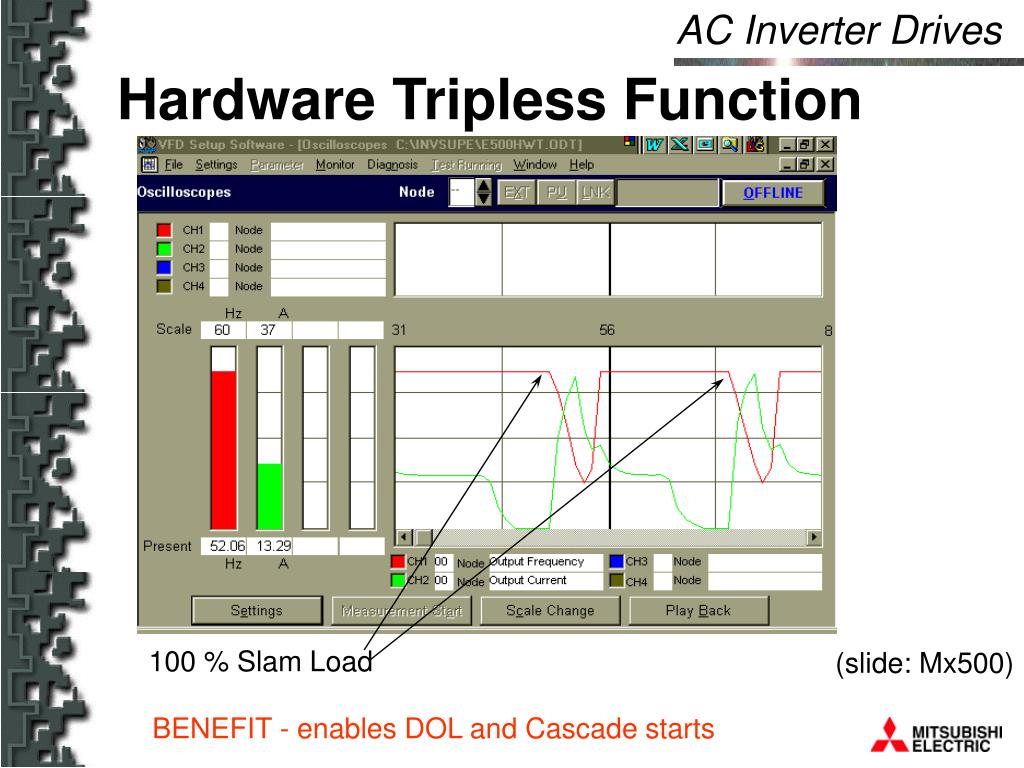

  10. Hardware Tripless Function 100 % Slam Load (slide: Mx500) BENEFIT - enables DOL and Cascade starts

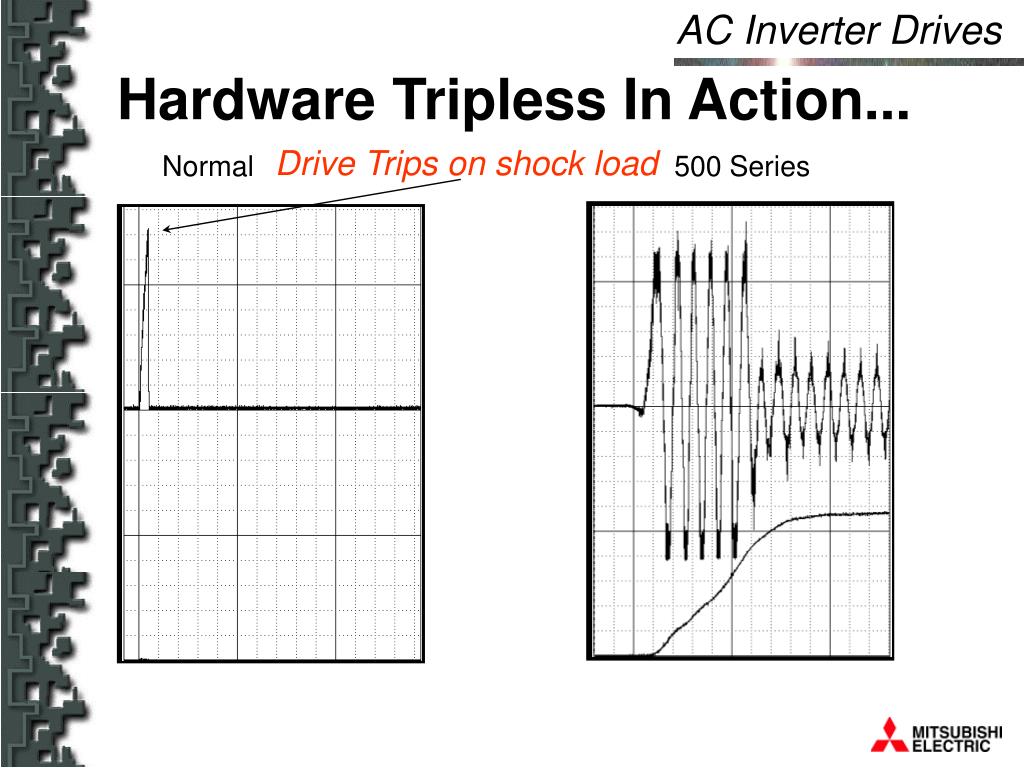

  11. Hardware Tripless In Action... Drive Trips on shock load Normal 500 Series

  12. Direct HMI Connectivity without PLC Special driver software allows direct RS 485 communications between any E type HMI and any 500 type inverter . • Simpler and quicker interfacing • Can be used for multi - drops up to 32 units CAB9-3M

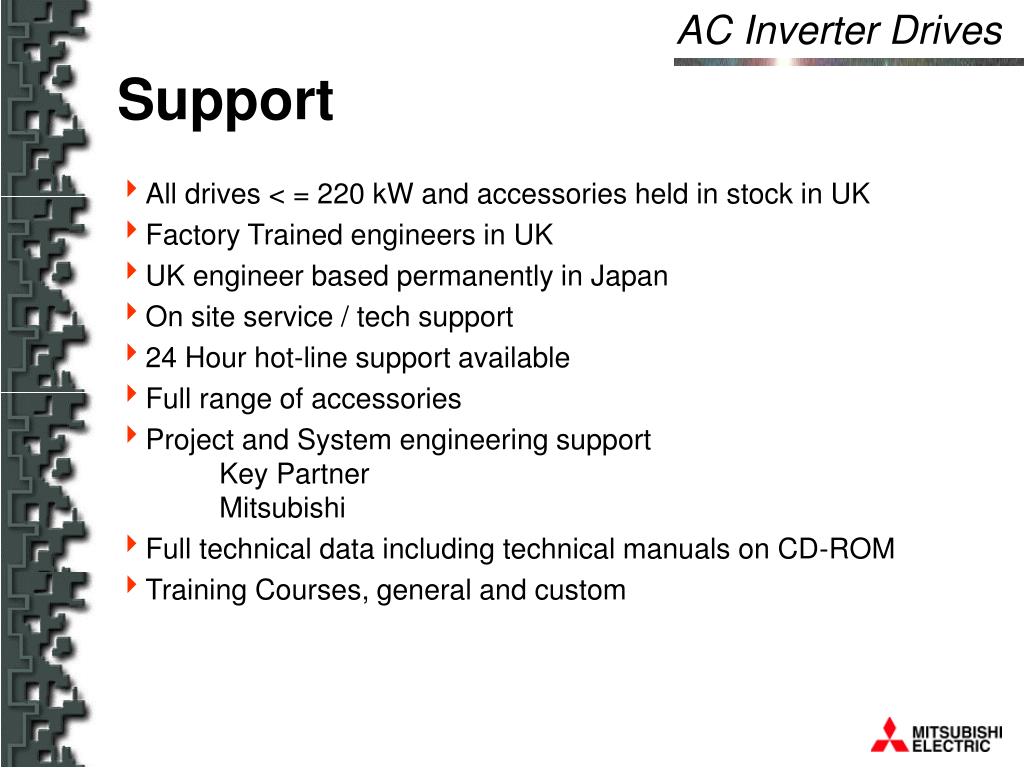

  13. Support • All drives < = 220 kW and accessories held in stock in UK • Factory Trained engineers in UK • UK engineer based permanently in Japan • On site service / tech support • 24 Hour hot-line support available • Full range of accessories • Project and System engineering support Key Partner Mitsubishi • Full technical data including technical manuals on CD-ROM • Training Courses, general and custom

  14. AC Inverter Drives Questions?

  15. AC Inverter Drives 500 Series Product RangeOverview 2000
