Understanding Refraction and Reflection in Coastal Processes: Headlands and Beaches

DESCRIPTION

This exploration of coastal processes delves into the dynamics of refraction and reflection as they relate to headlands and beaches. Waves behave differently when approaching shallow water, bending (refraction) and losing energy as they wash onto shore. When these waves encounter cliffed headlands, they reflect back into the ocean, leading to rock erosion and sediment transport. This article discusses the contrasting effects of wave energy on high-energy cliff edges versus low-energy beach areas, highlighting sediment movement and headland erosion.

1 / 13

Télécharger la présentation

Understanding Refraction and Reflection in Coastal Processes: Headlands and Beaches

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Refraction and Reflection Coastal Process

  2. Beach Headland Headland: A cliffed cape or promontory sticking out into the sea.

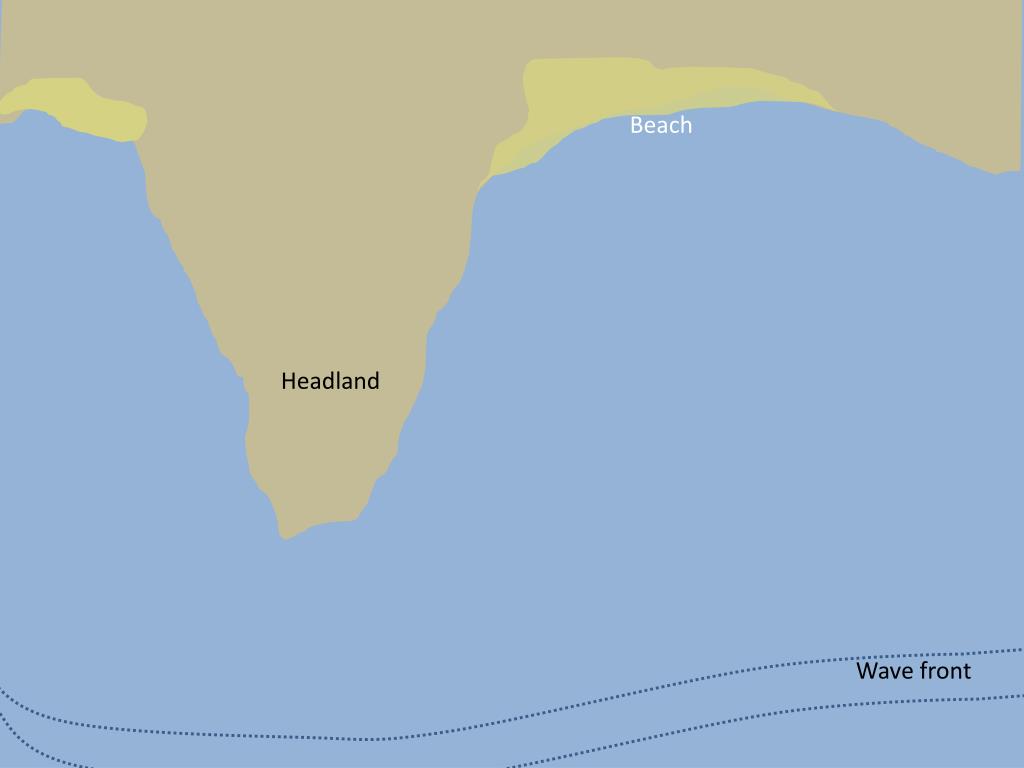

  3. Beach Headland Wave front

  4. Beach Headland Wave direction Waves bend when they approach shallow water.

  5. Beach Headland

  6. Cliffed edge Headland Wave energy converges on the headland High energy

  7. Cliffed edge When waves hit a solid surface like the cliff they are reflected back towards the sea. The waves erode the rock and beach and take the sediments with them. Headland

  8. Beach Headland

  9. Beach Wave energy diverges on the beach Low energy

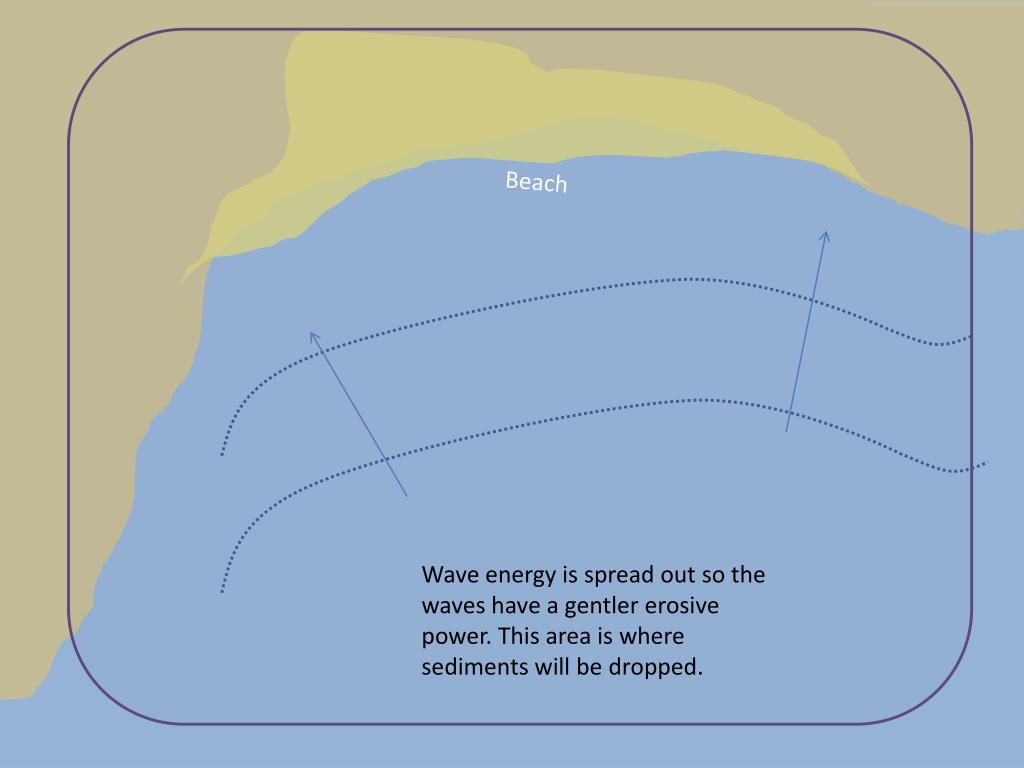

  10. Beach Wave energy is spread out so the waves have a gentler erosive power. This area is where sediments will be dropped.

  11. Beach Sediment movement Headland erosion

  12. Refraction: waves bending Think of wave refraction like a group of soldiers marching, they are able to stay in a straight line formation and go at a fast pace on firm ground. But when the group of soldiers meet a different surface, one that is harder to walk through, the line is slowed as it reaches the mud. This bends their motion. Just like the soldiers, ocean waves can travel at a good pace while out in deep water but when it hits shallow water the waves slow and bend.

  13. Wave Reflection The intensification of wave energy resulting from a wave pounding against a solid, vertical surface. Reflection of a wave is bouncing of a solid and going back from where it came.
