  1. Reflection and Refraction 1

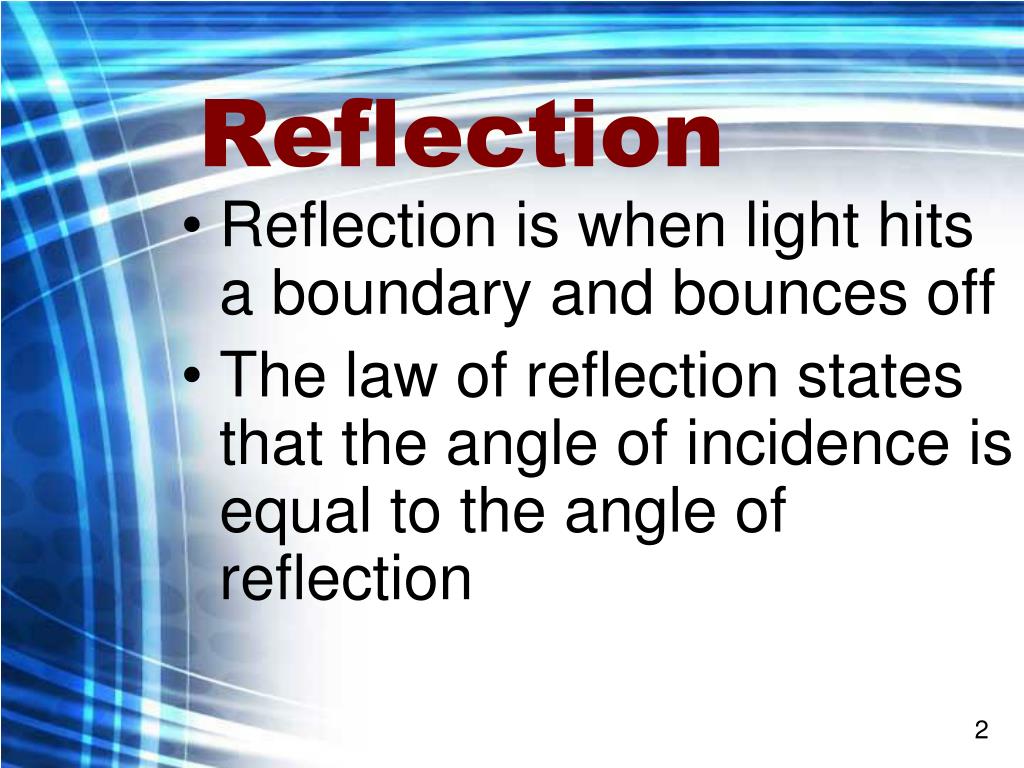

  2. Reflection • Reflection is when light hits a boundary and bounces off • The law of reflection states that the angle of incidence is equal to the angle of reflection 2

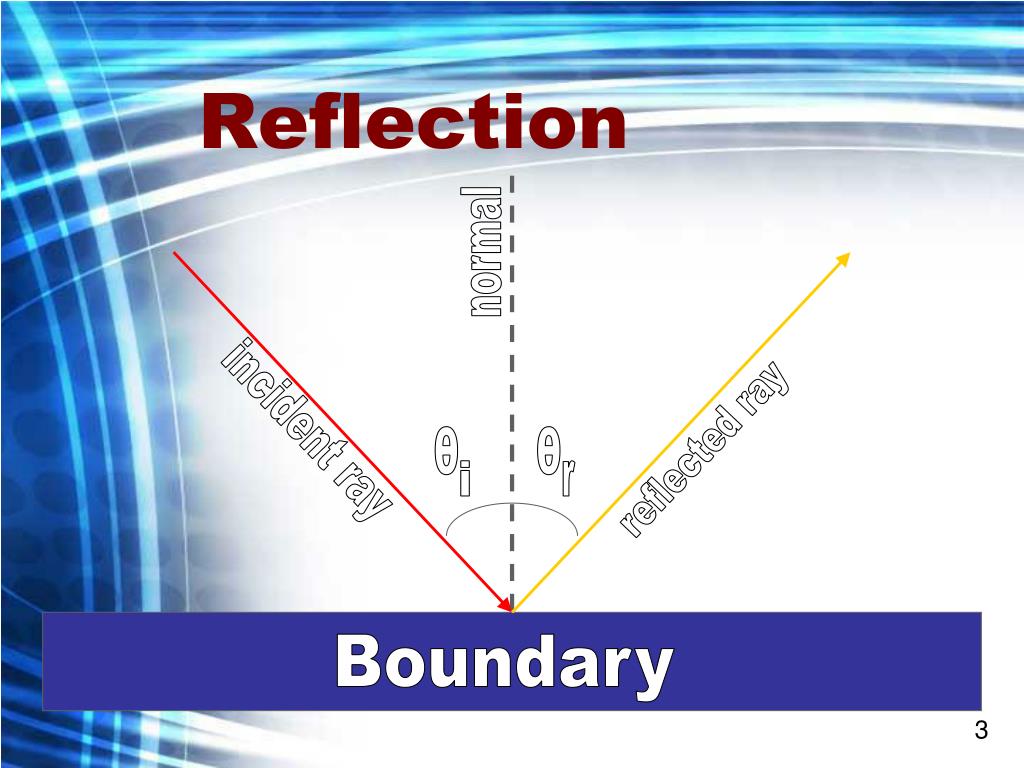

  3. θ θ i r Boundary Reflection normal incident ray reflected ray 3

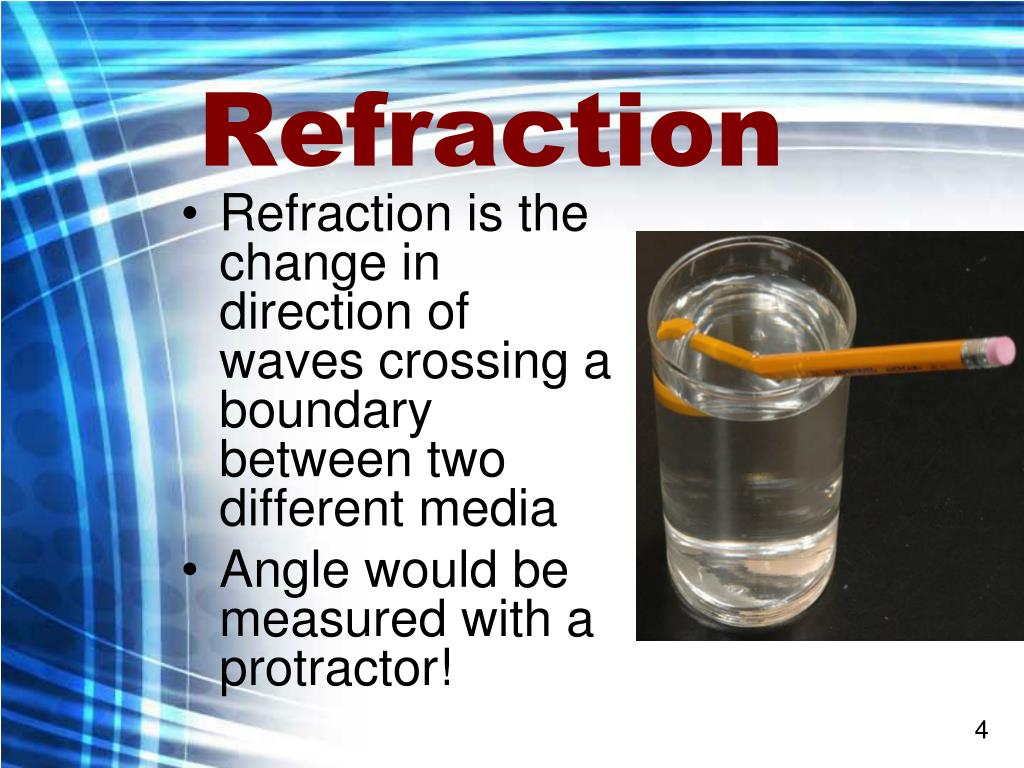

  4. Refraction • Refraction is the change in direction of waves crossing a boundary between two different media • Angle would be measured with a protractor! 4

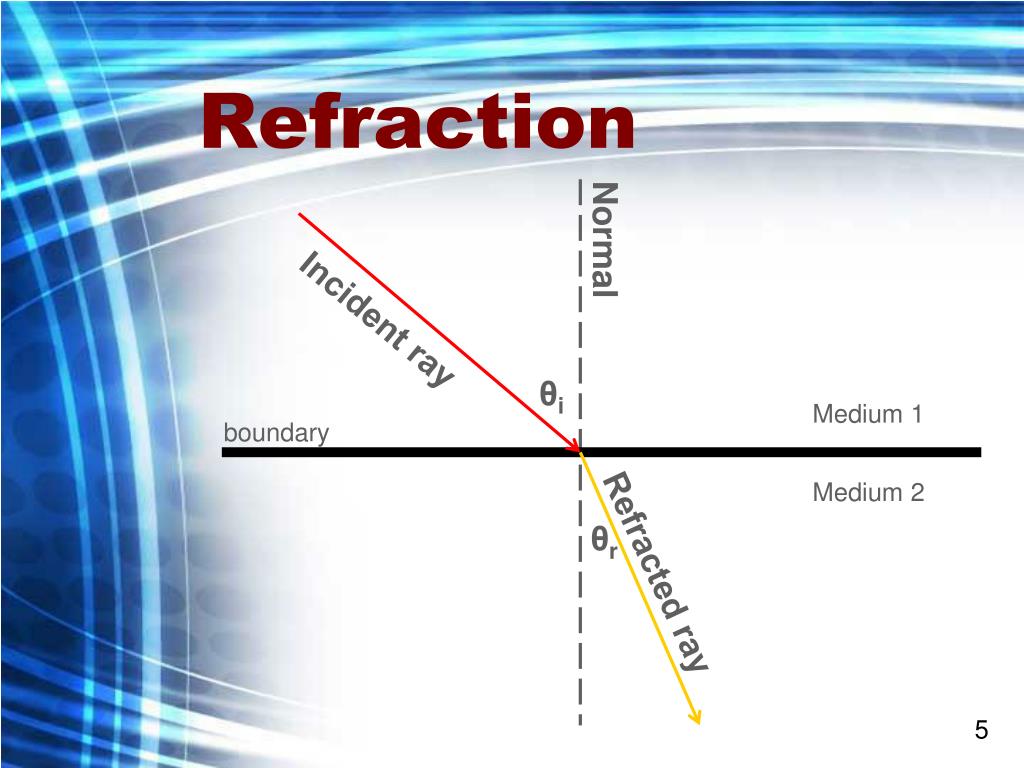

  5. Refraction Normal Incident ray θi Medium 1 boundary Medium 2 θr Refracted ray 5

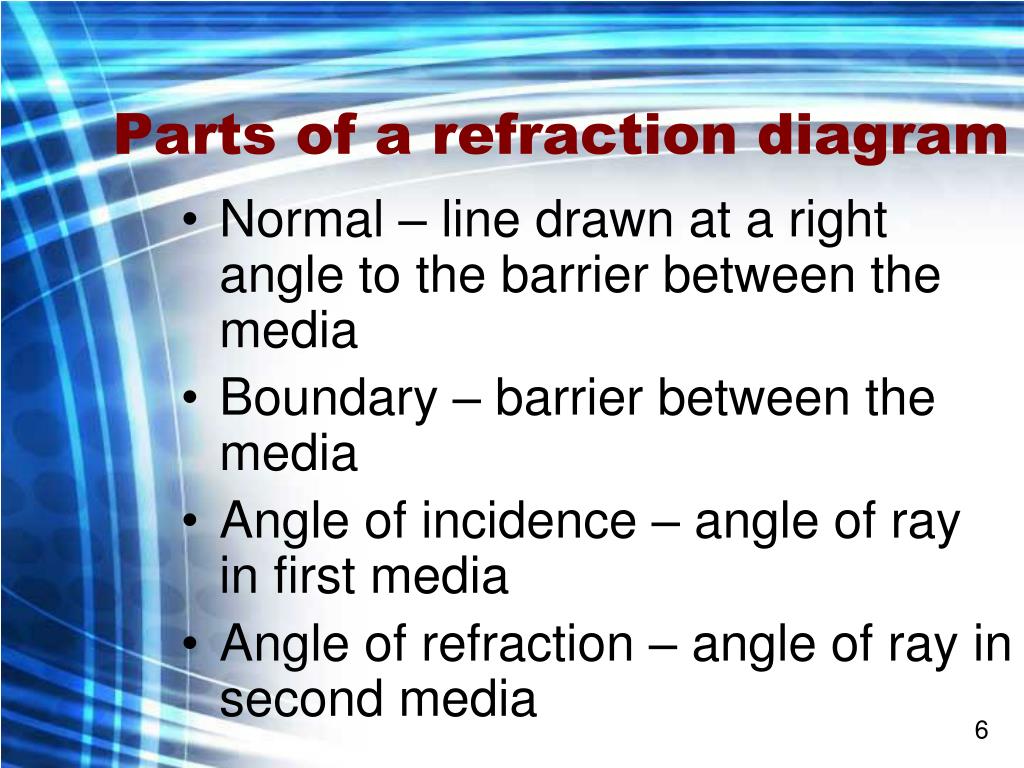

  6. Parts of a refraction diagram • Normal – line drawn at a right angle to the barrier between the media • Boundary – barrier between the media • Angle of incidence – angle of ray in first media • Angle of refraction – angle of ray in second media 6

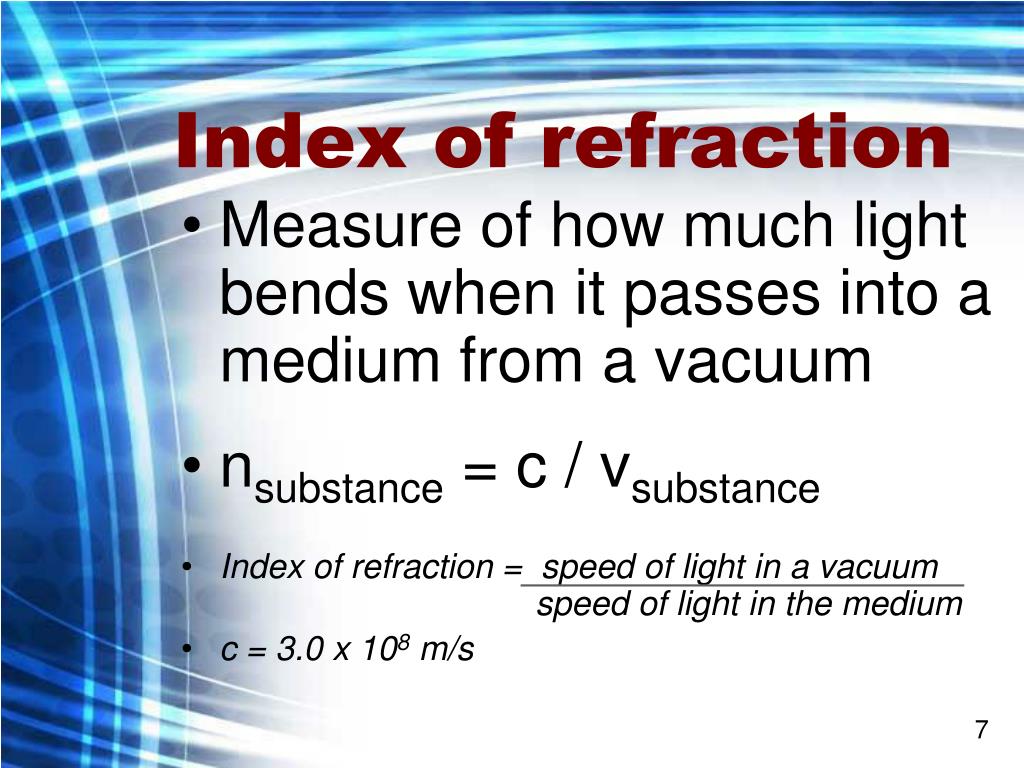

  7. Index of refraction • Measure of how much light bends when it passes into a medium from a vacuum • nsubstance = c / vsubstance • Index of refraction = speed of light in a vacuum speed of light in the medium • c = 3.0 x 108 m/s 7

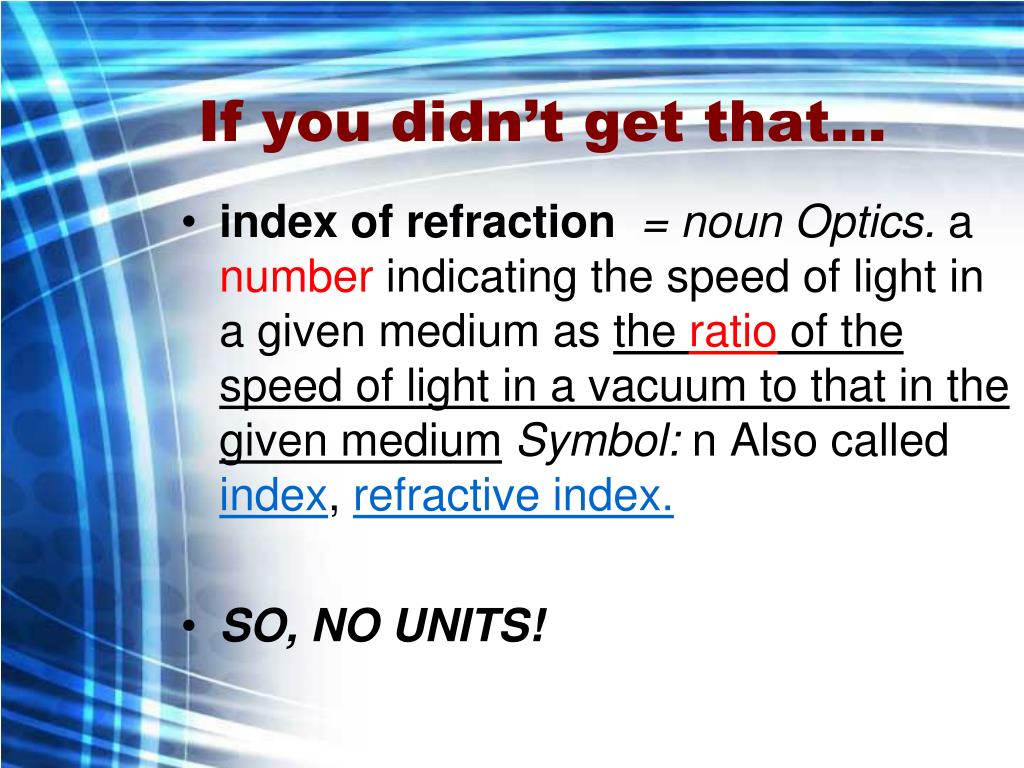

  8. If you didn’t get that… • index of refraction = noun Optics. a number indicating the speed of light in a given medium as the ratio of the speed of light in a vacuum to that in the given mediumSymbol: n Also called index, refractive index. • SO, NO UNITS!

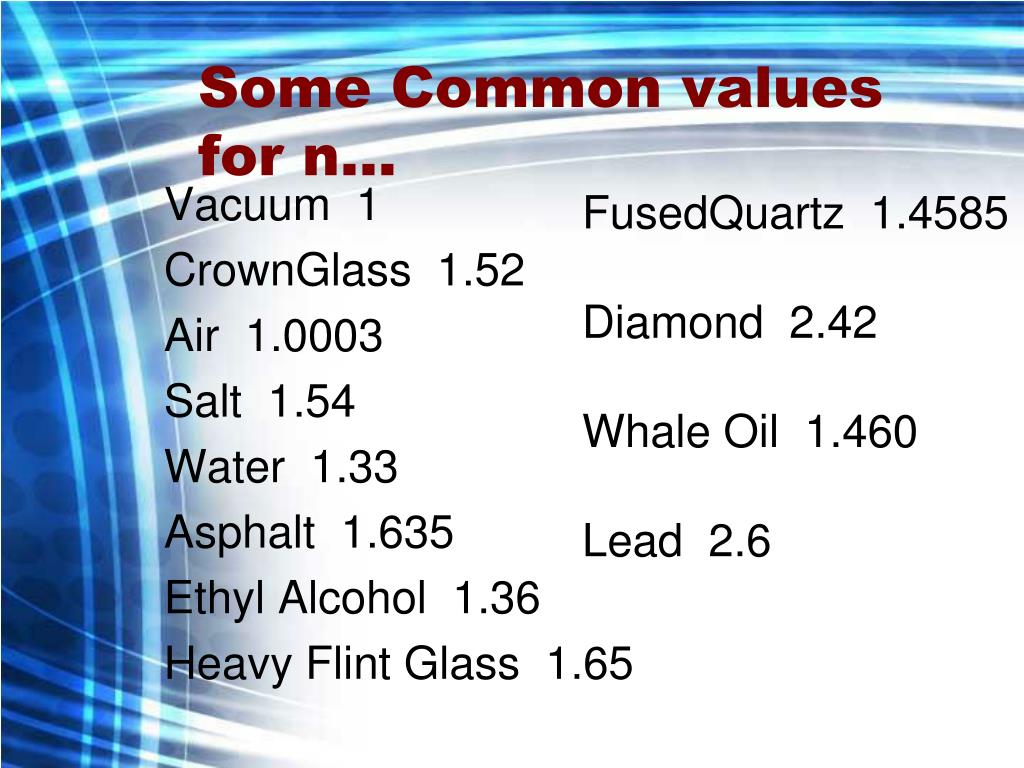

  9. Some Common values for n… FusedQuartz 1.4585 Diamond 2.42 Whale Oil 1.460 Lead 2.6 Vacuum 1 CrownGlass 1.52 Air 1.0003 Salt 1.54 Water 1.33 Asphalt 1.635 Ethyl Alcohol 1.36 Heavy Flint Glass 1.65

  10. Sample problems • The speed of light in one type of plastic is 2.00 X 108 m/s. What is the index of refraction of plastic? 8

  11. n = c/v • n = 3.0 x 108 m/s / 2.0 x 108 m/s • nplastic = 1.5

  12. 2. Find the speed of light in water (n = 1.33).

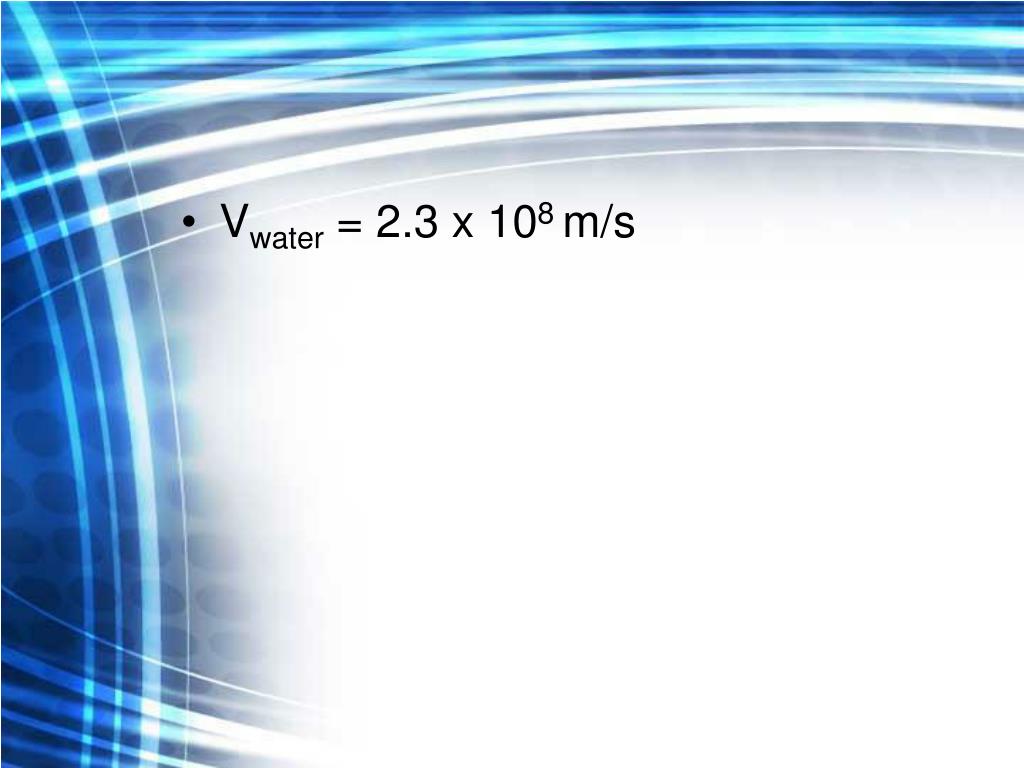

  13. Vwater = 2.3 x 108 m/s

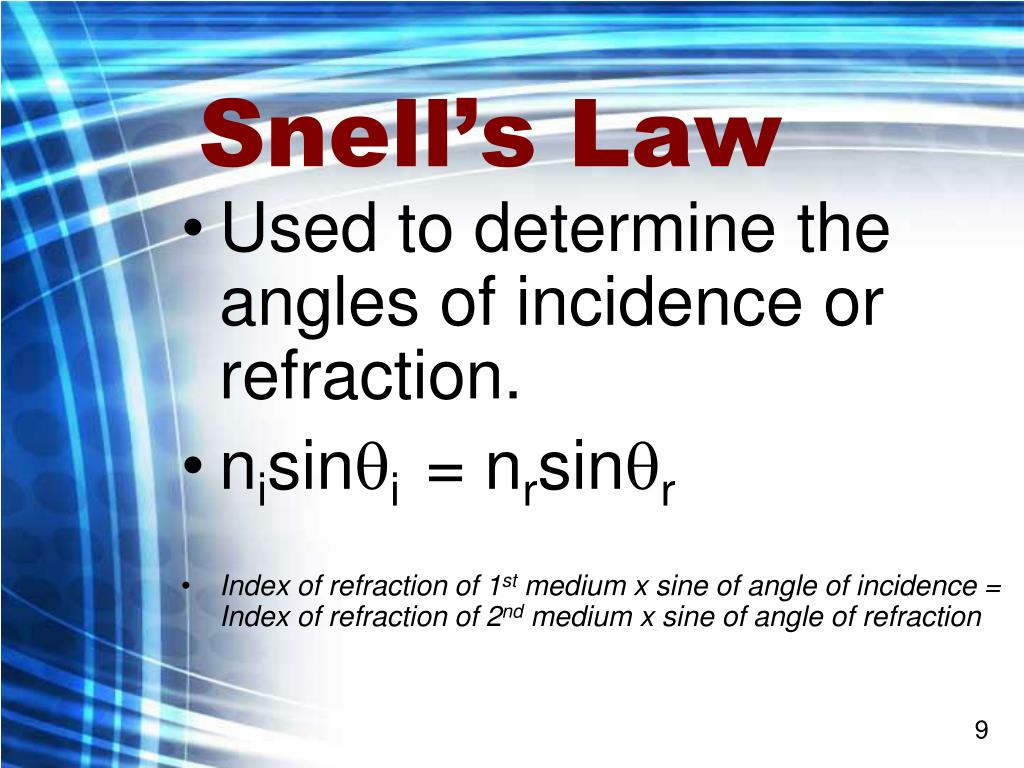

  14. Snell’s Law • Used to determine the angles of incidence or refraction. • nisini= nrsinr • Index of refraction of 1st medium x sine of angle of incidence = Index of refraction of 2nd medium x sine of angle of refraction 9

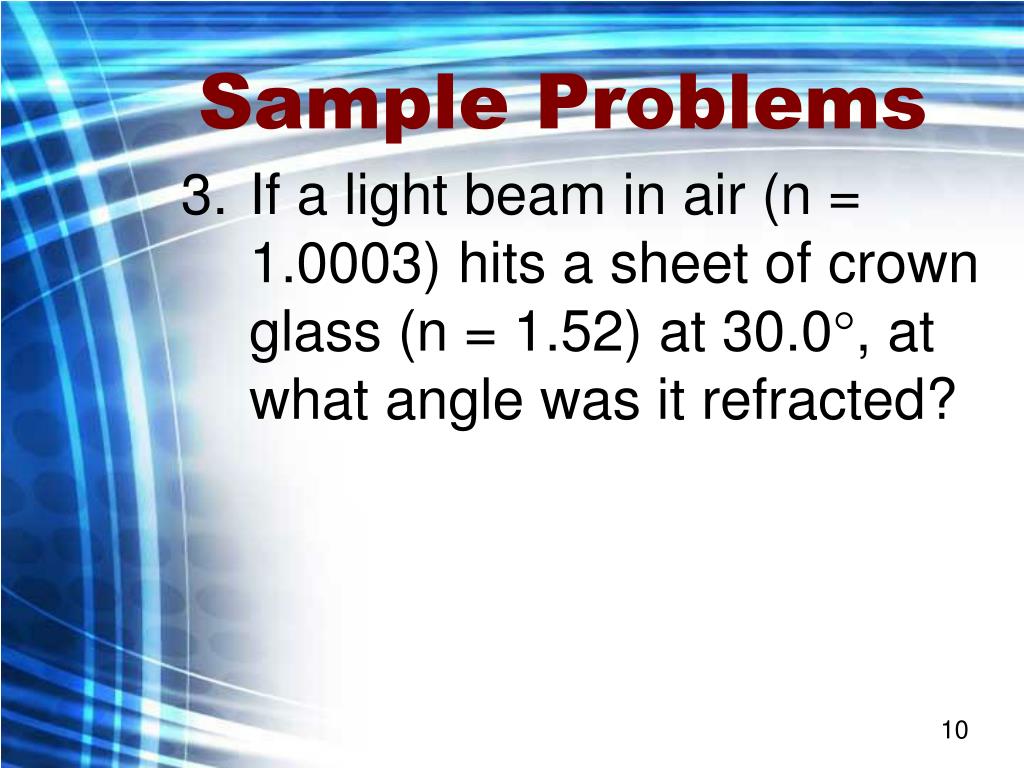

  15. Sample Problems • If a light beam in air (n = 1.0003) hits a sheet of crown glass (n = 1.52) at 30.0, at what angle was it refracted? 10

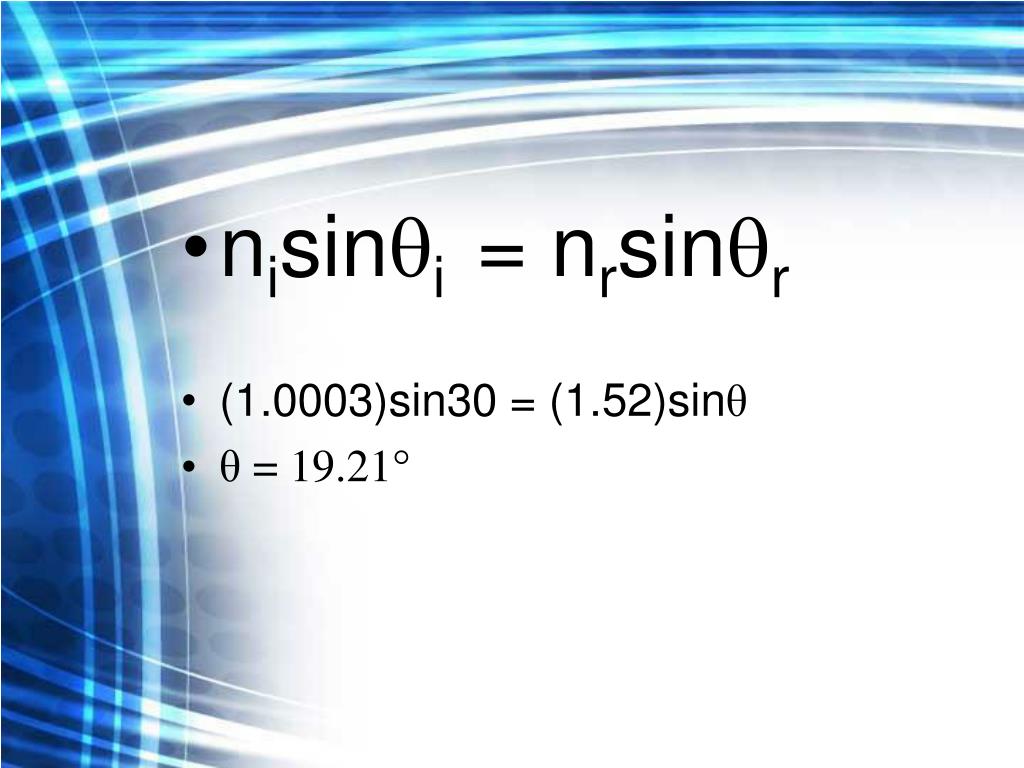

  16. nisini= nrsinr • (1.0003)sin30 = (1.52)sinθ • θ = 19.21°

  17. 4. A ray of light in air is incident upon a diamond at 45.0 (ndiamond = 2.42) What is the angle of refraction?

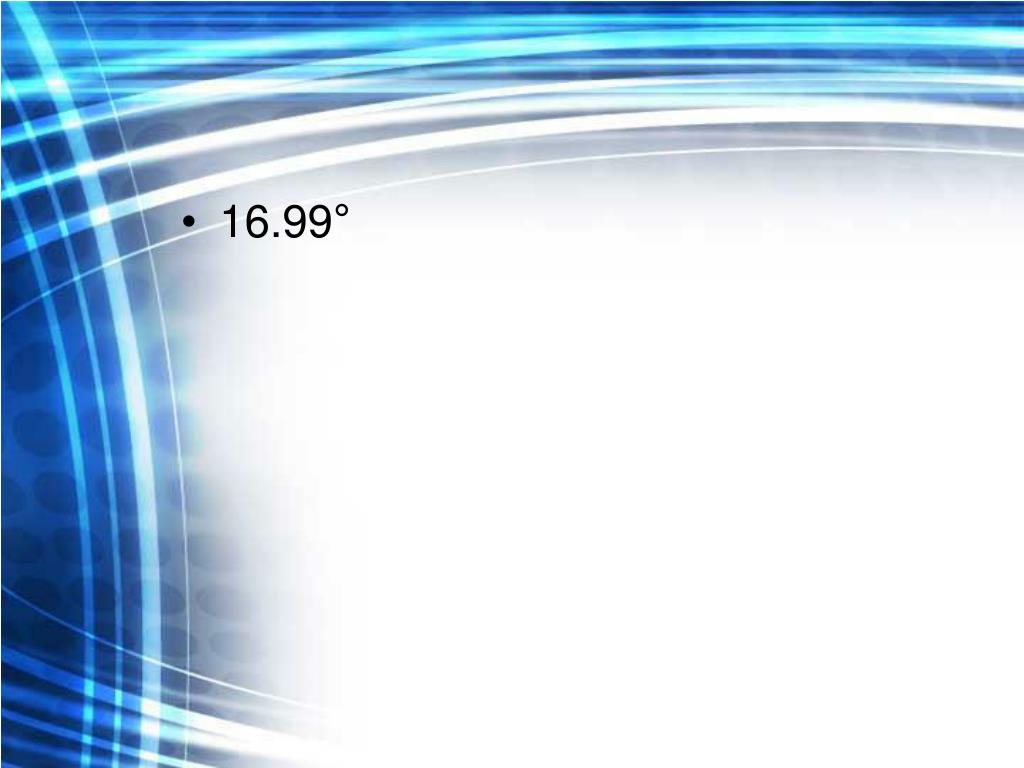

  18. 16.99°

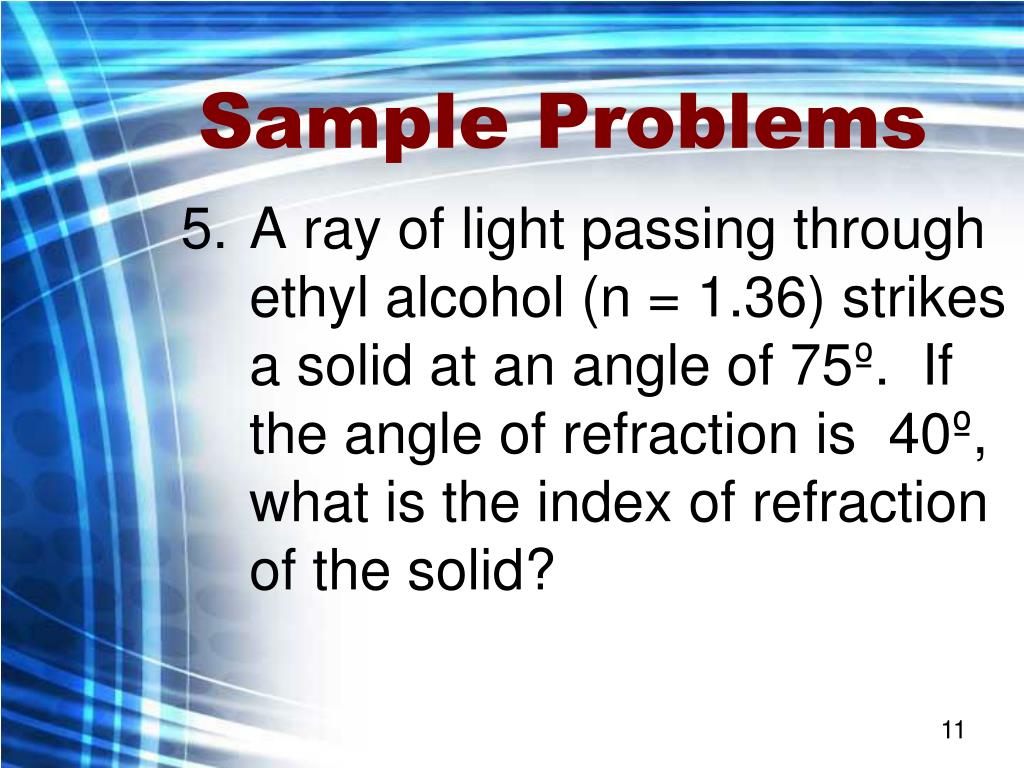

  19. Sample Problems • A ray of light passing through ethyl alcohol (n = 1.36) strikes a solid at an angle of 75º. If the angle of refraction is 40º, what is the index of refraction of the solid? 11

  20. nr = 2.04

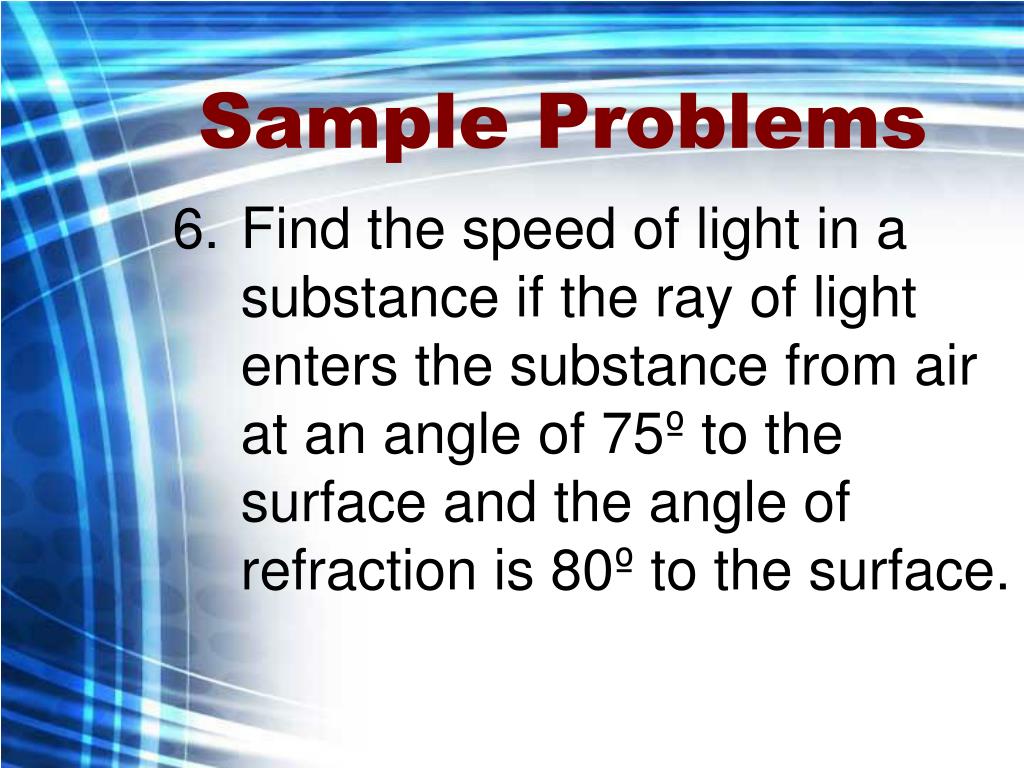

  21. Sample Problems • Find the speed of light in a substance if the ray of light enters the substance from air at an angle of 75º to the surface and the angle of refraction is 80º to the surface.

  22. 2 steps • Use Snell’s Law and then n = c/v • v = 2.0 x 108 m/s
