  1. Physics goals and status of feasibility studies of the CBM experiment Claudia Höhne GSI Darmstadt, Germany

  2. Outline • motivation for CBM • physics topics • high baryon densities ( in medium properties of hadrons) • deconfinement • critical point • CBM detector • feasibility studies (special emphasis on TRD) • tracking • fluctuations • J/y, low mass vector mesons • D-mesons • outlook

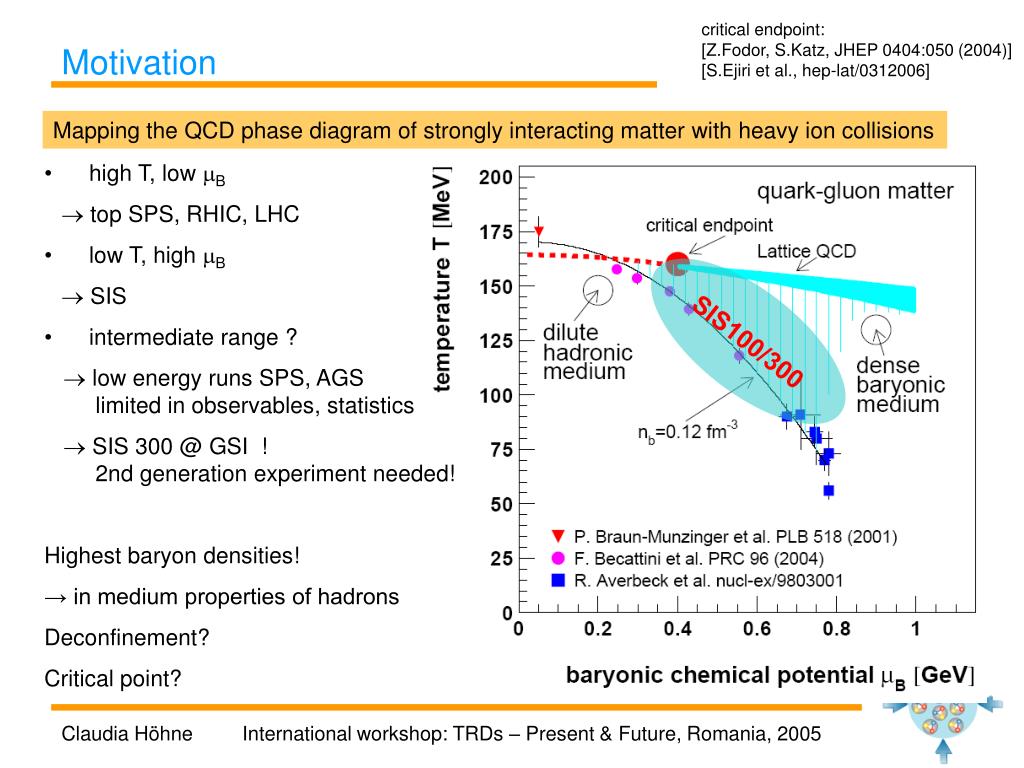

  3. critical endpoint: [Z.Fodor, S.Katz, JHEP 0404:050 (2004)] [S.Ejiri et al., hep-lat/0312006] Motivation Mapping the QCD phase diagram of strongly interacting matter with heavy ion collisions • high T, low mB •  top SPS, RHIC, LHC • low T, high mB •  SIS • intermediate range ?  low energy runs SPS, AGS limited in observables, statistics  SIS 300 @ GSI ! • 2nd generation experiment needed! • Highest baryon densities! • → in medium properties of hadrons • Deconfinement? • Critical point? SIS100/300

  4. TRD ! physics topics observables deconfinement at high rB ? softening of EOS ? strangeness production: K, L, S, X, W charm production: J/y, D flow excitation function  PID! in-medium properties of hadrons  onset of chiral symmetry restoration at high rB r, w, f e+e- open charm Critical point ? event-by-event fluctuations Physics topics and observables

  5. Deconfinement: Strangeness production [NA49, C.Blume et al., nucl-ex/0409008] • s-production mechanism different in hadronic / partonic scenario • maximum of strangeness production at 30 AGeV • CBM energy range: • 15 – 35/45 AGeV (depending on A) • verify and extend energy dependence!

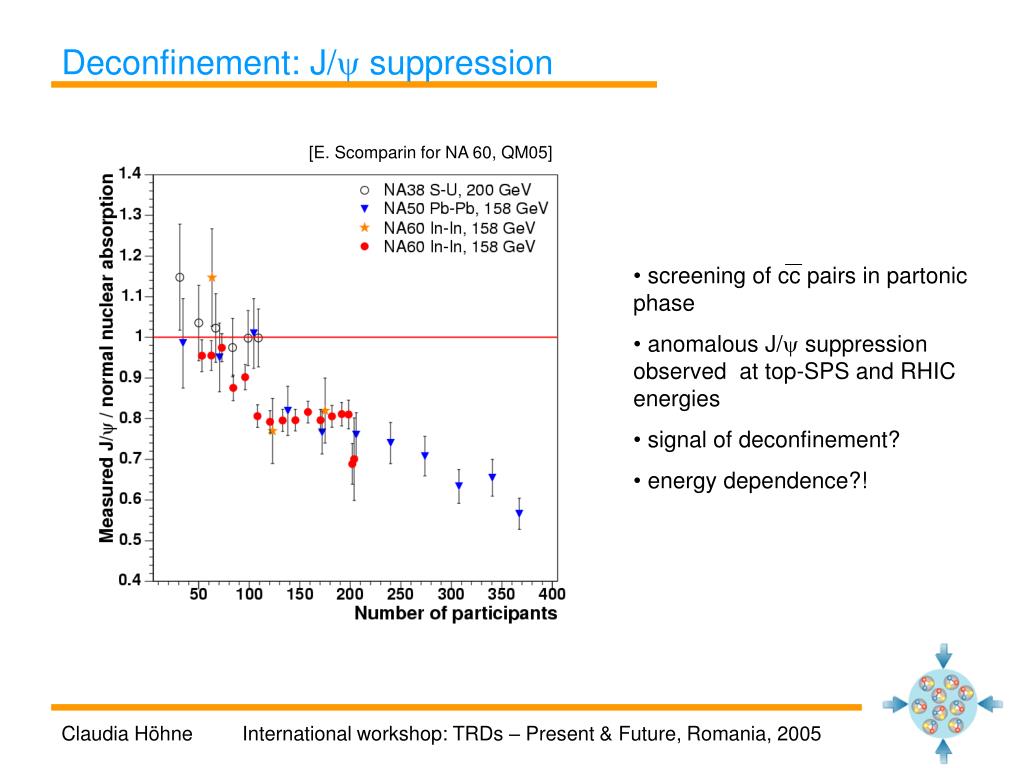

  6. Deconfinement: J/y suppression [E. Scomparin for NA 60, QM05] • screening of cc pairs in partonic phase • anomalous J/y suppression observed at top-SPS and RHIC energies • signal of deconfinement? • energy dependence?!

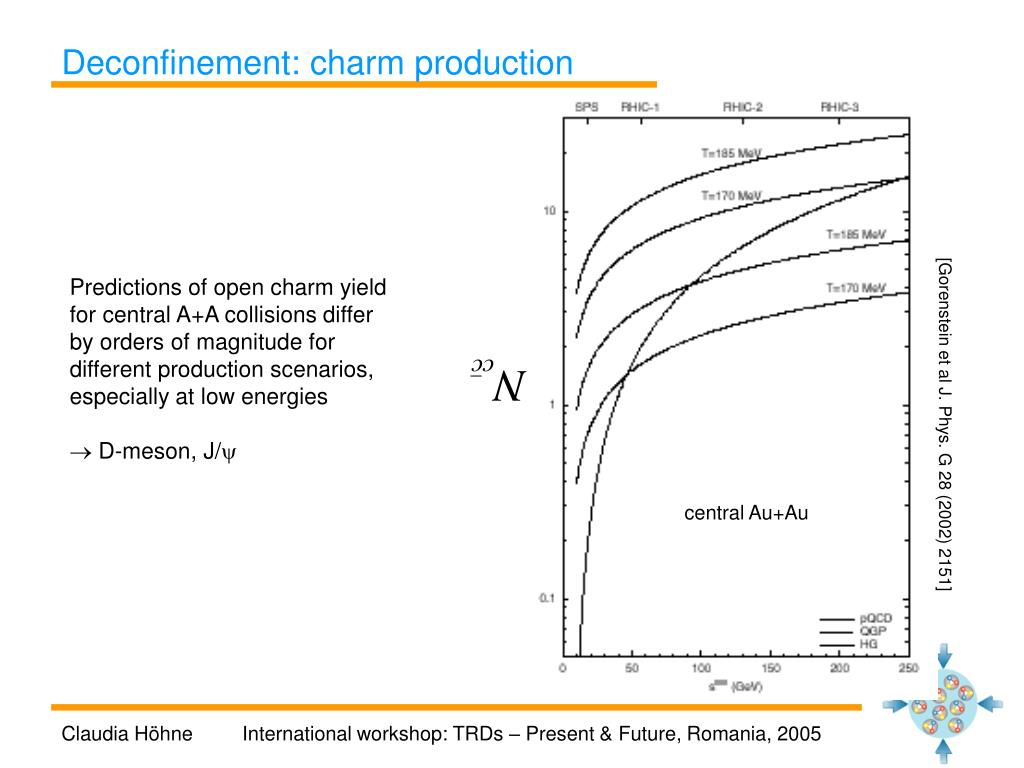

  7. Deconfinement: charm production Predictions of open charm yield for central A+A collisions differ by orders of magnitude for different production scenarios, especially at low energies  D-meson, J/y [Gorenstein et al J. Phys. G 28 (2002) 2151] central Au+Au

  8. central midcentral peripheral Deconfinement: collective flow • collapse of v1 and v2 flow of protons at lower energies signal for first order phase transition?! • full energy dependence needed! [NA49, PRC68, 034903 (2003)]

  9. within acceptance In medium modifications:    → l+l- • high quality data at low and high energies now coming in from NA60 (SPS, 158 AGeV, In+In) and HADES (SIS, 2 AGeV, C+C) • enhancement of low-mass dilepton pairs! [E. Scomparin for NA 60, QM05] [R. Holzmann for HADES, QM05]

  10. In medium modifications:    → e+e- CERES [Phys. Rev. Lett. 91, 042301 (2003)] • intermediate energies with highest baryon densities? • pioneering measurement of CERES • study full energy dependence!

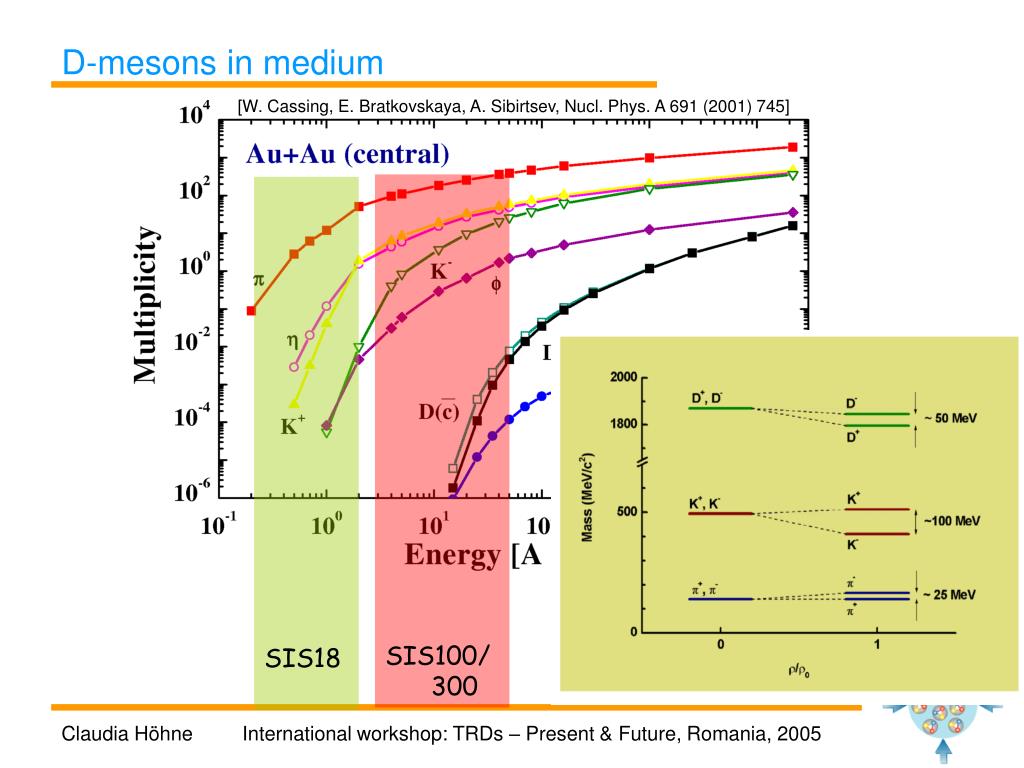

  11. D-mesons in medium [W. Cassing, E. Bratkovskaya, A. Sibirtsev, Nucl. Phys. A 691 (2001) 745] SIS100/ 300 SIS18

  12. D-mesons in medium (II) various QCD inspired models predict a change of the D-mass in a hadronic medium [Mishra et al ., Phys. Rev. C 69, 015202 (2004) ] • in analogy to kaon mass modification, but drop for both, D+ and D- • substantial change (several 100 MeV) already at =0 • effect for charmonium is substantially smaller

  13. D-mesons in medium  J/y Consequence of reduced D mass: DD threshold drops below charmonium states [Mishra et al., Phys. Rev. C 69, 015202 (2004) ] • decay channels into DD open for ’, c, J/y • broadening of charmonium states • suppression of J/y  lepton pair channel (large fraction of J/y from higher states) • (slight) enhancement of D mesons

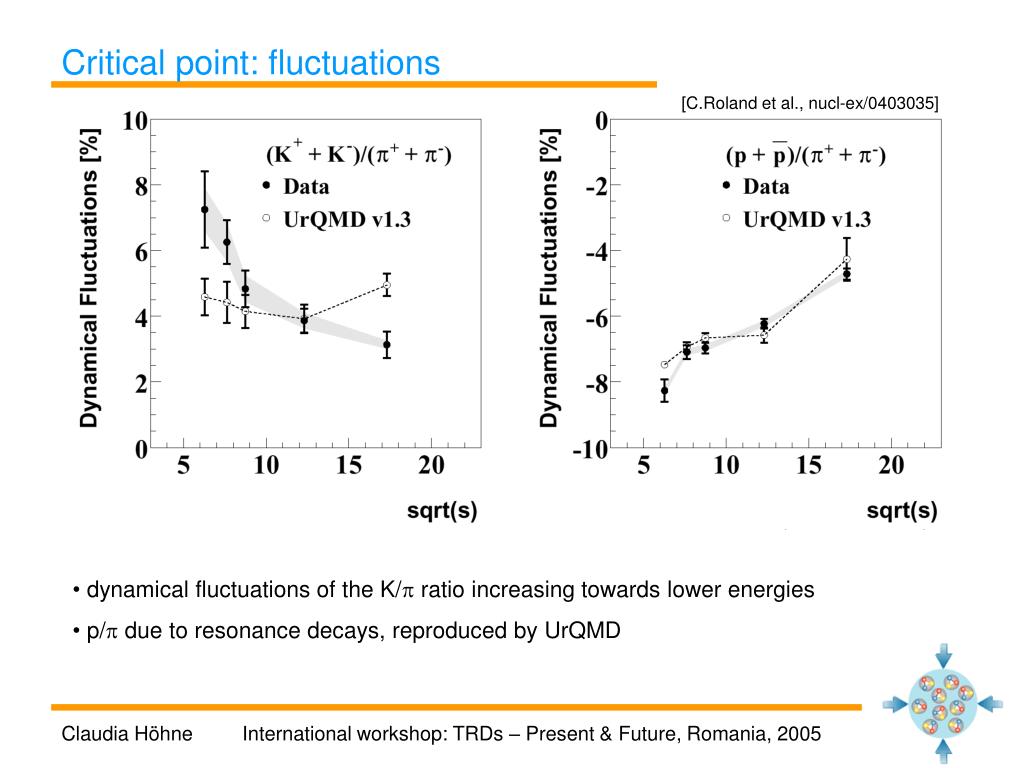

  14. Critical point: fluctuations [C.Roland et al., nucl-ex/0403035] • dynamical fluctuations of the K/p ratio increasing towards lower energies • p/p due to resonance decays, reproduced by UrQMD

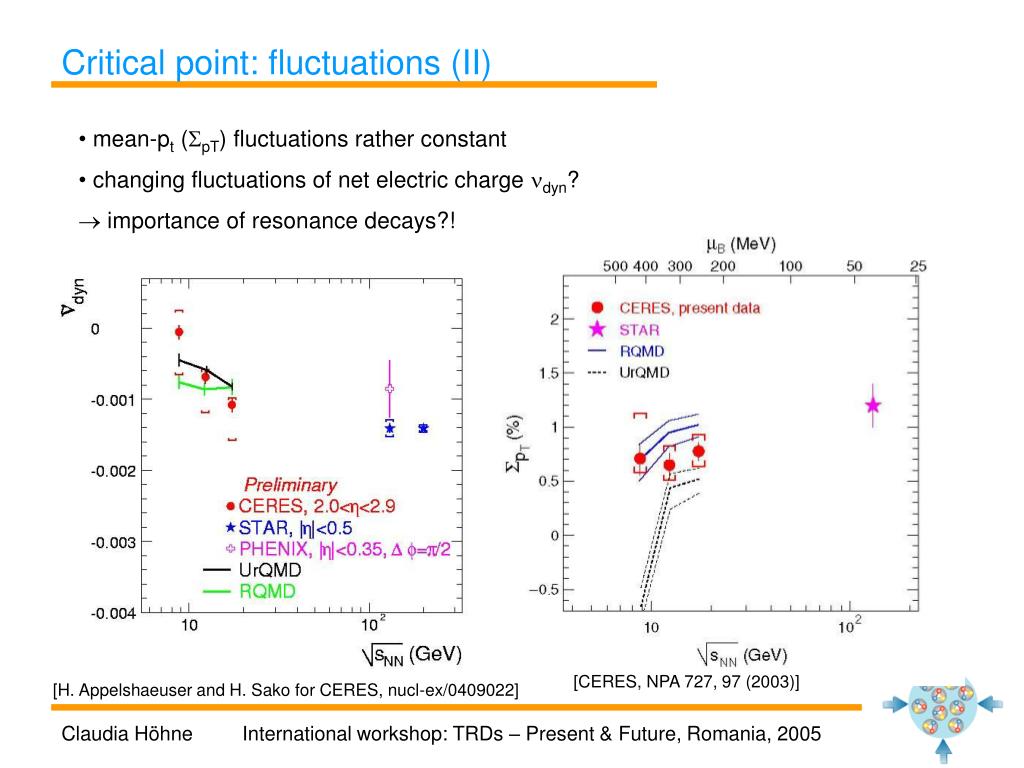

  15. Critical point: fluctuations (II) • mean-pt (SpT) fluctuations rather constant • changing fluctuations of net electric charge ndyn? •  importance of resonance decays?! [CERES, NPA 727, 97 (2003)] [H. Appelshaeuser and H. Sako for CERES, nucl-ex/0409022]

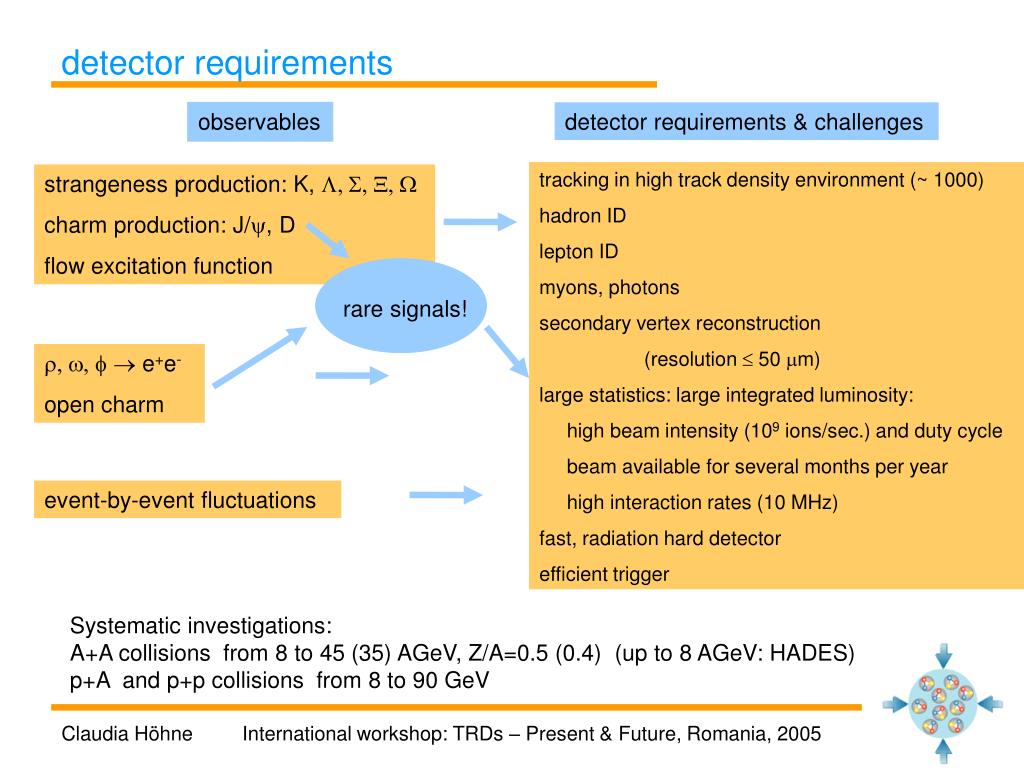

  16. tracking in high track density environment (~ 1000) hadron ID lepton ID myons, photons secondary vertex reconstruction (resolution  50 mm) large statistics: large integrated luminosity: high beam intensity (109 ions/sec.) and duty cycle beam available for several months per year high interaction rates (10 MHz) fast, radiation hard detector efficient trigger strangeness production: K, L, S, X, W charm production: J/y, D flow excitation function rare signals! r, w, f e+e- open charm event-by-event fluctuations detector requirements observables detector requirements & challenges Systematic investigations: A+A collisions from 8 to 45 (35) AGeV, Z/A=0.5 (0.4) (up to 8 AGeV: HADES) p+A and p+p collisions from 8 to 90 GeV

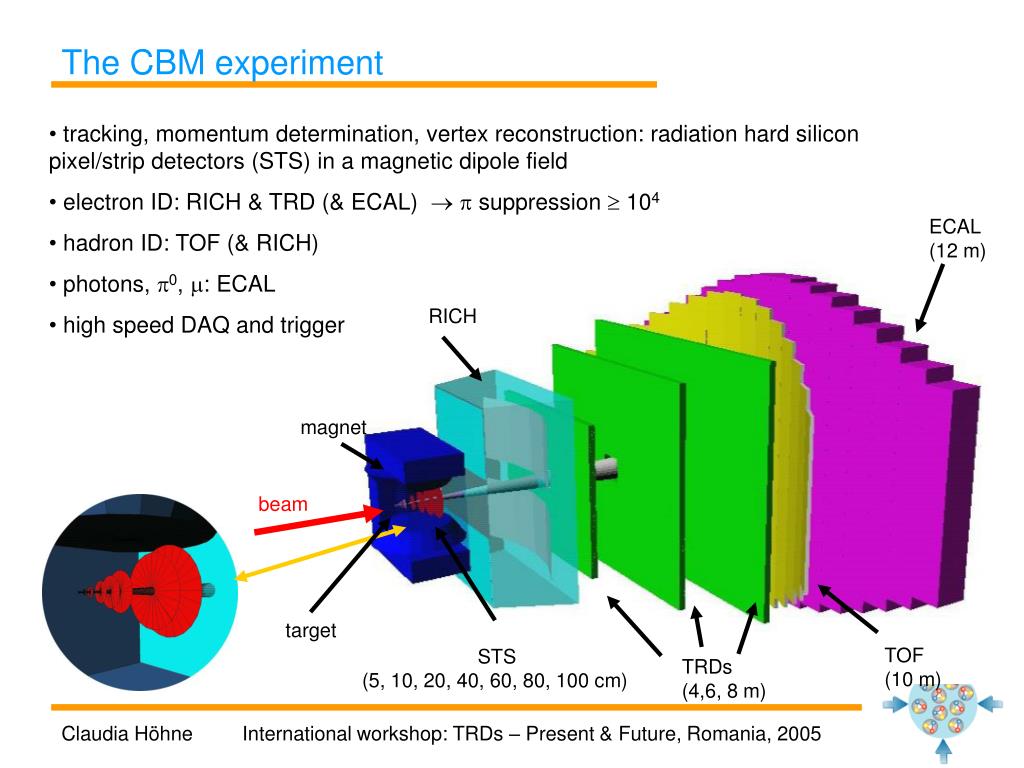

  17. The CBM experiment • tracking, momentum determination, vertex reconstruction: radiation hard silicon pixel/strip detectors (STS) in a magnetic dipole field • electron ID: RICH & TRD (& ECAL)  p suppression  104 • hadron ID: TOF (& RICH) • photons, p0, m: ECAL • high speed DAQ and trigger ECAL (12 m) RICH magnet beam target TOF (10 m) STS (5, 10, 20, 40, 60, 80, 100 cm) TRDs (4,6, 8 m)

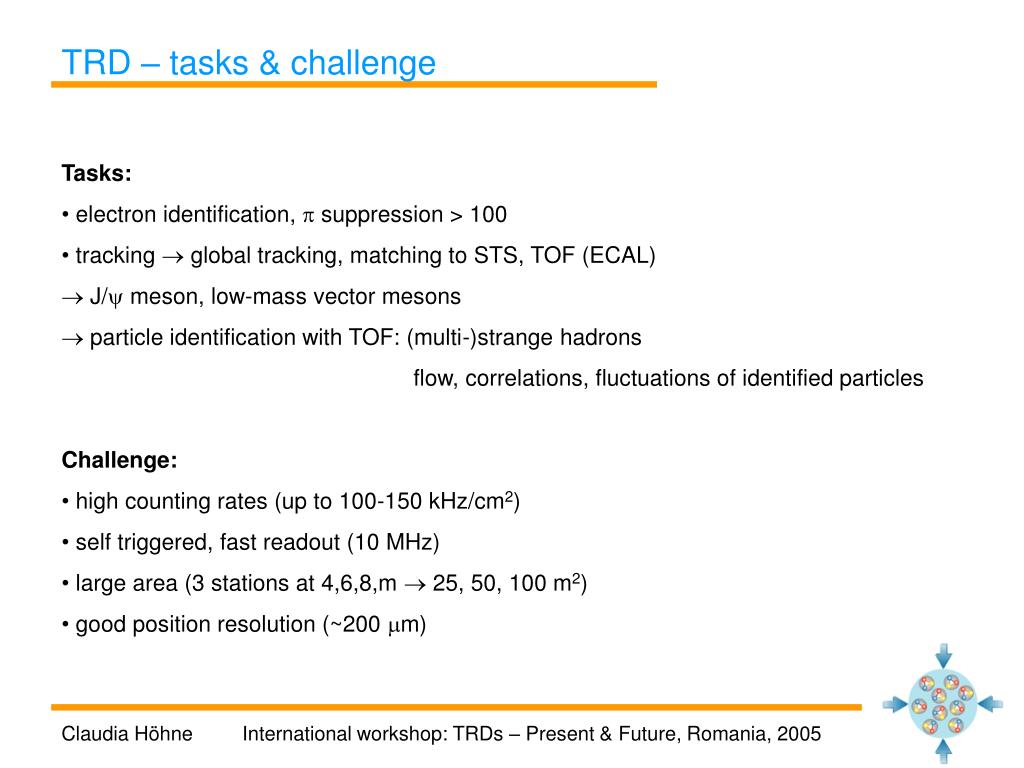

  18. TRD – tasks & challenge • Tasks: • electron identification, p suppression > 100 • tracking  global tracking, matching to STS, TOF (ECAL) • J/y meson, low-mass vector mesons • particle identification with TOF: (multi-)strange hadrons flow, correlations, fluctuations of identified particles • Challenge: • high counting rates (up to 100-150 kHz/cm2) • self triggered, fast readout (10 MHz) • large area (3 stations at 4,6,8,m  25, 50, 100 m2) • good position resolution (~200 mm)

  19. TRD – design • layers: radiator (foils or fibres/foams) + readout • MWPCs (ALICE) • GEMs • straw tubes (ATLAS) • Ongoing R&D! • design studies (segmentation, padsize, ordering,...) started: • 3-6 stations • 3 stations, 3 layers each • 3 stations, 4 layers each • 6 stations, 2 layers each

  20. TRD - simulation • simulation of TRDs (simplified geometry, (1.7 – 2.2) % X0) • e/p separation studied in dependence on • number of layers • thickness and compositions of the active gas • radiator parameters – foil & gap thickness

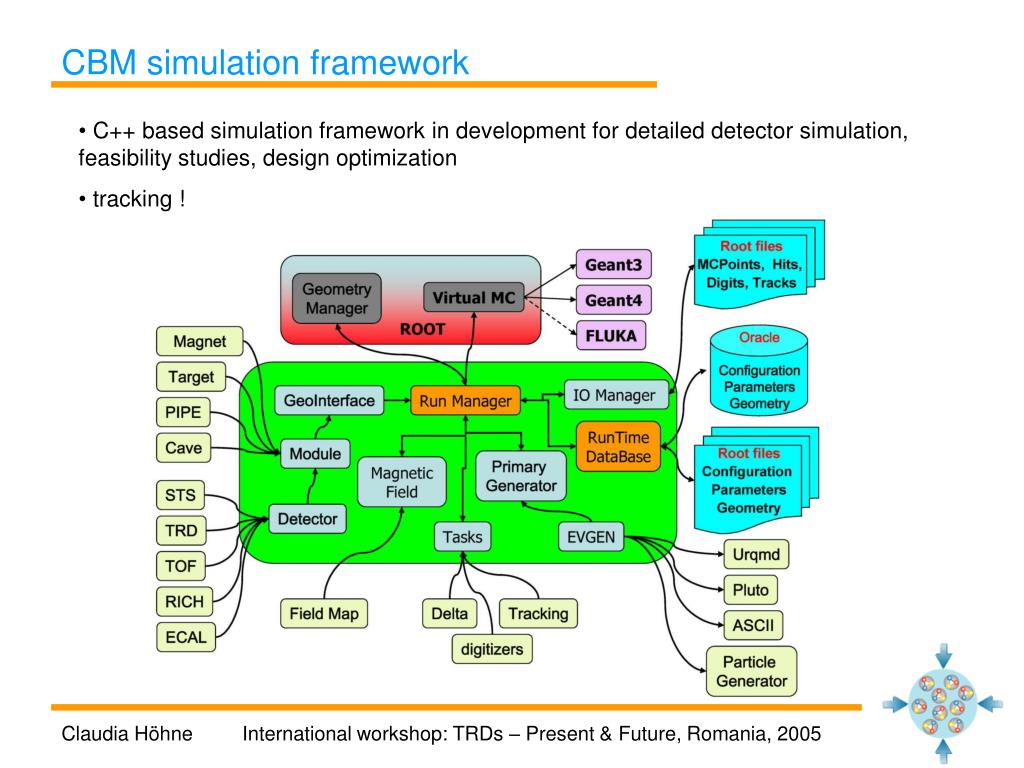

  21. CBM simulation framework • C++ based simulation framework in development for detailed detector simulation, feasibility studies, design optimization • tracking !

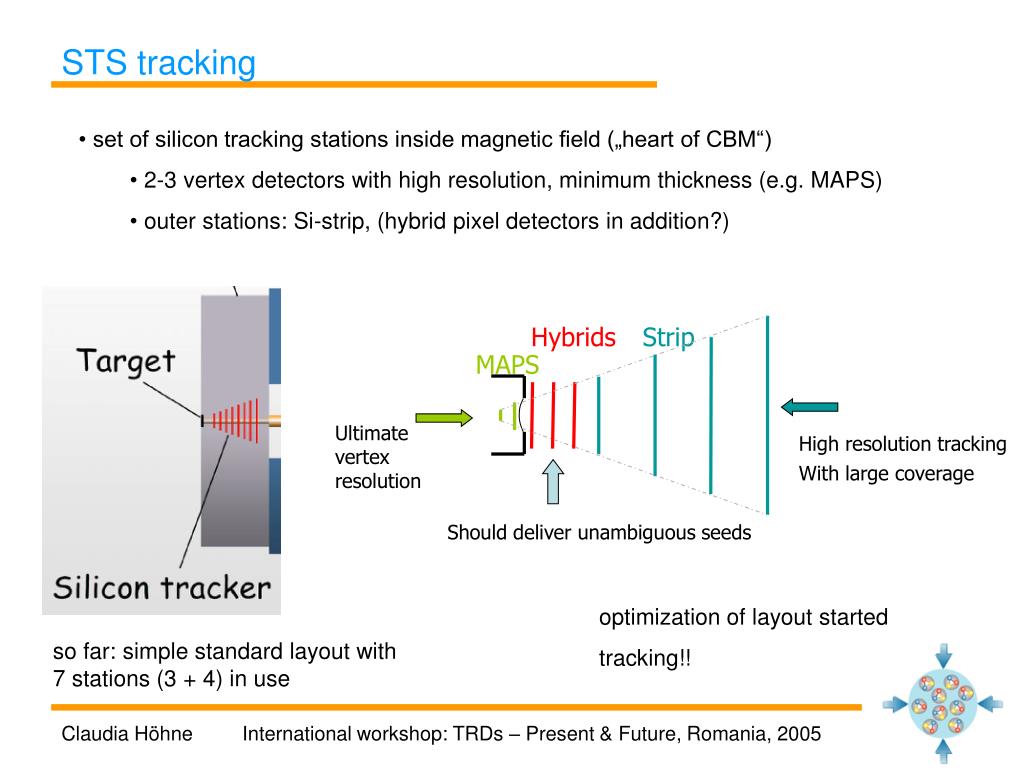

  22. Hybrids Strip MAPS Ultimate vertex resolution High resolution tracking With large coverage Should deliver unambiguous seeds STS tracking • set of silicon tracking stations inside magnetic field („heart of CBM“) • 2-3 vertex detectors with high resolution, minimum thickness (e.g. MAPS) • outer stations: Si-strip, (hybrid pixel detectors in addition?) optimization of layout started tracking!! so far: simple standard layout with 7 stations (3 + 4) in use

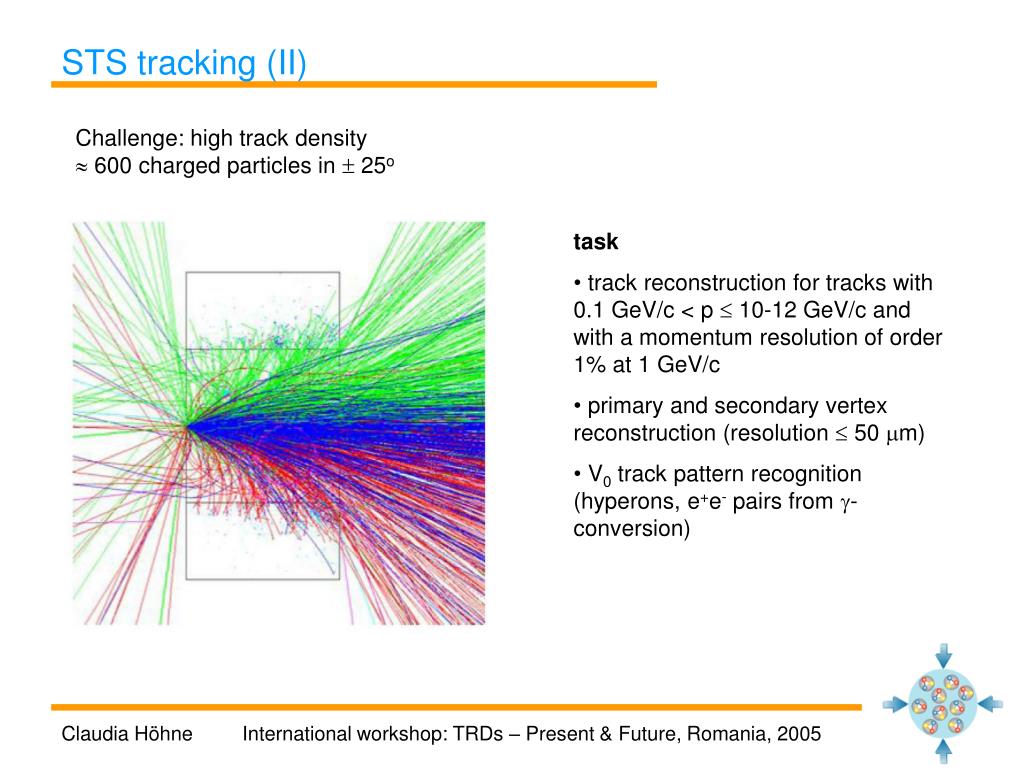

  23. STS tracking (II) Challenge: high track density  600 charged particles in  25o • task • track reconstruction for tracks with 0.1 GeV/c < p  10-12 GeV/c and with a momentum resolution of order 1% at 1 GeV/c • primary and secondary vertex reconstruction (resolution  50 mm) • V0 track pattern recognition (hyperons, e+e- pairs from g-conversion)

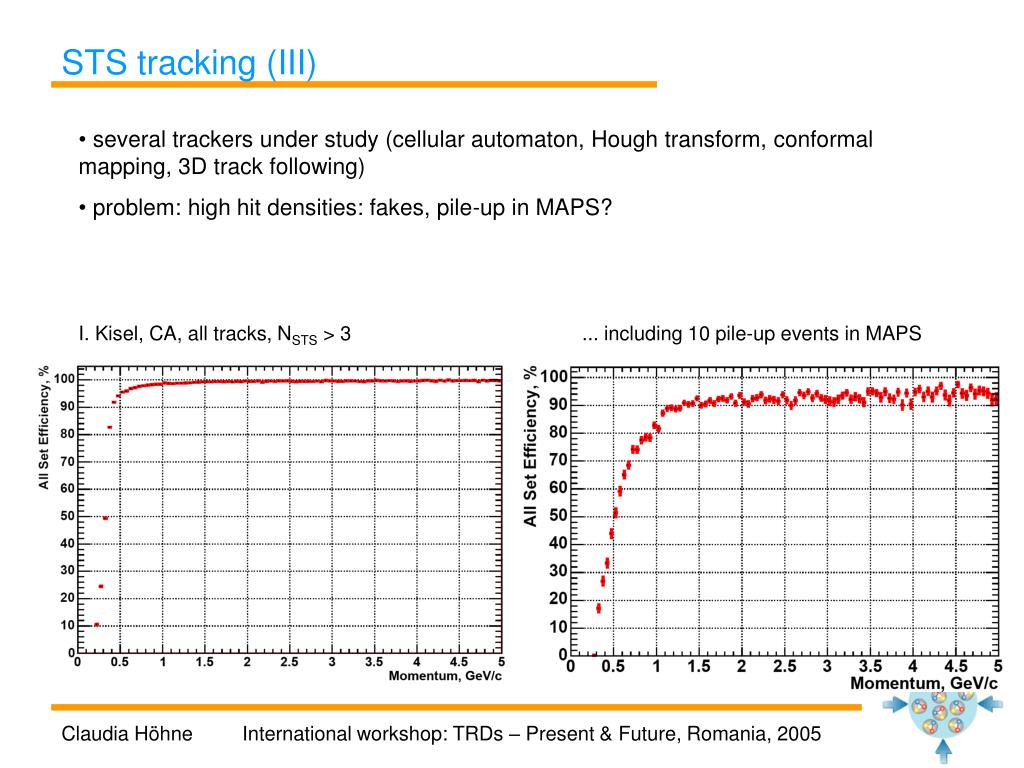

  24. STS tracking (III) • several trackers under study (cellular automaton, Hough transform, conformal mapping, 3D track following) • problem: high hit densities: fakes, pile-up in MAPS? I. Kisel, CA, all tracks, NSTS > 3 ... including 10 pile-up events in MAPS

  25. TRD - tracking • standalone TRD - tracking  J/y trigger! • global tracking (standalone + matching, STS track extrapolation) • work has just started ... •  will finally lead to layout of detectors (padsize, station&layer ordering, ...) • pad layout used so far • rectangular pads: • 300-500 mm x 3-30 mm • odd layers rotated by 90°

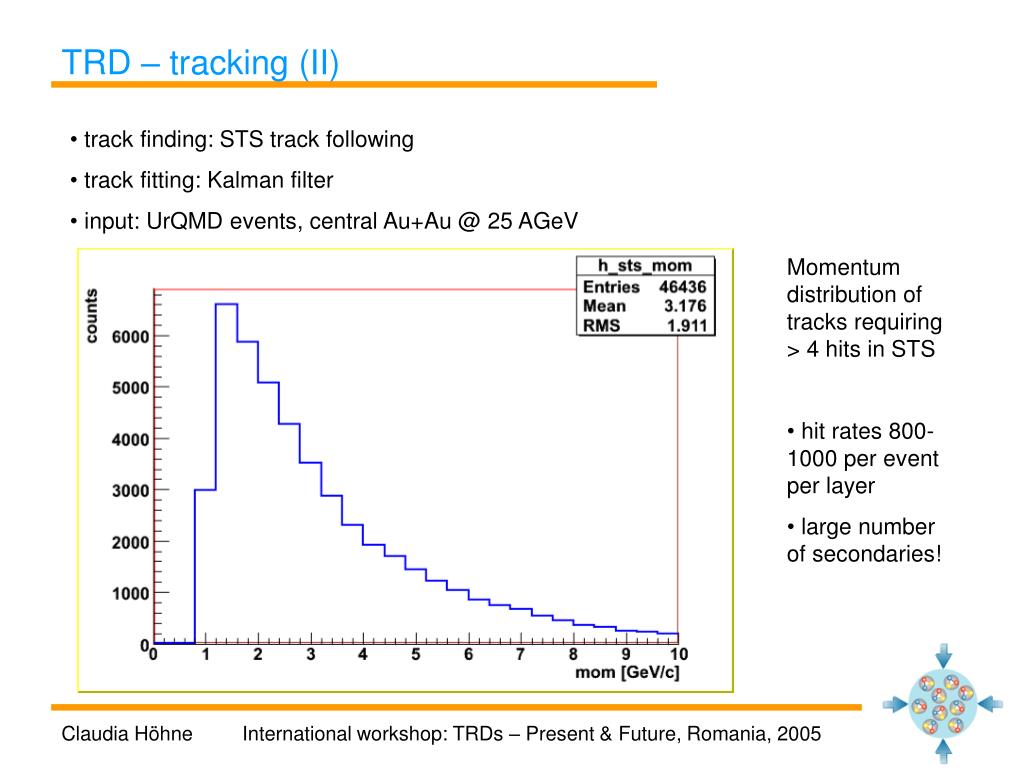

  26. TRD – tracking (II) • track finding: STS track following • track fitting: Kalman filter • input: UrQMD events, central Au+Au @ 25 AGeV • Momentum distribution of tracks requiring > 4 hits in STS • hit rates 800-1000 per event per layer • large number of secondaries!

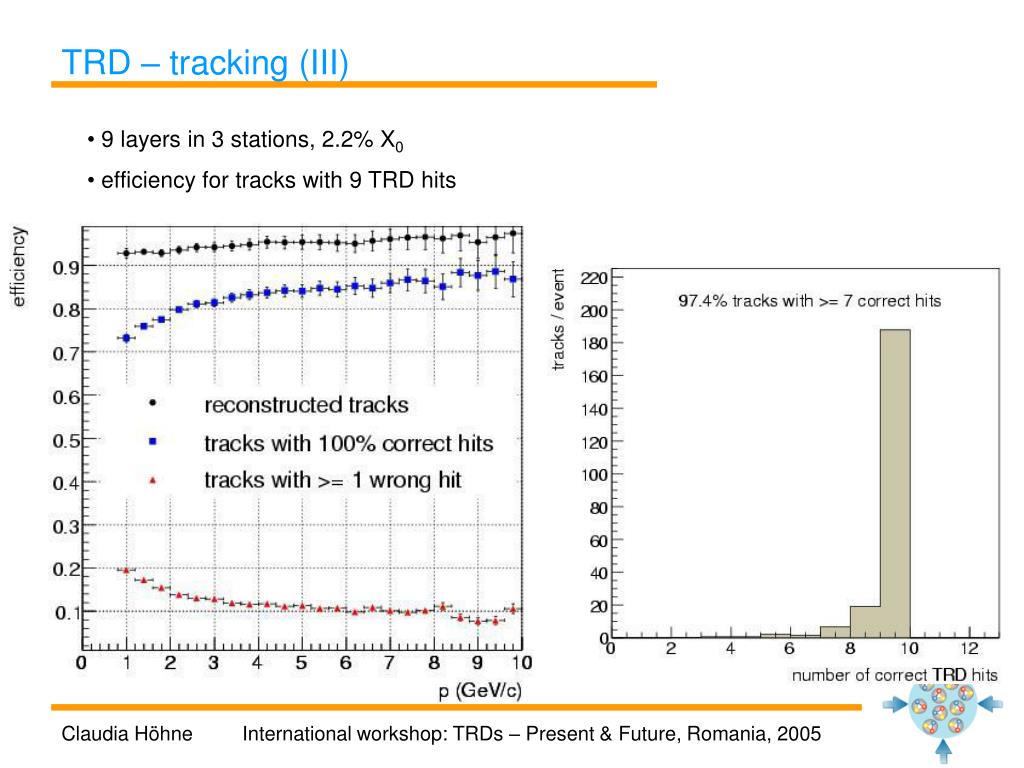

  27. TRD – tracking (III) • 9 layers in 3 stations, 2.2% X0 • efficiency for tracks with 9 TRD hits

  28. TRD – tracking (IV) • Compare to: • 12 layers in 3 stations, 2.2% X0 • efficiency for tracks with 12 TRD hits  slight improvement for low momenta! • connect to TOF hits: efficiency/ purity of PID? • impact on fluctuation measurements?

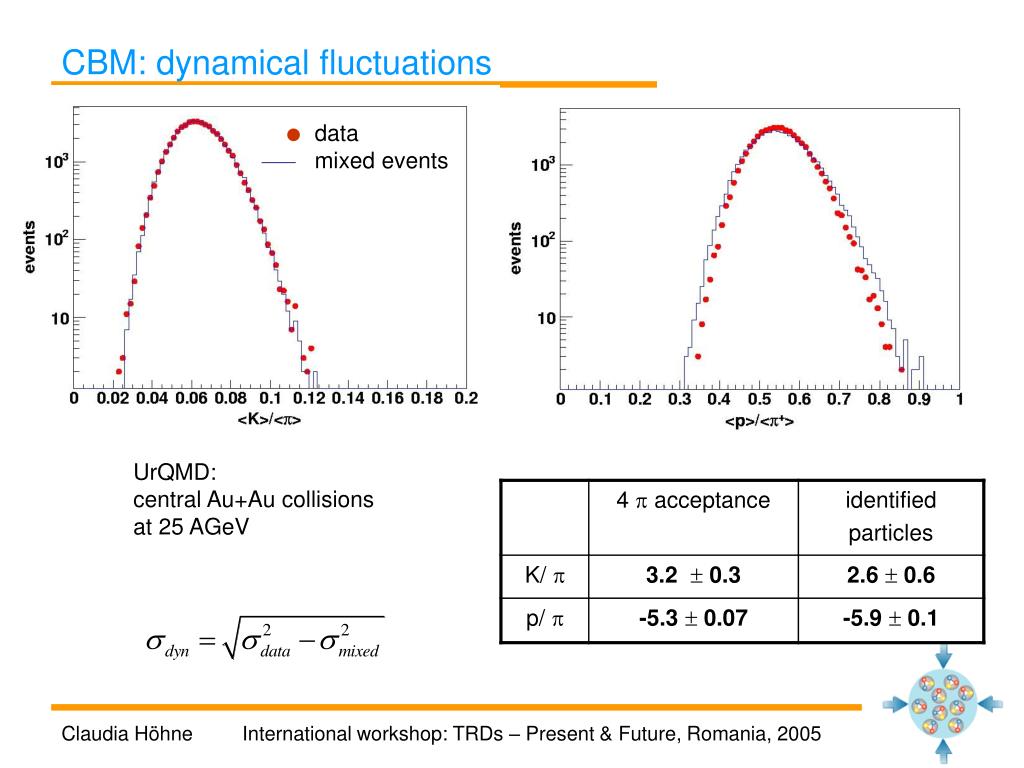

  29. data mixed events CBM: dynamical fluctuations UrQMD: central Au+Au collisions at 25 AGeV

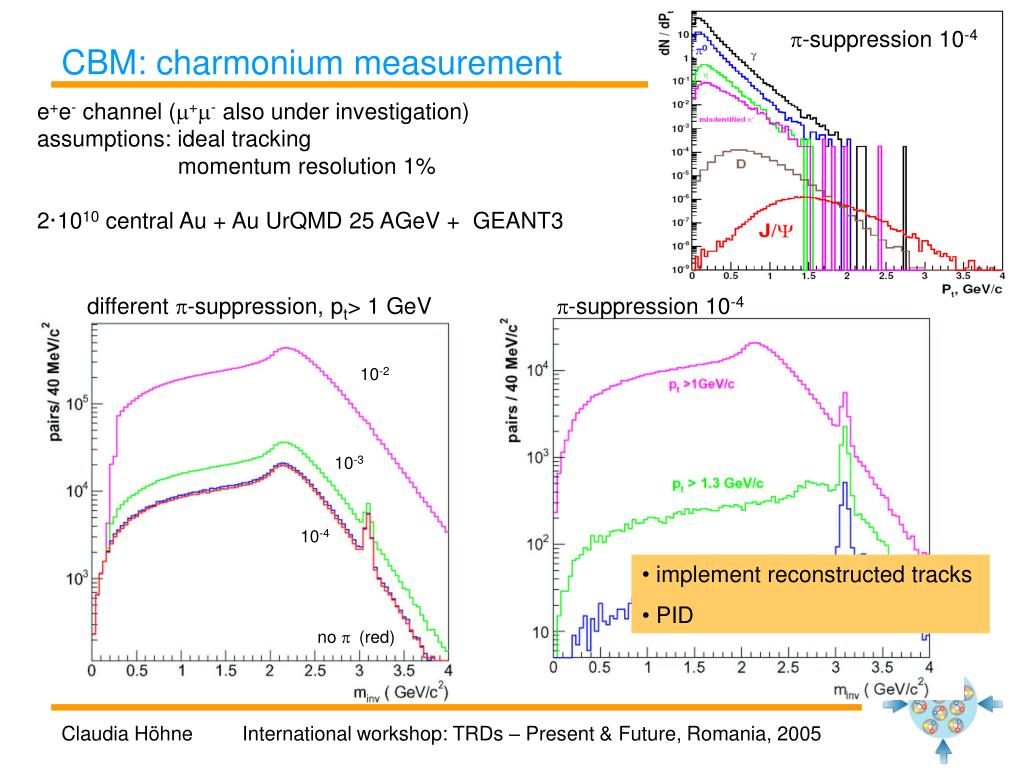

  30. p-suppression 10-4 CBM: charmonium measurement e+e- e+e- channel (m+m- also under investigation) assumptions: ideal tracking momentum resolution 1% 2·1010 central Au + Au UrQMD 25 AGeV + GEANT3 different p-suppression, pt> 1 GeV p-suppression 10-4 10-2 10-3 10-4 • implement reconstructed tracks • PID no p (red)

  31. CBM:    → e+e- reconstructed PID reconstructed no PID track segment main problem: background e ! no tracking in field free region for rejection of close pairs!

  32. CBM:    → e+e- (II) • detailed study of cut strategies, still on ideal MC level

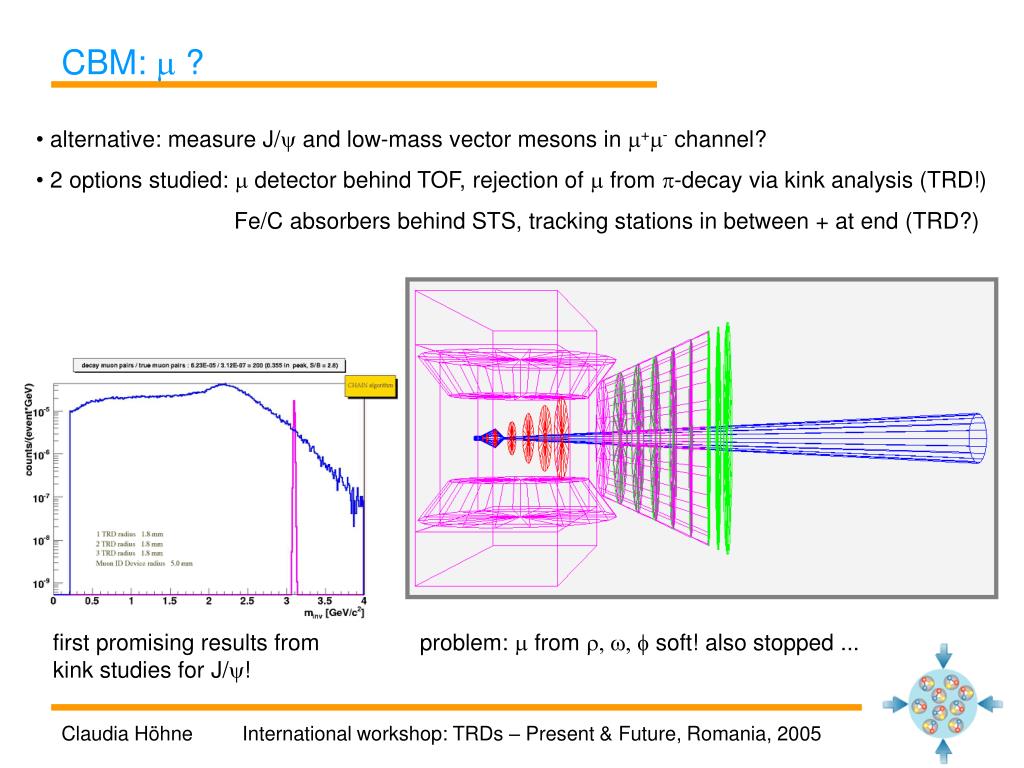

  33. CBM: m ? • alternative: measure J/y and low-mass vector mesons in m+m- channel? • 2 options studied: m detector behind TOF, rejection of m from p-decay via kink analysis (TRD!) • Fe/C absorbers behind STS, tracking stations in between + at end (TRD?) first promising results from kink studies for J/y! problem: m from r, w, f soft! also stopped ...

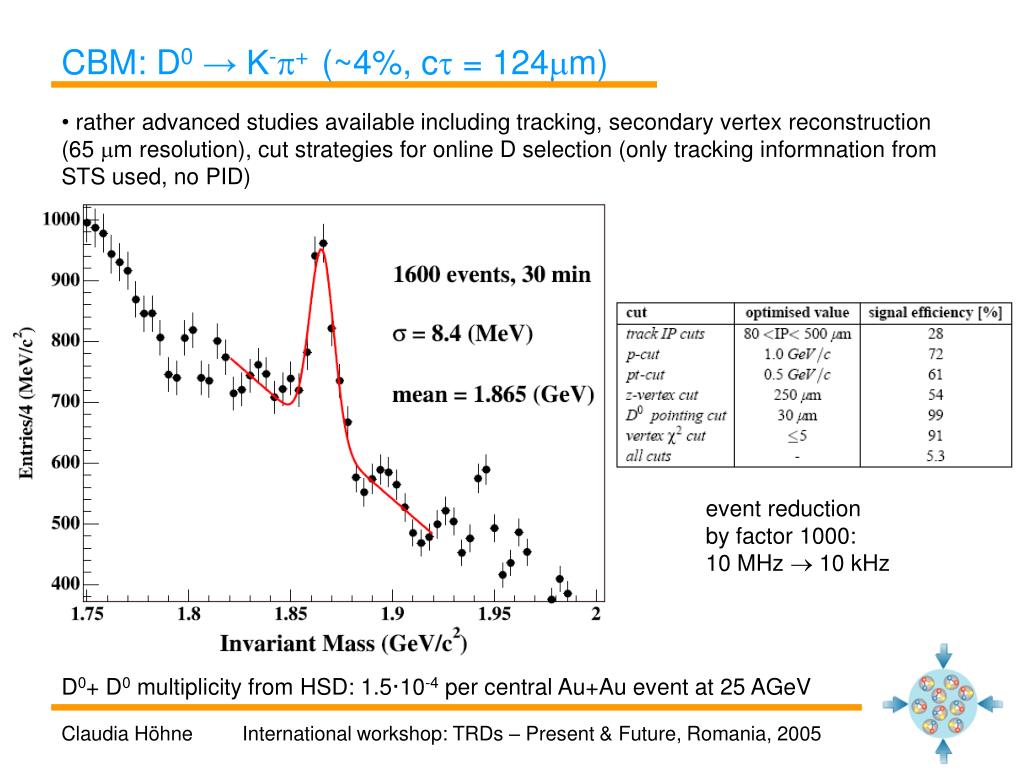

  34. CBM: D0→ K-p+ (~4%, ct = 124mm) • rather advanced studies available including tracking, secondary vertex reconstruction (65 mm resolution), cut strategies for online D selection (only tracking informnation from STS used, no PID) event reduction by factor 1000: 10 MHz  10 kHz D0+ D0 multiplicity from HSD: 1.5·10-4 per central Au+Au event at 25 AGeV

  35. CBM: D+ K-p+p+ (9%, ct = 317 mm) • first studies started, similar strategy as for D0 • feasibility of reconstructing 3 particle vertices shown • Lc (ct=62 mm,  pK-p+ (5%))? efficiency ~ 5.3%

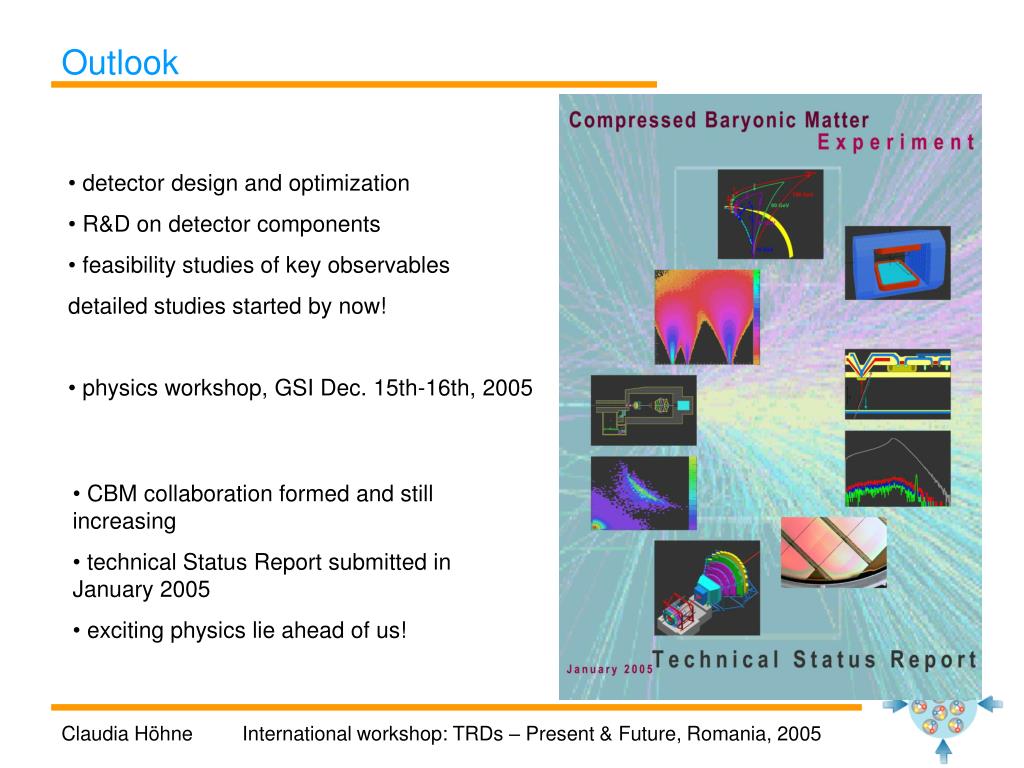

  36. Outlook • detector design and optimization • R&D on detector components • feasibility studies of key observables • detailed studies started by now! • physics workshop, GSI Dec. 15th-16th, 2005 • CBM collaboration formed and still increasing • technical Status Report submitted in January 2005 • exciting physics lie ahead of us!

  37. CBM collaboration Croatia: RBI, Zagreb Cyprus: Nikosia Univ. Czech Republic: Czech Acad. Science, Rez Techn. Univ. Prague France: IReS Strasbourg Germany: Univ. Heidelberg, Phys. Inst. Univ. HD, Kirchhoff Inst. Univ. Frankfurt Univ. Mannheim Univ. Marburg Univ. Münster FZ Rossendorf GSI Darmstadt Romania: NIPNE Bucharest Russia: CKBM, St. Petersburg IHEP Protvino INR Troitzk ITEP Moscow KRI, St. Petersburg Kurchatov Inst., Moscow LHE, JINR Dubna LPP, JINR Dubna LIT, JINR Dubna PNPI Gatchina SINP, Moscow State Univ. Spain: Santiago de Compostela Univ. Ukraine: Univ. Kiev Hungaria: KFKI Budapest Eötvös Univ. Budapest Italy: INFN Frascati Korea: Korea Univ. Seoul Pusan National Univ. Norway: Univ. Bergen Poland: Jagiel. Univ. Krakow Silesia Univ. Katowice Warsaw Univ. Warsaw Tech. Univ. Portugal: LIP Coimbra
