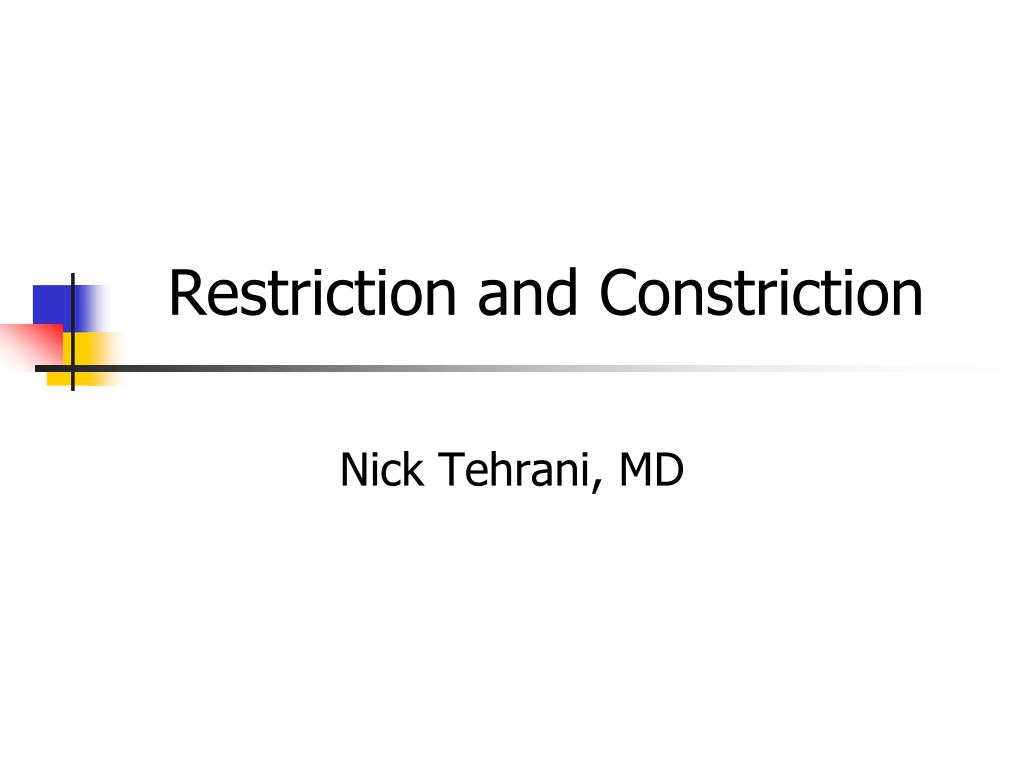

  1. Restriction and Constriction Nick Tehrani, MD

  2. Restrictive Cardiomyopathy EVOLVED As a bedside clinical diagnosis of constriction confirmed by right heart catheterization findings of constrictive physiology in patients who: POROVED NOT TO HAVE ANY PERICARDIAL DISEASE

  3. Traditional Hemodynamic Criteria

  4. Traditional Hemodynamic Criteria

  5. Utilitity of: Traditional Hemodynamic Criteria Traditional Hemodynamic Criteria: are of LIMITED Utility Hurrell DG, Nishimura RA, Higano ST, Appelton CP, Danielson GK, Holmes DR, Tajik AJ. Value of dynamic respiratory changes in left and right ventricular pressures for the diagnosis of constrictive pericarditis. Circ. 1996; 93:2007-2013

  6. Restrictive Cardiomyopathy Represents an extreme form of Diastolic Dysfunction: Abnormal increase in Diastolic ventricular pressure impeding filling of the LV To NL EDV

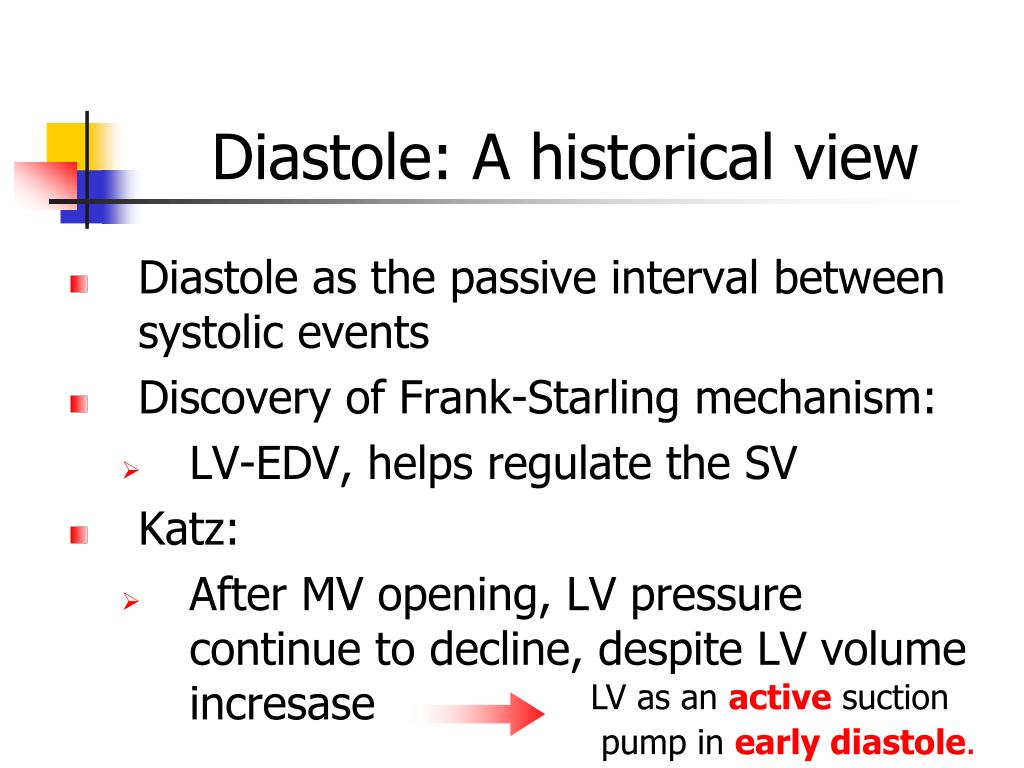

  7. Diastole: A historical view • Diastole as the passive interval between systolic events • Discovery of Frank-Starling mechanism: • LV-EDV, helps regulate the SV • Katz: • After MV opening, LV pressure continue to decline, despite LV volume incresase LV as an active suction pump in early diastole.

  8. Diastolic Properties of the LV End of IVRT Active suction. ATP req’d To Re-uptake Ca++

  9. Quantitative assessent of the 4 phases of Diastole: • IVRT>100 ms • Earliest diastolic ab-normality. • Impaired LV relax. • Filling pressures=NL • Dz. progression: • Decreased LV compliance, and • Increased filling pressure Late diastolic filling Diastasis Early diastolic filling IVRT

  10. Quantitative assessment of the 4 phases of Diastole: • IVRT • Early filling: • DT < 130-180 ms • Interplay of Early and Late filling: • E:A ratios……. • If E at A> 20 cm/s => E/A unreliable • Tachycardia • PR prologgation • “A” wave duration……. Utilized in relation to PV “a” wave duration.

  11. E:A ratios, as a Function of Age Impaired LV relaxation (IVRT ) Decreased LV Compliance Restrictive Pseudonormal

  12. The three abnormal LV filling patterns

  13. Pathophysiologic Similarity of:Restriction and Constriction Abnormal increase in ventricular pressure impeding filling of the LV To NL EDV Constriction Restriction Myocardial Disorder Pericardial Disorder

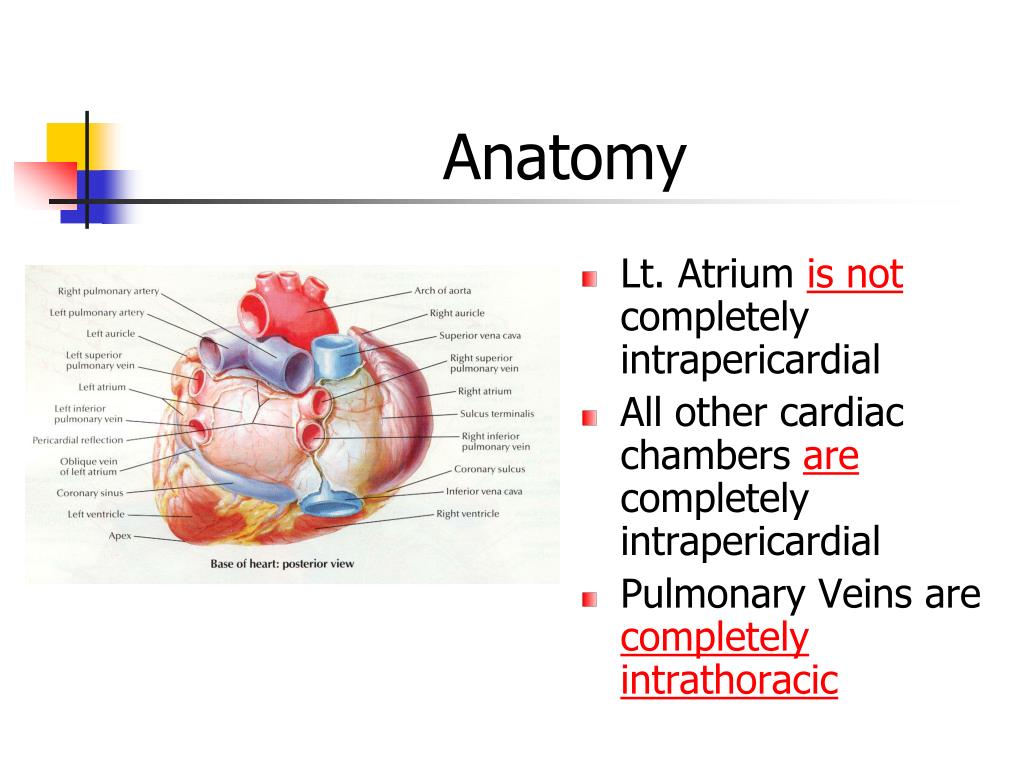

  14. Anatomy • Lt. Atrium is not completely intrapericardial • All other cardiac chambers are completely intrapericardial • Pulmonary Veins are completely intrathoracic

  15. Effect of Inspiration • Normal Pericardium: • Inspiratory decrease in intrathoracic pressure is uniformly transmitted to the lungs, PVs, LA, LV, RA, and RV

  16. Effect of Inspiration • Constrictive Pericarditis: • Thickened pericardium isolates the heart form transmission of intrathoracic pressure changes • Increased inspiratory capacitance of the Lungs PVs, and LA => PCWP decrease BUT • The decrease in intrathoracic pressure is not transmitted to the LV, RV, RA

  17. Dissociation of Intrathoracic and Intracardiac Pressures First demonstrated to be present in constrictive pericarditis using Doppler techniques in 1989, by Hatle in her landmark study. Hatle LK, Appleton CP, Popp RL. Differentiation of constrictive pericarditis And restrictive cardiomyopathy by Doppler Echocardiography. Circ. 1989;79357-370

  18. Dissociation of Intrathoracic and Intracardiac Pressures The inciting Physiologic Event. Hatle LK, et. al. Circ. 1989;79357-370

  19. Ventricular Interdependence Hatle LK, et. al. Circ. 1989;79357-370 Ventricular Pressures Are DISCORDANT Insp Expir

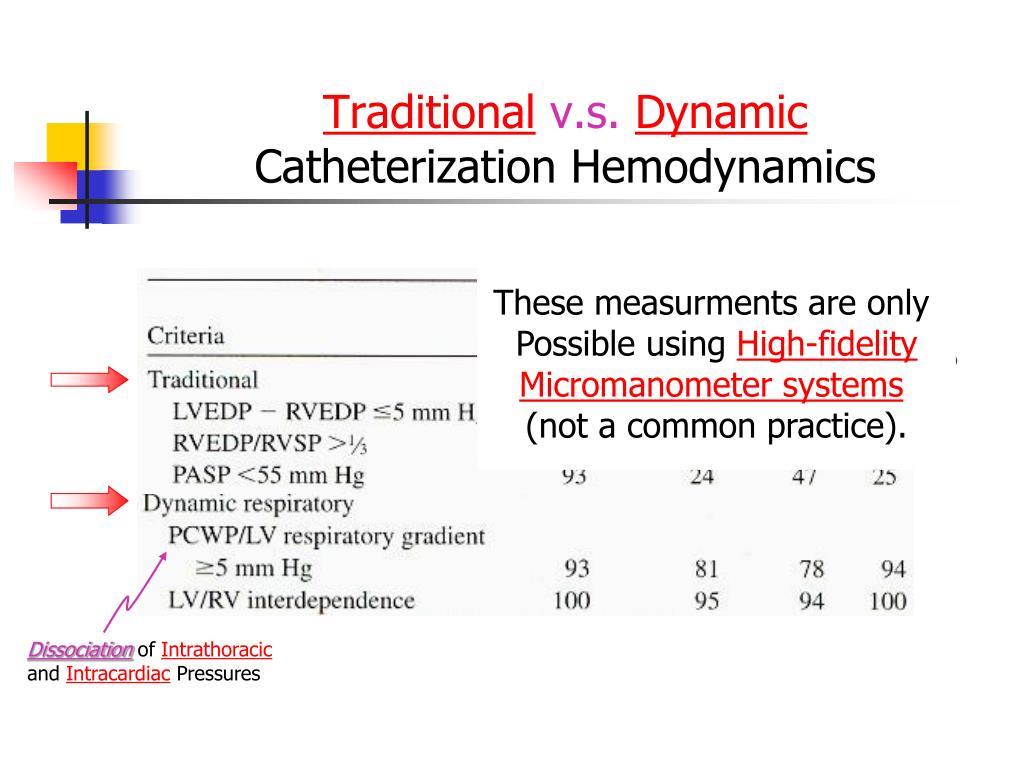

  20. Traditionalv.s.DynamicCatheterization Hemodynamics Why bother with Echo given The great utility of Dynamic Respiratory cath measurments? These measurments are only Possible using High-fidelity Micromanometer systems (not a common practice). Dissociation of Intrathoracic and Intracardiac Pressures

  21. Effect of Inspiration:Constriction Inspir. Expir. Insp. Expir. PCWP PCWP Inspir. Expir. PCWP No proportionate decrease in LV diastolic pressure Decreased transmitral gradient => Transmitral flow RV SV LV SV

  22. Pathophysiologic Differences Constriction Restriction Ab-Nl Myocardial compliance Myocardial compliance is NL No impedence to Diastolic EARLY FILLING Impedence to filling increases throughout the diastole Total cardiac volume is fixed by the pericardium Pericardium is compliant Septum is non-compliant Reduction of the proportion of LV filling with atrial contraction: => Atrial enlargement Atria are able to empty into the Ventricles, though at higher Press. Minimal Respiratory effect of RV on the LV Marked Respiratory effect of LV on the RV

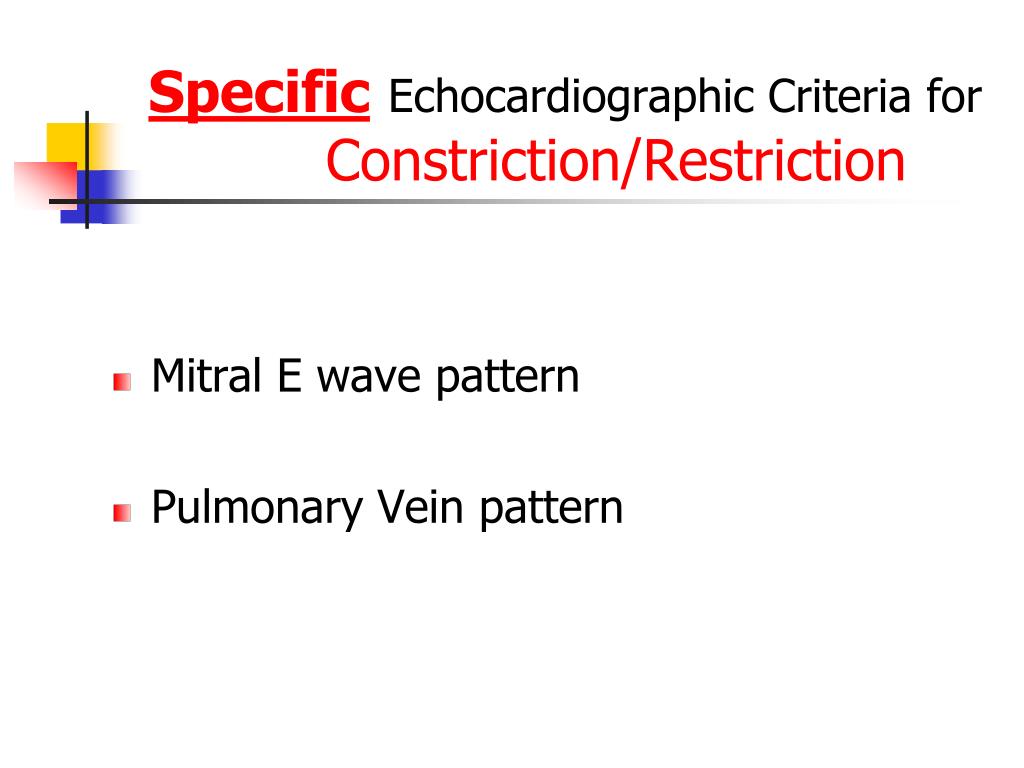

  23. SpecificEchocardiographic Criteria forConstriction/Restriction • Mitral E wave pattern • Pulmonary Vein pattern • Hepatic Vein pattern

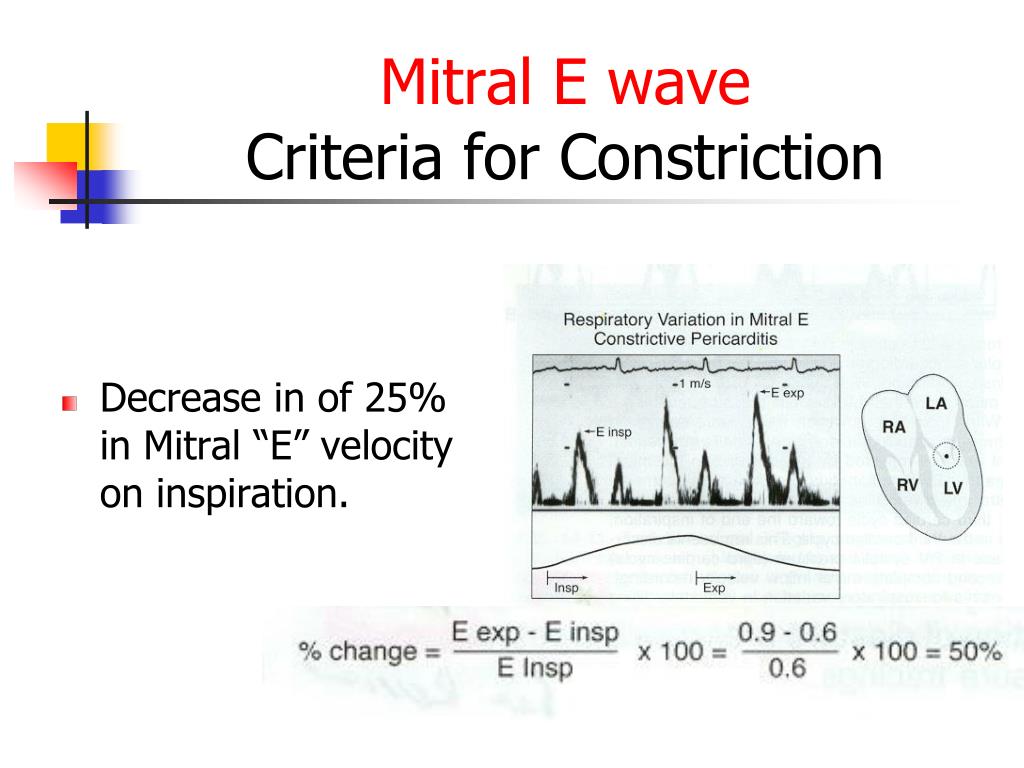

  24. Mitral E waveCriteria for Constriction • Decrease in of 25% in Mitral “E” velocity on inspiration.

  25. In RESTRICTION: There is no respiratory variation of Mitral inflow

  26. SpecificEchocardiographic Criteria forConstriction/Restriction • Mitral E wave pattern • Pulmonary Vein pattern

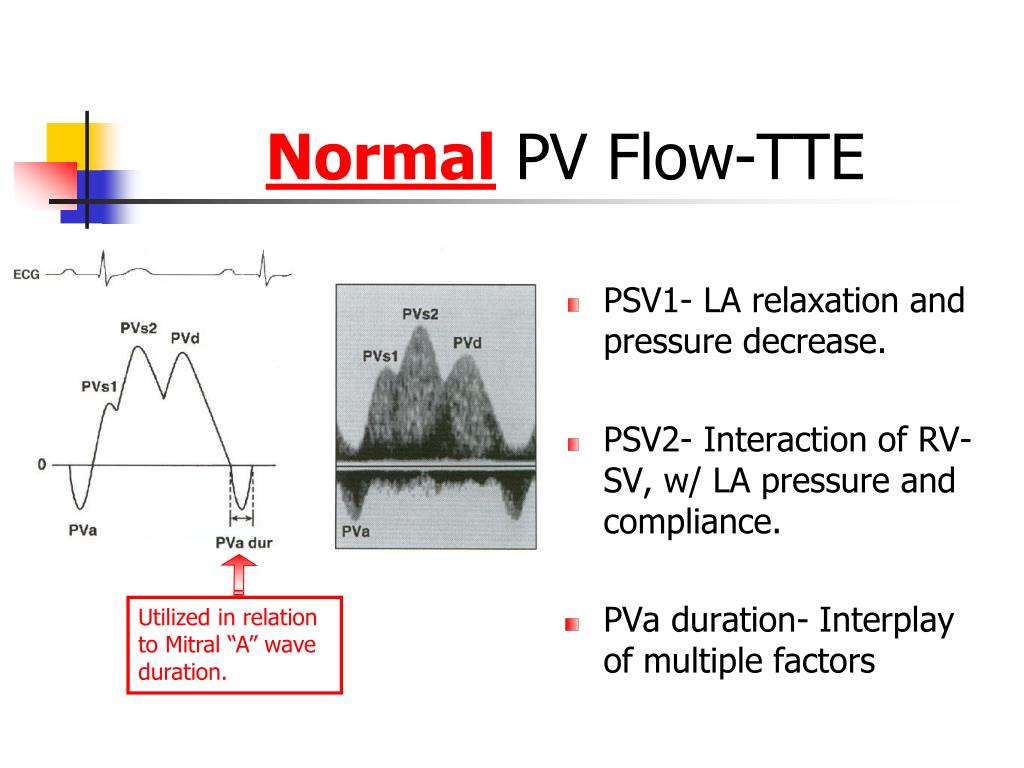

  27. Normal PV Flow-TTE • PSV1- LA relaxation and pressure decrease. • PSV2- Interaction of RV-SV, w/ LA pressure and compliance. • PVa duration- Interplay of multiple factors Utilized in relation to Mitral “A” wave duration.

  28. Three abnormalPVfillingpatterns in Restriction

  29. E:A ratios, as a function of Age Impaired LV relaxation (IVRT ) Decreased LV Compliance Pseudonormal Restrictive

  30. Relation of Mitral “A” wave to Pulmonary Venous “a” wave duration • Normal Physiology • With LA contraction • Forward flowVolume and Duration Exceeds • Backward flow into the PV

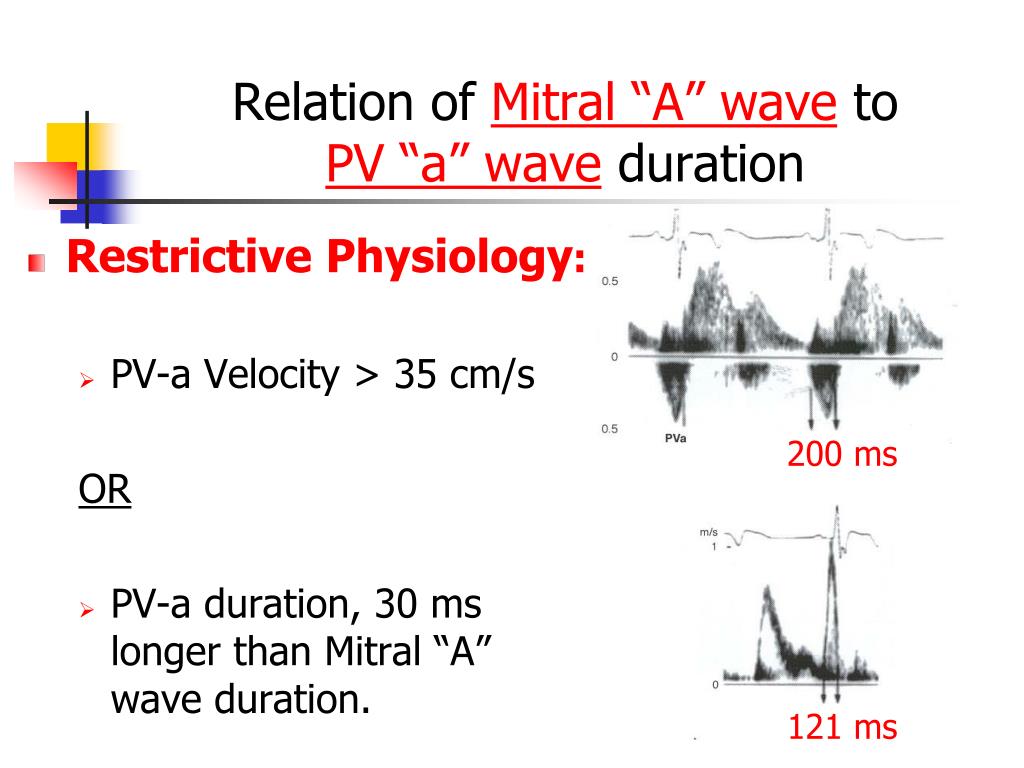

  31. Relation of Mitral “A” wave to PV “a” wave duration • RestrictivePhysiology: • PV-a Velocity > 35 cm/s OR • PV-a duration, 30 ms longer than Mitral “A” wave duration. 200 ms 121 ms

  32. PVs are best assessed using TEE PV interrogation using TTE is often techniaclly limited.

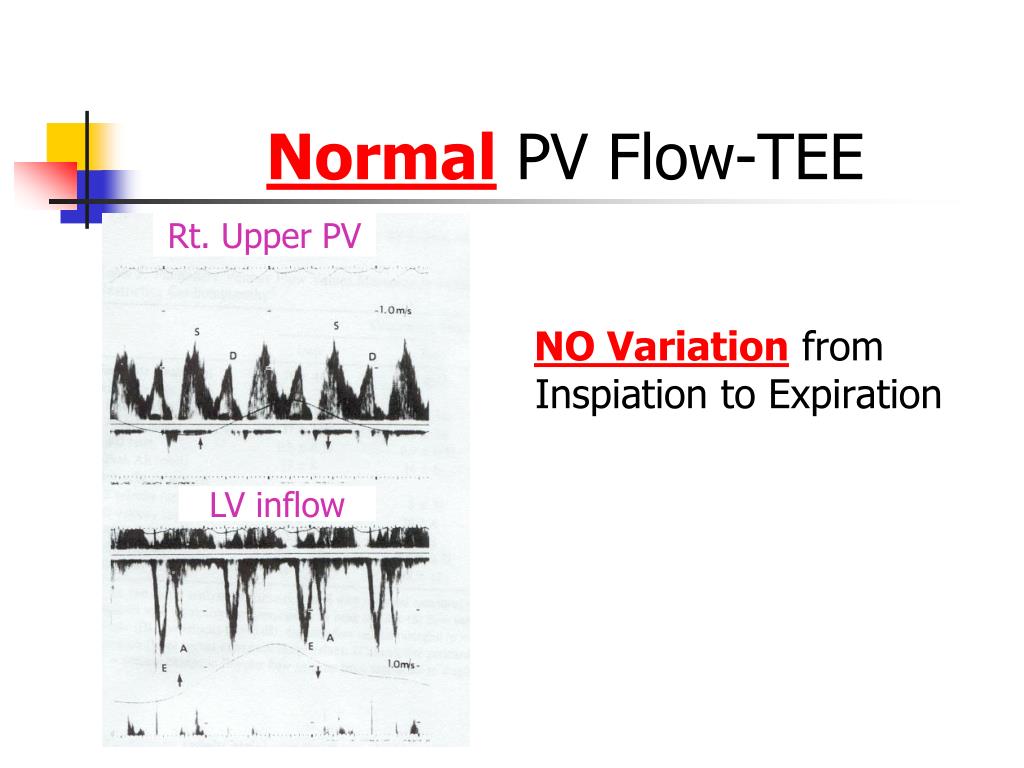

  33. Normal PV Flow-TEE Rt. Upper PV NO Variation from Inspiation to Expiration LV inflow

  34. PV Dopplar Patterns in Restriction-TEE Lt. Upper PV PV flow is not respirophasic Systolic/Diastolic velocity is markedly down in both inspiration and expiration LV Inflow LV inflow Peak-E velocity is not respirophasic

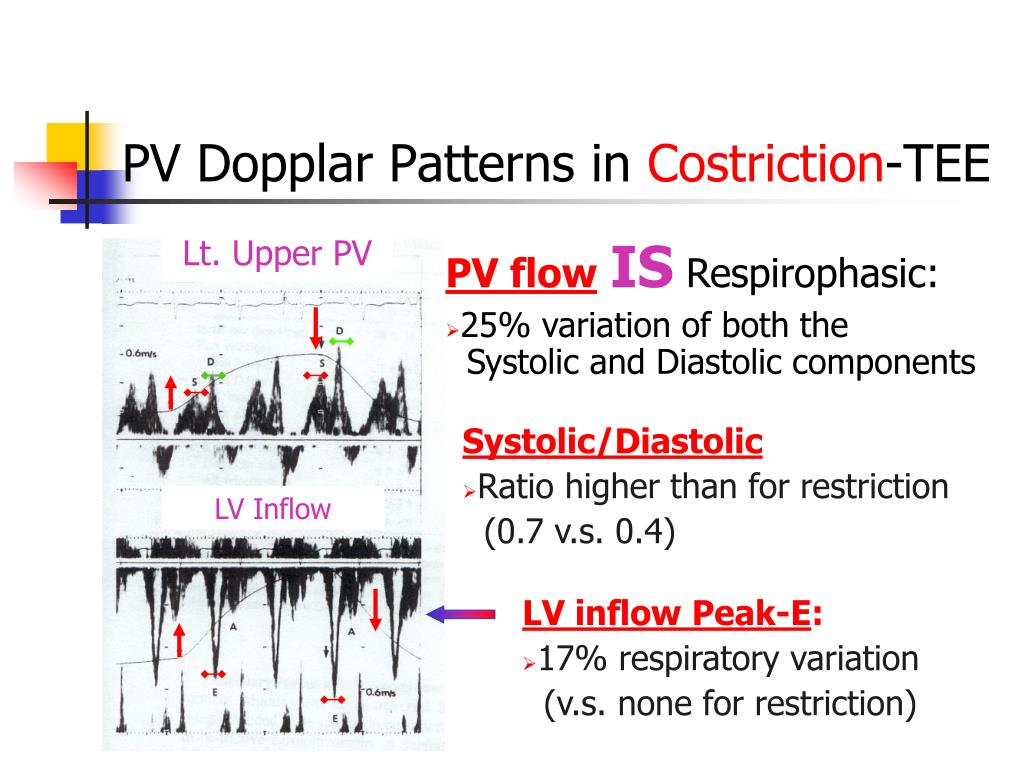

  35. PV Dopplar Patterns in Costriction-TEE Lt. Upper PV PV flowIS Respirophasic: • 25% variation of both the Systolic and Diastolic components Systolic/Diastolic • Ratio higher than for restriction (0.7 v.s. 0.4) LV Inflow LV inflow Peak-E: • 17% respiratory variation (v.s. none for restriction)

  36. SpecificEchocardiographic Criteria forConstriction/Restriction • Mitral E wave pattern • Pulmonary Vein pattern • Hepatic Vein pattern

  37. Respiratory Cycle :Hepatic Vein Flow IVC Inspiration Expiration

  38. Hepatic Vein Dopplar: Normal Normal Systolic and diastolic forward flow S-vel. > D-vel. Diastolic flow reversal: Expir.>>Insp.

  39. Hepatic Vein Dopplar: Constriction Constriction Diastolic flow reversal is augmented in expiration. DFRexp.>25% forward diastolic velocity

  40. Hepatic Vein Dopplar: Restriction Restriction Forward flow primarily in Diastole. Inspiration increases both >systolic, and >Diastolic Flow reversals.

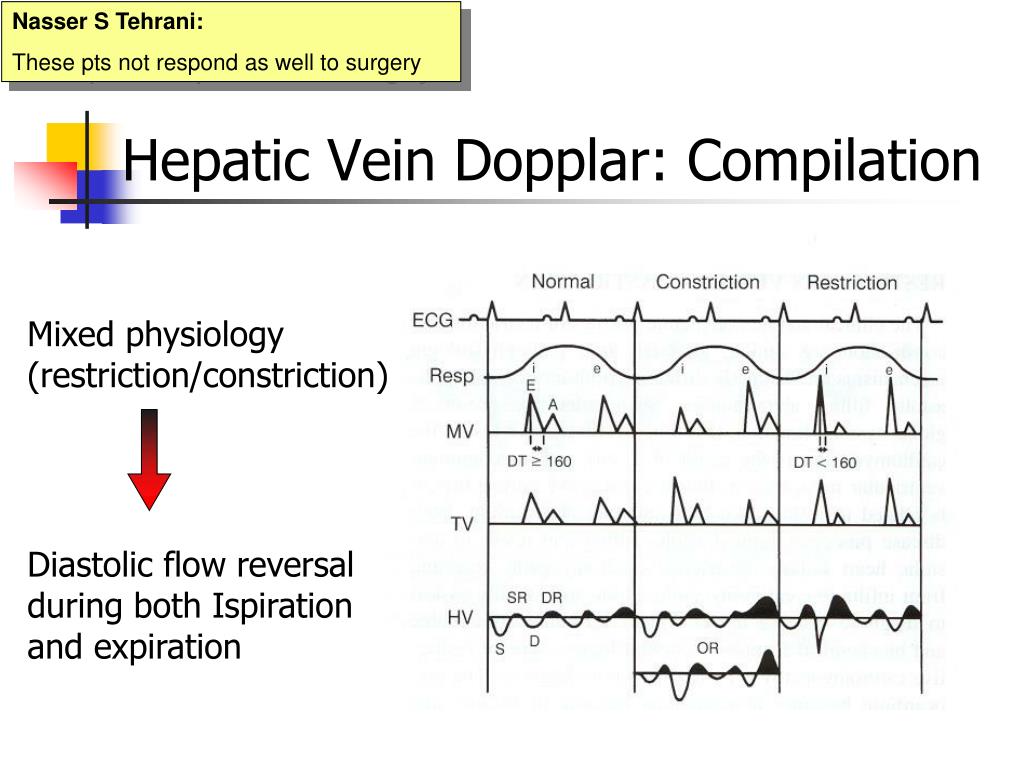

  41. Nasser S Tehrani: These pts not respond as well to surgery Hepatic Vein Dopplar: Compilation Mixed physiology (restriction/constriction) Diastolic flow reversal during both Ispiration and expiration

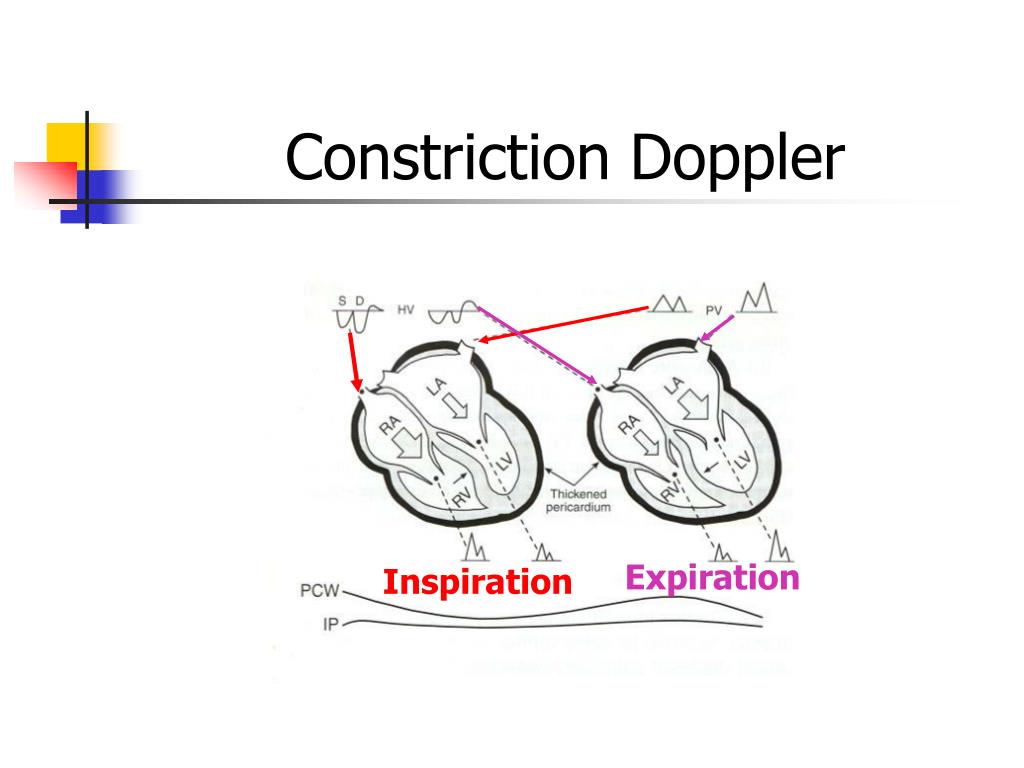

  42. Constriction Doppler Inspiration Expiration

  43. Animation

  44. Animation

  45. Pitfalls and Caveats • Subgroup of patients with constriction who do not exhibit respiratory changes • COPD

  46. Constriction: Non-respirophasic • Oh et. al. Circ. 1997;95:796-799 • 12 Pts. W/ confirmed constriction, but without the classic findings • Etiology of Non-respirophasicpattern • Mixed Restriction and Constriction • Marked increase in Preload Deduced post Stripping, as Sx Not improve Preload reduction to unmask the respiratory variation

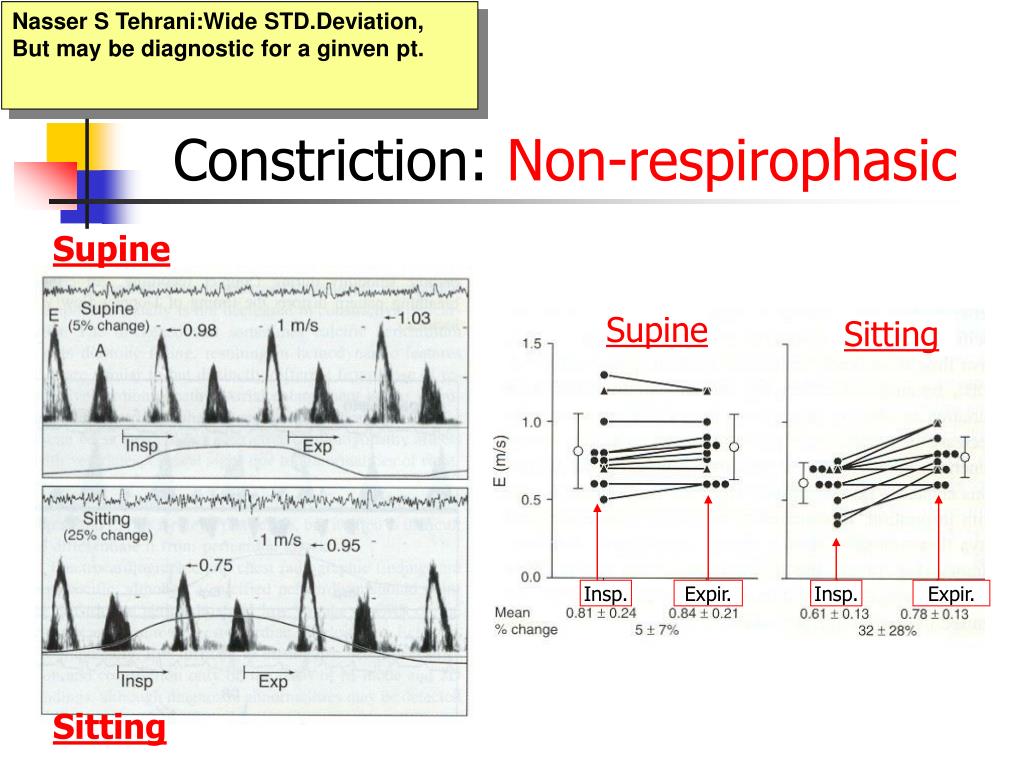

  47. Nasser S Tehrani:Wide STD.Deviation, But may be diagnostic for a ginven pt. Constriction: Non-respirophasic Supine Supine Sitting Insp. Expir. Insp. Expir. Sitting

  48. Effect of changing loading conditions w/ VALSALVAin RESTRICTION E 20% A to a lesser degree

  49. Pitfalls and Caveats • Subgroup of patients with constriction who do not exhibit respiratory changes • COPD

  50. COPD v.s. Constriction • Individual Mitral flow velocity profiles are not restrictive as LV filling pressure is not increased. 100% change in E Velocity
