  1. Design of Optimal Multiple Spaced Seeds for Homology Search Jinbo Xu School of Computer Science, University of Waterloo Joint work with D. Brown, M. Li and B. Ma

  2. Overview • Seed-based homology search • Optimal multiple spaced seeds • LP based randomized algorithm • Experimental results • Future work

  3. Homology Search • Exhaustive search algorithm • e.g. Smith-Waterman algorithm • 100% sensitivity • infeasible if the database is large • Suffix tree • Seed-based algorithm, e.g. BLAST, PatternHunter Given: database of DNA sequences, query sequence Q Task: extract all homologous sequences of Q from the database.

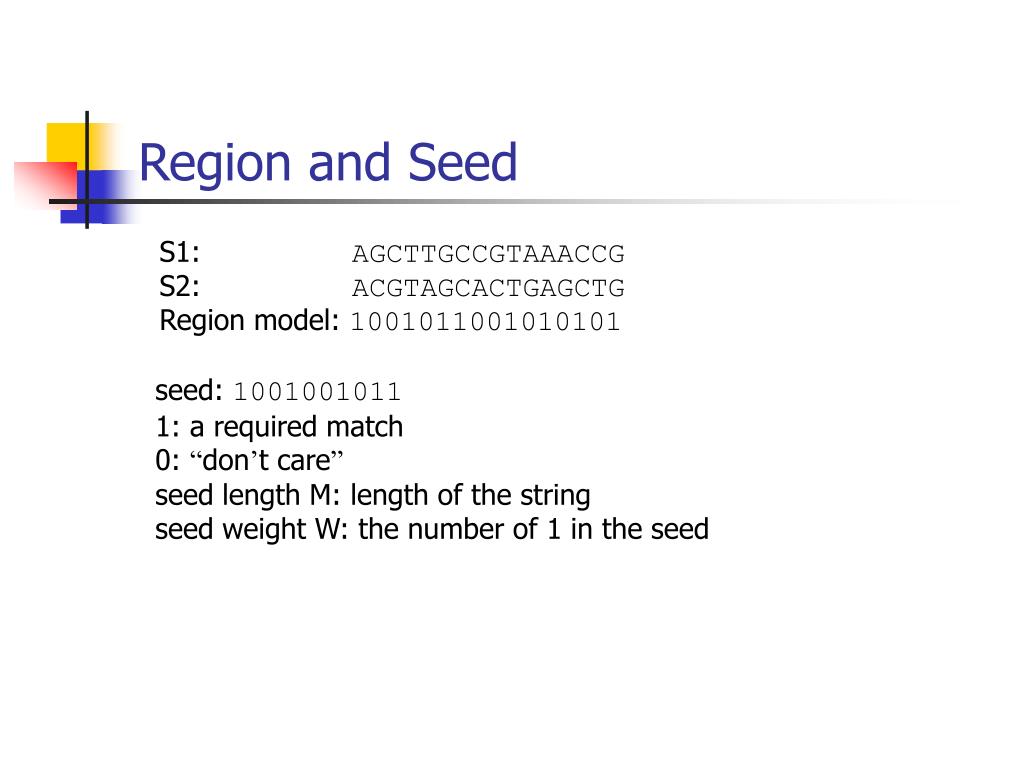

  4. Region and Seed S1: AGCTTGCCGTAAACCG S2: ACGTAGCACTGAGCTG Region model: 1001011001010101 seed: 1001001011 1: a required match 0: “don’t care” seed length M: length of the string seed weight W: the number of 1 in the seed

  5. Seed-based Hit A seed S hits a region R at position i if and only if R[i+j]=1 for every position j where s[j]=1 Query: ACGCGTGGGAAACC region 00001111101100 CAATGTGGGCAATT seed 11011011 Given a seed, a query sequence hits another sequence if and only if the seed hits a region model of both sequences.

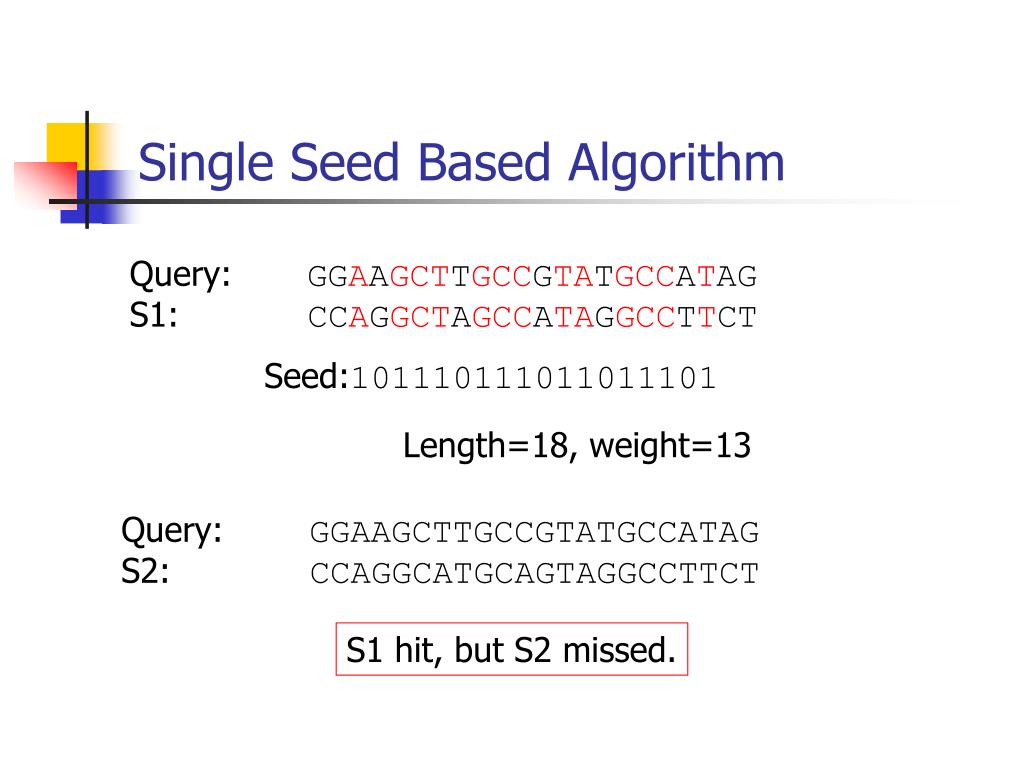

  6. Single Seed Based Algorithm Query: GGAAGCTTGCCGTATGCCATAG S1: CCAGGCTAGCCATAGGCCTTCT Seed:101110111011011101 Length=18, weight=13 Query: GGAAGCTTGCCGTATGCCATAG S2: CCAGGCATGCAGTAGGCCTTCT S1 hit, but S2 missed.

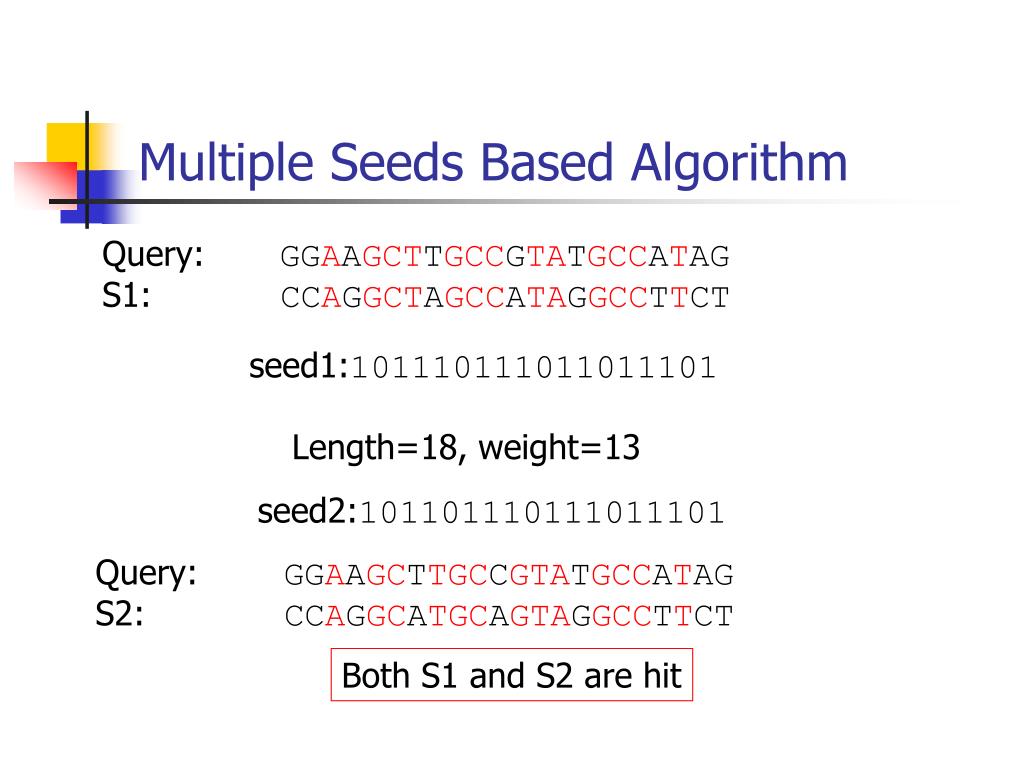

  7. Multiple Seeds Based Algorithm Query: GGAAGCTTGCCGTATGCCATAG S1: CCAGGCTAGCCATAGGCCTTCT seed1:101110111011011101 Length=18, weight=13 seed2:101101110111011101 Query: GGAAGCTTGCCGTATGCCATAG S2: CCAGGCATGCAGTAGGCCTTCT Both S1 and S2 are hit

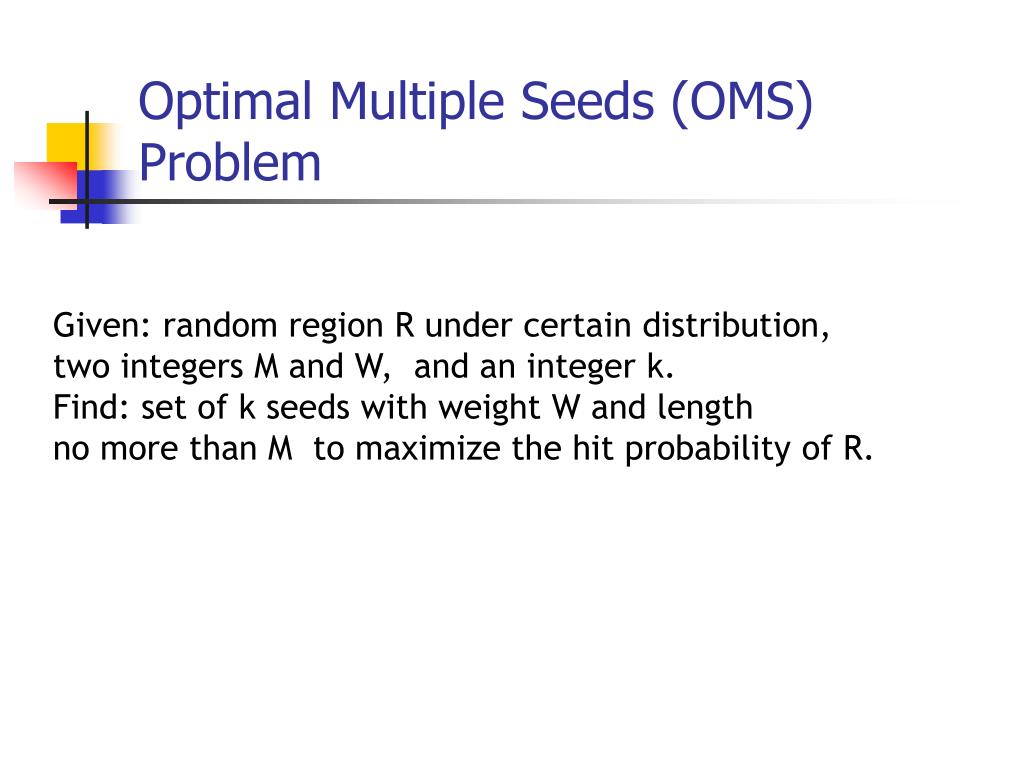

  8. Optimal Multiple Seeds (OMS) Problem Given: random region R under certain distribution, two integers M and W, and an integer k. Find: set of k seeds with weight W and length no more than M to maximize the hit probability of R.

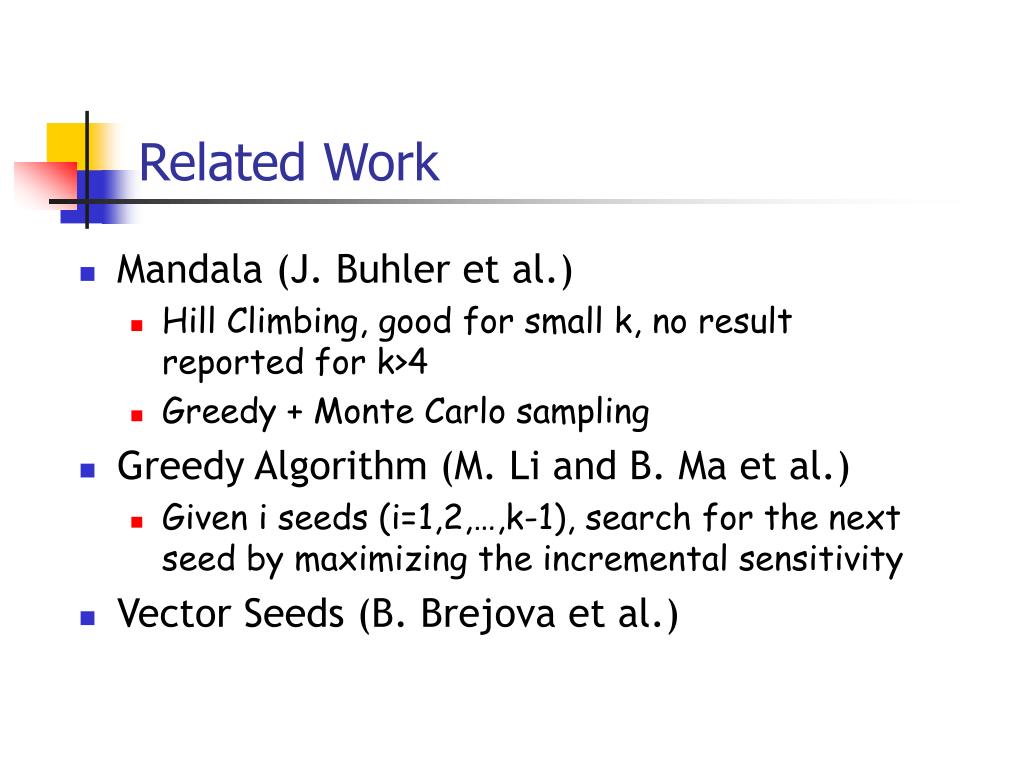

  9. Related Work • Mandala (J. Buhler et al.) • Hill Climbing, good for small k, no result reported for k>4 • Greedy + Monte Carlo sampling • Greedy Algorithm (M. Li and B. Ma et al.) • Given i seeds (i=1,2,…,k-1), search for the next seed by maximizing the incremental sensitivity • Vector Seeds (B. Brejova et al.)

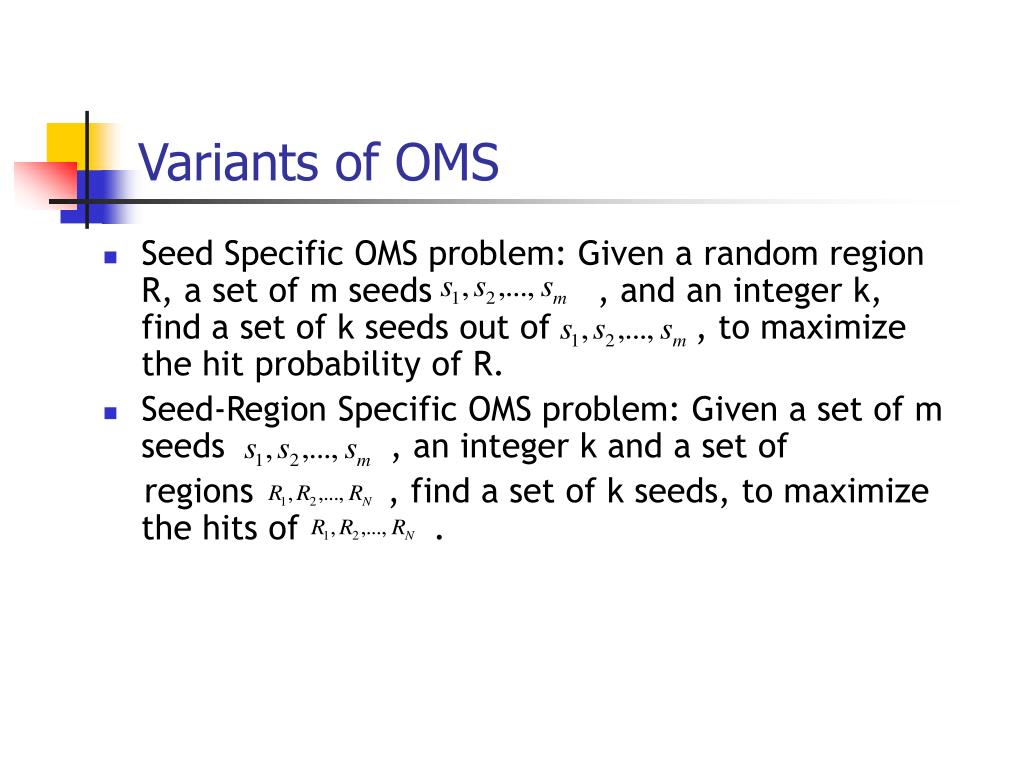

  10. Variants of OMS • Seed Specific OMS problem: Given a random region R, a set of m seeds , and an integer k, find a set of k seeds out of , to maximize the hit probability of R. • Seed-Region Specific OMS problem: Given a set of m seeds , an integer k and a set of regions , find a set of k seeds, to maximize the hits of .

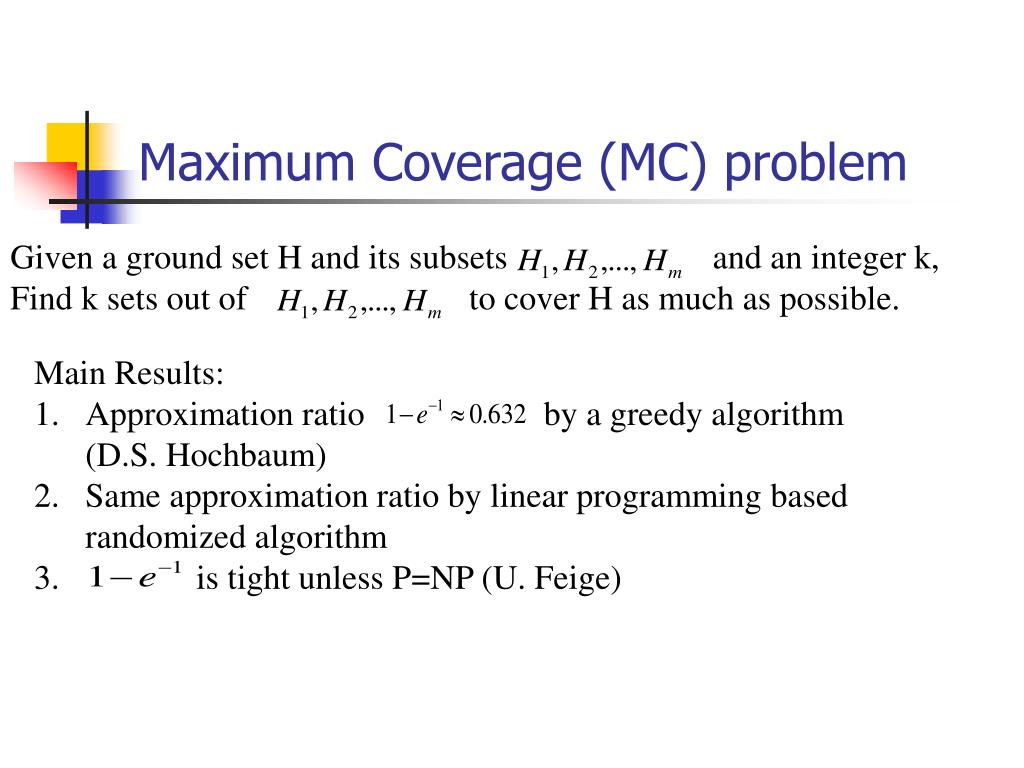

  11. Maximum Coverage (MC) problem Given a ground set H and its subsets and an integer k, Find k sets out of to cover H as much as possible. • Main Results: • Approximation ratio by a greedy algorithm • (D.S. Hochbaum) • Same approximation ratio by linear programming based • randomized algorithm • is tight unless P=NP (U. Feige)

  12. OMS vs. MC Problem OMS Seed Enumeration Seed Specific OMS Region Sampling Seed-Region Specific OMS=MC Problem

  13. Region Model • PH: length 64 and each bit independently set to 1 with probability 0.7 (B. Ma et al.) • M3: length 64 and each bit independently set to 1 with probability 0.8 if i%3=1 or 2, 0.5 otherwise (B. Brejova et al.) • M8: length 63 and each codon satisfy a certain distribution (B. Brejova et al.) • HMM: average length 90, two adjacent codons are not independent (B. Brejova et al.)

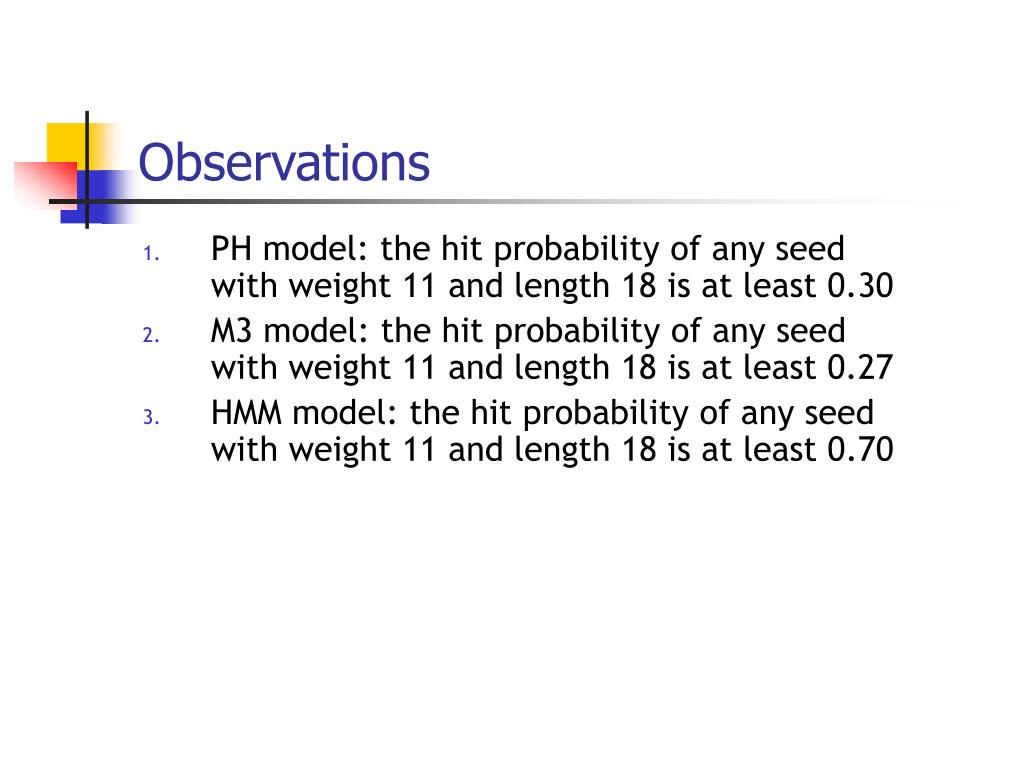

  14. Observations • PH model: the hit probability of any seed with weight 11 and length 18 is at least 0.30 • M3 model: the hit probability of any seed with weight 11 and length 18 is at least 0.27 • HMM model: the hit probability of any seed with weight 11 and length 18 is at least 0.70

  15. Variant of MC Problem Can we have a better approximation ratio?

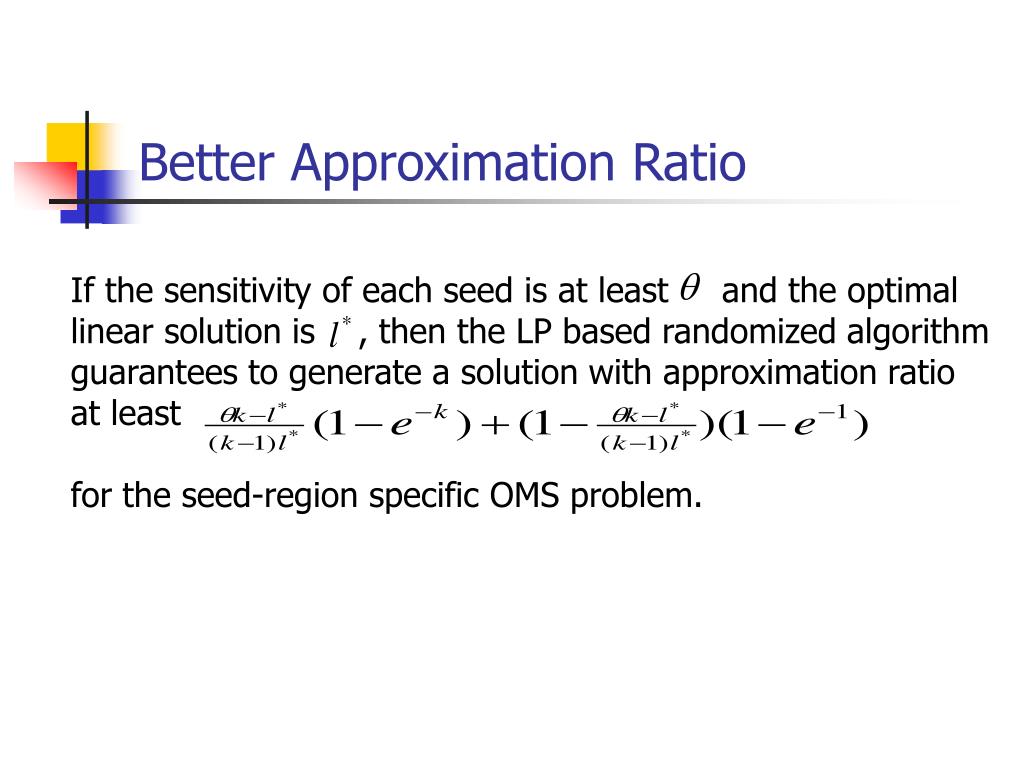

  16. Better Approximation Ratio If the sensitivity of each seed is at least and the optimal linear solution is , then the LP based randomized algorithm guarantees to generate a solution with approximation ratio at least for the seed-region specific OMS problem.

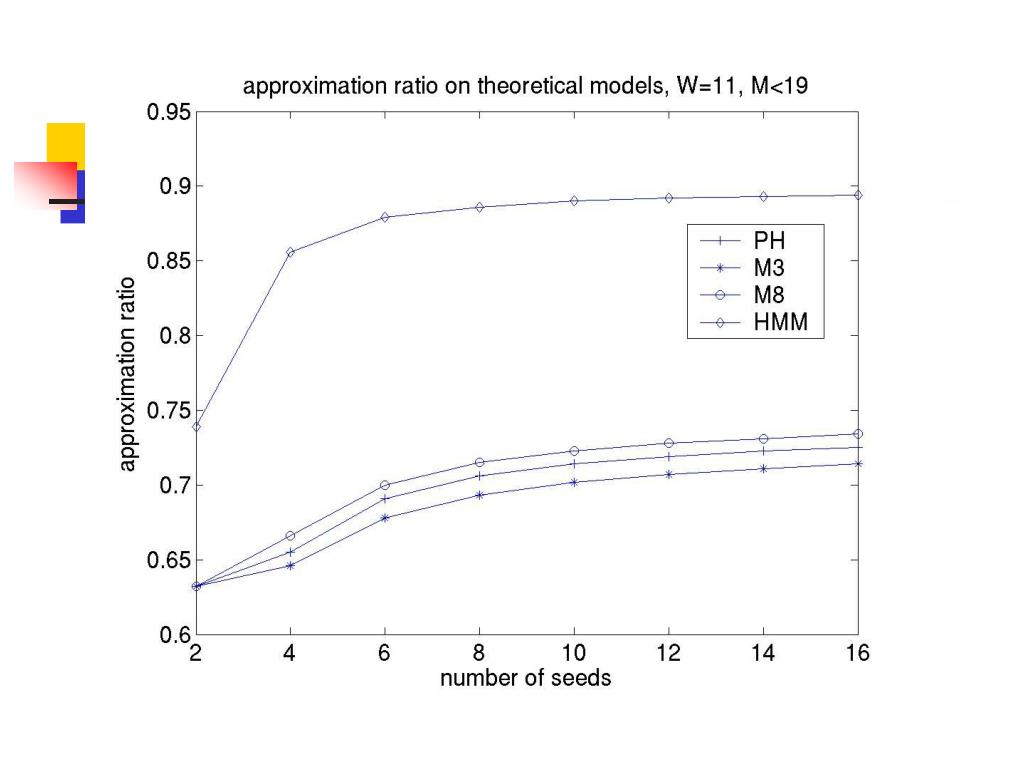

  17. Theoretical Results

  18. Practical Approximation Ratio the optimal seed set for the random region R the best seed set found by the LP based algorithm If 5000 regions are sampled, then we have with probability 0.99

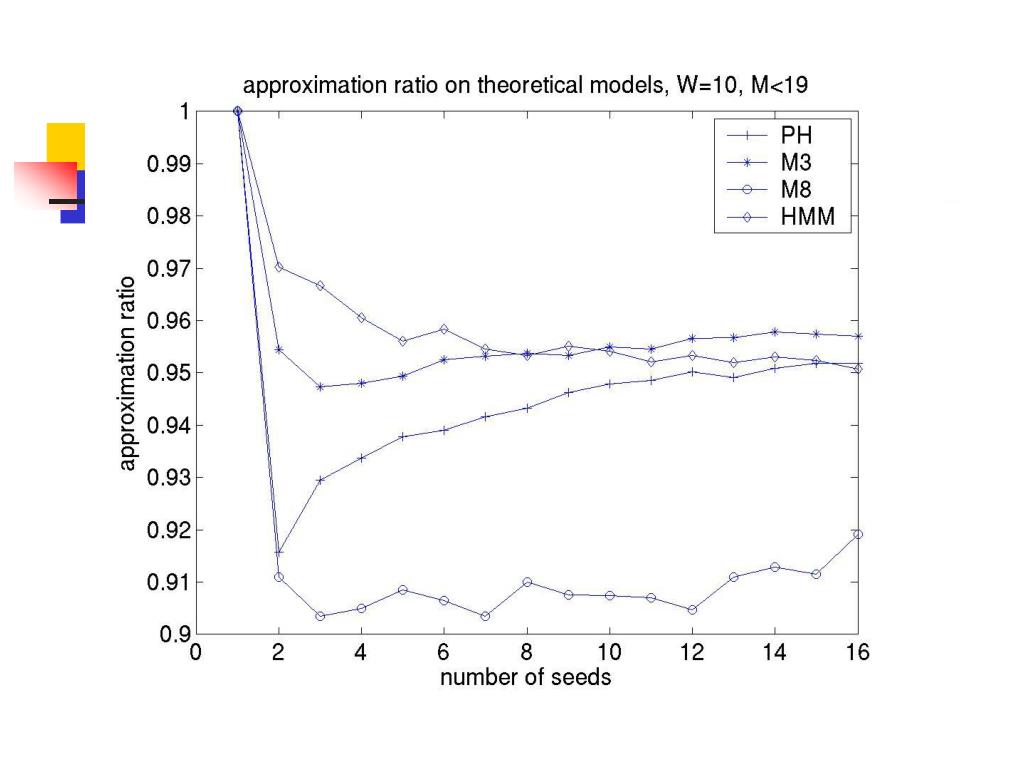

  19. Practical Approximation Ratio (W=10)

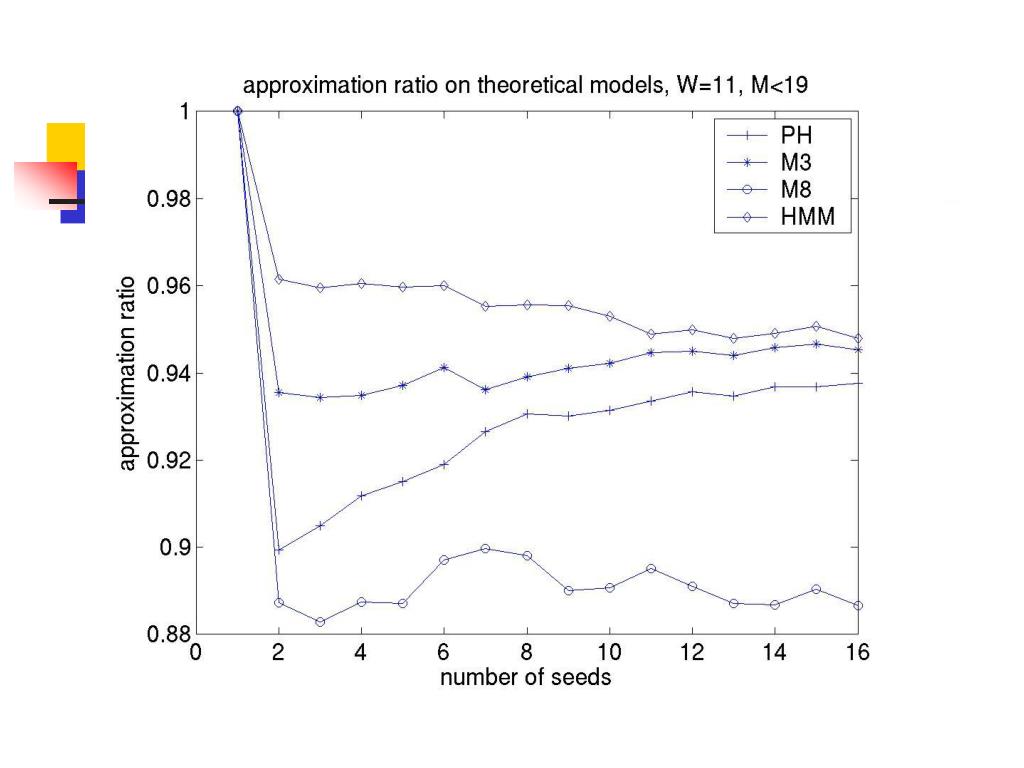

  20. Practical Approximation Ratio (W=11)

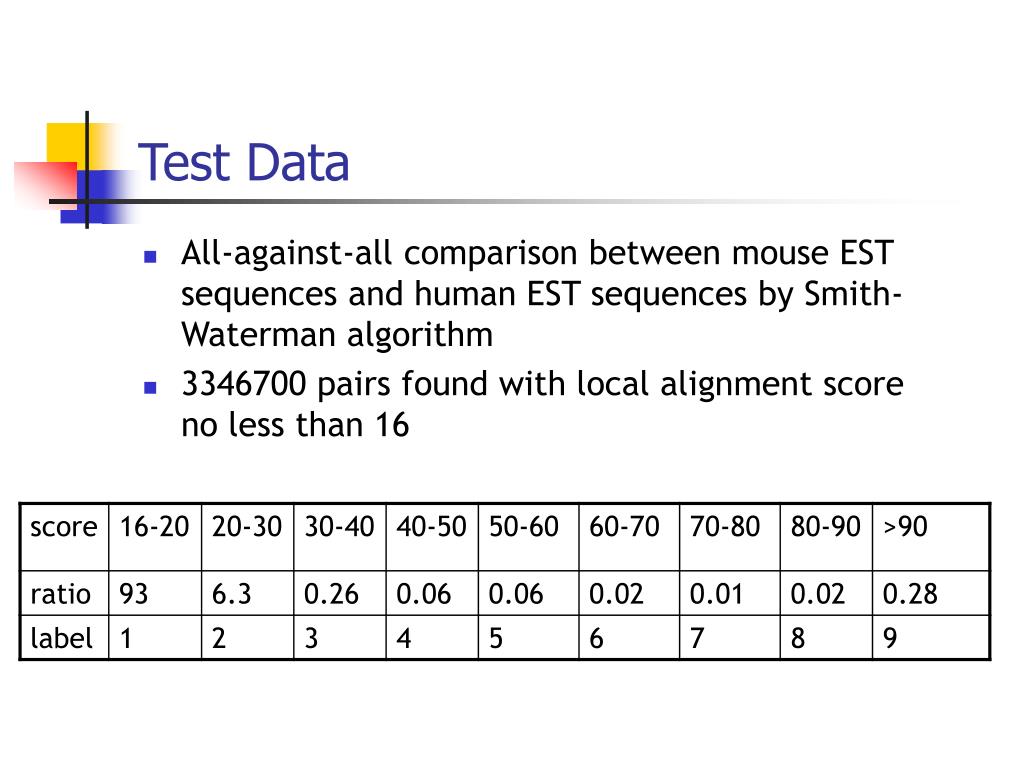

  21. Test Data • All-against-all comparison between mouse EST sequences and human EST sequences by Smith-Waterman algorithm • 3346700 pairs found with local alignment score no less than 16

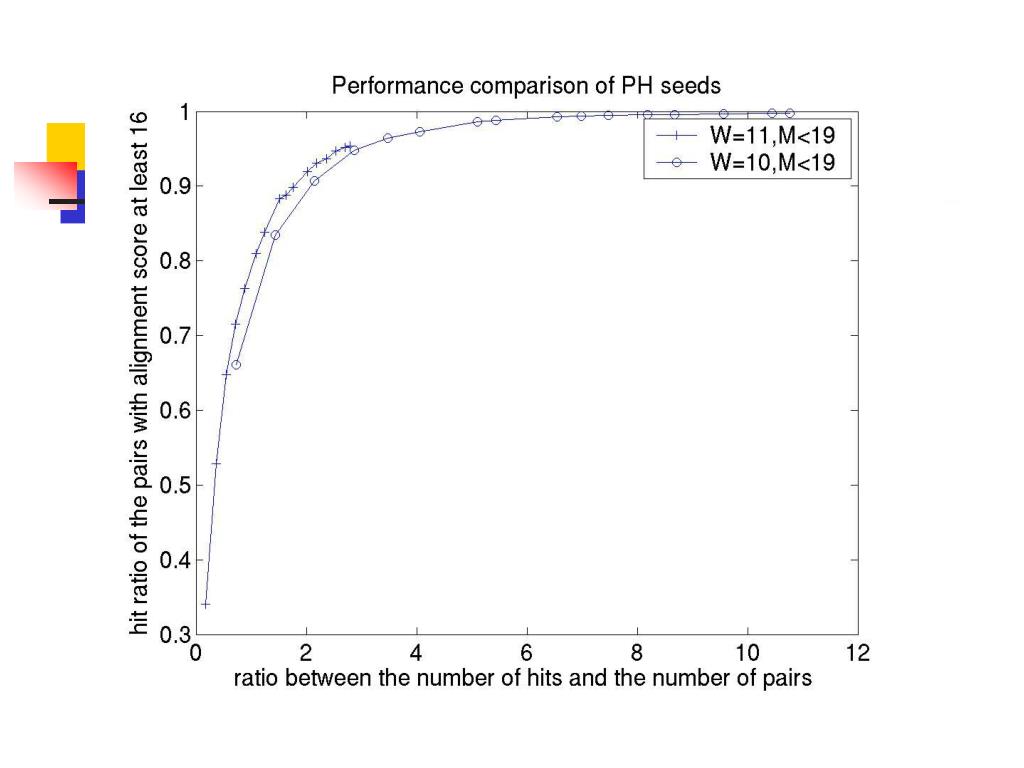

  22. Performance of PH Seeds

  23. Performance of HMM Seeds

  24. 4 HMM Seeds vs. 1 HMM Seed

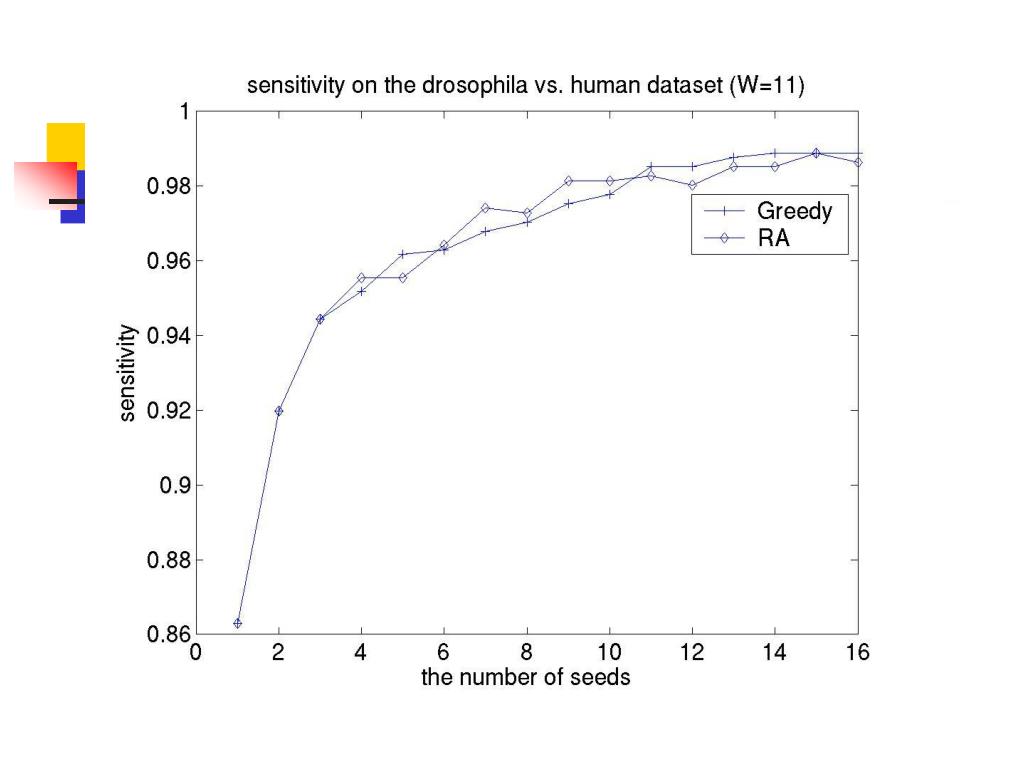

  25. Greedy vs. LP

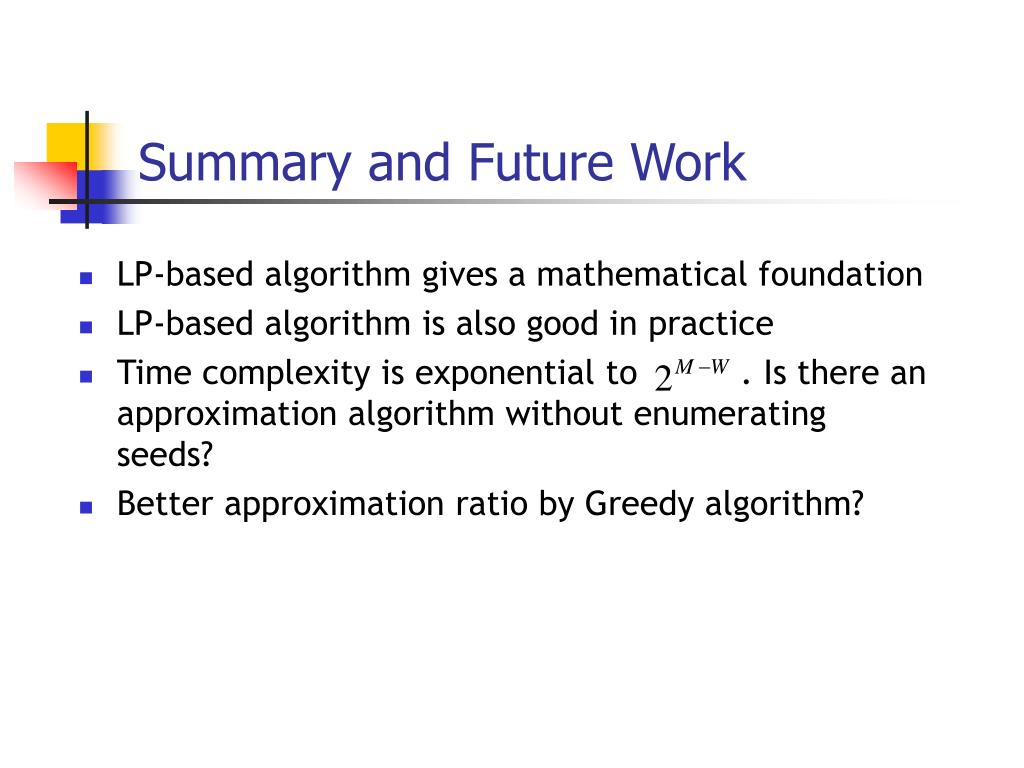

  26. Summary and Future Work • LP-based algorithm gives a mathematical foundation • LP-based algorithm is also good in practice • Time complexity is exponential to . Is there an approximation algorithm without enumerating seeds? • Better approximation ratio by Greedy algorithm?
