Jump LED: Illuminating Spaces with Award-Winning Aesthetics and Cutting-Edge Technology

Elevate your lighting experience with Jump LED, a luminaire designed to transform spaces with its revolutionary luminous features and unparalleled lighting performance. The sleek design, recognized with the prestigious Red Dot Design Award, offers a seamless continuum of luminance through textured MesoOptics lens and batwing distribution. With modular and integrated Airwave Wireless and Response Daylight controls, Jump LED provides endless aesthetic possibilities with 1,040 available combinations. The biconvex lens and Miro silver reflectors ensure efficient light redirection and optimal beam shaping for symmetric and asymmetric distributions. Experience 30-40% higher efficacy and 25-33% energy savings with the next generation LEDs, boards, and drivers. From educational environments to retail spaces, Jump LED brightens minds, enhances environments, and sets new standards in lighting innovation.

feoras
Télécharger la présentation

Jump LED: Illuminating Spaces with Award-Winning Aesthetics and Cutting-Edge Technology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. What Jump already offers • Award-winning aesthetics – Red Dot Design Award • Uninterrupted continuum of luminance • Textured MesoOptics lens • Revolutionary luminous endcap • First LED linear direct luminaire with a batwing distribution • Best in class lighting performance • Distribution, surface uniformity, energy density, glare control & spacing • Symmetric & asymmetric distributions • Modular & integrated – Airwave Wireless and Response Daylight controls

  2. Aesthetic Options SplashPerf, Black PixelPerf, Titanium SolidSide, White

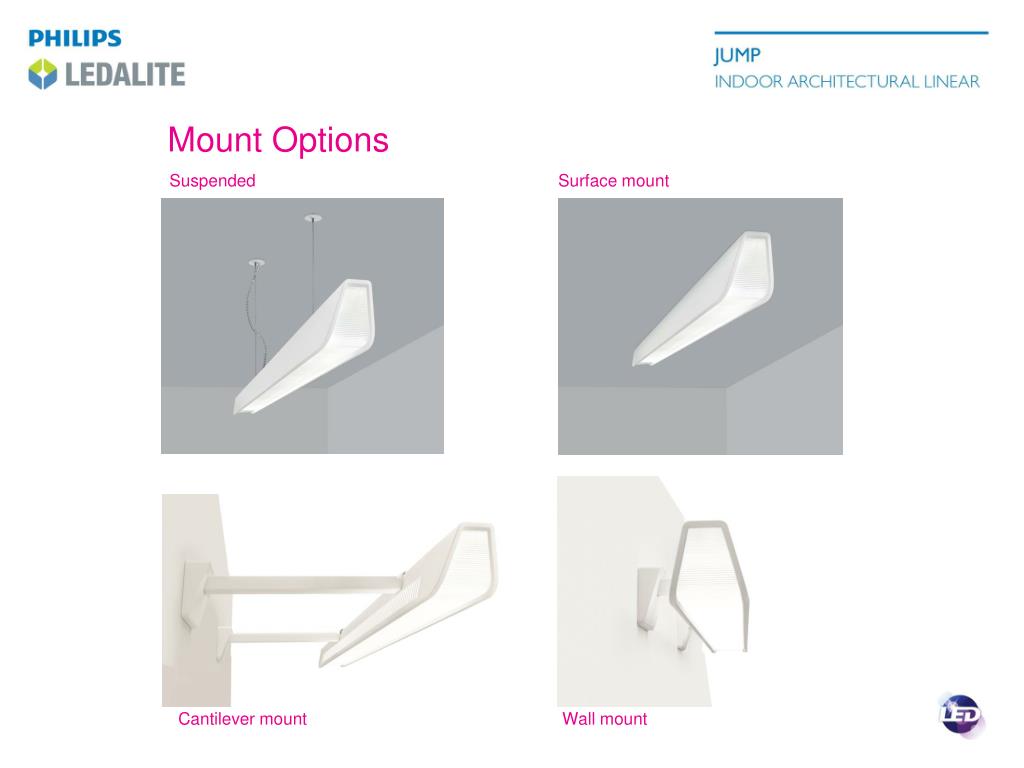

  3. Mount Options Suspended Surface mount Cantilever mount Wall mount

  4. Endless Possibilities 1,040 available combinations!

  5. Optics • Downlight from the LED array is redirected laterally with a biconvex lens • 98% efficient Miro silver reflectors mix the light in the optical chamber • MesoOpticsholographic film shapes the beam into an optimal batwing distribution Biconvex Lens Miro silver reflectors Batwing Distribution MesoOptics holographic film

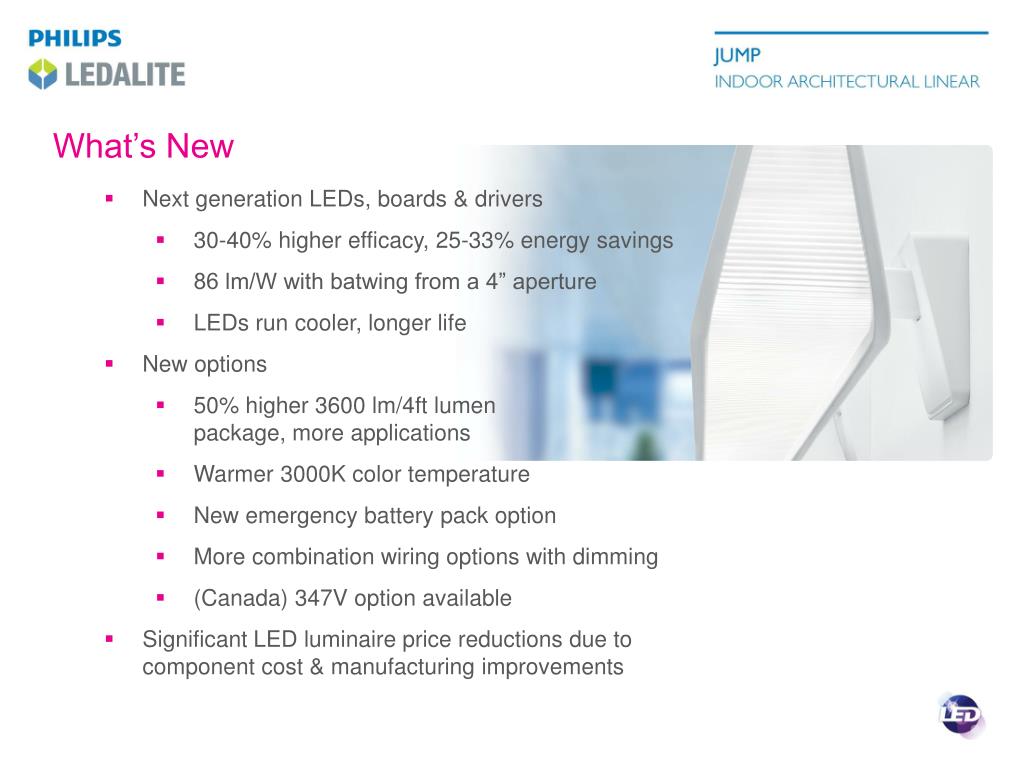

  6. What’s New • Next generation LEDs, boards & drivers • 30-40% higher efficacy, 25-33% energy savings • 86 lm/W with batwing from a 4” aperture • LEDs run cooler, longer life • New options • 50% higher 3600 lm/4ft lumen package, more applications • Warmer 3000K color temperature • New emergency battery pack option • More combination wiring options with dimming • (Canada) 347V option available • Significant LED luminaire price reductions due to component cost & manufacturing improvements

  7. Education • Controlled lighting helps brighten young minds 3000K 25’ x 40’ x 9.5’H 8ft AFF *On desks

  8. Library • Luminous spaces for study and vertical stack illumination

  9. Boardroom • Clean white light without glare for conversation areas *On boardroom table

  10. Corridor • Asymmetric meets aesthetic

  11. Office • Visual comfort, refined design, minimum energy

  12. Health • Enhancing people’s environment & well-being

  13. Retail • Design detail & dynamic spaces *On bar surface

  14. Jump LED Compared
